The Psion Organiser was released in 1984. The Series 1 had a 1-line display, and only 2K RAM.

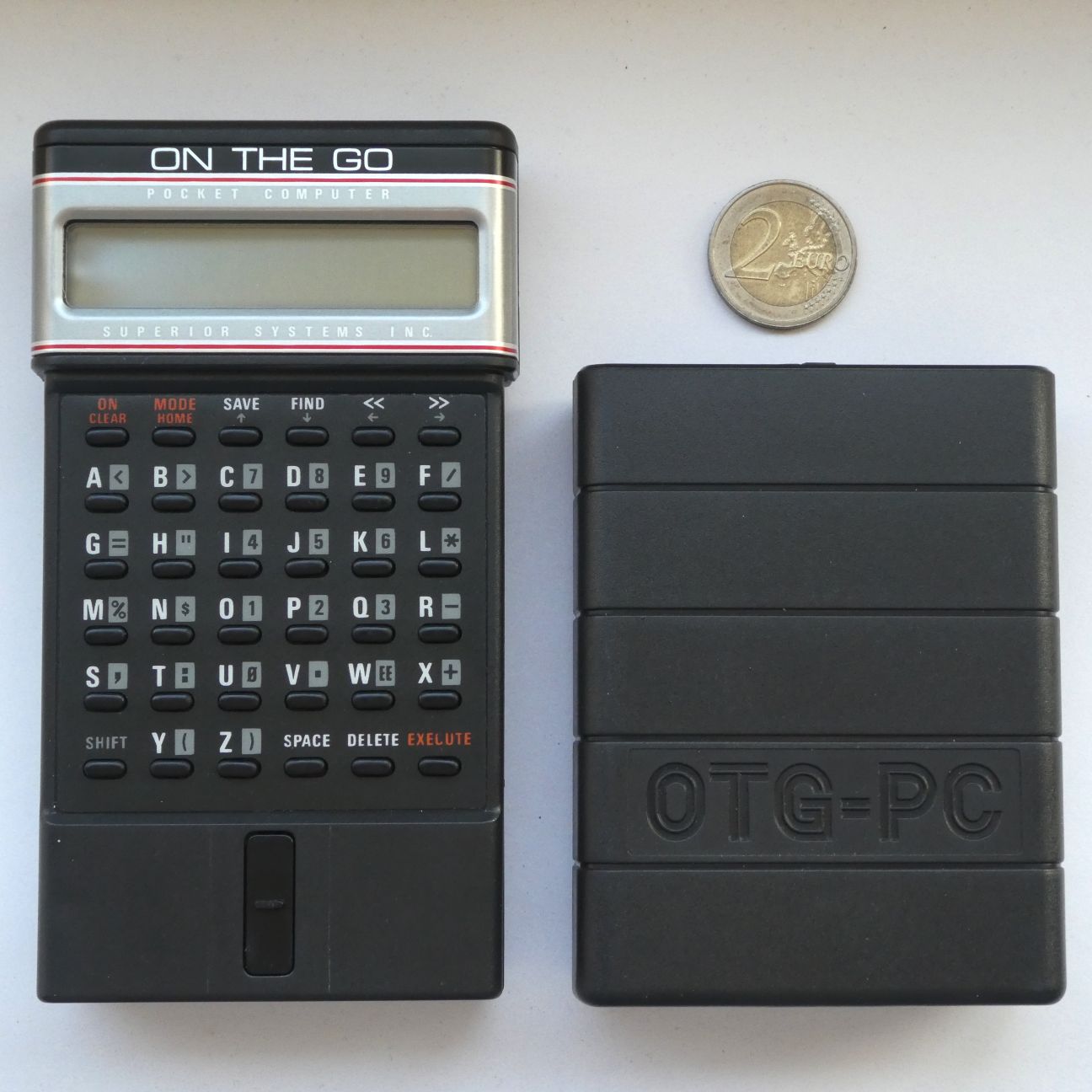

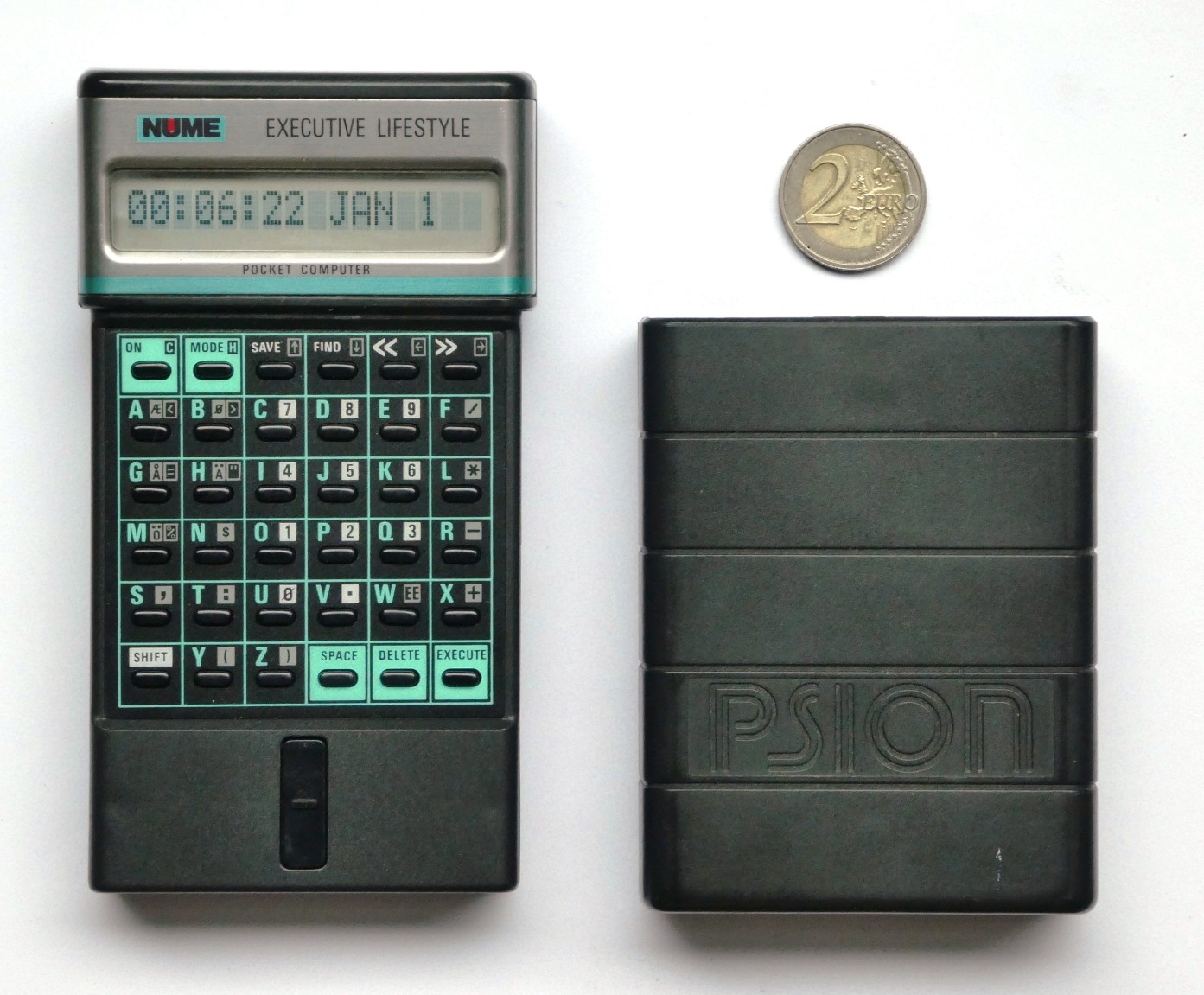

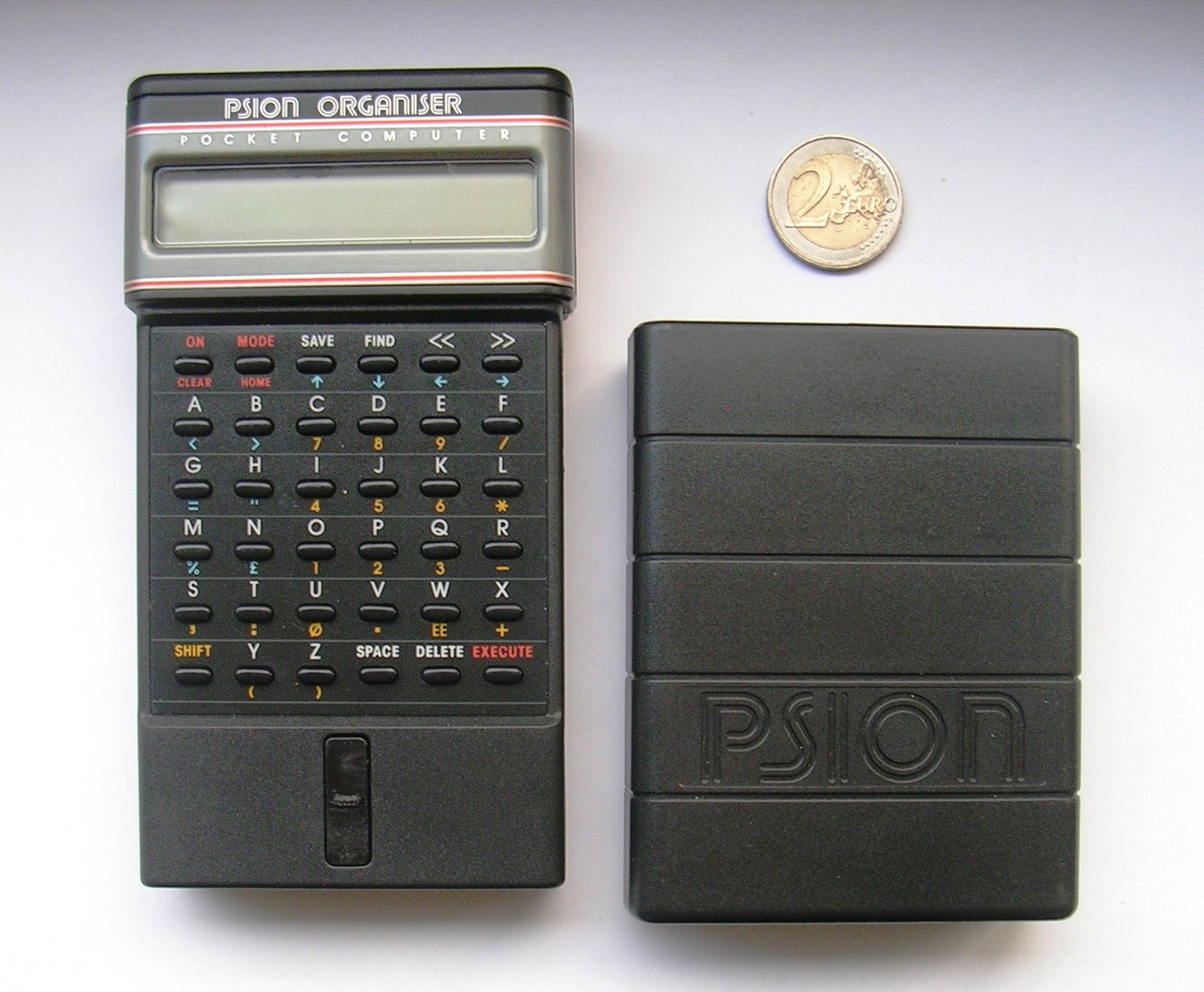

Psion Organiser 1
Front
Psion Organiser 1

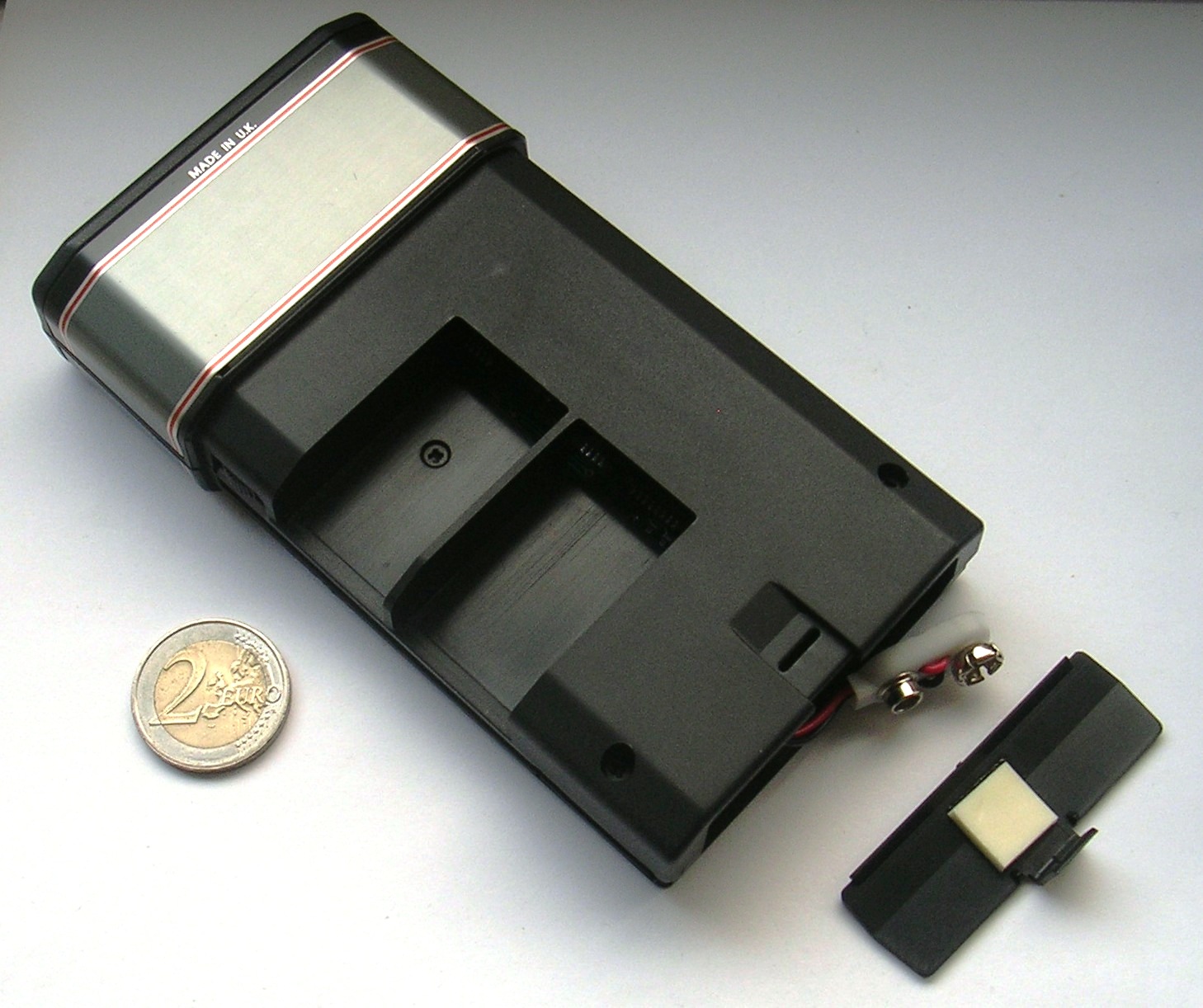

Back
Power Board
Back

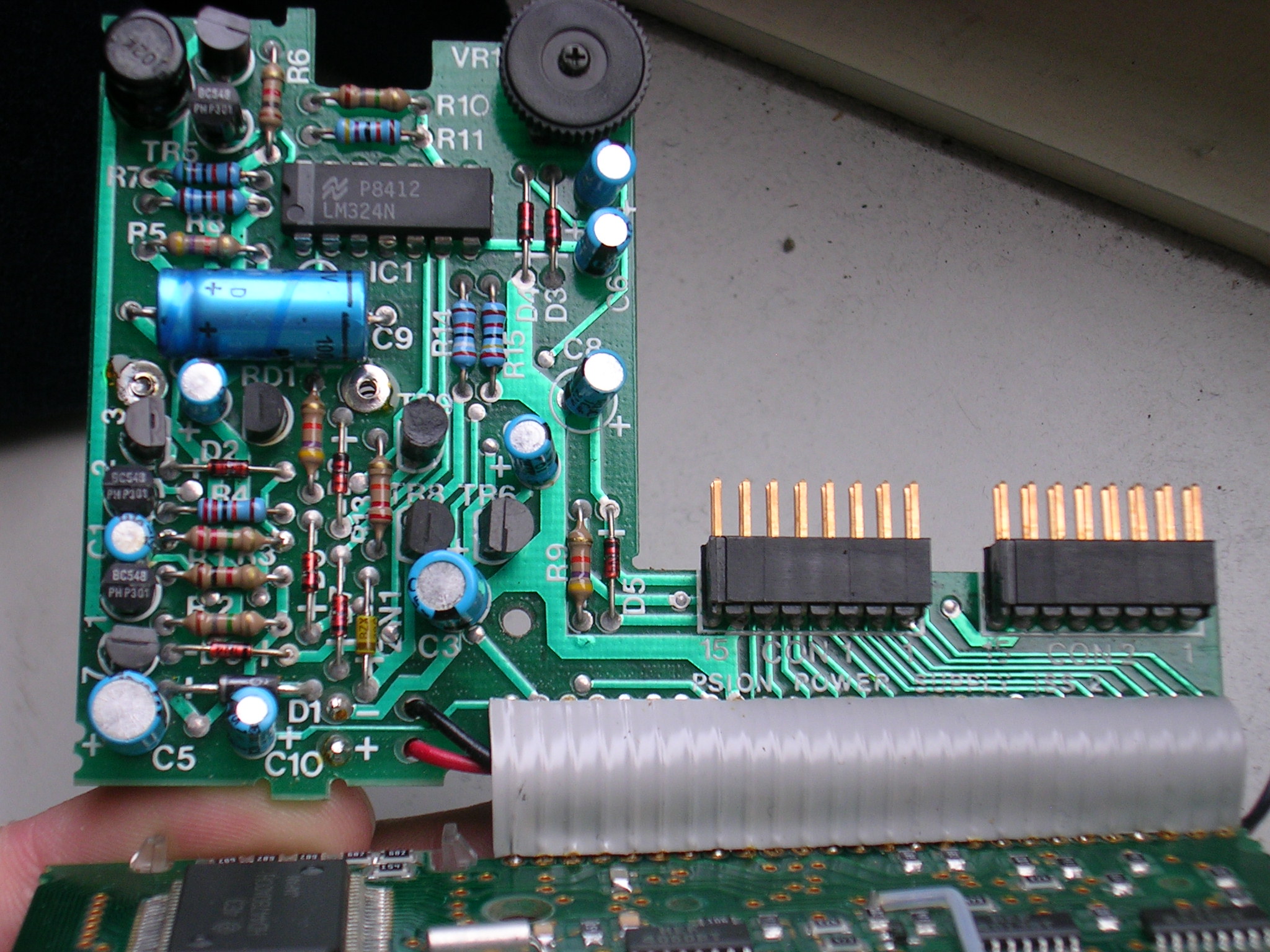

Power Board
Front

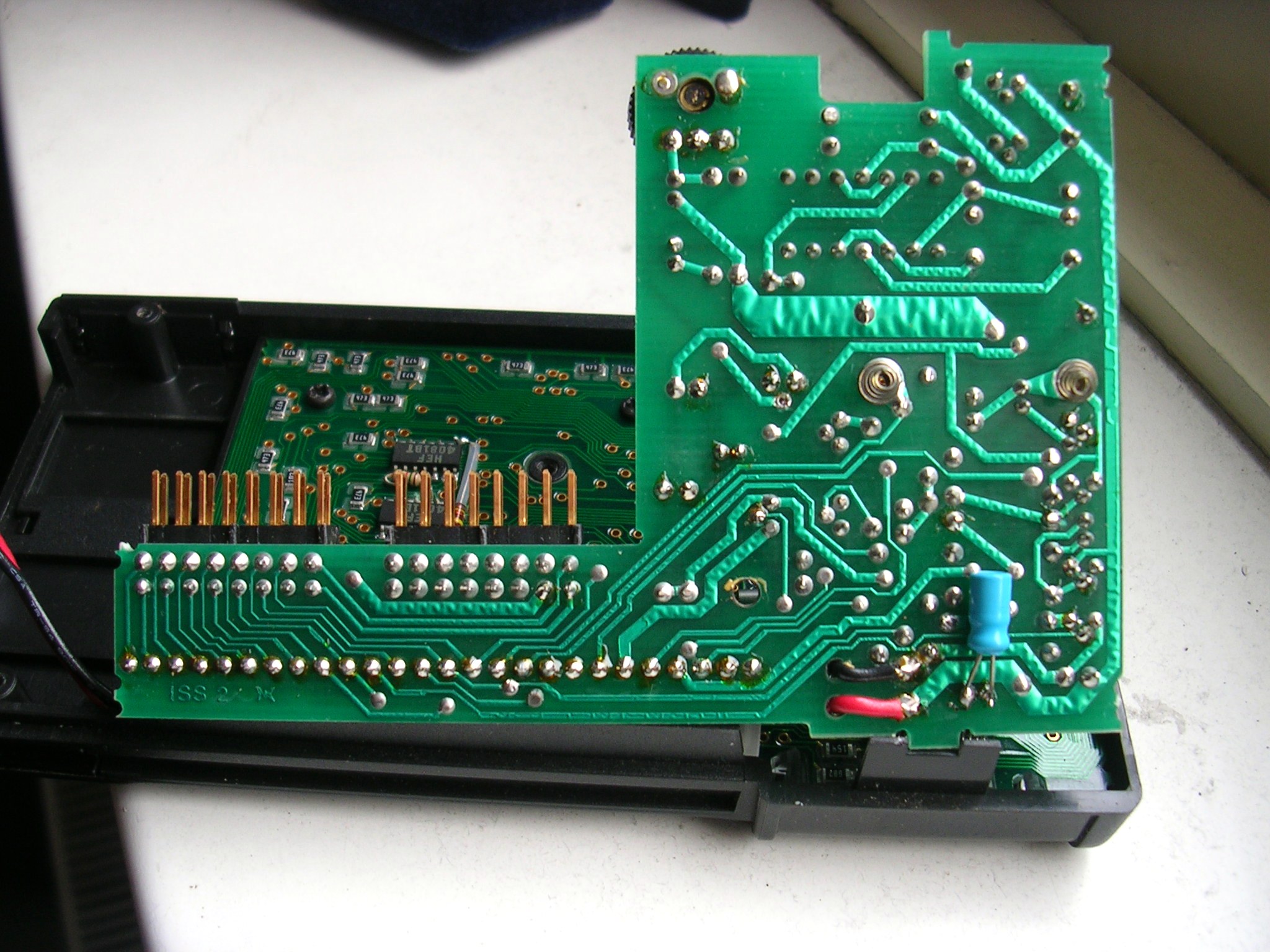

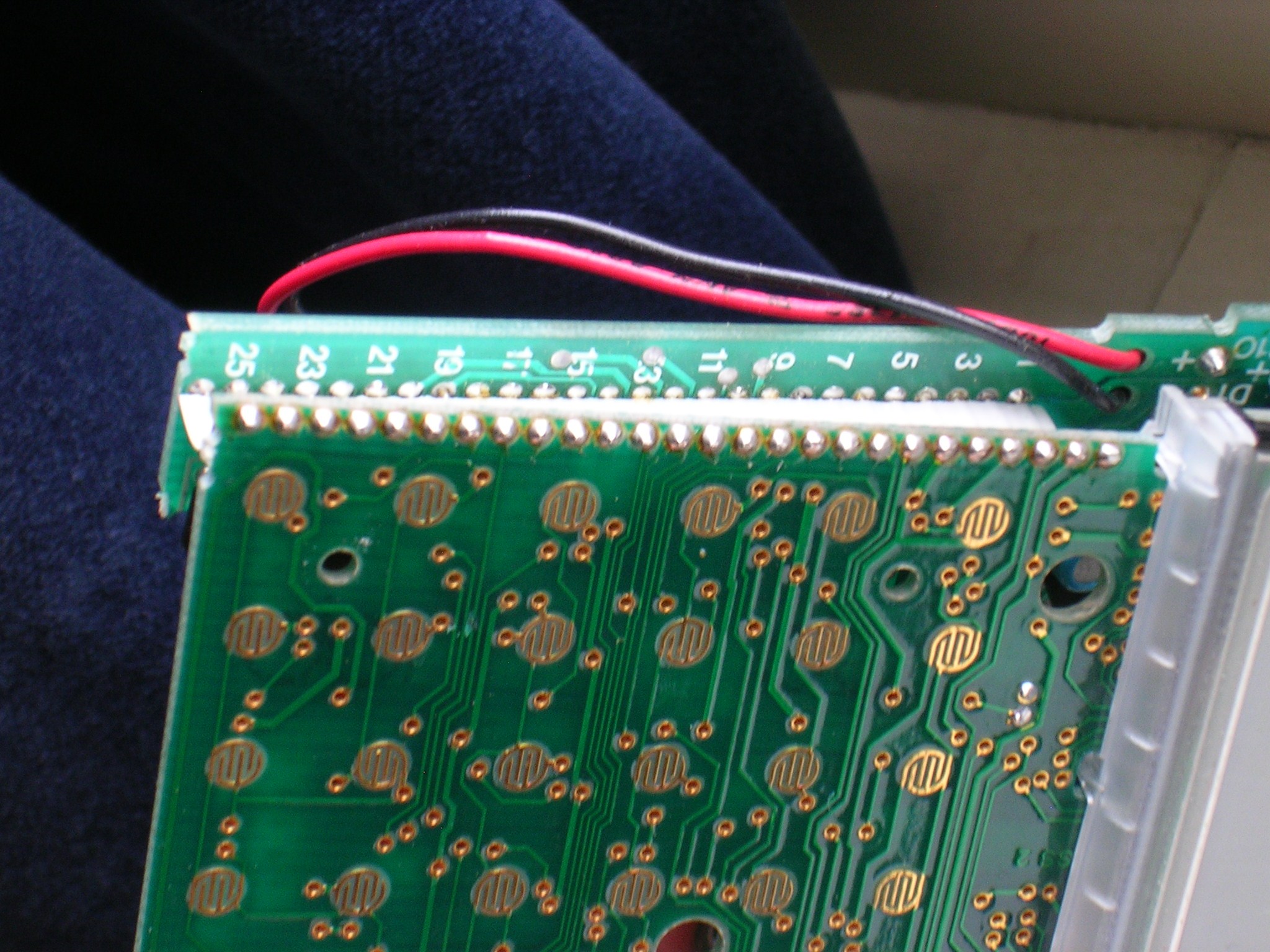

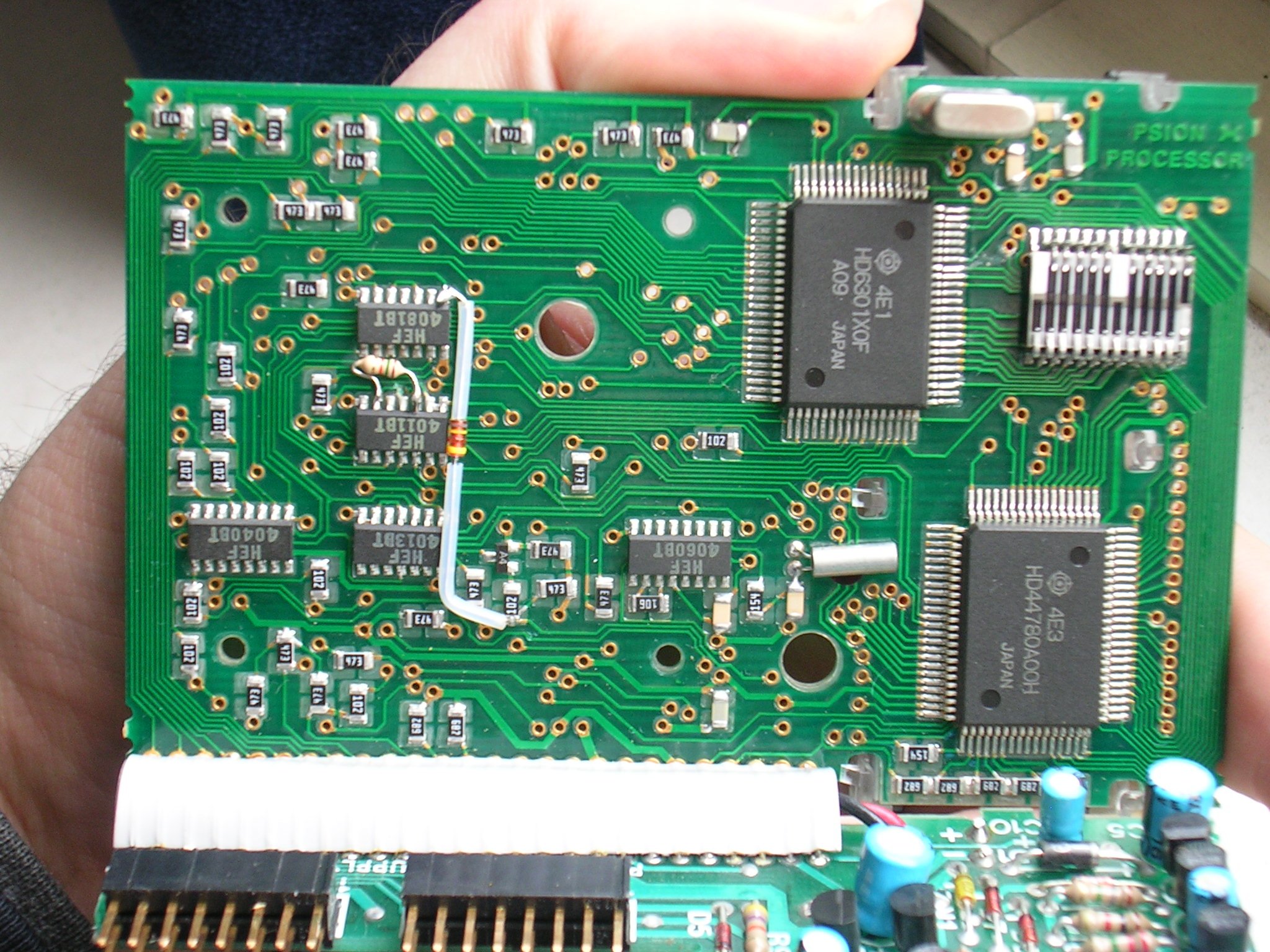

Main Board
Back

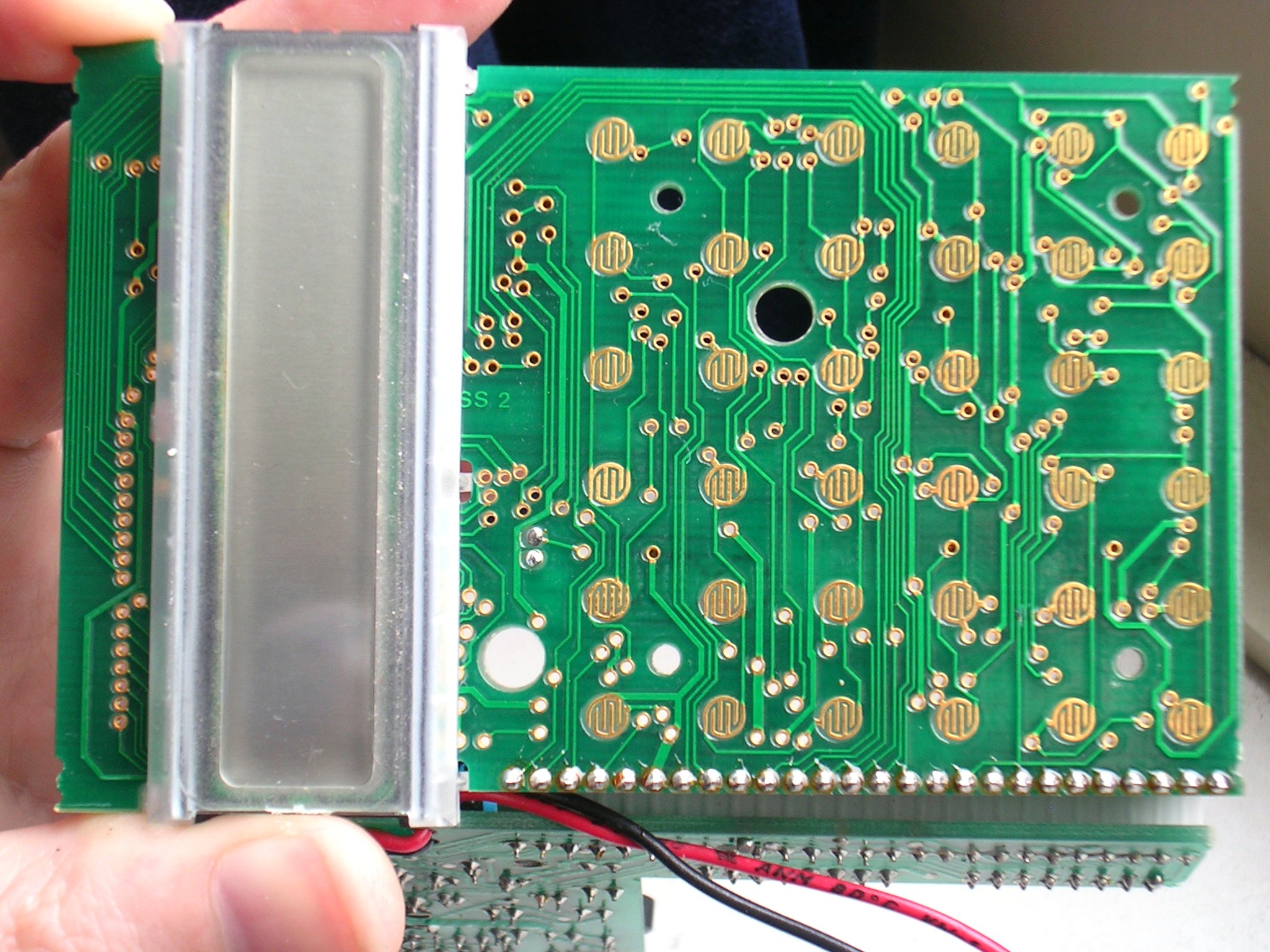

Main Board
Front
Board connection

Datapaks and Program Packs

The Organiser's 4K ROM did not provide a lot of functionality, so most of that had to come from software packs. It was supplied with the Utility Pak as standard. Datapaks only came in sizes 8K and 16K. Most software packs had special circuit boards marked "PROGRAM PAC", in which the programming voltage (Vpp) line is not connected, so the pack could not be written to even though it contains an EPROM. The Link-Up Pack and the Software Pack used ordinary datapaks so that you can store your link settings and programs on the same pack.

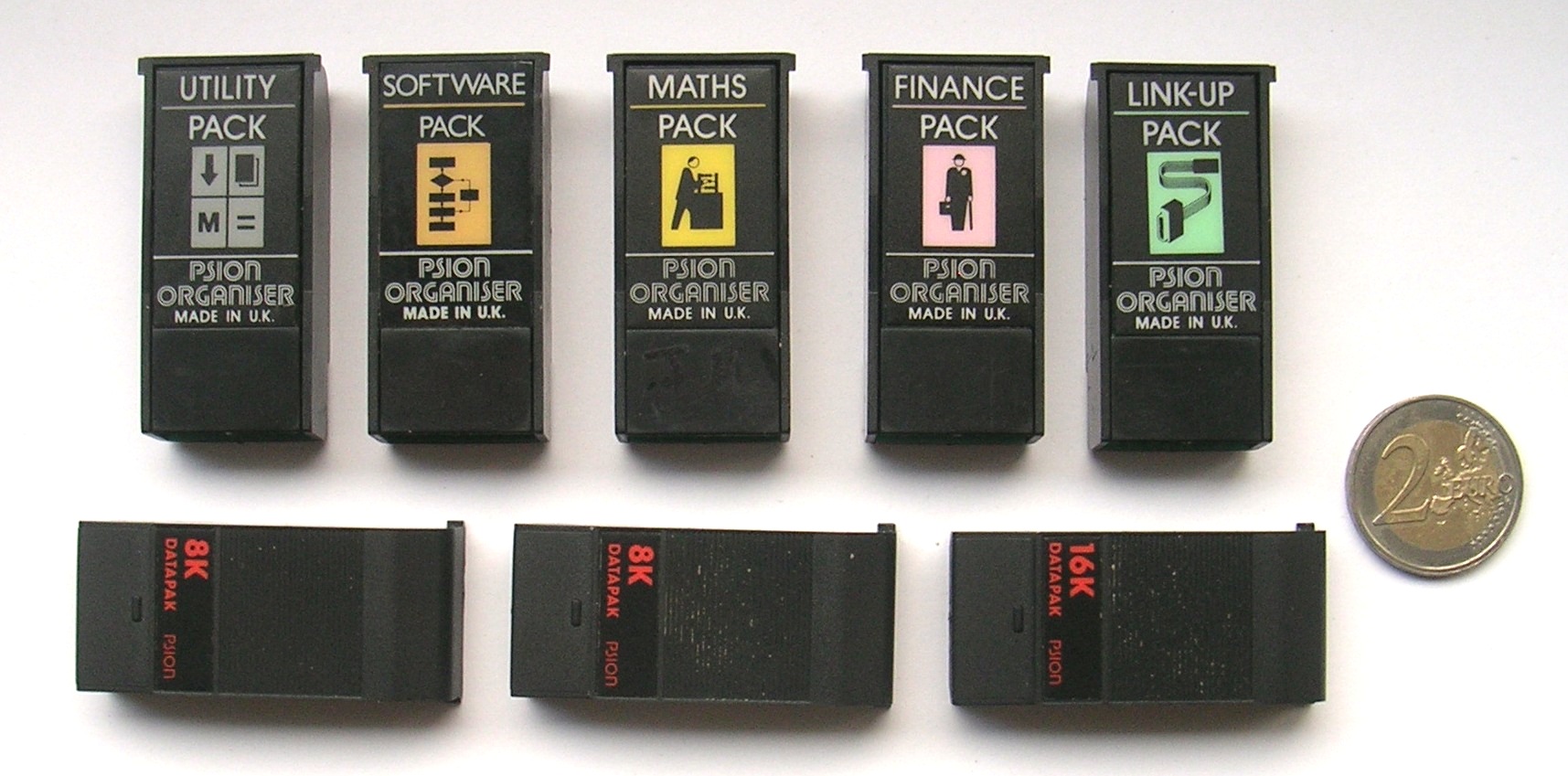

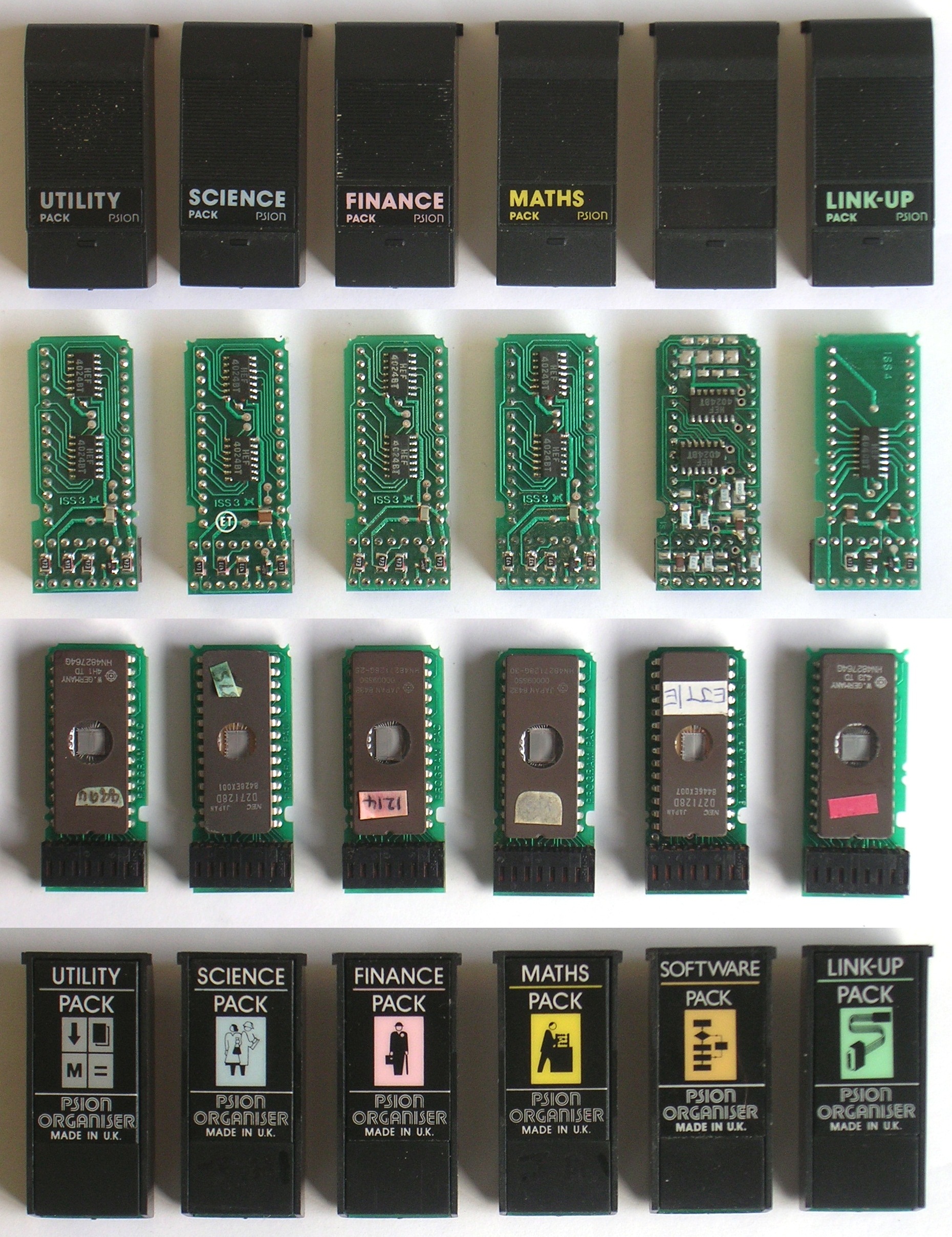

Packs

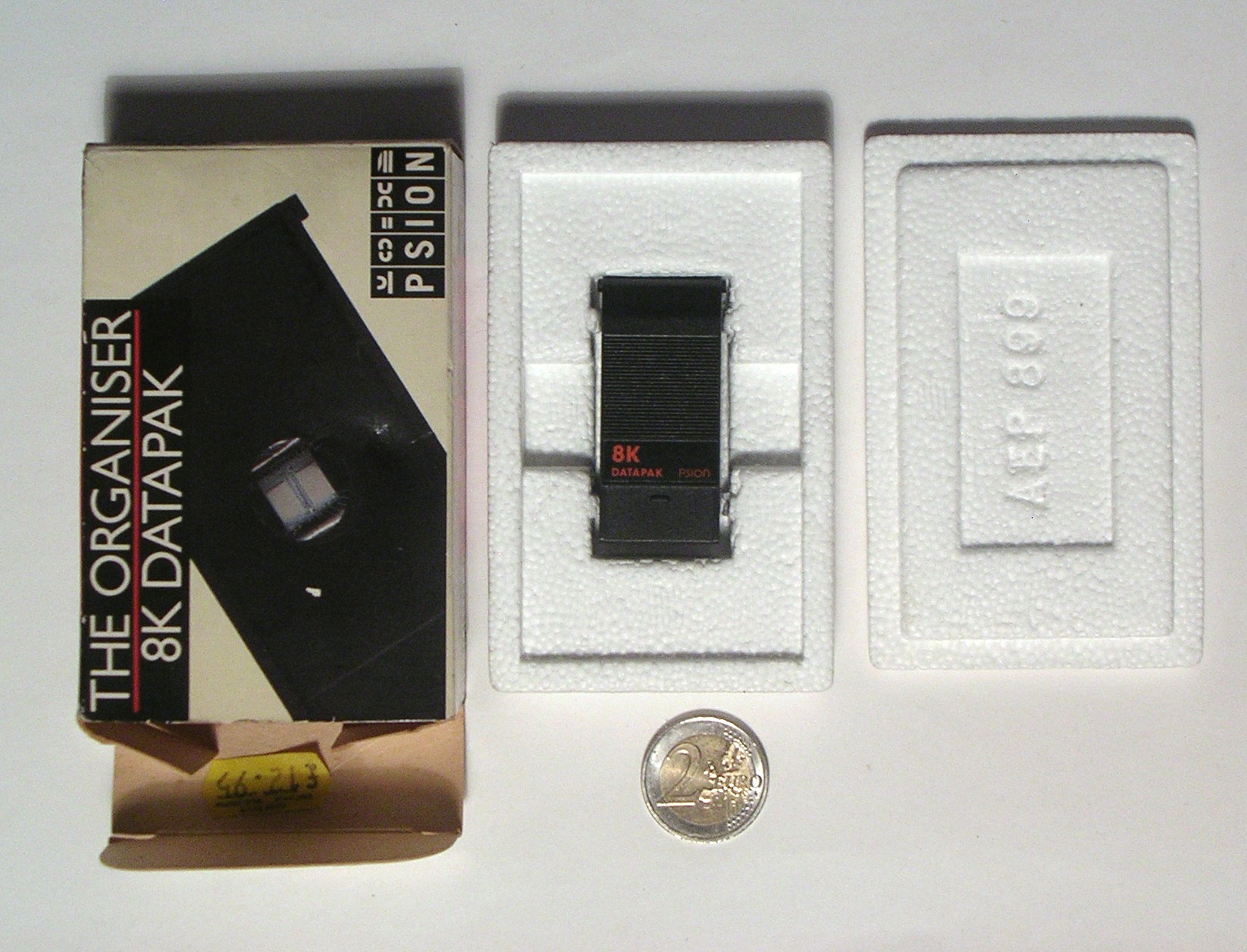

8K Datapak
16K Datapak
8K Datapak

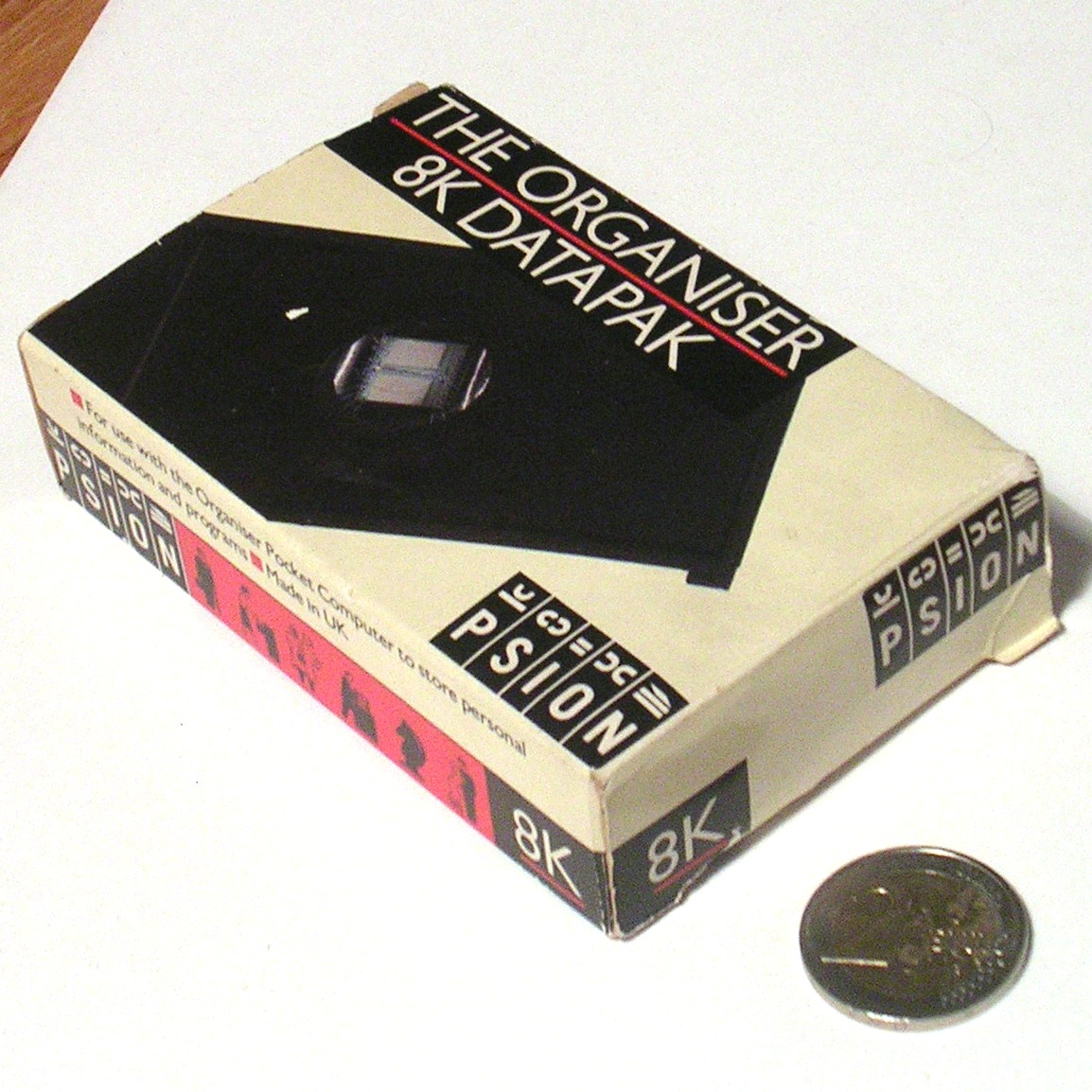

Box
8K Datapak
Box
Program Pack
Software Packs
By Psion
Science Pack
Box, front
Science Pack
Box, rear
Science Pack
Box contents
Pack Labels

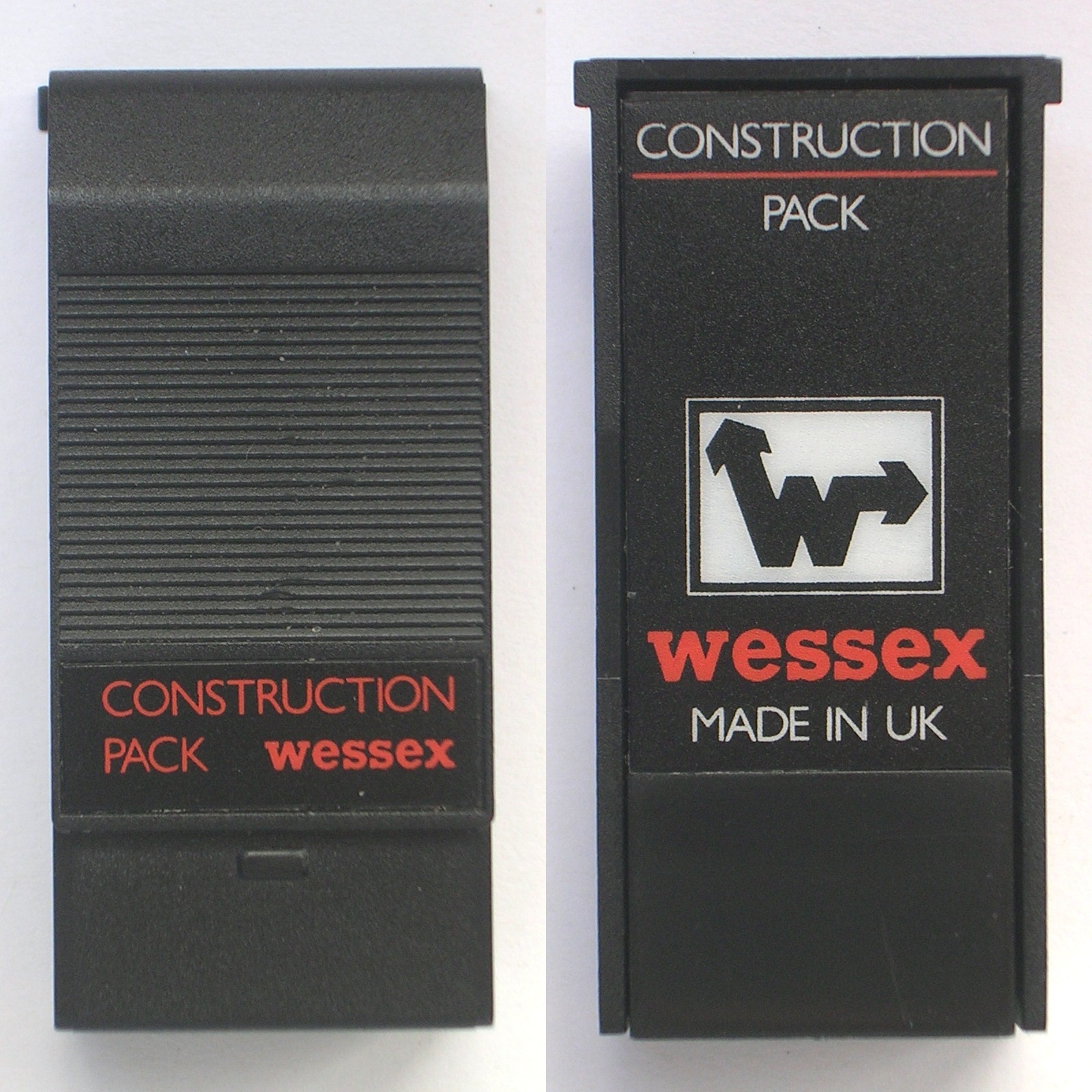

Construction Pack
By Wessex

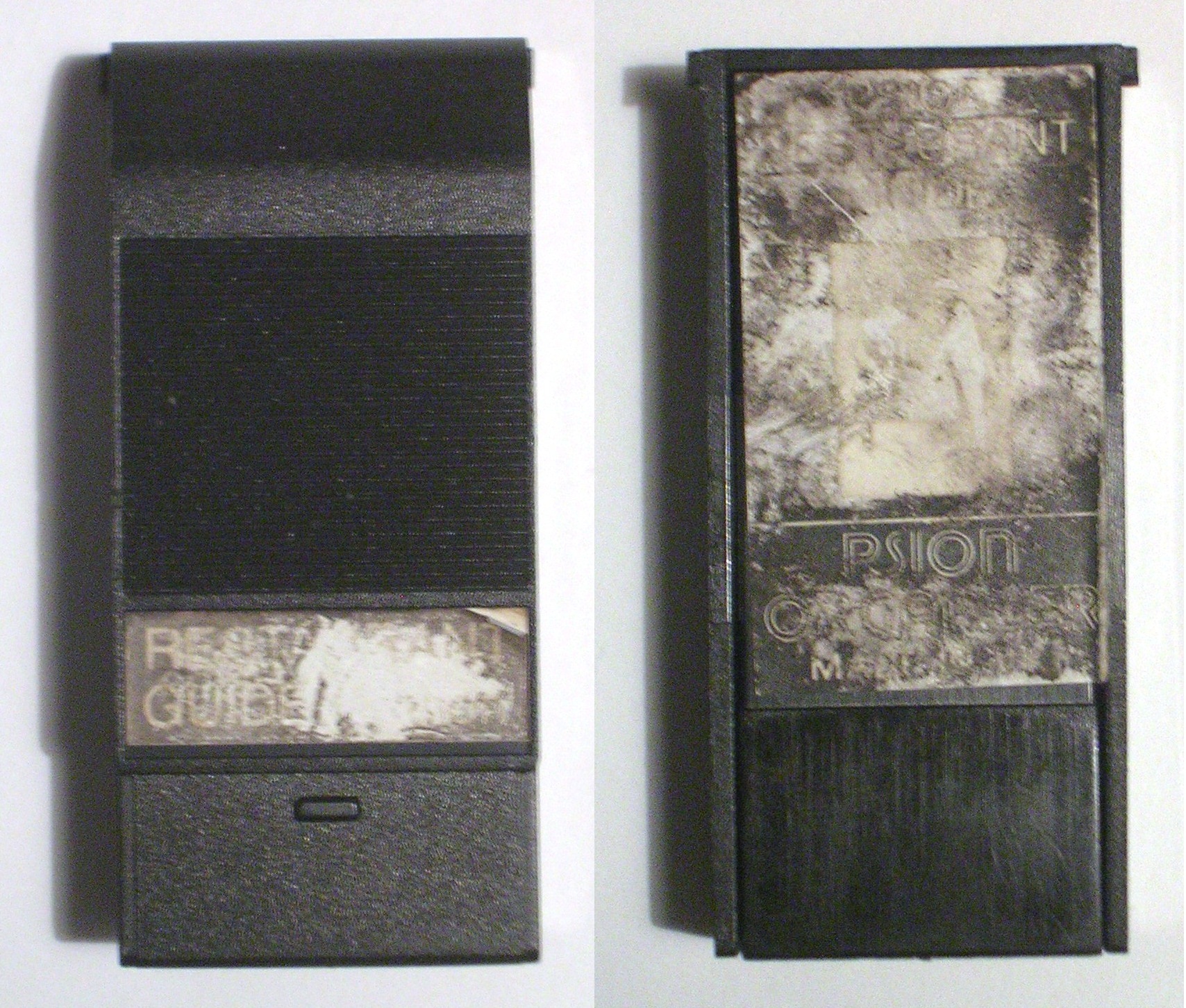

Restaurant Guide
16K Datapak

Devices

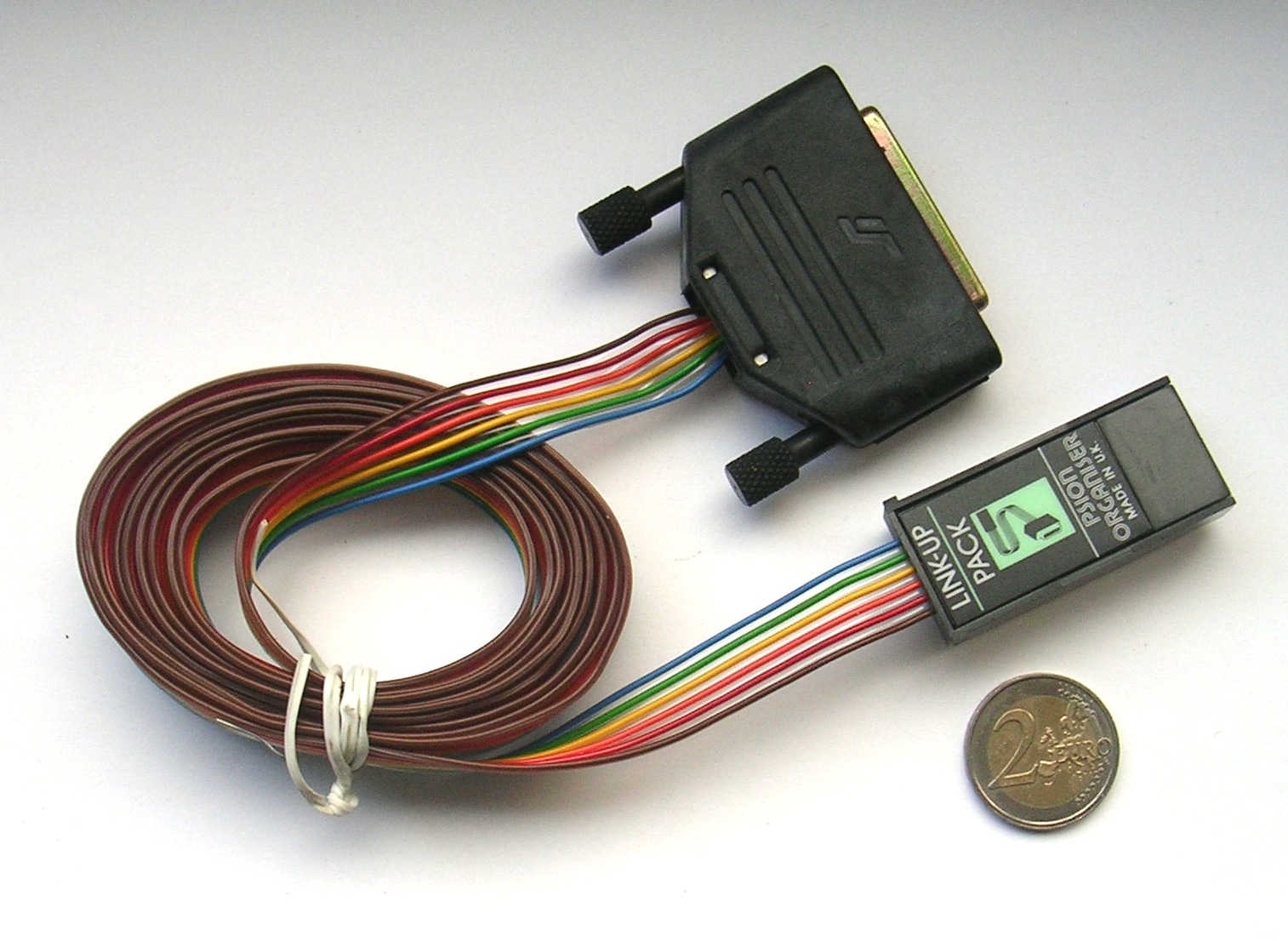

The Organiser did not have a top slot for connecting devices. A comms link was produced, the Link-Up Pack, which consisted of one software pack and one pack with a ribbon lead connected to it with a DB-25 plug at the other end. By putting both packs into the organiser slots, the Organiser could communicate using the standard RS232 protocol with any other serial device such as a PC. Note that once the software was loaded and the correct settings selected, the software pack could be replaced by a datapak containing the data you wanted to send.

Also shown here is a magnetic card reader which has a pack connector, allowing it to be used with the series 1. A further pack connector is shown that used to have a bar code reader pen attached, but that pen was removed after it fell apart.

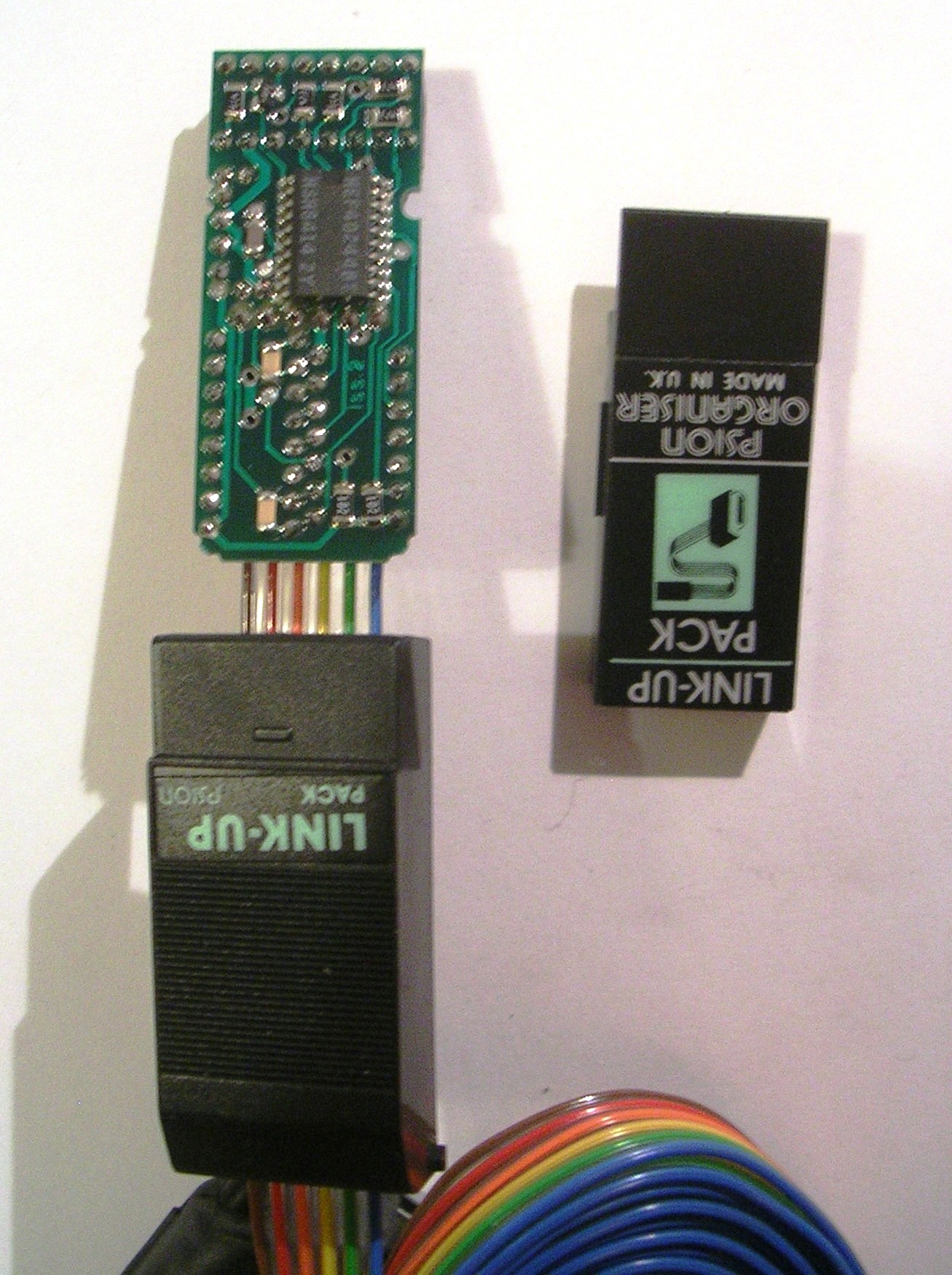

Link-Up Pack
Link-Up Pack

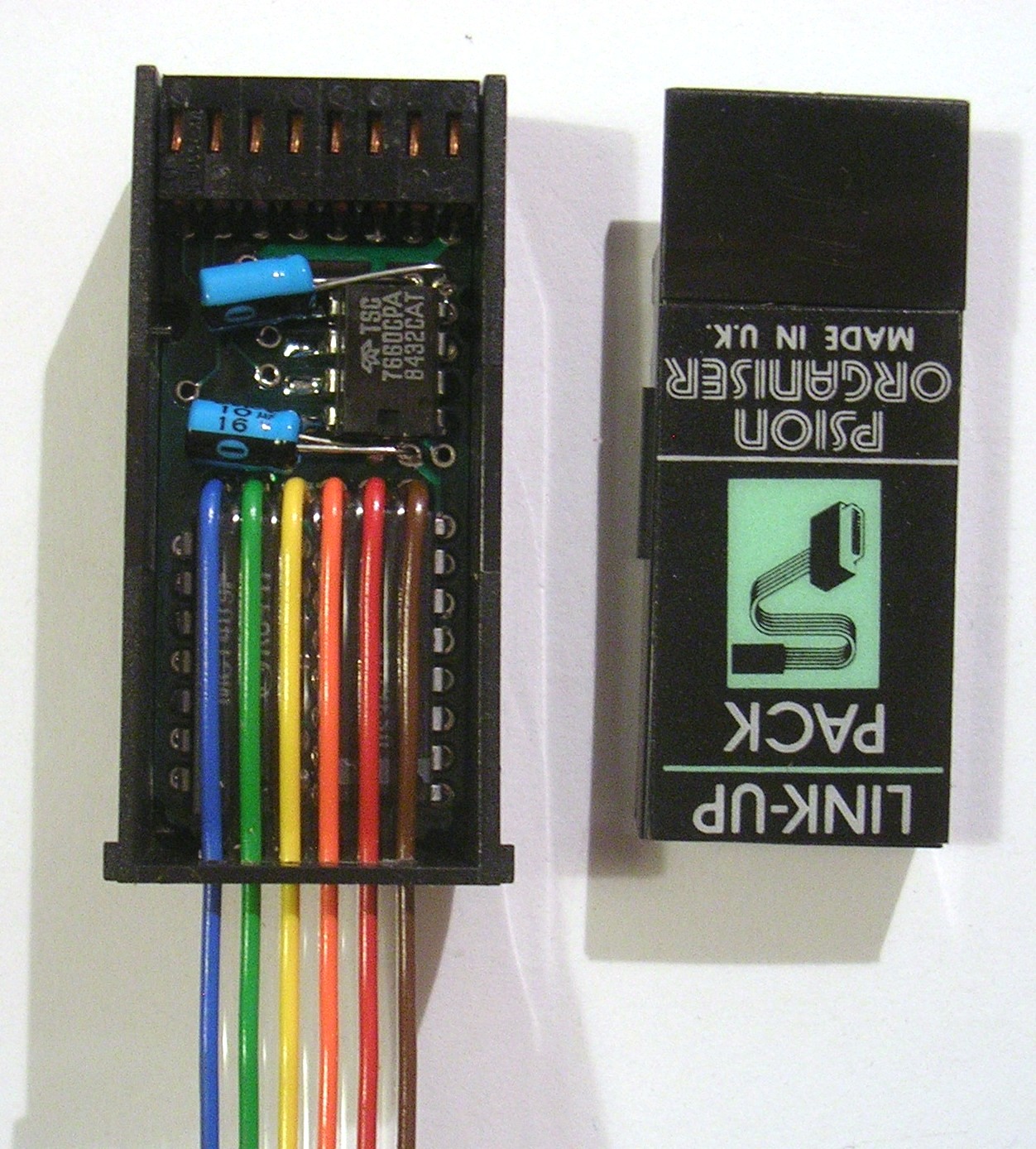

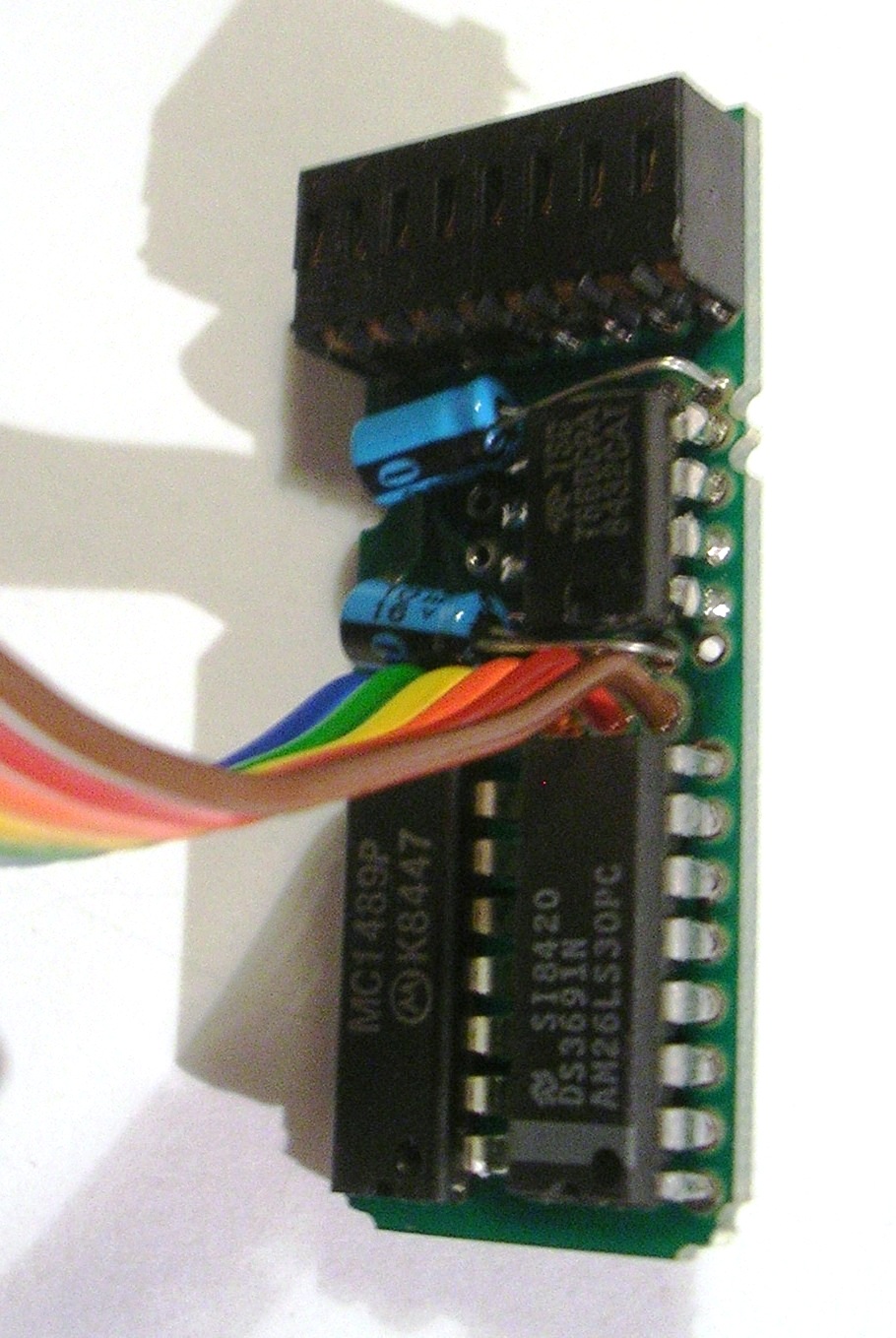

Link-Up Pack
Link-Up Pack

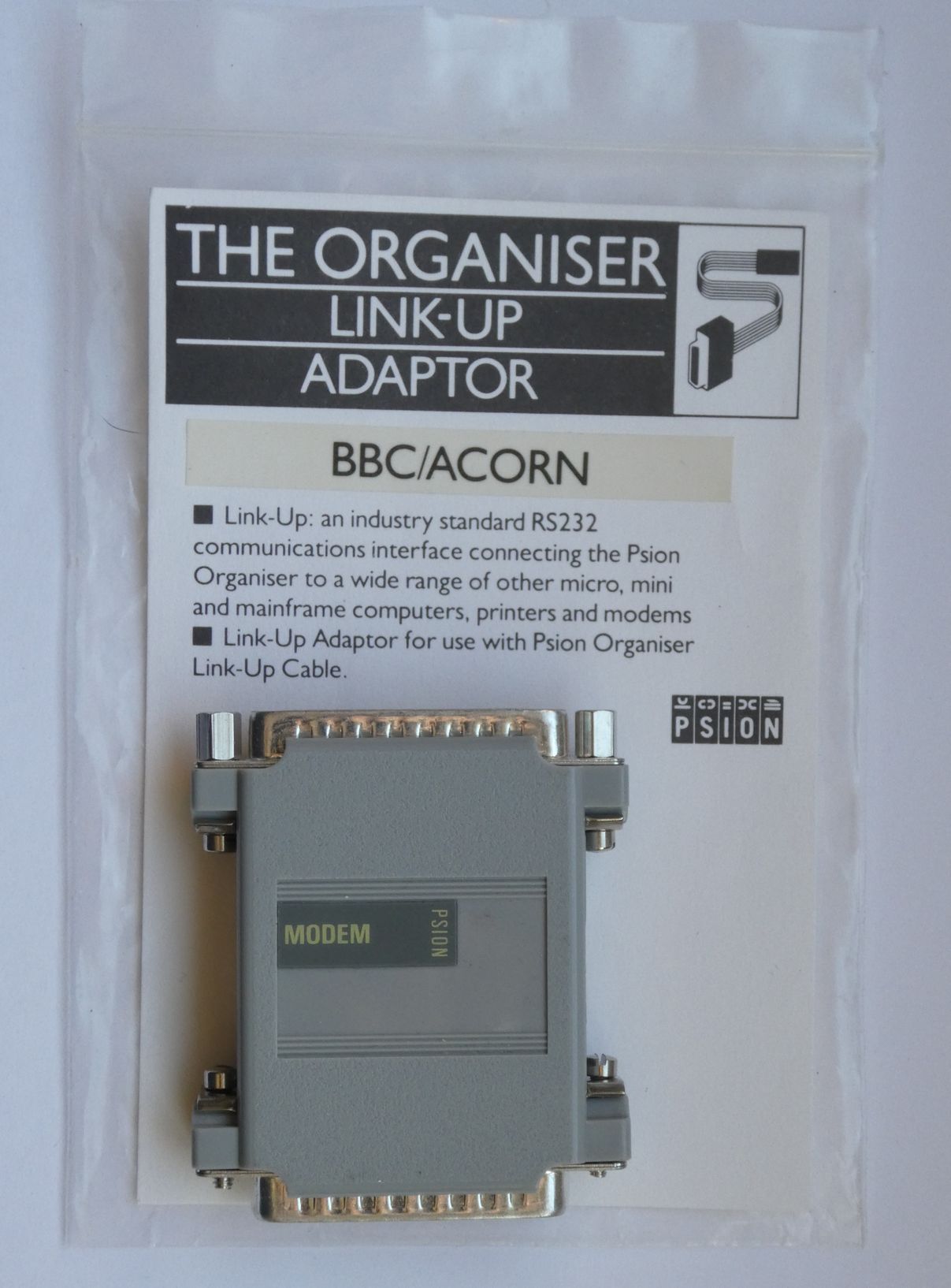

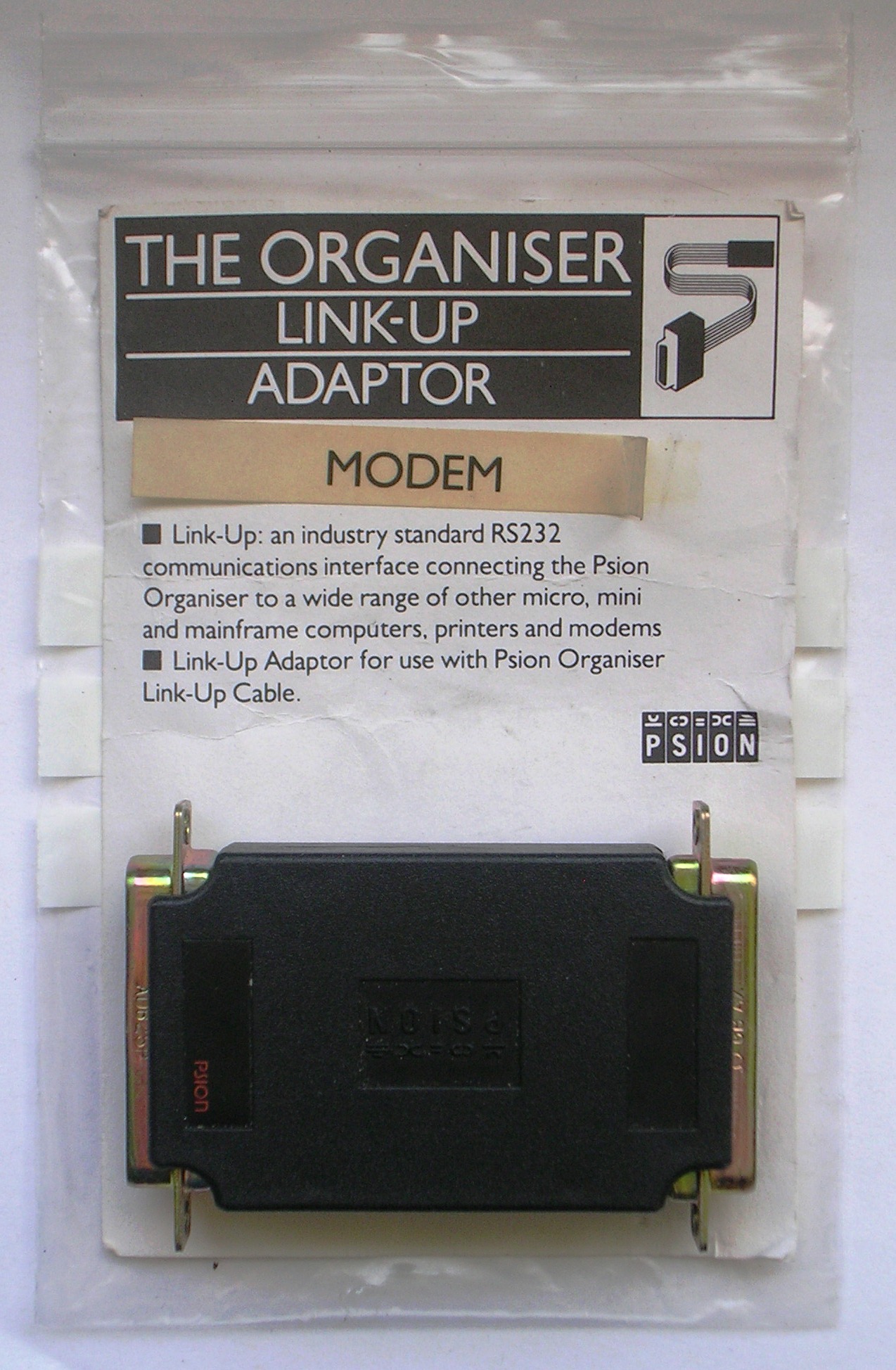

Modem Adaptor

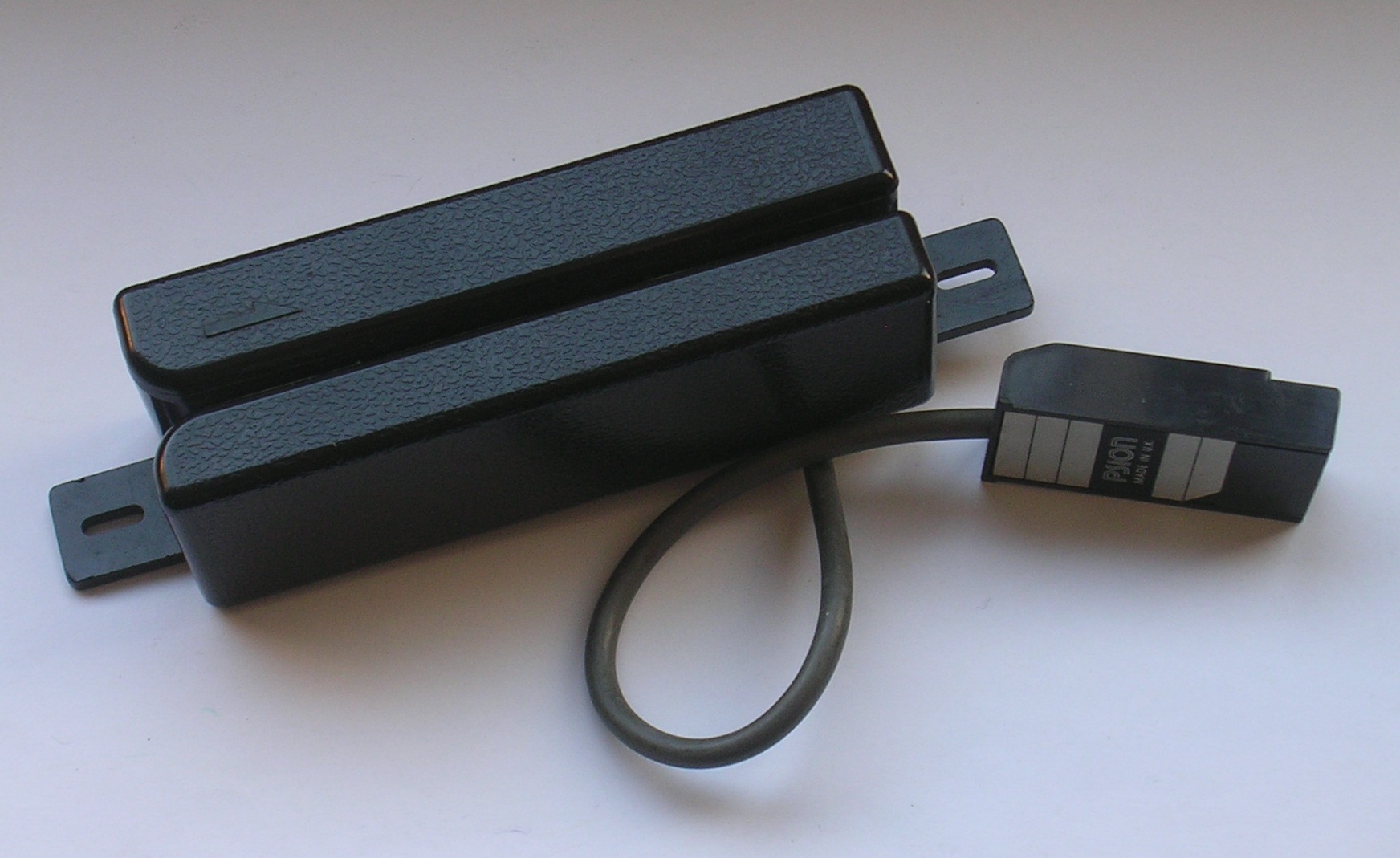

Magnetic Card Reader
with pack connector
Magnetic Card Reader

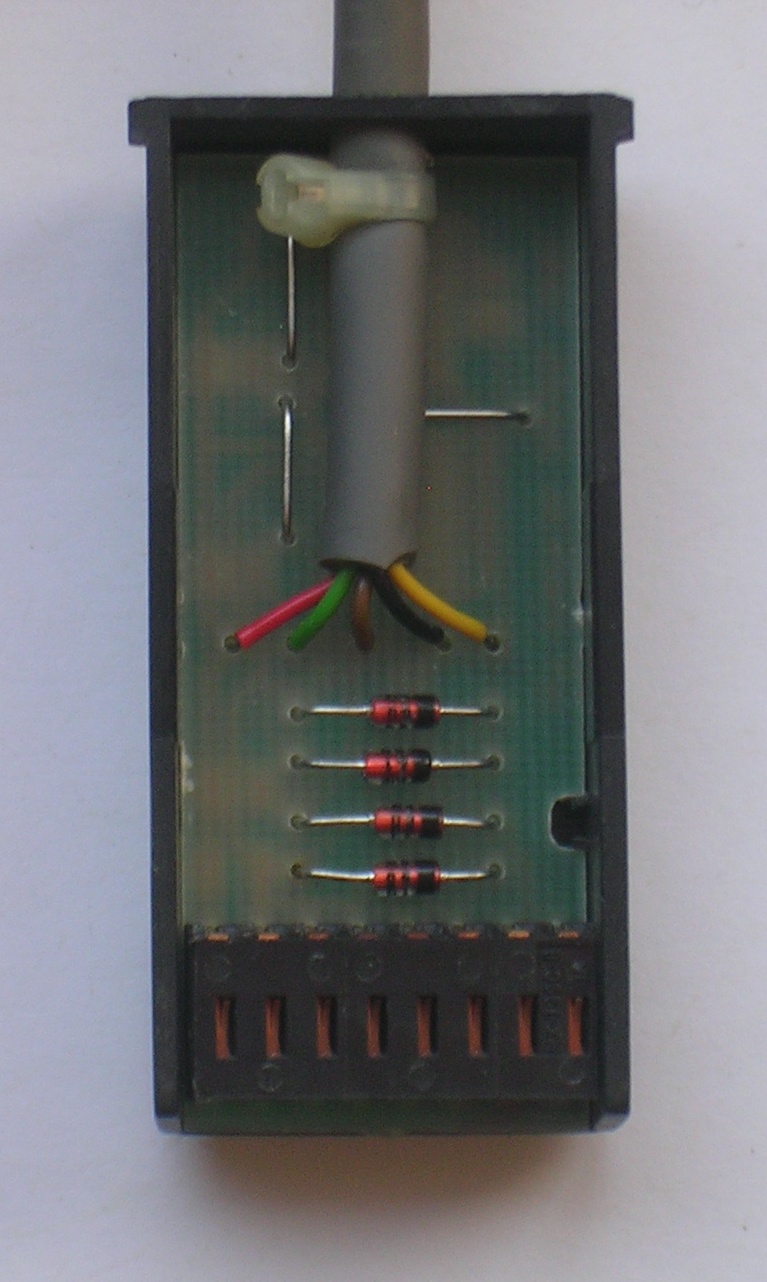

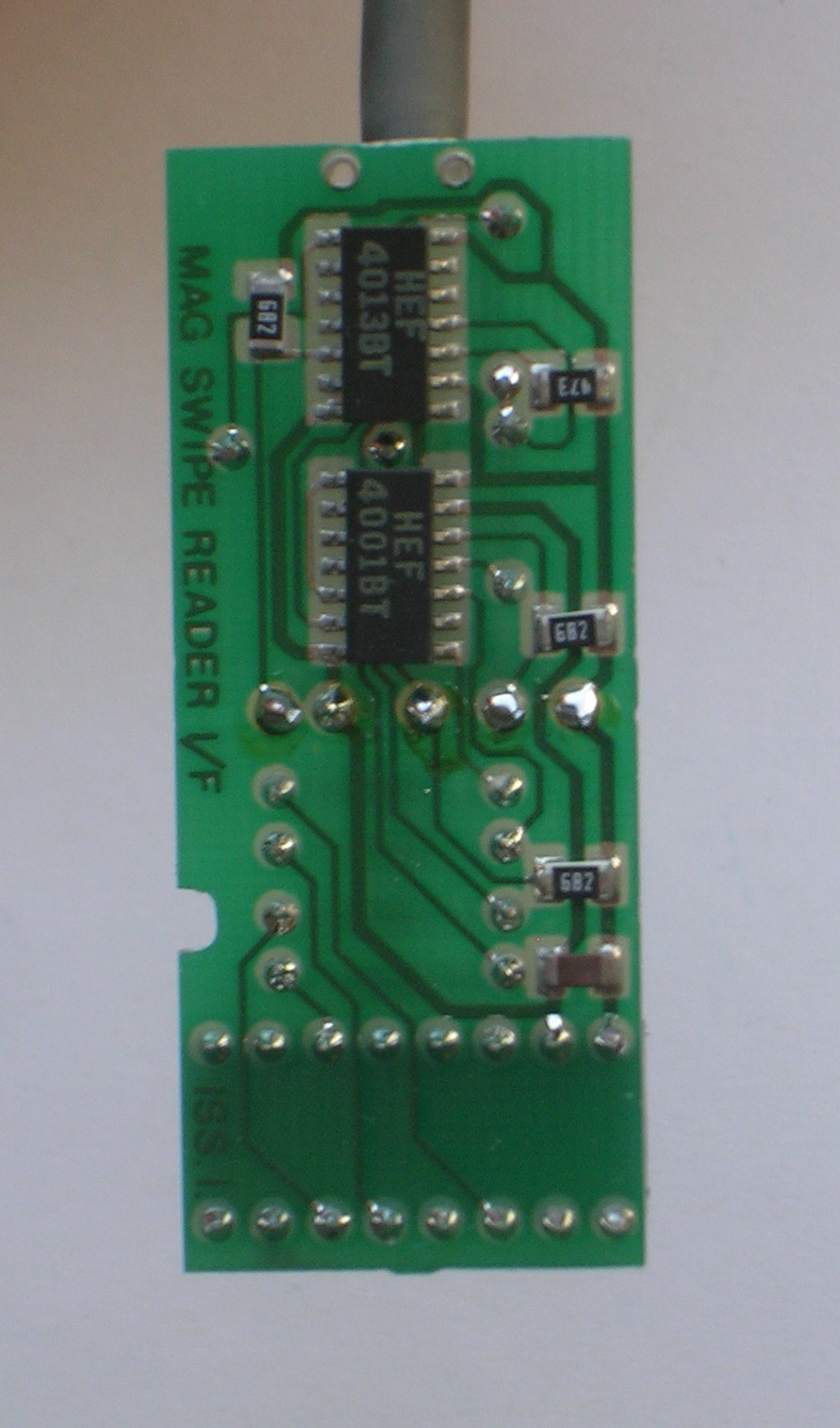

Connector, Inside
Magnetic Card Reader
Connector, Back
Magnetic Card Reader
Connector, Front

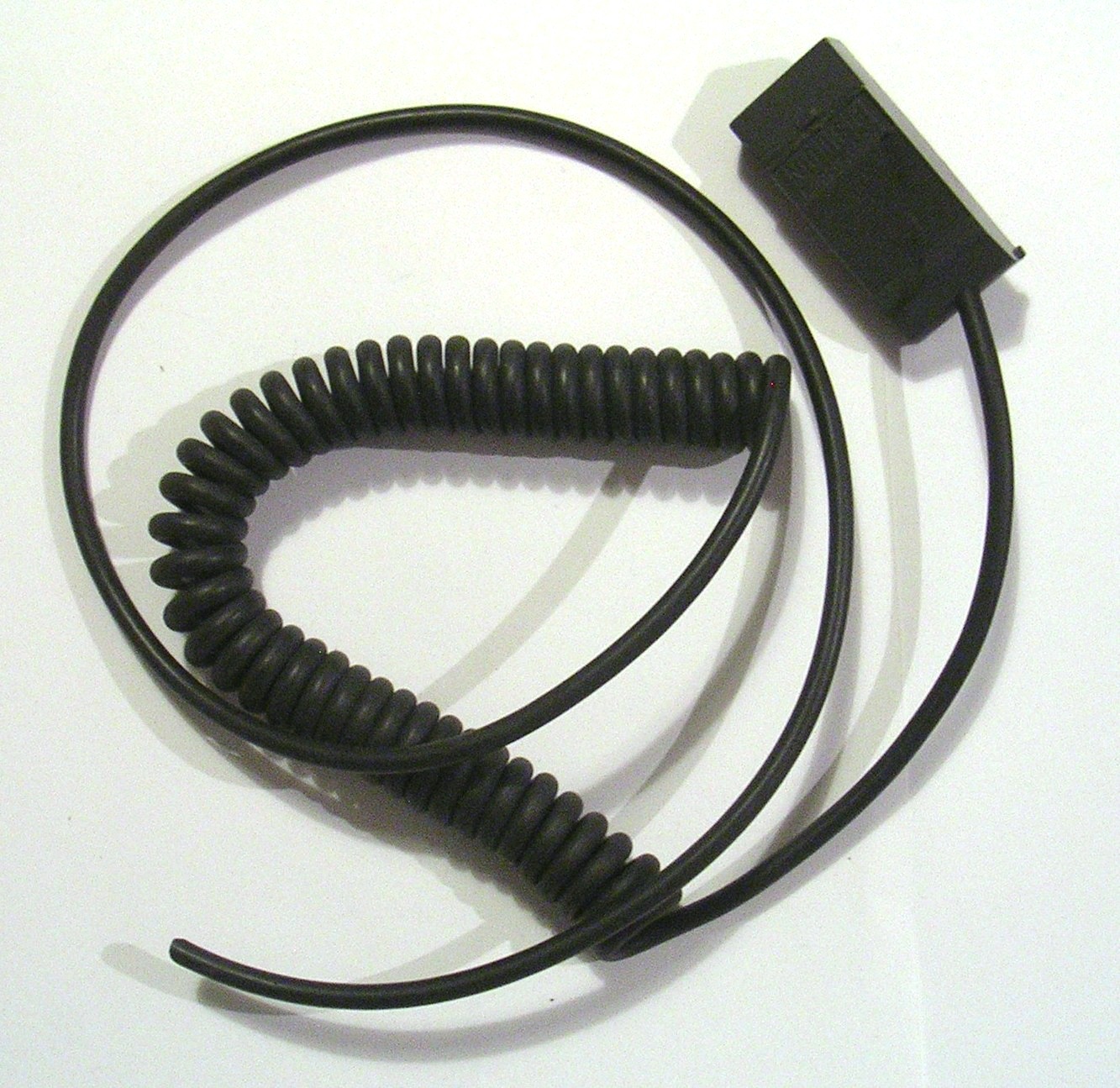

Barcode Pen
Pack Connector
Pen missing
Barcode Pen
Pack Connector

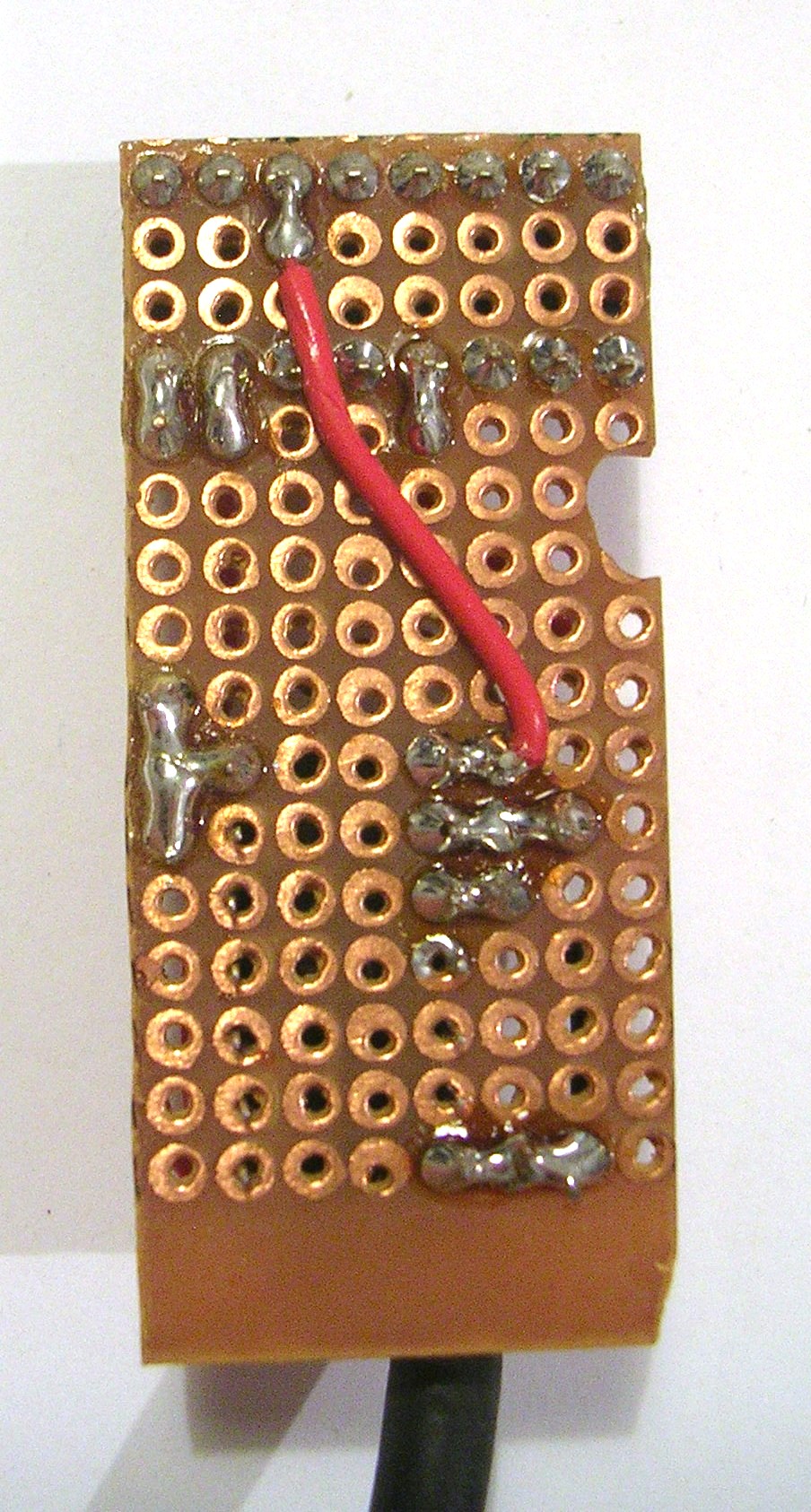

Circuit board, Front
Barcode Pen
Pack Connector

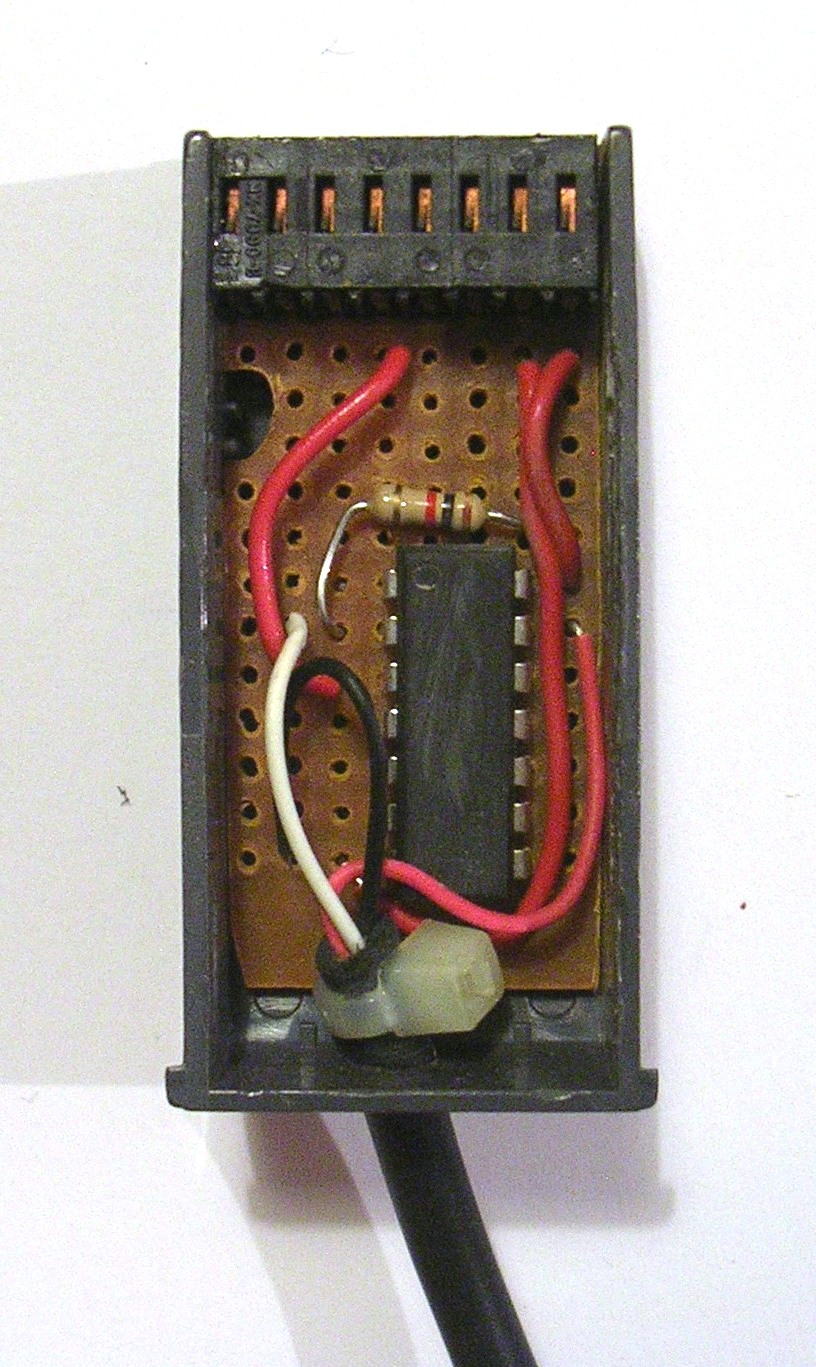

Circuit board, Back

Psion Datapak Formatter

When the Organiser deletes data from a datapak, it is merely marked as deleted so that the data is skipped, but it still takes up room on the pack. The EPROM chips in datapaks cannot be wiped clean electronically. Instead, the formatter was used to empty the packs, which it does by shining UV light onto the window in the EPROM chip for half an hour.

This version of the Datapak Formatter has the style and logo matching the Series 1 Organiser. It was however also used for the series II for some time before getting replaced by a more compact formatter with the new logo and styling.

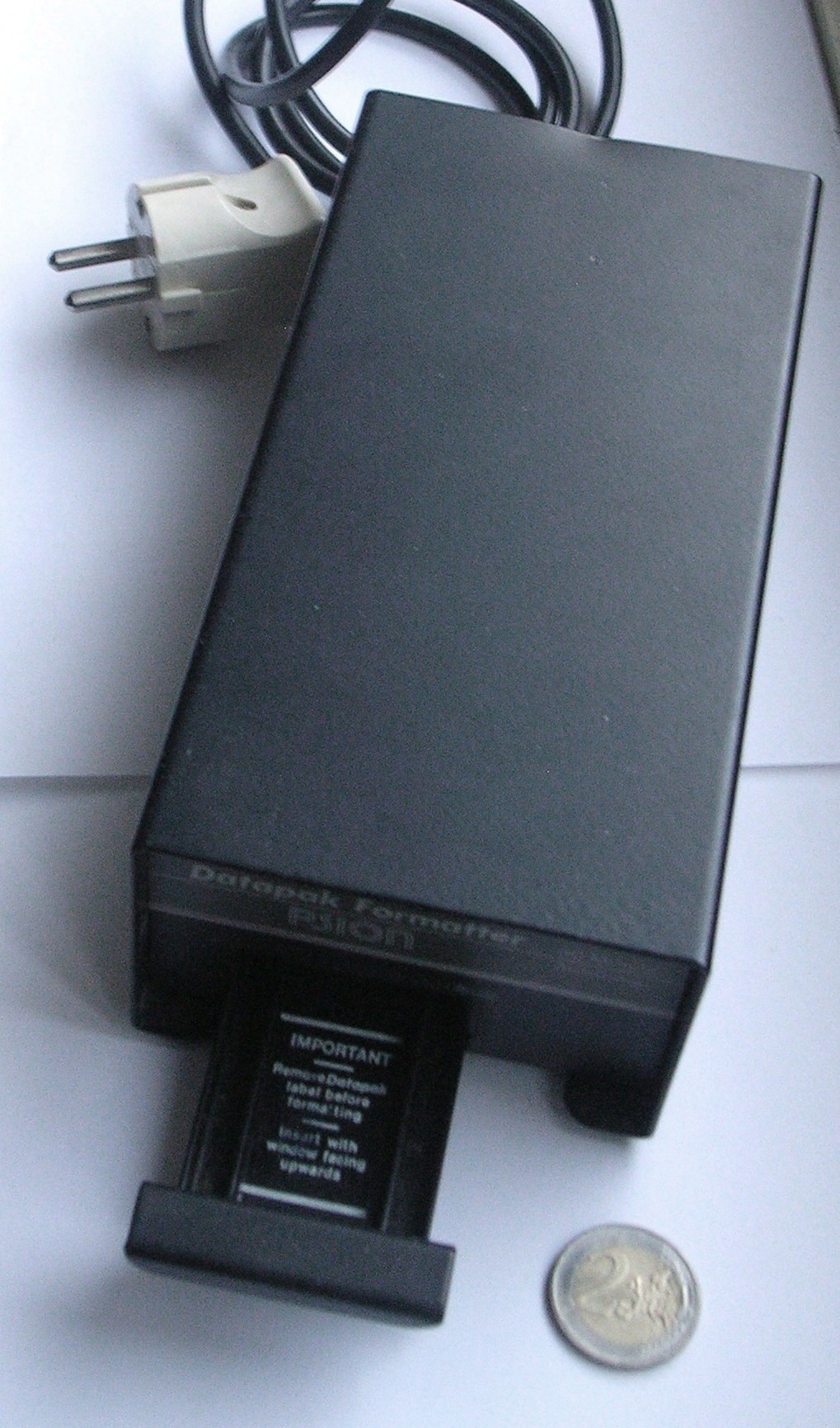

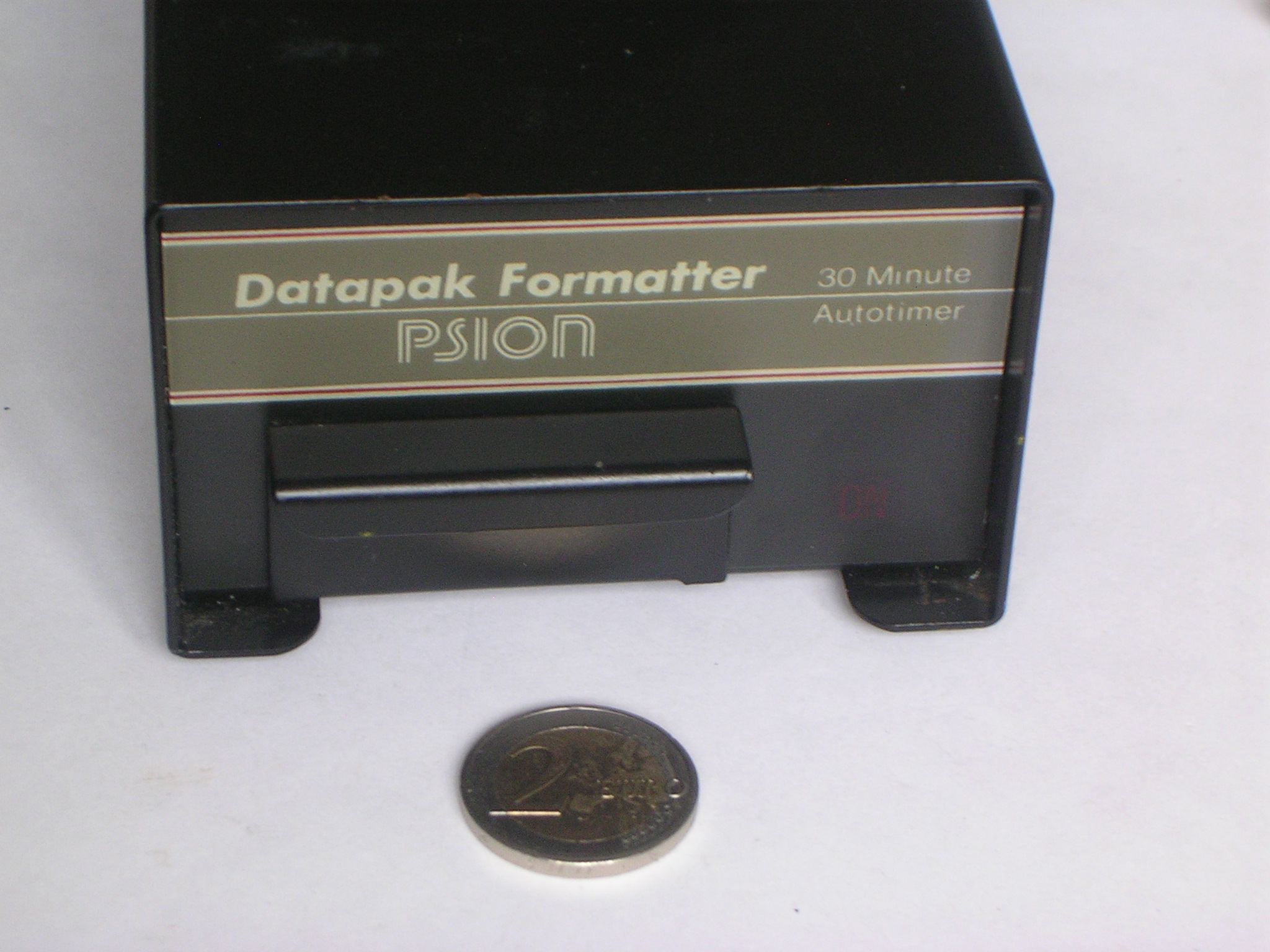

Psion Datapak Formatter
Psion Datapak Formatter
Front
Psion Datapak Formatter

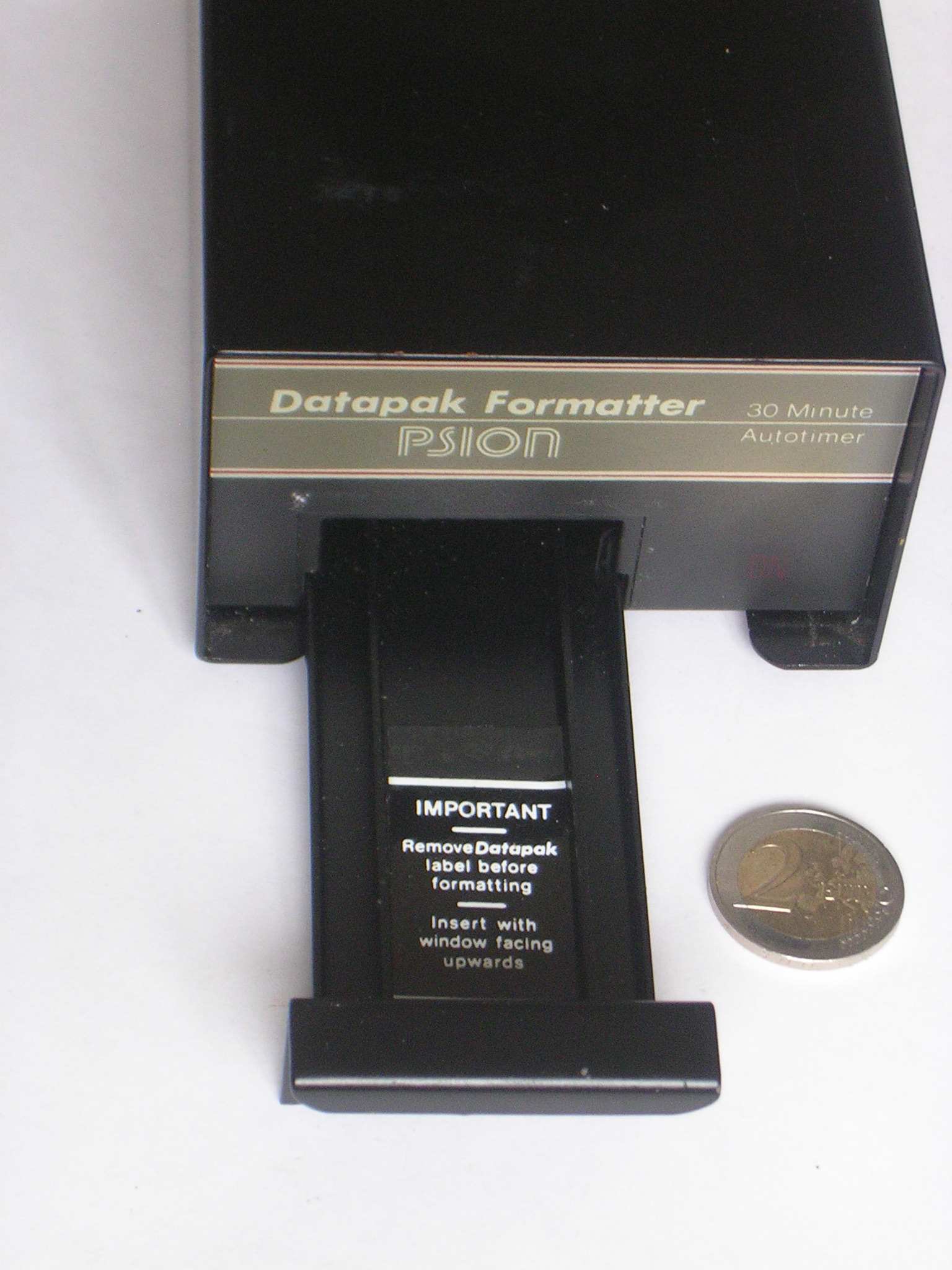

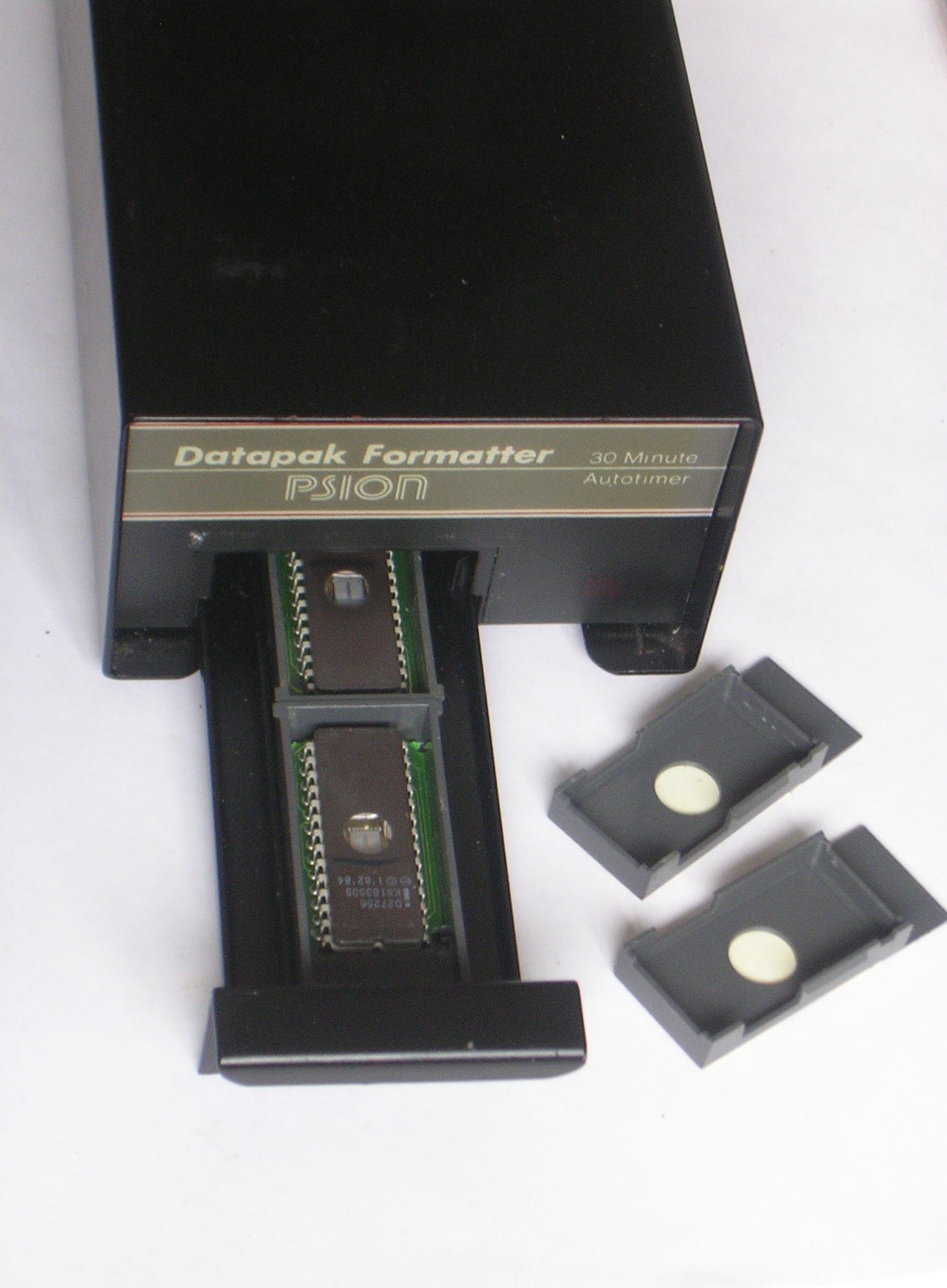

Open tray
Psion Datapak Formatter
Filled tray
Psion Datapak Formatter

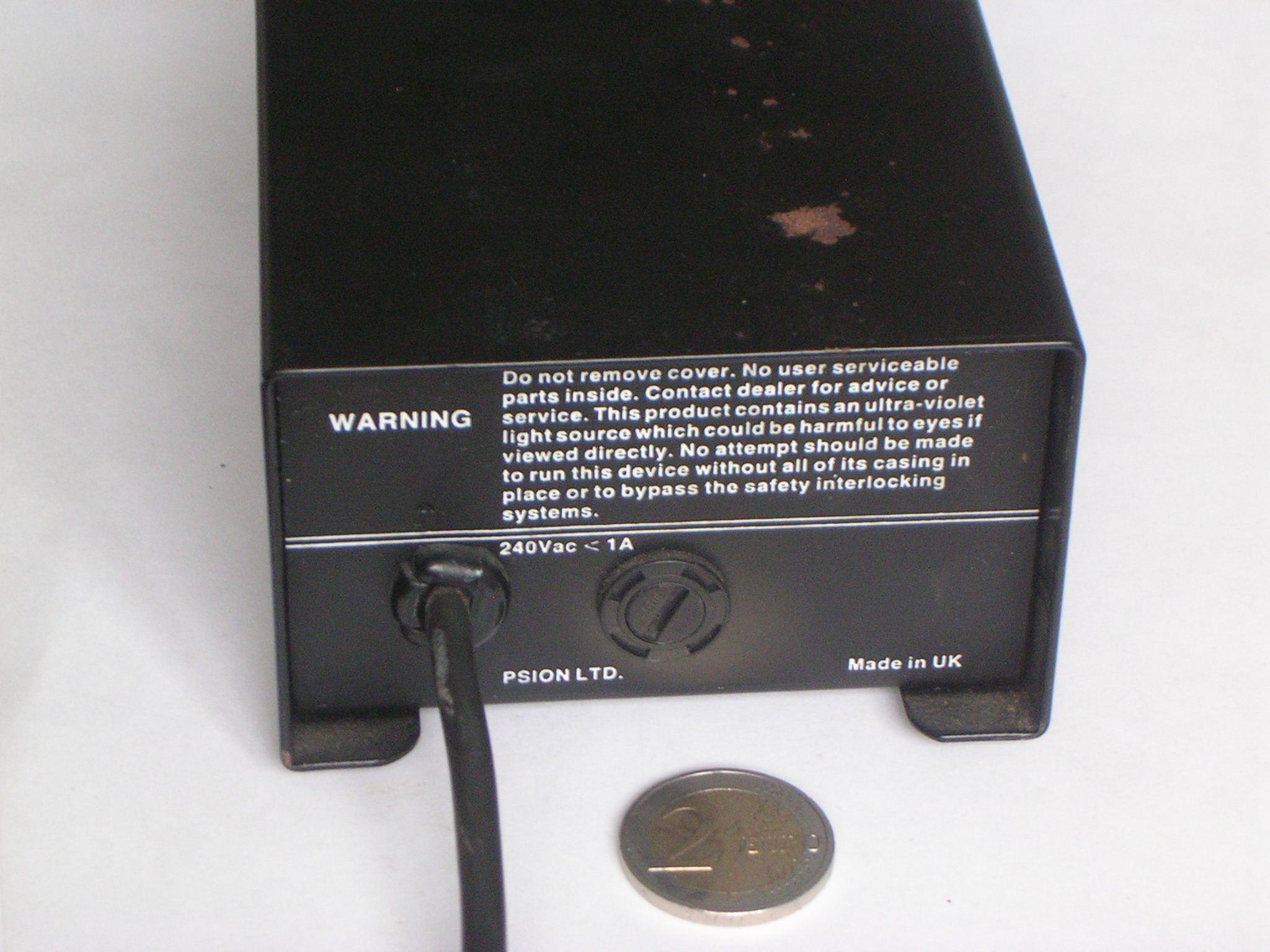

Rear
Psion Datapak Formatter

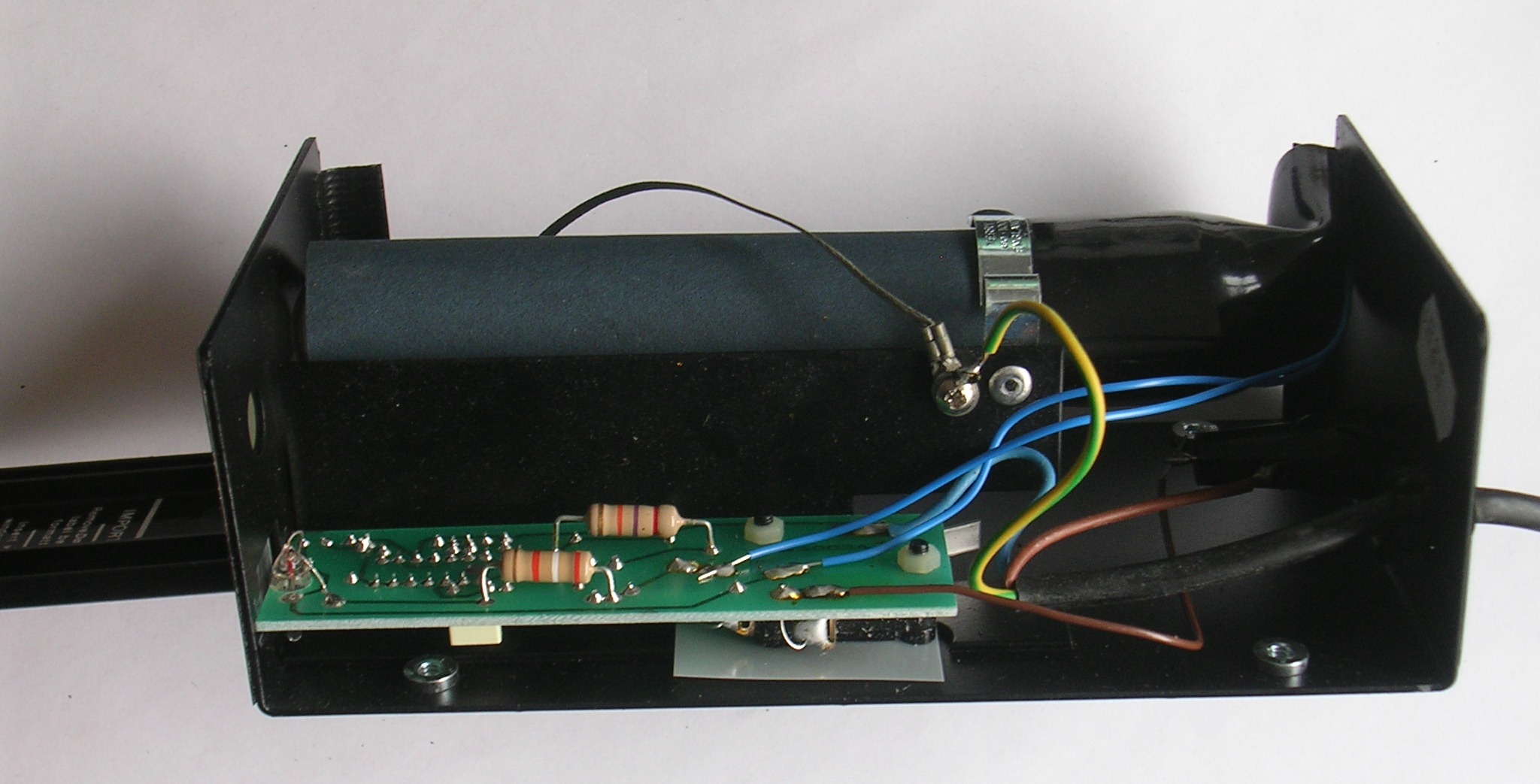

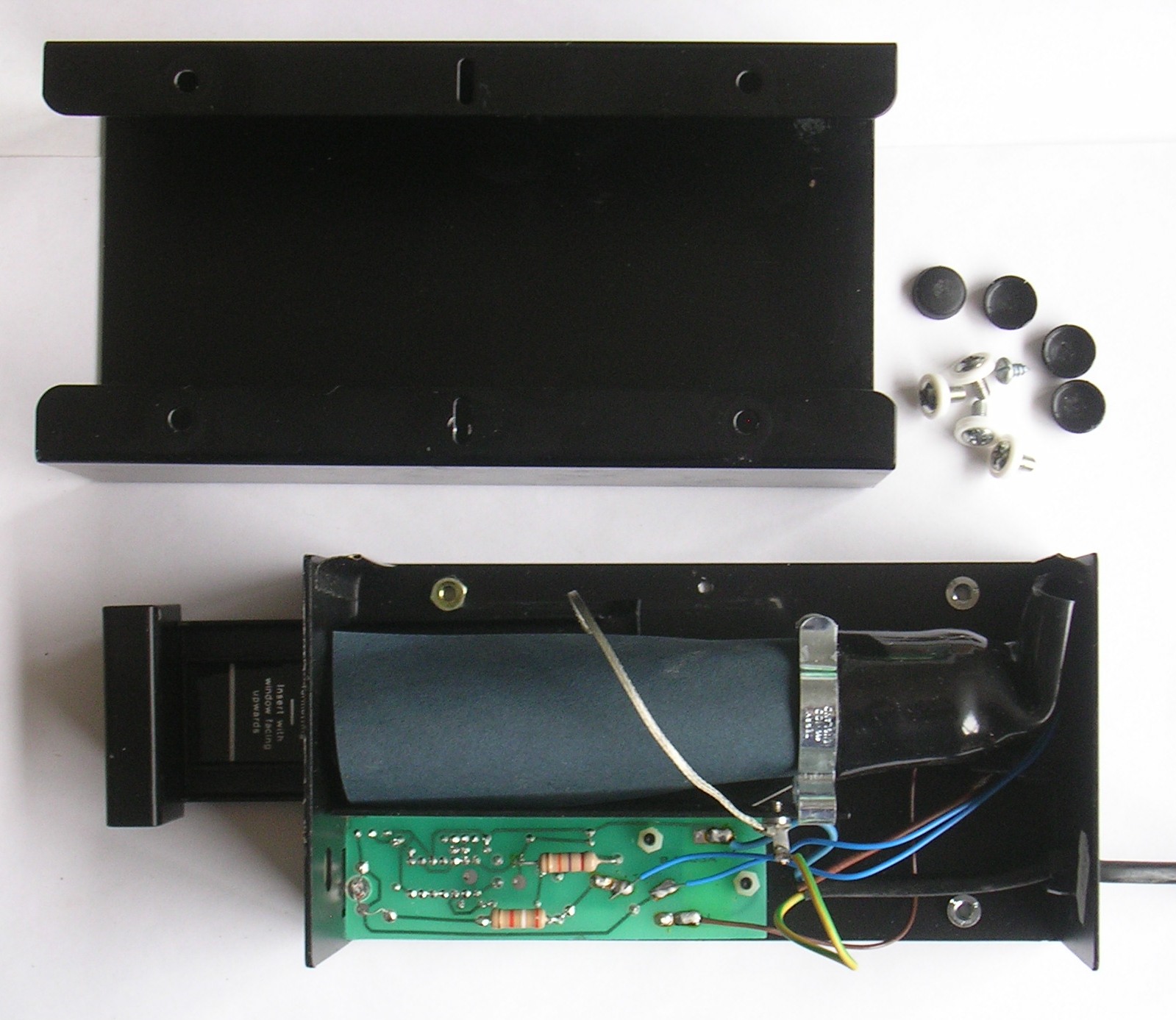

Inside
Psion Datapak Formatter
Inside

Manuals, adverts, etc.

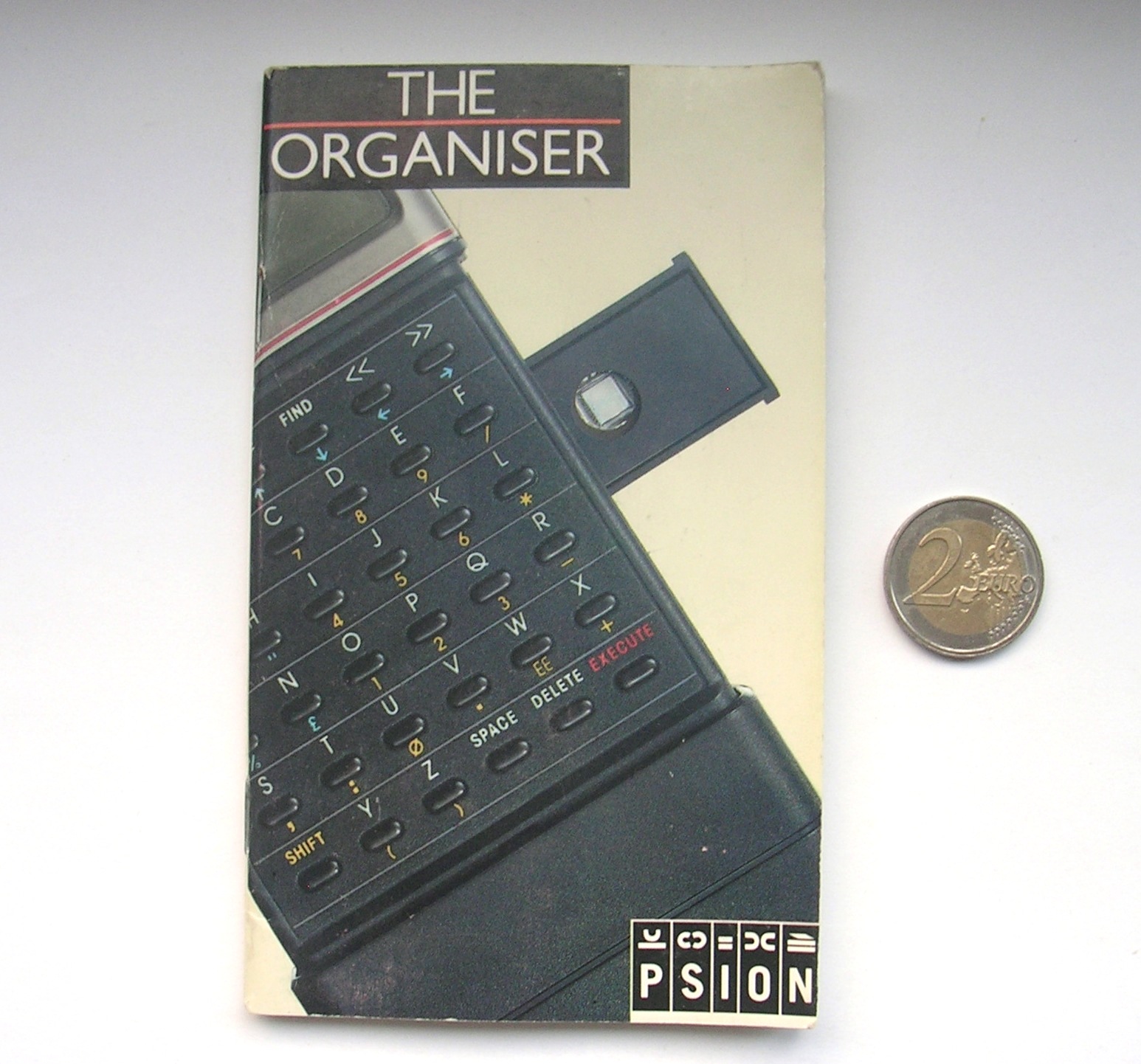

Organiser Manual

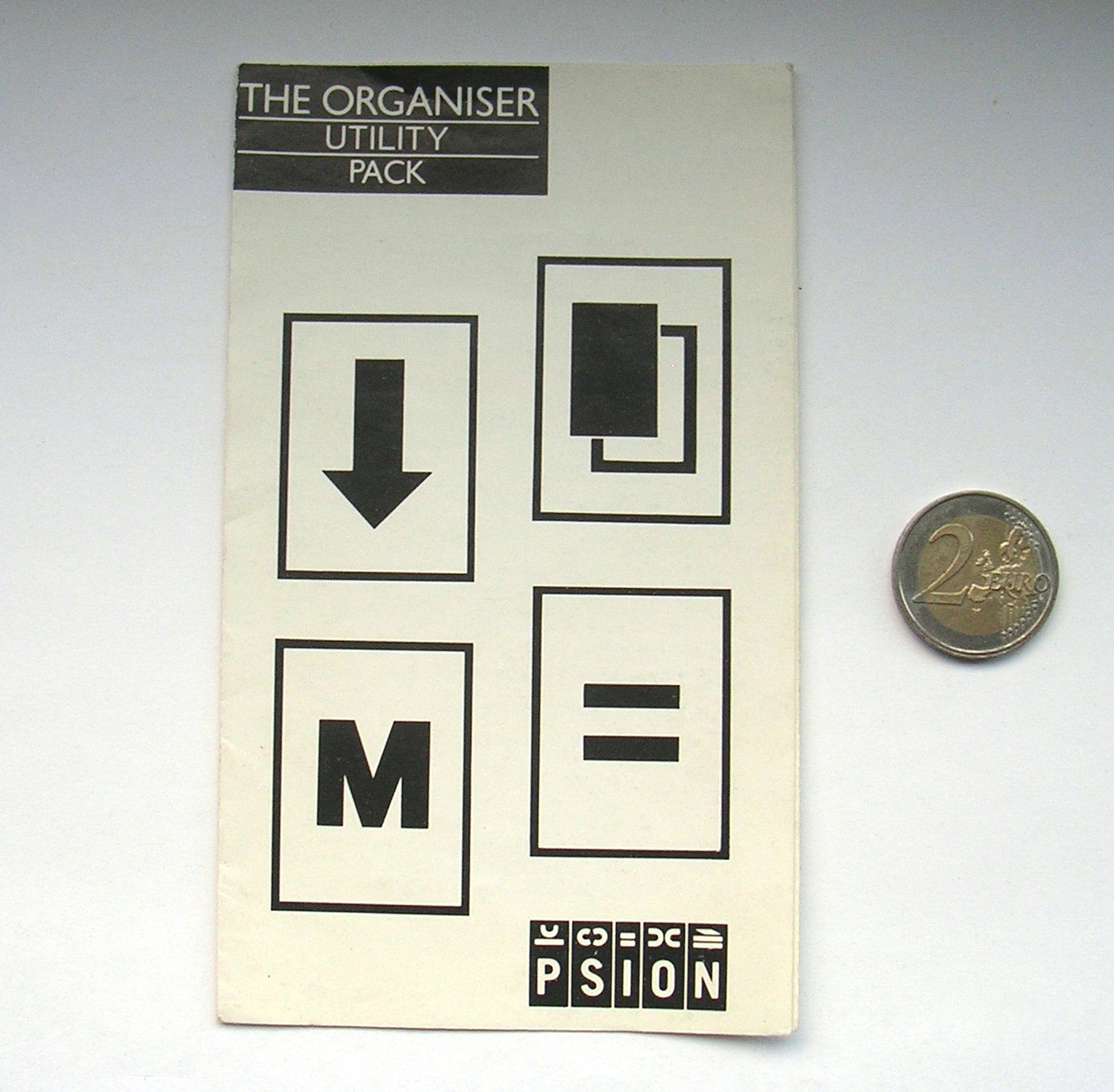

Utility Pack Manual

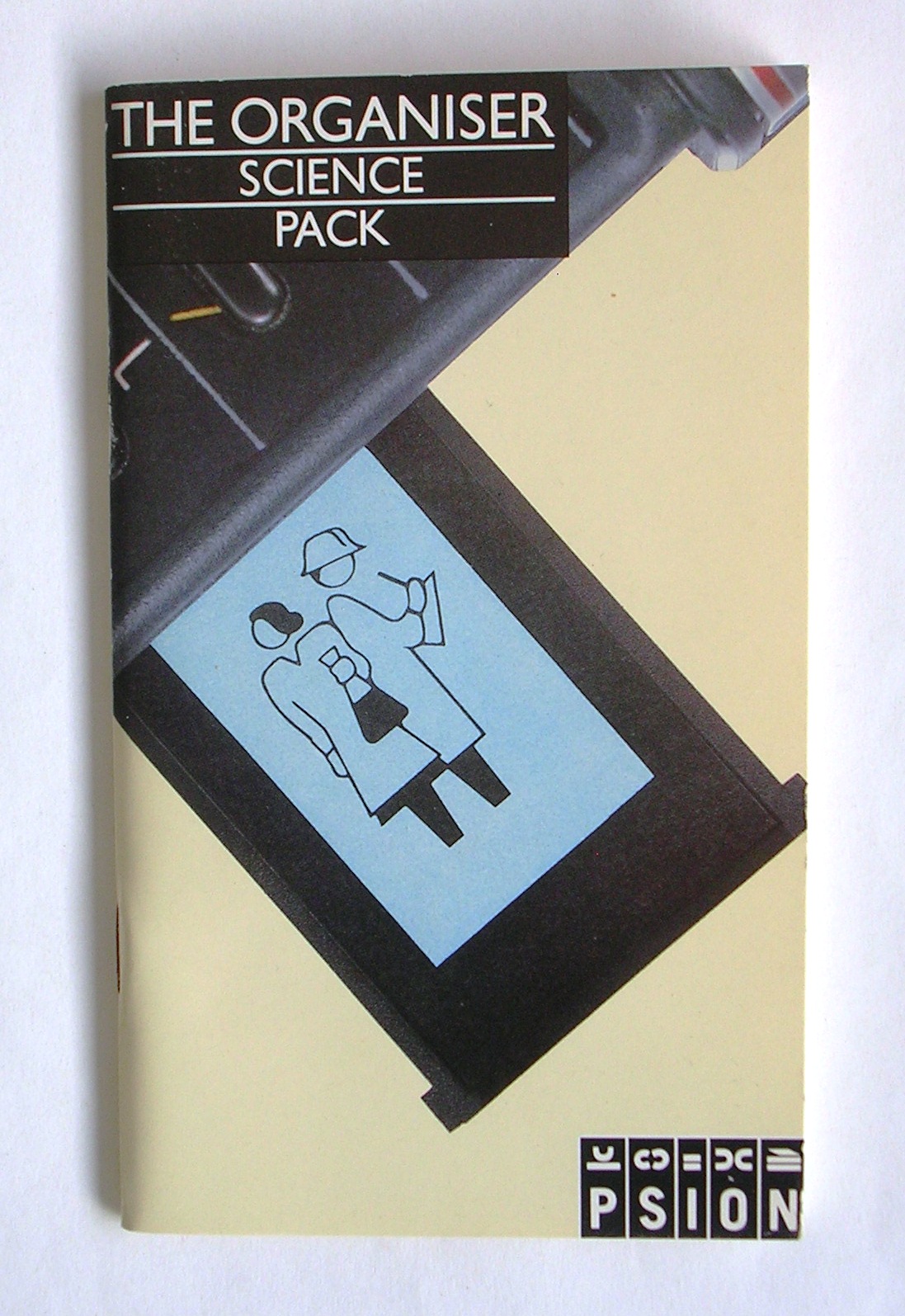

Science Pack Manual

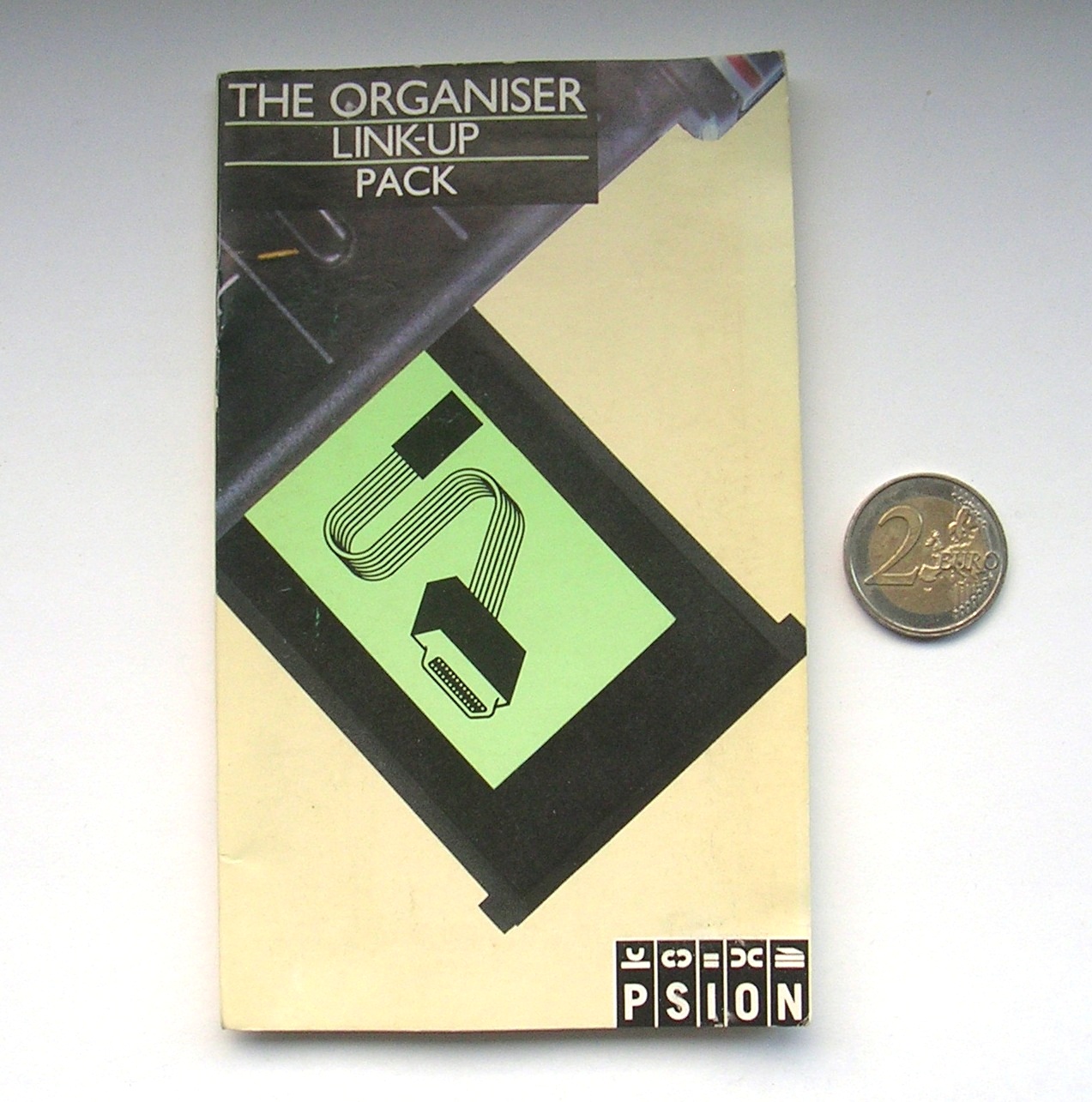

Link-Up Pack Manual

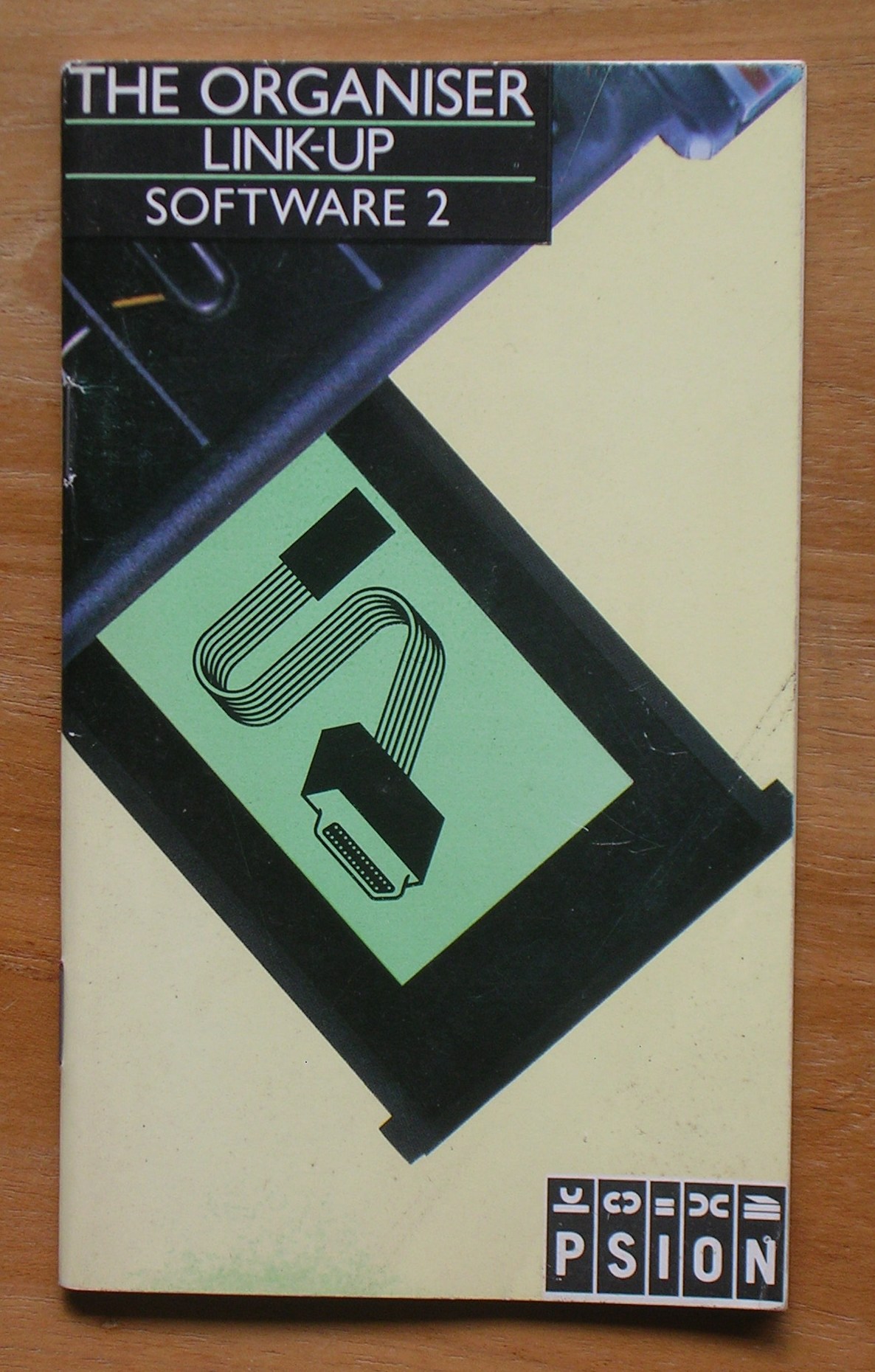

Link-Up Software 2 Manual

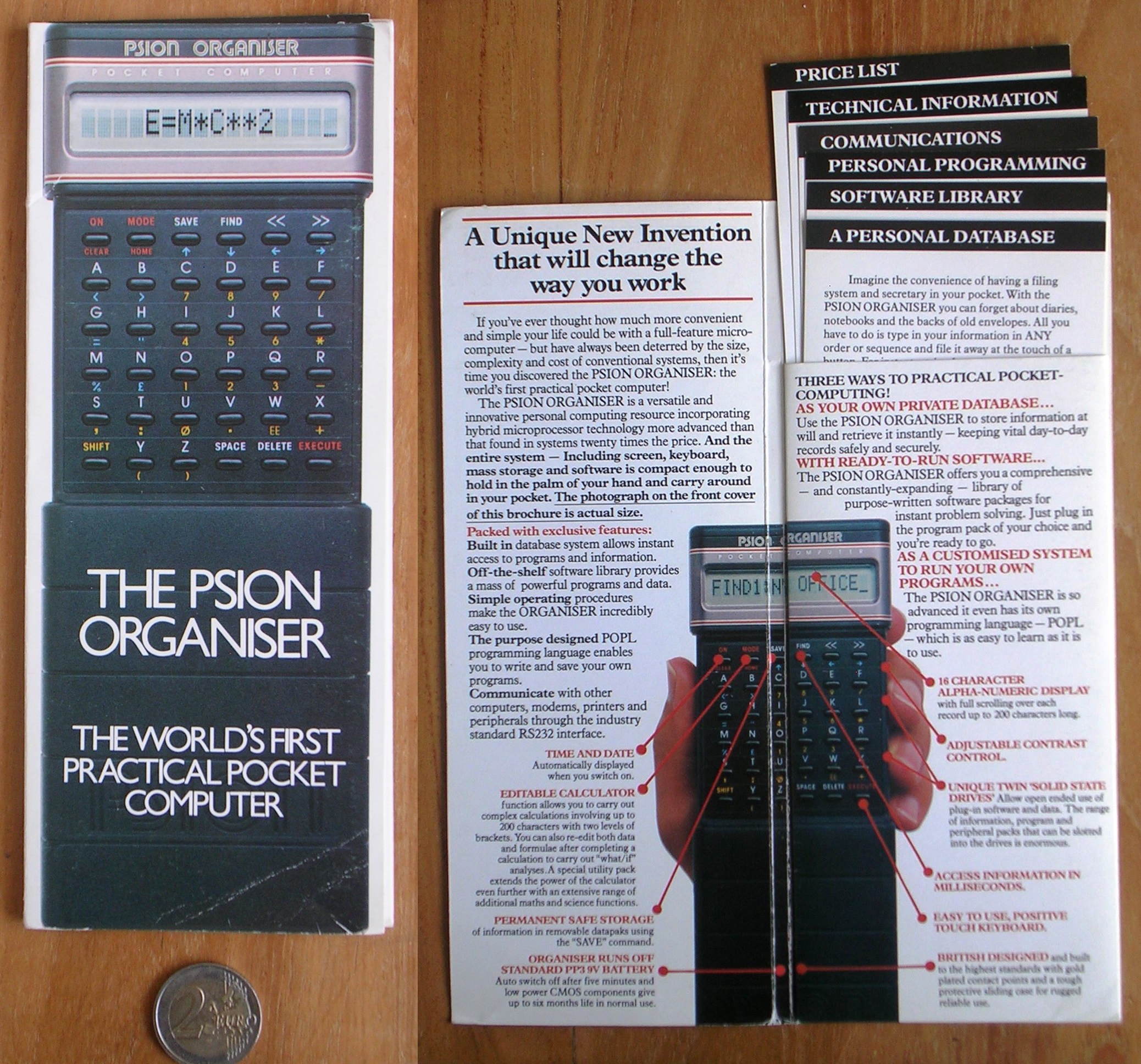

Brochure

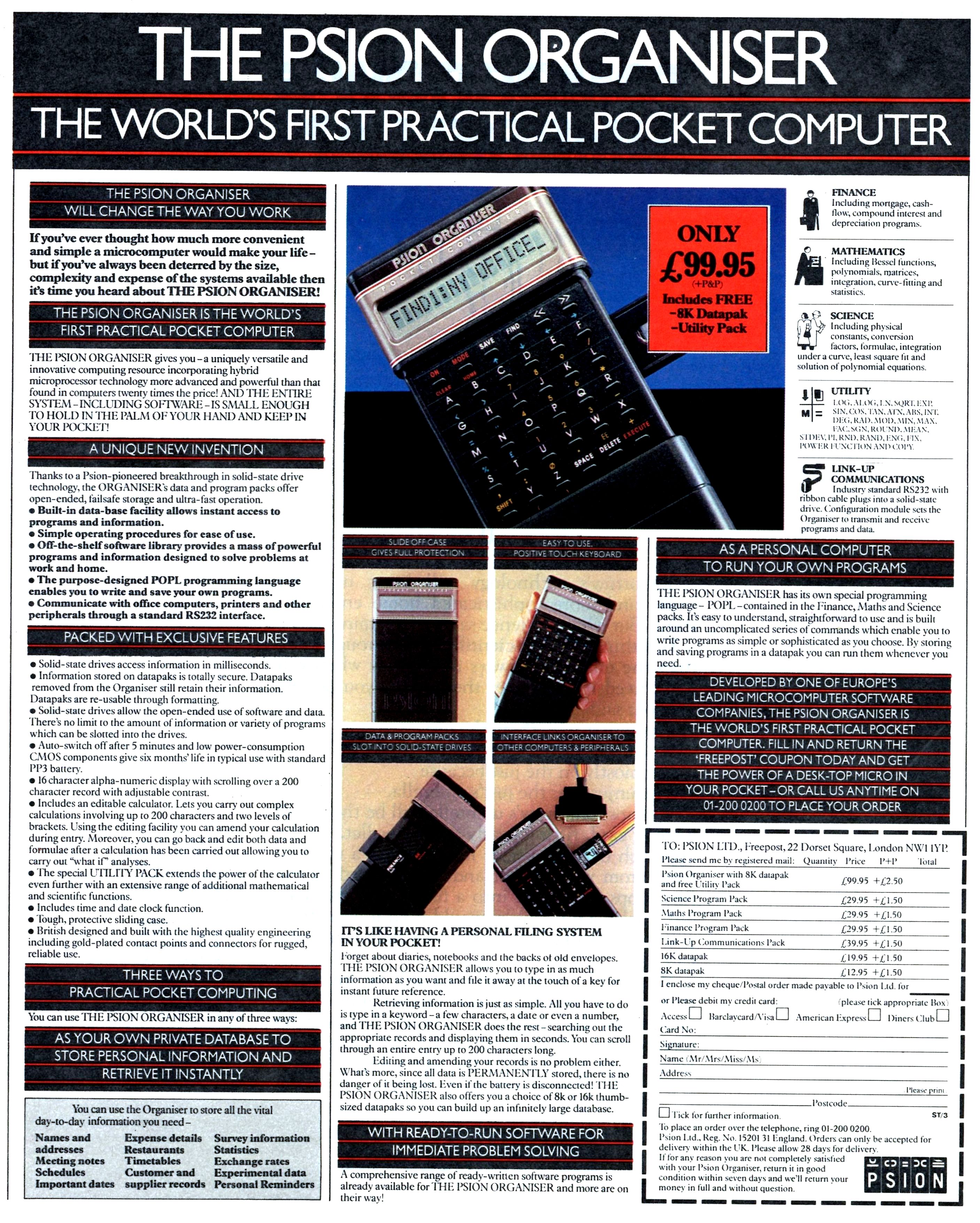

Magazine advert
