Gallery of Psion Organiser II packs


Contents

Datapaks Program Packs Rampaks Flashpaks Psion Software Packs Third-Party Software Packs


Datapaks

Datapaks are the most common memory modules for the Psion Organiser II. The earliest packs were for the Series 1, and were 8K or 16K. Apparently a 32K pack was produced for the Series 1 too, but I do not own one.
The Series II can use the same 8K and 16K packs as the Series 1, but Psion redesigned the circuit board so that both pack sizes can use the same board.
The Series 1 used a linear addressing method, and this leads to slow access times on larger packs. For the Series II a faster addressing method was devised, namely paged addressing. Shown here are 32K packs of both types, and their circuit differs only in the placement of one zero-Ohm resistor.

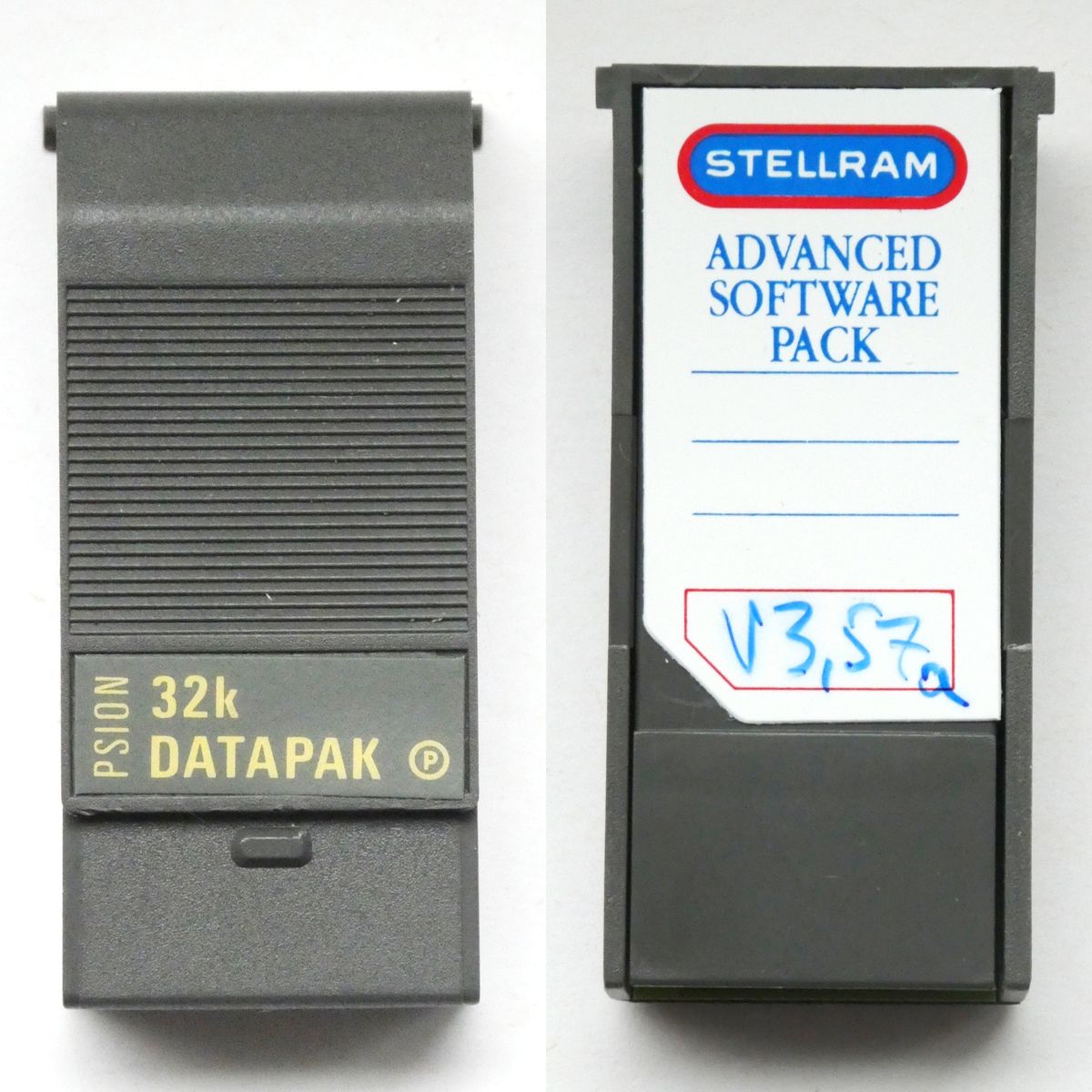

A close examination also shows one other difference between the two 32k packs. The second uses a CMOS type EPROM, recognisable from the C in the the chip name (27C256 instead of 27256). This type is more energy efficient, so is less of a drain on the battery. Psion even marked the labels with a P in a circle to indicate this type.
Packs of size 64K and 128K were made by various companies as well as by Psion themselves. If you look carefully, Psion's 64K pack circuit board still supports a configuration with linear addressing, though I do not own such a pack.

8K Datapak
For Series 1

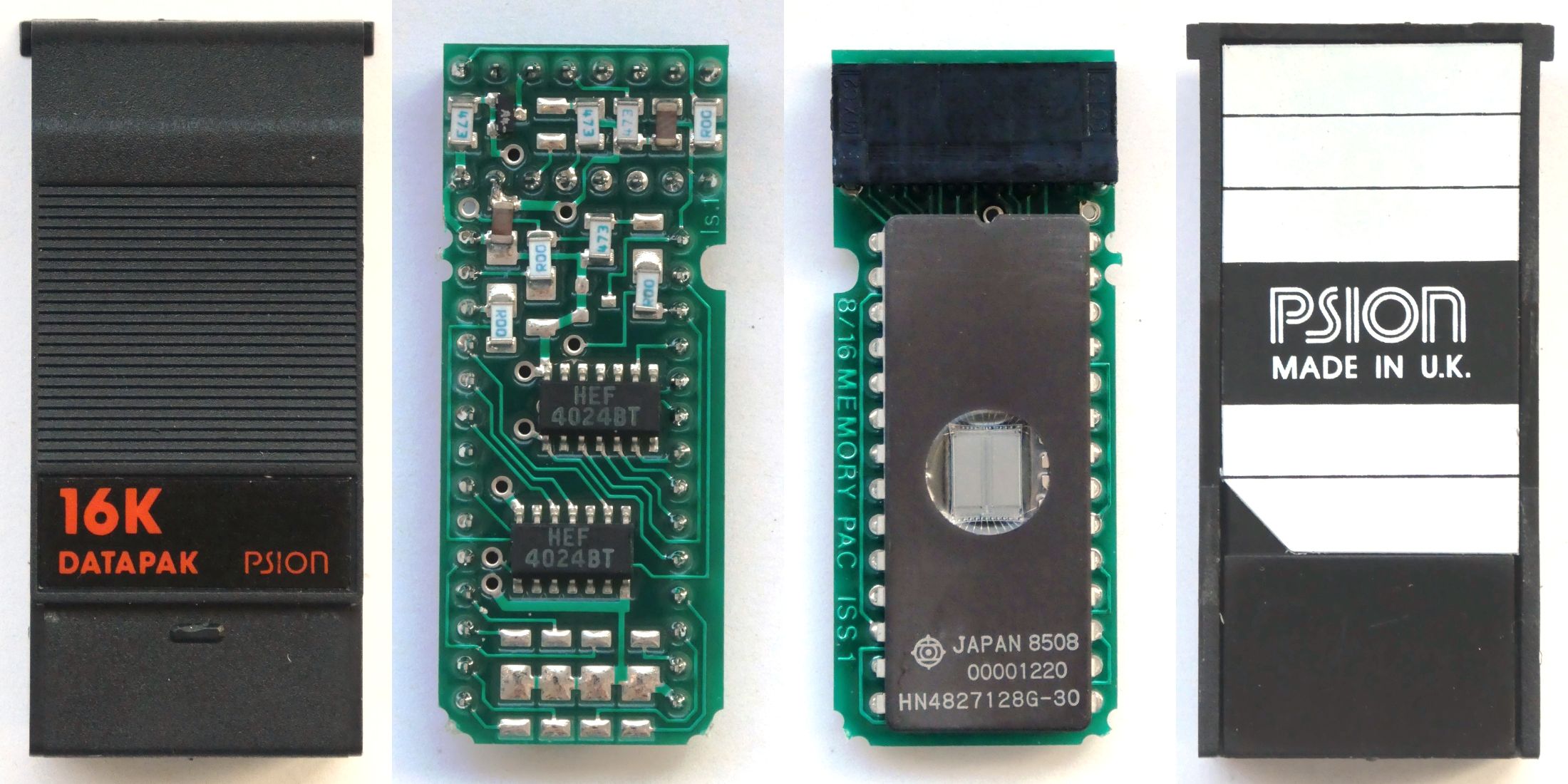

16K Datapak
For Series 1

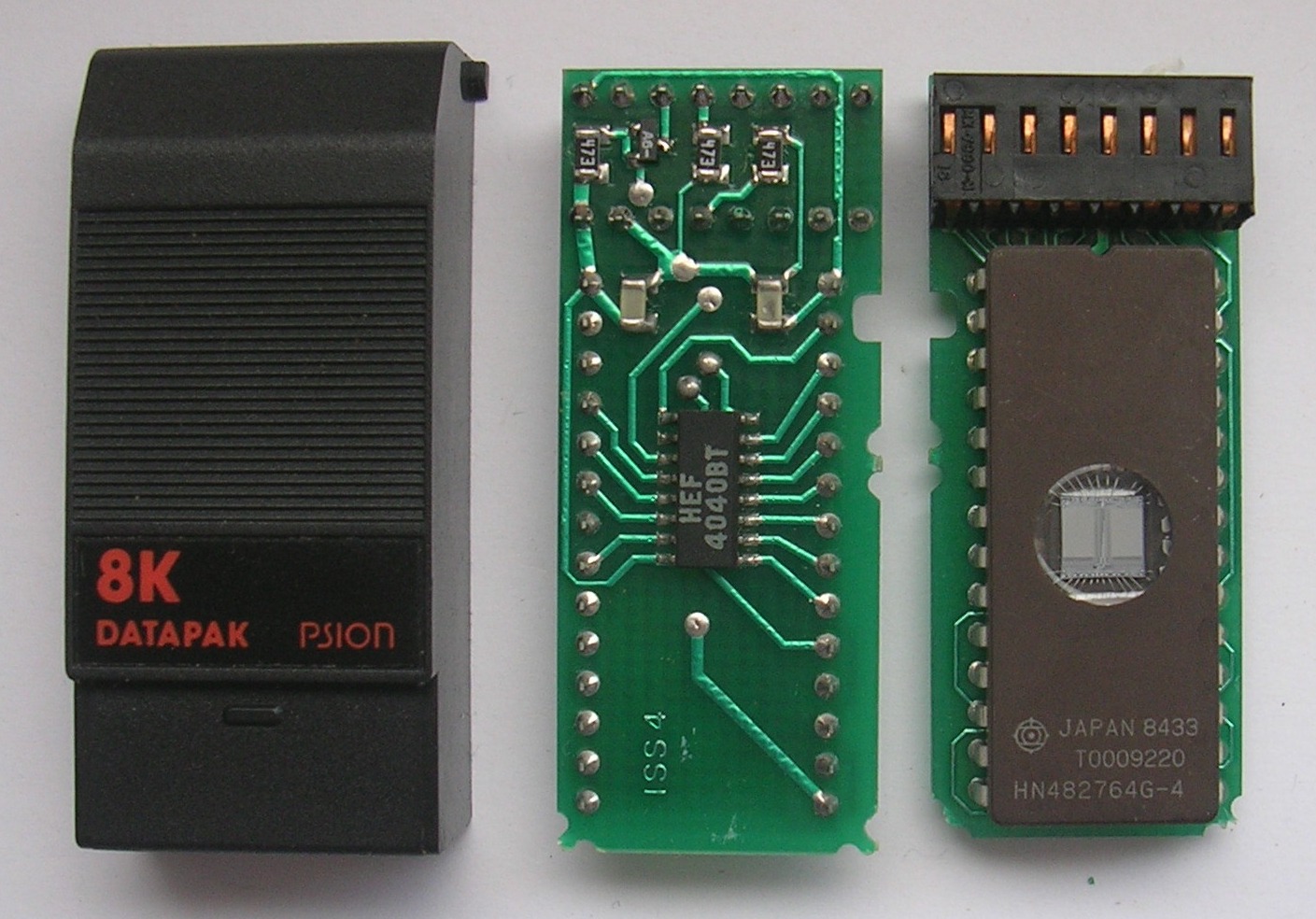

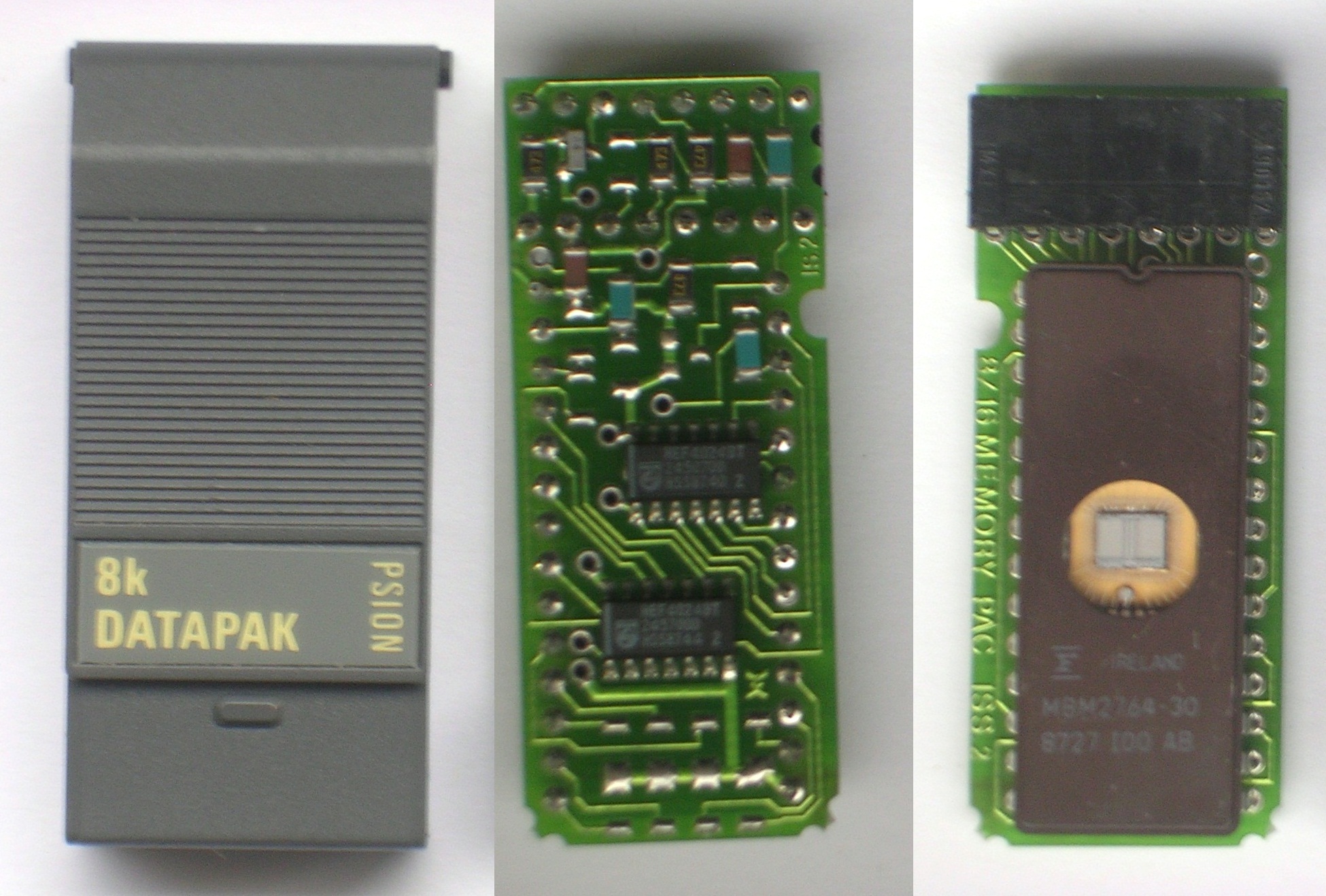

8K Datapak
Issue 2
16K Datapak
Issue 1

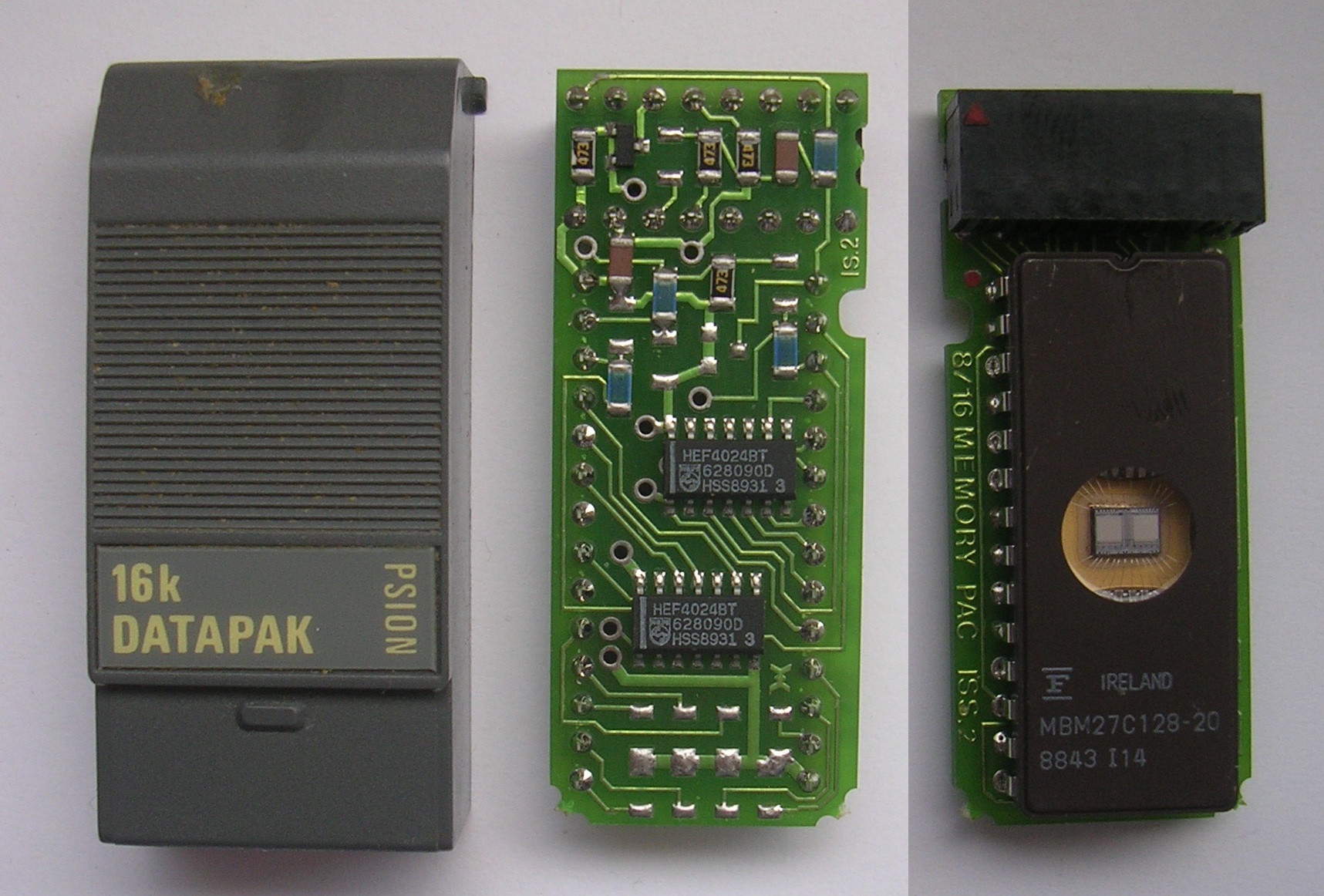

16K Datapak
Issue 2, CMOS

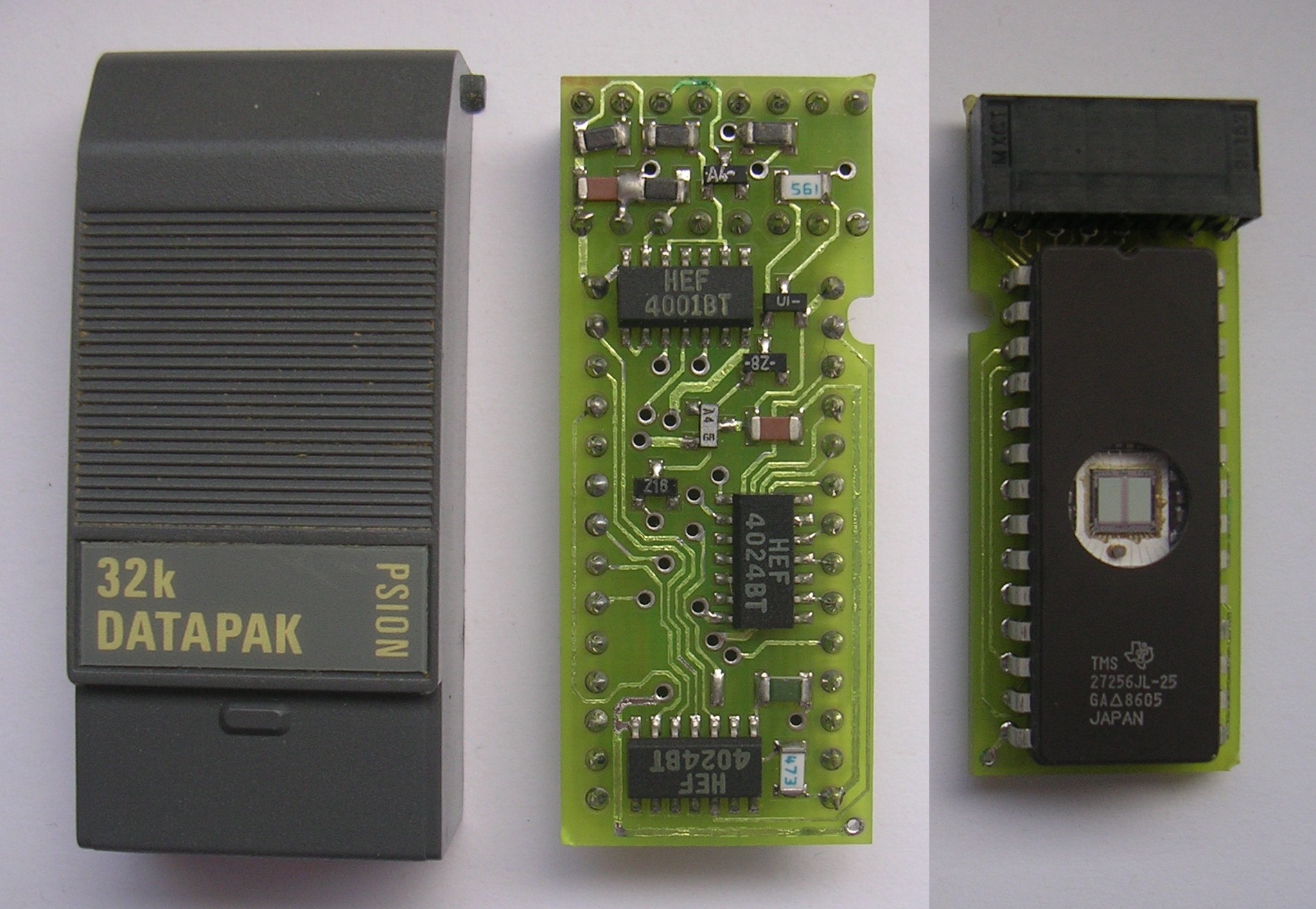

32K Datapak
Linear addressing

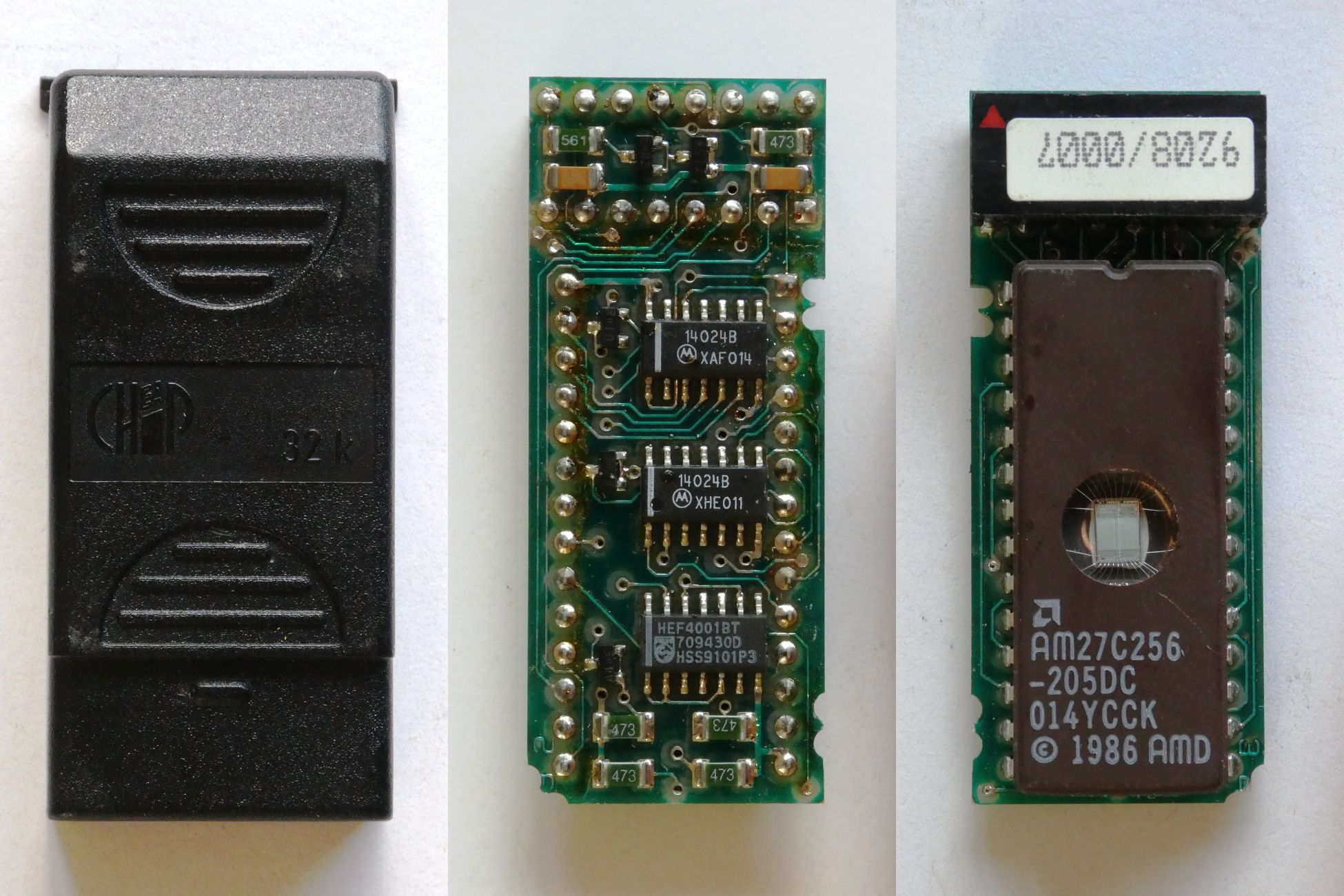

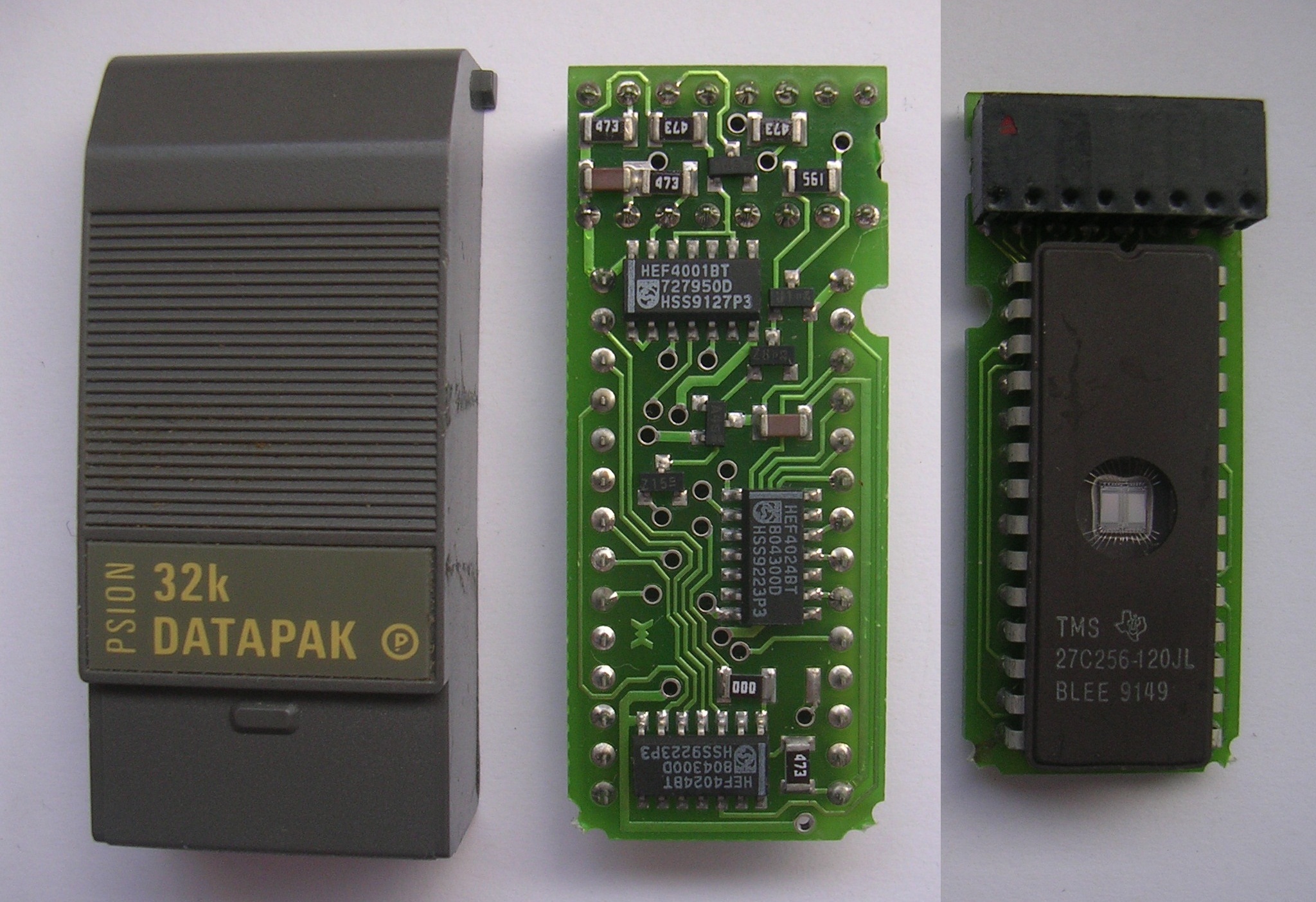

32K Datapak
Paged addressing, CMOS

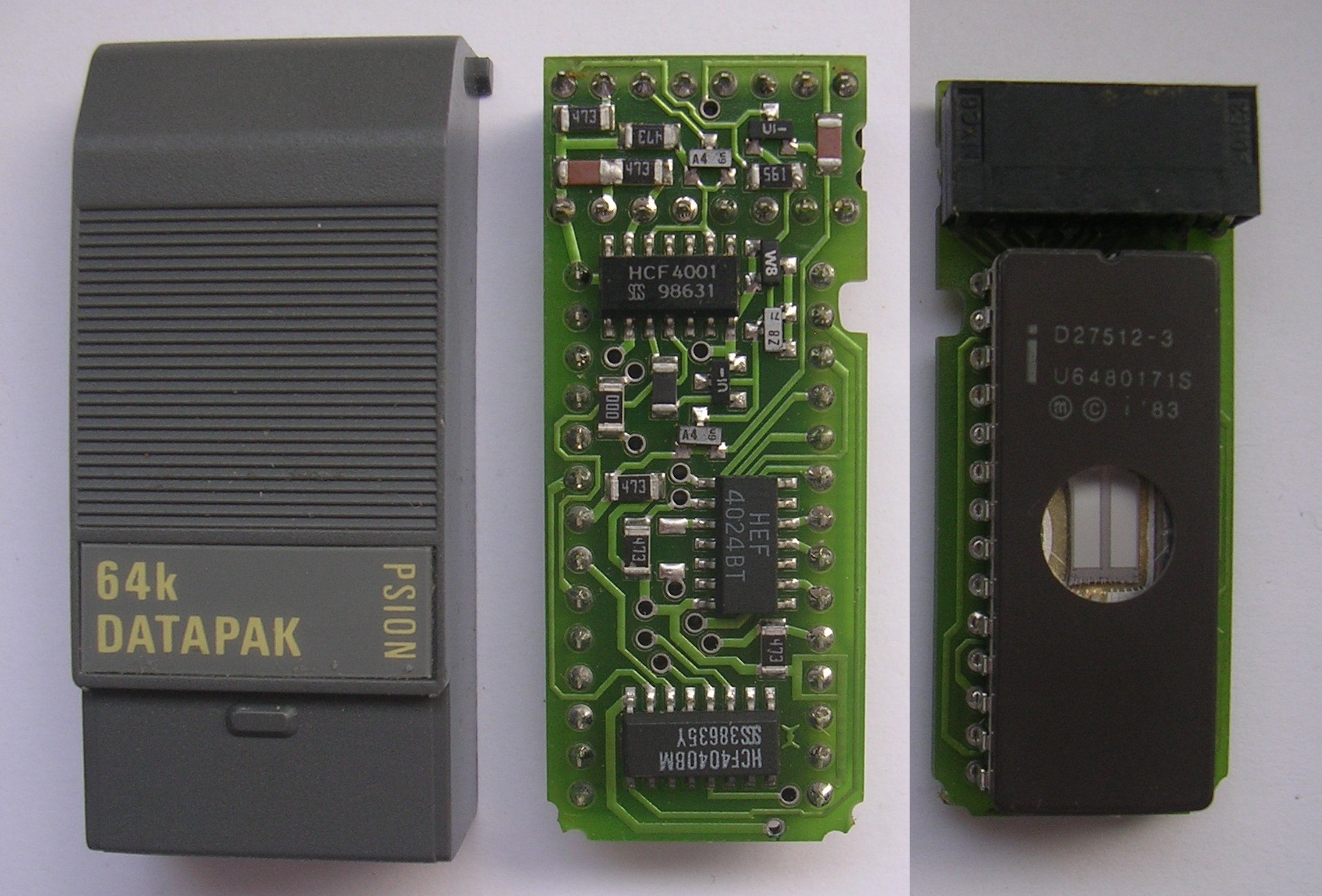

64K Datapak
Psion

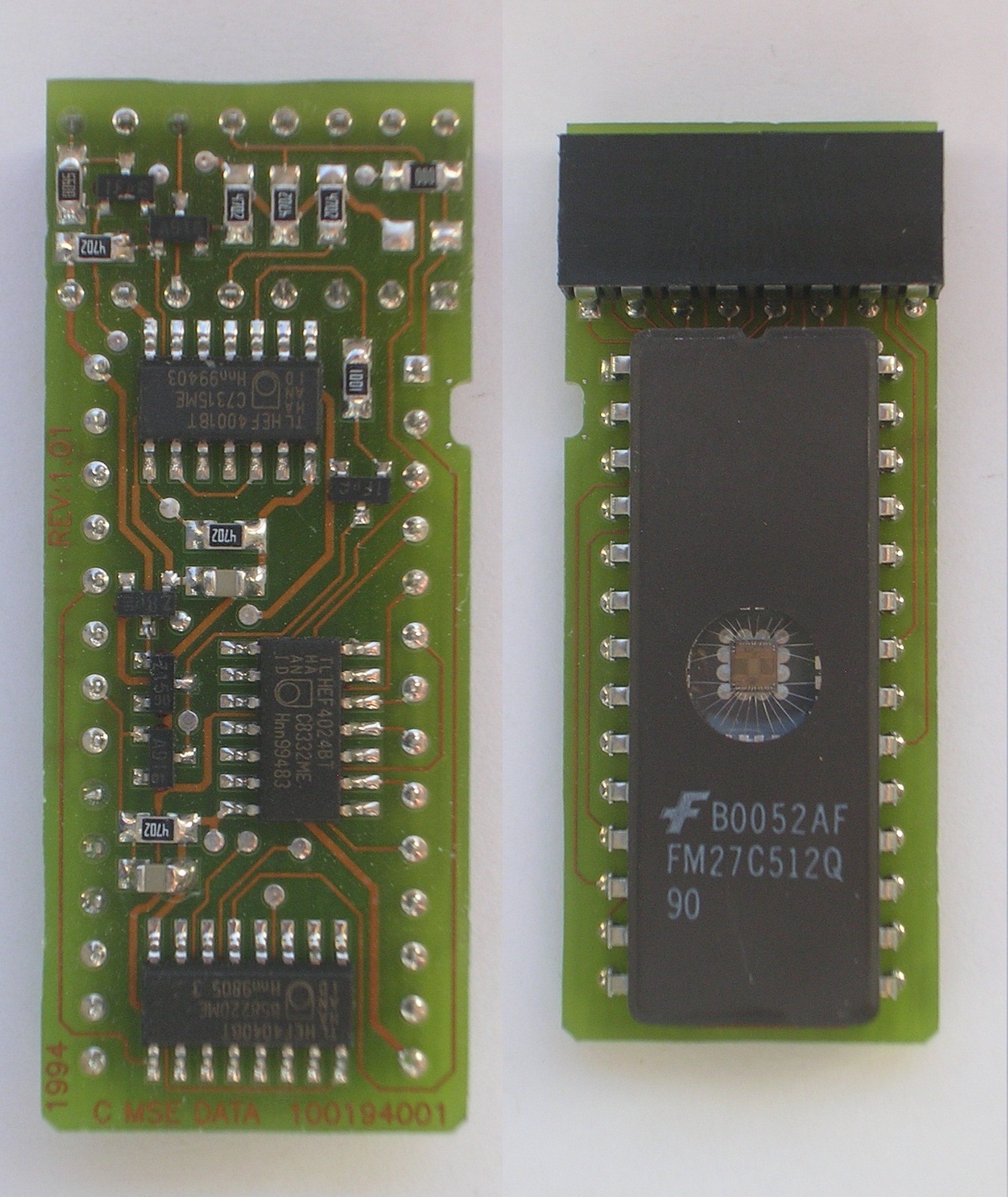

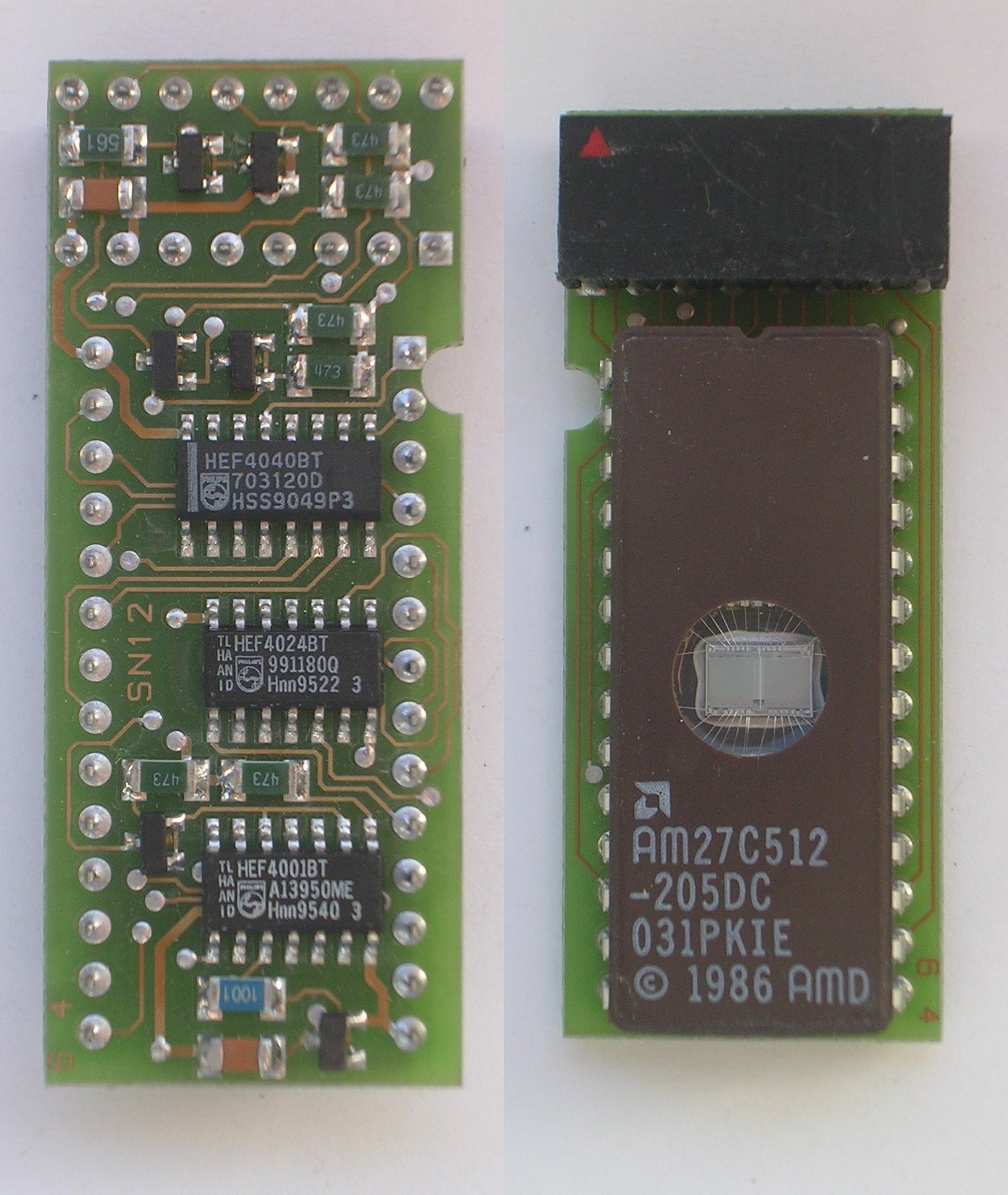

64K Datapak
MSE Data, CMOS
64K Datapak
Unknown maker, CMOS

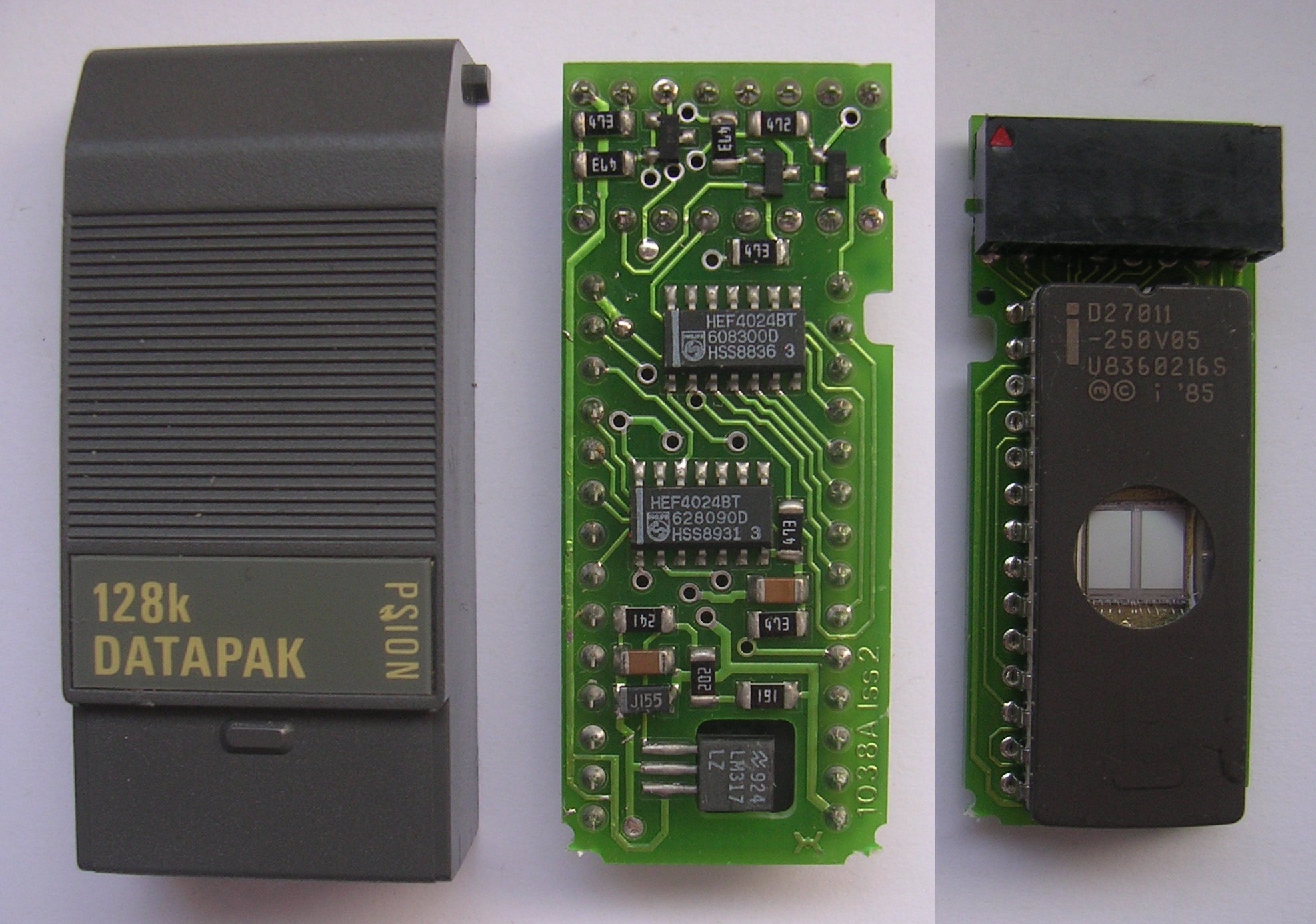

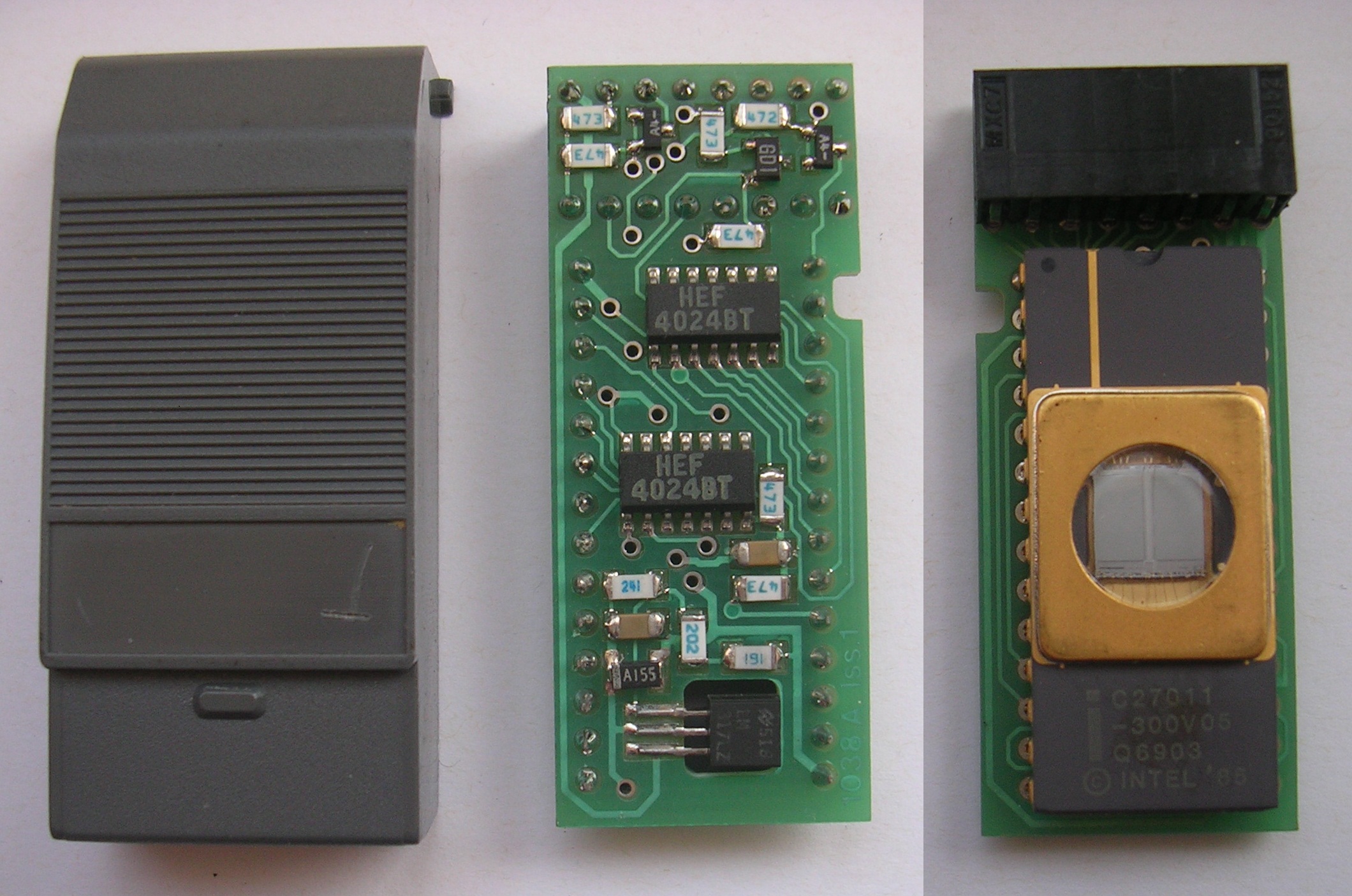

128K Datapak
Psion, issue 1
128K Datapak
Psion, issue 2
128K Datapak
Unknown maker
Datapaks
Psion

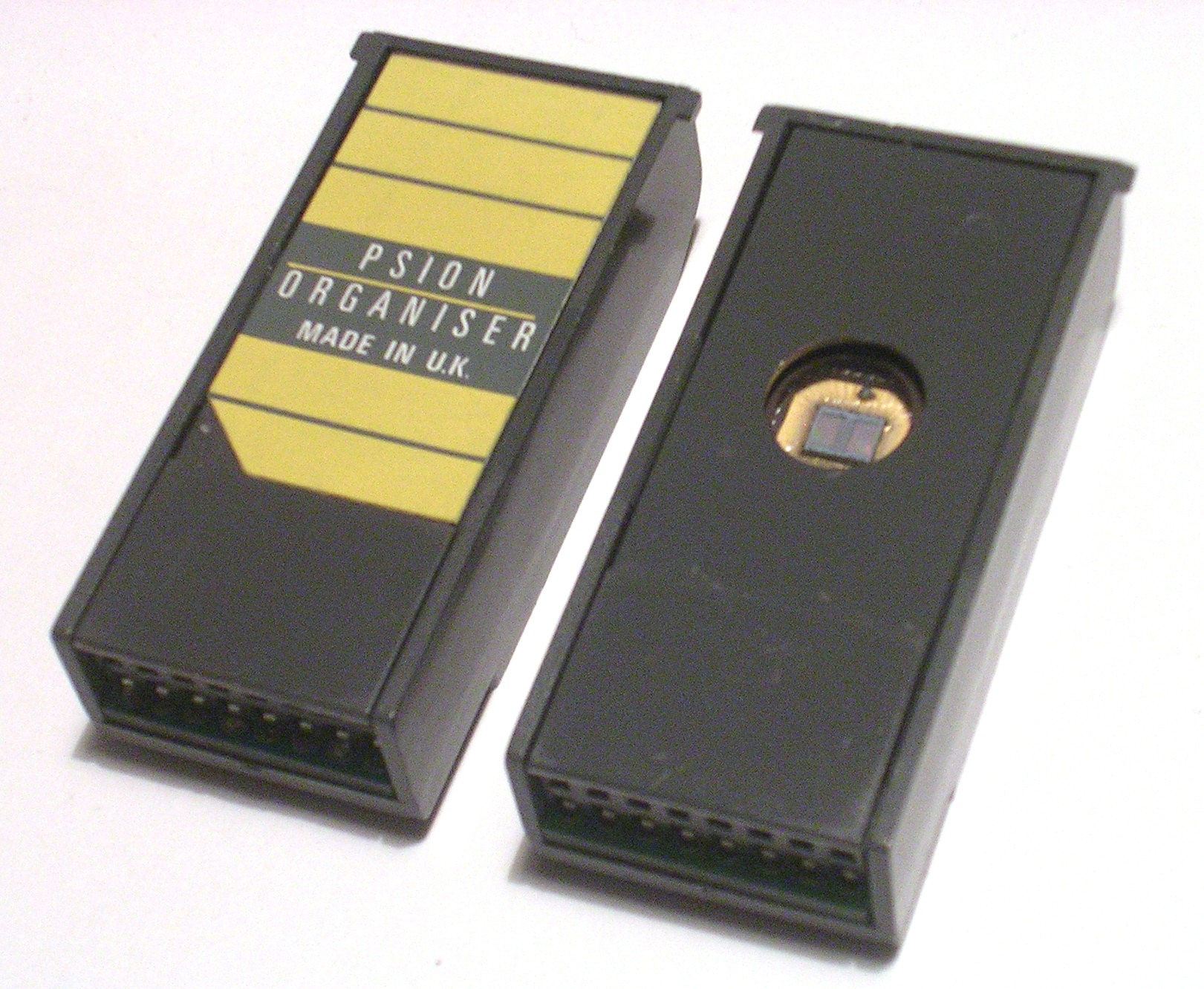

Datapaks contain an EPROM chip. Deleting data from these packs did not free up space. For that they had to be reformatted by shining UV light onto the EPROM chip for half an hour. Removing the label from a datapak reveals a small opening over the EPROM chip's window. Psion supplied pack formatting services for those who did not have a pack formatter themselves, and also supplied replacement labels.
When I format a pack, I just remove half of the casing in order to keep the label intact.

Pack Window

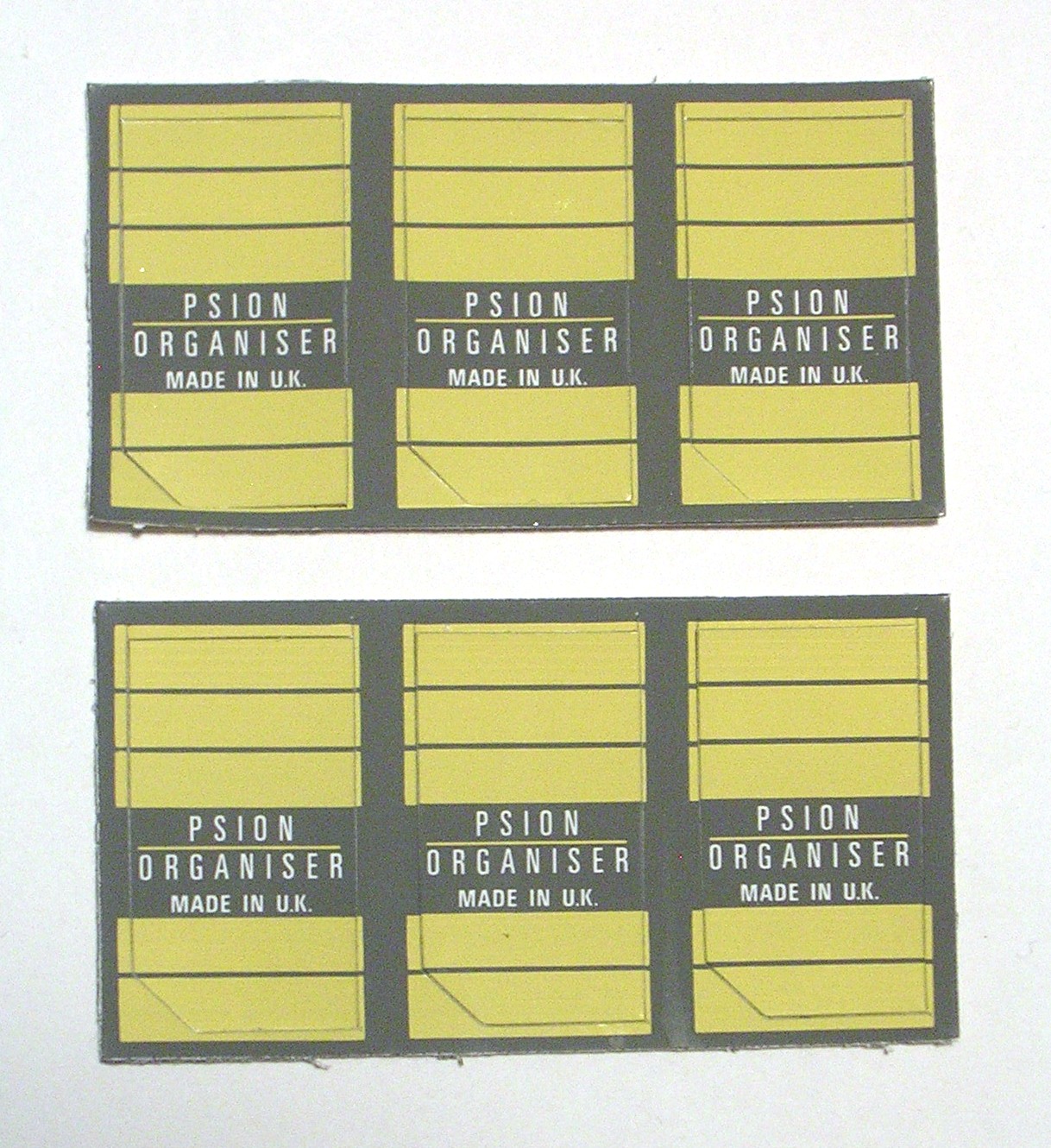

Pack Labels
Series 1 design
Pack Labels
Series 2 design



Program Packs

Most Psion II software was supplied on ordinary datapaks. Such packs could therefore be re-formatted and used for other data if you wished. There are however some exceptions.

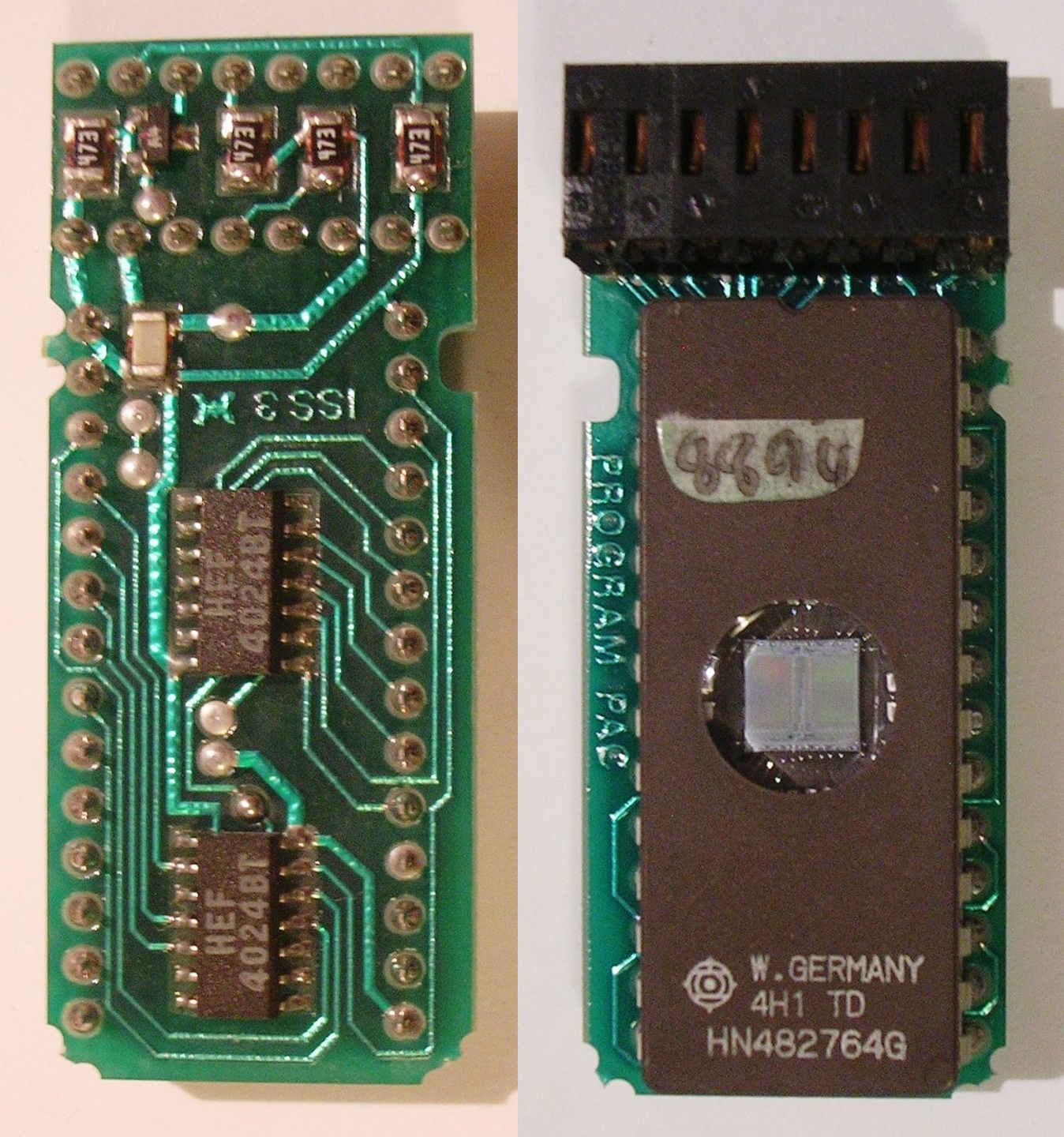

The Series 1 did not have support for a read-only flag on packs, so its software packs usually had a slightly different circuit board that omitted the program voltage line. These packs cannot be written to, even though they still use EPROM chips.
As far as I know, there are only two kinds of software packs for the Psion II that were not ordinary datapaks. The Concise Oxford Spelling Checker used a pack with the same circuitry as a 64K datapack, except that it used a 64K PROM chip. Some Travel Packs are the same. Its successor, the Thesaurus & Spelling Checker, had a custom circuit board with a surface-mounted 256K ROM chip. It has a different addressing method to other packs, but its software allows it to be used on any Psion, even the CM.

Program Pack
For Series 1

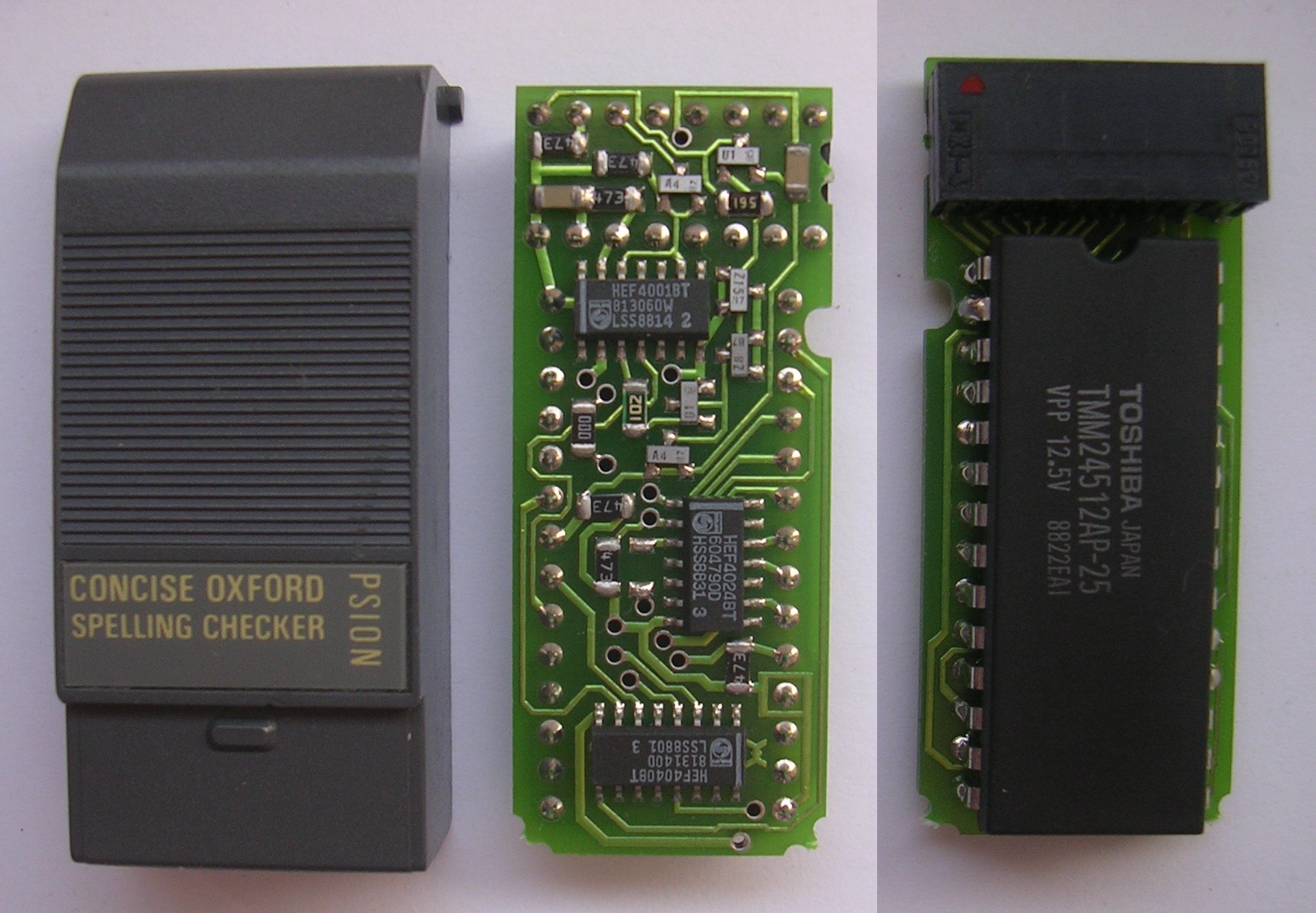

64K Rompak

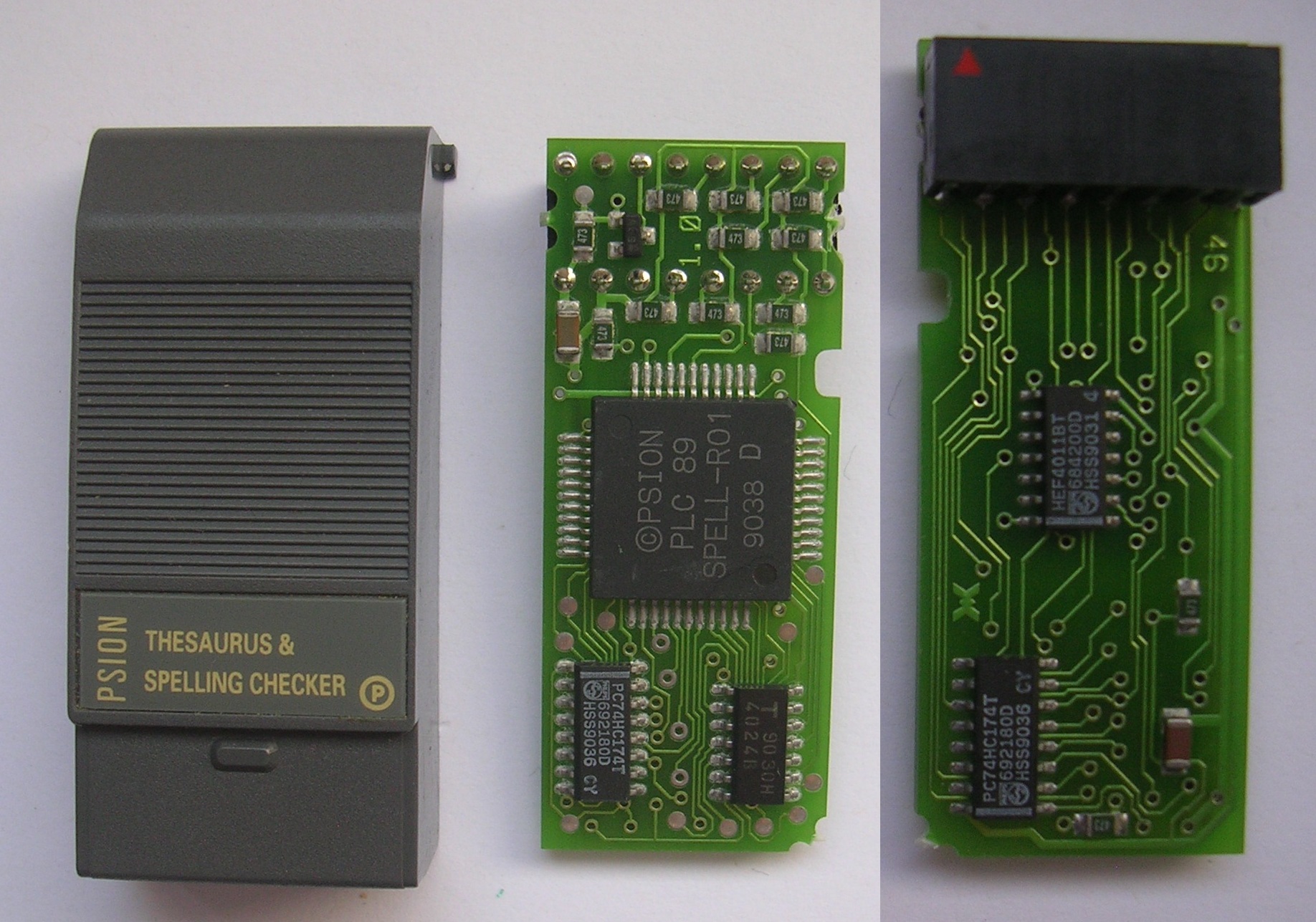

256K Rompak



Rampaks

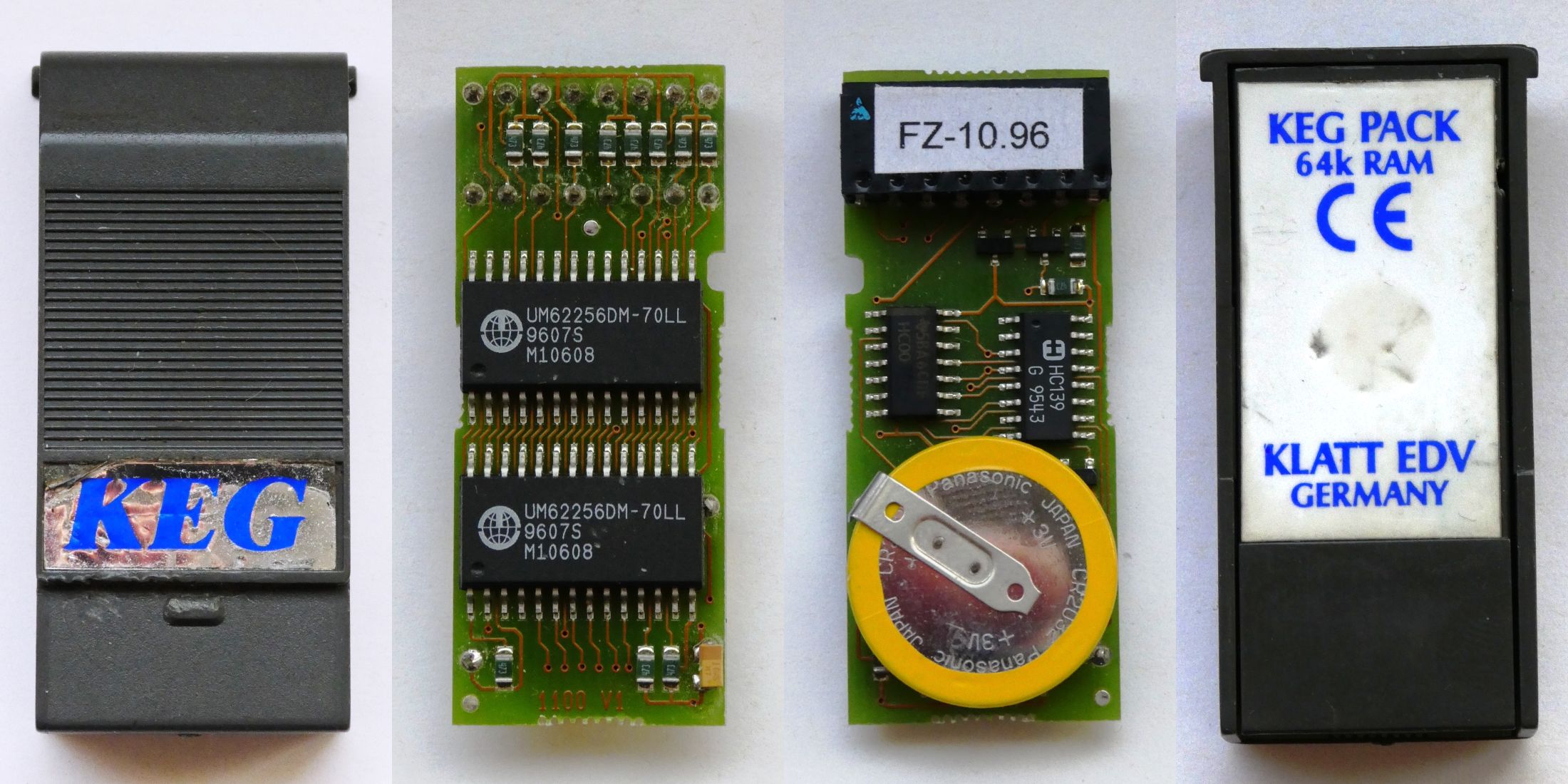

Rampaks are memory modules containing a volatile RAM chip. To keep the memory contents intact even when removed or when the organiser is switched off, the pack contains a battery. Psion only produced 32K rampaks, but there were other companies that produced larger sizes.

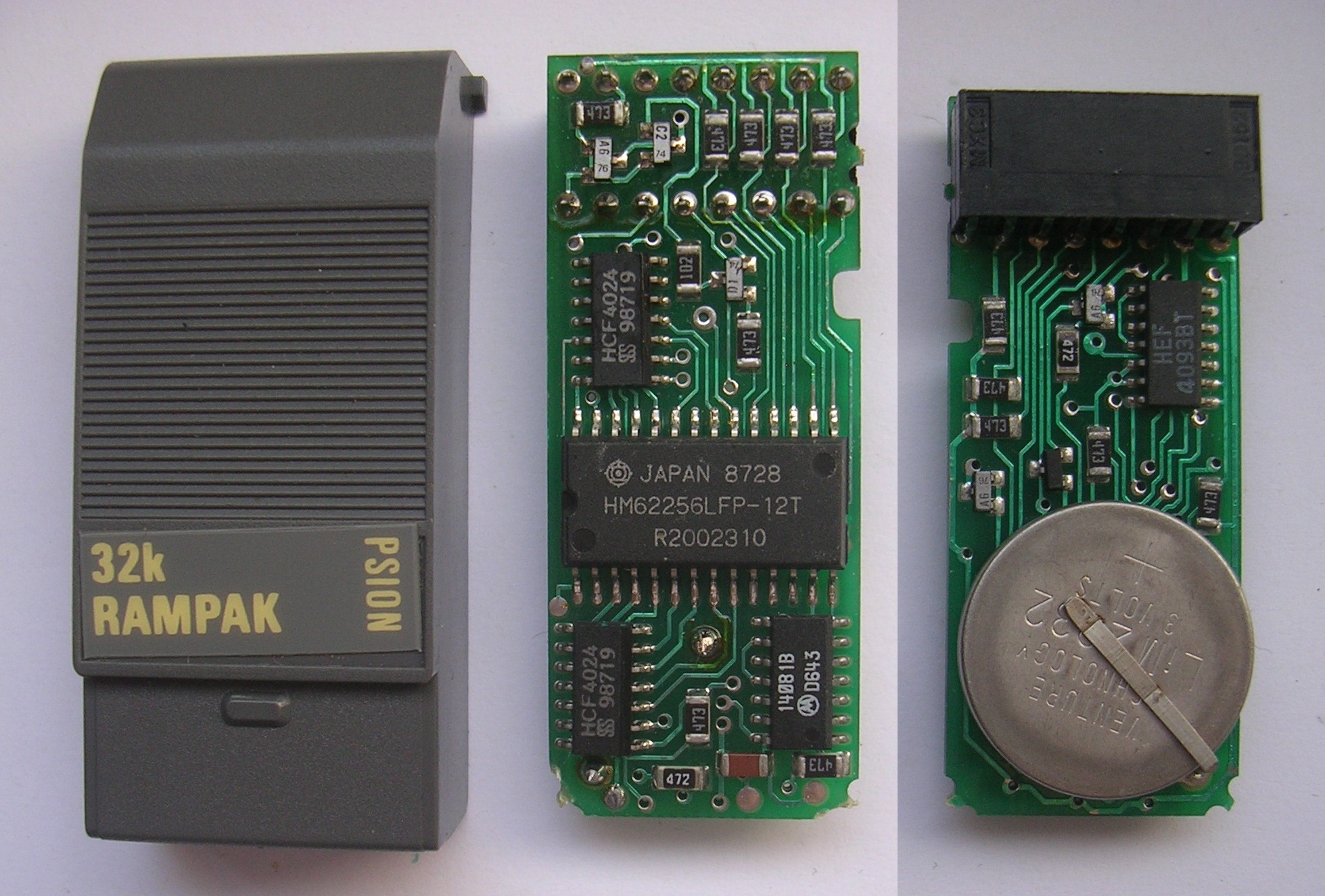

32K Rampak
Psion
64K Rampak
Dynasys

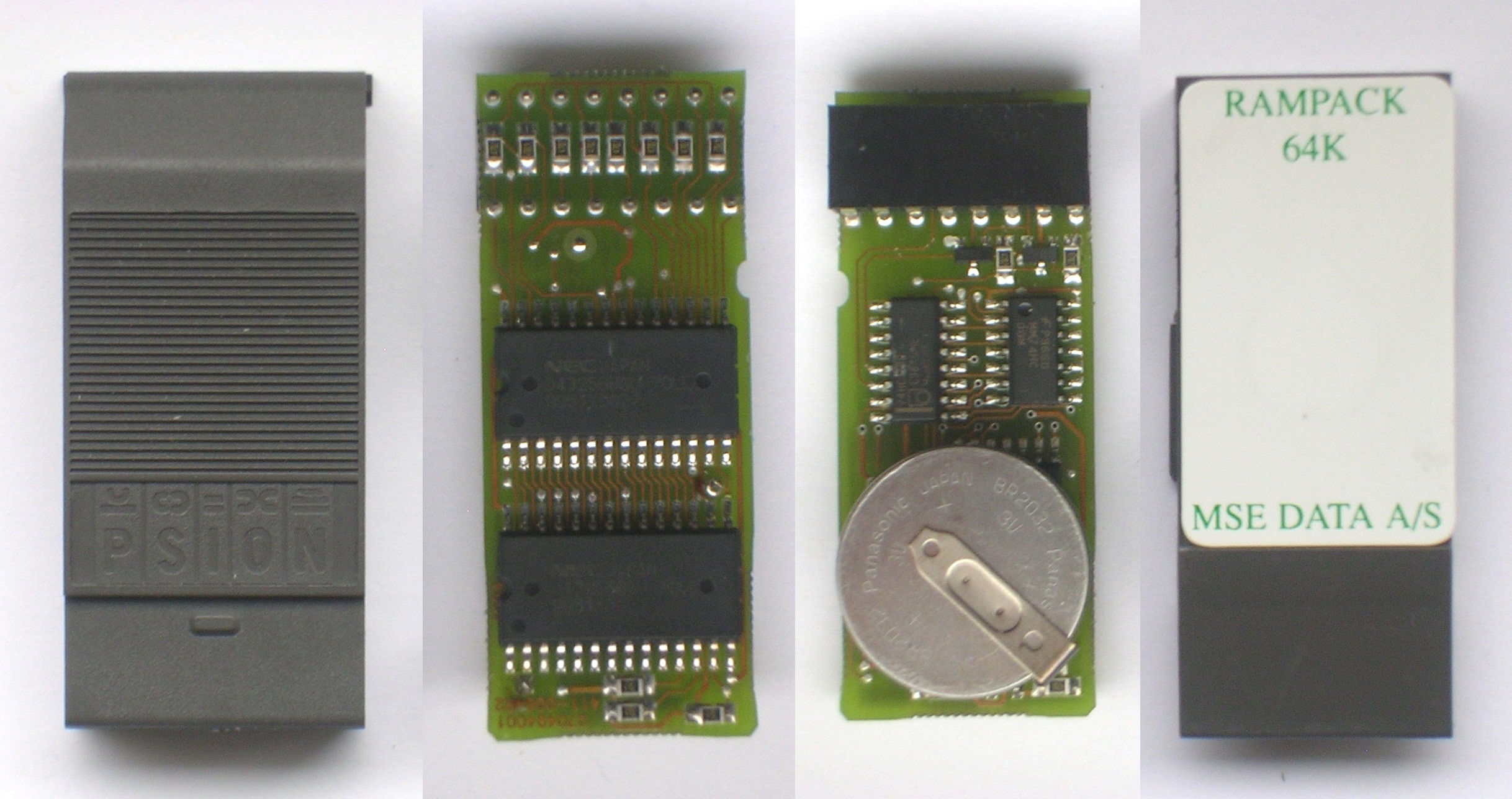

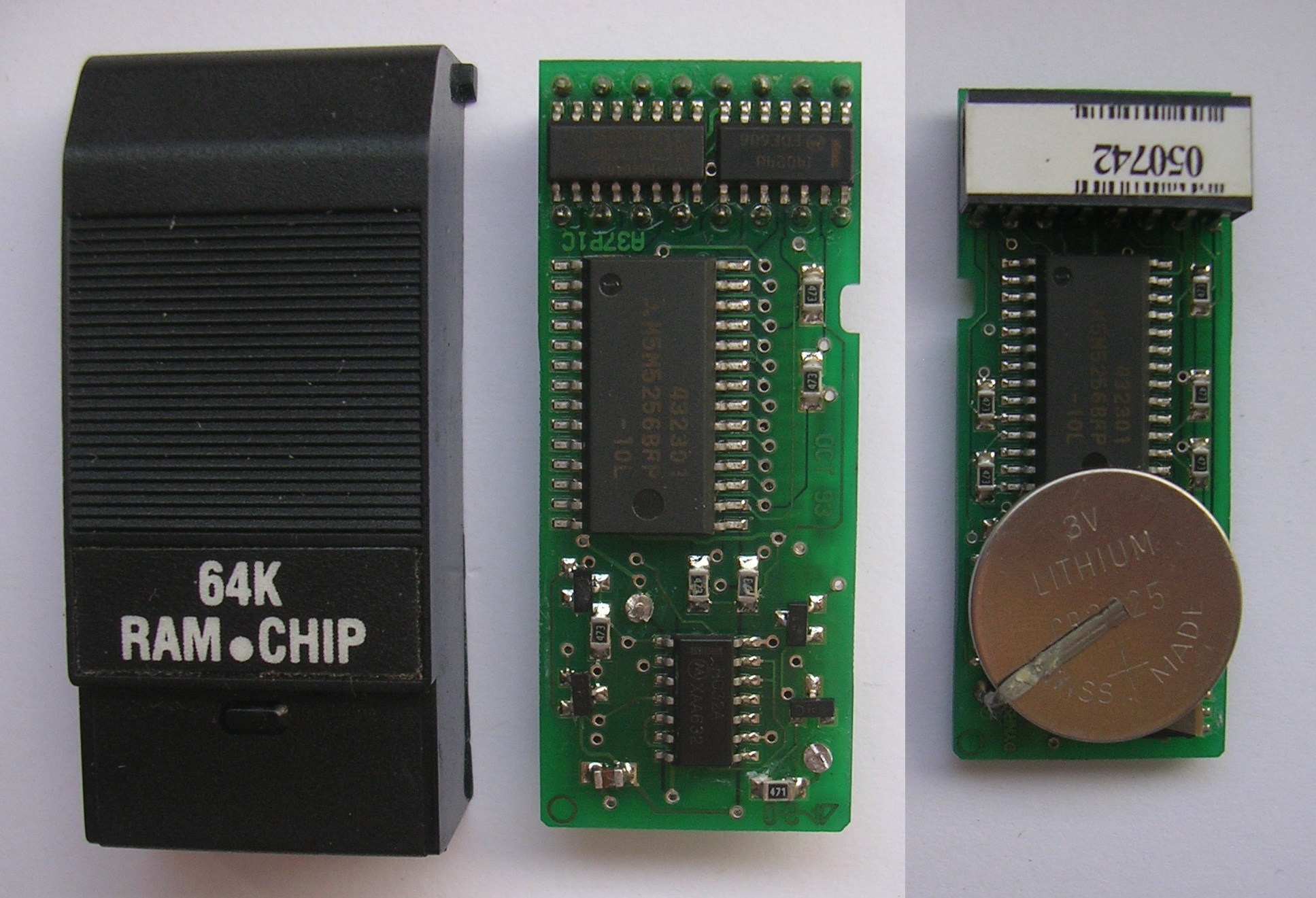

64K Rampak
MSE Data

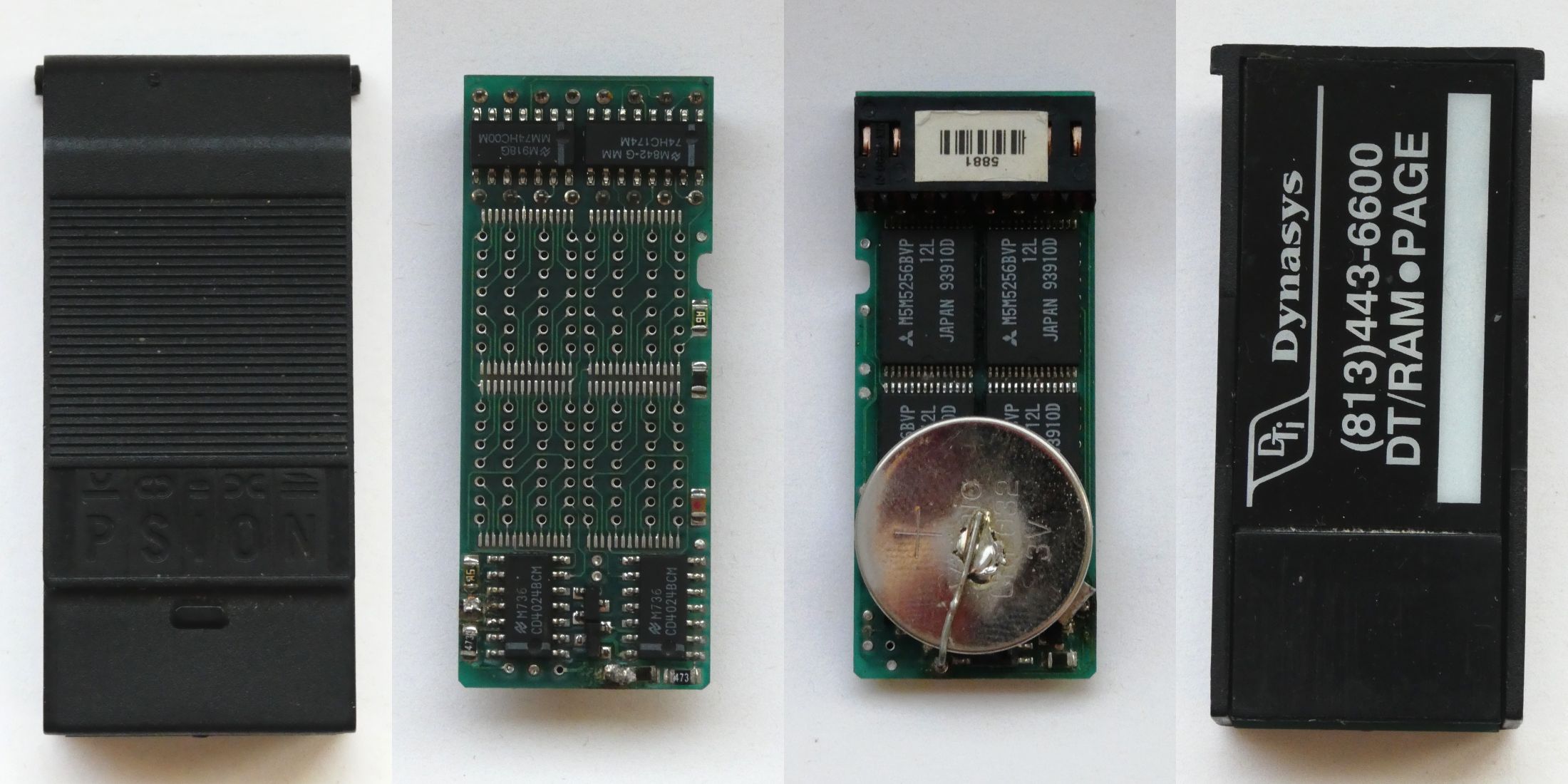

128K Rampak
Dynasys

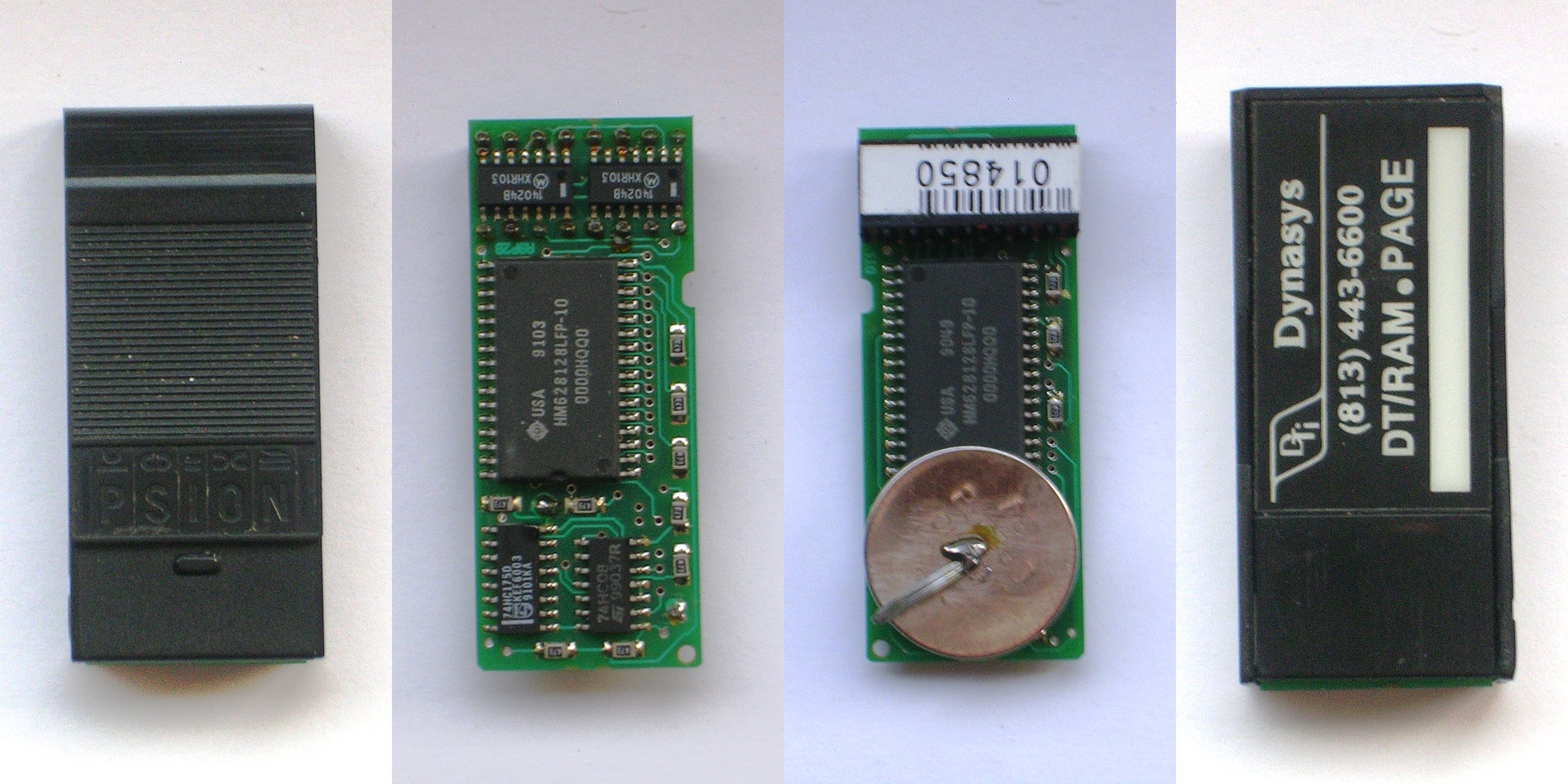

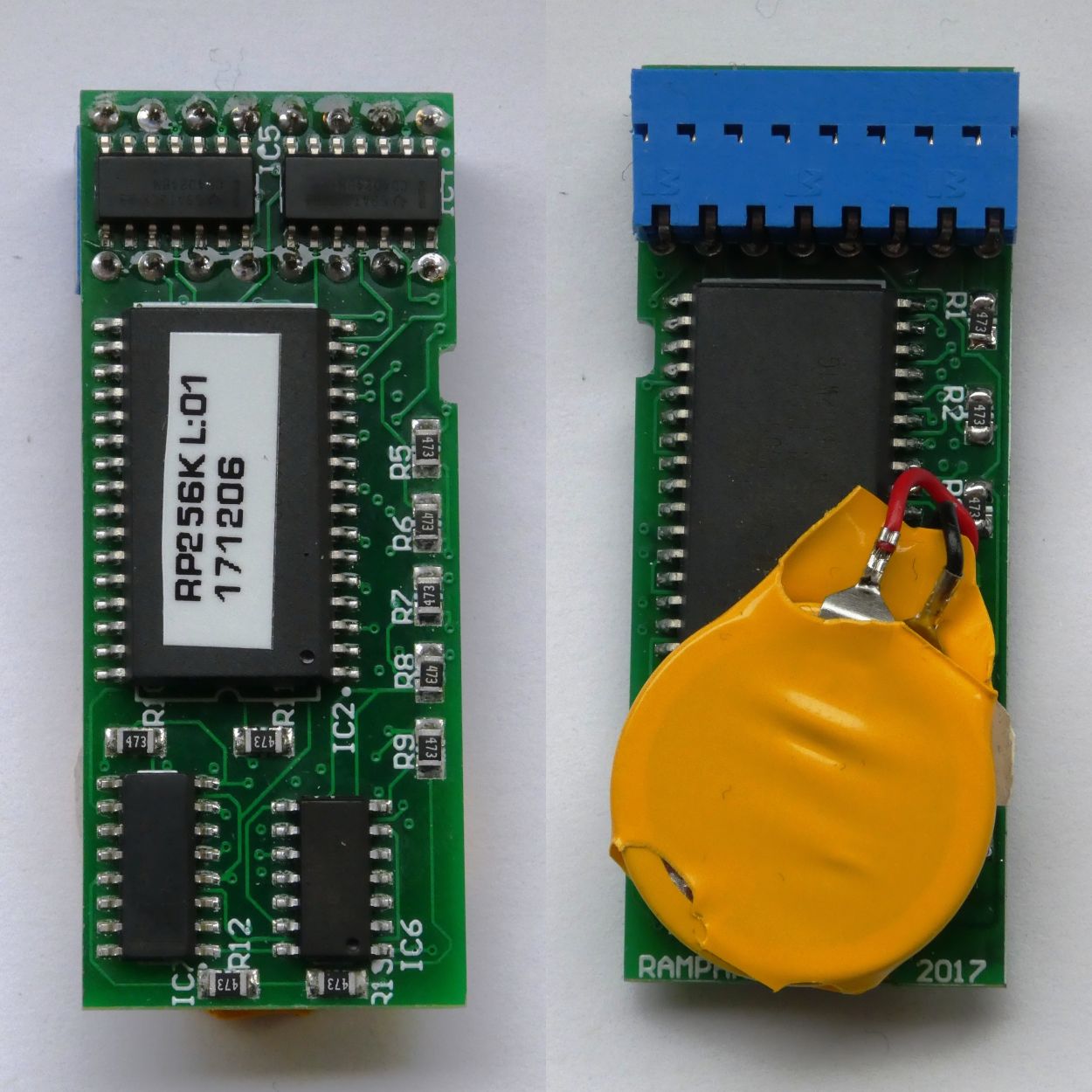

256K Rampak
Dynasys

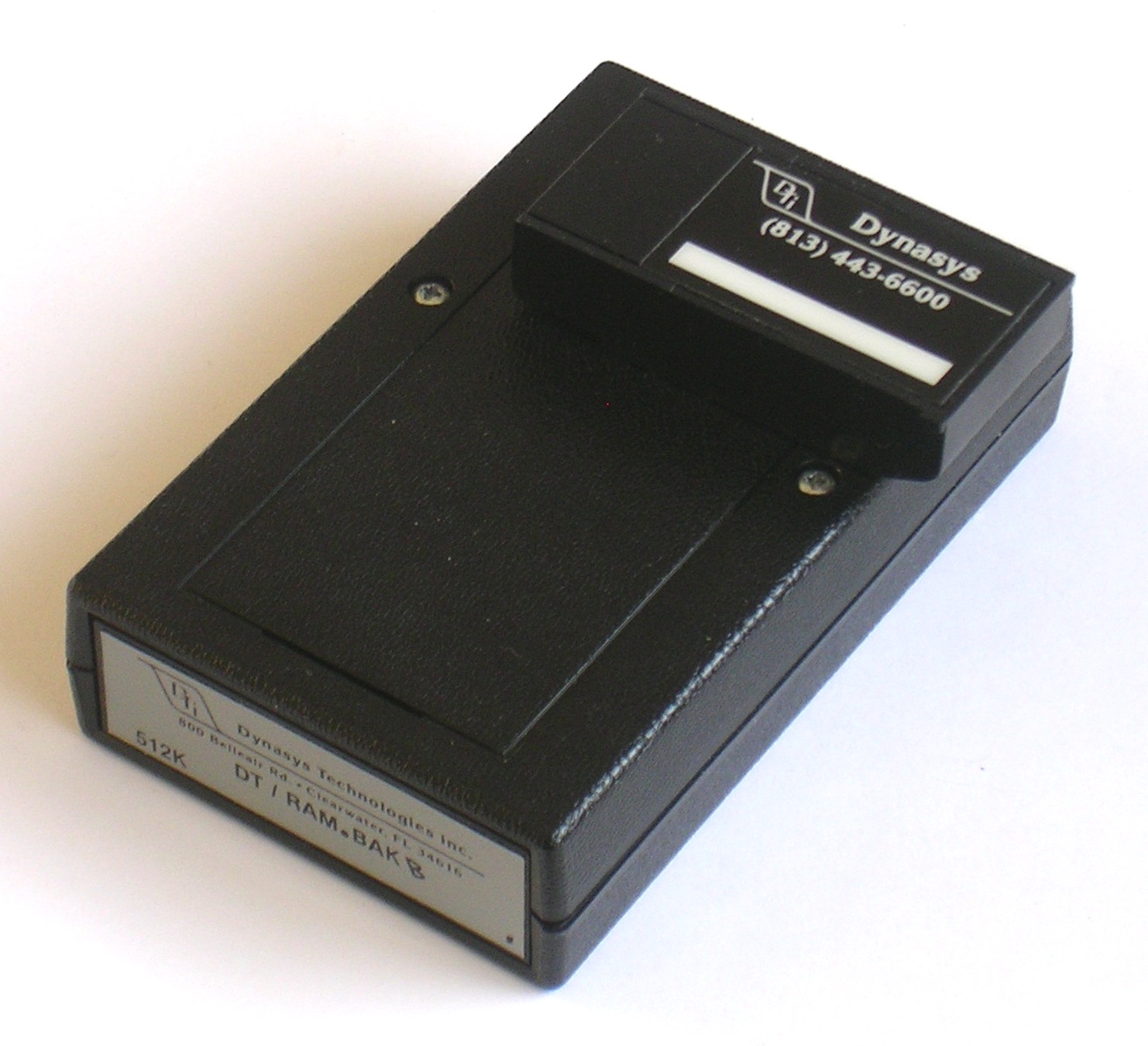

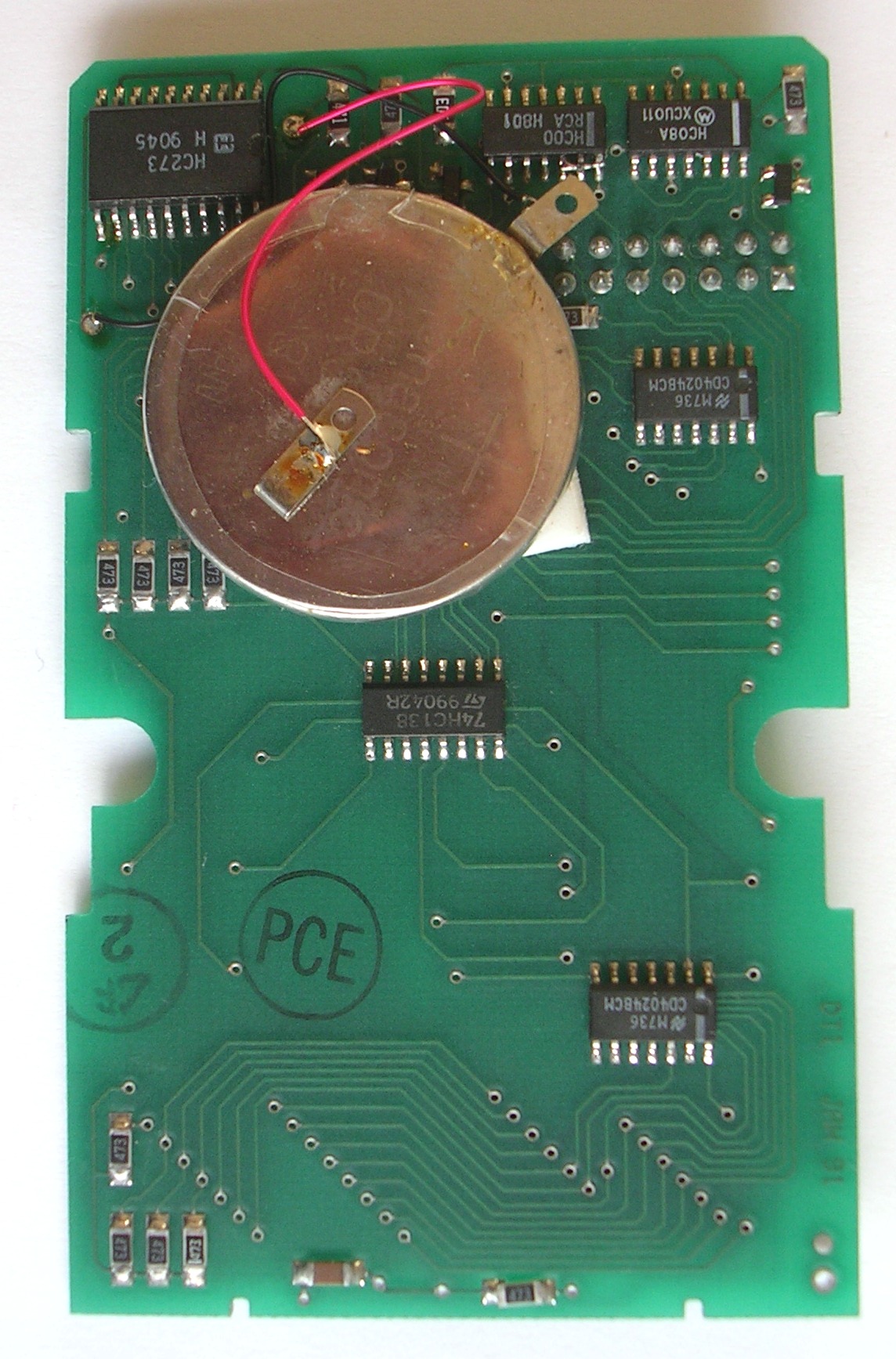

512K Rampak
Dynasys

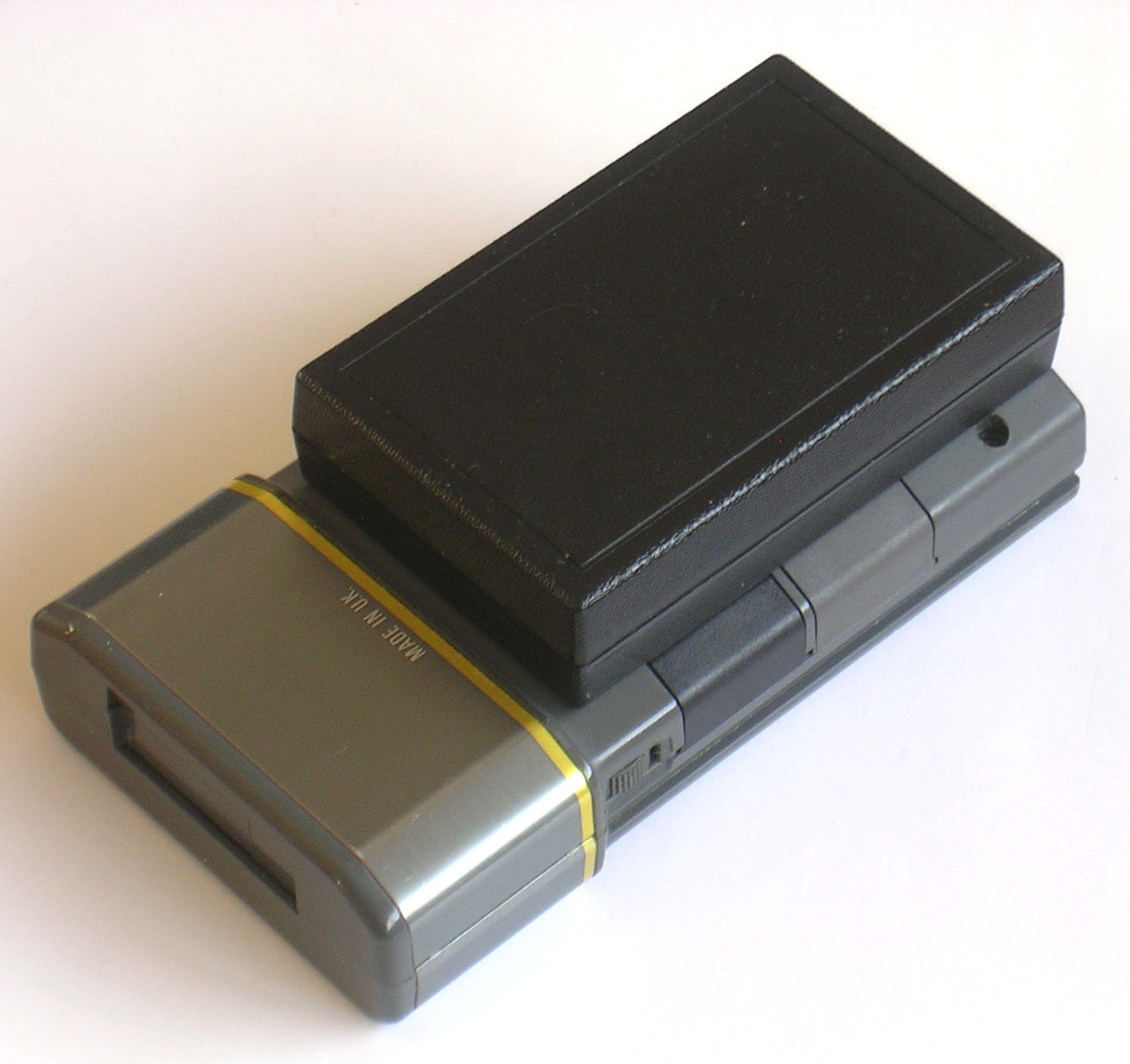

512K Rampak
Fitted
512K Rampak
Disassembled

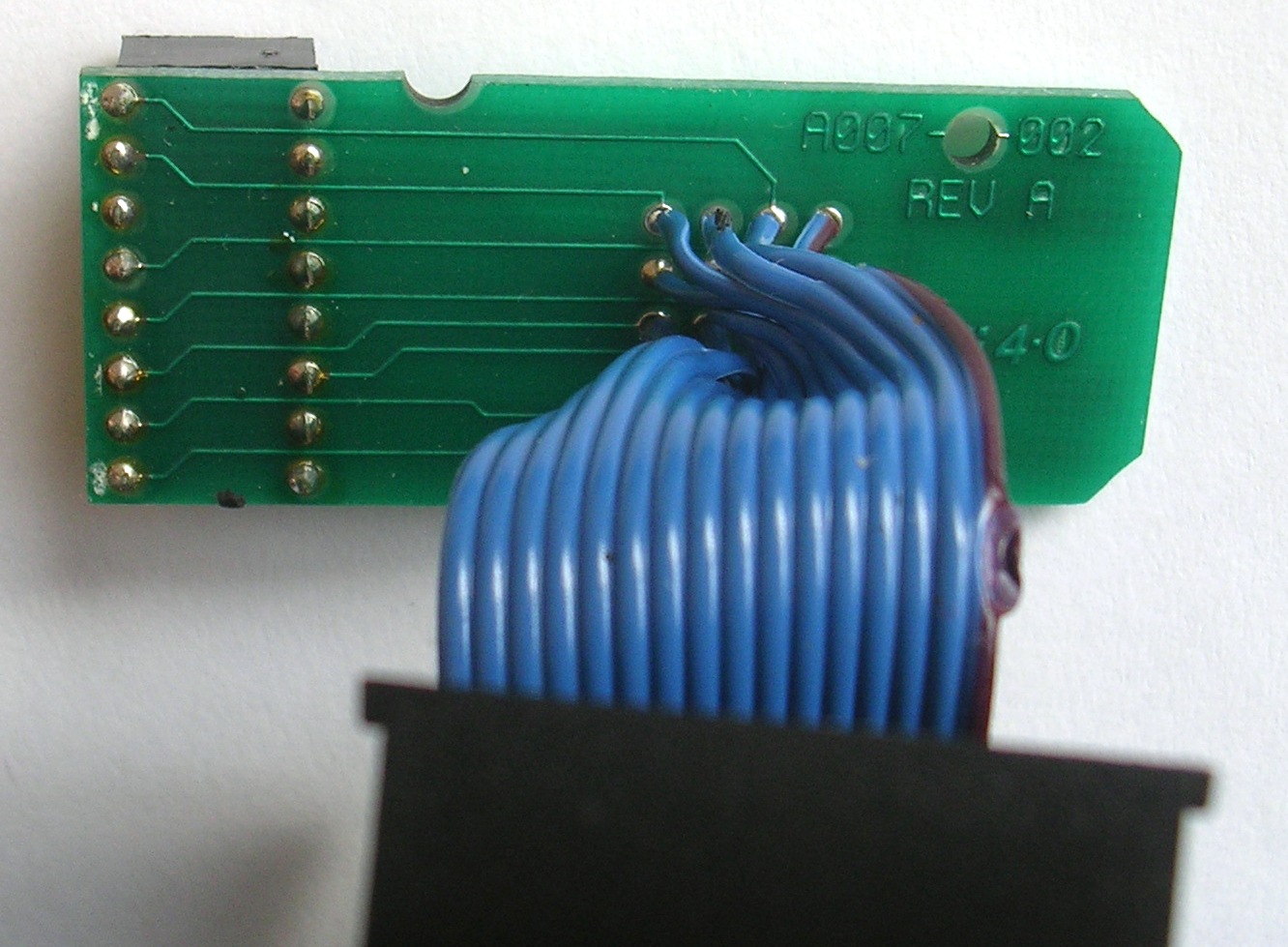

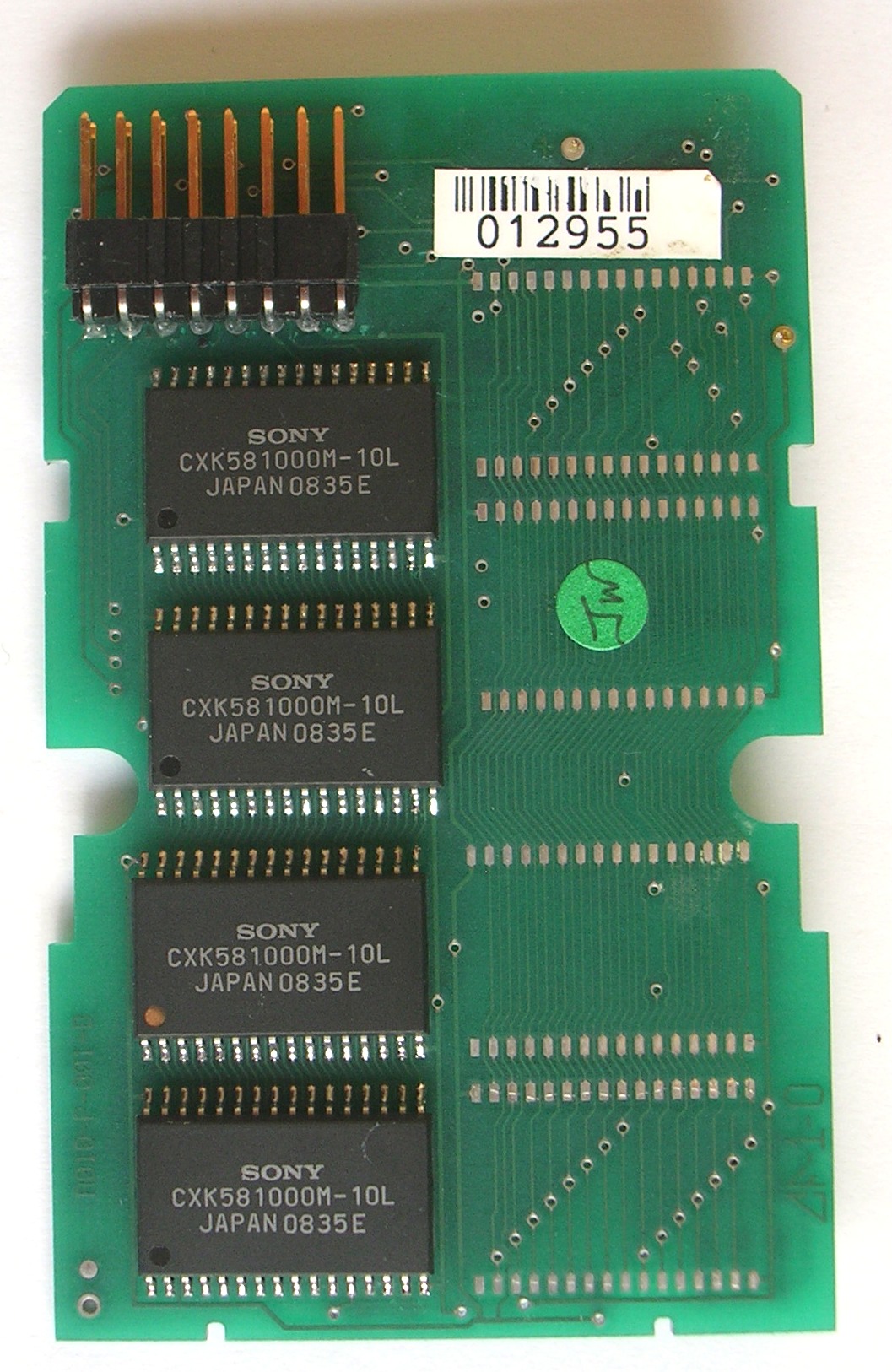

512K Rampak
Pack board, front
512K Rampak
Pack board, back
512K Rampak
Main board, front
512K Rampak
Main board, back

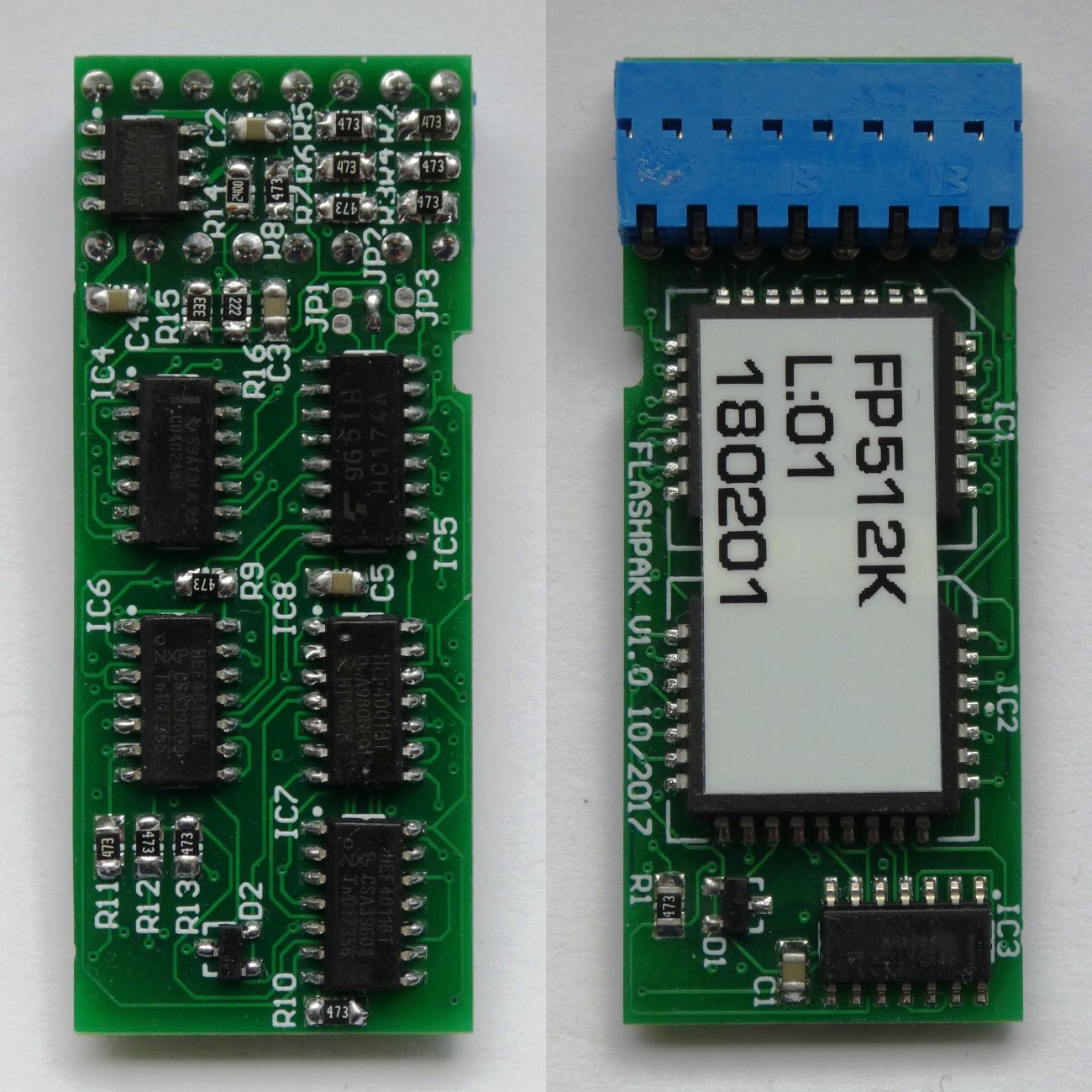

Flashpaks

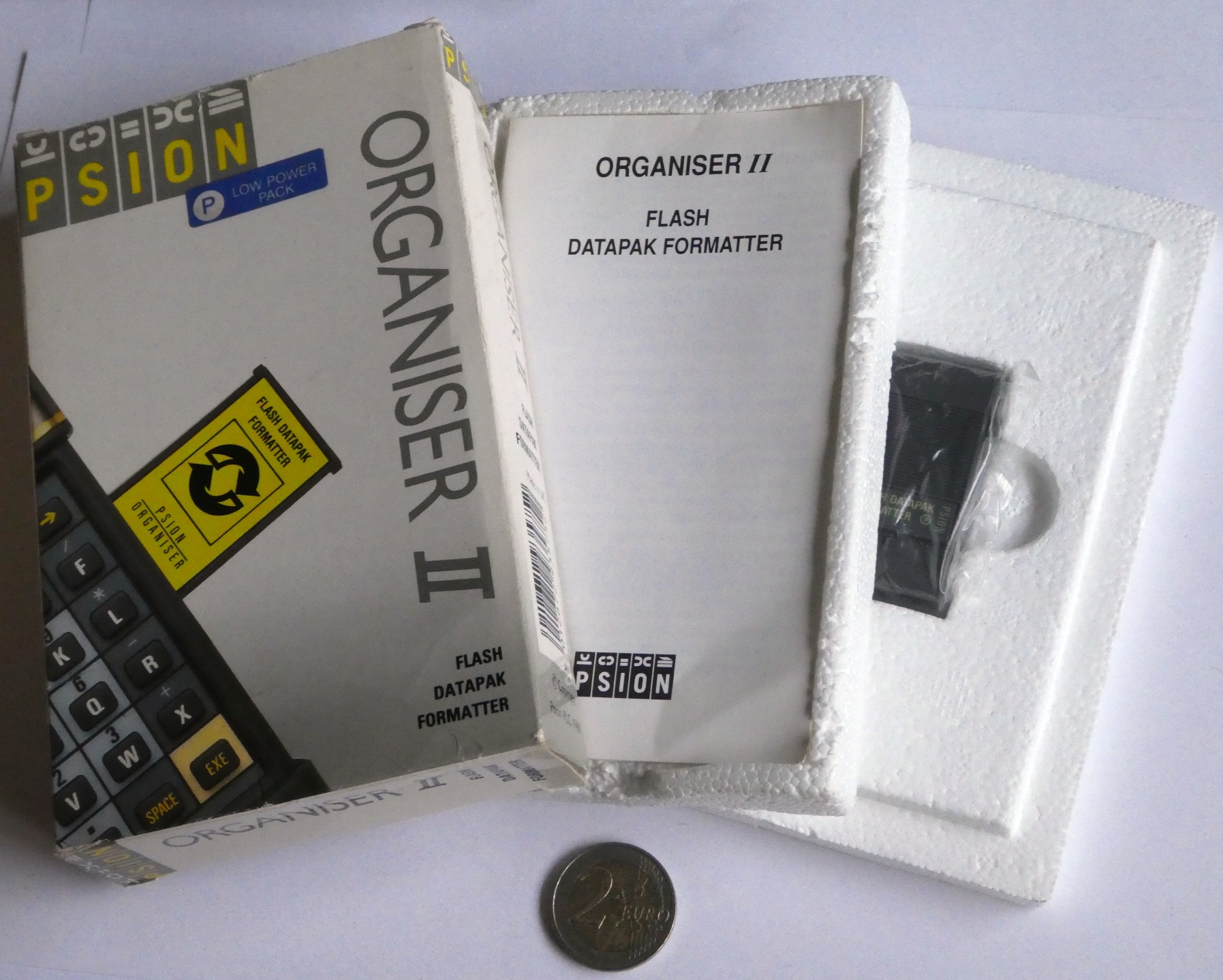

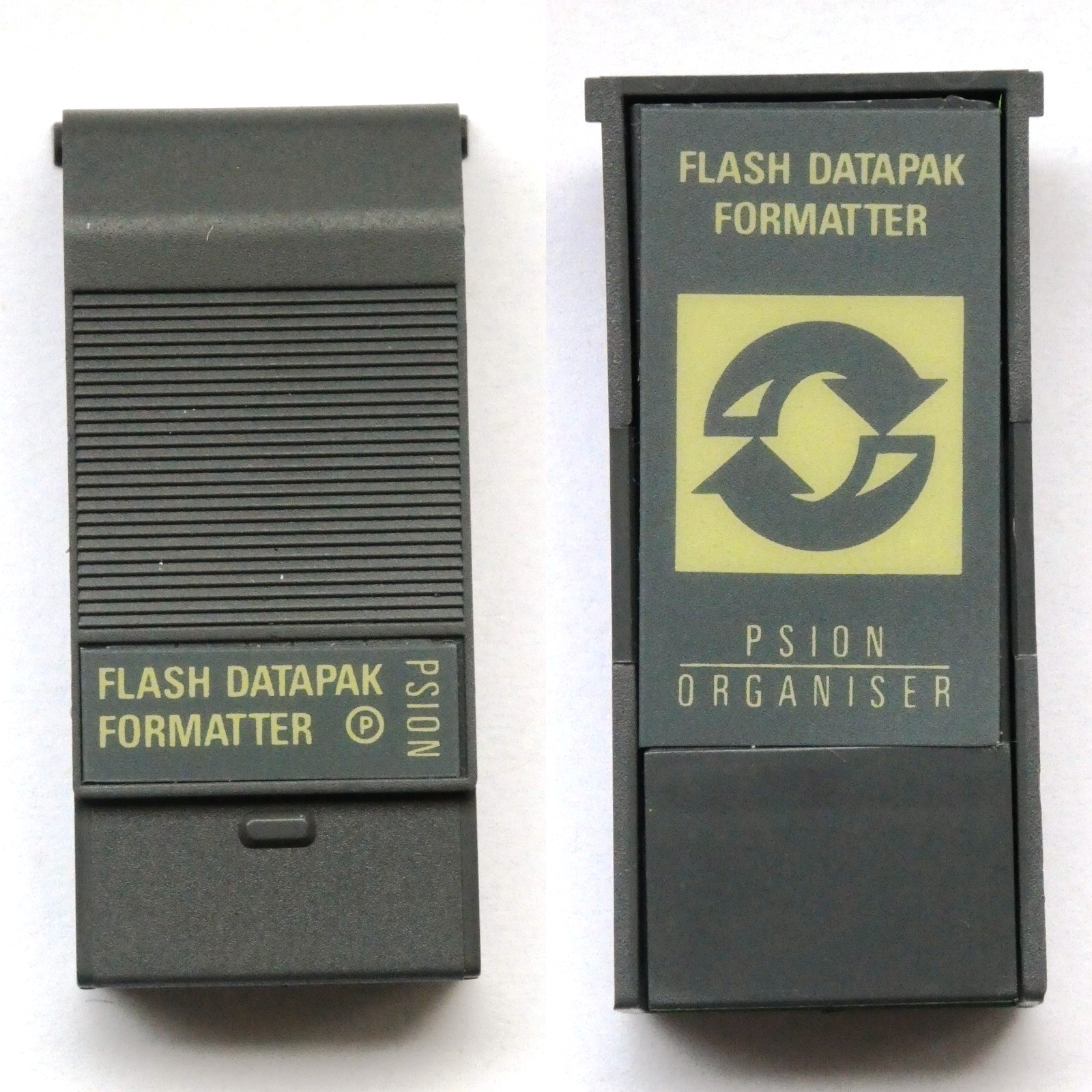

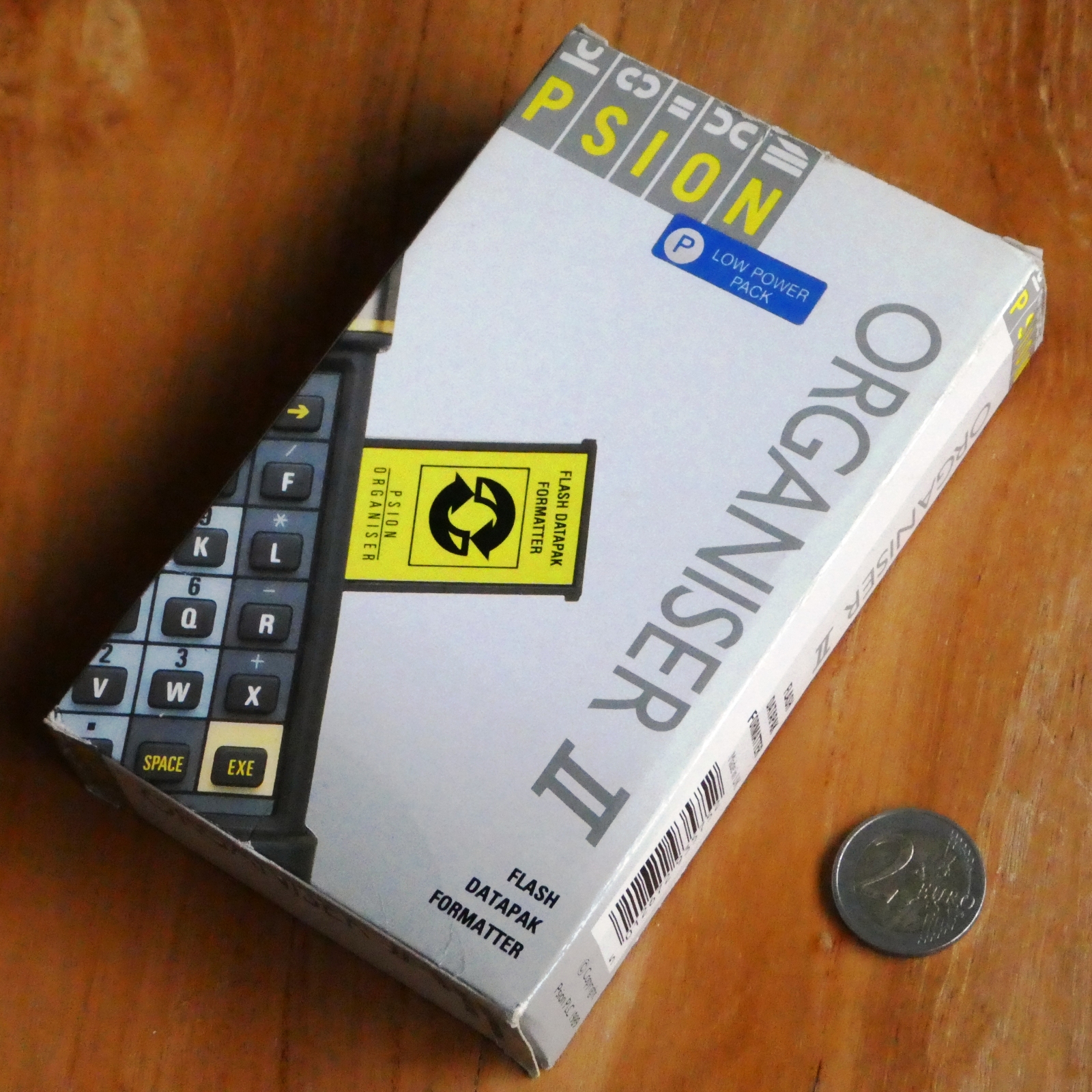

Flashpaks contain EEPROM chips. These can be formatted electronically by the organiser. All it needed was a software driver that is normally present on the flashpak itself. In order to restore the driver software to the pak after formatting, a second pack with a copy of the driver was needed in the other slot. Flashpaks came in the sizes 128K and 256K

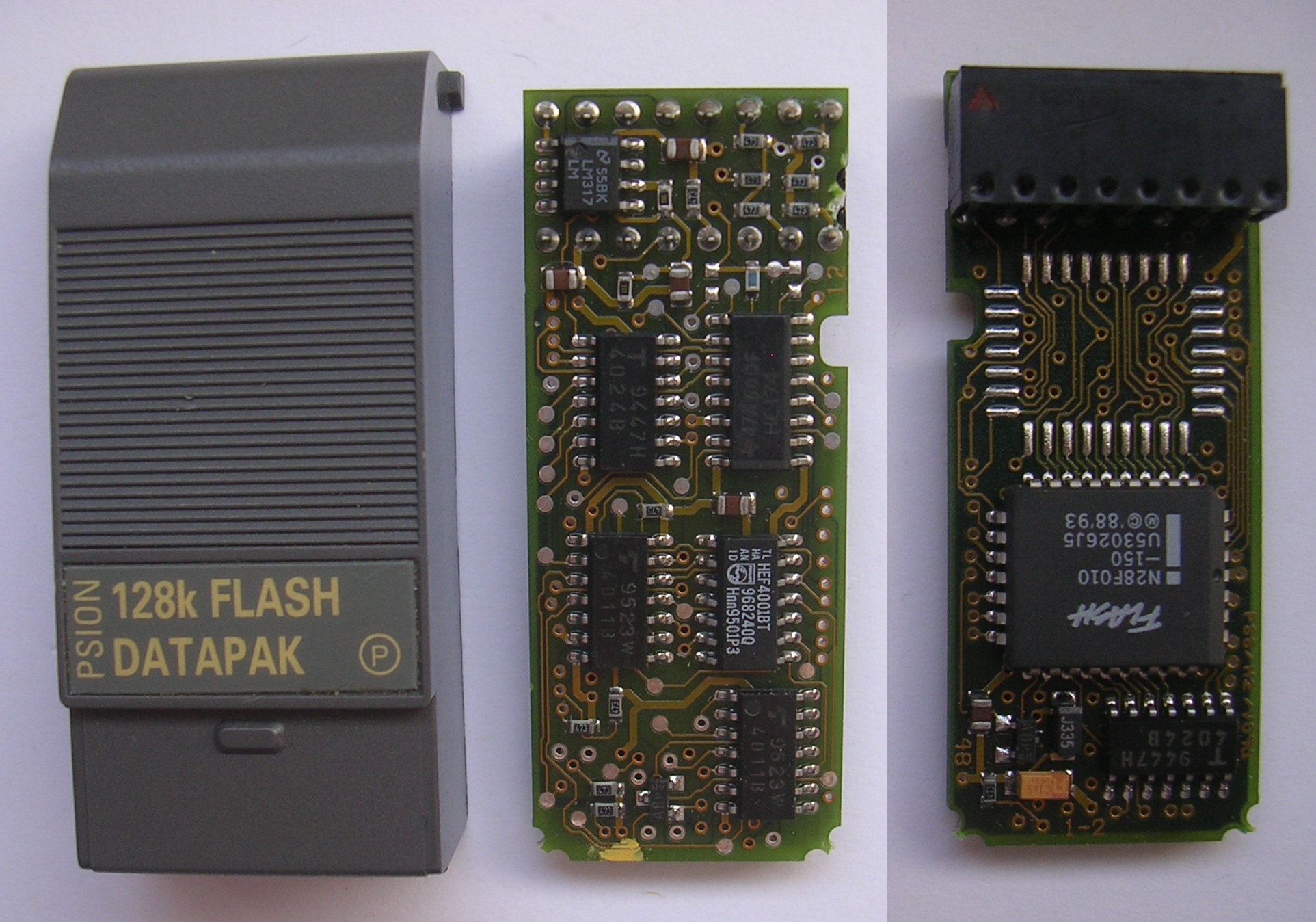

128K Flashpak
256K Flashpak



Psion Software Packs

Psion created some software packs themselves, but also published under the Psion brand a few packs created by others.

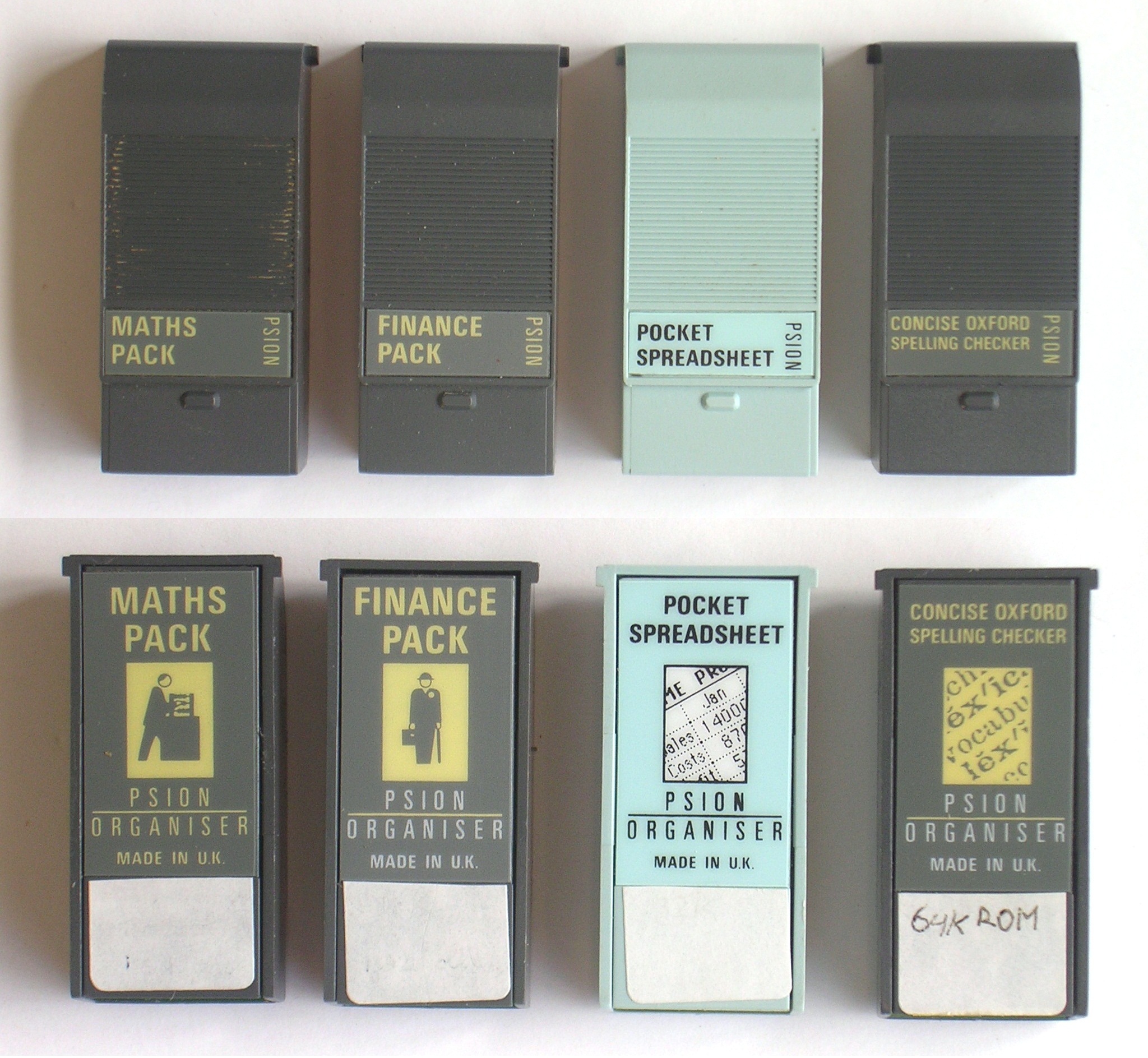

Software Packs
Made by Psion
Software Packs
Published by Psion

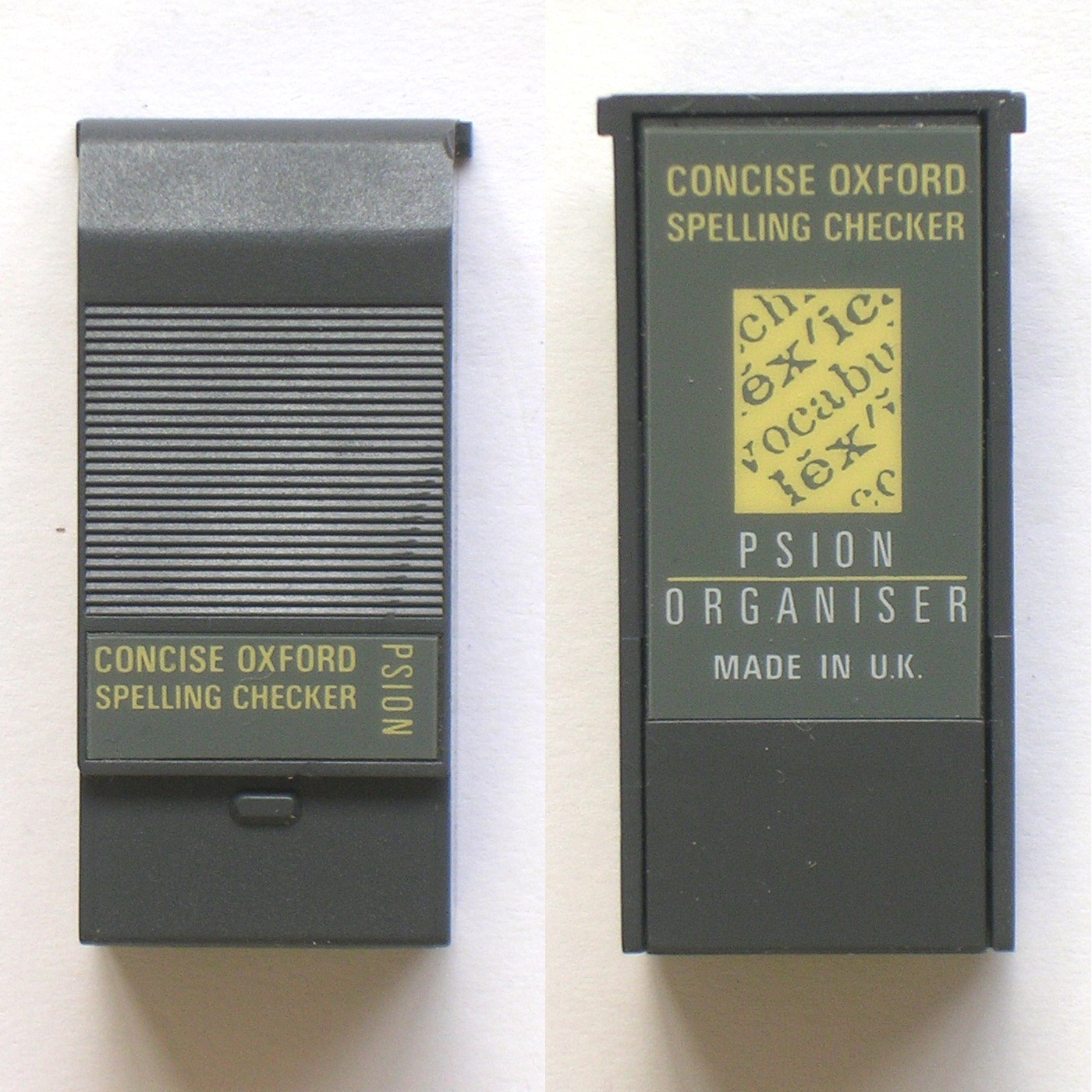

Concise Oxford Spelling Checker
Psion
Concise Oxford Spelling Checker
Manual

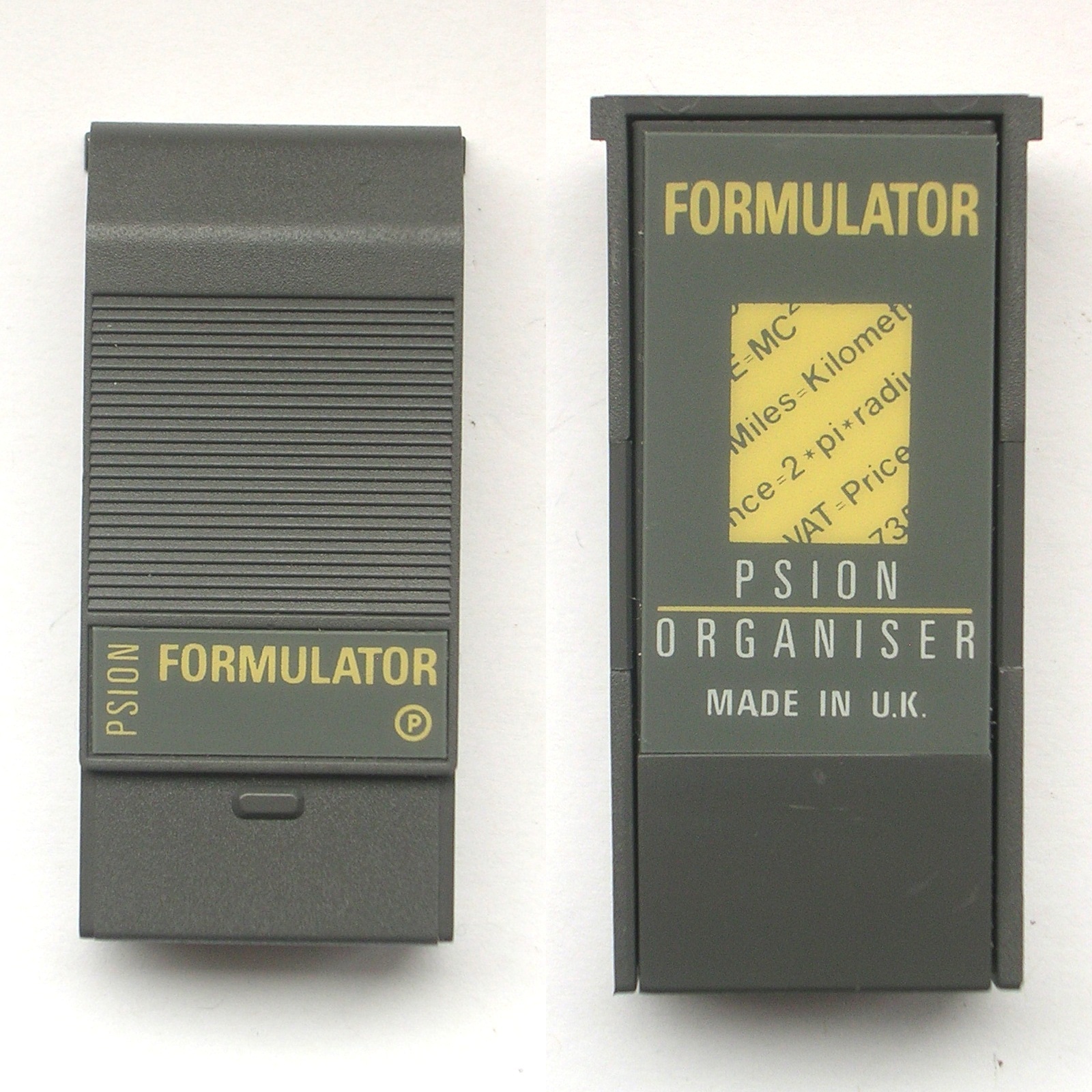

Formulator
Psion
Formulator
Manual

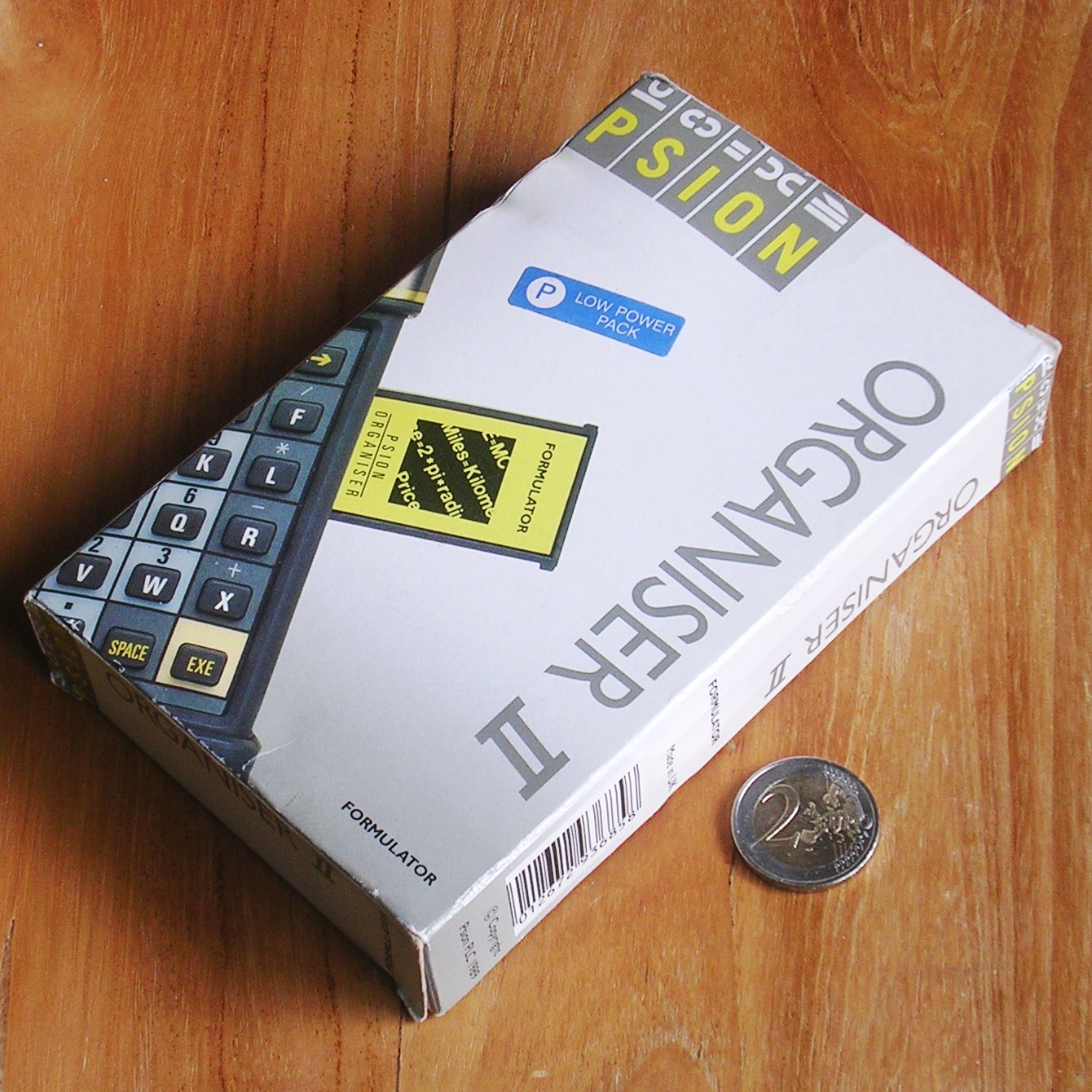

Formulator
In box

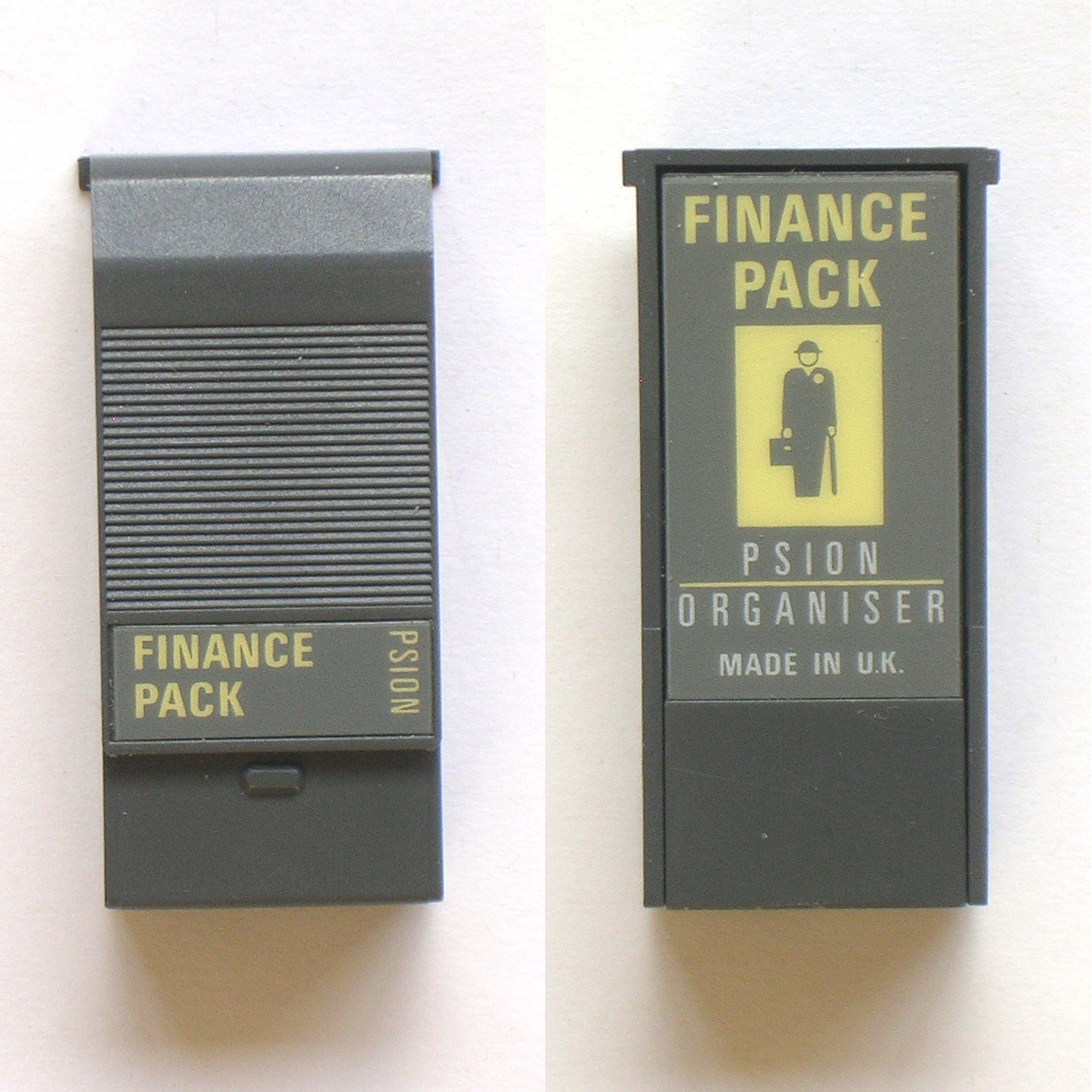

Finance Pack
Psion

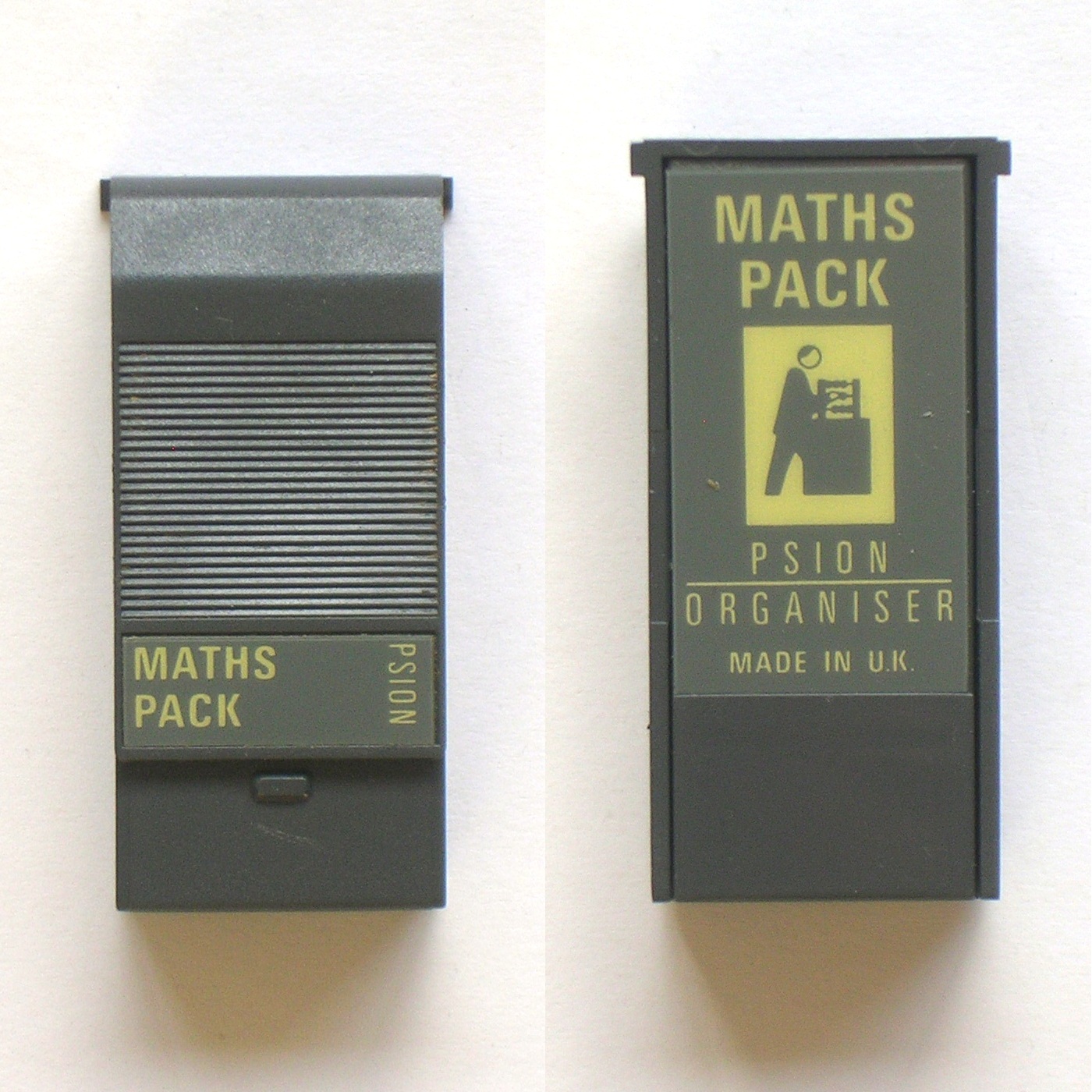

Maths Pack
Psion
Maths Pack
Manual
Pocket Spreadsheet
Psion
Pocket Spreadsheet
Manual

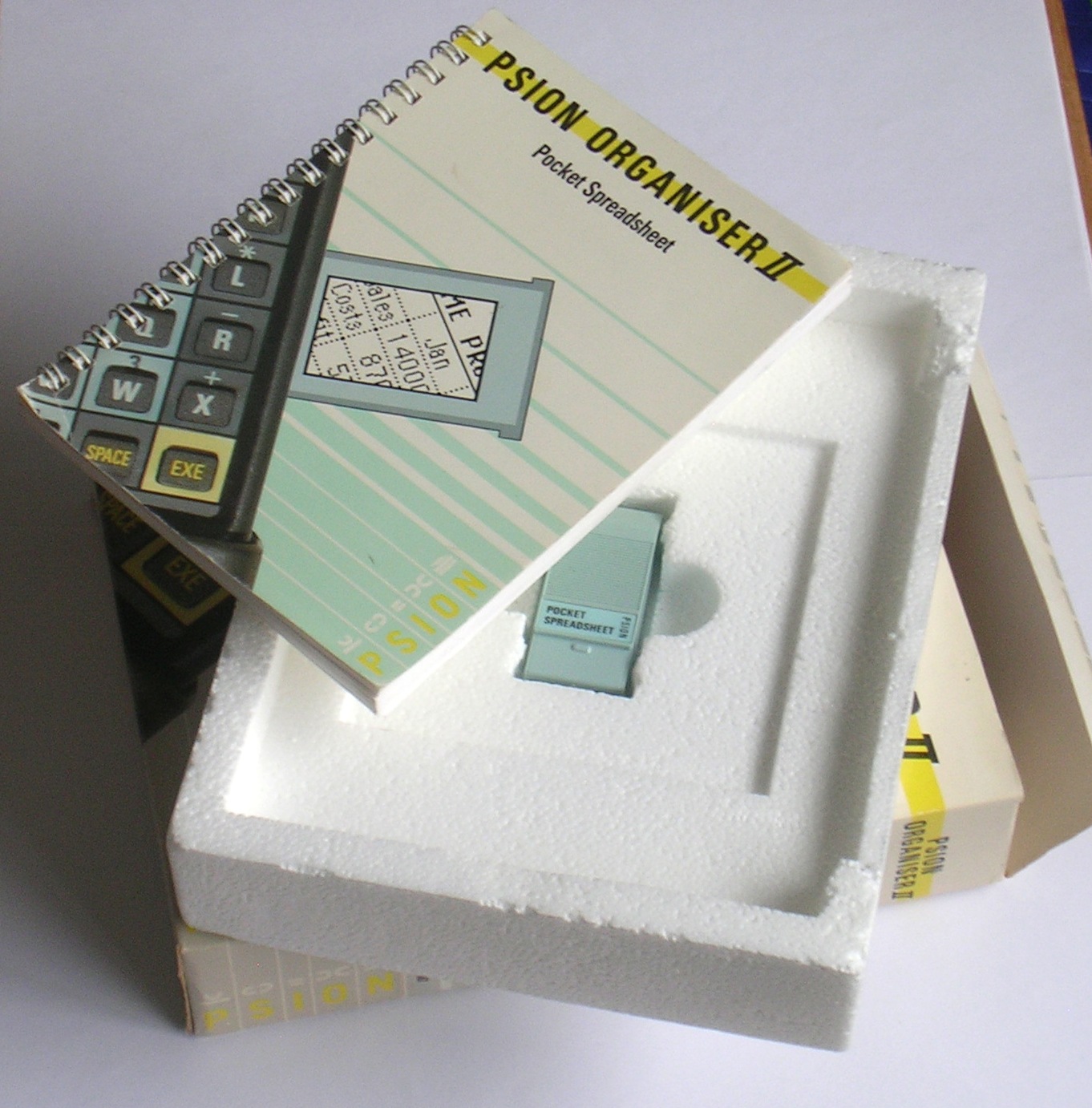

Pocket Spreadsheet
In box
Pocket Spreadsheet
With packaging, manual

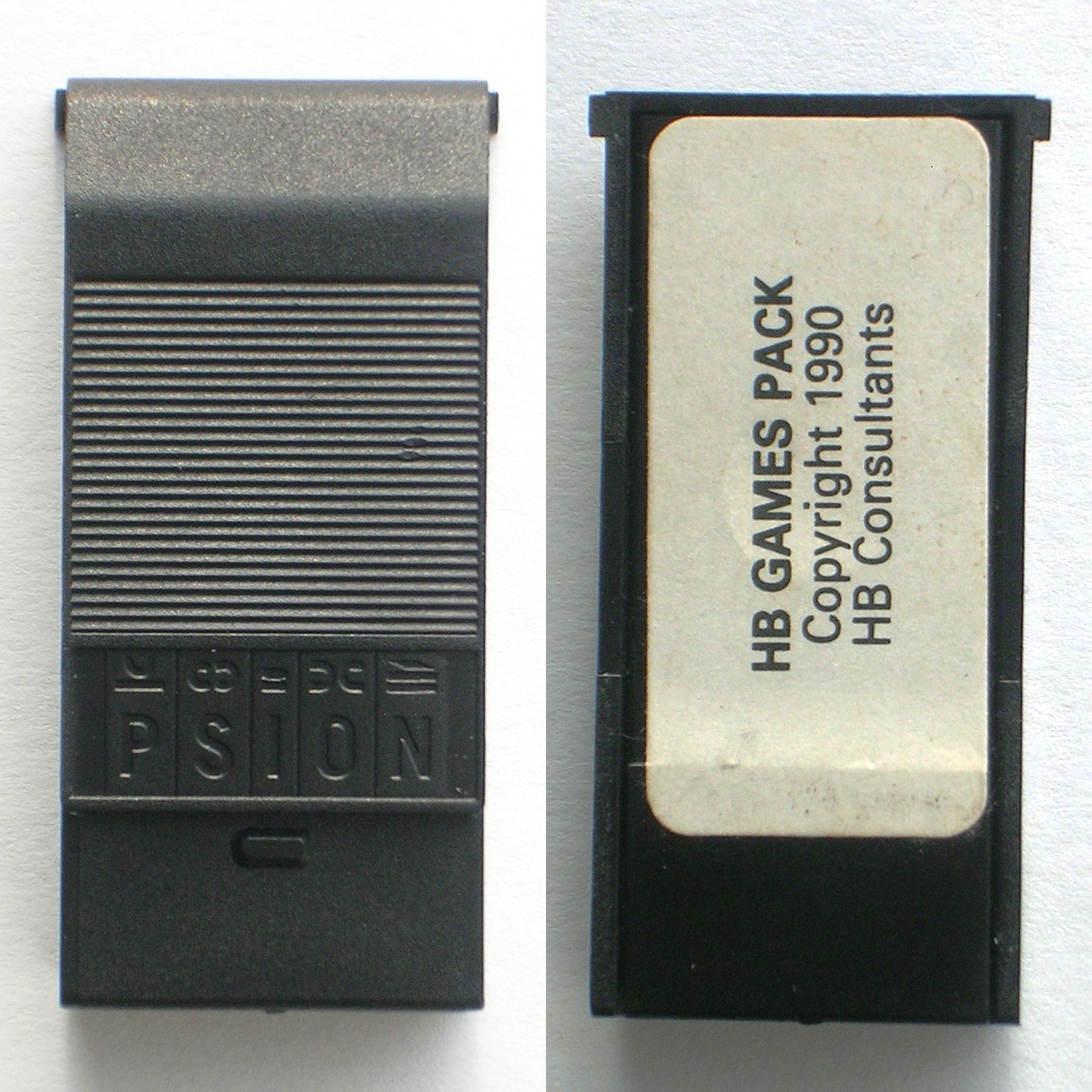

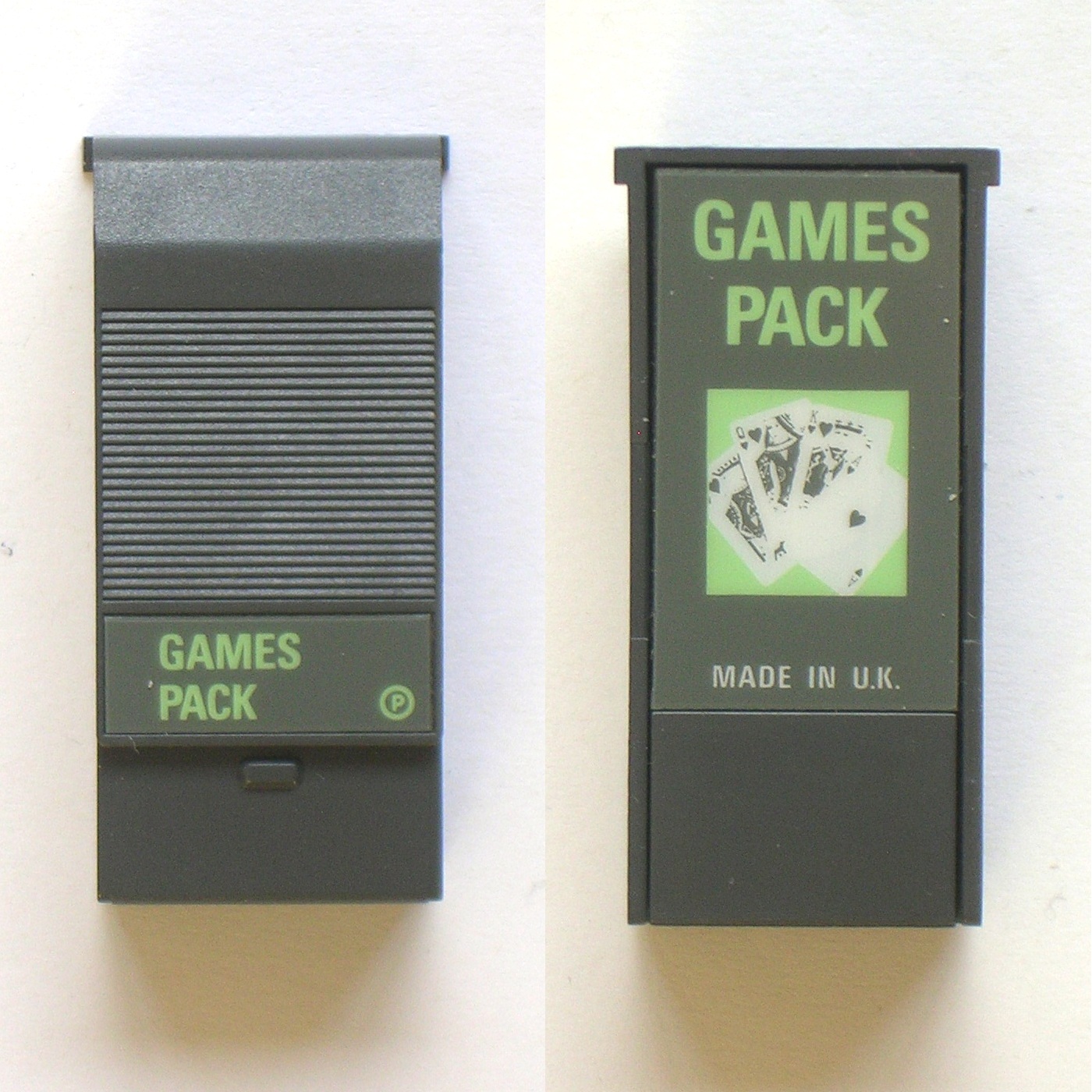

Games Pack
Published by Psion
Portfolio
Published by Psion
Portfolio
Manual

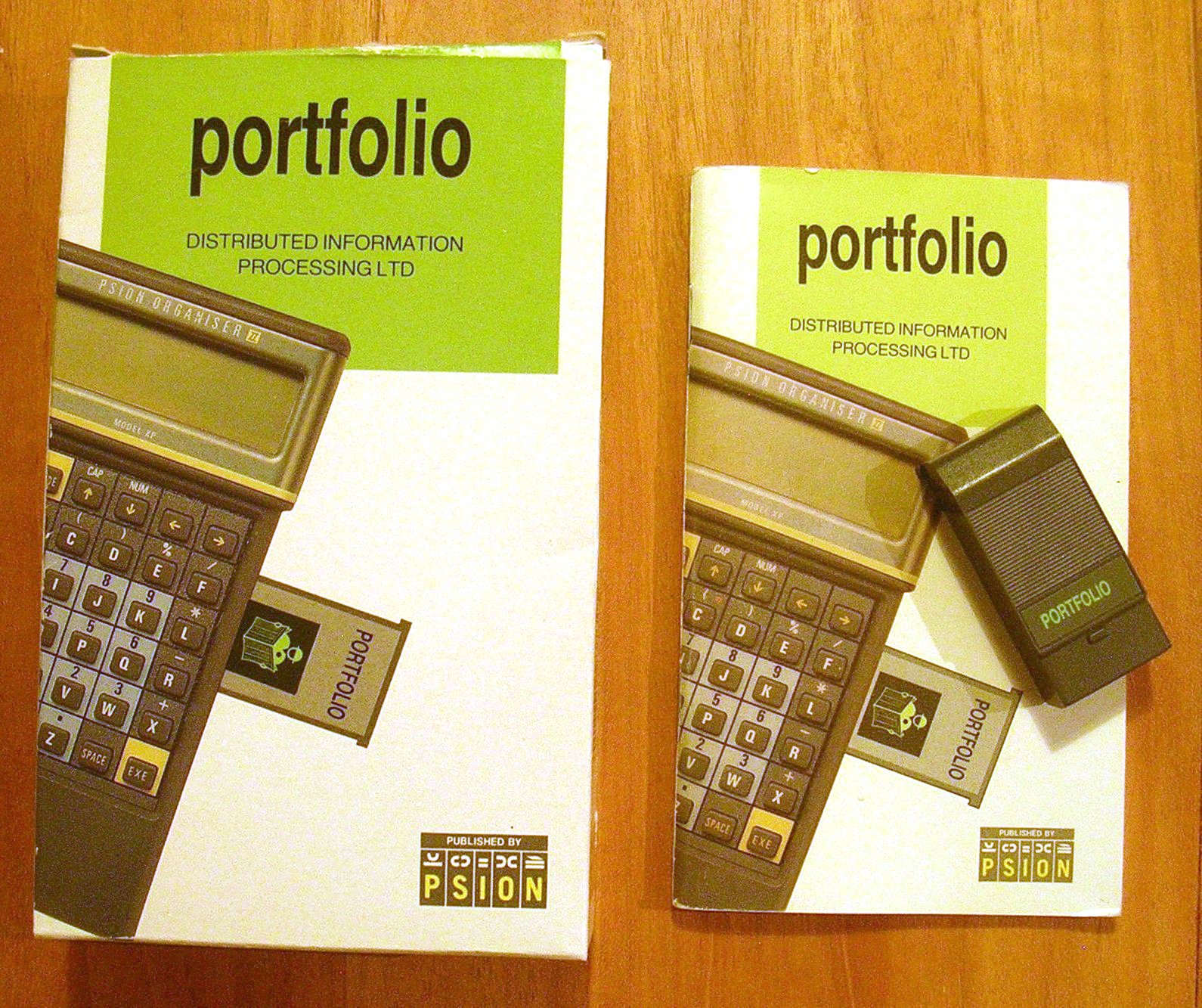

Portfolio
With packaging, manual

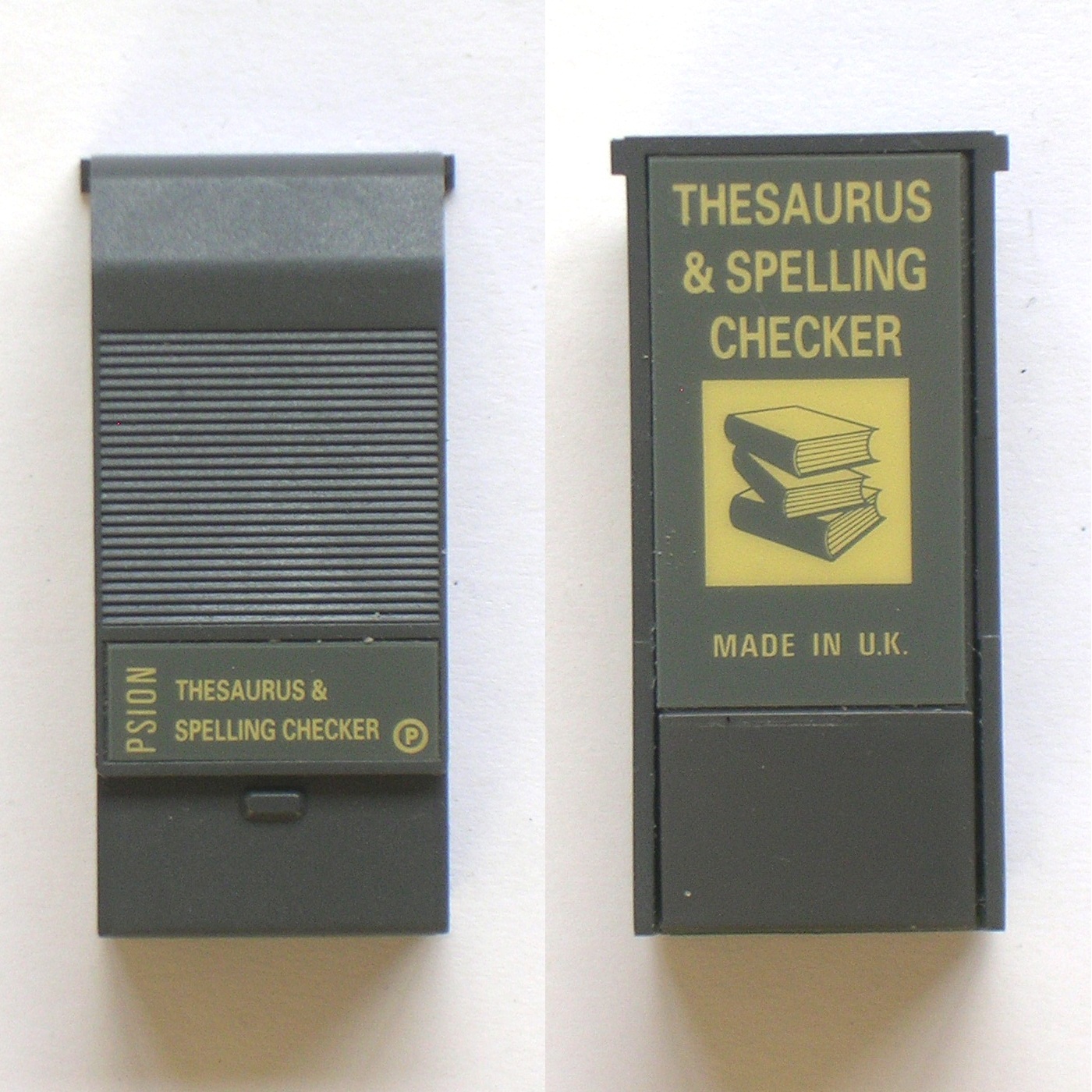

Thesaurus and Spelling Checker
Published by Psion
Thesaurus and Spelling Checker
Manual

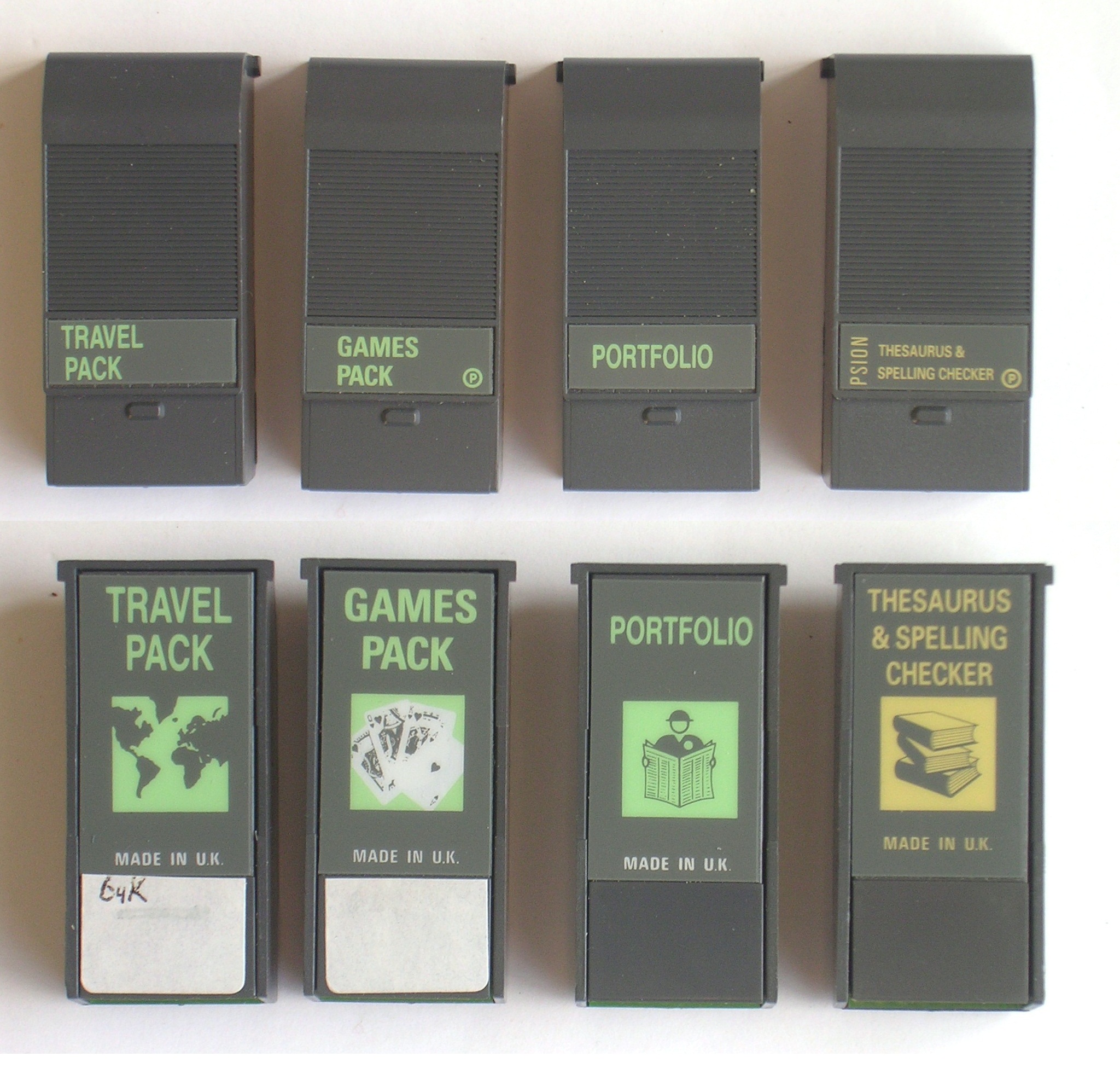

Travel Pack
Published by Psion



Third-Party Software Packs

The bulk of the software available for the Psion II was written by third parties. The first section below consists of packs aimed at the ordinary consumer.

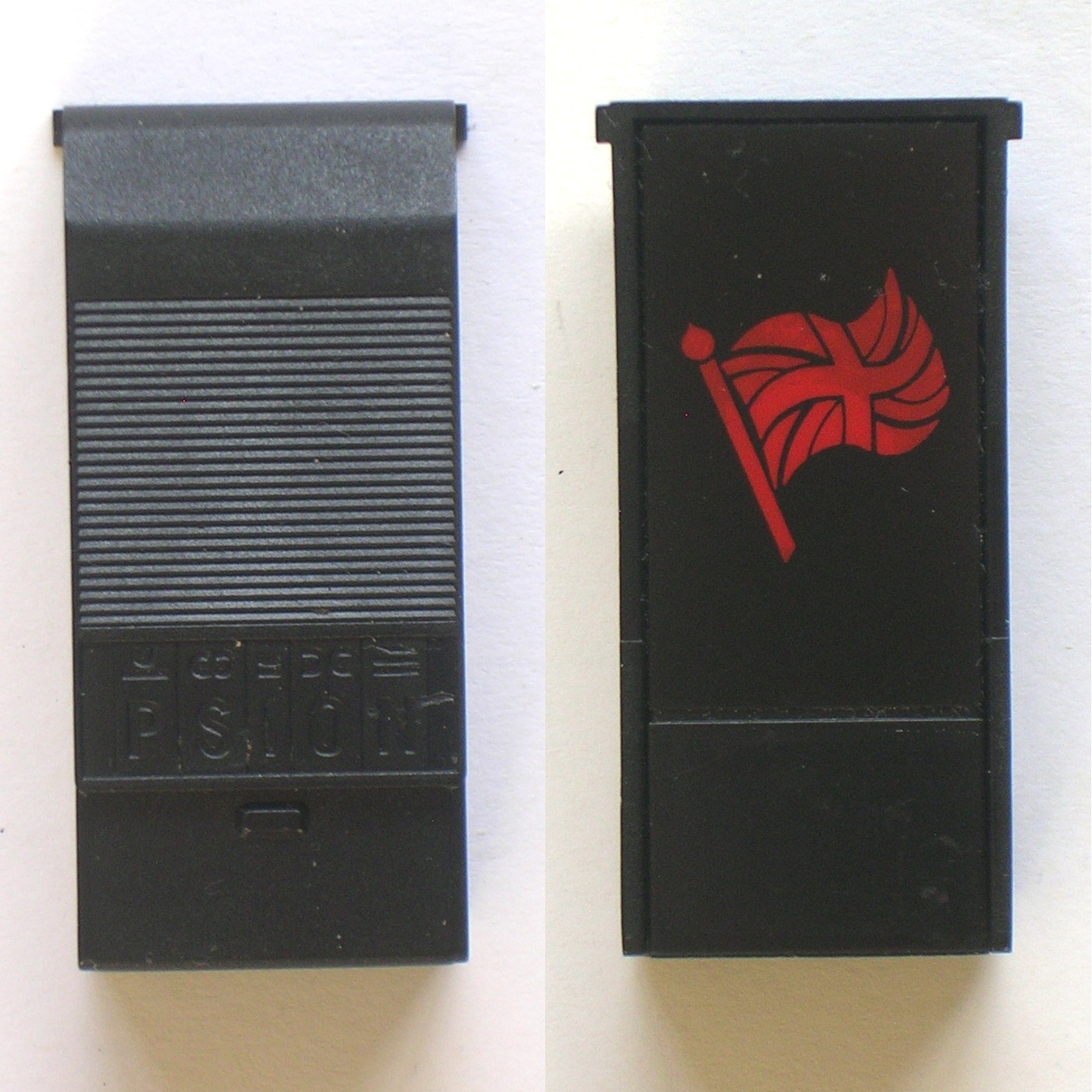

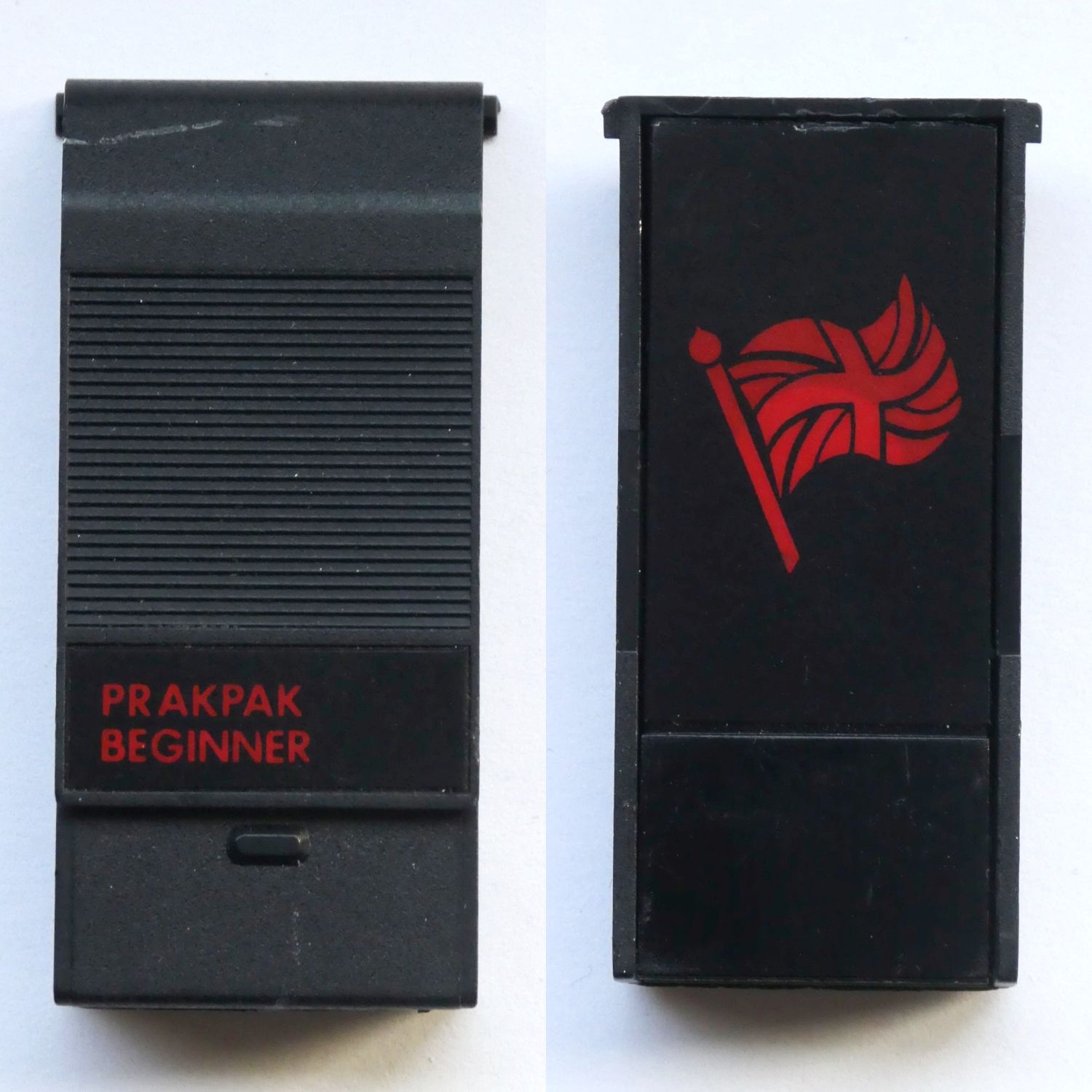

The datapak that I've described as 'Unknown' is blank, but has a red logo of the Union Jack on it, which seems to be the logo that Mackay Language Software used. This pack probably used to be one of their language Prakpaks.
If you own any software packs not listed here, please let me know. You can contact me at .

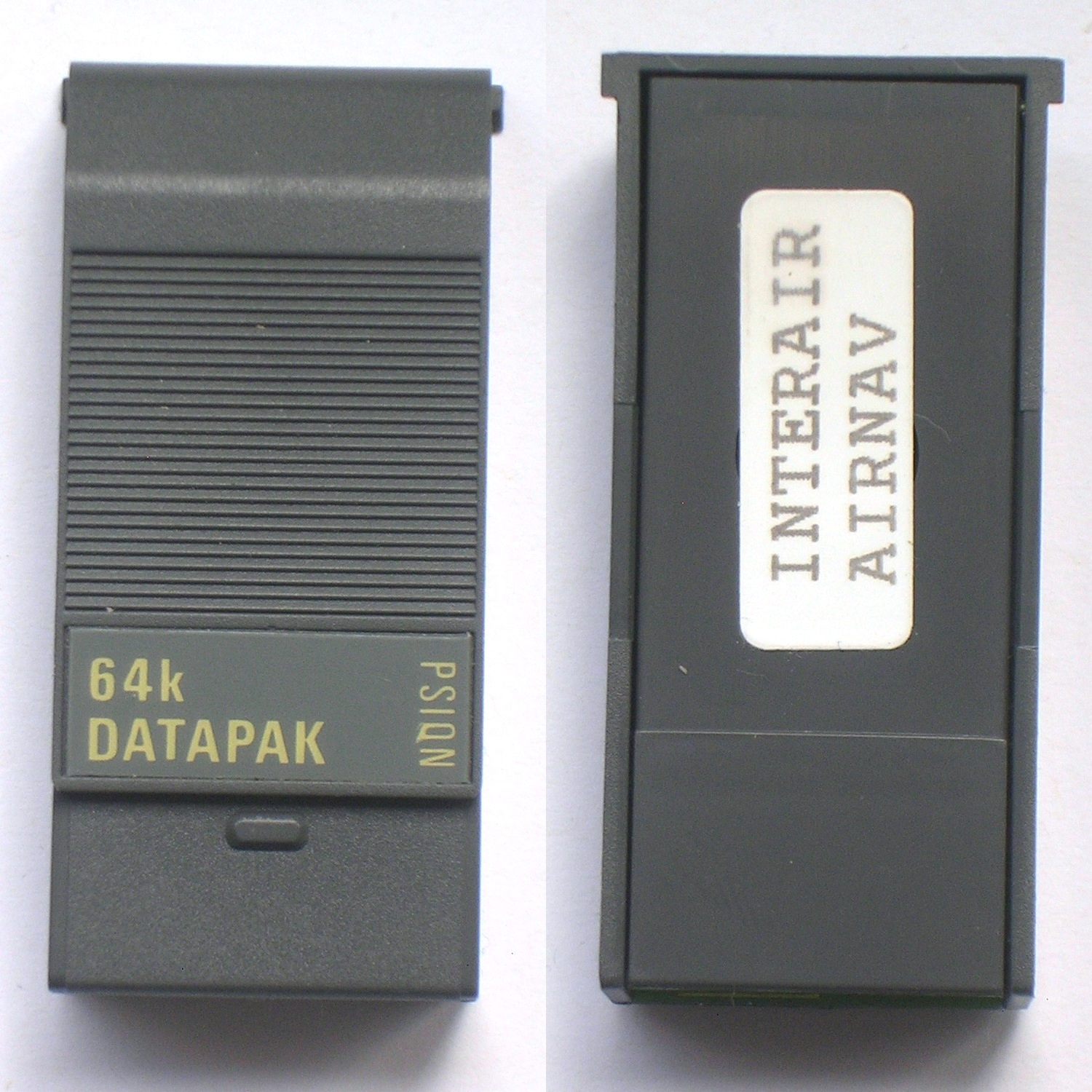

AirNav
Maritek

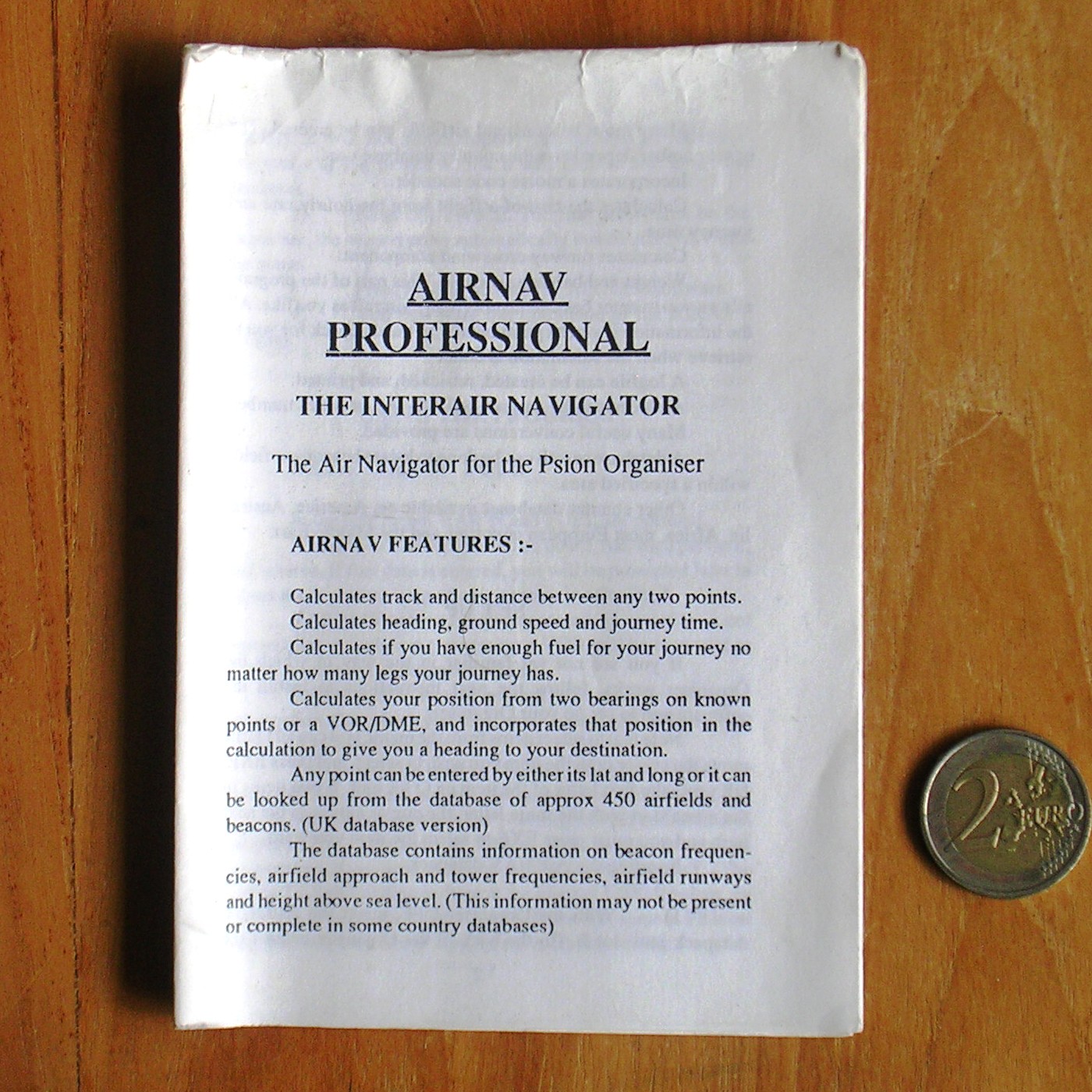

AirNav
Manual 1
AirNav
Manual 2

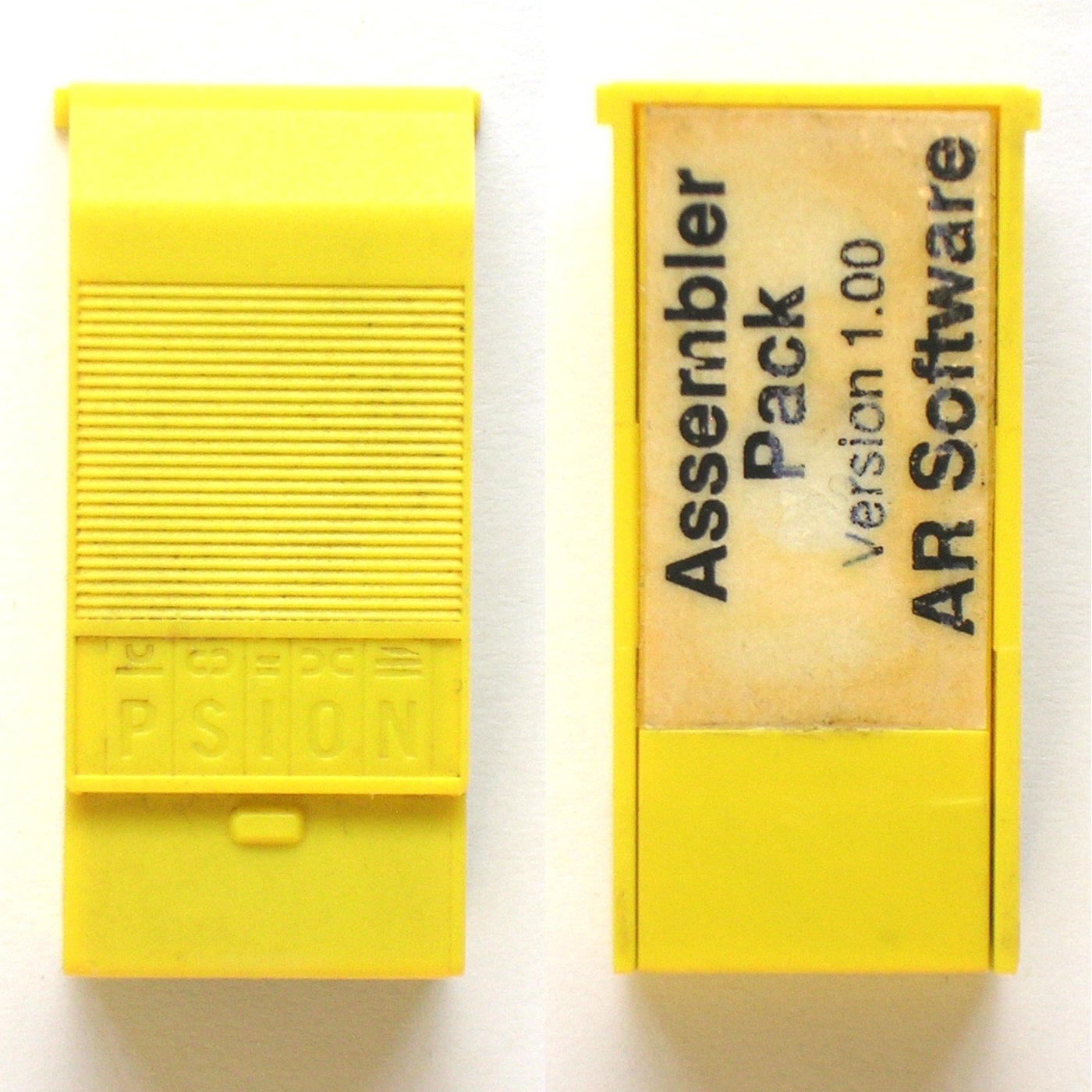

Assembler Pack
AR Software

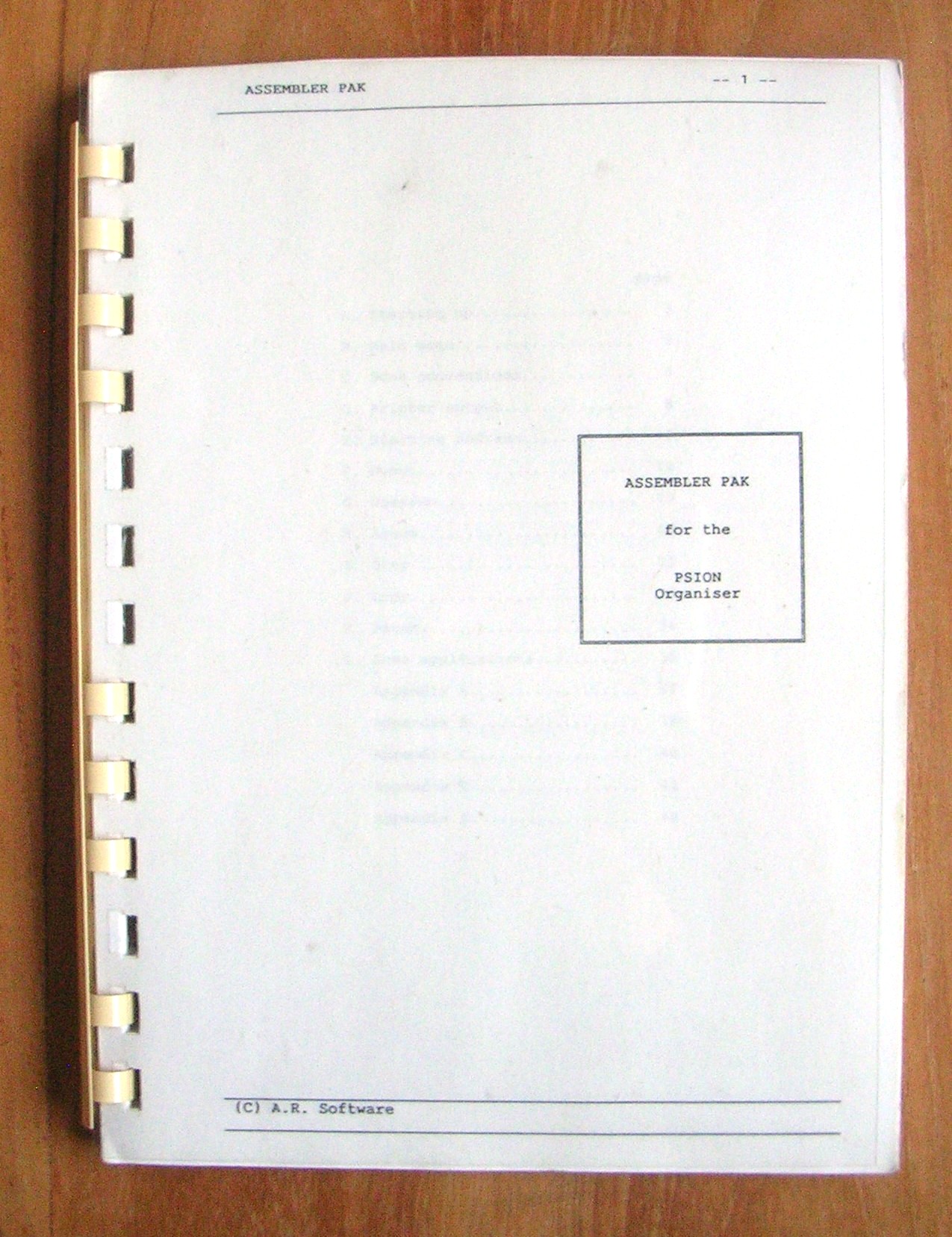

Assembler Pack
Manual
AutoScribe Plus
Widget Software Ltd.
Coastal procedures
Maritek
Coastal data
Maritek
Coastal
Manual

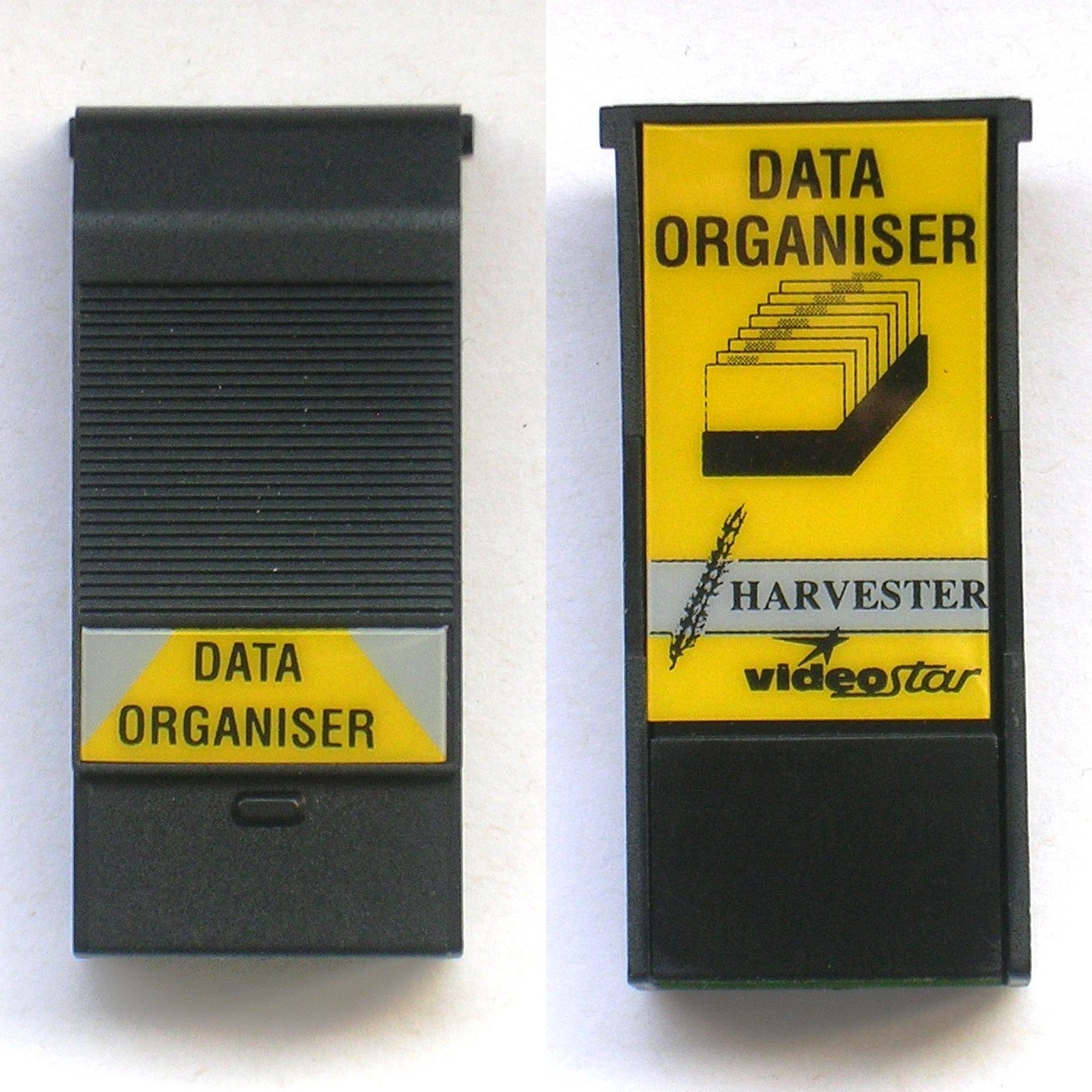

Data Organiser
Harvester Information Systems
Data Organiser
Manual
Data Organiser
German version
Data Organiser
Box, German
Data Organiser
Box, Italian
Data Organiser
Manual, Spanish
Data Organiser
Box, Spanish

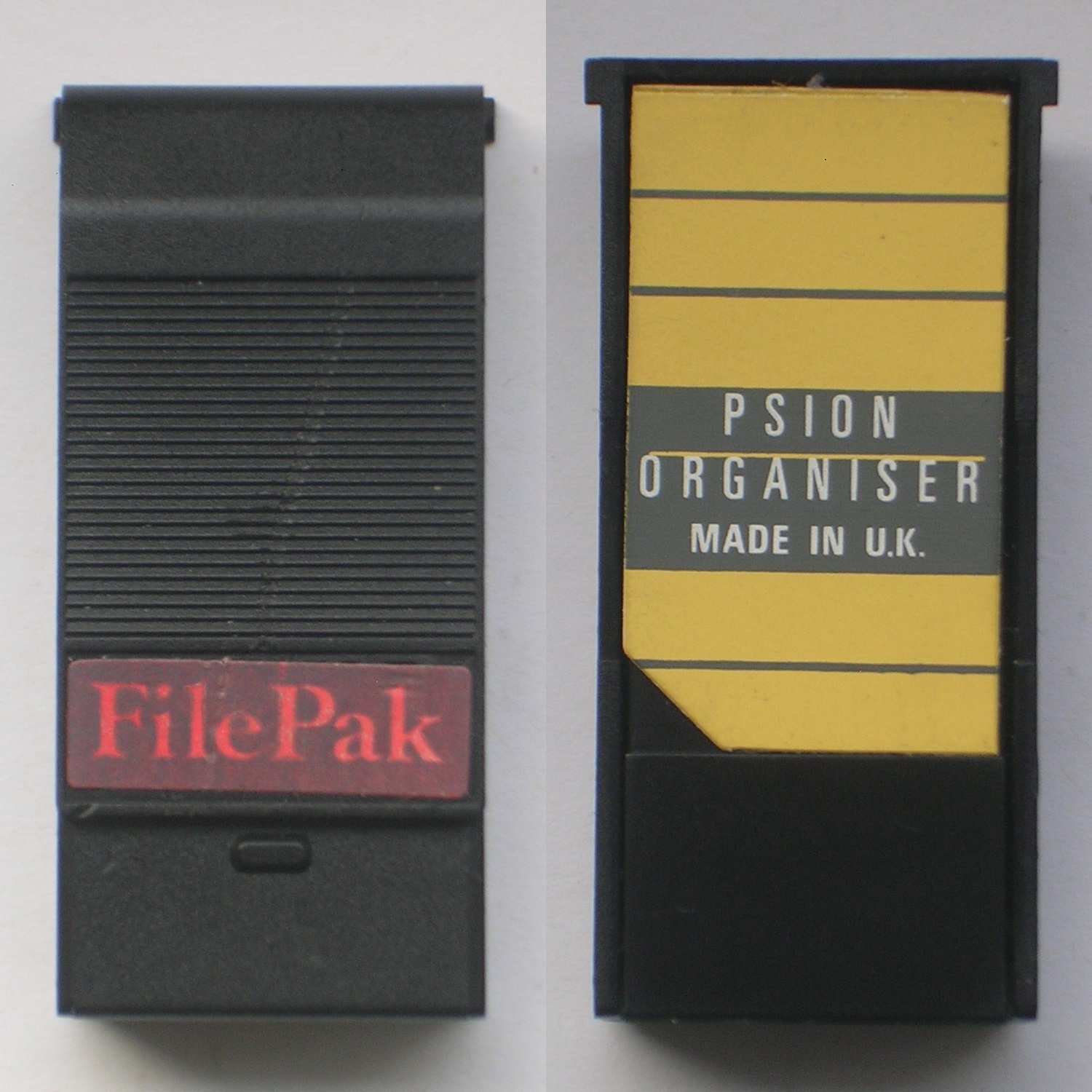

FilePak
KA.
FilePak
Manual
FilePak
In box
FileMaster
Widget Software Ltd.
FileMaster
Manual

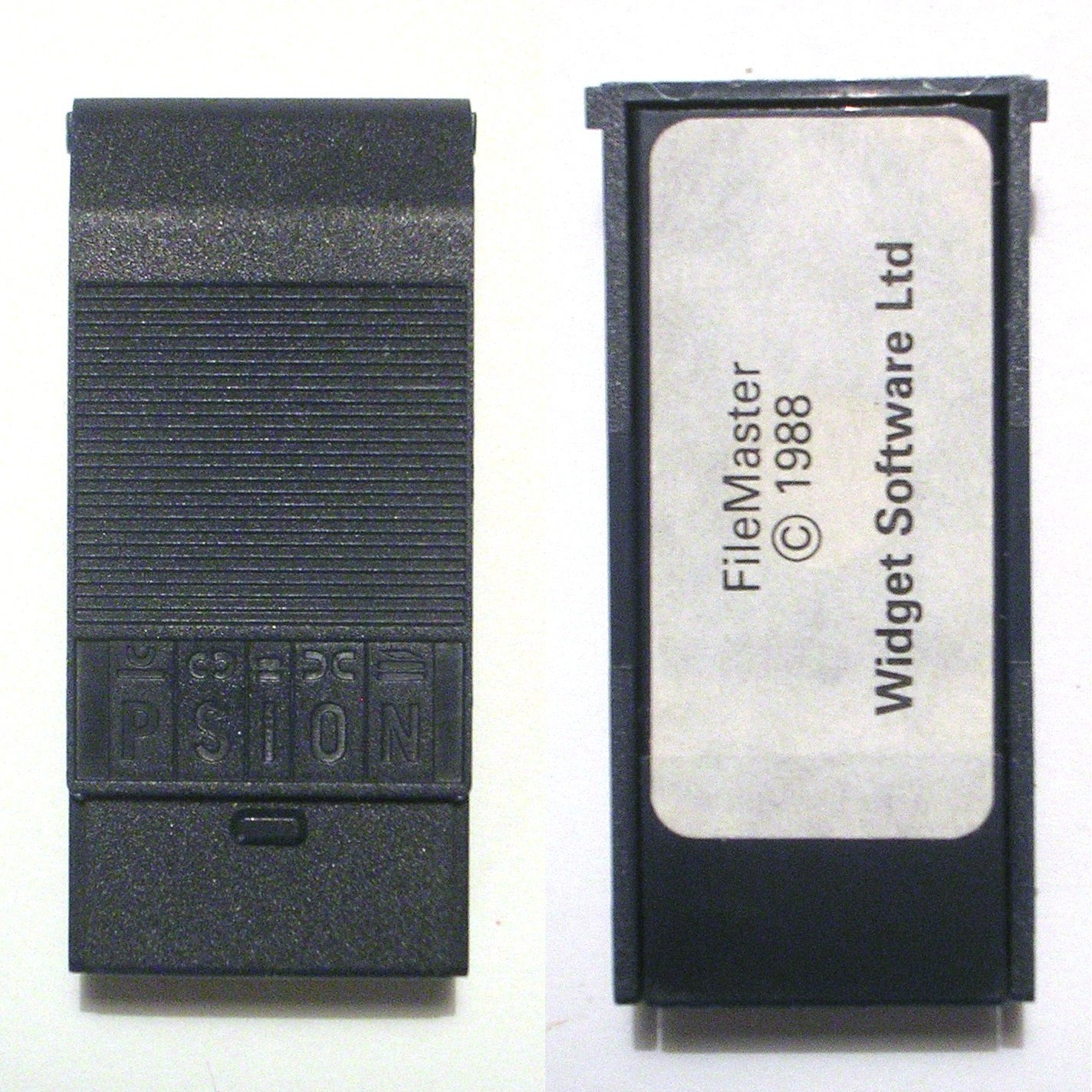

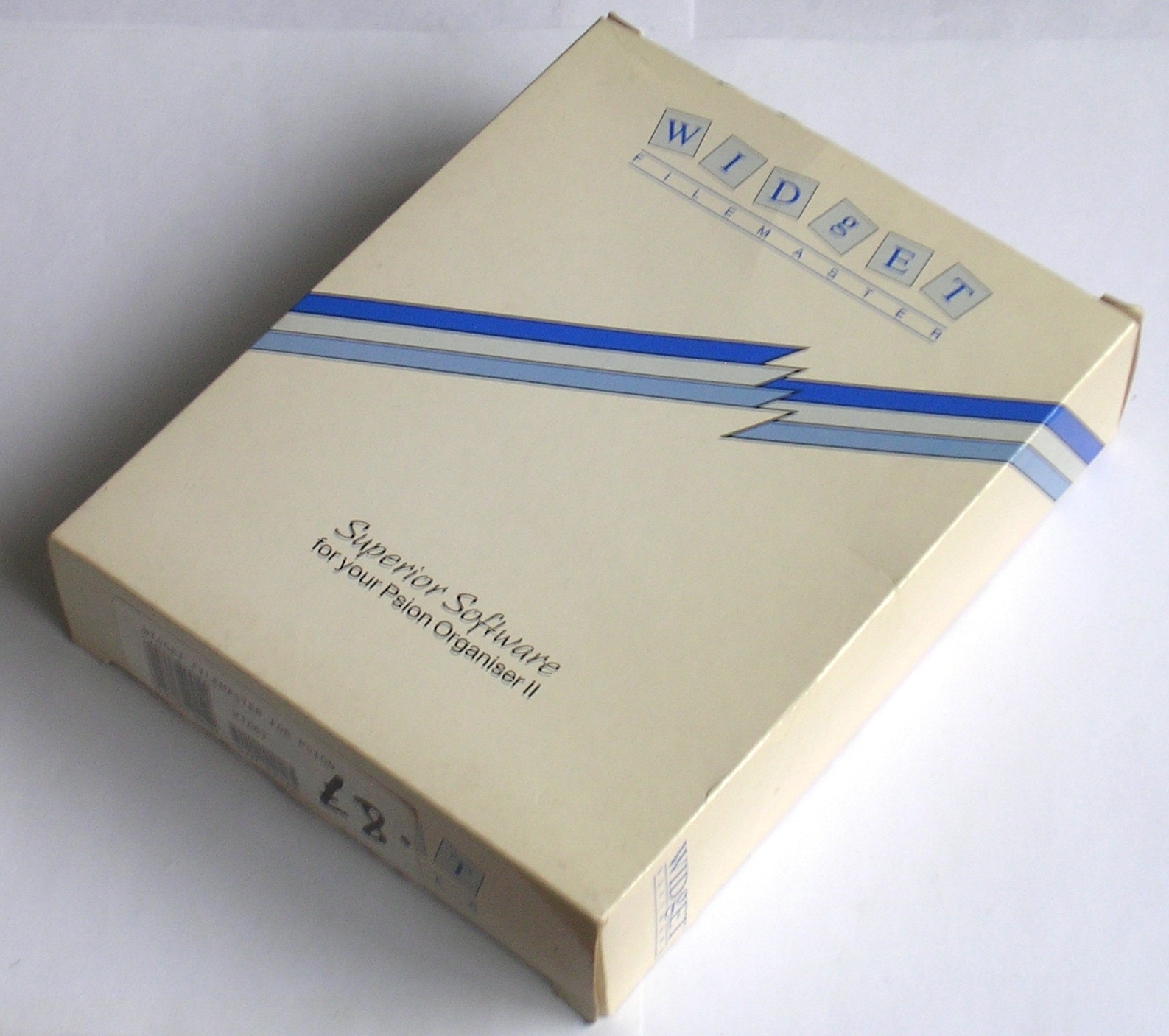

FileMaster
In box
FileMaster
Widget Software Ltd.

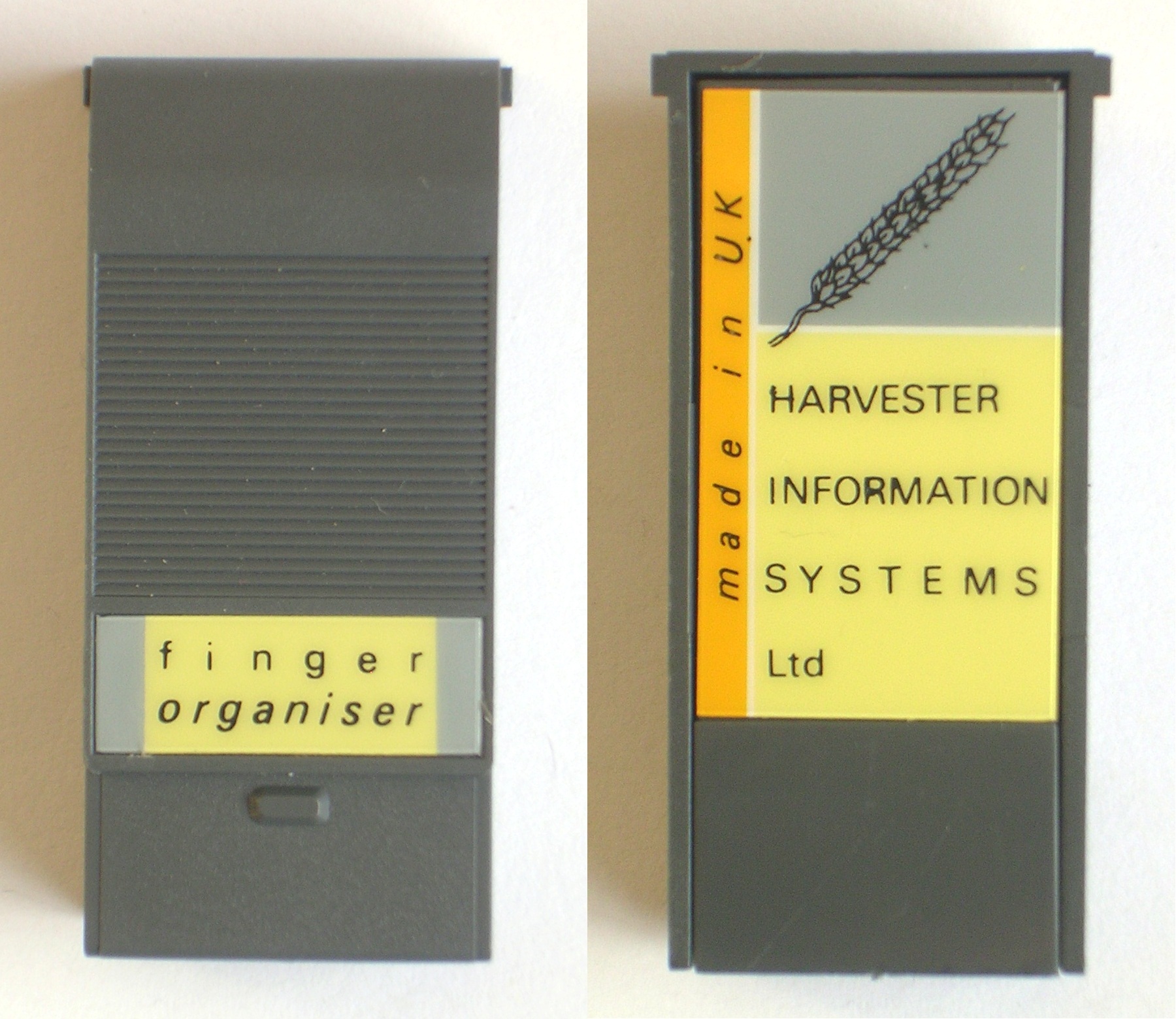

Finger Organiser
Harvester Information Systems
Finger Organiser
Manual
Finger Organiser
German version
Finger Organiser
Manual, German
Finger Organiser
Box, German
Finger Organiser
Box, Italian

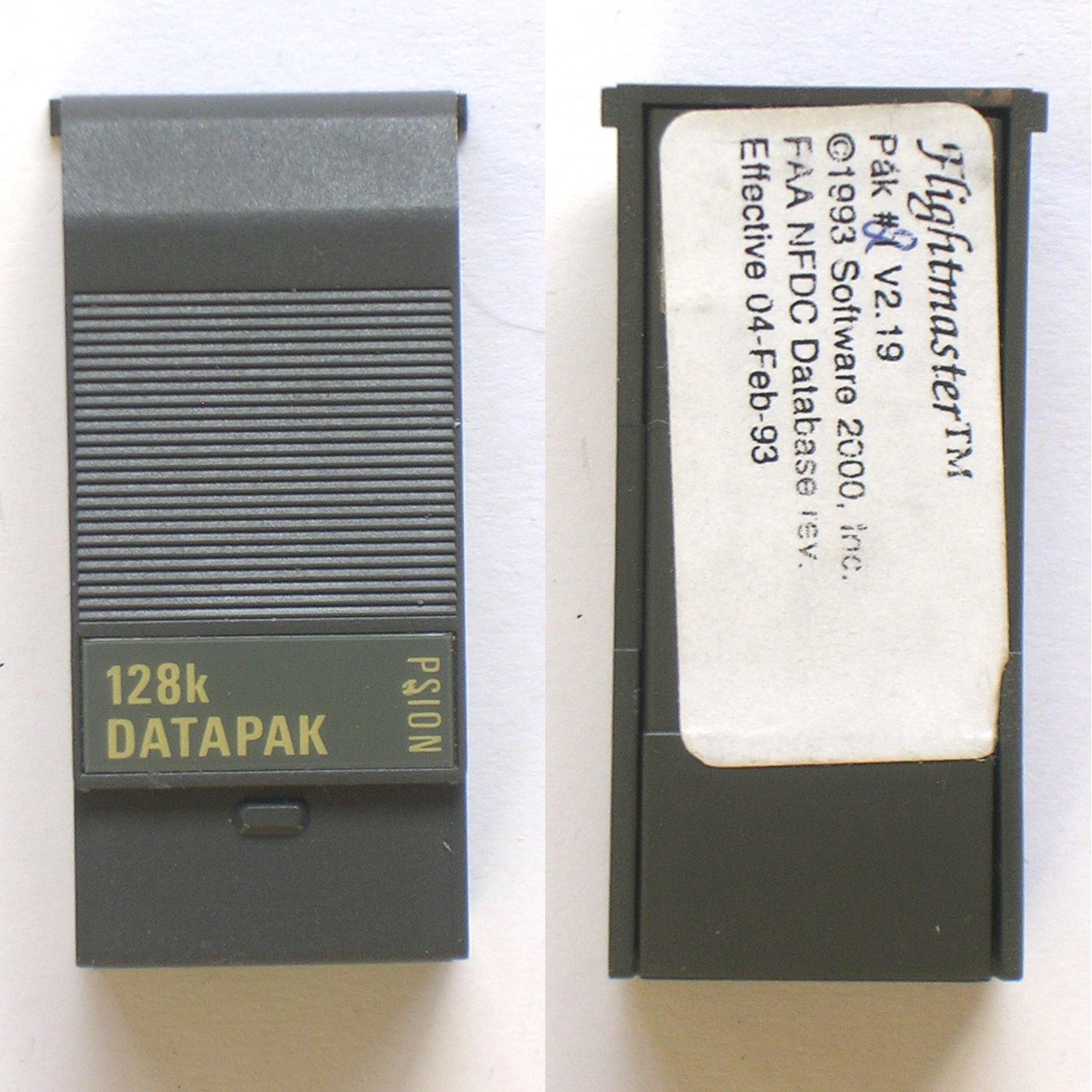

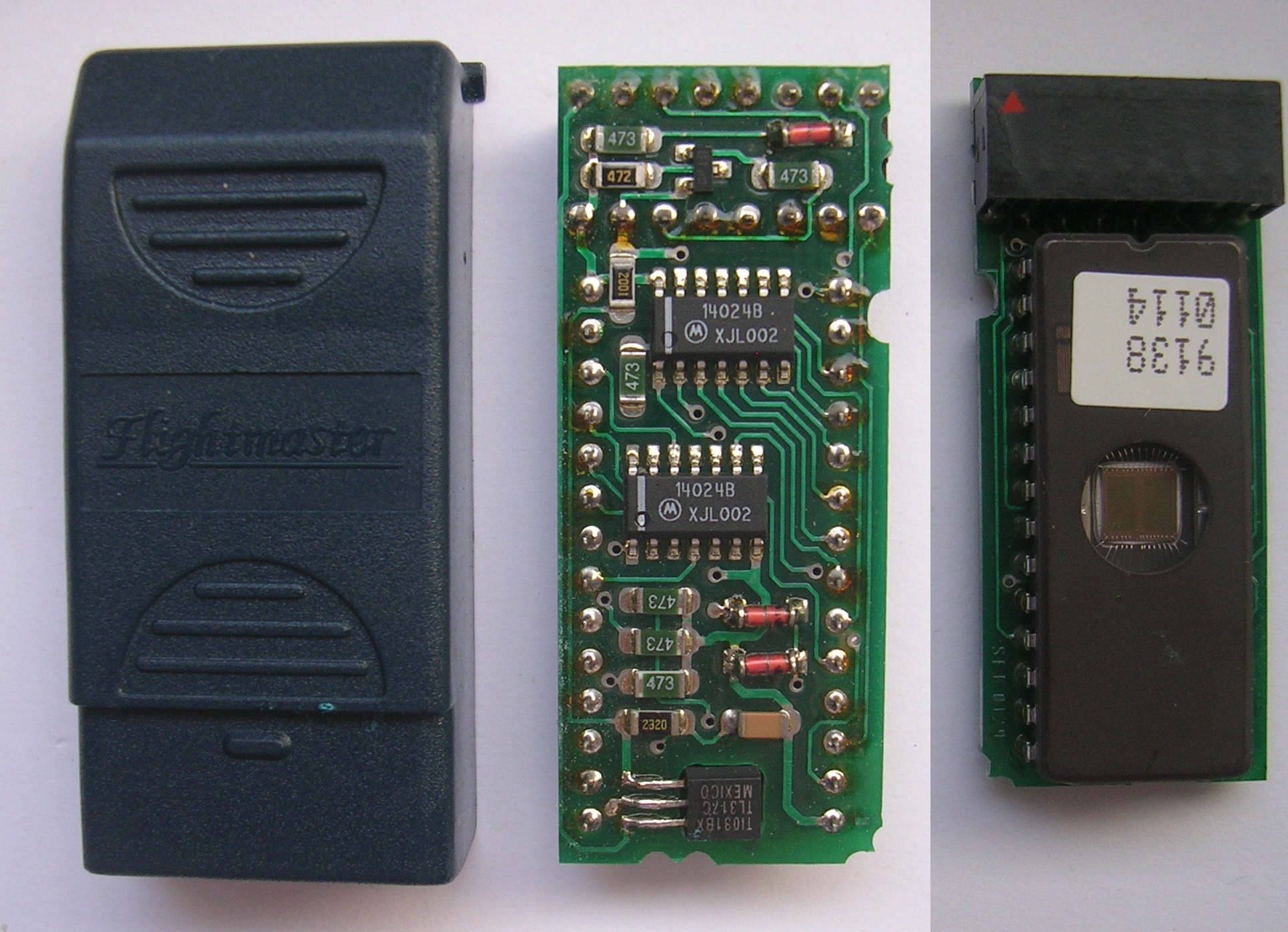

Flightmaster 1
Software 2000 Inc.
Flightmaster 2
Software 2000 Inc.
Flightmaster
Box, front
Flightmaster
Box, rear

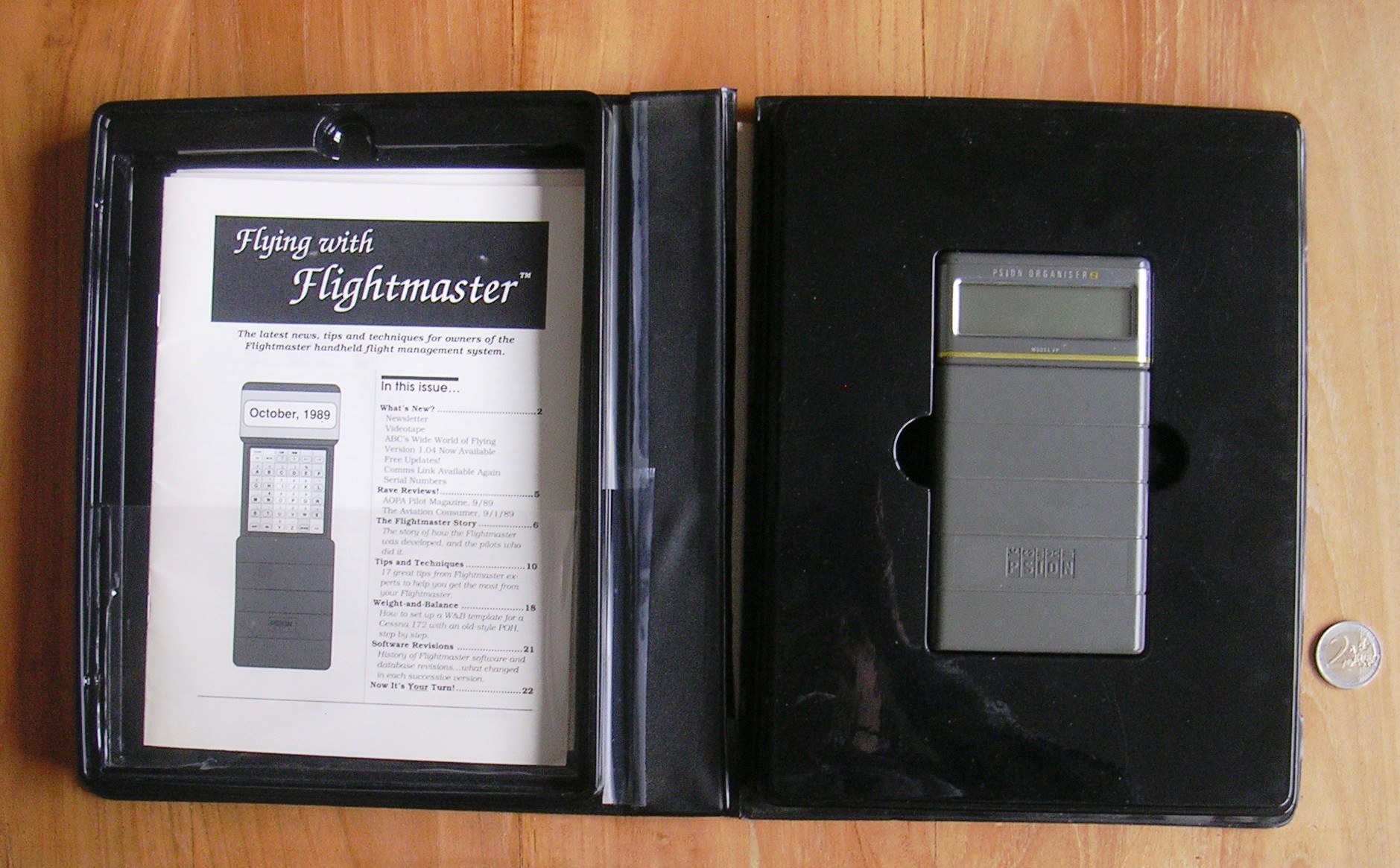

Flightmaster
Box, inside
Fnkey 4.0
Cubsoft
Fnkey 3.0
Manual
Fnkey 4.0
Supplementary Manual
Games Organiser
Harvester Information Systems
Games Organiser
Manual
Games Organiser
Manual Errata
Games Organiser
Box, front
Games Organiser
Box, rear
Games Organiser 2
Box, Italian
Harvester Superchip
Harvester Info. Systems
Harvester Superchip
Manual

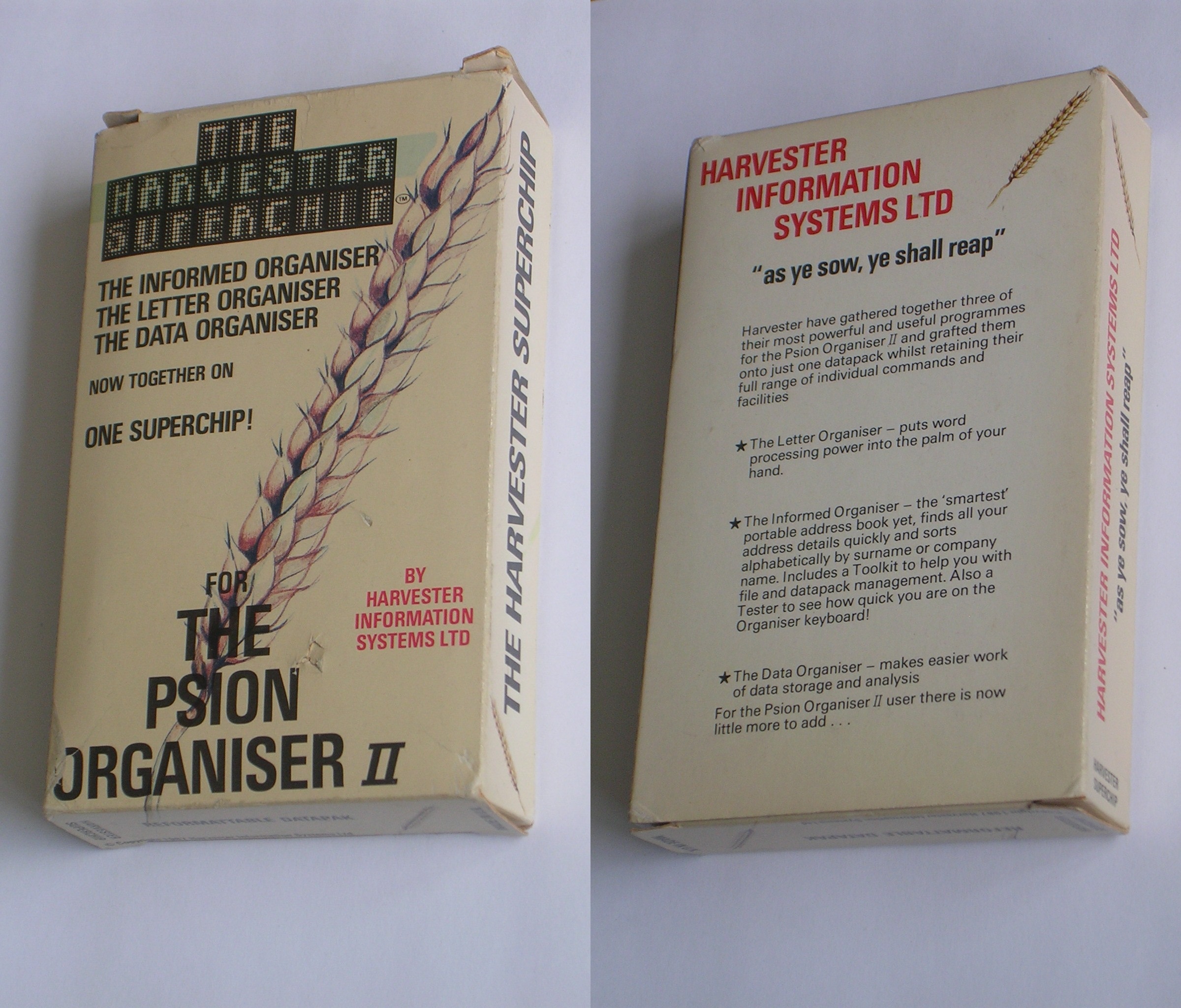

Harvester Superchip
In Box
Harvester Superchip
In Box, Italian
Harvester Superchip
In Box, Spanish
Harvester Superchip
Manual, Spanish

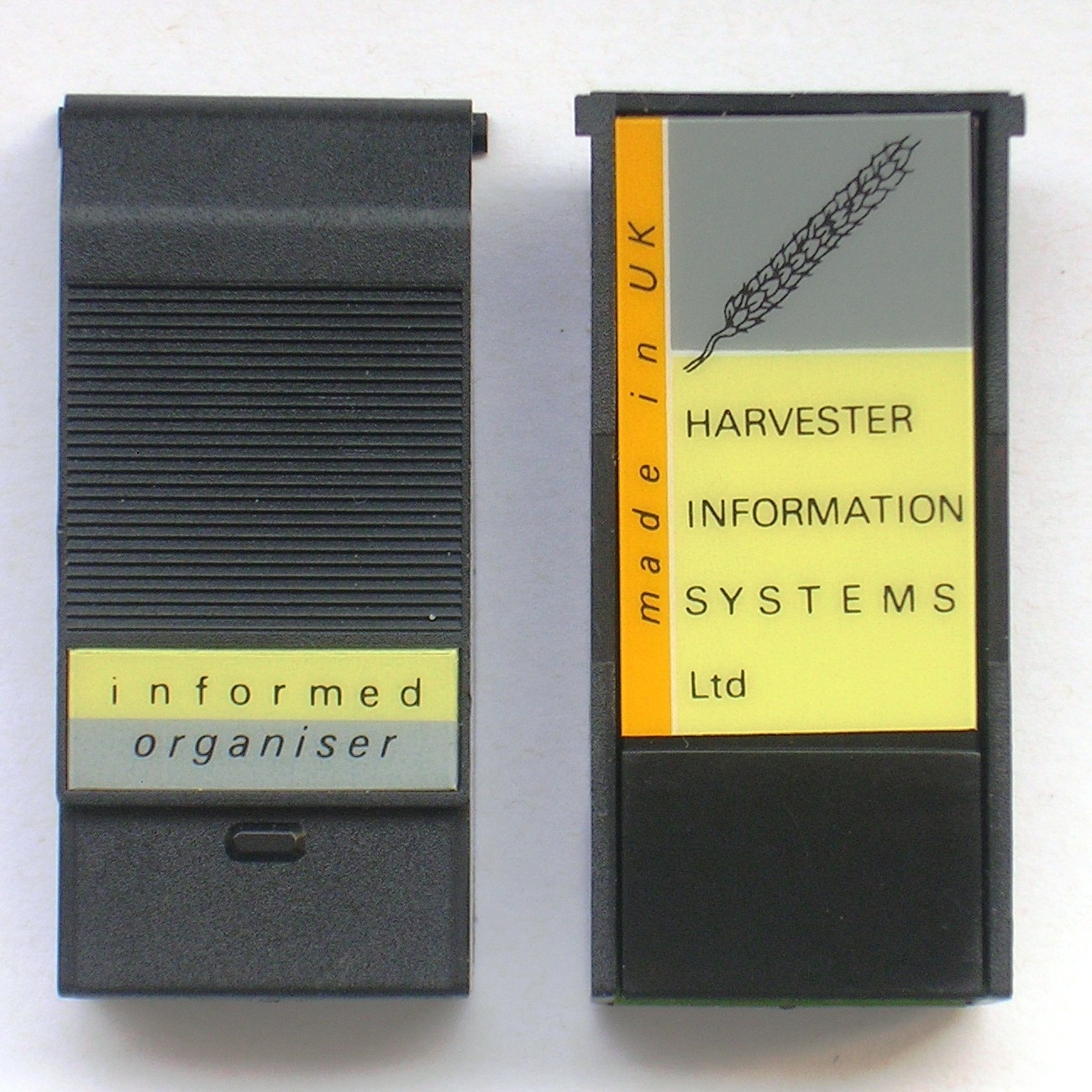

Informed Organiser
Harvester Information Systems

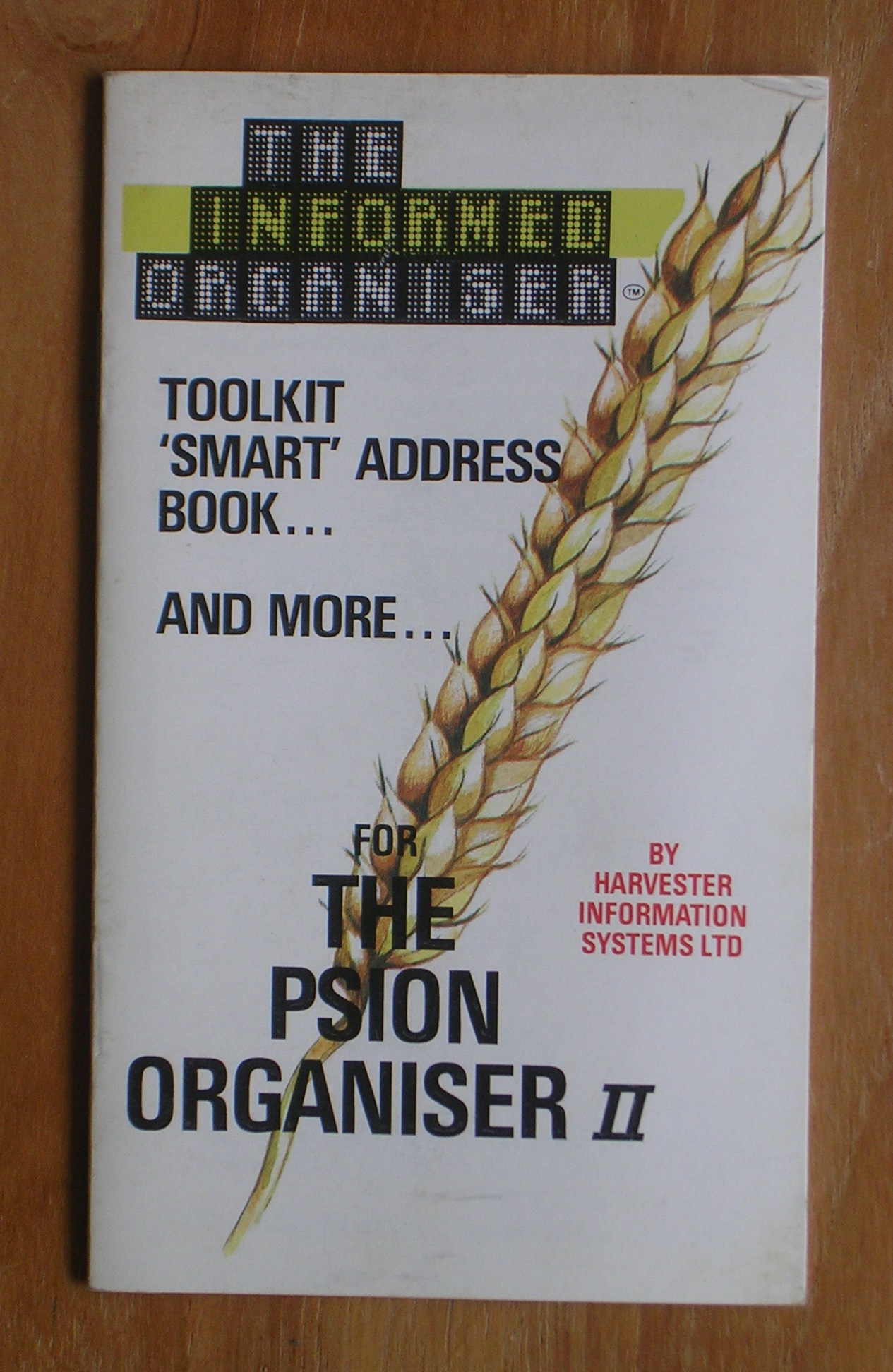

The Informed Organiser
Manual
Informed Organiser
In Box, Italian
Informed Organiser
In Box, Spanish
Informed Organiser
Manual, Spanish
Jotter Pack
Camel Systems Ltd
Jotter Pack
Manual

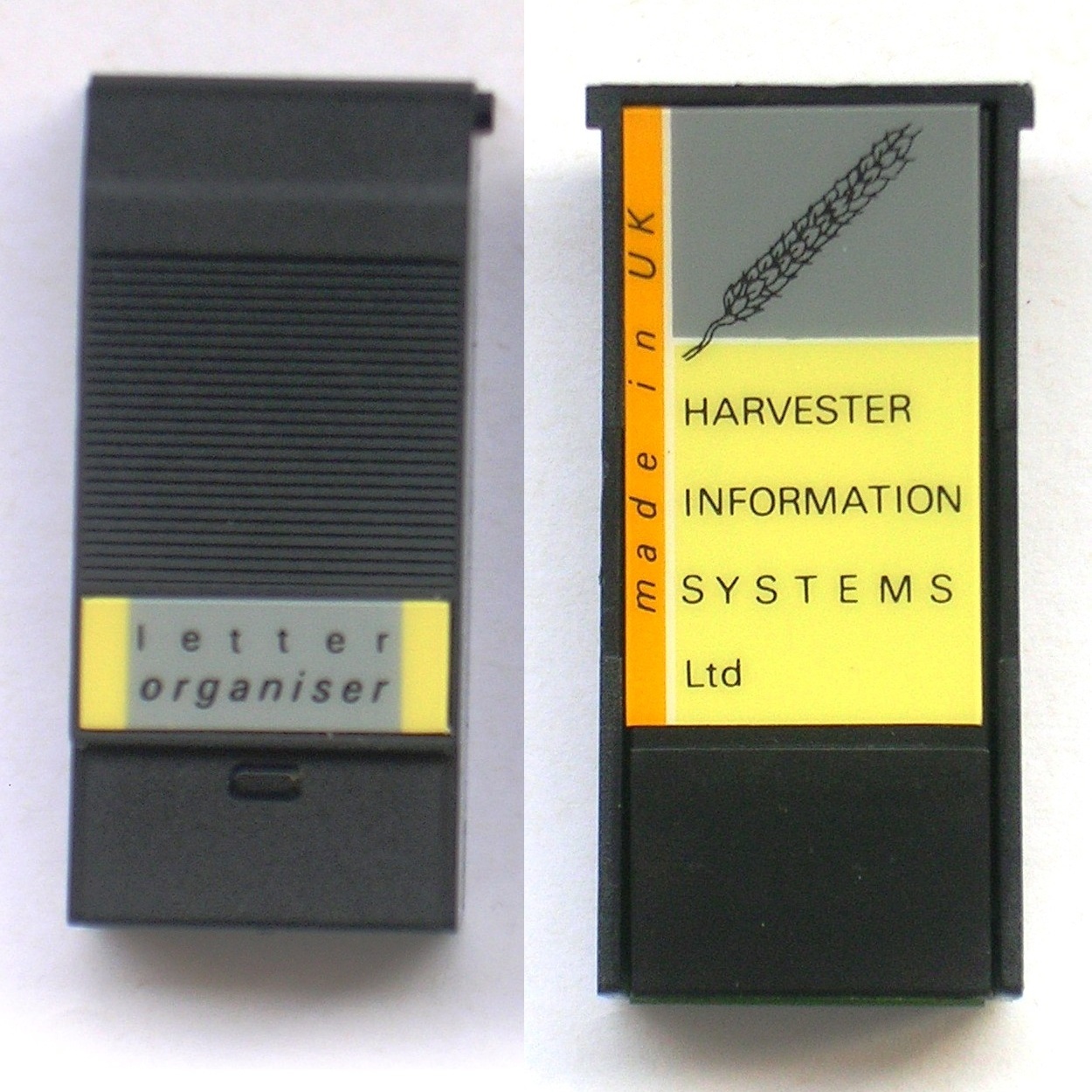

Letter Organiser
Harvester Information Systems
Letter Organiser
In Box, Italian
Letter Organiser
In Box, Spanish
Letter Organiser
Manual, Spanish

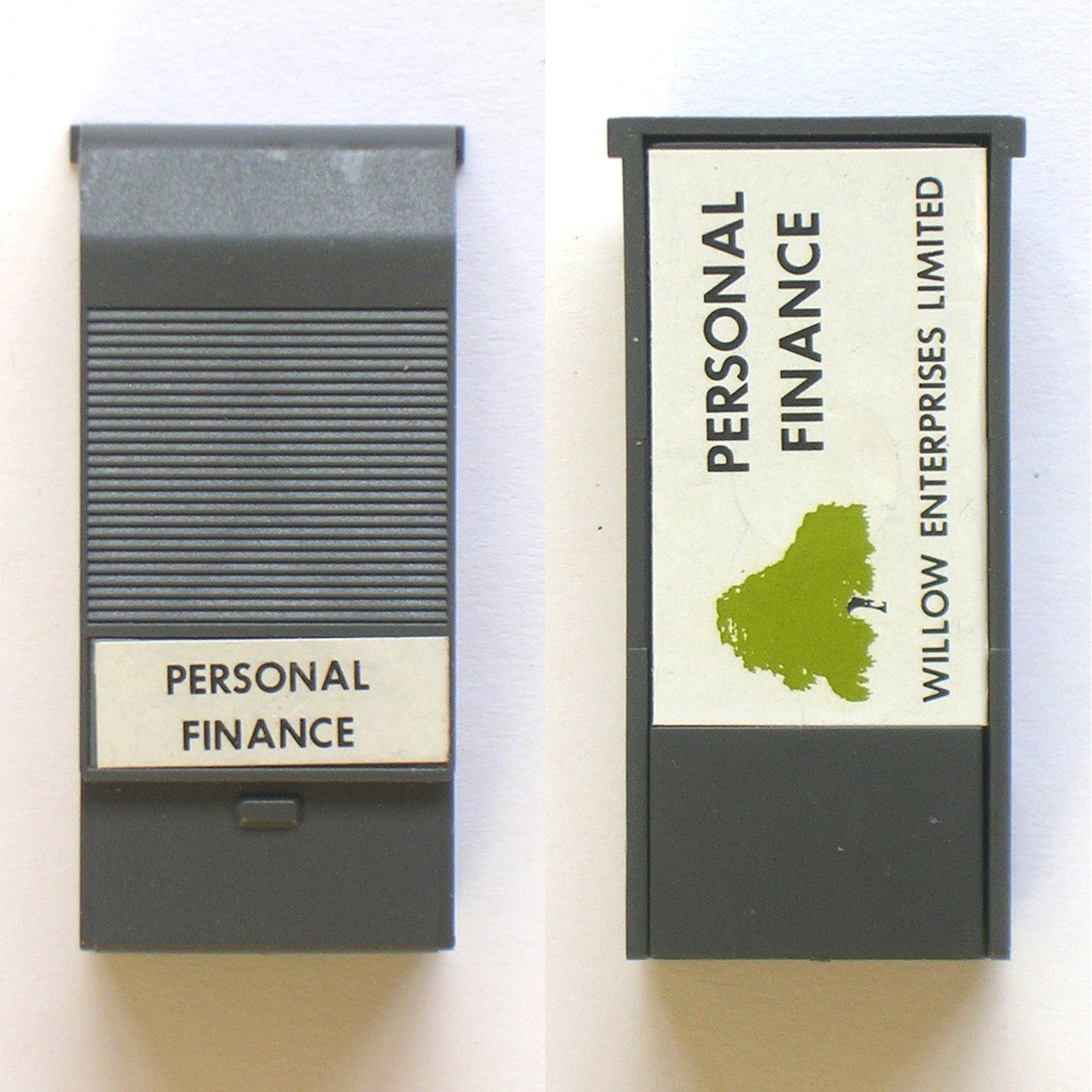

Personal Finance
Willow Enterprises Ltd

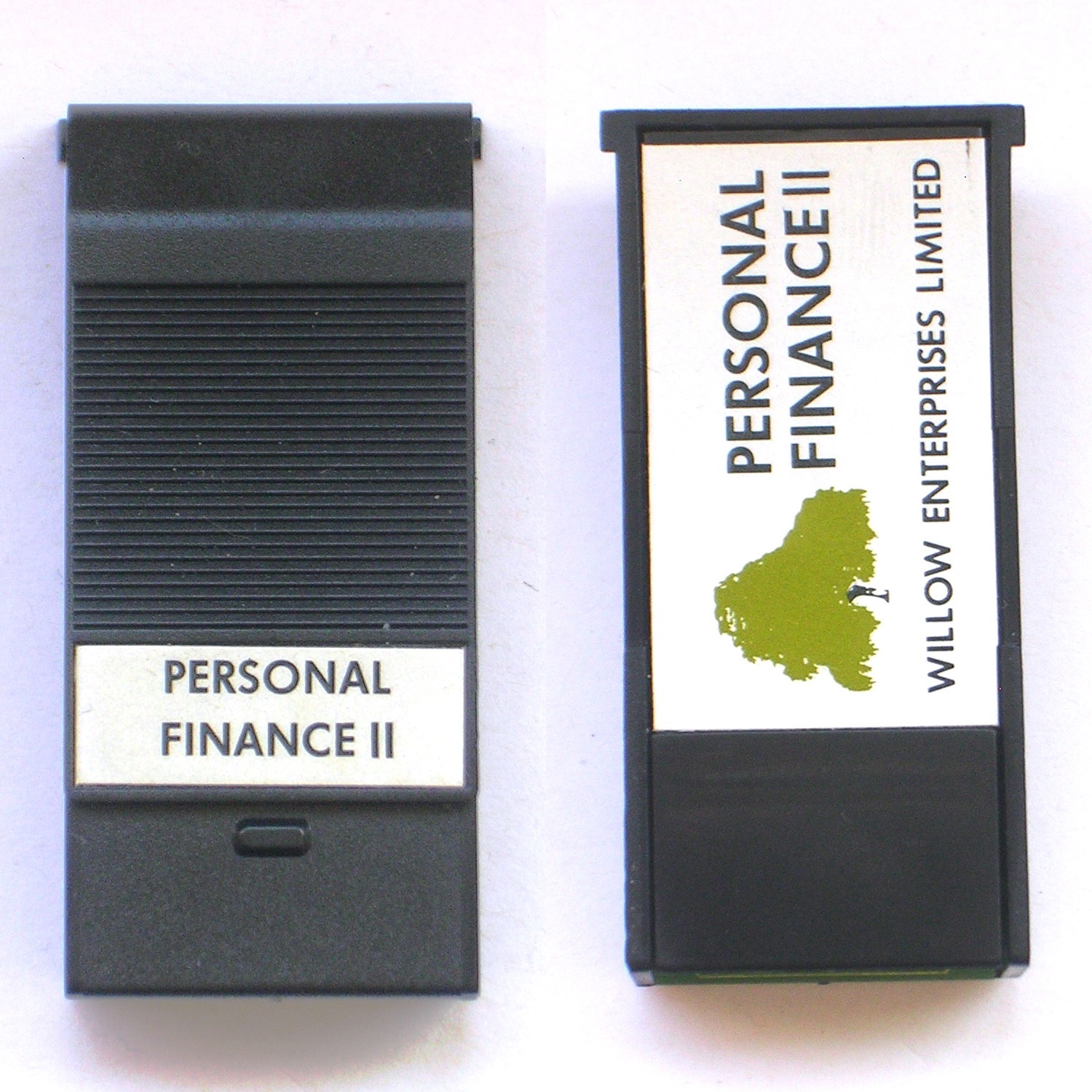

Personal Finance II
Willow Enterprises Ltd
Prakpak Vocab. I
Mackay Language Software

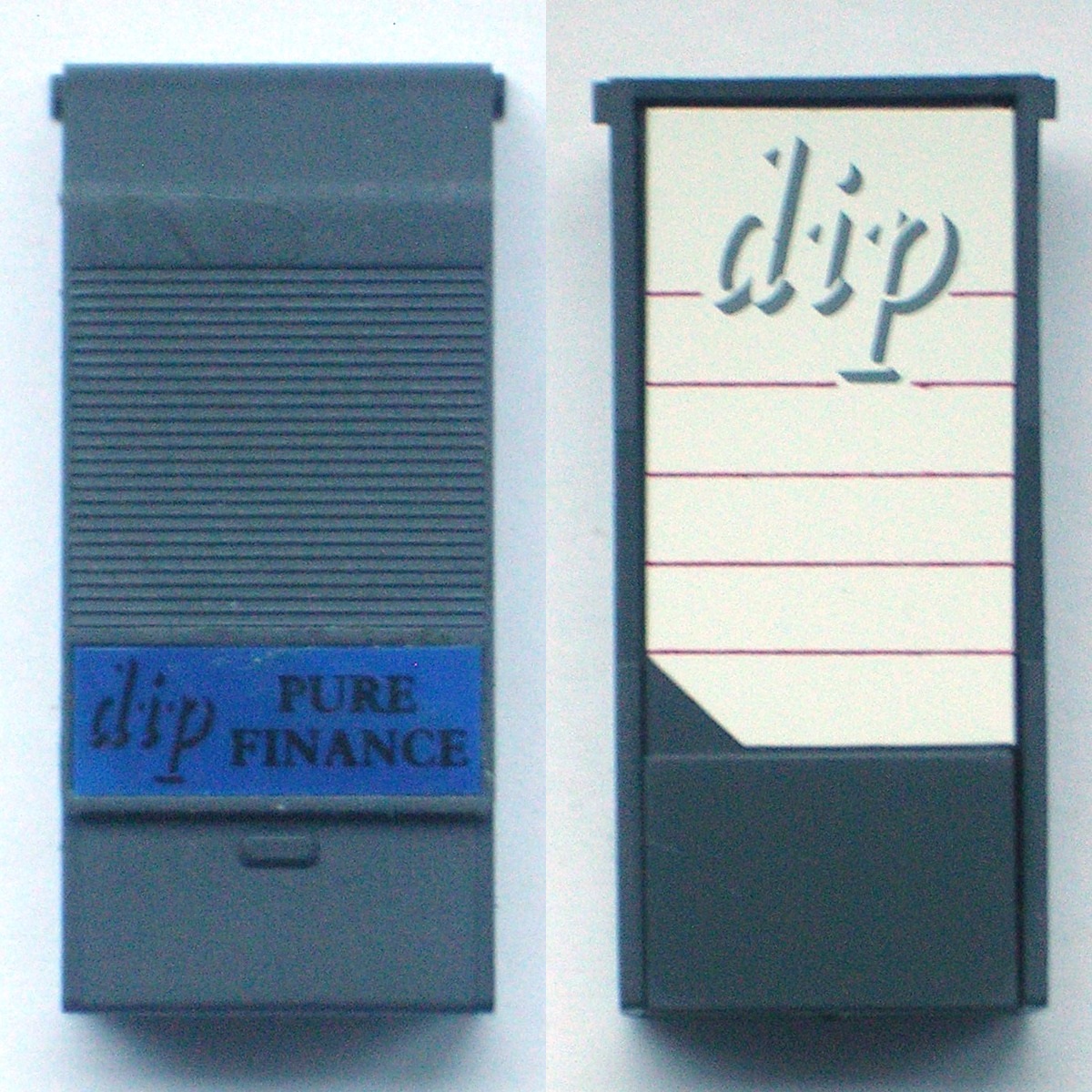

Pure Finance
DIP
Pure Finance
Box, front
Pure Finance
Box, rear
Pure Finance
Manual
Scientific Organiser
Harvester Information Systems
Scientific Organiser
Box
Textbase
Eidersoft
Textbase
Manual

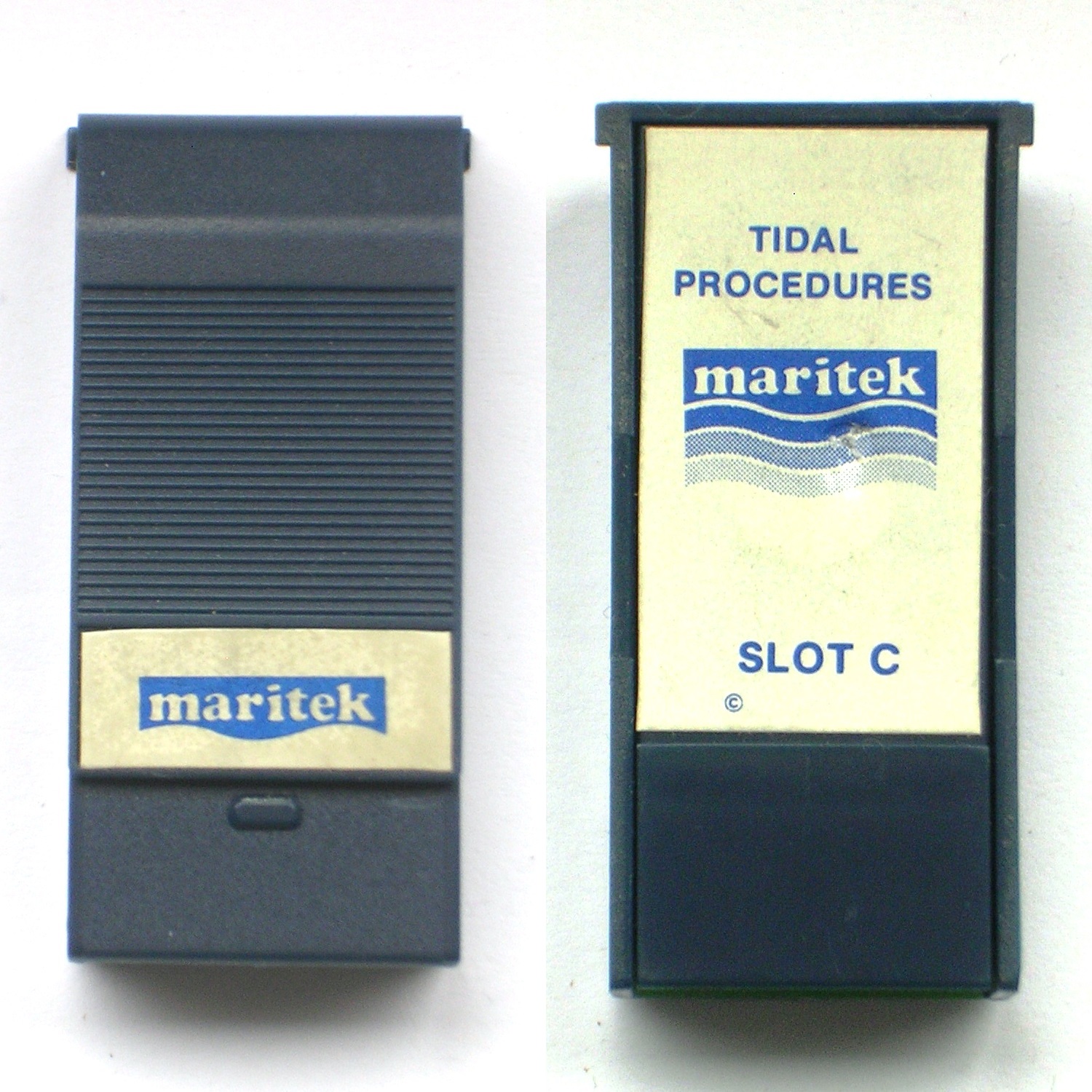

Tidal procedures
Maritek

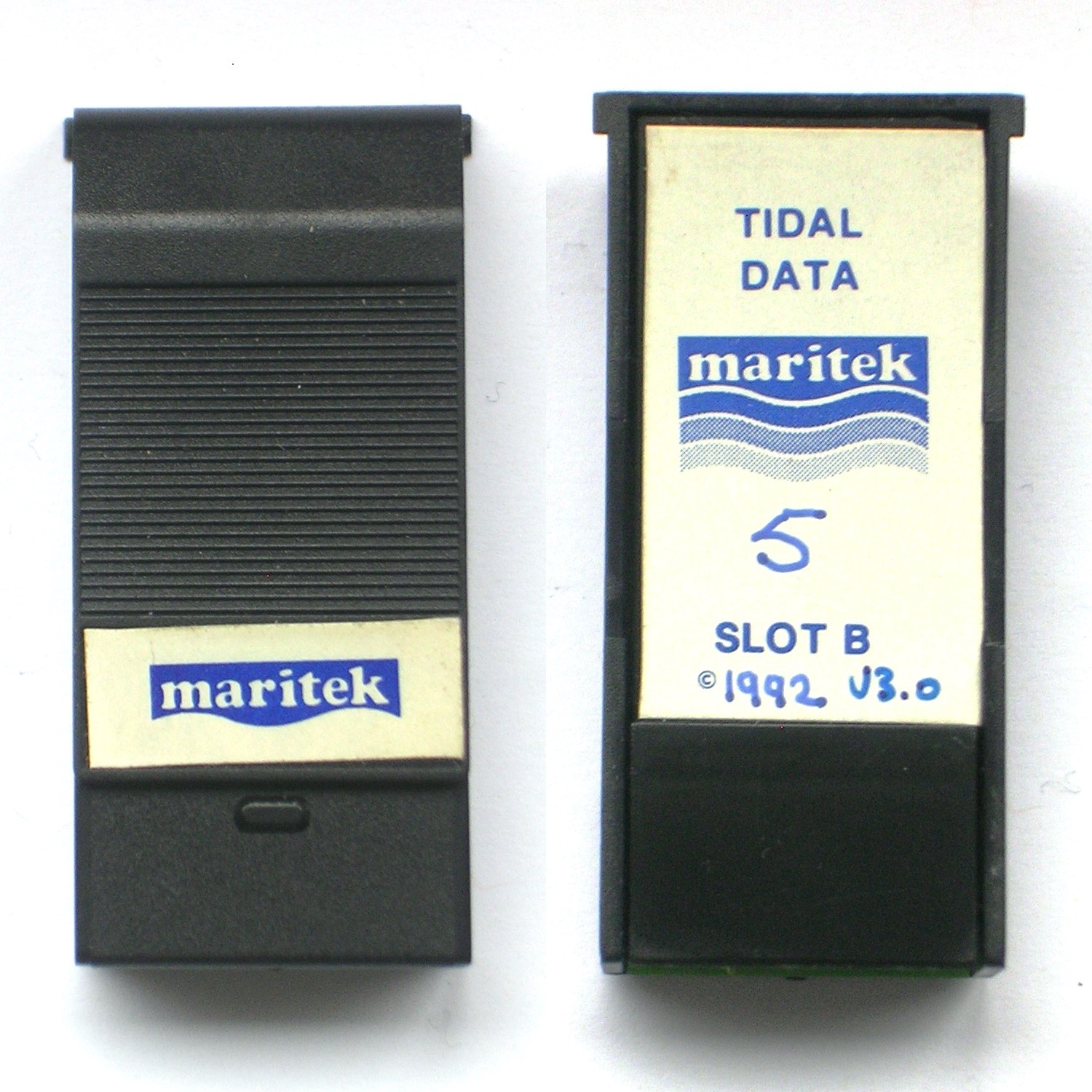

Tidal data
Maritek
Tidal
Manual

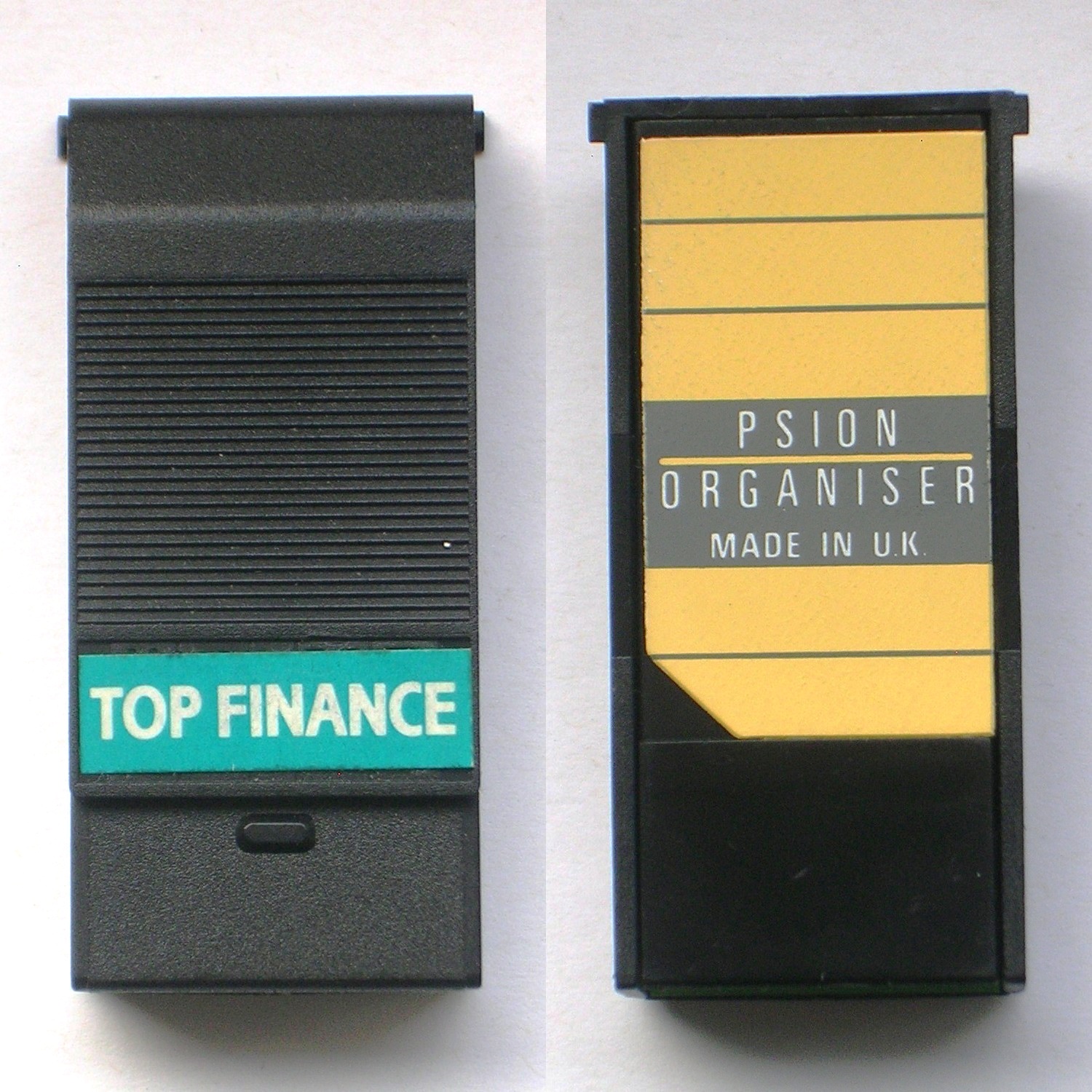

Top Finance
Aware
Top Finance
Manual
Top Finance
In box
Unknown
Mackay Language Software

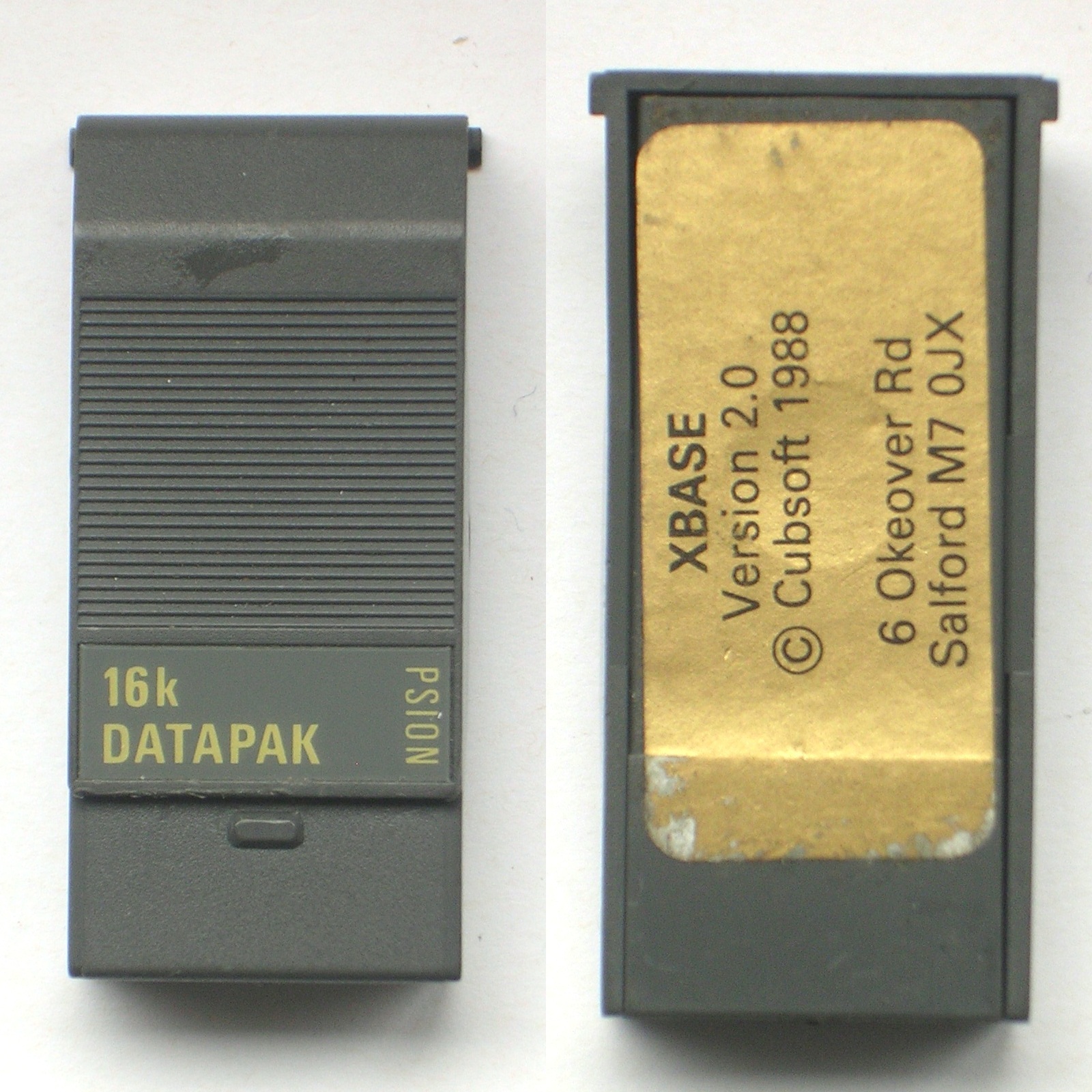

XBase 2.0
Cubsoft
XBase 2.0
Manual

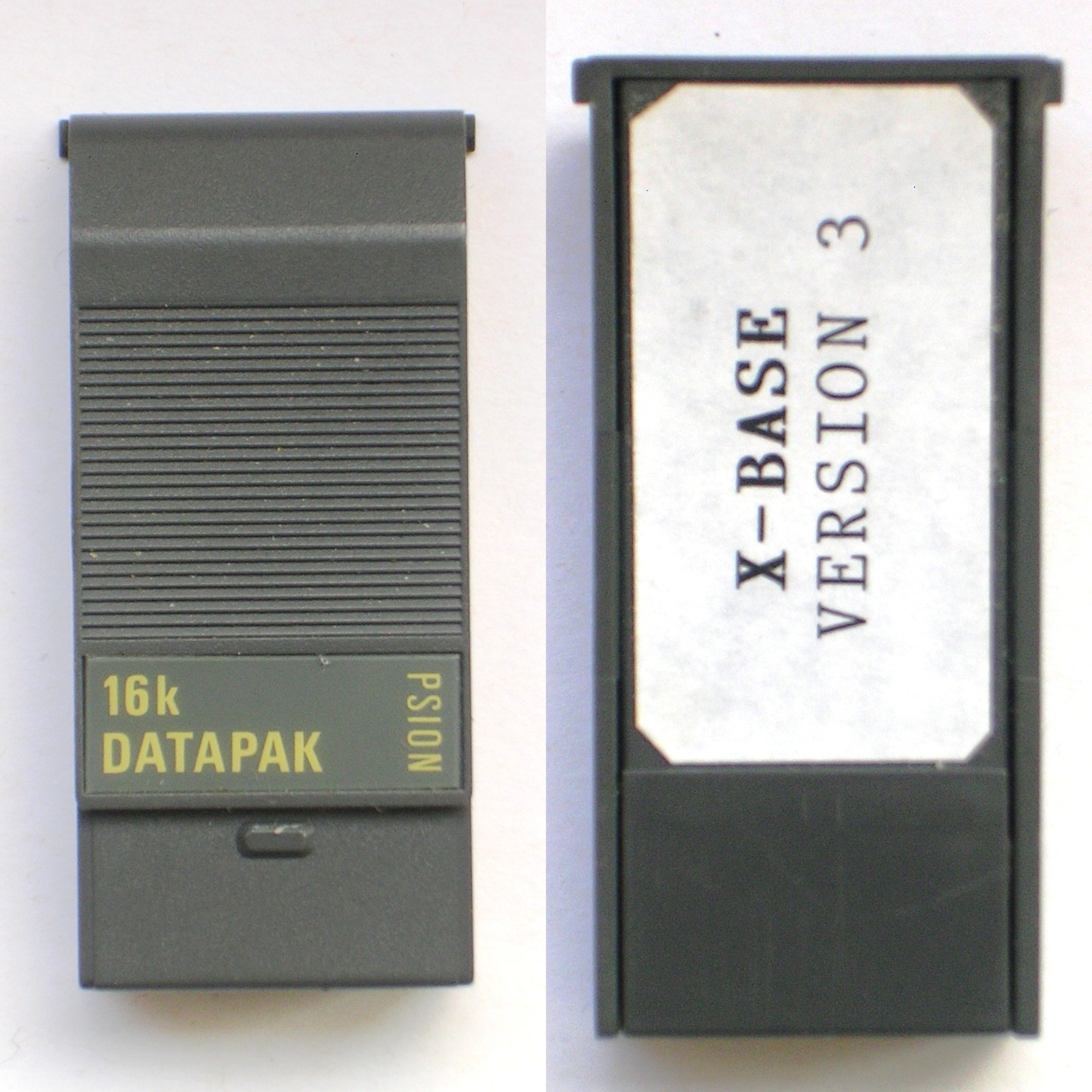

XBase 3.0
Cubsoft


Here are some software packs aimed at or specifically tailored for business and industry:

Barcode Printer I
Gaascom Ltd.
Cipher
Written for British Telecom.

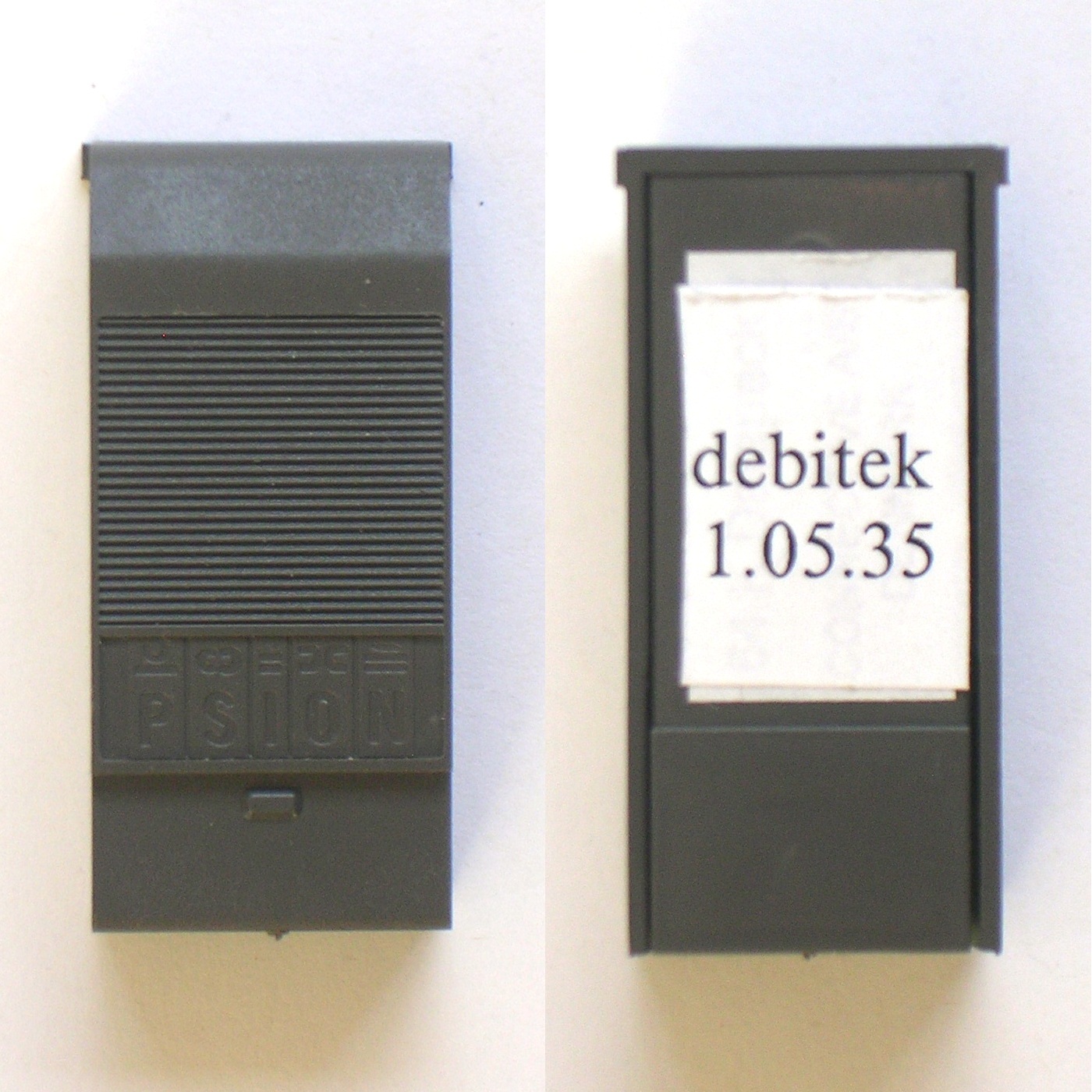

Debitek Logger Pack
Debitek
GEAC Program Pack
Geac Computer Corp.
Helper-Plus 5.1N
Ferret Information Systems
National Survey Software
Numbase
Eidersoft
Numbase
Manual
Numbase
In box

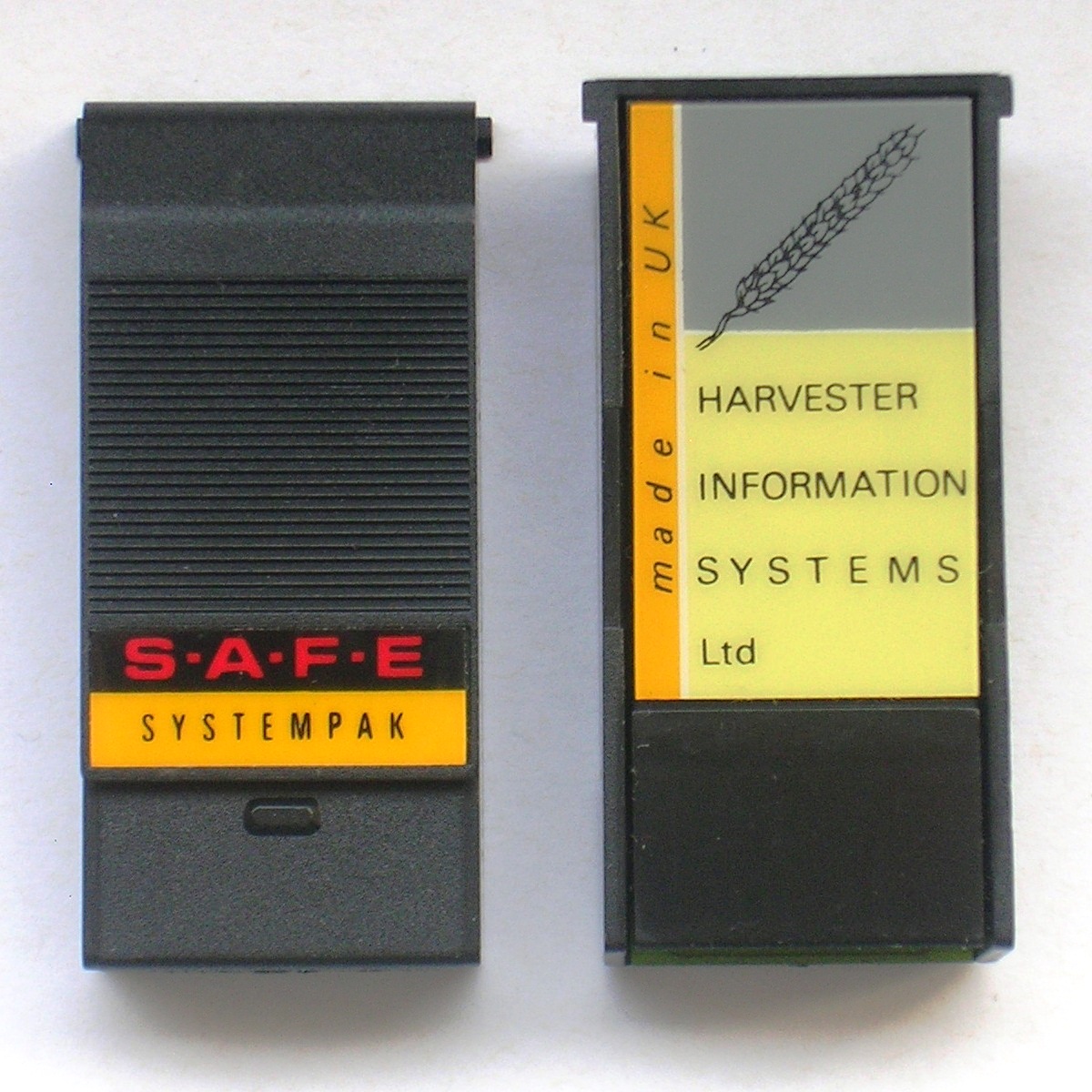

S.A.F.E.
Harvester Information Systems
S.A.F.E.
Infosheets

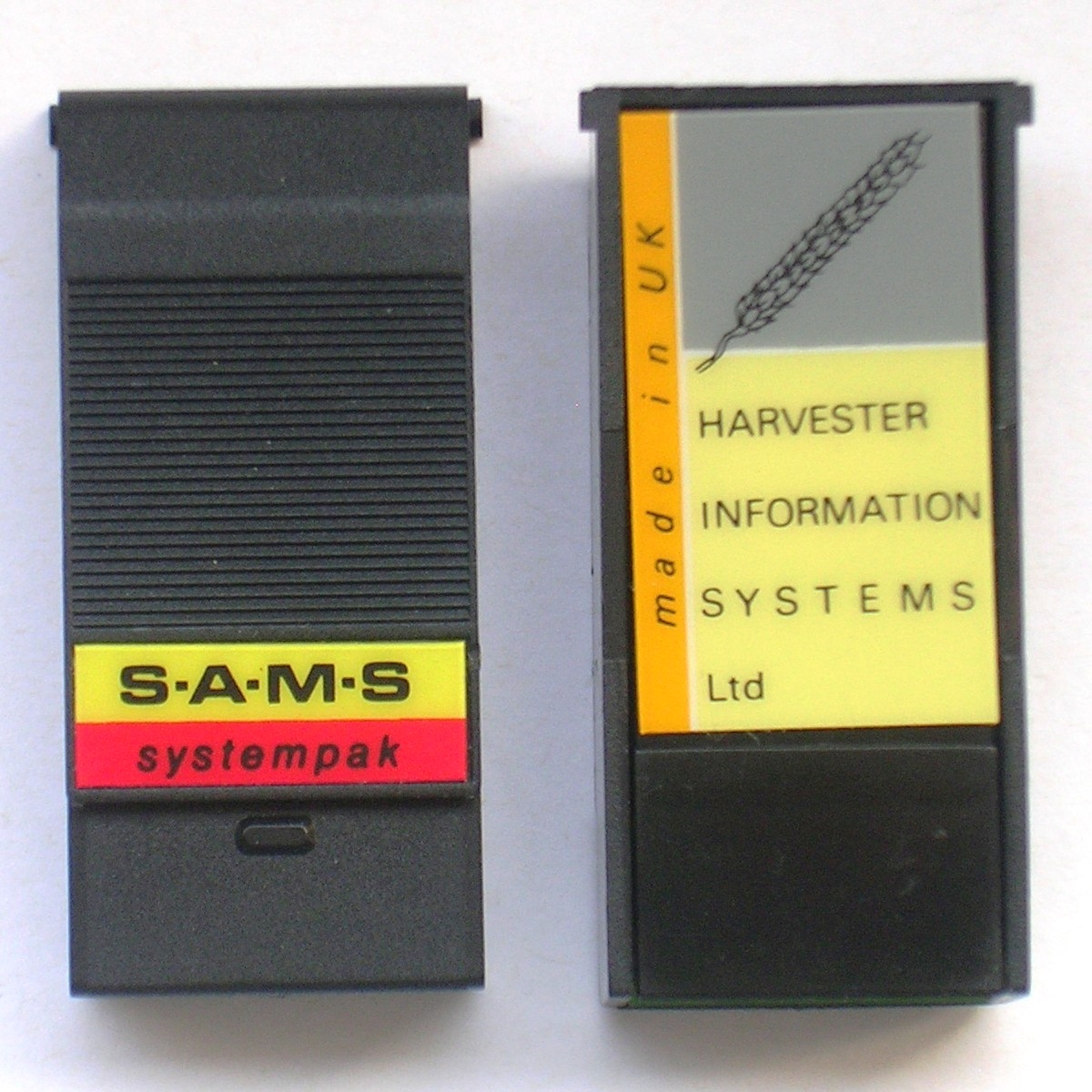

S.A.M.S.
Harvester Information Systems

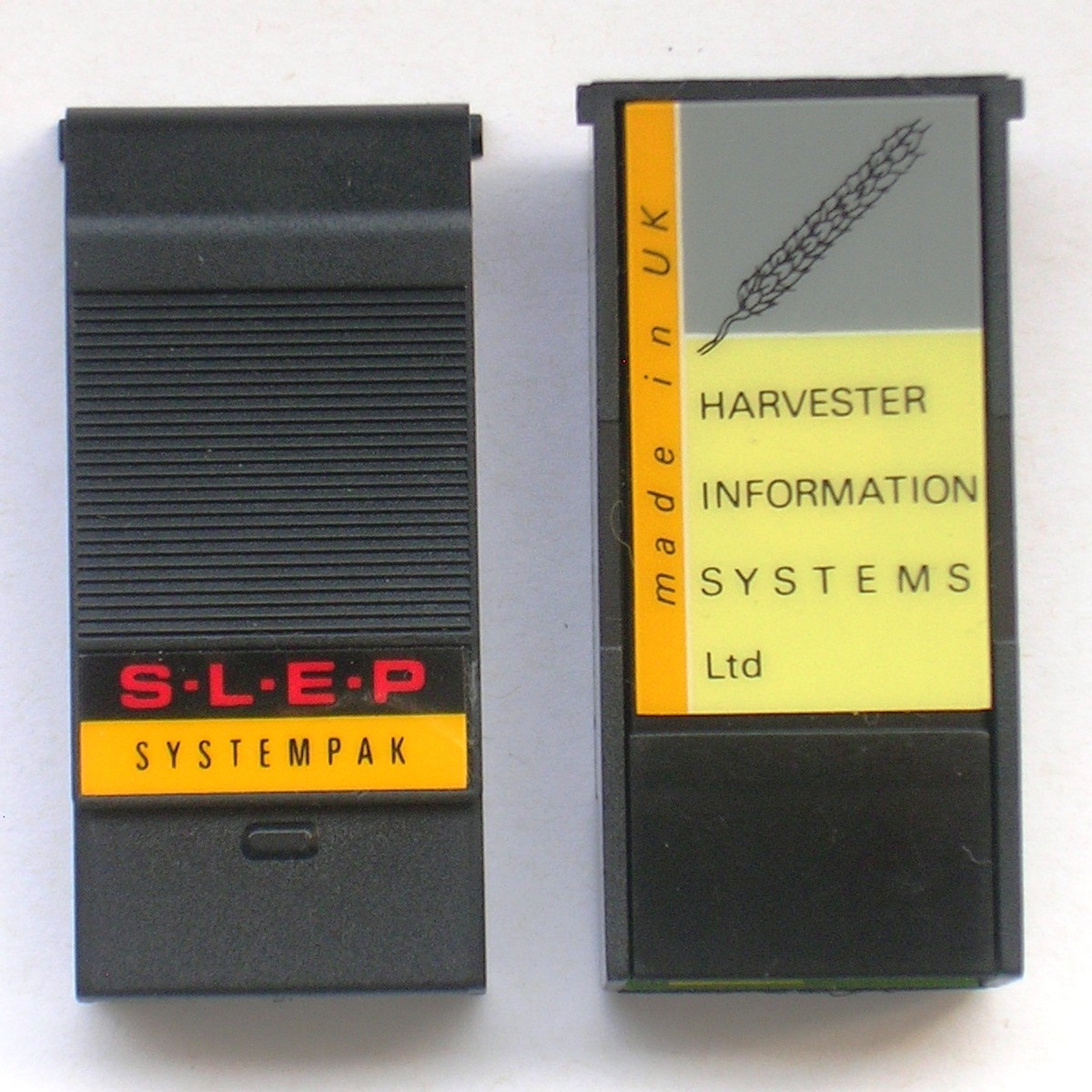

S.L.E.P.
Harvester Information Systems
S.L.E.P.
Manual

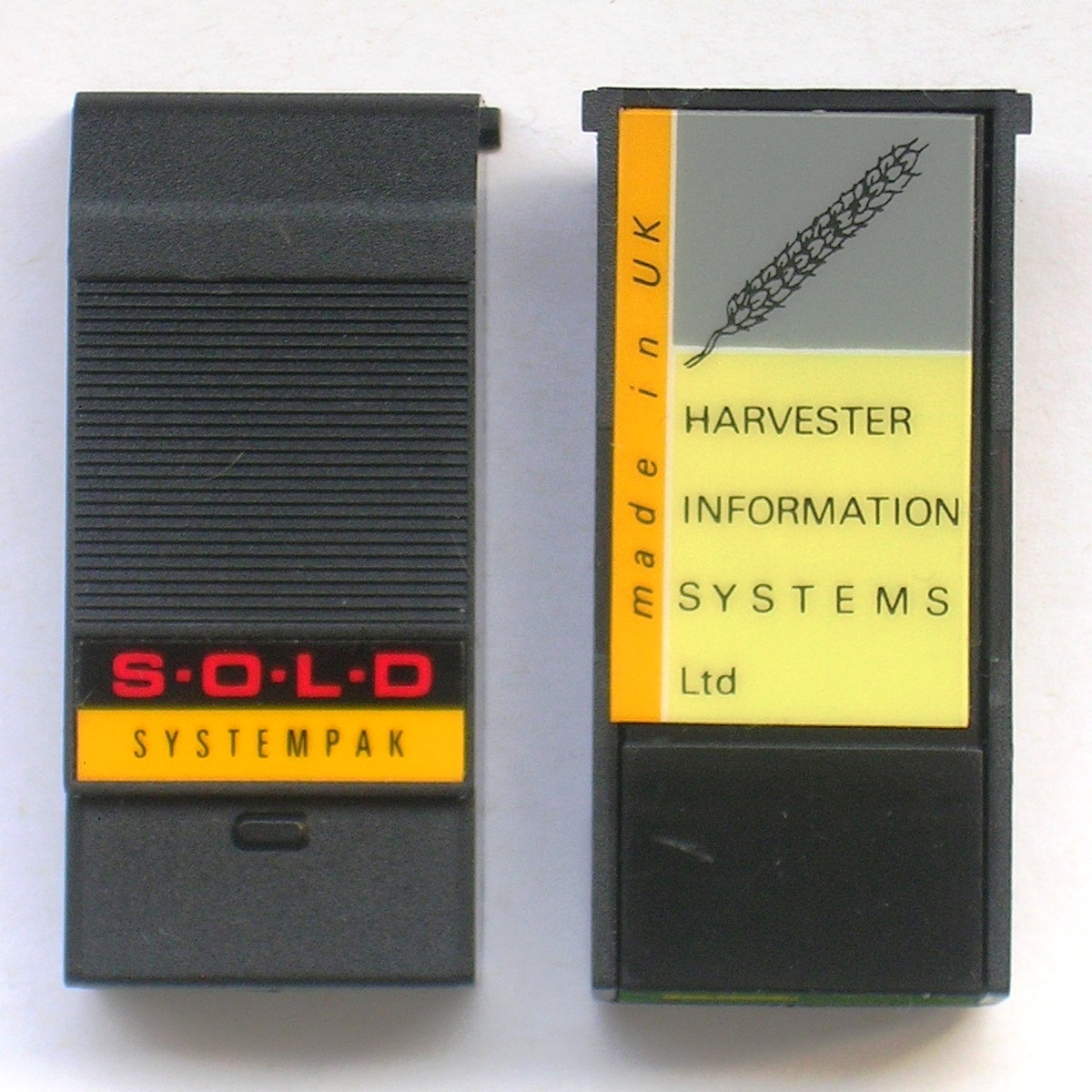

S.O.L.D.
Harvester Information Systems
T.R.E.P.
APT Projects Ltd.
Prudential Rate Book
Prudential


The following software packs are used in conjunction with particular hardware.

SF10 Pack, v1.10
Digitron Instrumentation Ltd

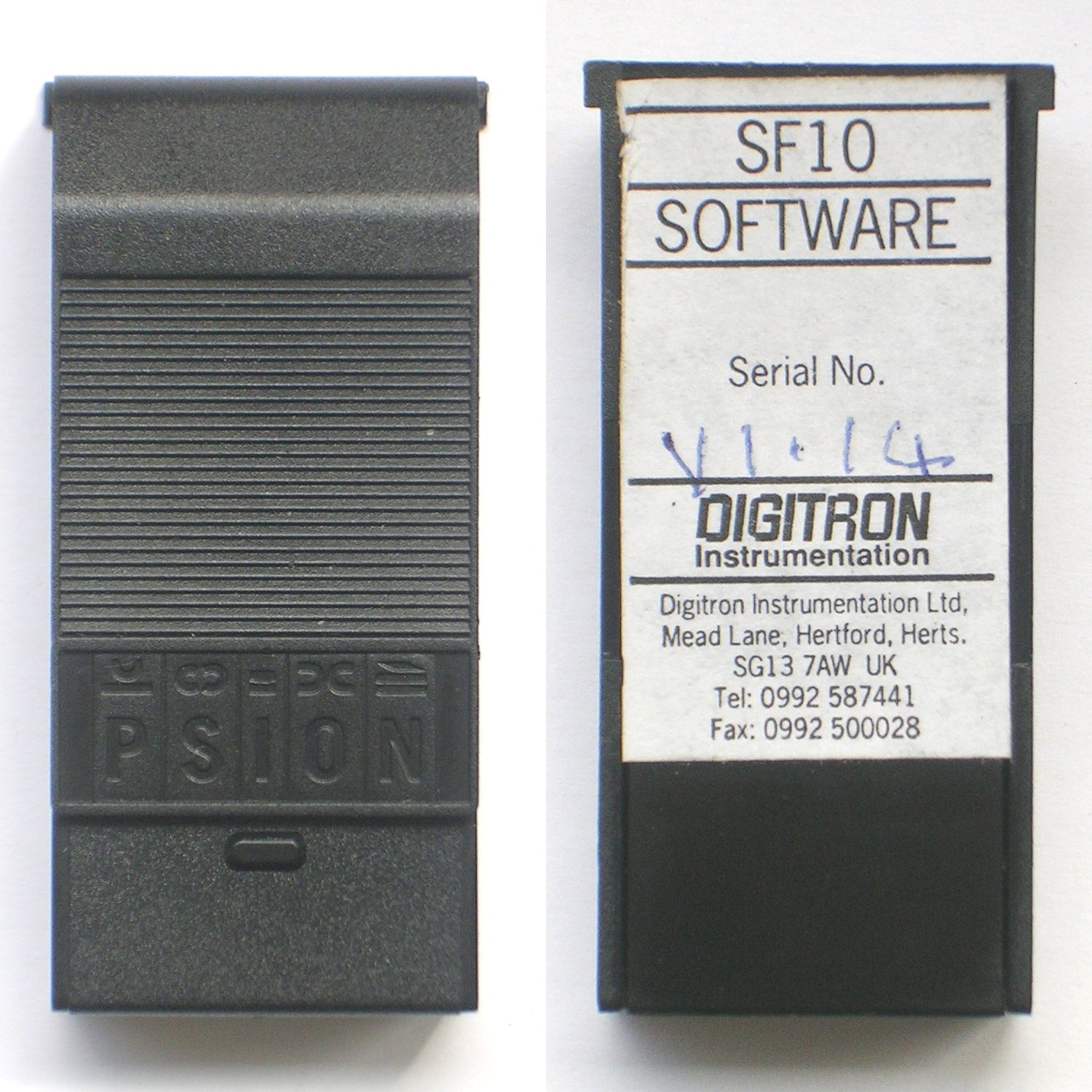

SF10 Pack, v1.14
Digitron Instrumentation Ltd

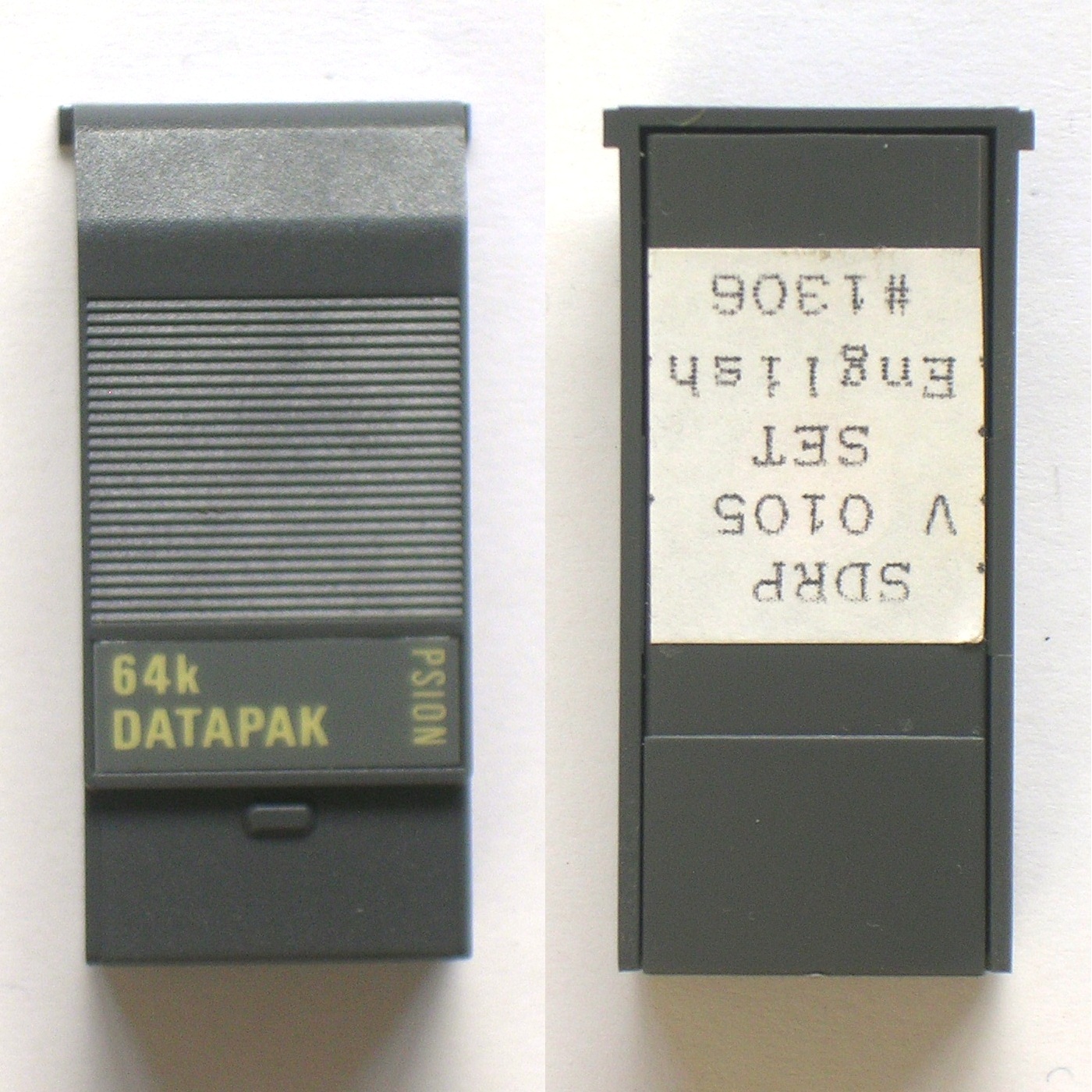

Electronic Field Book
SDRP
Dial-Link Pack
Widget Software Ltd.

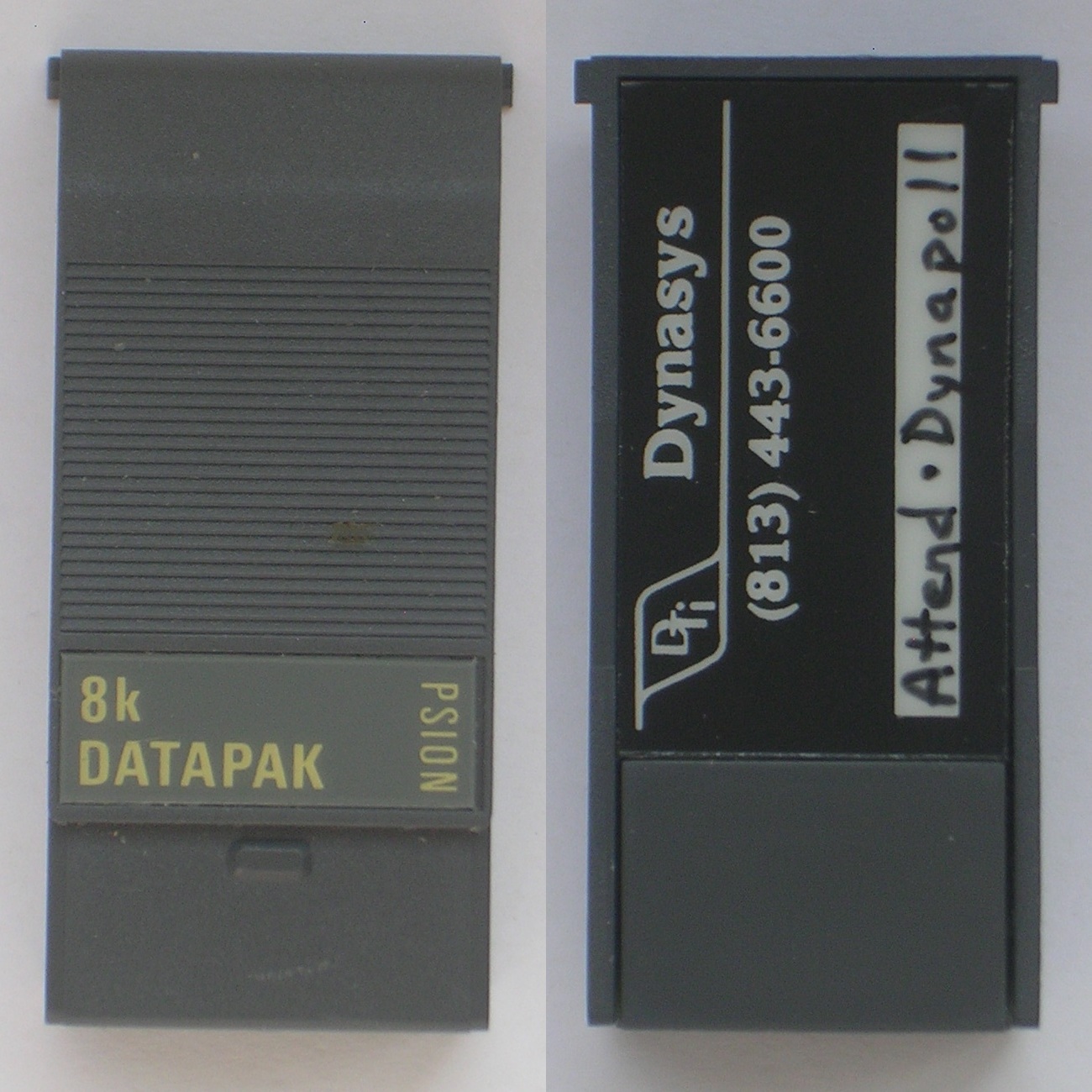

Dynapoll Pack
Dynasys

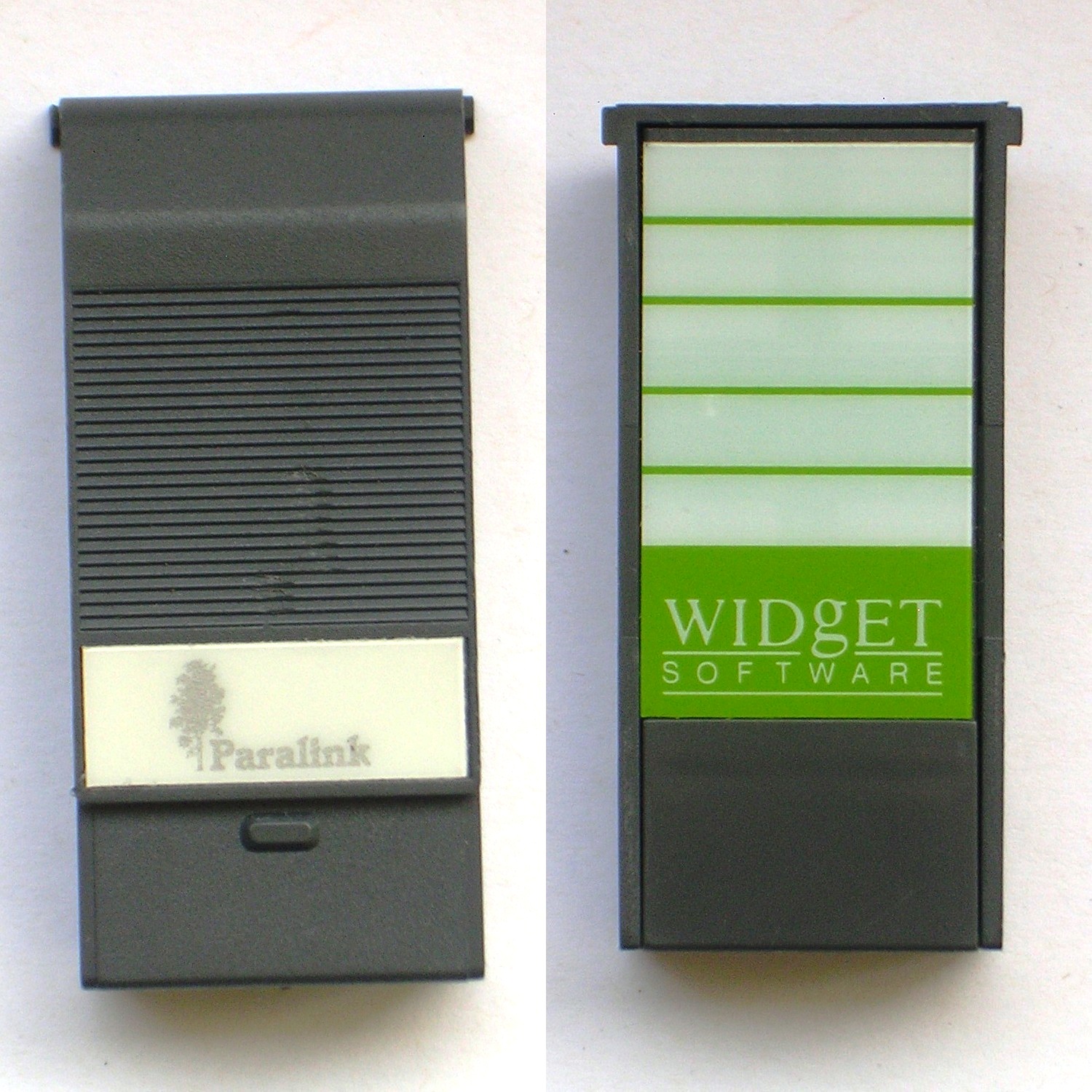

Paralink Pack
Widget (French)

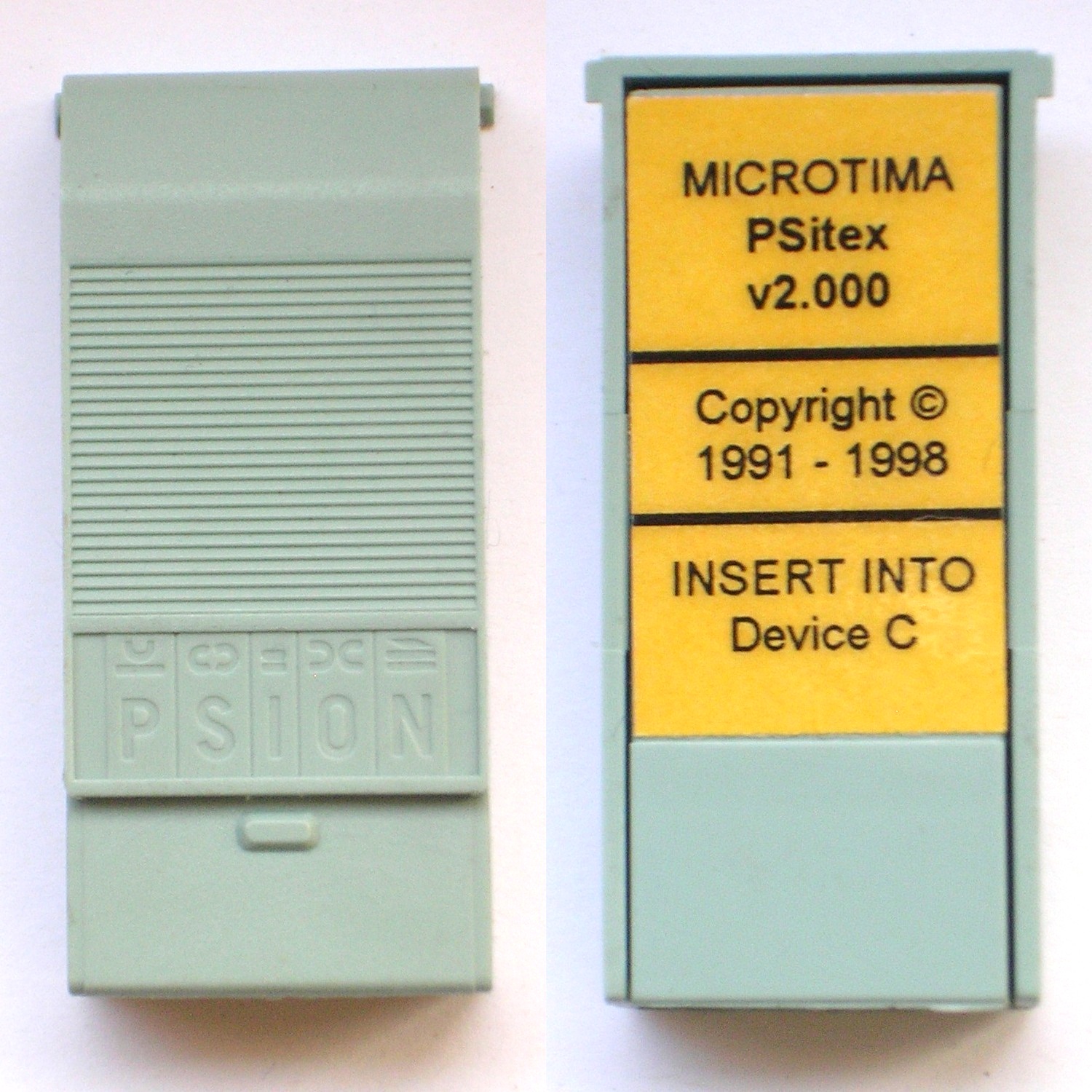

PsiTex v2.000
Microtima

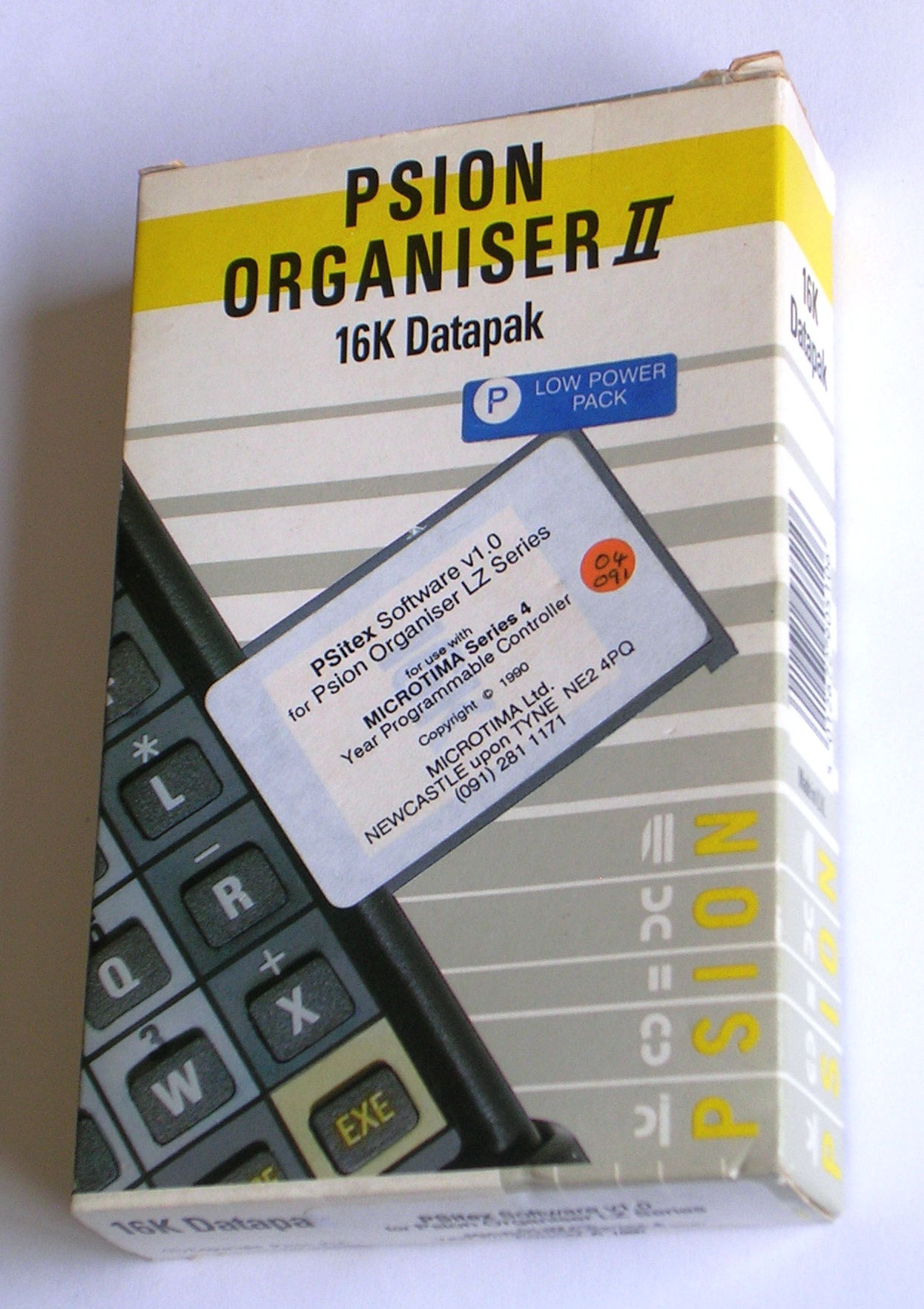

PsiTex v2.000
In Box

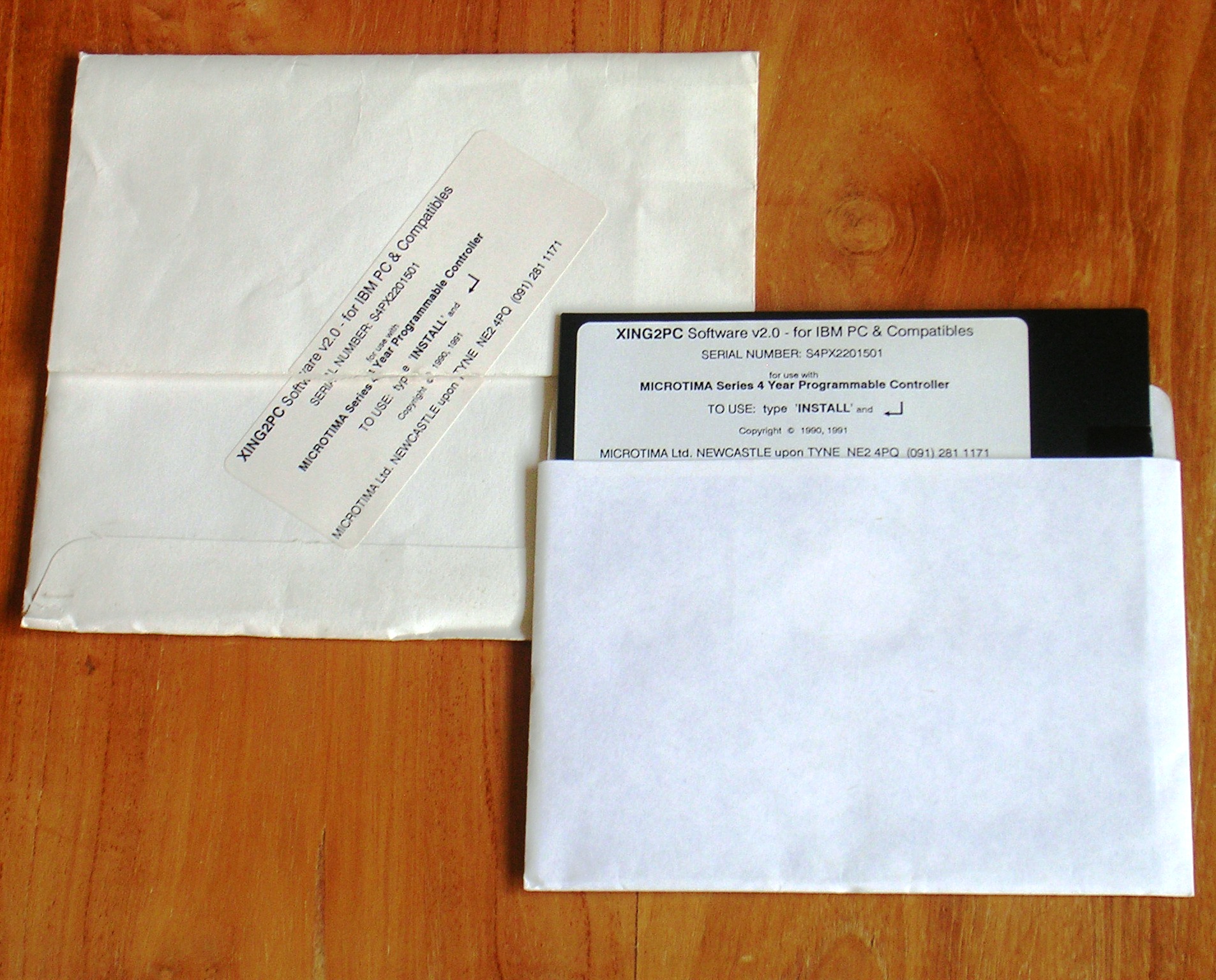

Xing2PC v2.00 Diskette
Microtima; Used with PsiTex pack

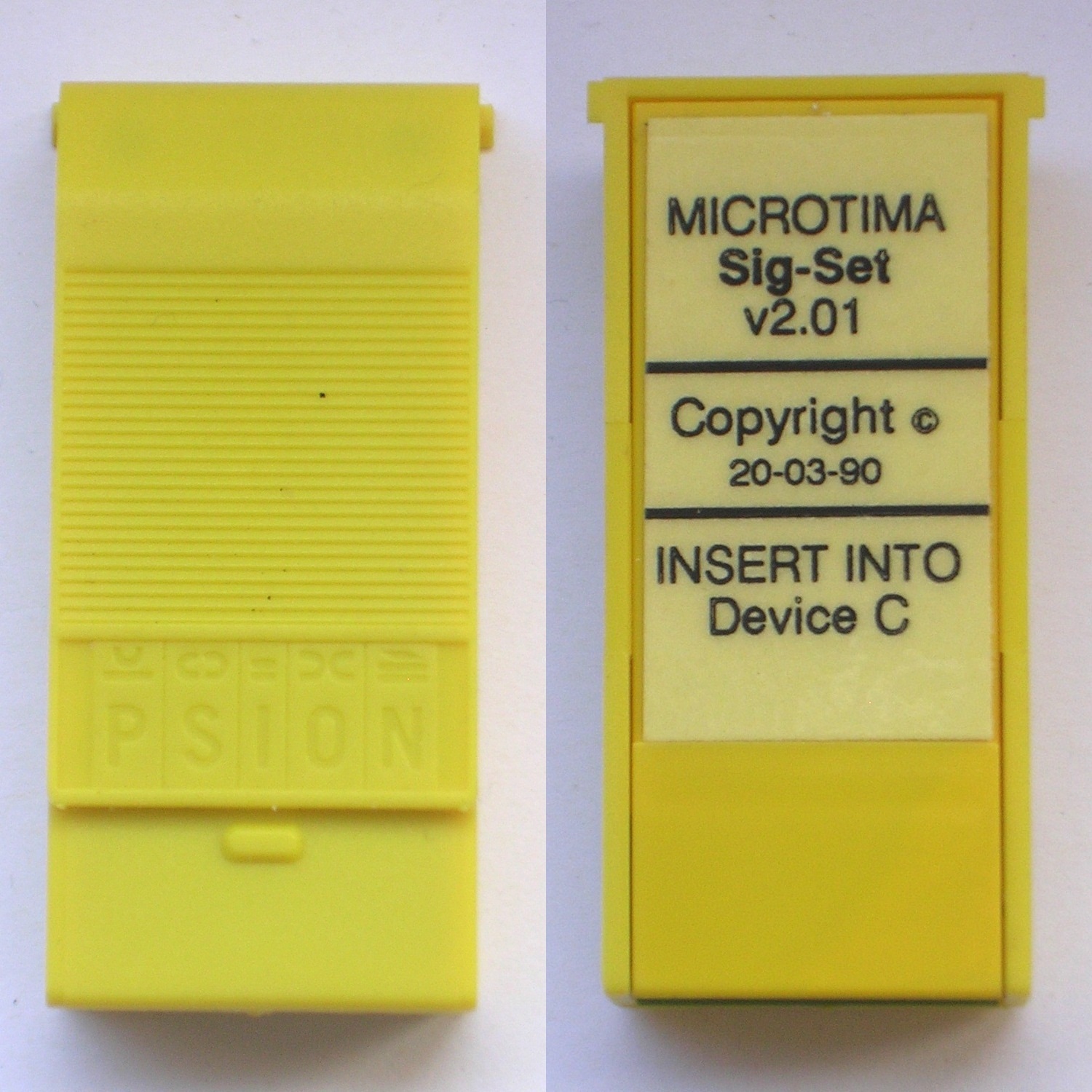

SigSet v2.01
Microtima

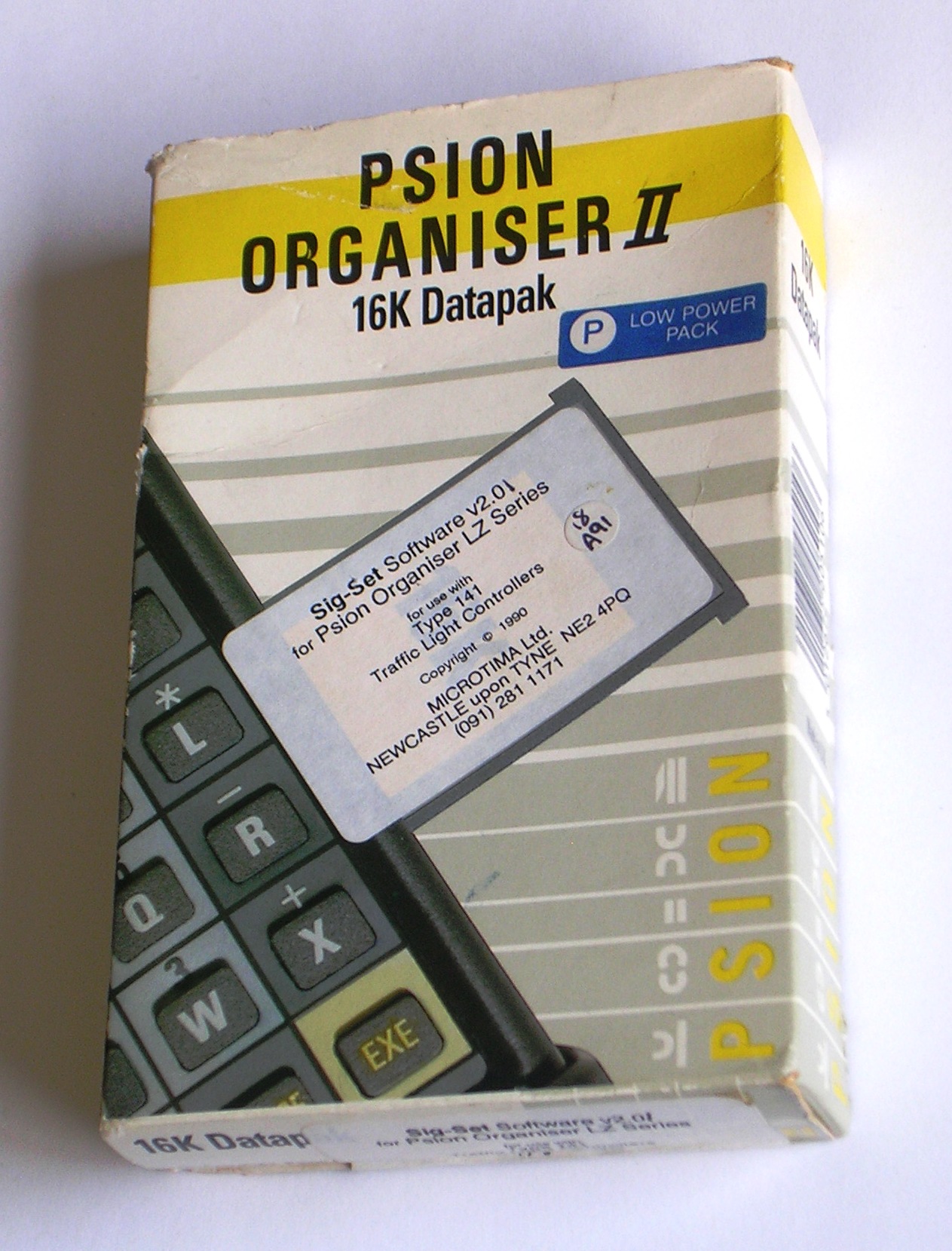

SigSet v2.01
In Box
Sony LISA Pack
V88E F335E F250E TR55E

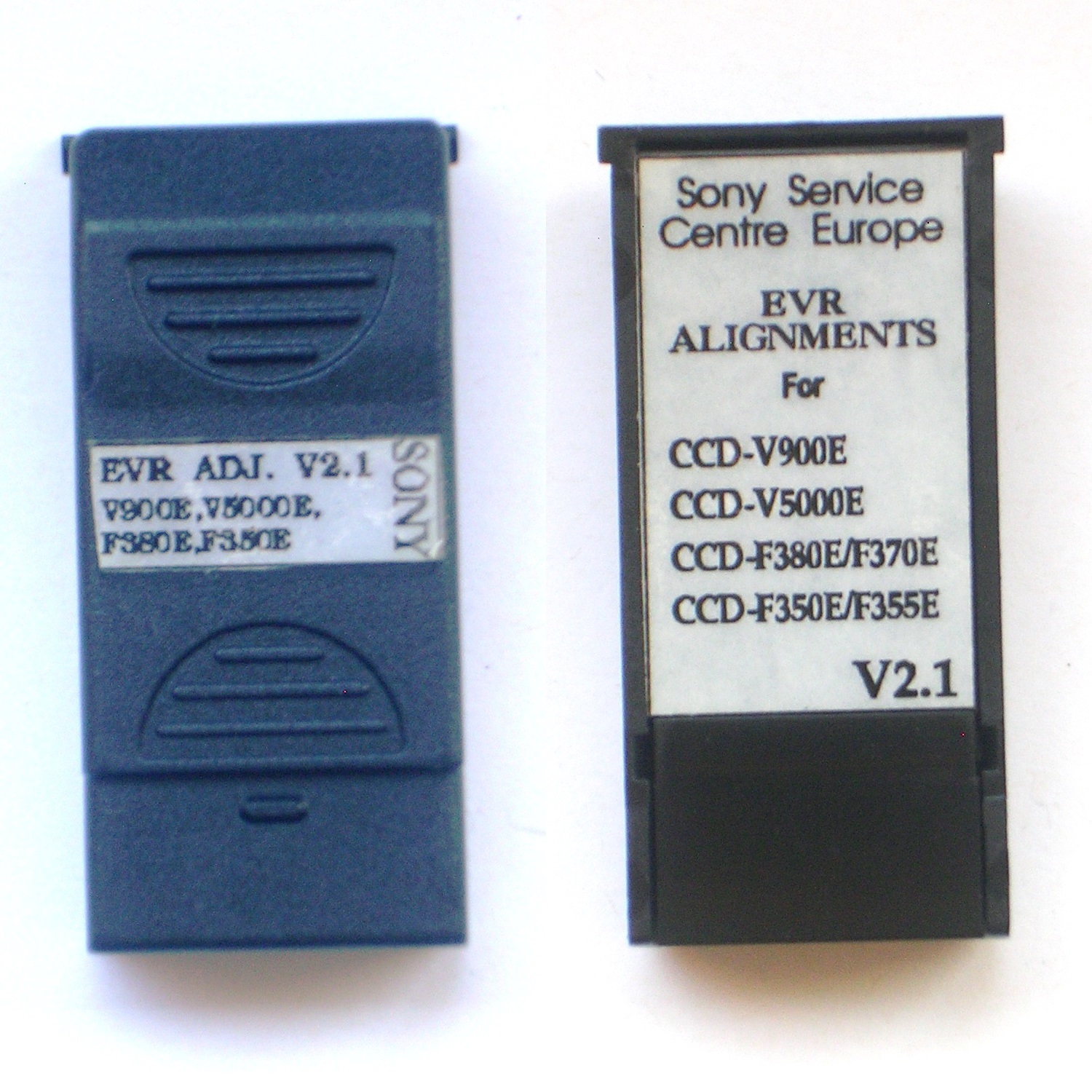

Sony LISA Pack
V900E V5000E F380E F370E F350E F355E

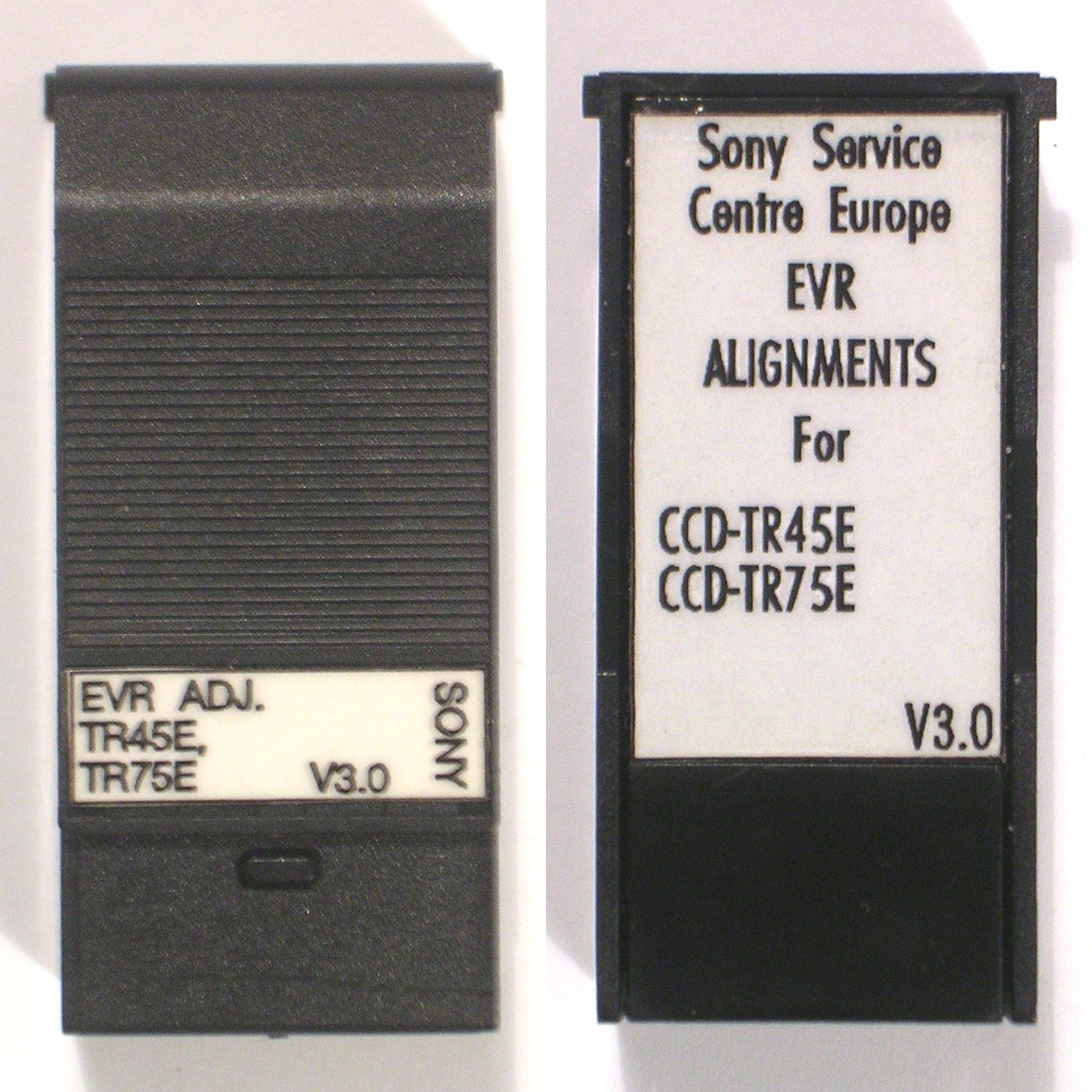

Sony LISA Pack
TR45E TR75E
Sony LISA Pack
TR45E TR50E TR75E TR60E

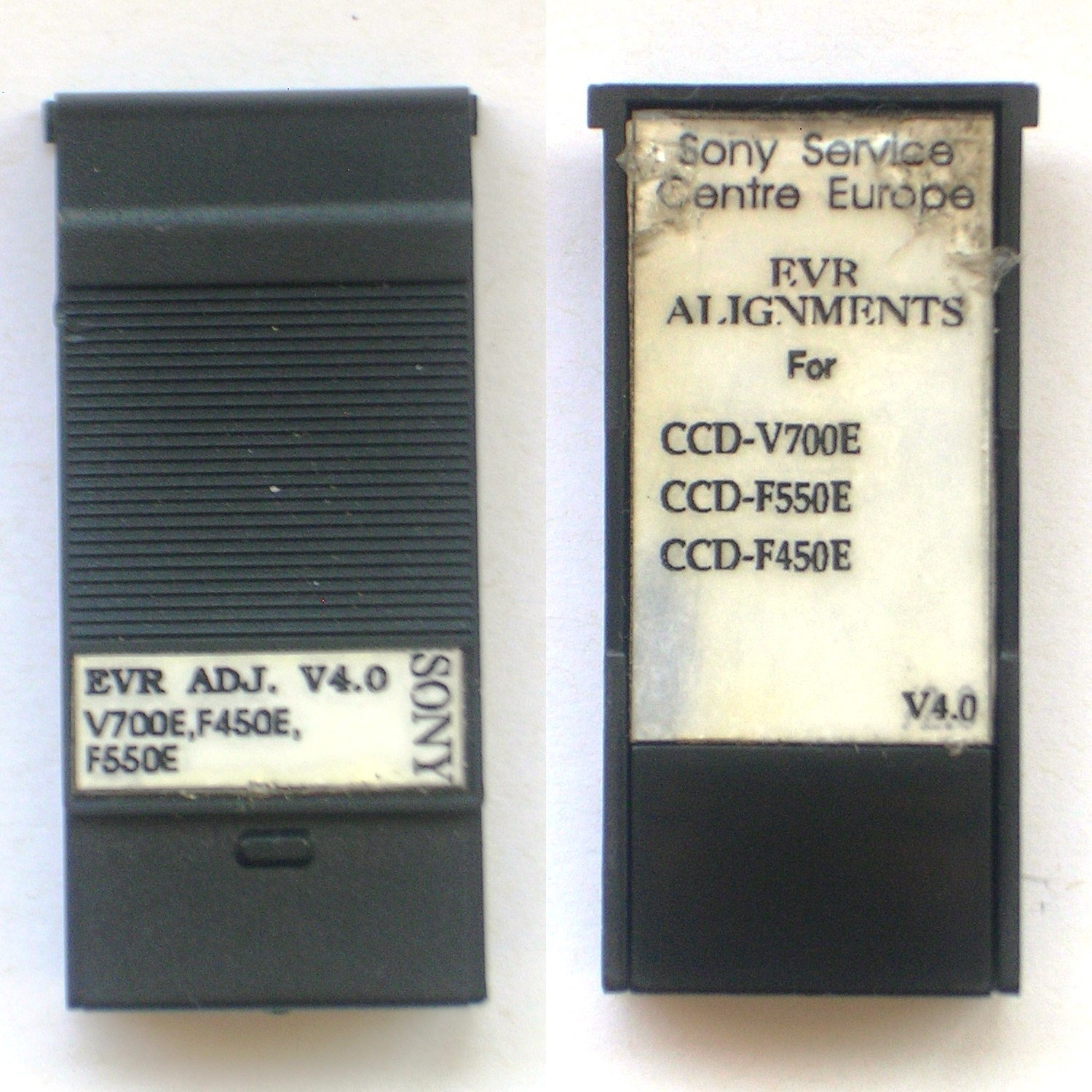

Sony LISA Pack
V700E F550E F450E
Sony LISA Pack
V700E F550E F450E V800E

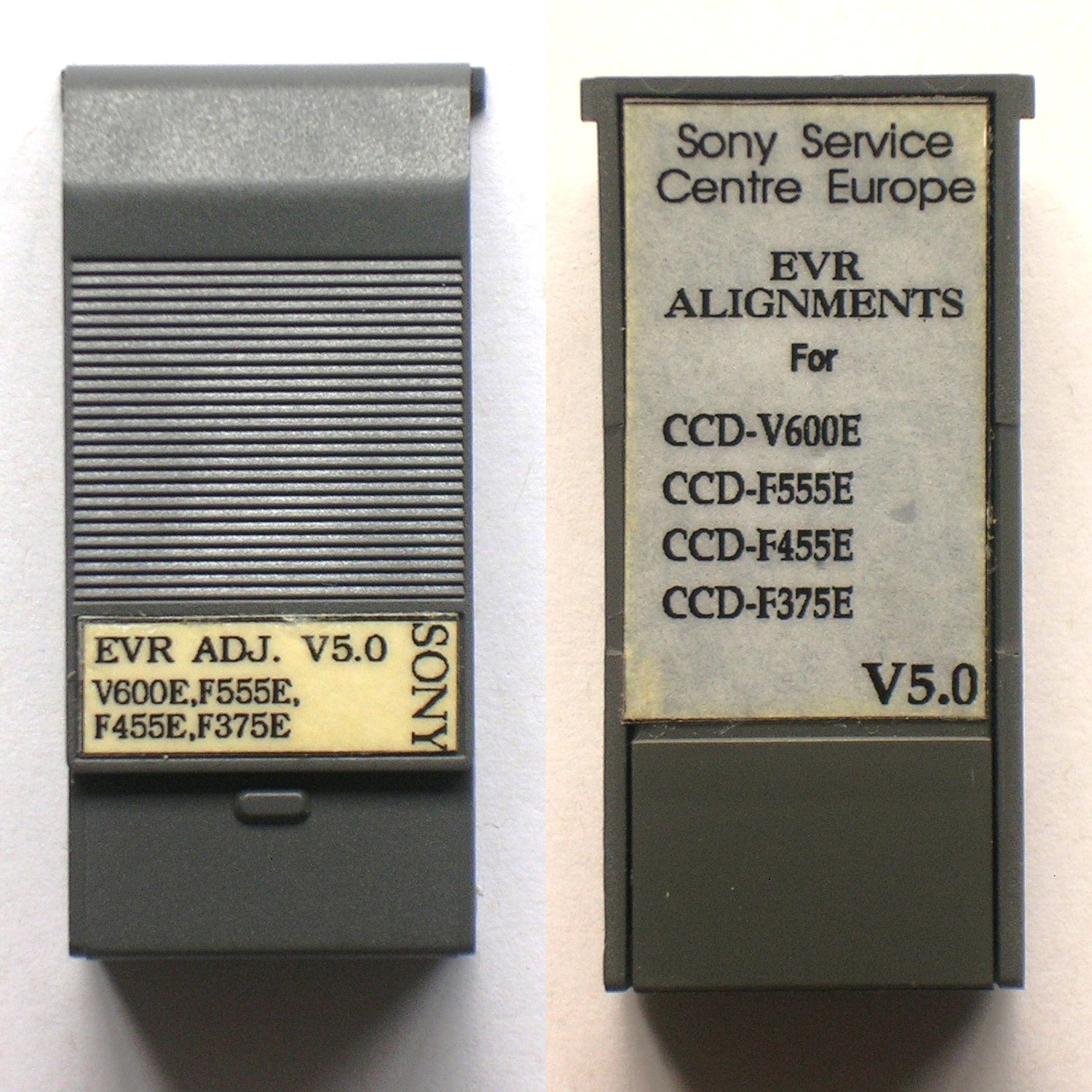

Sony LISA Pack
V600E F555E F455E F375E
Sony LISA Pack
V600E F555E F455E F375E F385E V6000E
Sony LISA Pack
TR705E TR105E

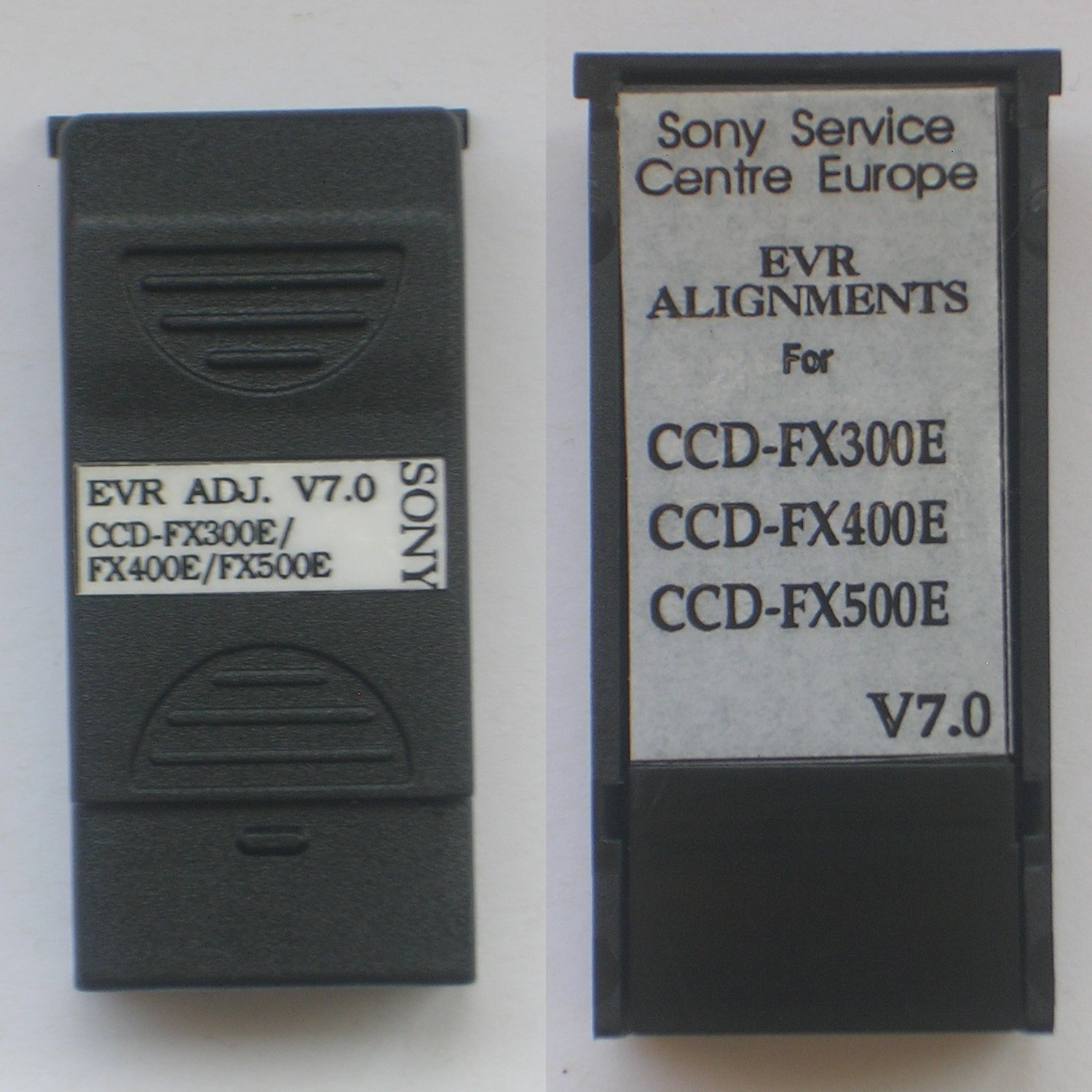

Sony LISA Pack
FX300E FX400E FX500E

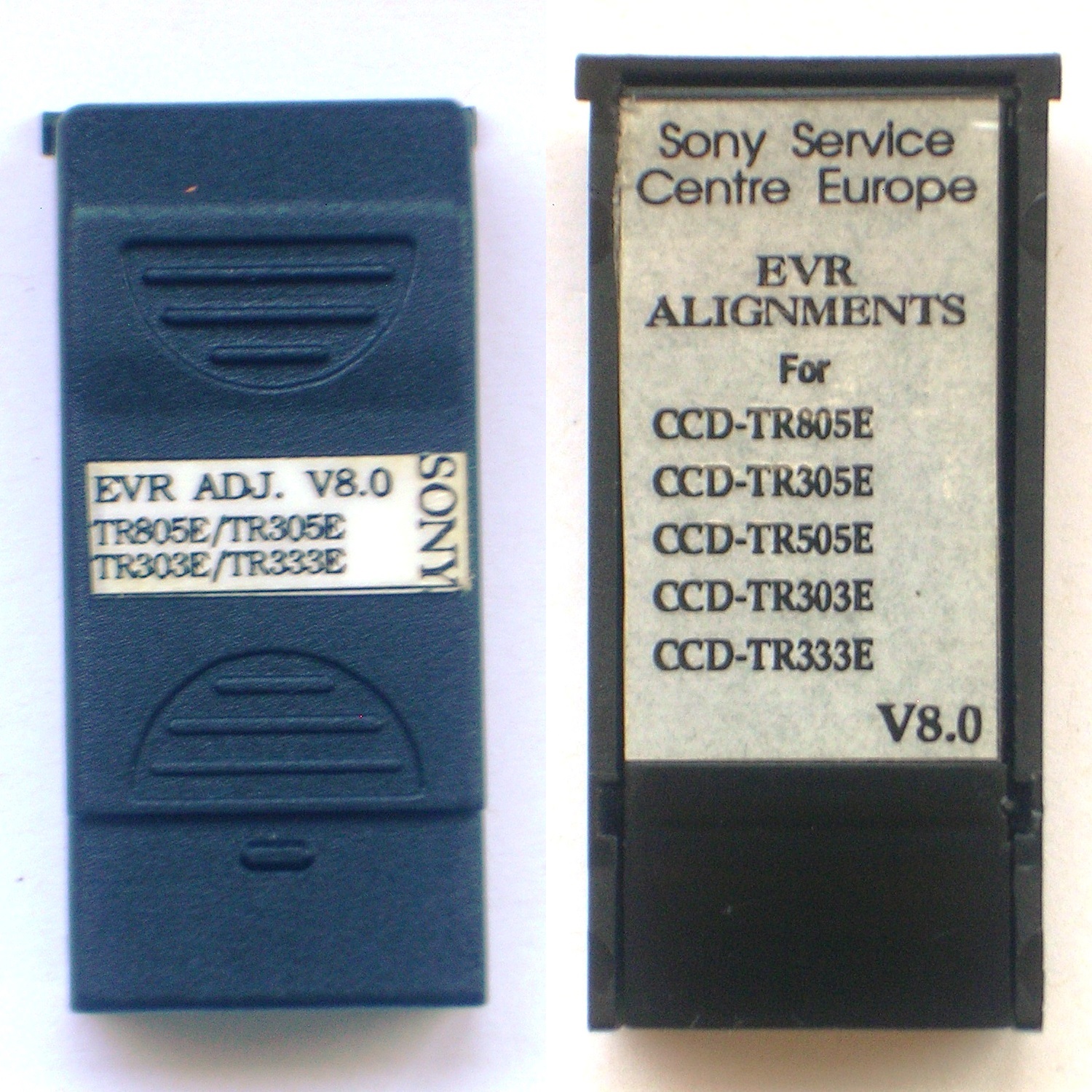

Sony LISA Pack
TR805E TR305E TR505E TR303E TR333E
Sony LISA Pack
TR8E TR18E TR1E
Sony LISA Pack
FX700E

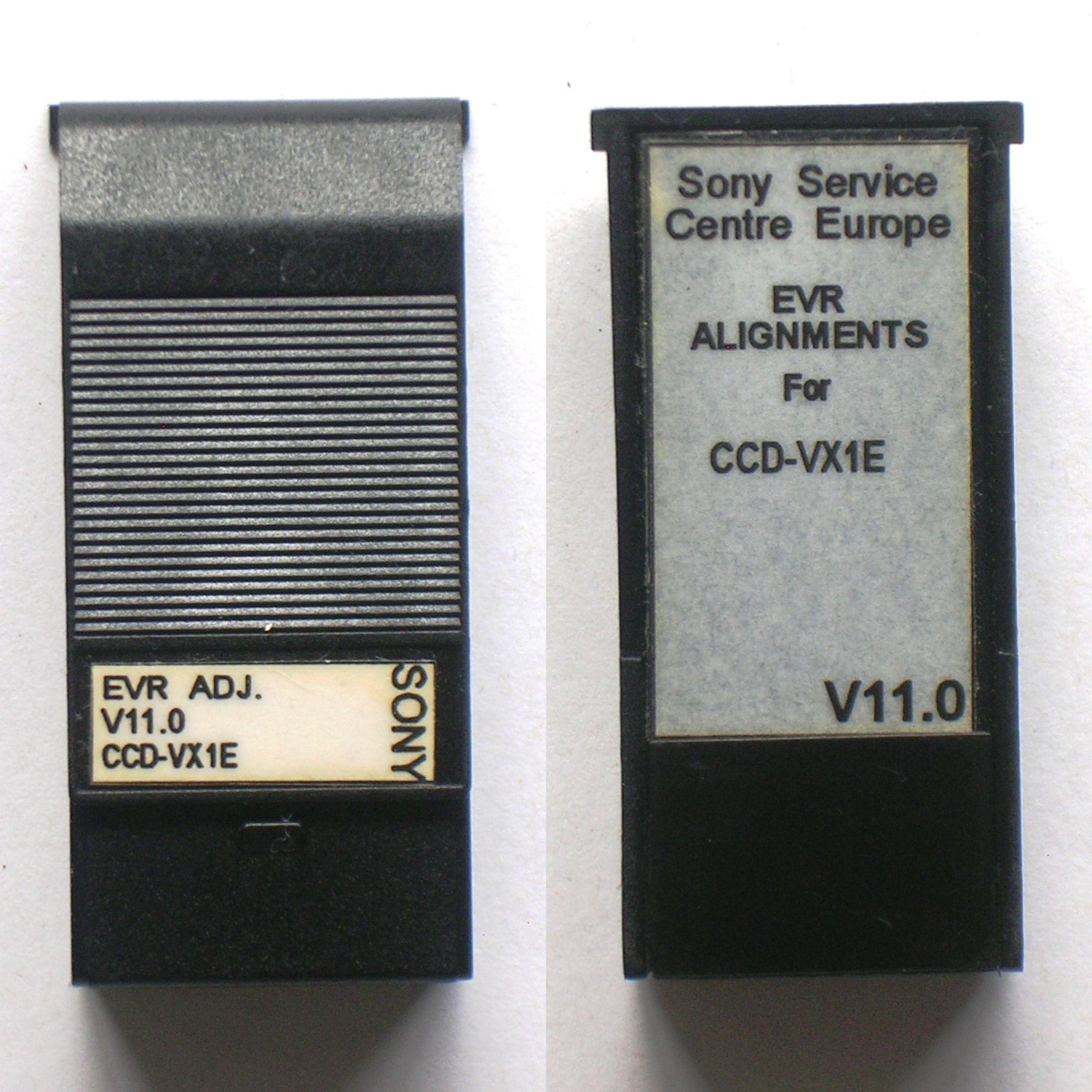

Sony LISA Pack
VX1E

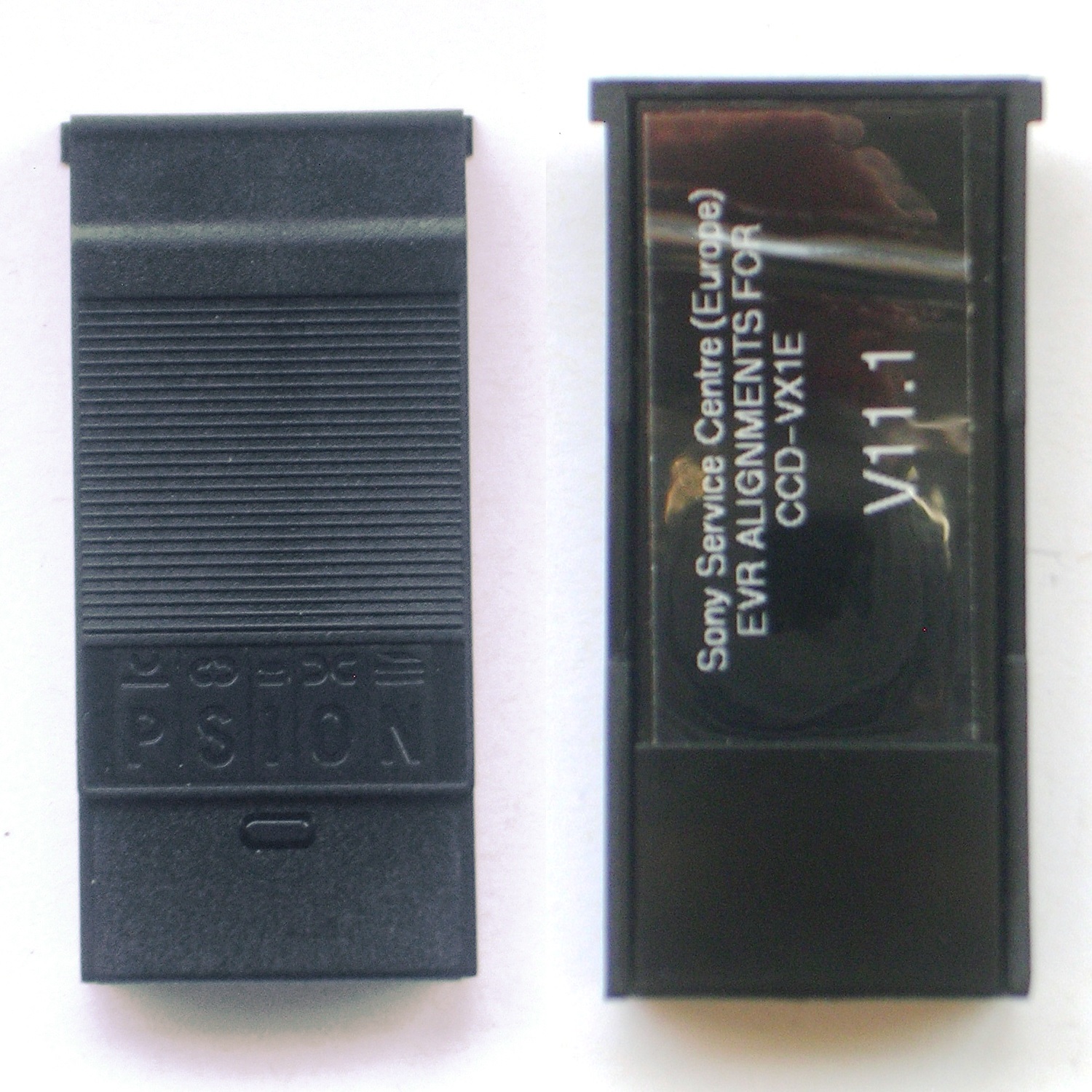

Sony LISA Pack
VX1E

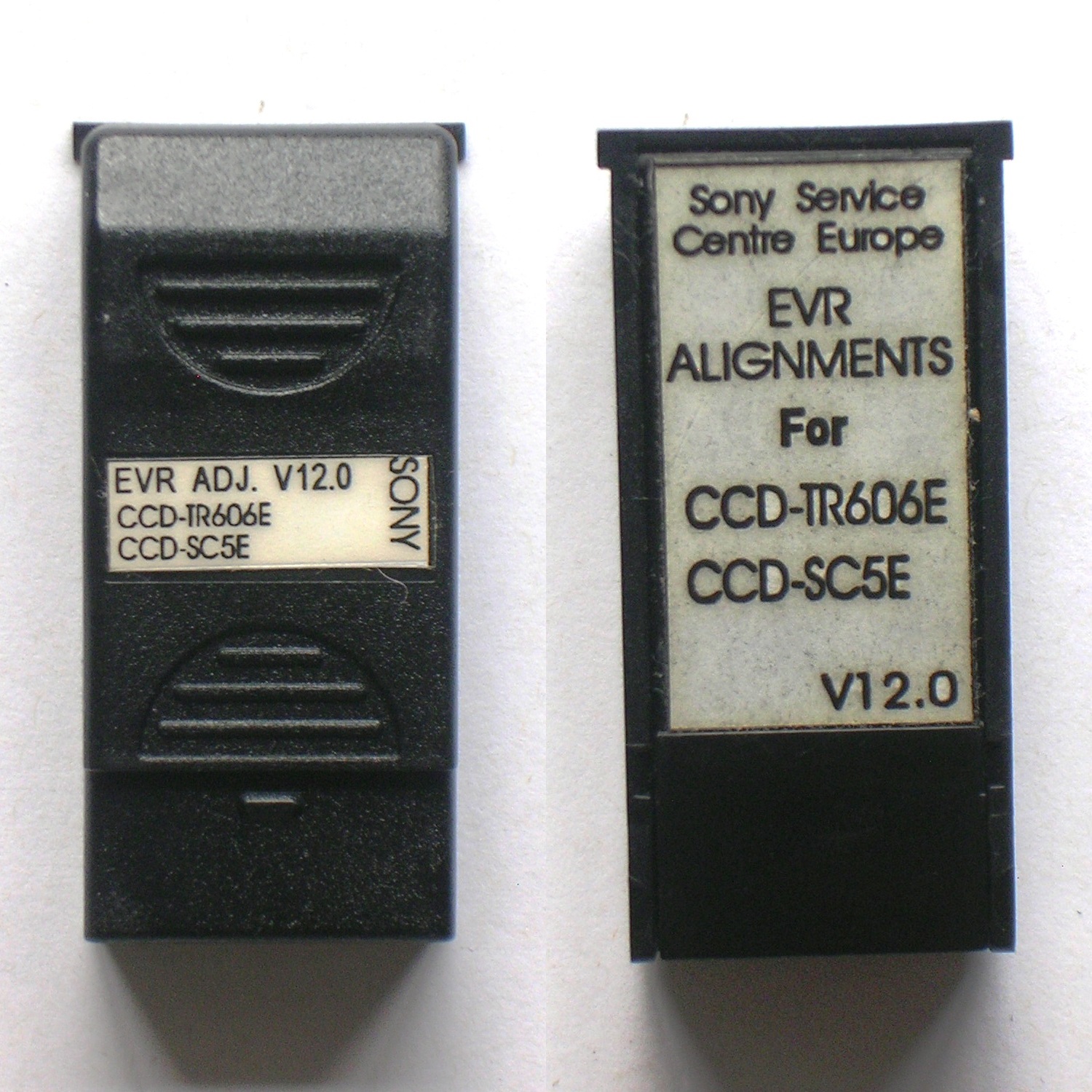

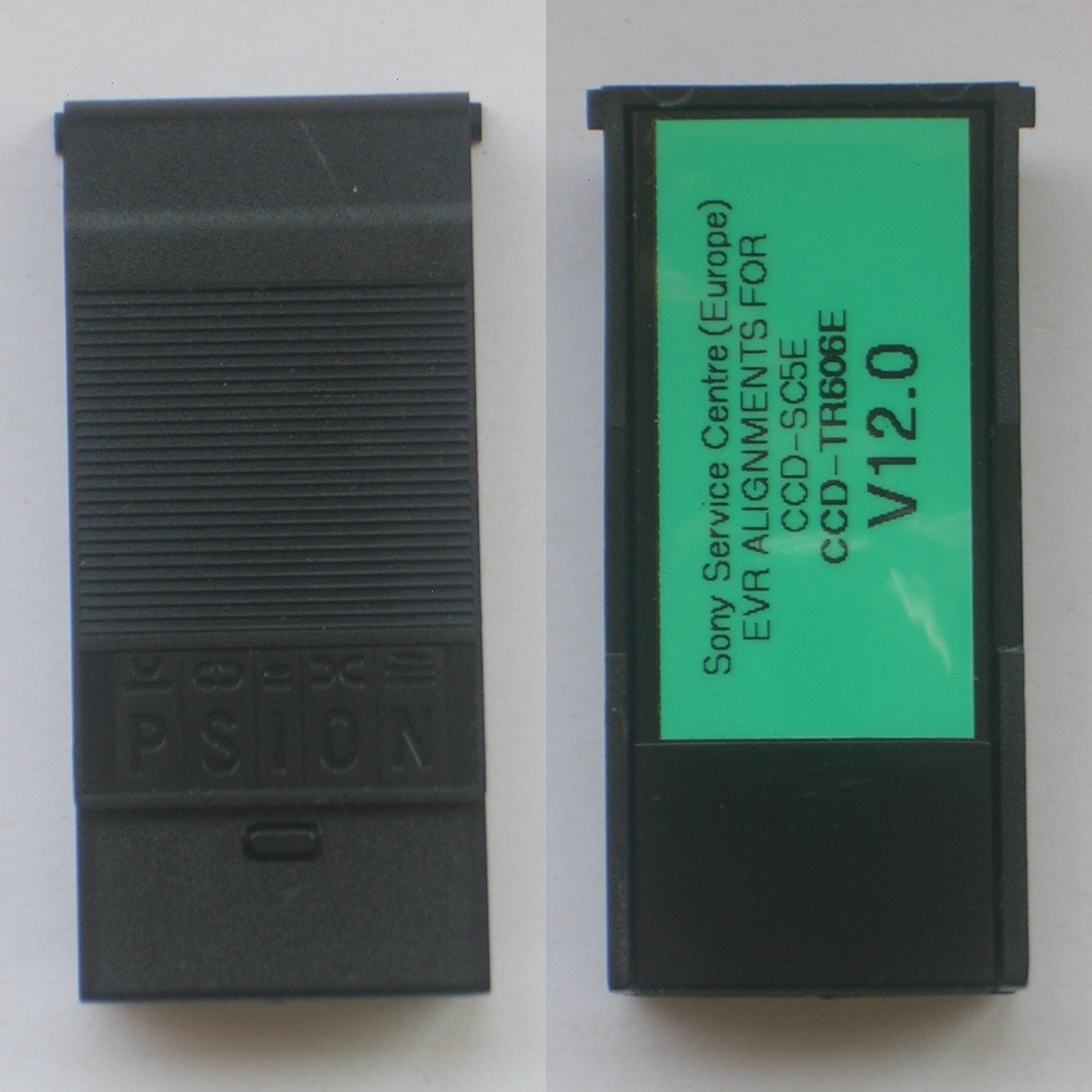

Sony LISA Pack
TR606E SC5E
Sony LISA Pack
TR606E SC5E

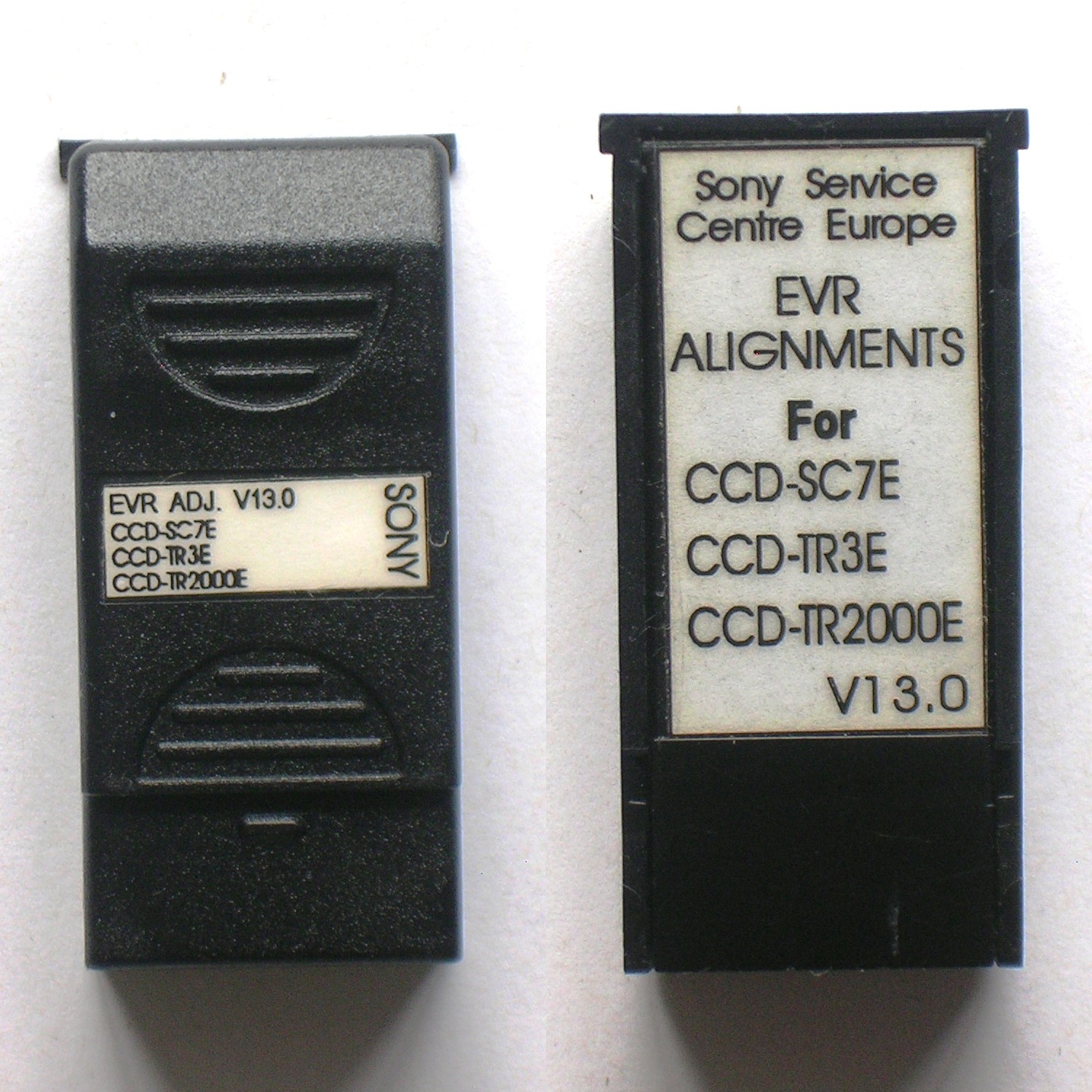

Sony LISA Pack
TR3E TR2000E SC7E

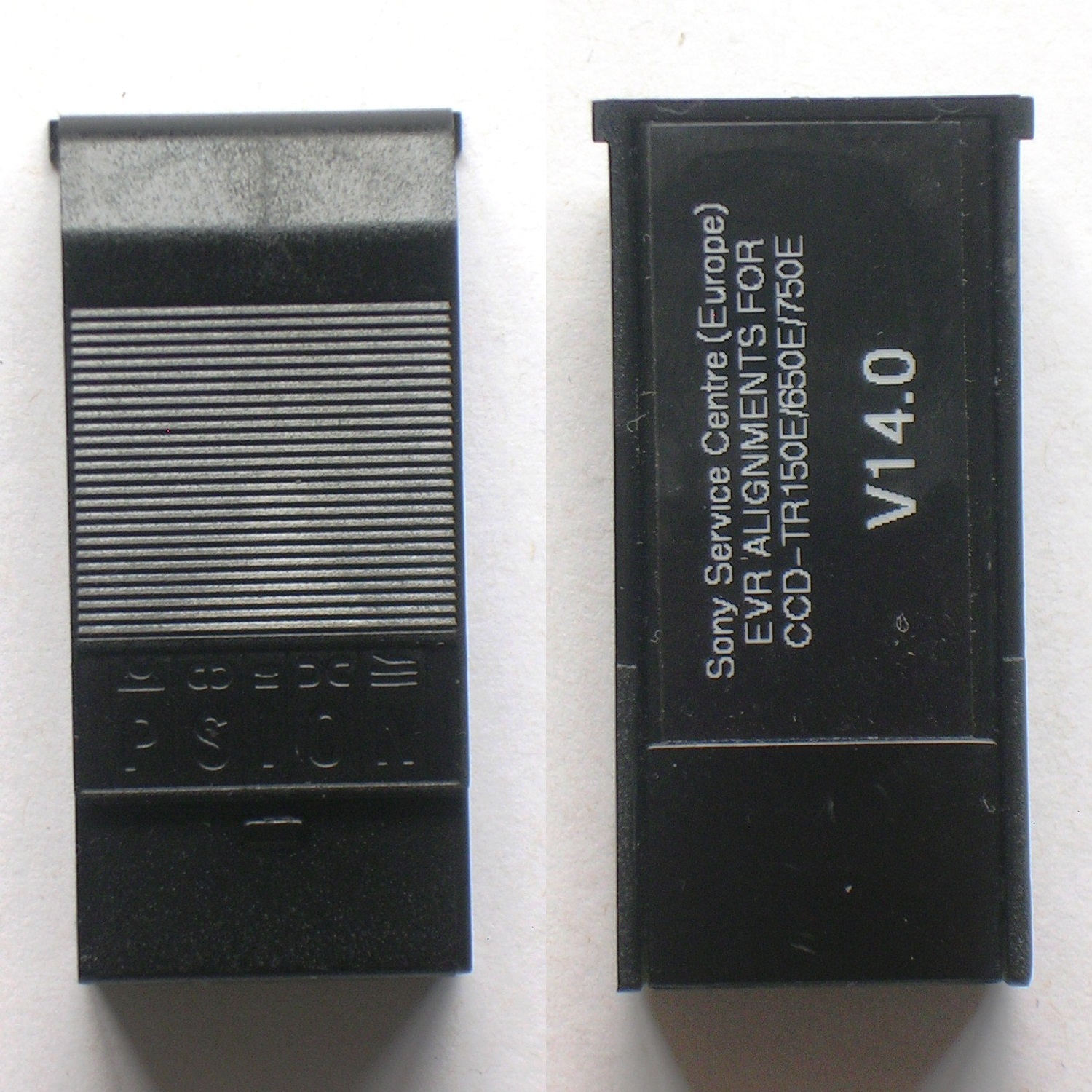

Sony LISA Pack
TR150E TR650E TR530E TR550E TR570E TR750E

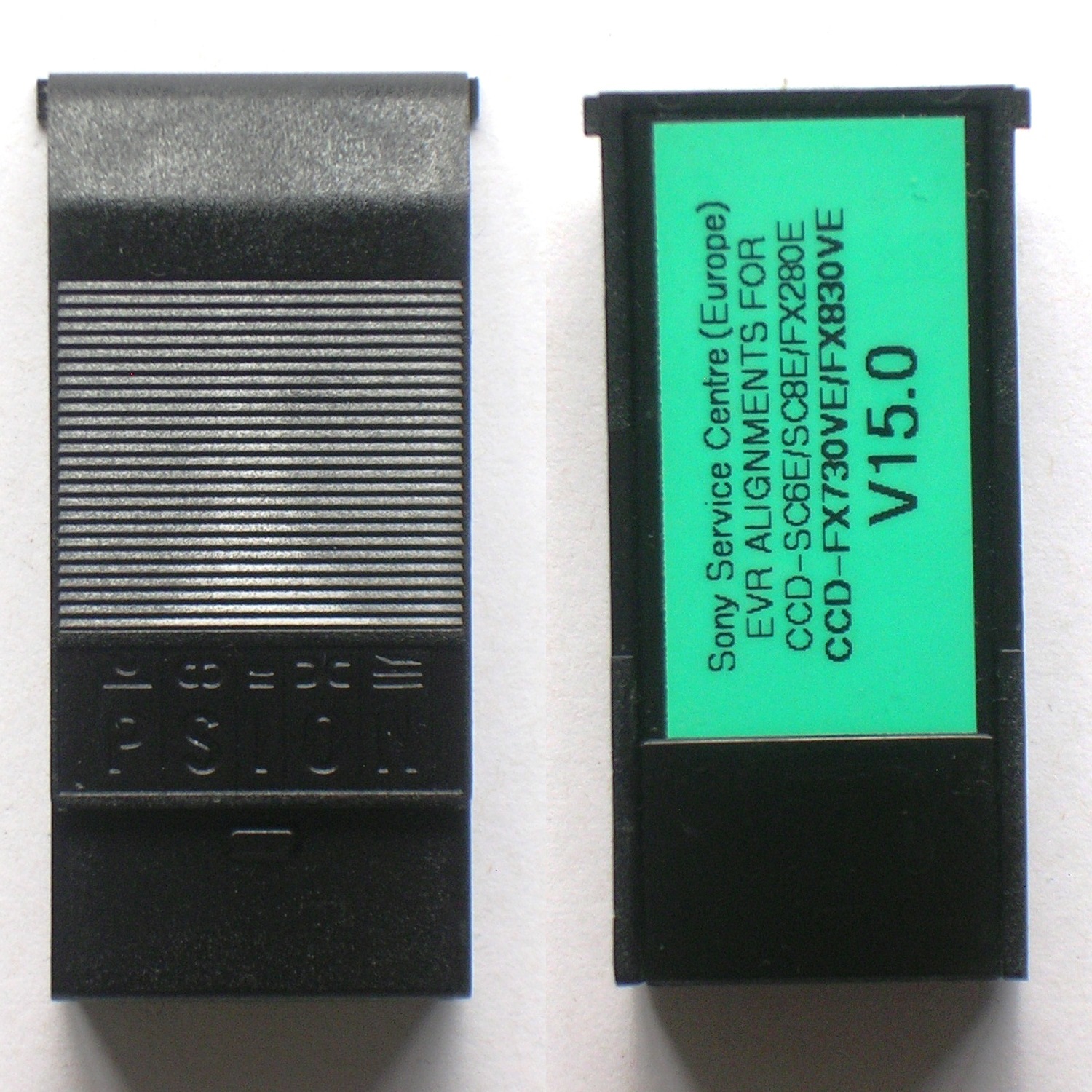

Sony LISA Pack
SC6E SC8E FX280E FX730VE FX830VE
Sony LISA Pack
TR580E TR680E TR780E TRV30E TRV70E
Sony LISA Pack
TR420E TR440E TR510E

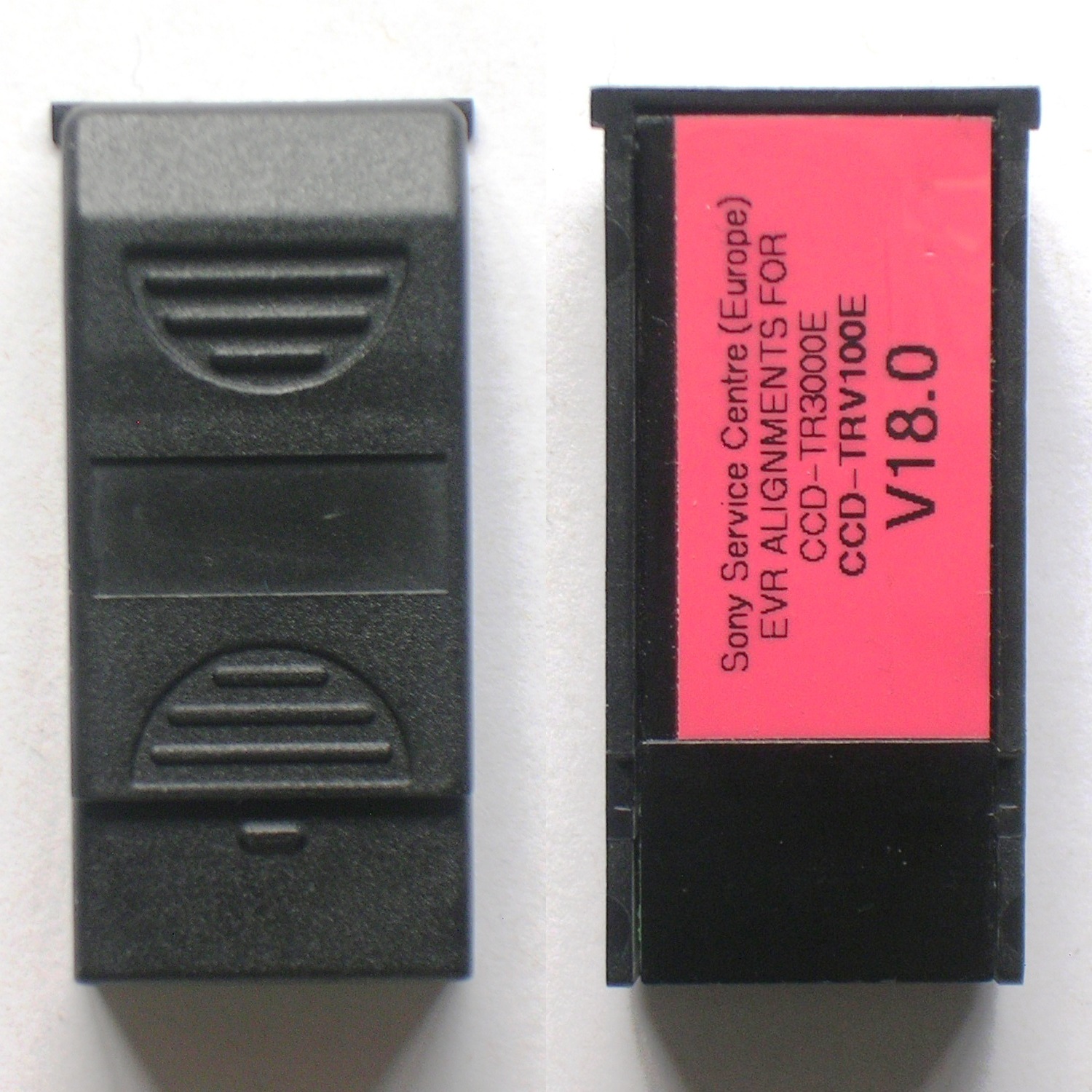

Sony LISA Pack
TR3000E TRV100E
Sony LISA Pack
TR610E TR760E TR810E TR2200E TR3300E

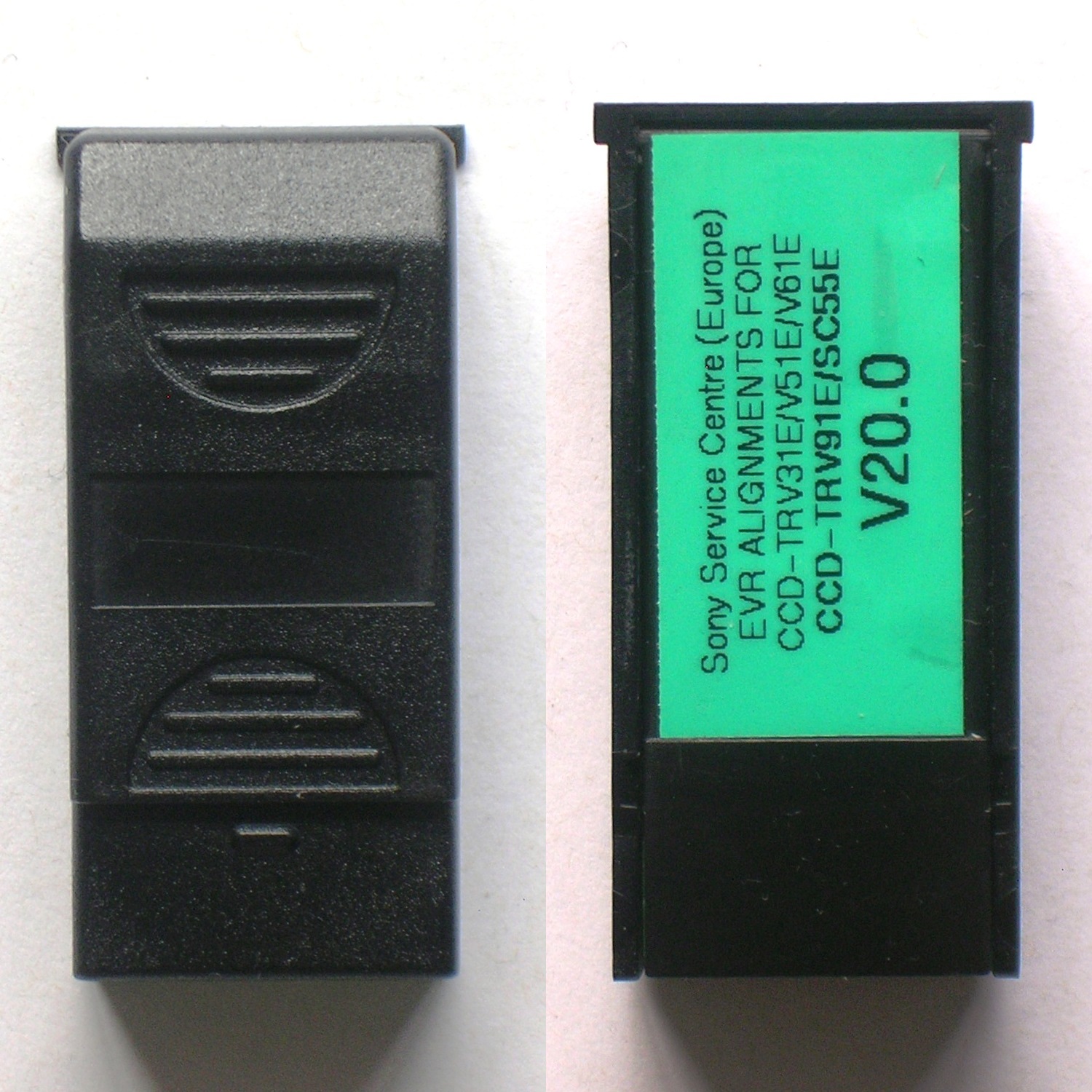

Sony LISA Pack
SC55E TRV31E TRV51E TRV61E TRV91E
Sony LISA Pack
Pixel Repair

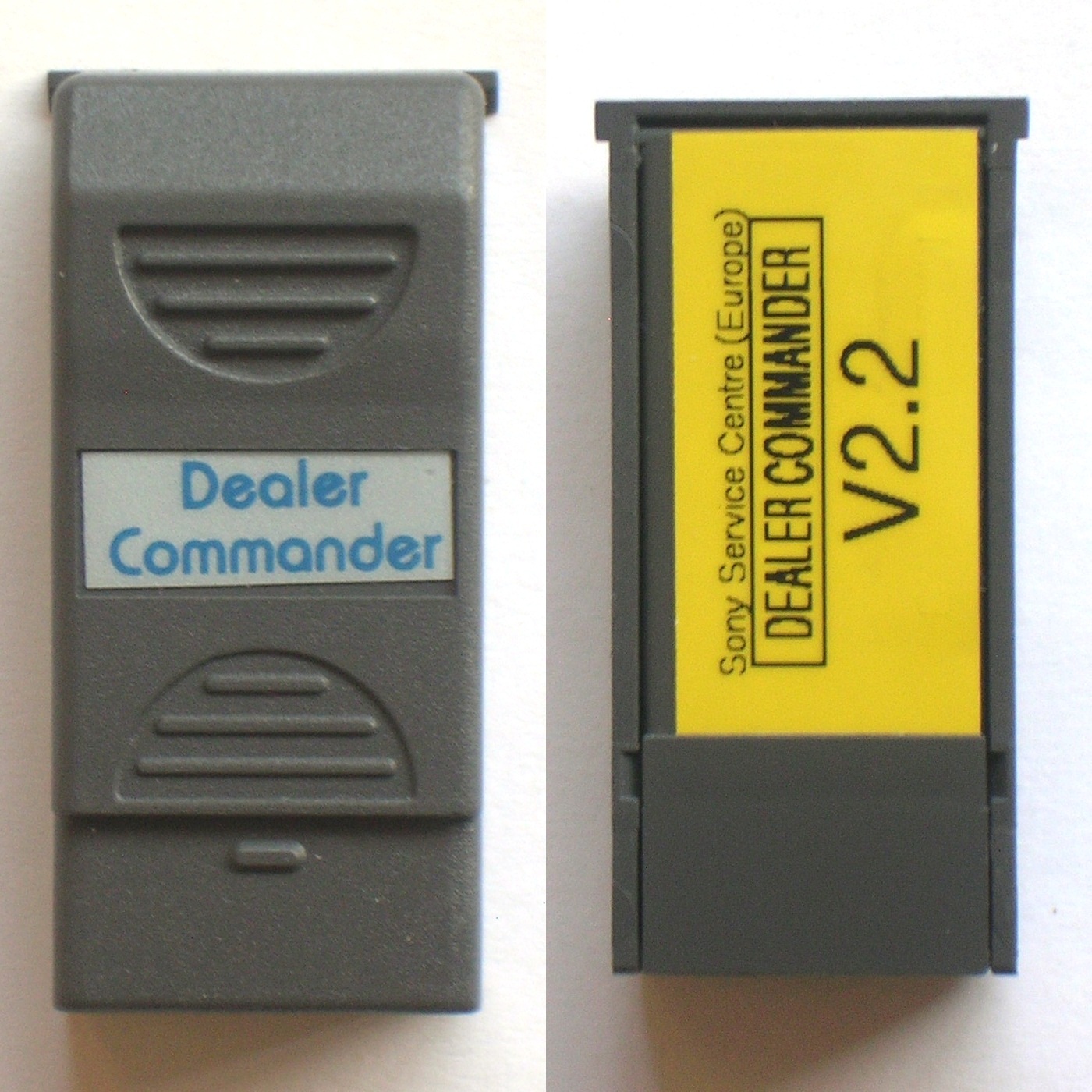

Sony Dealer Commander Pack
Sony Service Centre
