EVR software for use with CCD-TR610E/TR760E/TR810E/TR2200E/TR3300E

This manual is about using the Psion organiser and the Sony LISA interface to control the settings of a particular Sony camcorder. Go to the Sony LISA Manuals page for a list of all similar manuals available on this site.


SONY

EVR Service Software
for the
LISA ADAPTER

Applicable models
CCD-TR610E
CCD-TR760E
CCD-TR810E
CCD-TR2200E
CCD-TR3300E

vs. 19.0

W. Willemsens

CE

User Manual


Table of Contents

1. Starting the program 2. Top menu 2.1. LANC-CONTROL 2.2. EMG_Inhibit 3. Service menu 3.1. EVR-Adjust 3.2. Alignments 3.2.1. Camera Alignments 3.3. Data handling 3.3.1. Save 3.3.2. Restore 3.3.3. Preprogram 4. Camera Adjustments 4.1. General 4.2. Adjustments 4.2.1. Hall adjustment 4.2.2. Iris IN/OUT adjustment 4.2.3. Auto White Balance adjustment 5. Ending the program


1. Starting the program

Be sure to remove other EVR software datapacks before you insert this one. The names of the procedures that are used in the programs are the same, but they have a different function. Therefore the Organiser could get confused and could crash.

So make sure that different EVR datapacks are never plugged into the Organiser at the same time.

You will see that a new option, called "TR3300" is now added to the Organiser's top level menu. If you did not insert the datapack properly, a "Device Load Error" may be reported. This is caused by trying to load a program when only the hardware interface (and no software) is available. If you select the "TR3300" option from the top level menu, a title screen "SONY SERVICE CENTRE EUROPE" will be displayed. This means the program has now started.

If, at any time during the execution of the program, you get an OUT OF MEMORY message, there is not enough internal memory left on your Organiser to load the EVR Alignments software. You can try to clear some memory (delete any non-vital files or records; use the Tidy option in the Diary), but the best thing to do is to save your files on a datapack and erase them on A:.

Even if you have enough memory left, it is still recommended to save all important files you may have on the PSION to a datapack before running the EVR software, to cover you for the unlikely event that a serious error might damage your files.

The EVR program is mainly constructed by using menus, so you only have to select the application you want from the menu. There are two ways to select an item from a menu:

  1. Run through the menu using the four arrow keys (= cursor keys) until the cursor is positioned at the first letter of the item you want. Then press the EXE key.
  2. Press the key corresponding to the first letter of the option required.

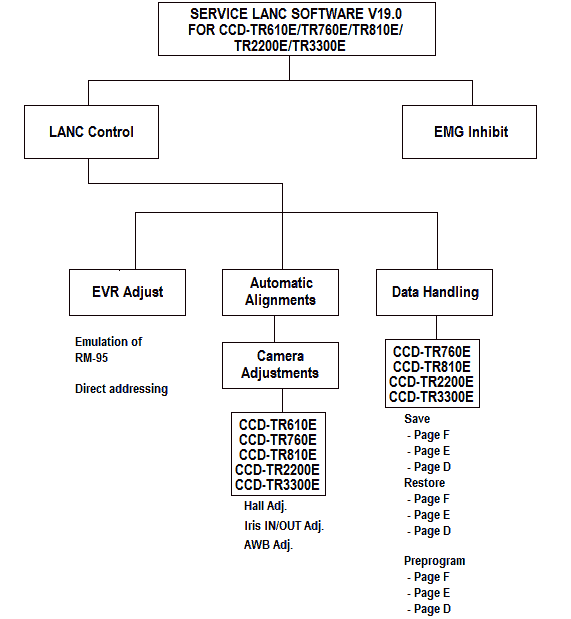

Menu diagram

Important note: never unplug the interface, or remove the EVR datapack while the Organiser is switched on. This could cause electrical damage to the Organiser.


2. Top menu

When the program is started and the title screen is displayed, a key press (any other key than ON/CLEAR, which will end the program) will cause the following menu to be displayed:

EMG_Inhibit   LANC_CONTROL

In further explanations, this menu will be referred to as the "top menu". Pressing the ON/CLEAR key when you are in this menu will end the program and you will be returned to the Organiser top level menu (TR3300, Find, Save, Diary,...). This is also the only way out, so you will always have to return to this top menu to be able to quit the program.

The three items that are presented in the top menu are now briefly described.

2.1. LANC-CONTROL

As the title indicates, in this mode the Organiser will communicate with the camcorder through LANC (asynchronous data transfer via the remote terminal). The Organiser will be able to perform all of the adjustment facilities that the RM-95 has, plus automatic alignments.

The moment you select this option, you should make sure all the necessary preparations are made:

If something has been forgotten, the Organiser will detect it and display the adequate error message:

If everything is OK, the following "service menu" will be displayed:

EVR-Adjust   Alignments Data-handling

Only the items in the rectangle are initially displayed, the other items can be reached by scrolling through the menu, or can immediately be selected by pressing the first character.

2.2. EMG_Inhibit

In this test mode, the following emergency detections are switched off:

Drum, capstan, loading motor, reel, tape top and end, DEW, SP/LP automatic discrimination, manual switching.

As this test mode is set in page F, it will not be released even if the main power has been turned off. So be sure to return to this page F, address 29, data 00 (press the PAUSE button on the RM-95 or the EXE key on the Psion to store the data) after completing the adjustments and/or repairs.


3. Service menu

3.1. EVR-Adjust

This service mode is for adjustment of the camera block through EVR (Electronic Variable Resistors). Of course the Organiser can only start the EVR access if the right adjust mode is set. If it is not, the necessary indications to set it will be displayed.

Possible key presses when you are in the EVR mode are:

3.2. Alignments

Upon selection of this item, two options are displayed:

CAMERA_ADJ.   BATT_DOWN_ADJ.

3.2.1. Camera Alignments

Under this option, some alignments can be made automatically. When a camera type is selected, the respective adjustment menu is displayed.

CCD-TR610E   CCD-TR760E CCD-TR810E CCD-TR2200E CCD-TR3300E

The different camera alignments are described in section 4.

3.3. Data handling

The EVR data of the camcorder can be handled as a file that can be transferred between the camera and the Organiser in three ways:

Save Restore   Preprogram

3.3.1. Save

Before changing the EVR data, it is recommended to save the original data. That gives you a backup in case the EVR data gets altered by accident.

Information of two camcorders can be stored in the internal memory of the Organiser. When you select "Save", you will be asked to give an "Identity" to the file. This will enable you to recognise it later for restoring. The first time you used this option, the Psion will default the identity to "CAM1". You can change this to something more explanatory by simple entering another name. If at least one file is already in the Organiser's memory, you can switch to another "Identity" by pressing either the <MODE> key or one of the arrow keys. You'll see that the default identity for the second file is "CAM2".

If you have entered the identity (end by pressing <EXE>) you can choose which page to save: D, E or F. After all the addresses are read, the information is written to an internal file for future reference.

3.3.2. Restore

When you choose "Restore", the Psion will look for previously saved files in its internal memory. If it finds any, the identity and the page number of that file will be displayed. You can select the EVR data you want by pressing one of the arrow keys to browse through the available list (maximum: 4 files).

After you have selected which data you wish to restore, you will be asked to select from which startaddress to which stopaddress you want to restore the data. Use the <↑> and <↓> key to select the correct addresses.

You will be warned that the current EVR data of the camcorder will be overwritten, and asked to reconfirm you really want to restore:

RESTORE page -   Addr. -..- ? Y/N

Only if you answer 'Y' to this question, the Organiser will start restoring.

Once the restoring has started, it is impossible to stop this process, so pressing any key is useless. You just have to wait until every address is restored with the data in memory.

Caution !

Although the camcorder may seem to be working correctly at first sight, simply restoring data from another camcorder (or from the same camcorder after replacement of a vital component or board) will always cause some kind of malfunctioning under certain conditions. Therefore, it is essential that you perform the necessary adjustments after restoring. In both cases mentioned above, a complete camera section alignment is recommended.

3.3.3. Preprogram

If one of the EEPROM's or the board containing the EEPROM's is replaced, you must write initial values to the addresses of page D, E or F before you can start adjusting the camcorder. You can put initial values into the EEPROM using the 'Preprogram' option. If you do so, you will have to select which camera type you want to initialize. Again, the program cannot stop you from selecting another camera type than the one you actually preprogram. So please be careful when using this option.

When the camcorder type is selected, you will be asked to choose the page you want to preprogram.

After you have selected which data you wish to restore, you will be asked to select from which startaddress to which stopaddress you want to restore the data. Use the <↑> and <↓> key to select the correct addresses.

To avoid unwanted preprogramming as much as possible, you will be warned and asked to confirm the initializing process.

Preprogr. page - Addr. -..- ? Y/N

Only if you answer 'Y' to this question, the Organiser will start preprogramming the selected page.

Once the preprogramming has started, it is impossible to stop this process, so pressing any key is useless. You just have to wait until every address is initialized with the data in memory.

Note that preprogramming is only useful to get the camera started, it does NOT replace the adjustments !!! So every time that Preprogramming of page F has been executed, you MUST perform ALL camera section adjustment !


4. Camera Adjustments

4.1. General

Every time a specific action is required, the adequate messages will be displayed. The Organiser takes care of setting the EVR addresses and data, reading the DDS display data and performs all the required calculations.

Once a certain alignment is selected, some messages will be displayed telling you how to prepare that adjustment. You can skip to the next message by pressing any key. If you want to quit the alignment, press the ON/CLEAR key. You will then be returned to the adjustment menu.

When the Organiser is active on the LANC-bus, the message "Running..." will be displayed. Pressing the ON/CLEAR key at that moment will not stop the adjustment. Generally, it is recommendable not to press any key while the Organiser is busy with external I/O.

Sometimes the program allows you to escape in the middle of an adjustment, when some addresses are already set to a temporary mode. If you want to quit then, a warning is displayed, telling you that the adjustment is not completed, and you are asked to confirm you want to quit the program. If you answer N (or anything else but Y), the program continues; answering Y will return you to the adjustment menu. You must keep in mind then that some addresses must be reset to their original value. However, you must always assume that the camera is misadjusted if you have stopped the alignment in the middle of its execution, and you should do that specific alignment all over again.

Note: If a serious error occurs while programming is busy, such as POWER OFF, or a connector is pulled out, obviously the program may "hang", has to be cold started again, and the adjustment which was busy at that moment will have to be started from scratch!

4.2. Adjustments

After you have chosen the camcorder model the following menu will appear:

Hall_Adj.   Iris_IN/OUT AWB_Adj.

4.2.1. Hall adjustment

Preparations: none

Possible errors: none

4.2.2. Iris IN/OUT adjustment

Preparations:

Pattern box at 1.5m from the front side of the lens, white pattern standard picture frame.

Possible errors: none

4.2.3. Auto White Balance adjustment

Preparations:

Filter C14

Pattern box at 1.5m from the front side of the lens, white pattern standard picture frame.

Possible errors:

"Procedure error in Preset adj.": The AWB Preset adjustment has failed, probably because the power wasn't turned off when the Psion asked for it. Start the adjustment again, and follow the instructions carefully.


5. Ending the program

If the alignment is finished, or if you have stopped the adjustment procedure, you will be returned to the adjustment menu. However, when an error (illegal AF data read or results are not within limits) has occurred, you will be returned to the top menu.

To go back to the previous menu, press ON/CLEAR. The only way to leave the EVR program is by pressing ON/CLEAR when you are in the top menu. Then the Organiser's own top level menu will be displayed.

To remove the LISA interface and the EVR datapack:

The software will still be stored in memory, however. To remove this:

You will see that the "TR3300" option is removed from the top level menu.

Now the EVR software is removed, and the memory used by it freed for other uses.


Note

........................................................................................
........................................................................................
........................................................................................
........................................................................................
........................................................................................
........................................................................................
........................................................................................
........................................................................................
........................................................................................
........................................................................................
........................................................................................
........................................................................................
........................................................................................


Customer Relations & Service Europe
European Technical Support

Technologielaan 7
B-1840 Londerzeel
Belgium
Printed in Belgium
