The AEG KAL portable ticket machine

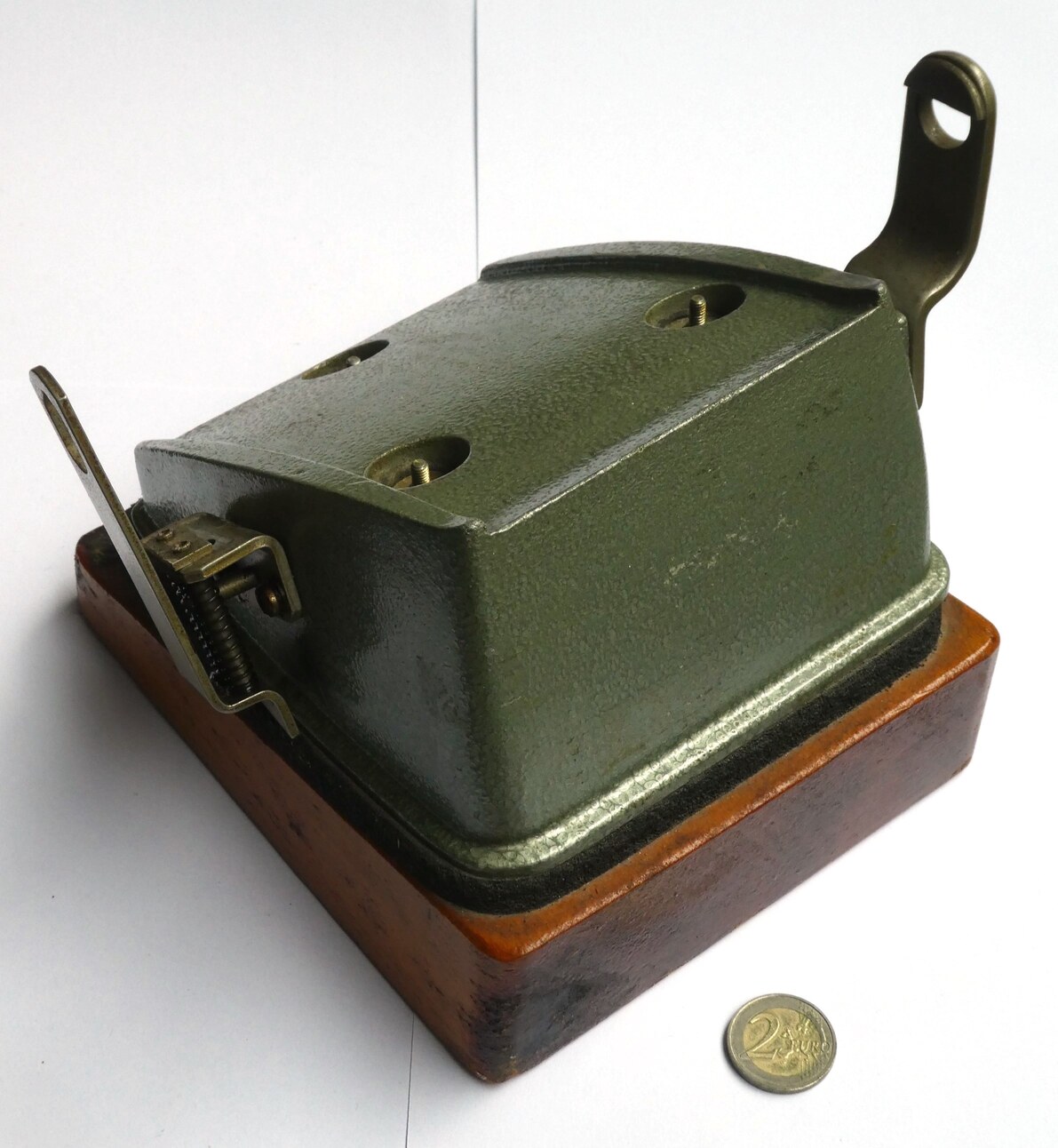

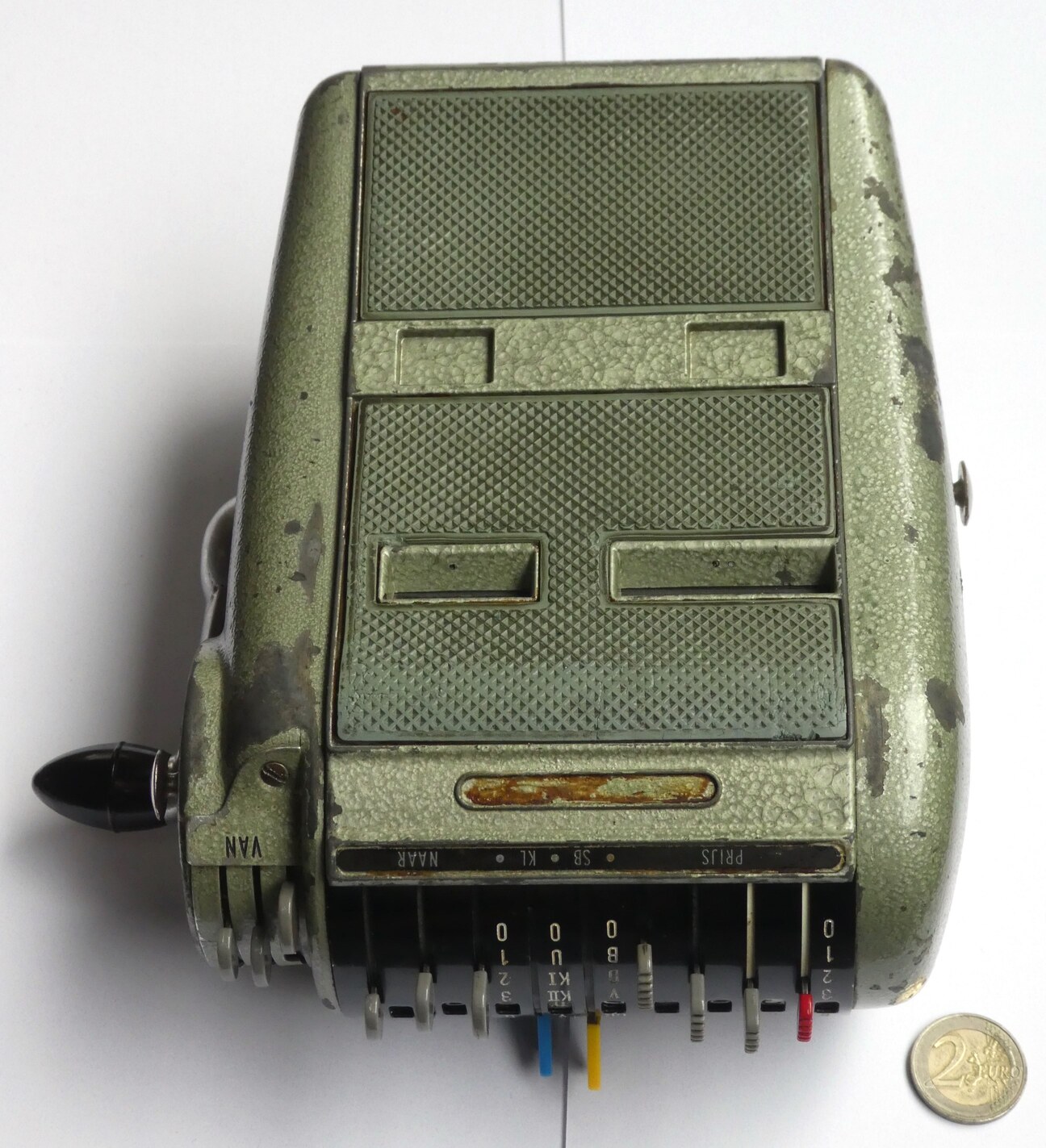

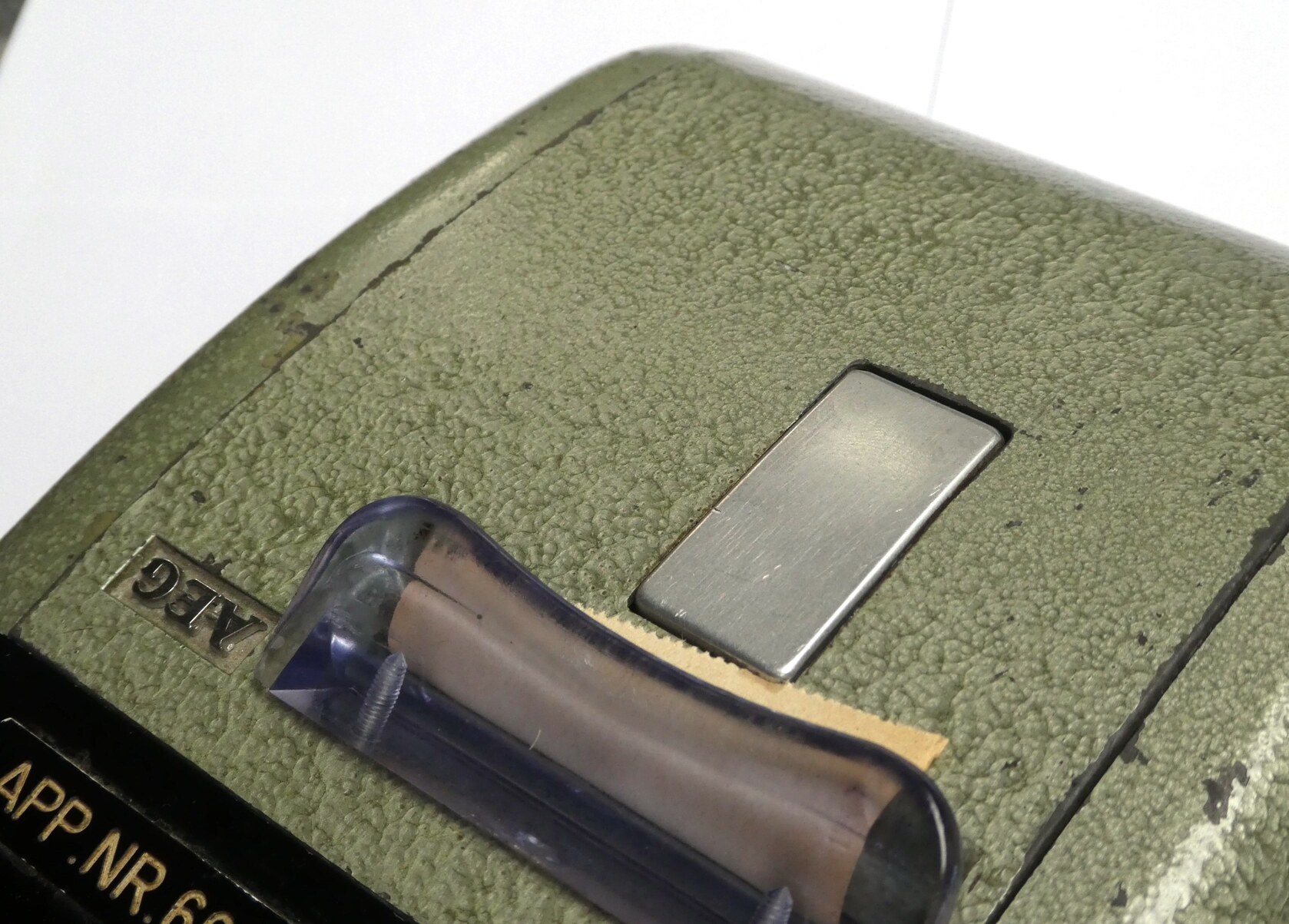

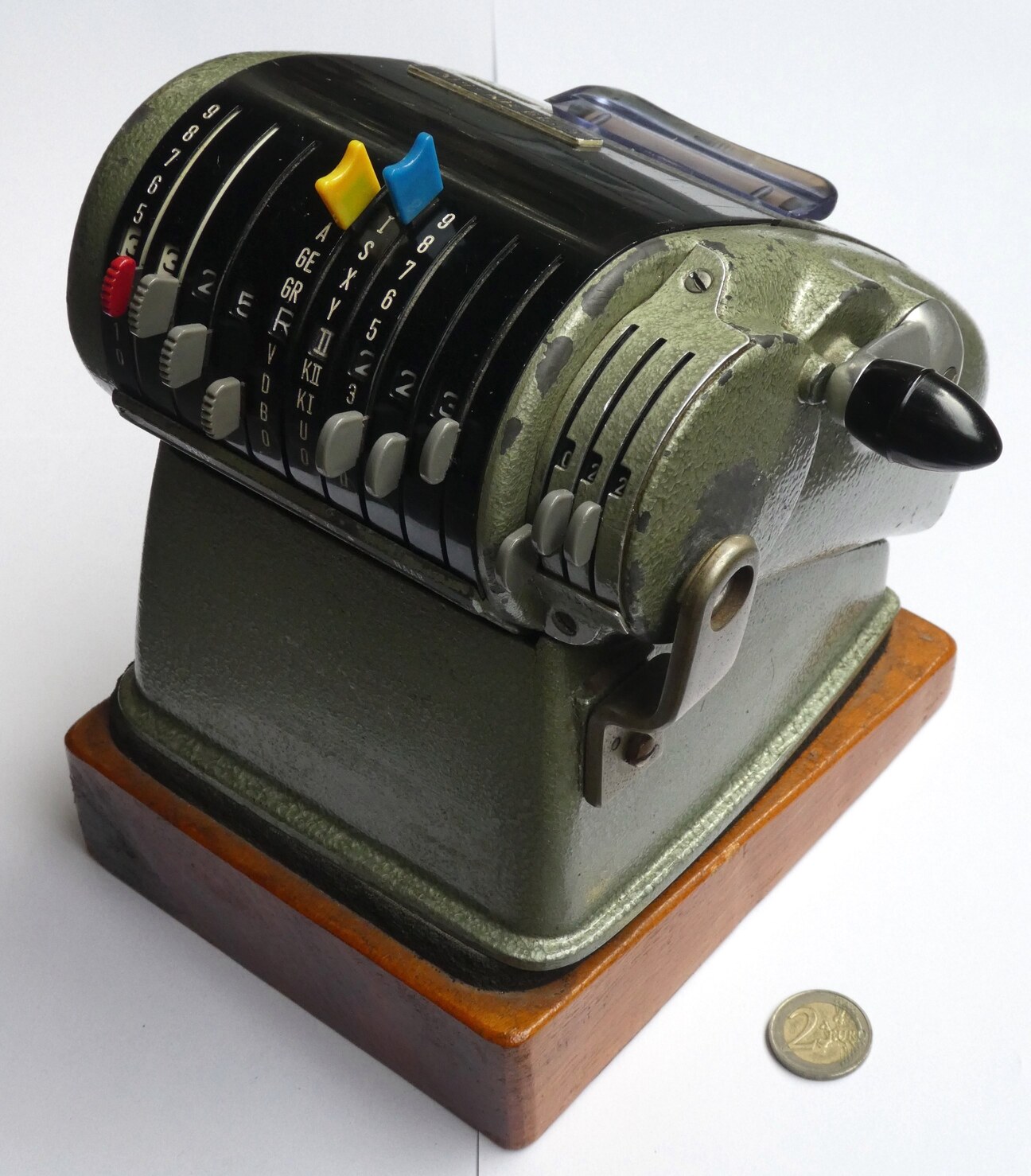

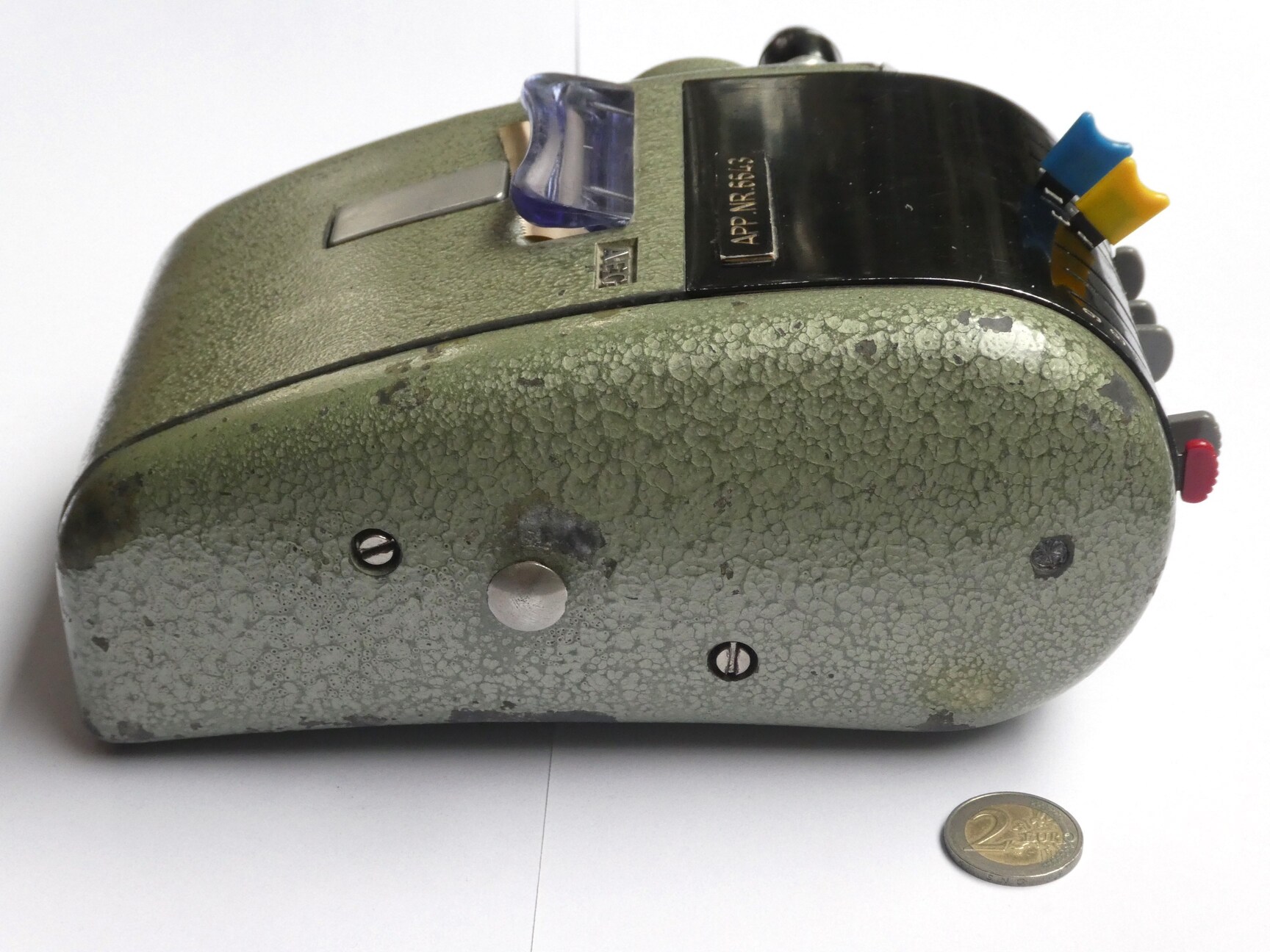

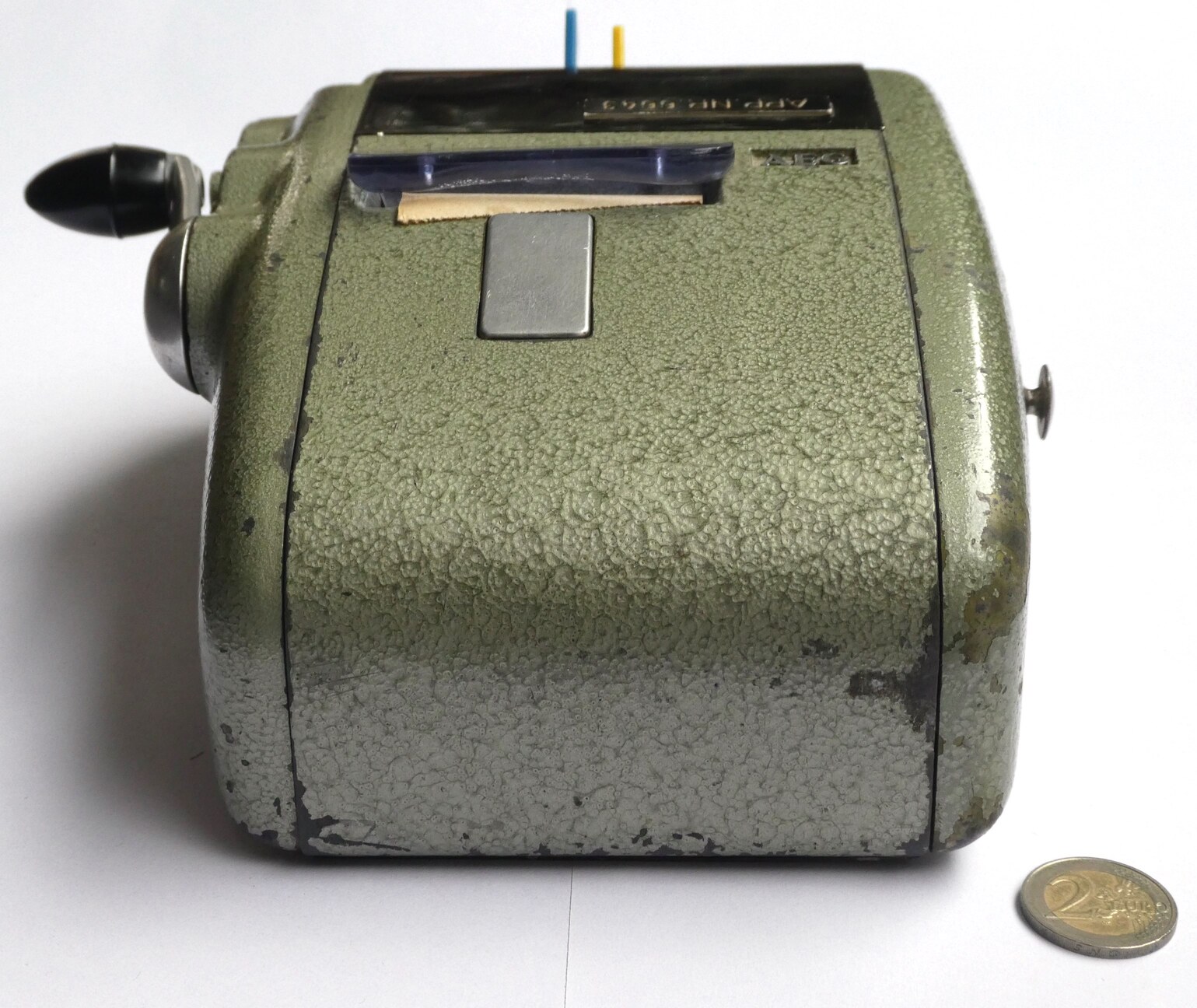

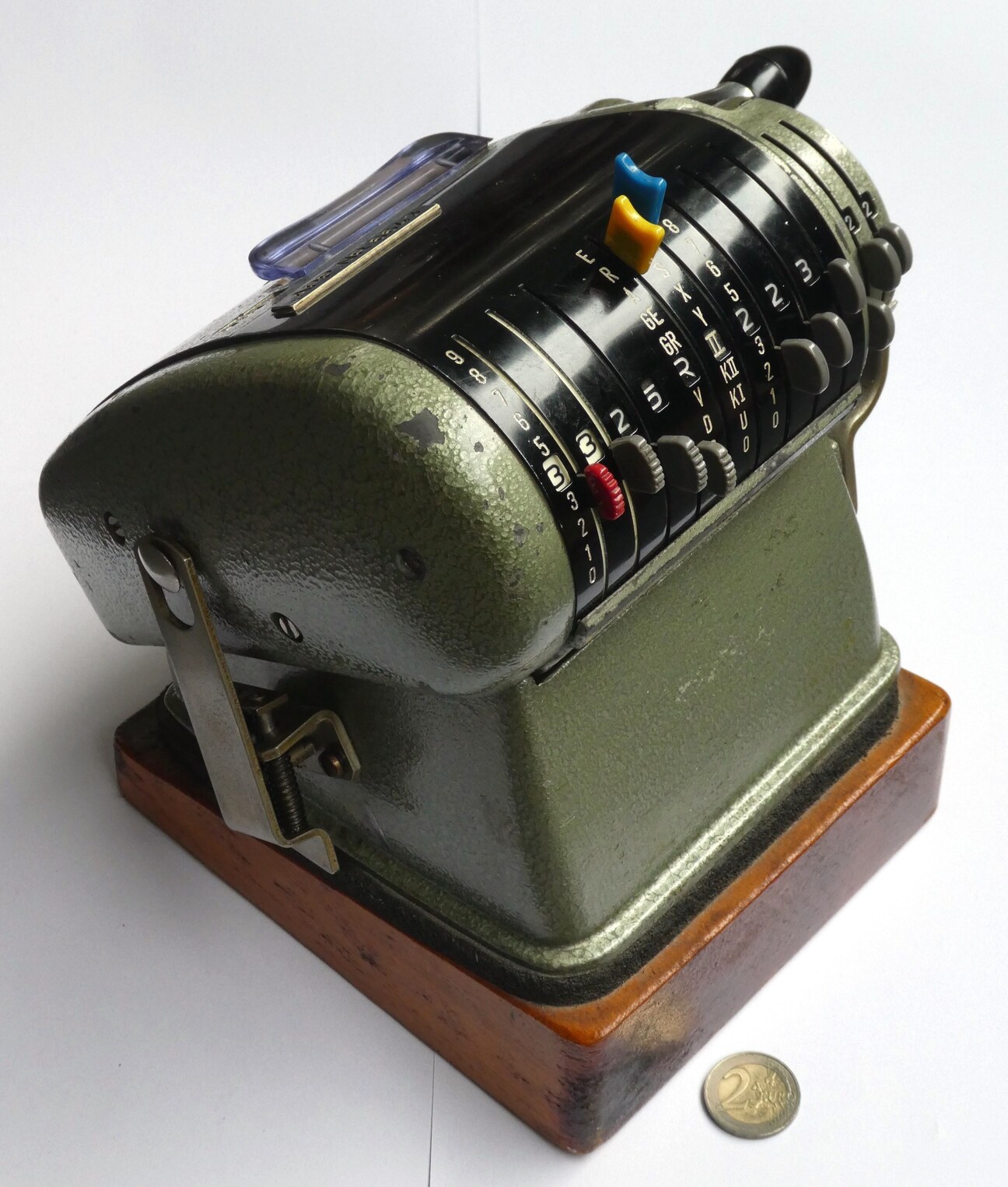

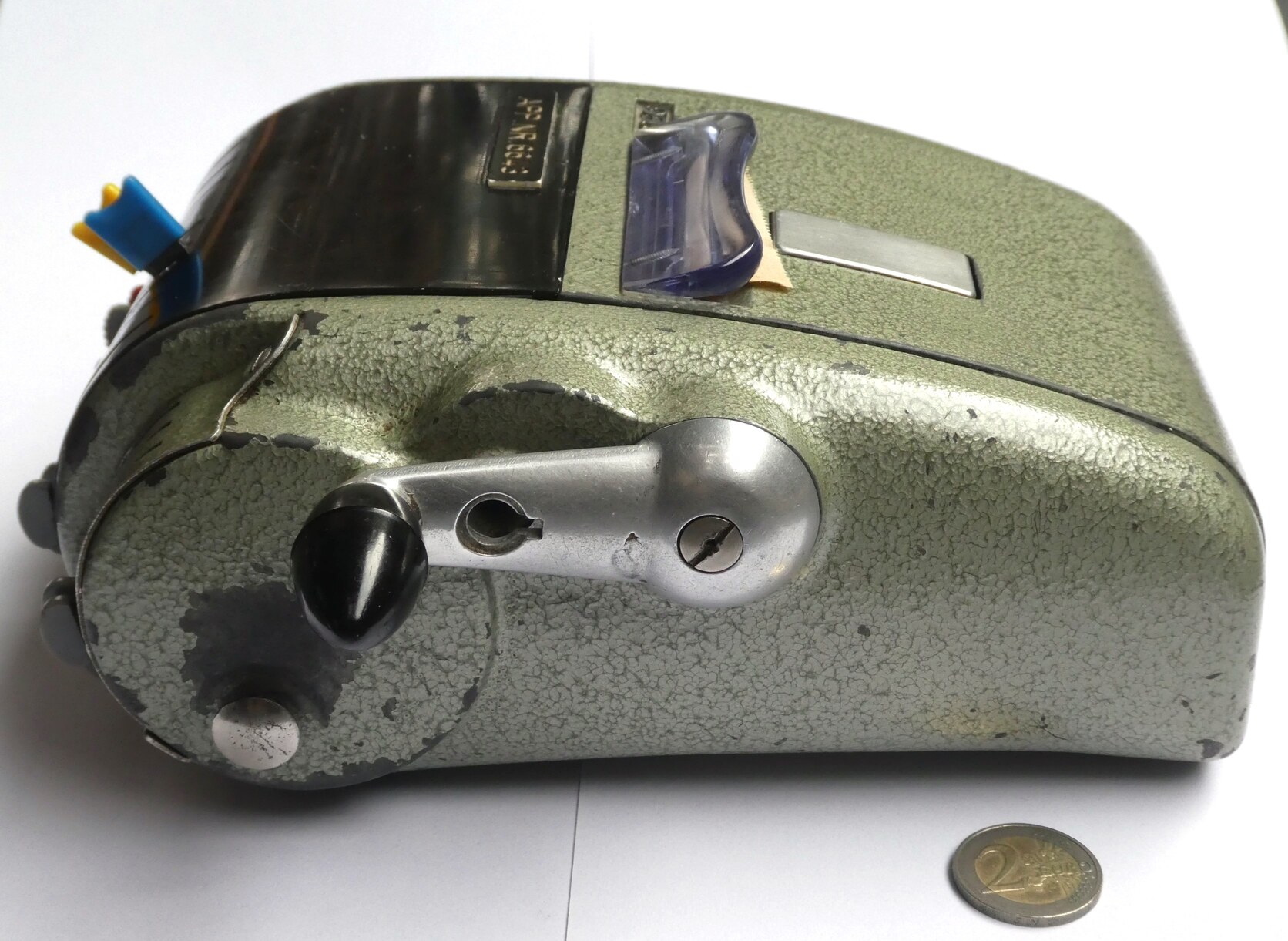

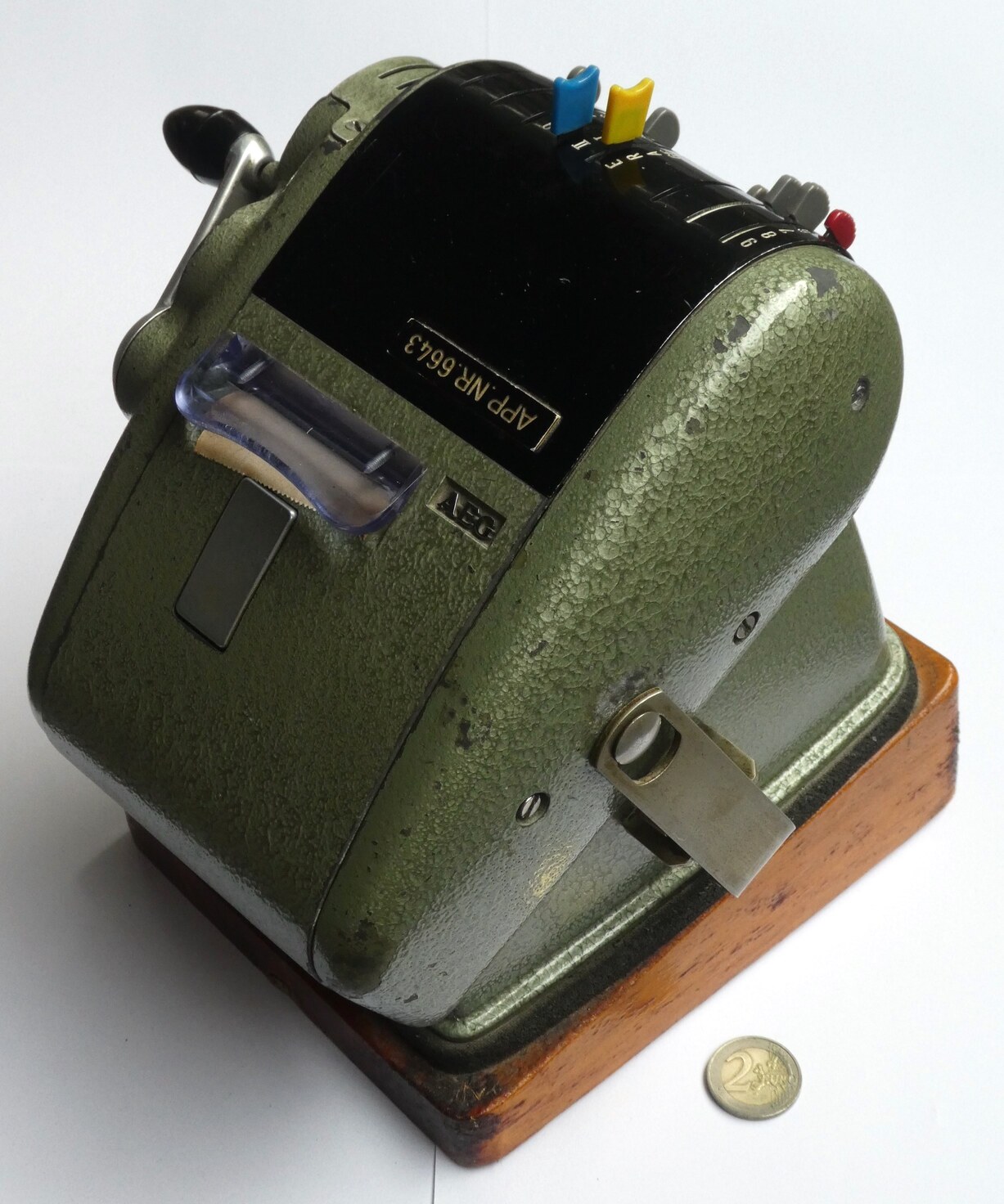

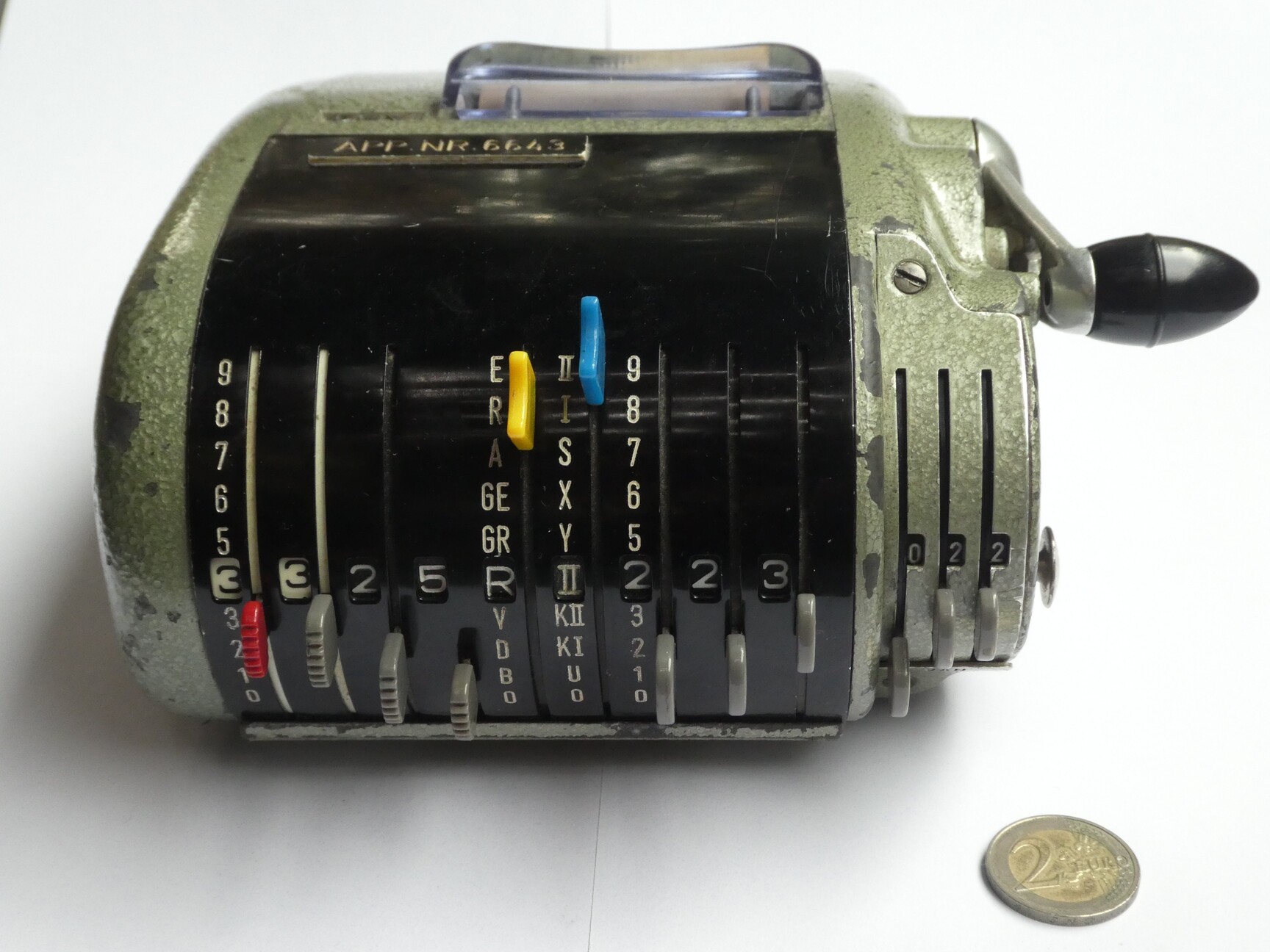

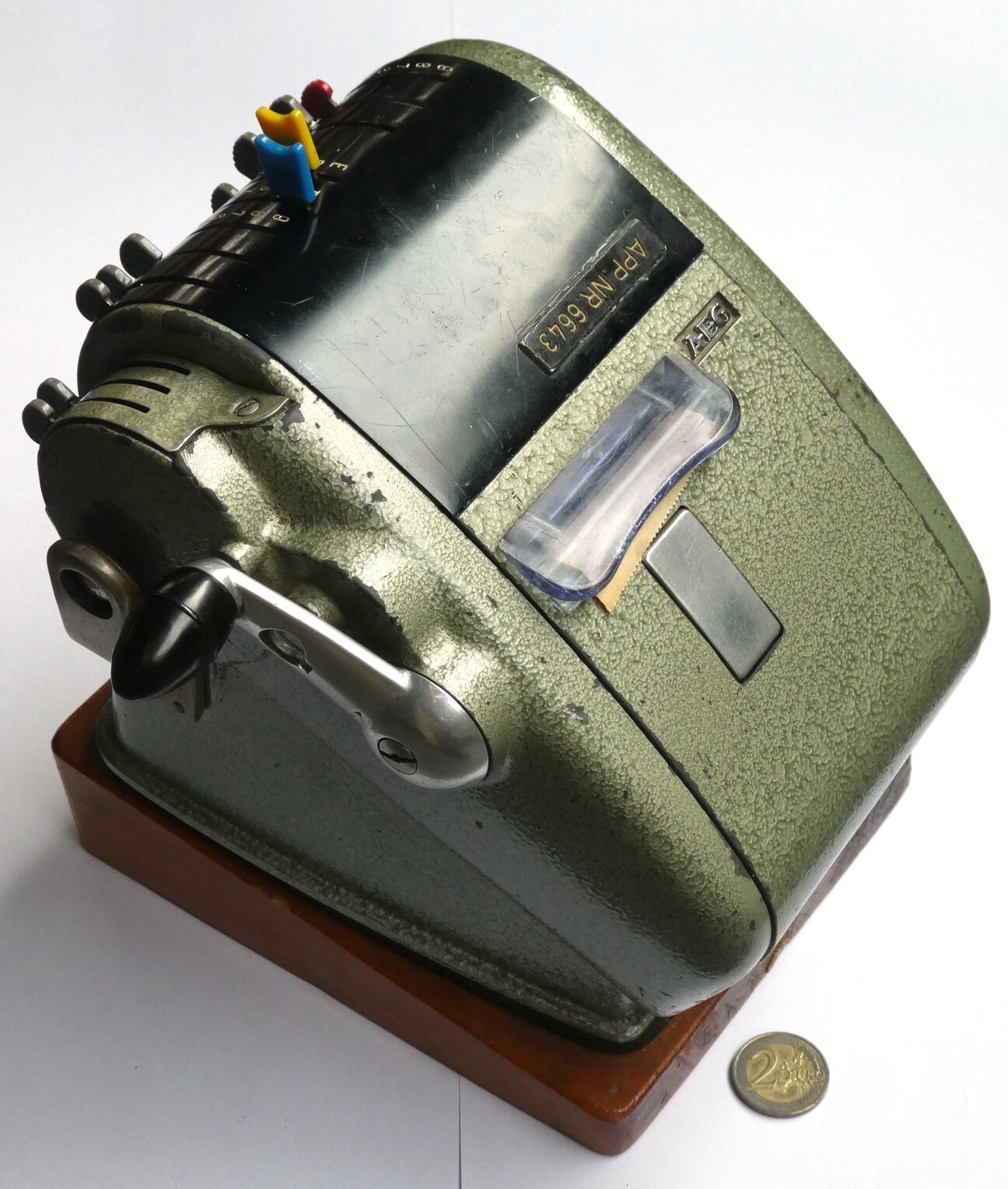

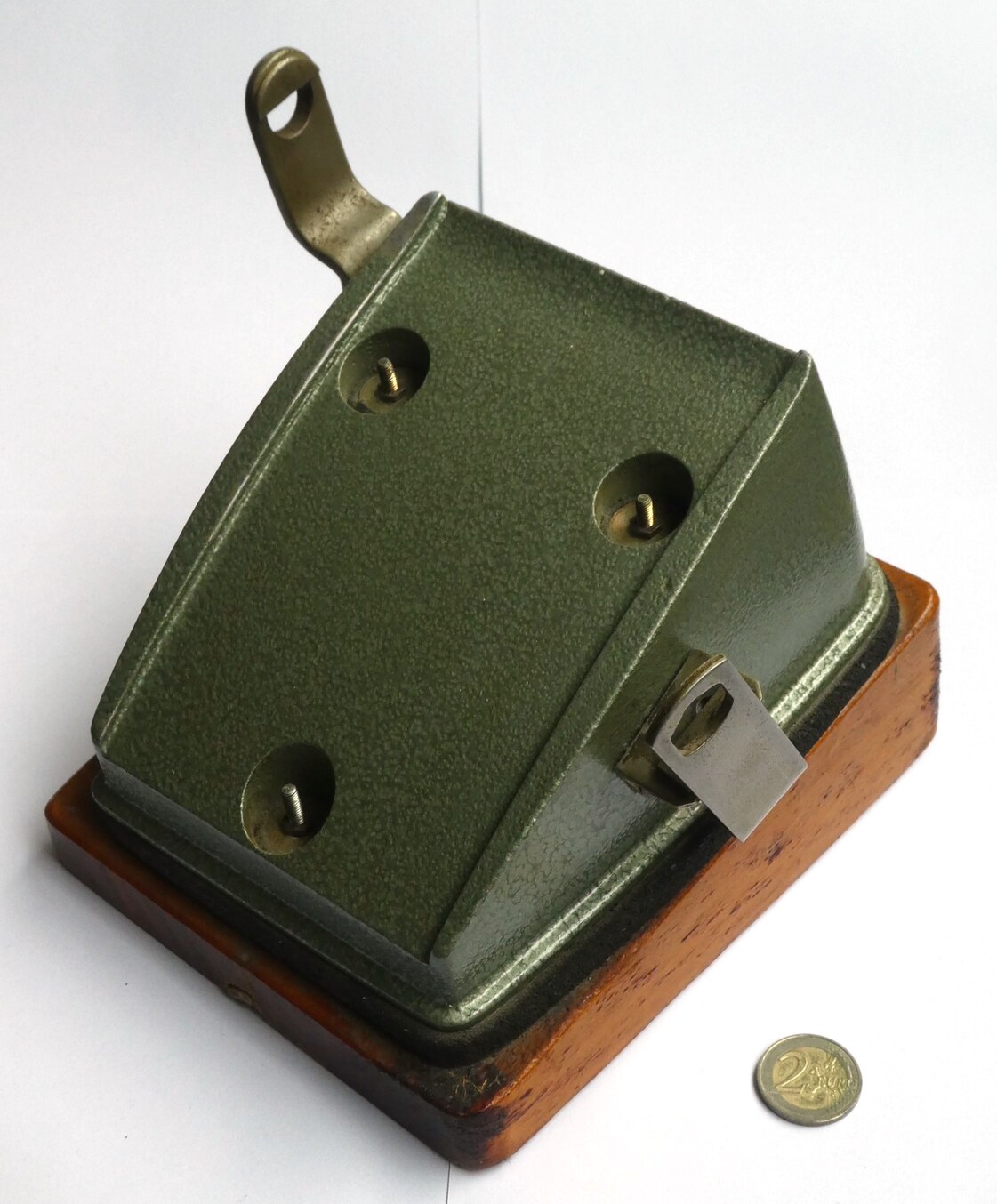

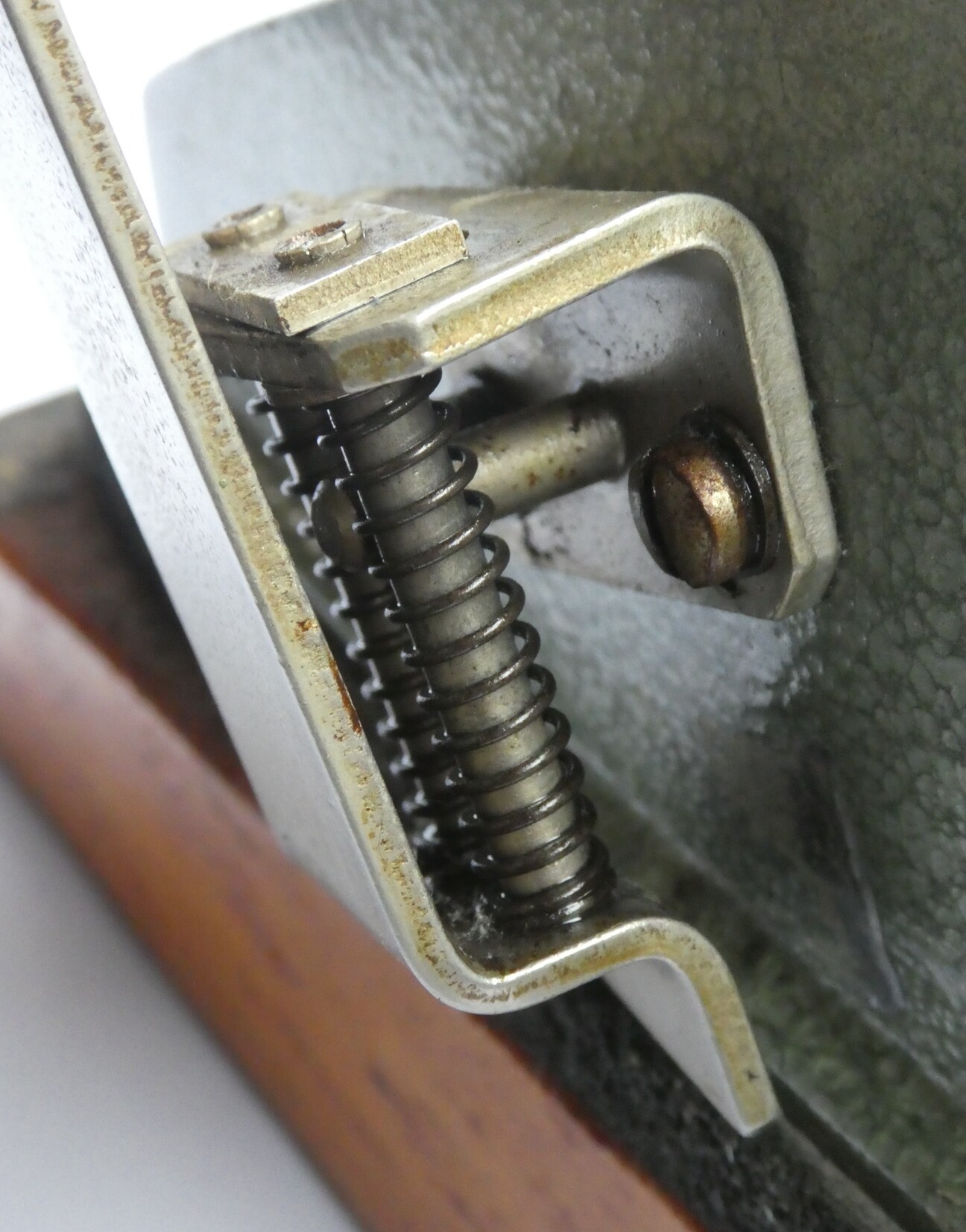

This is a small ticket machine nicknamed the Mini-AEG. It was used by the Dutch national railways in the early 1970s. It could be attached to a stand for use at a ticket kiosk, or could be hung on a shoulder strap for use by a bus or train conductor. The ticket details are set using the input pins at the front of the machine, and then a turn of the crank on the side will print a ticket which exits the top of the machine.

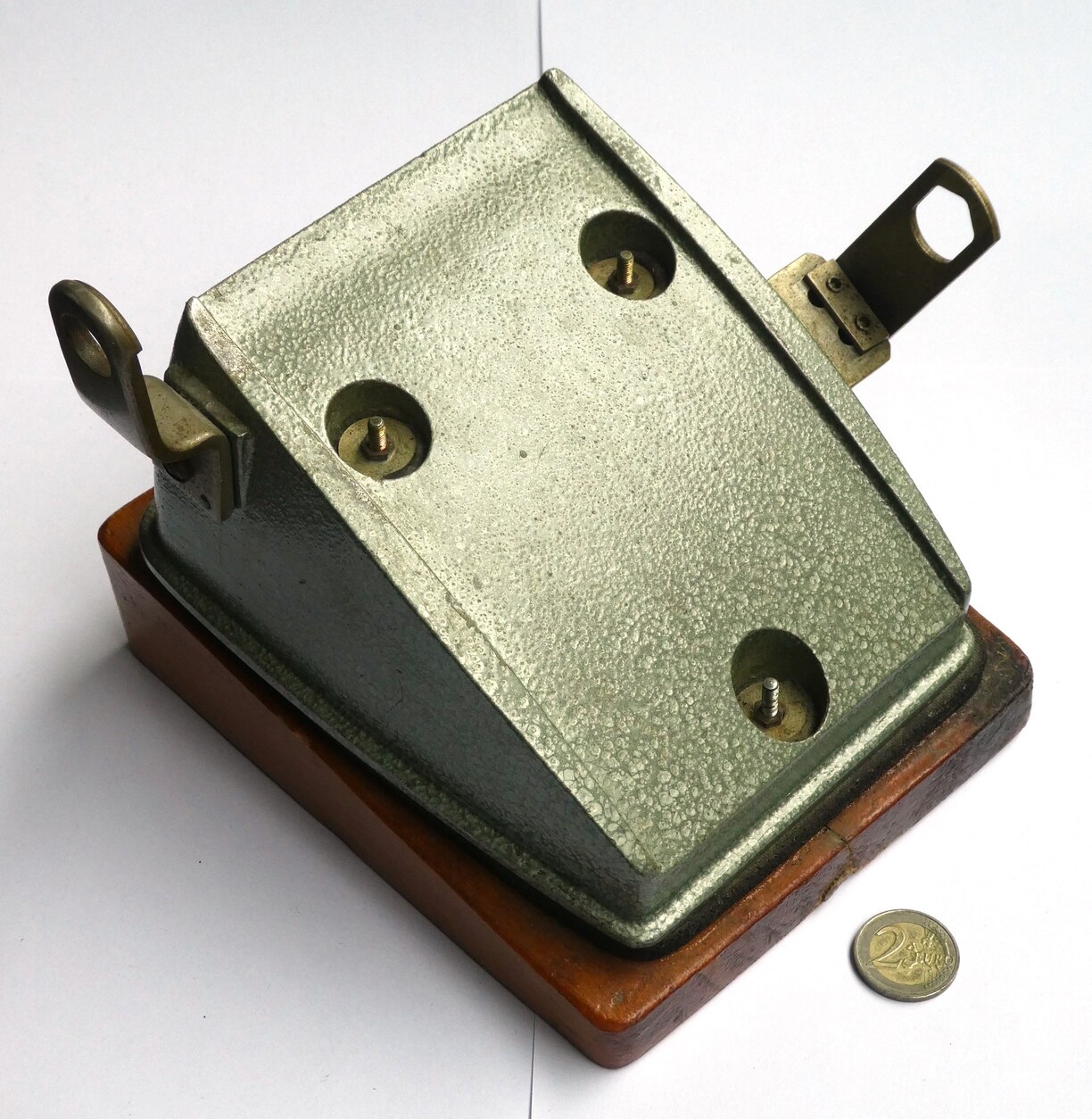

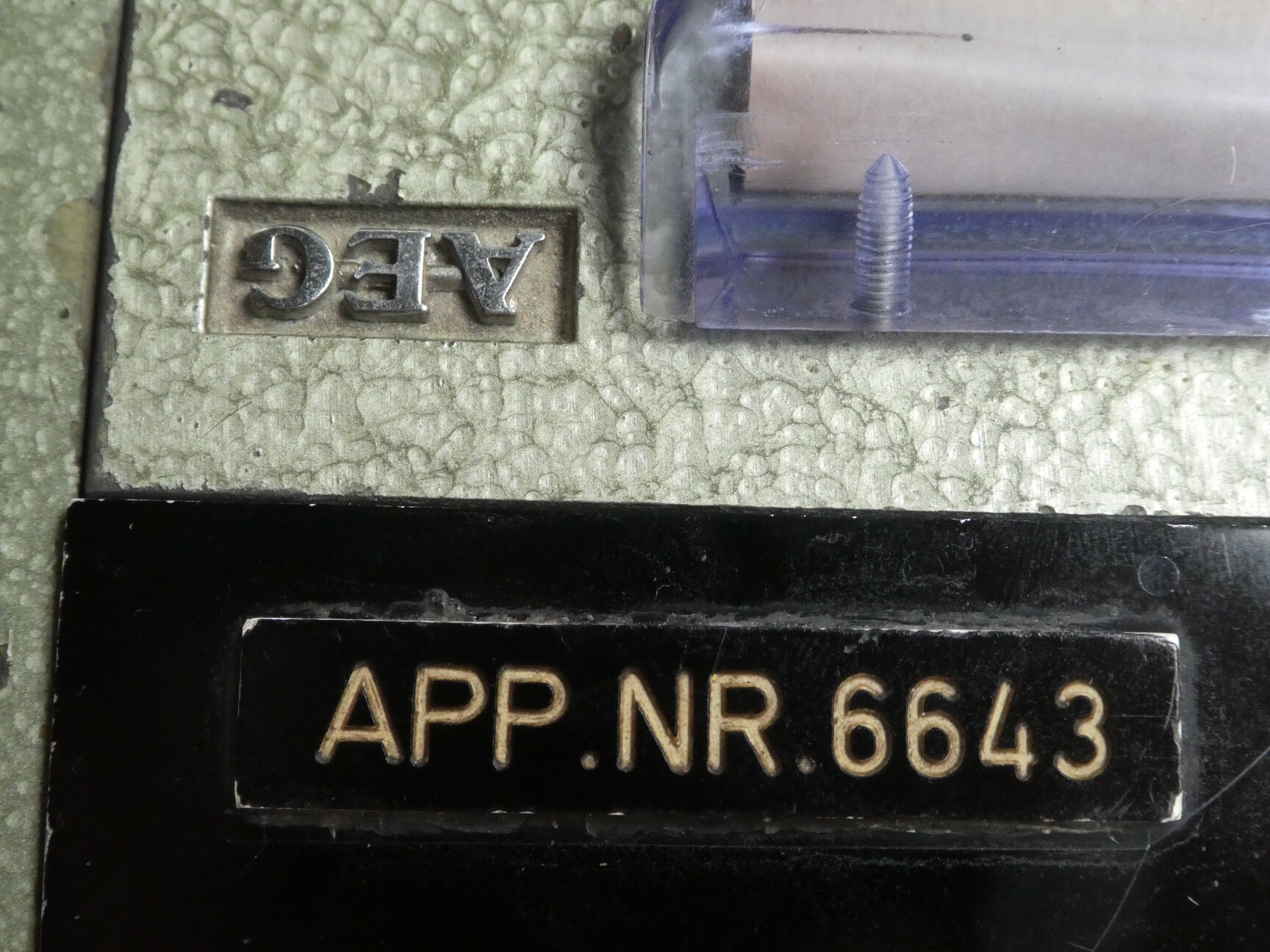

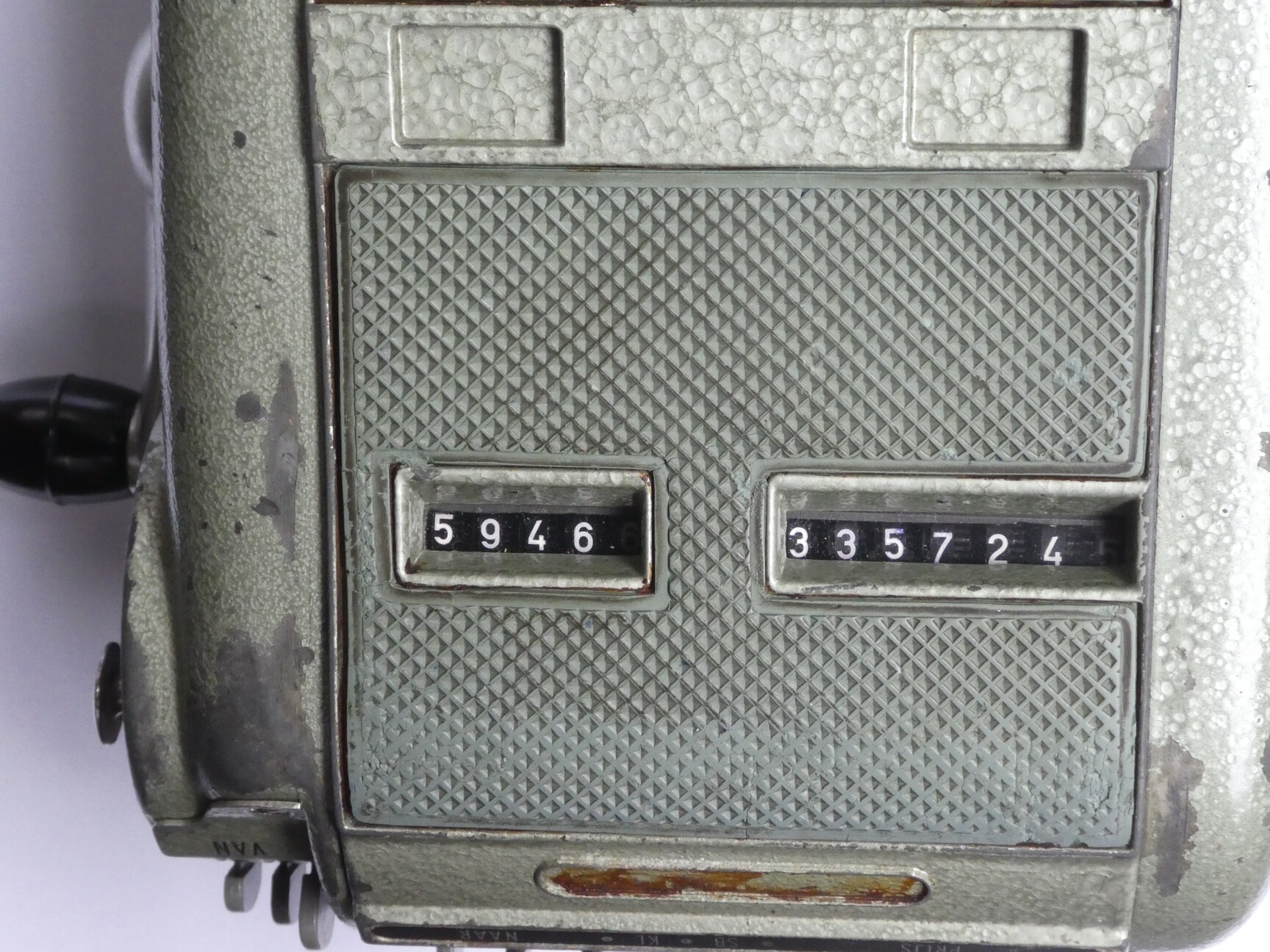

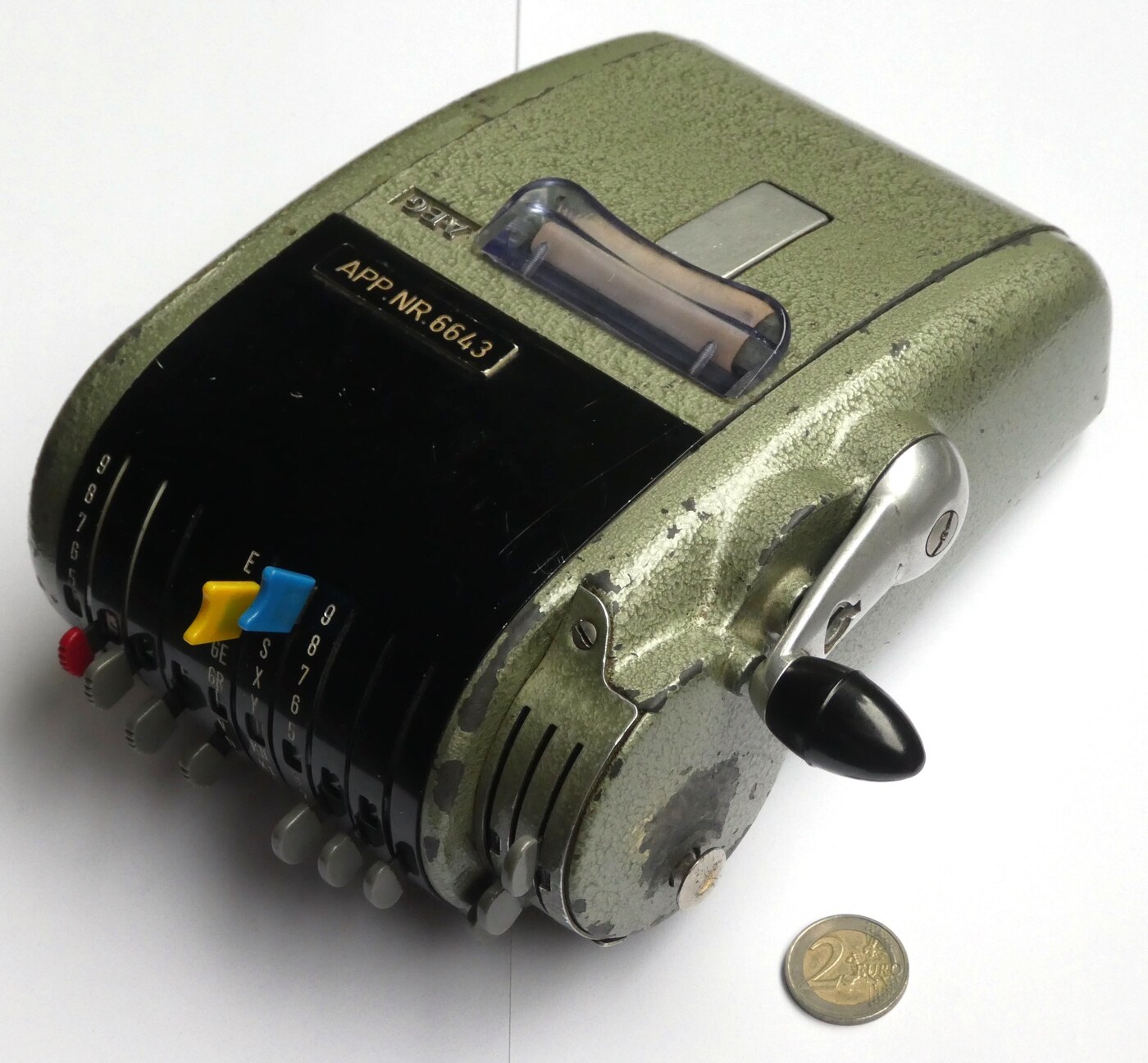

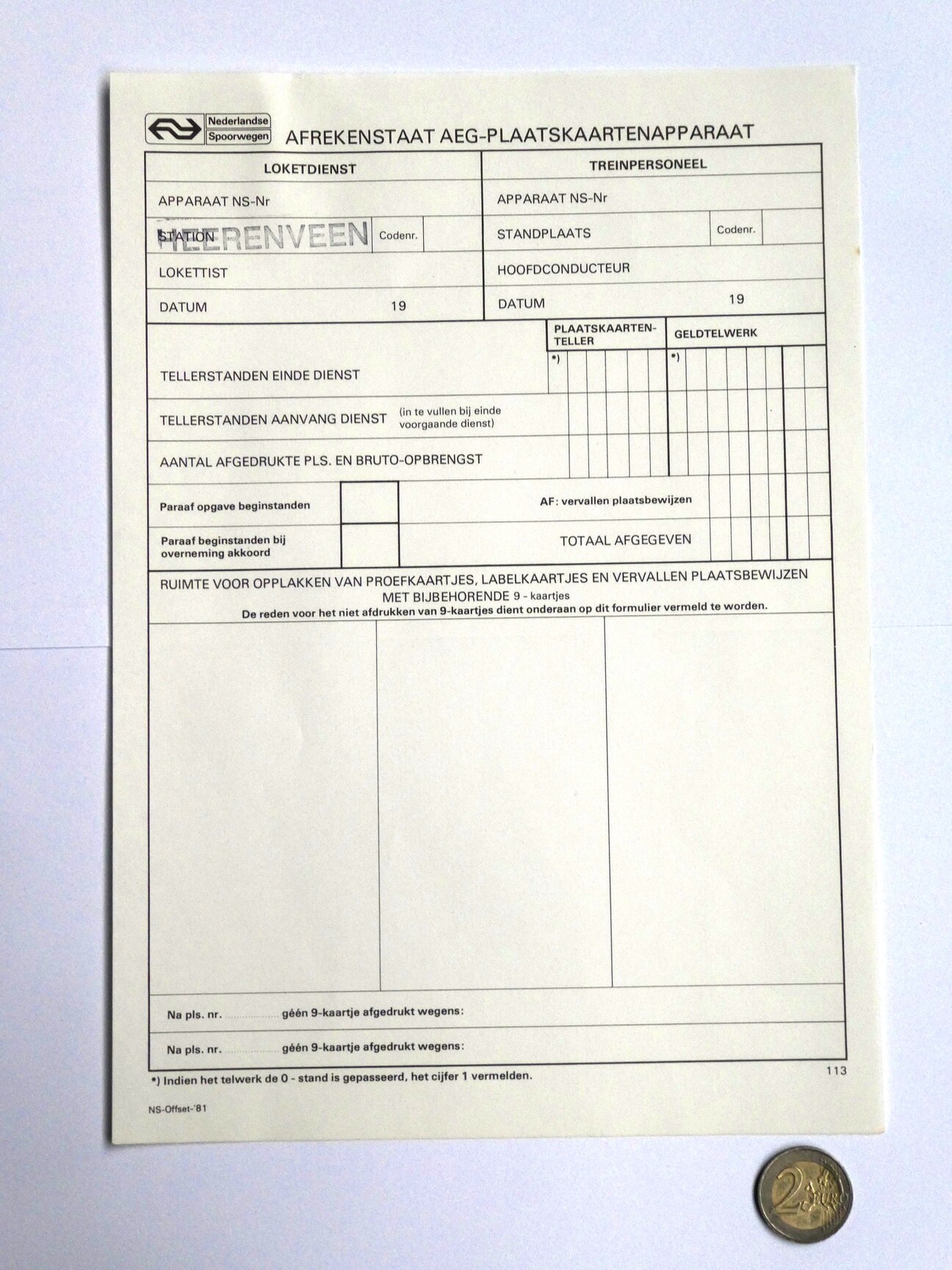

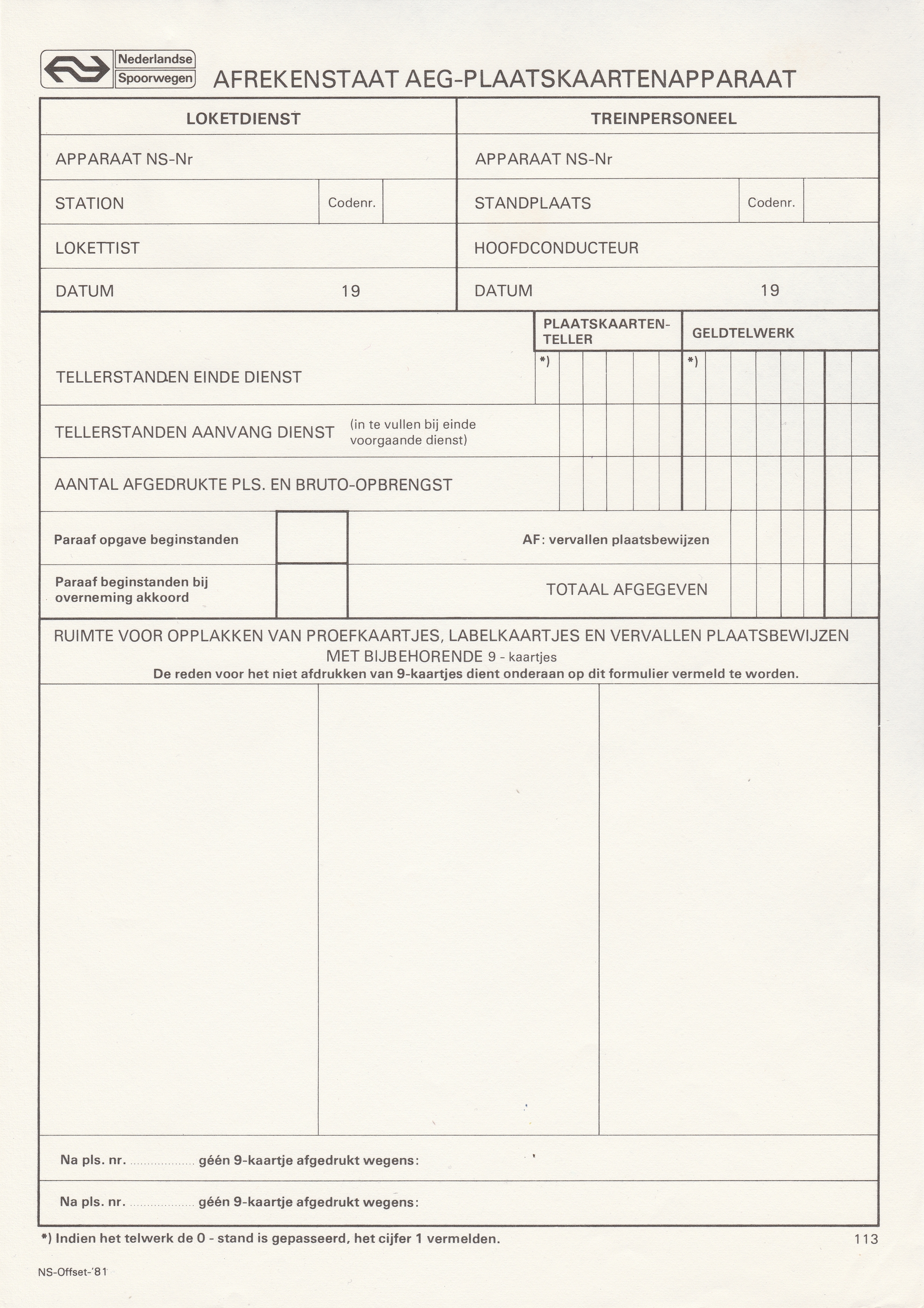

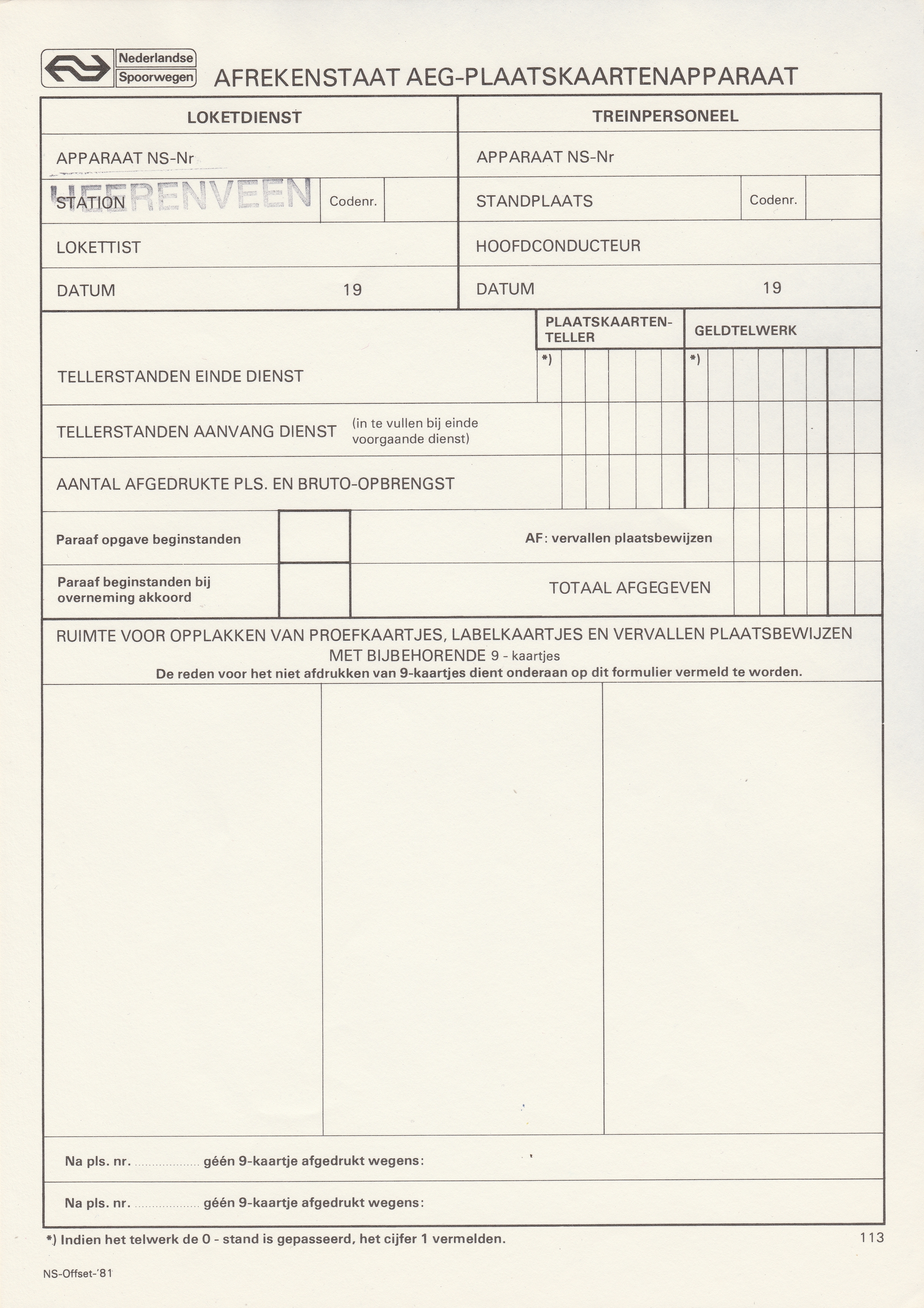

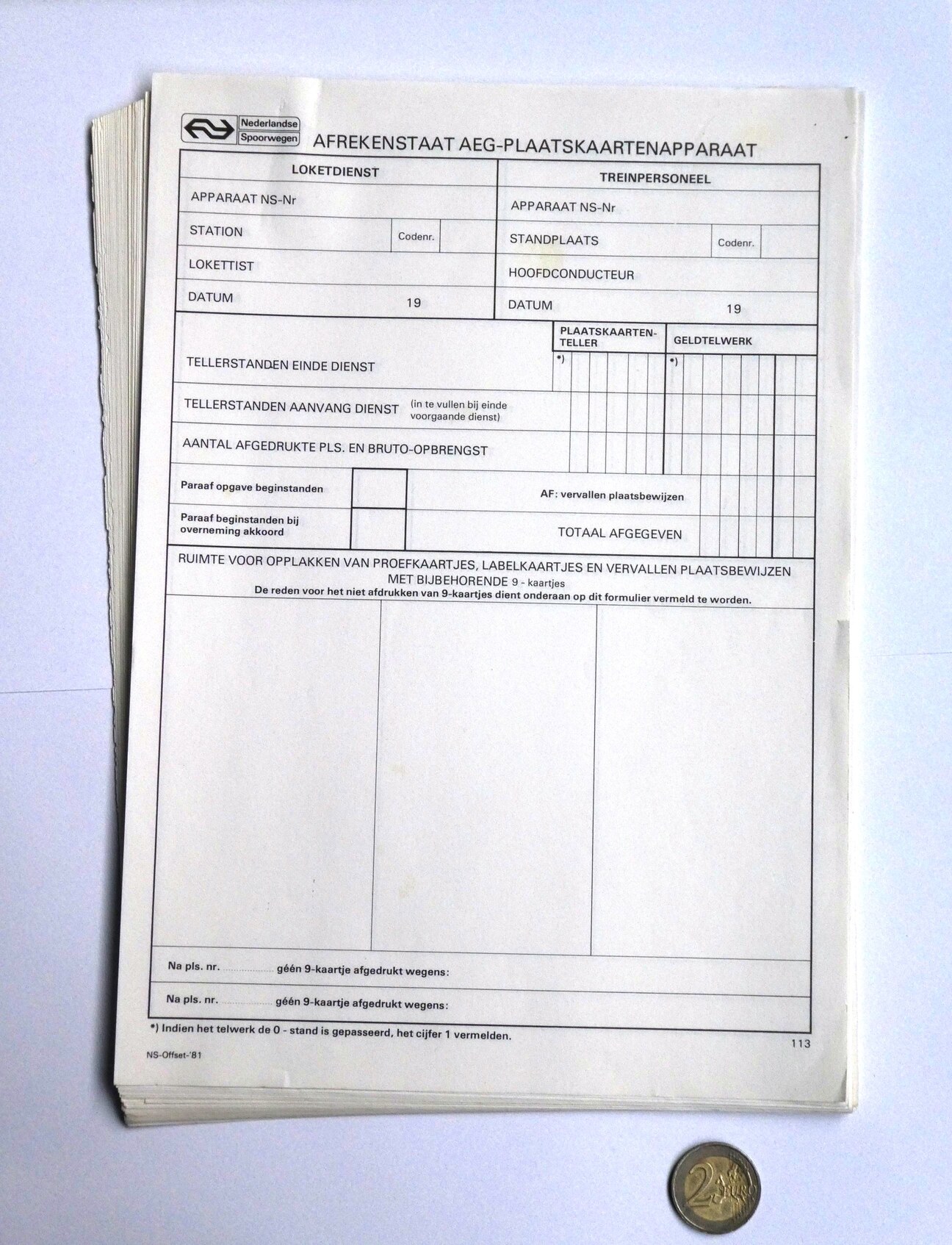

The machine number is shown on the top of the machine (6643) and this is printed very small and sideways on every ticket. On the bottom of the machine are two windows, one showing a 7-digit register of the total value of all tickets, and the other a 5-digit counter of the total number of tickets. The last four digits of the latter is printed on the ticket.

Mini-AEG ticket machine
Mini-AEG ticket machine
Mini-AEG ticket machine
Mini-AEG ticket machine
Mini-AEG ticket machine
Mini-AEG ticket machine
Mini-AEG ticket machine
Mini-AEG ticket machine
Mini-AEG ticket machine
Mini-AEG ticket machine
Mini-AEG ticket machine
Mini-AEG ticket machine
Mini-AEG ticket machine
Mini-AEG ticket machine
Mini-AEG ticket machine
Mini-AEG ticket machine
Mini-AEG ticket machine

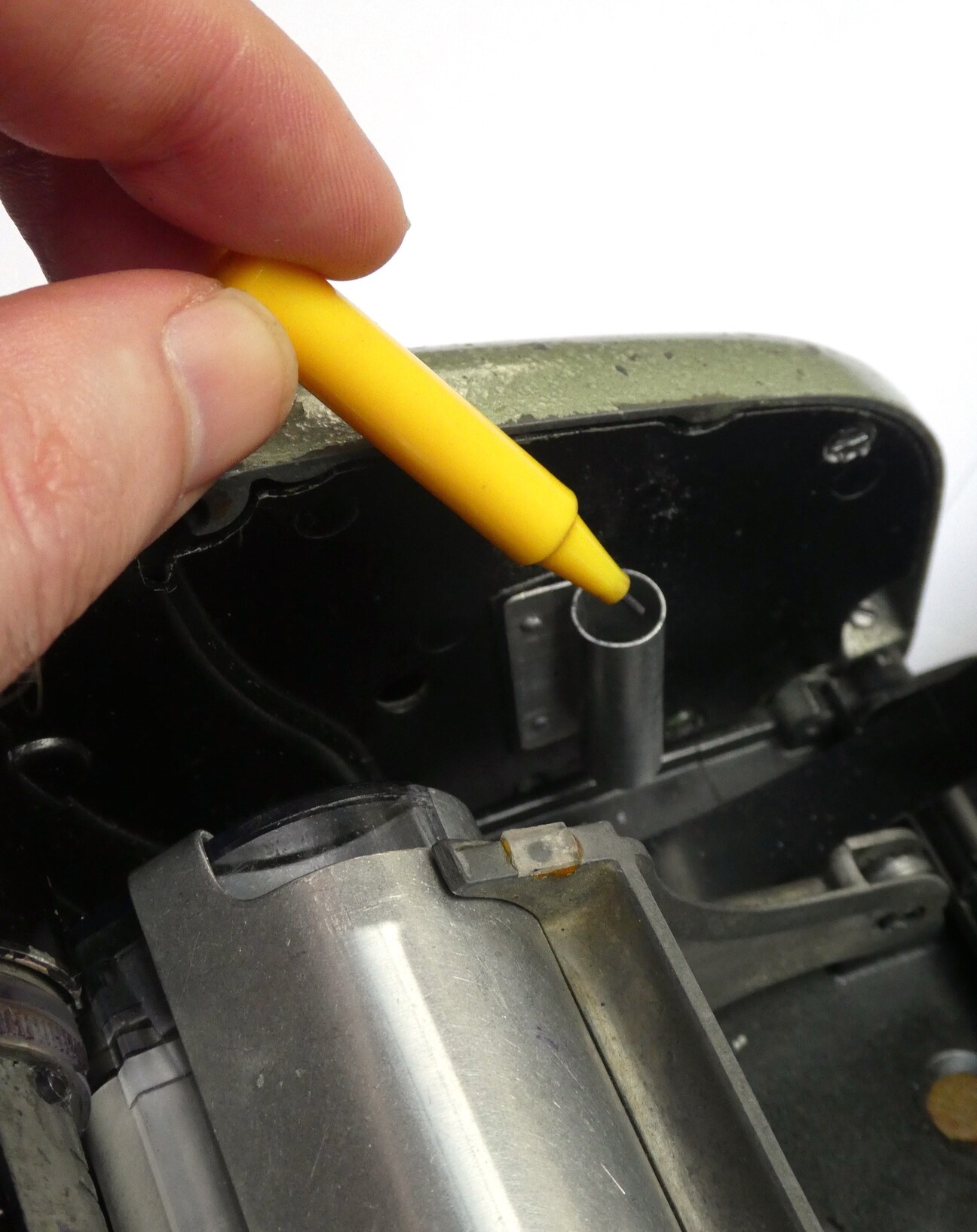

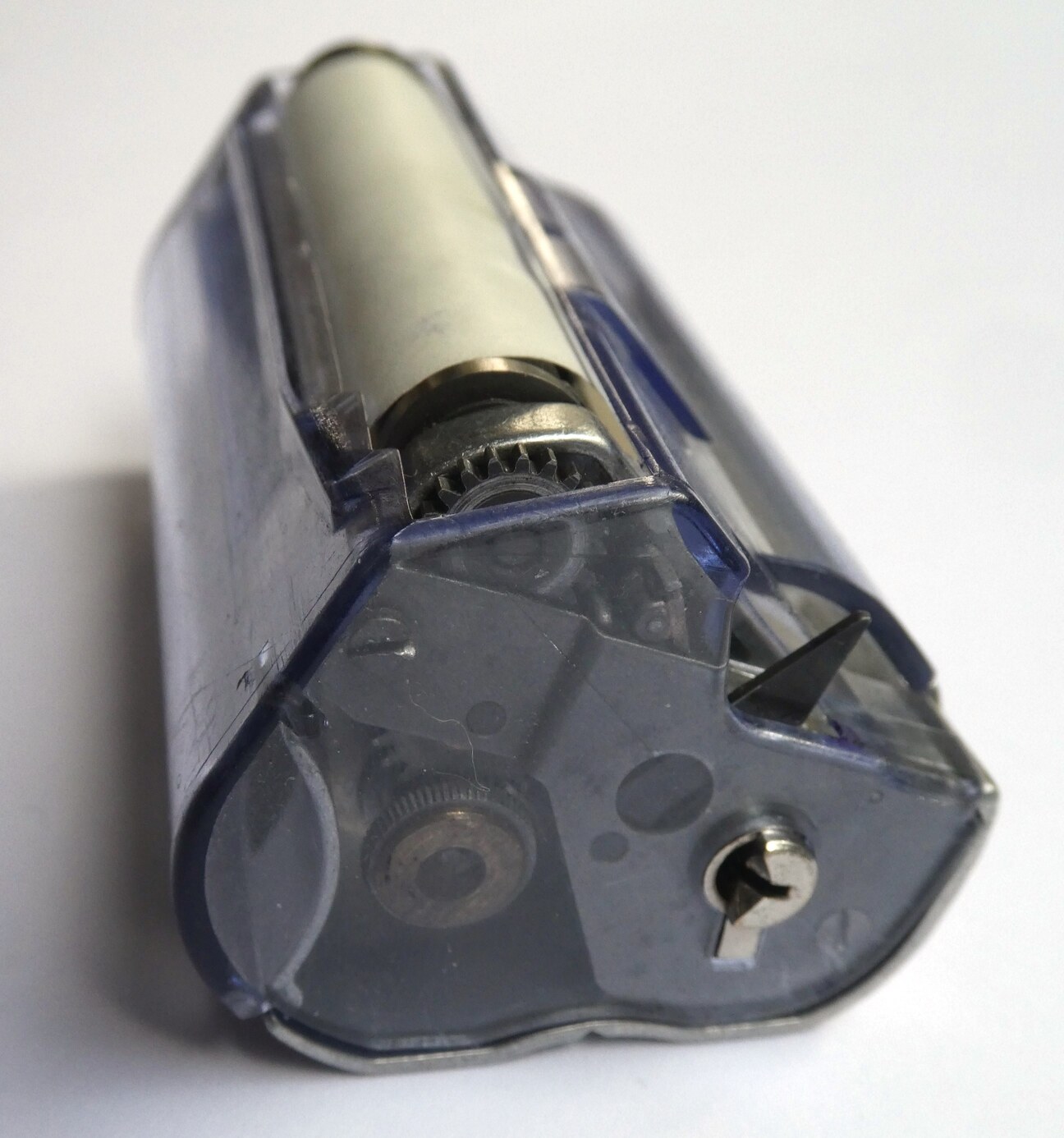

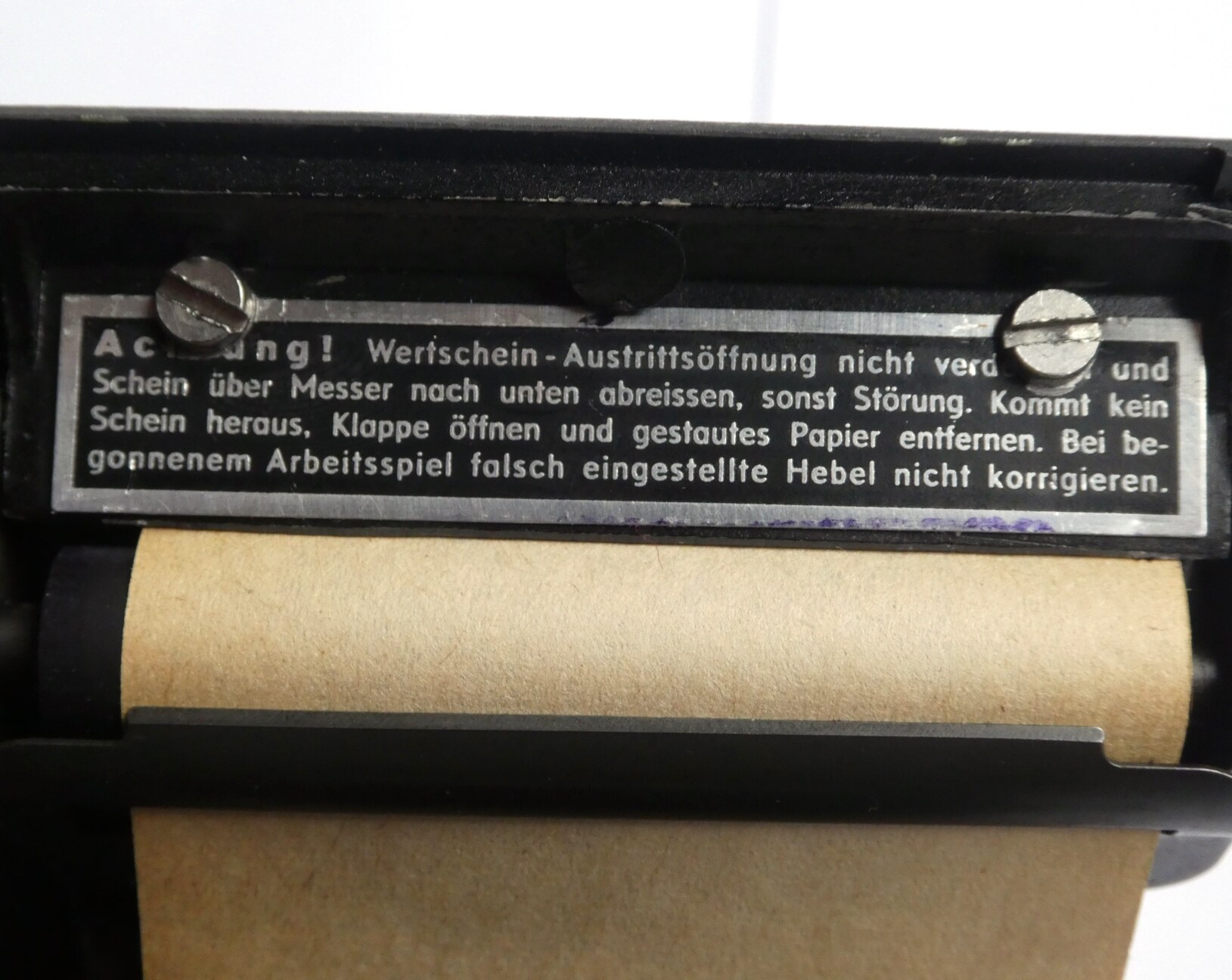

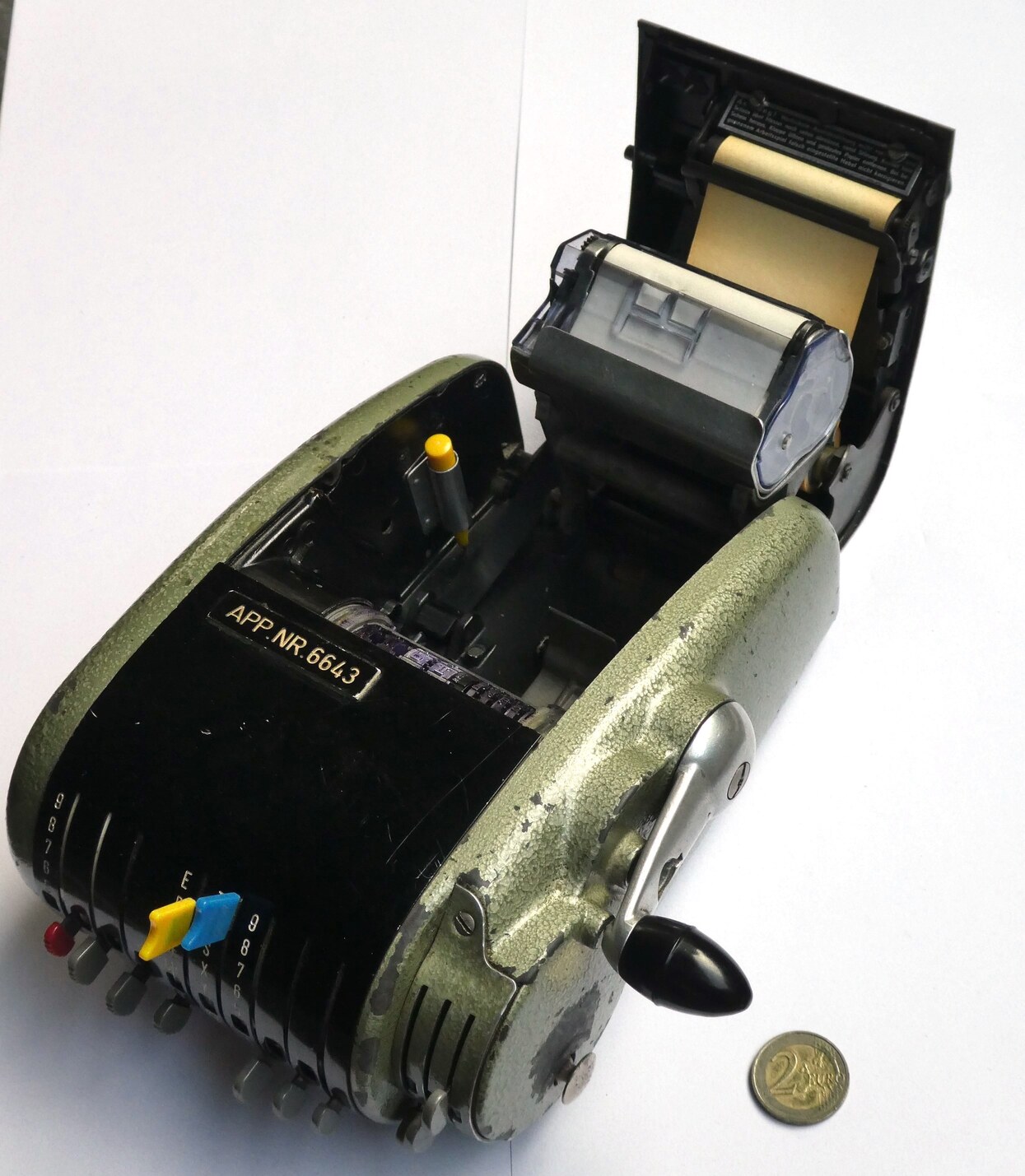

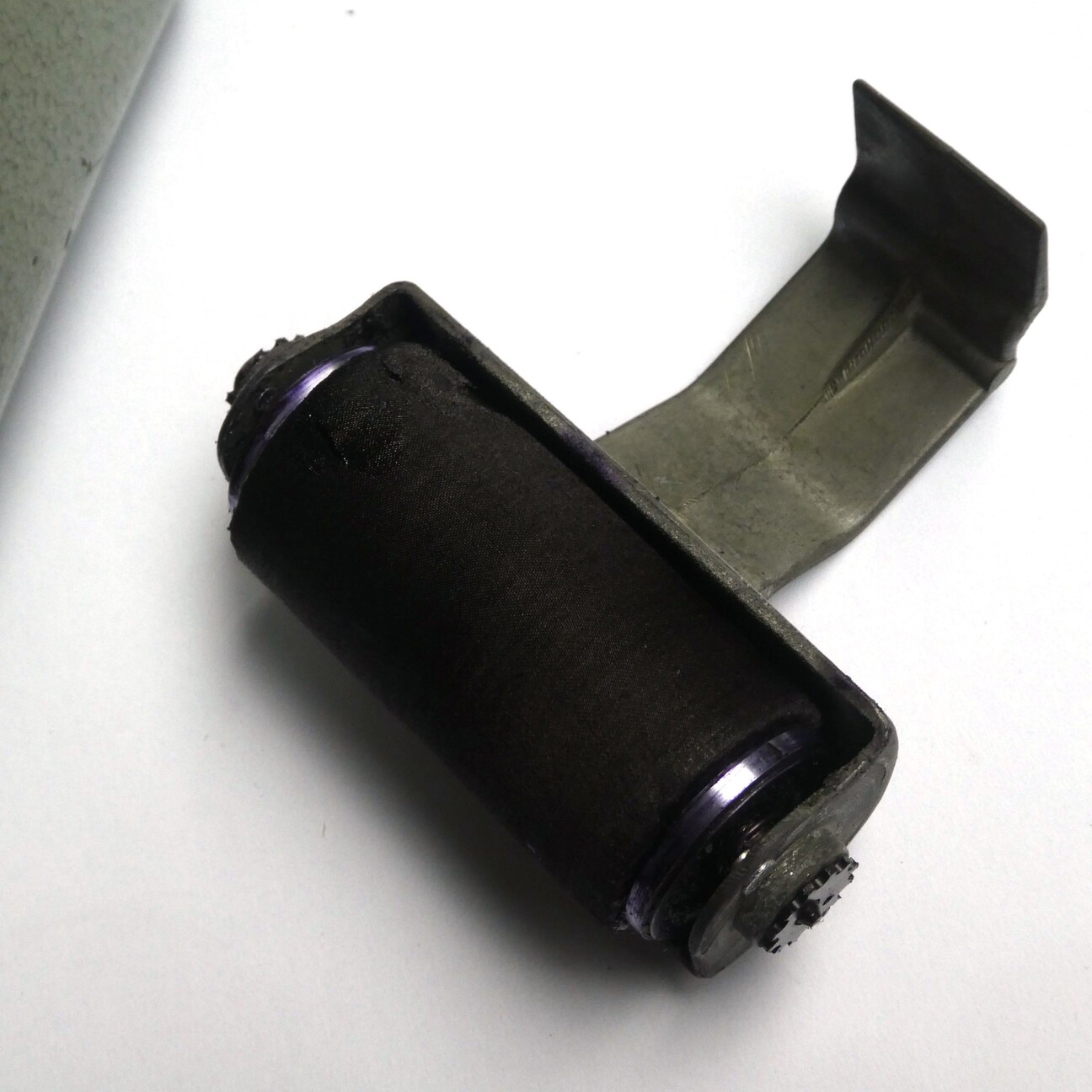

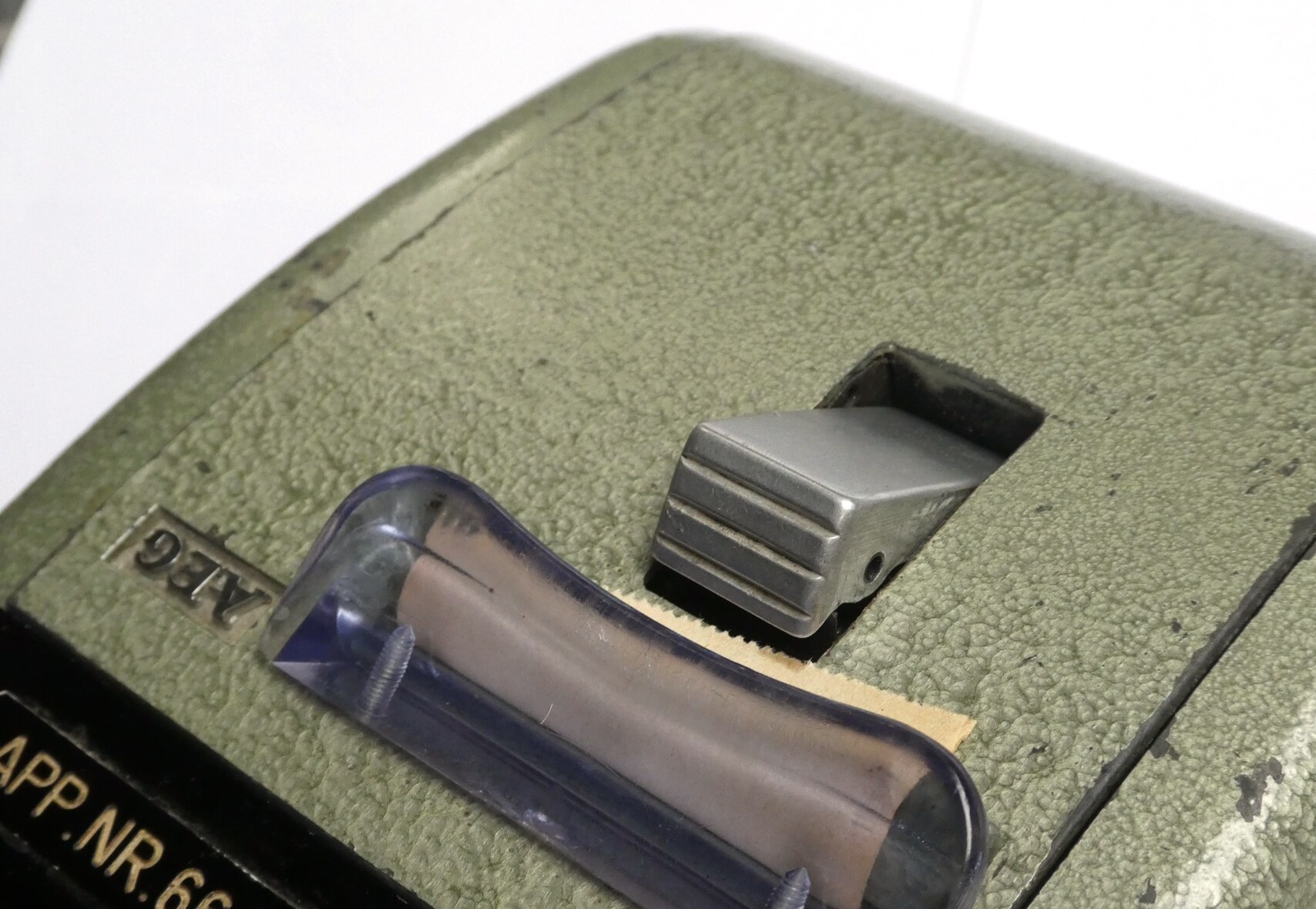

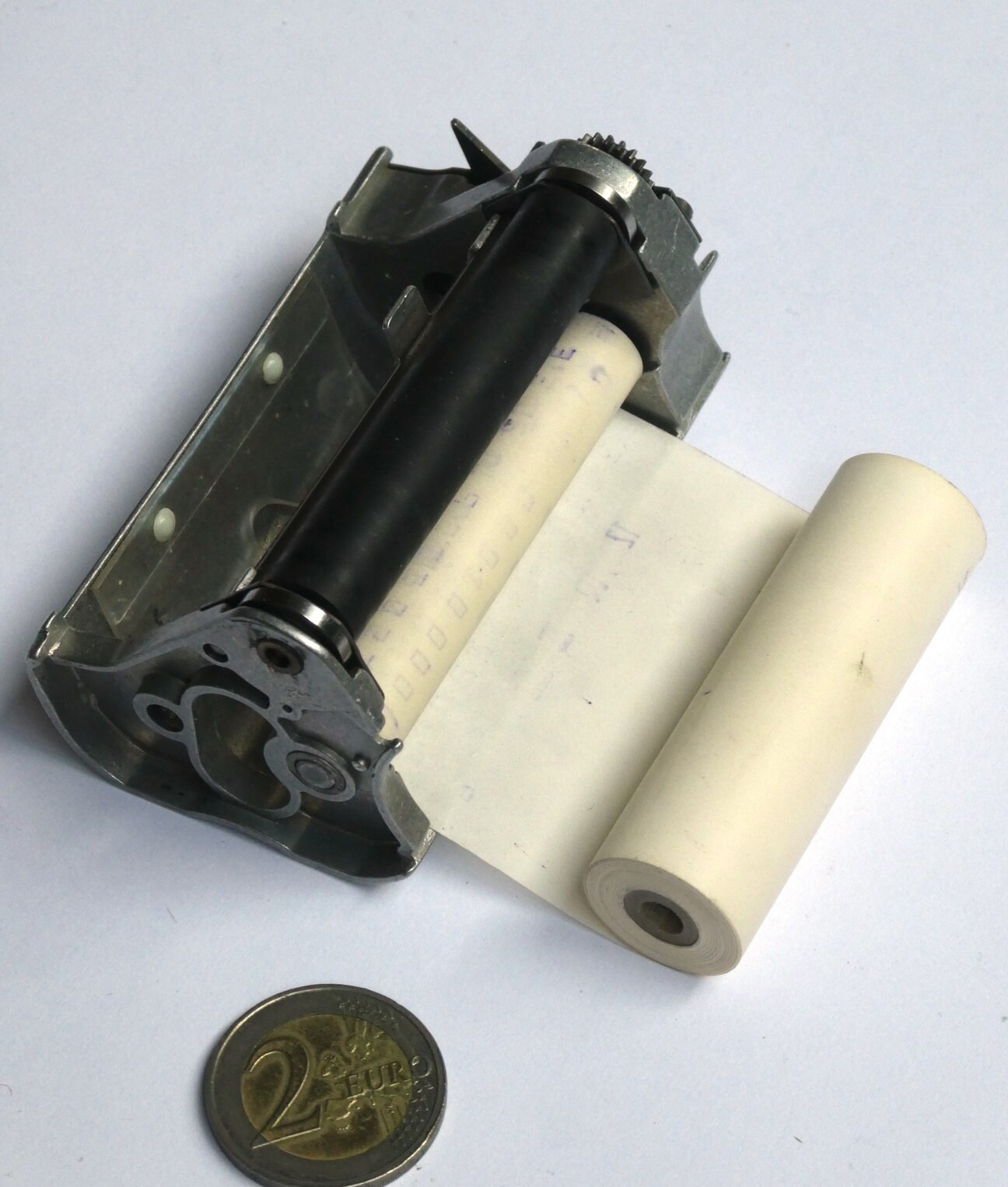

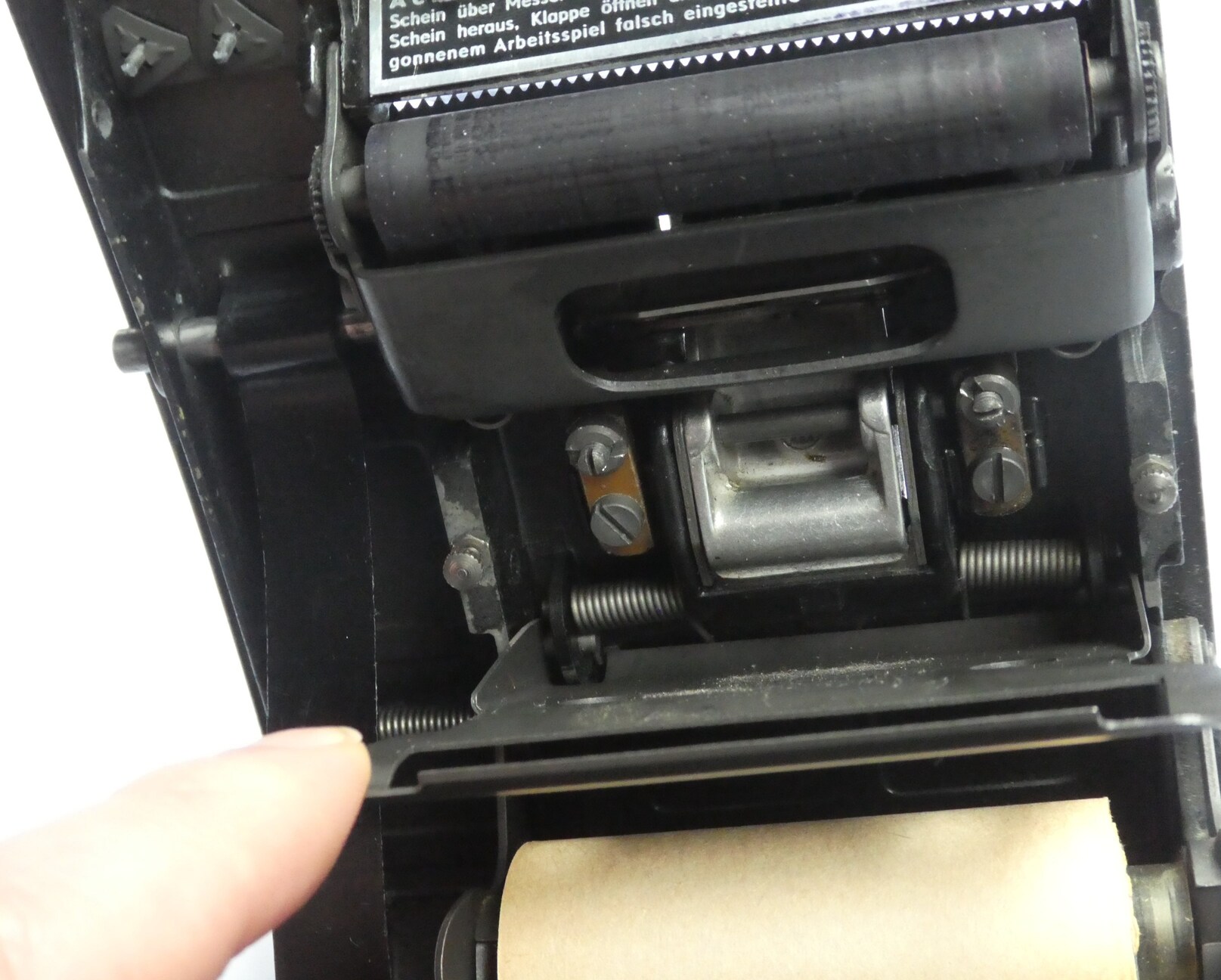

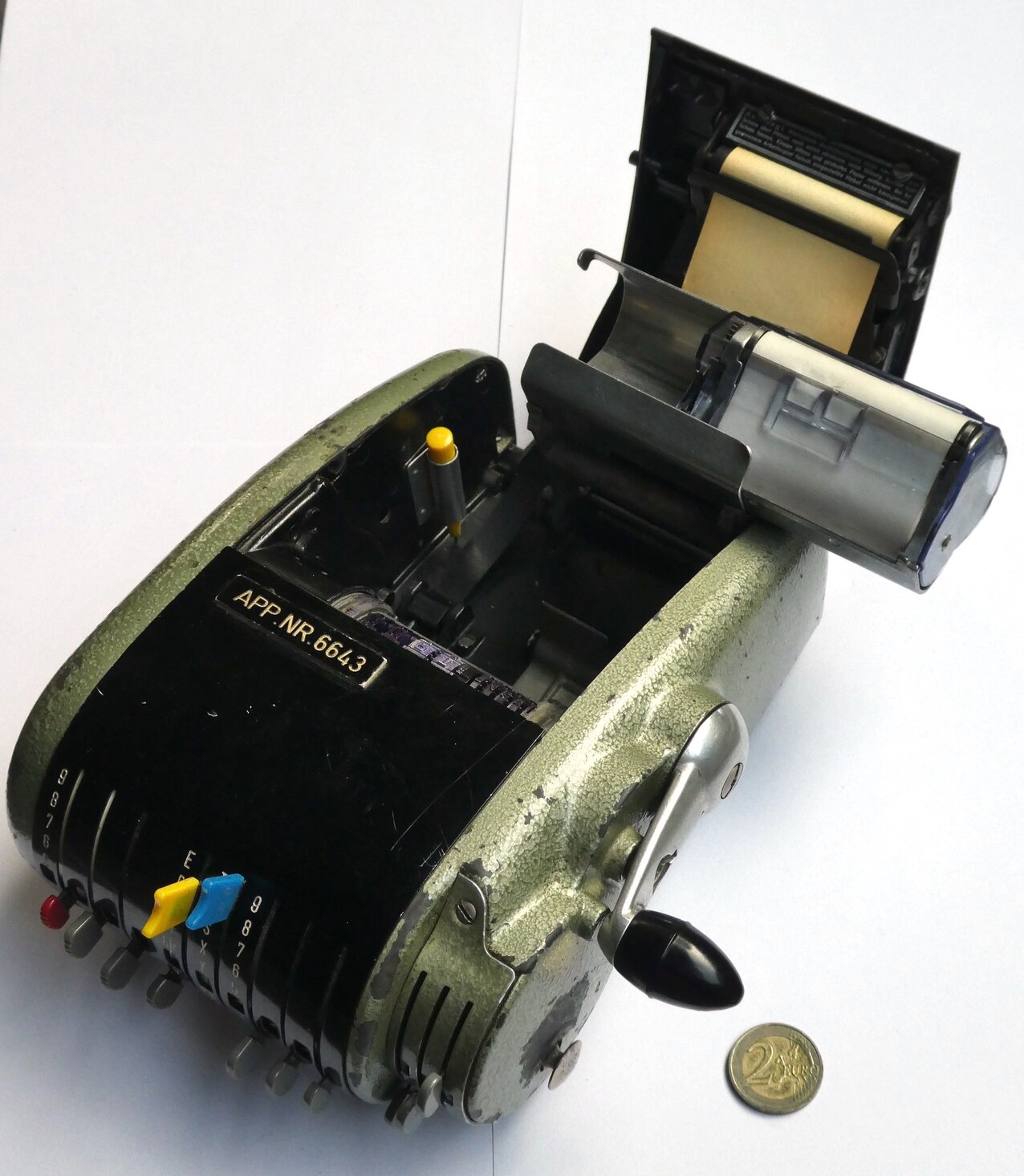

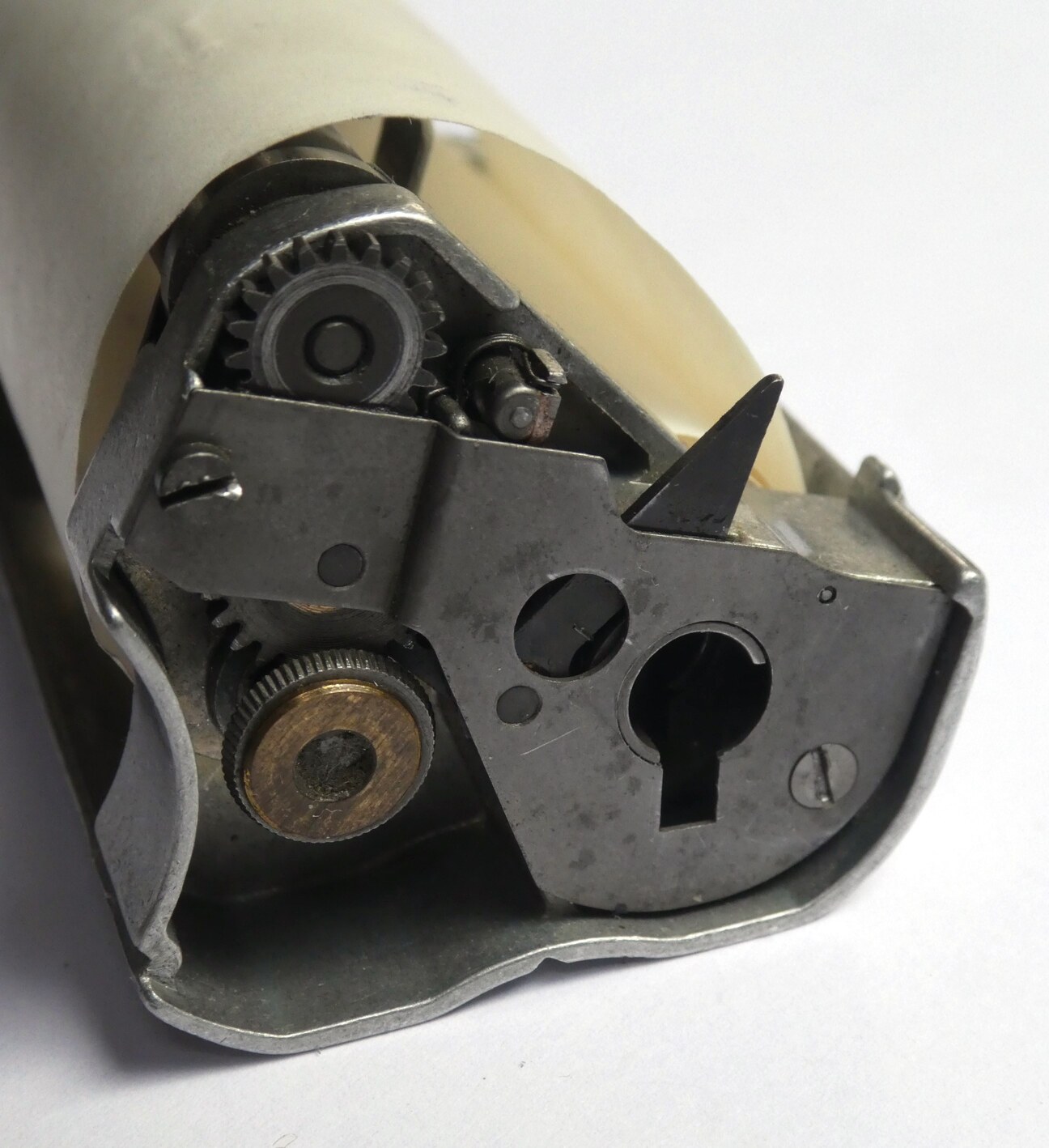

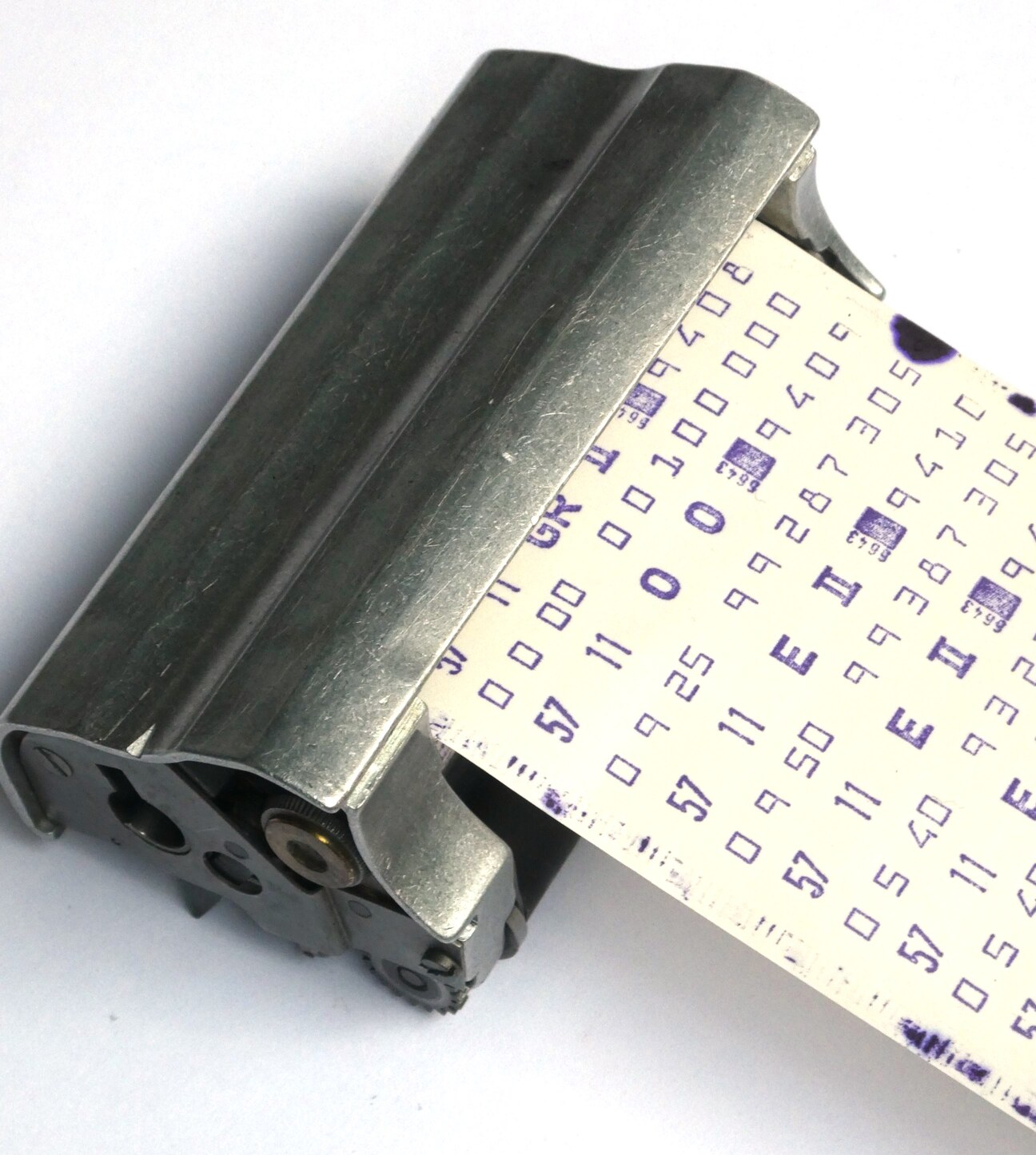

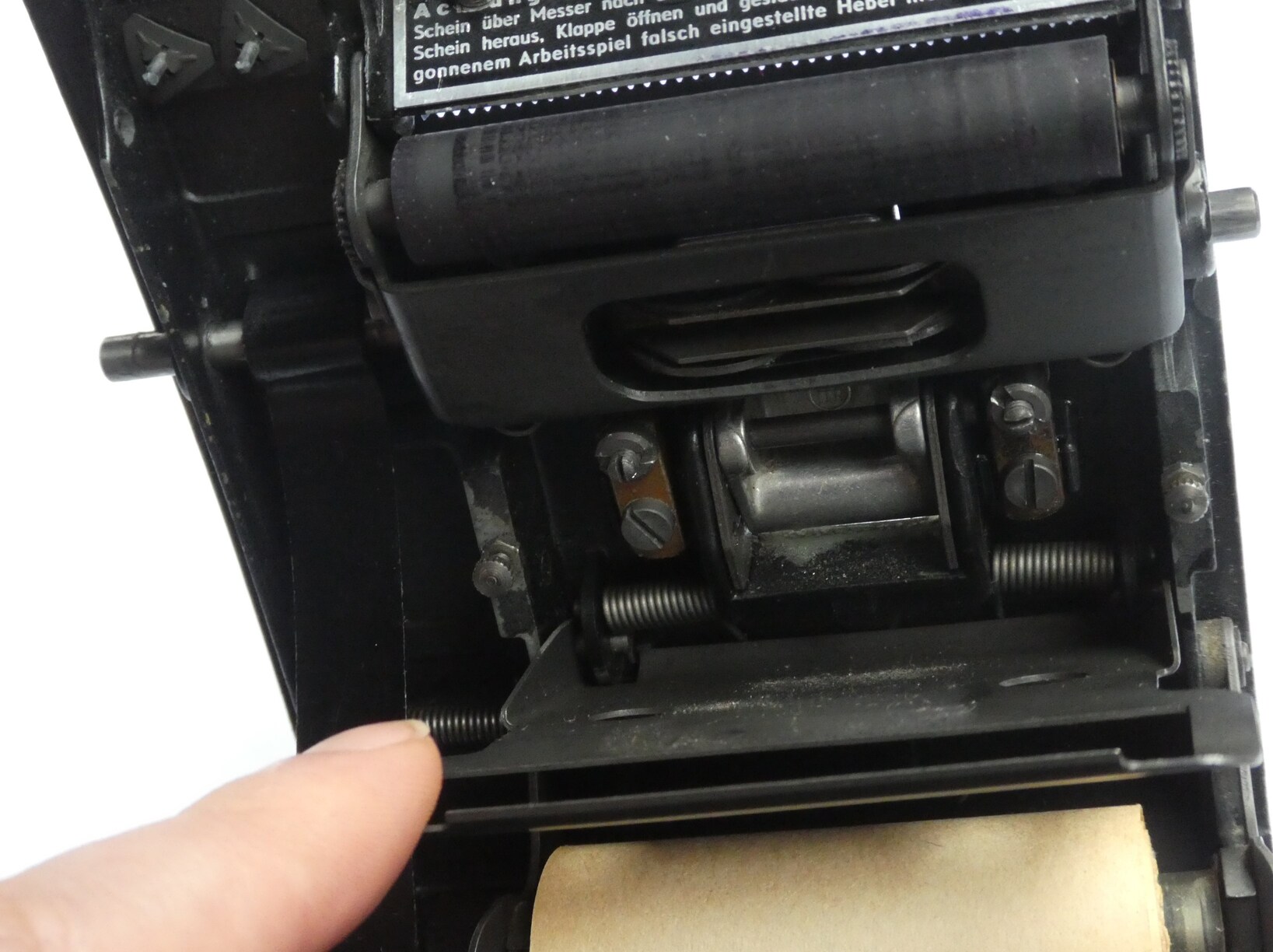

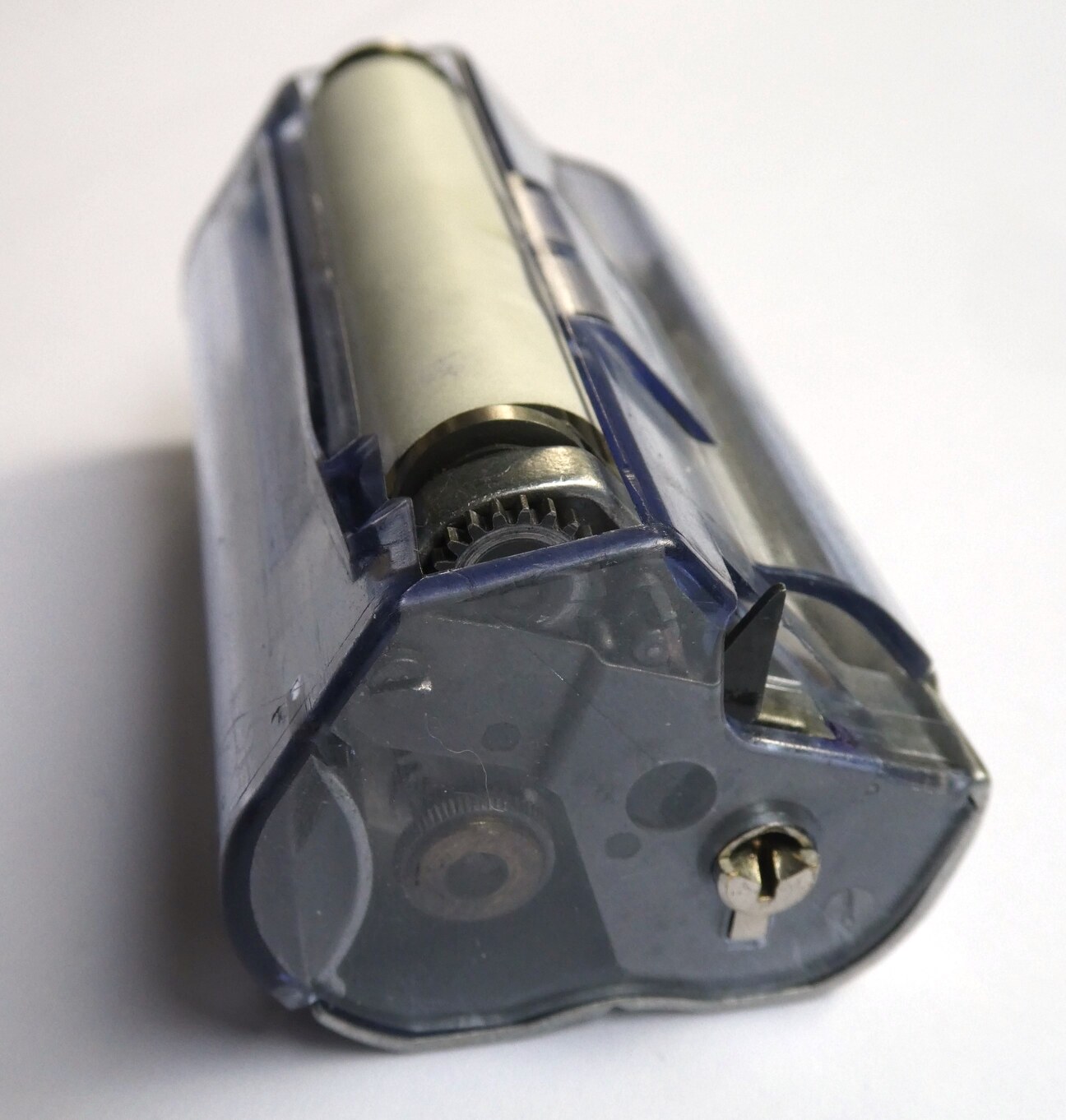

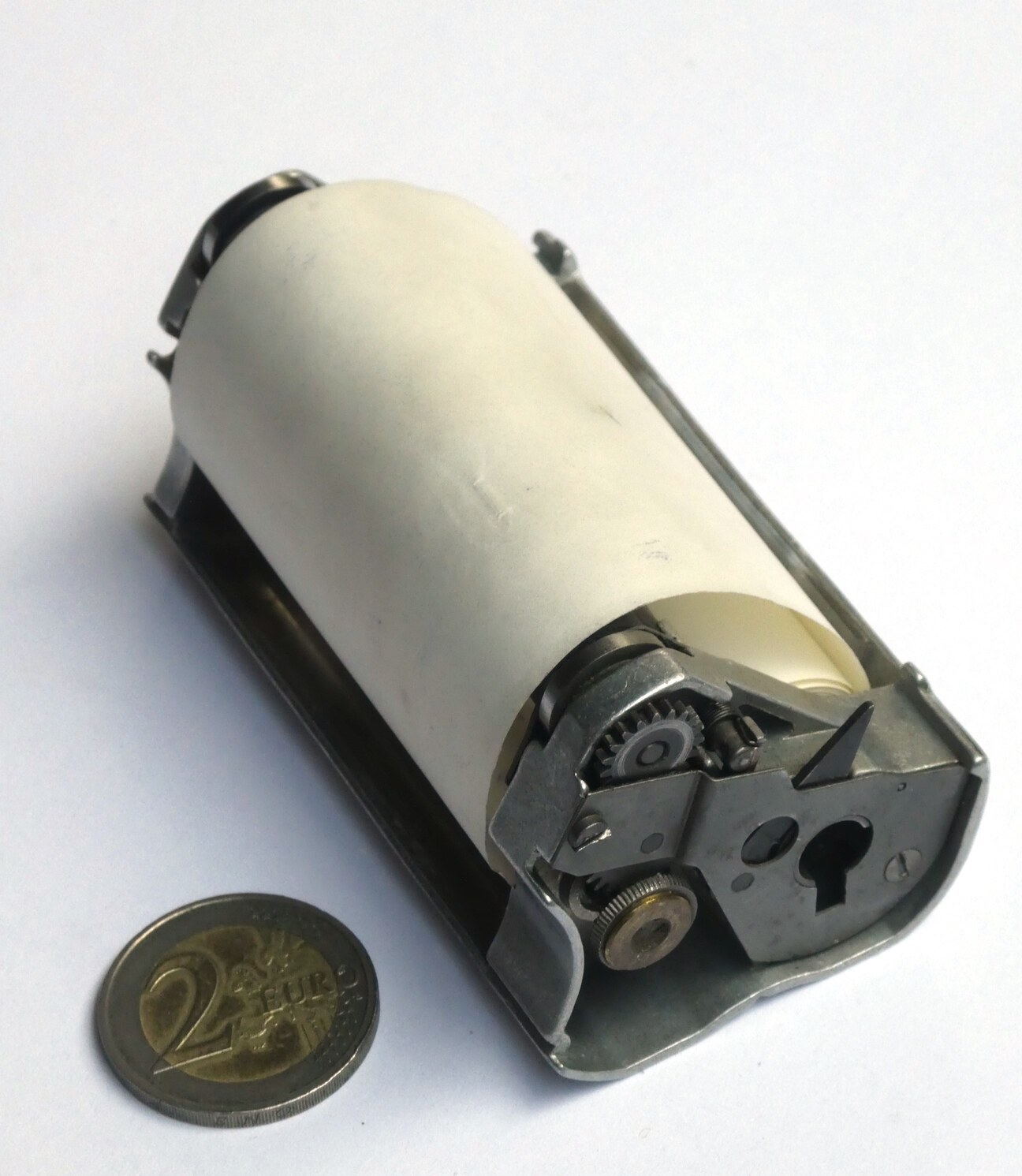

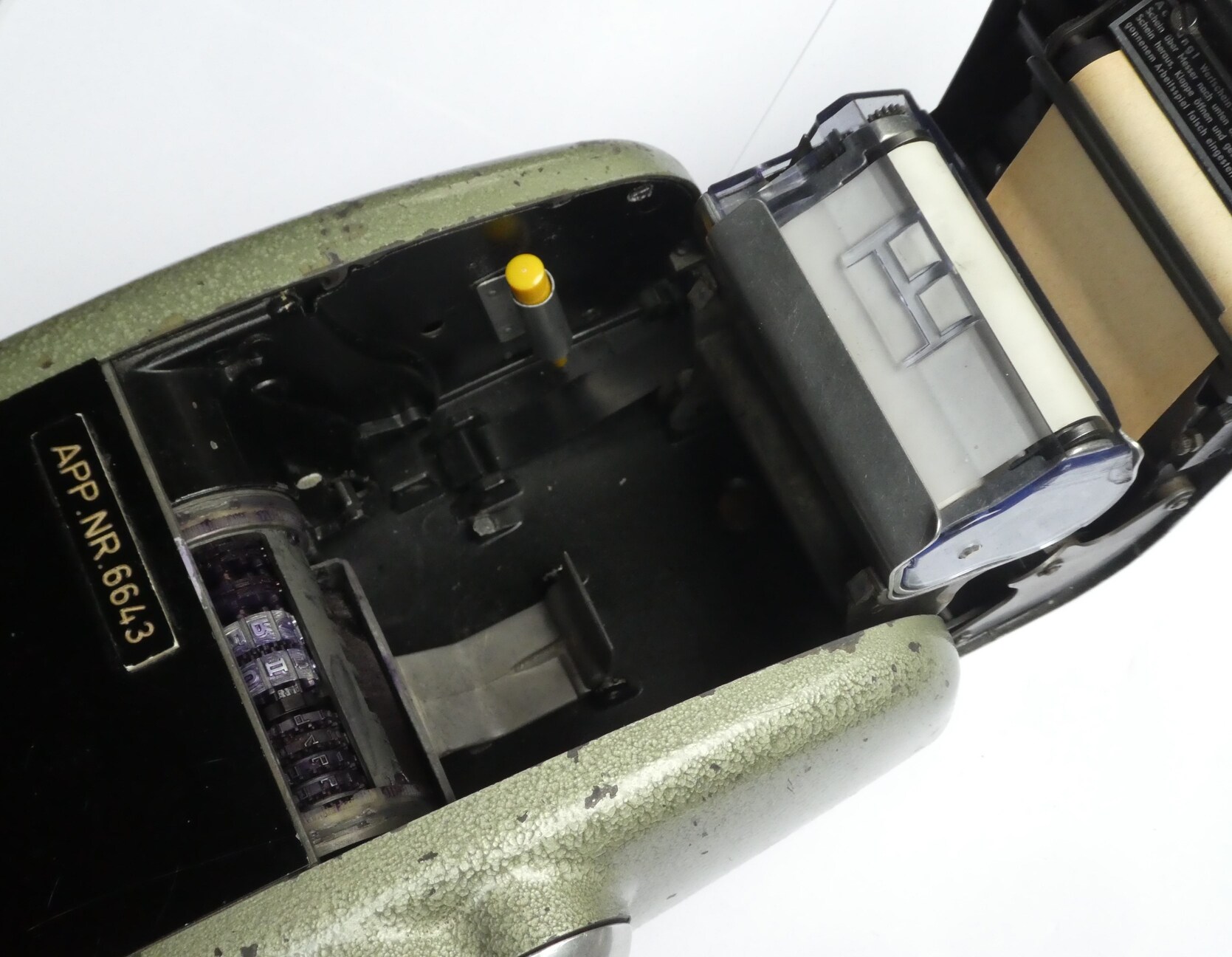

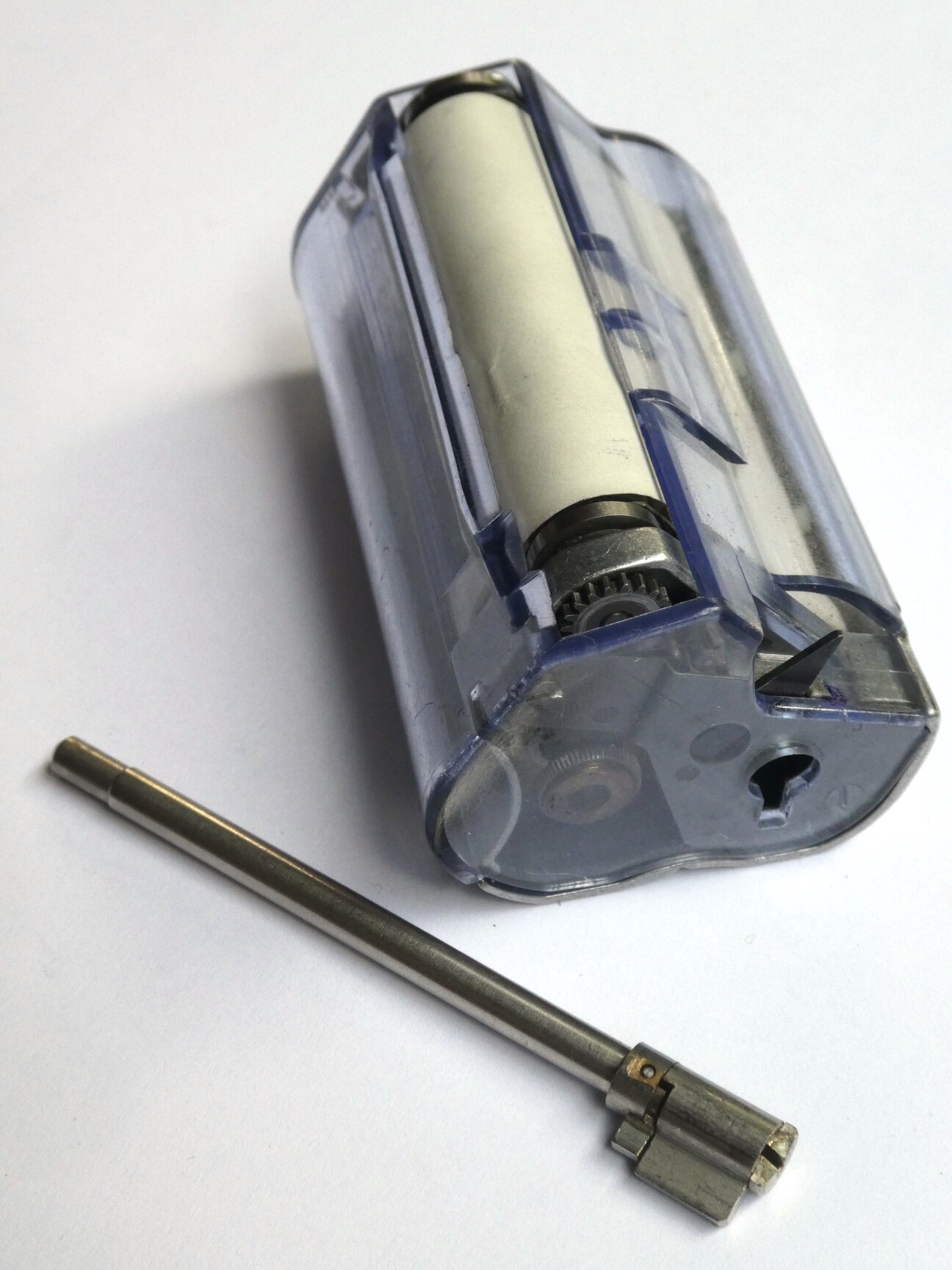

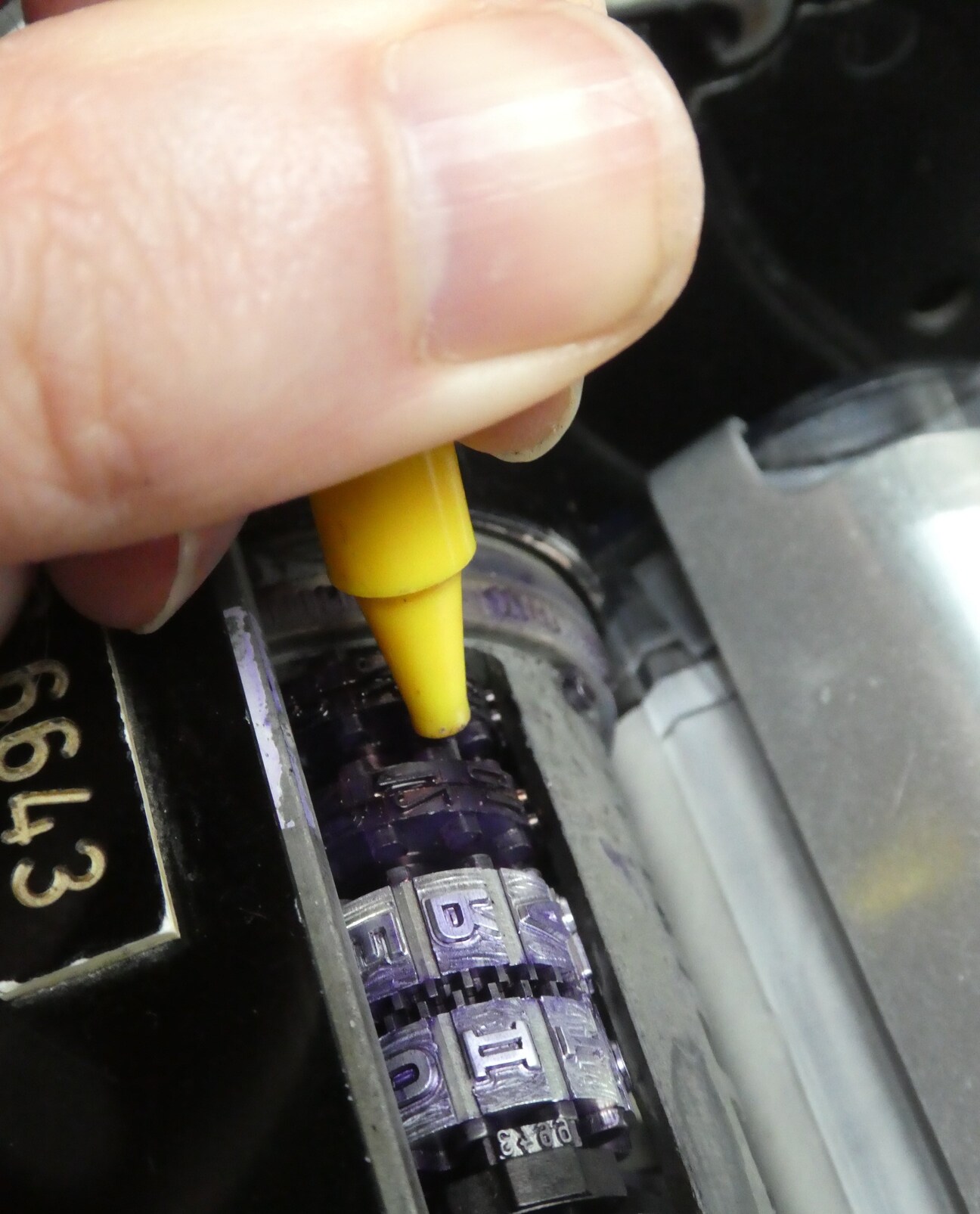

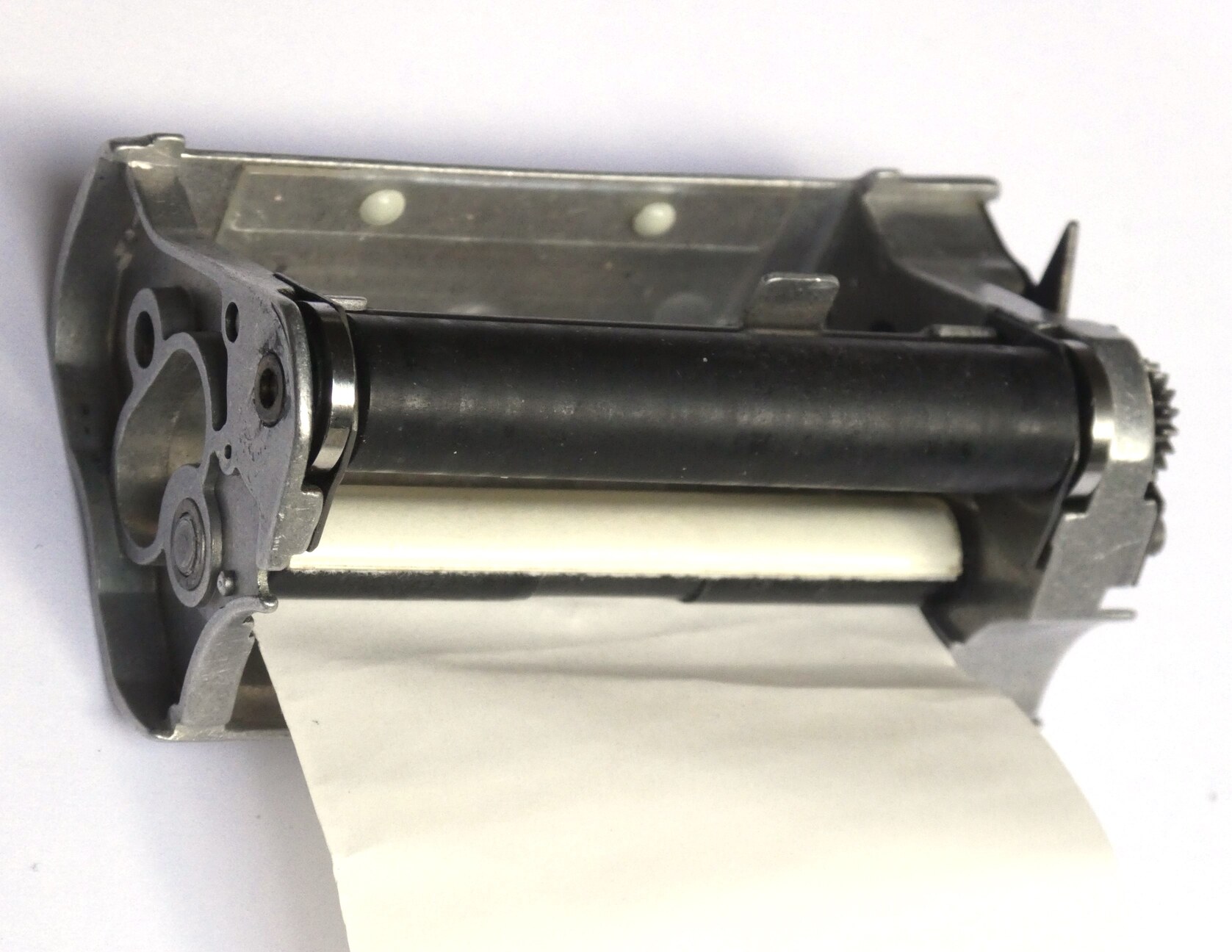

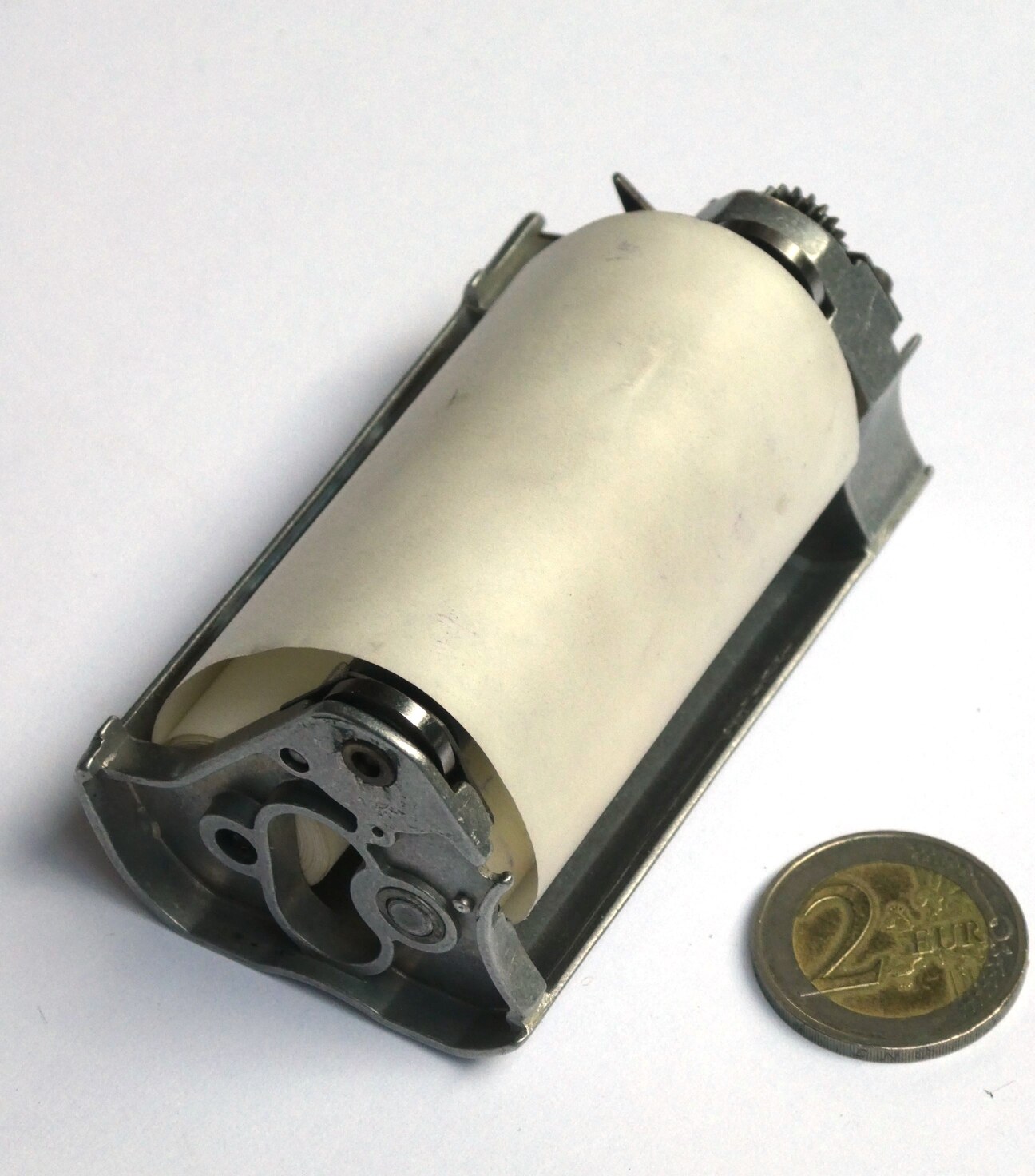

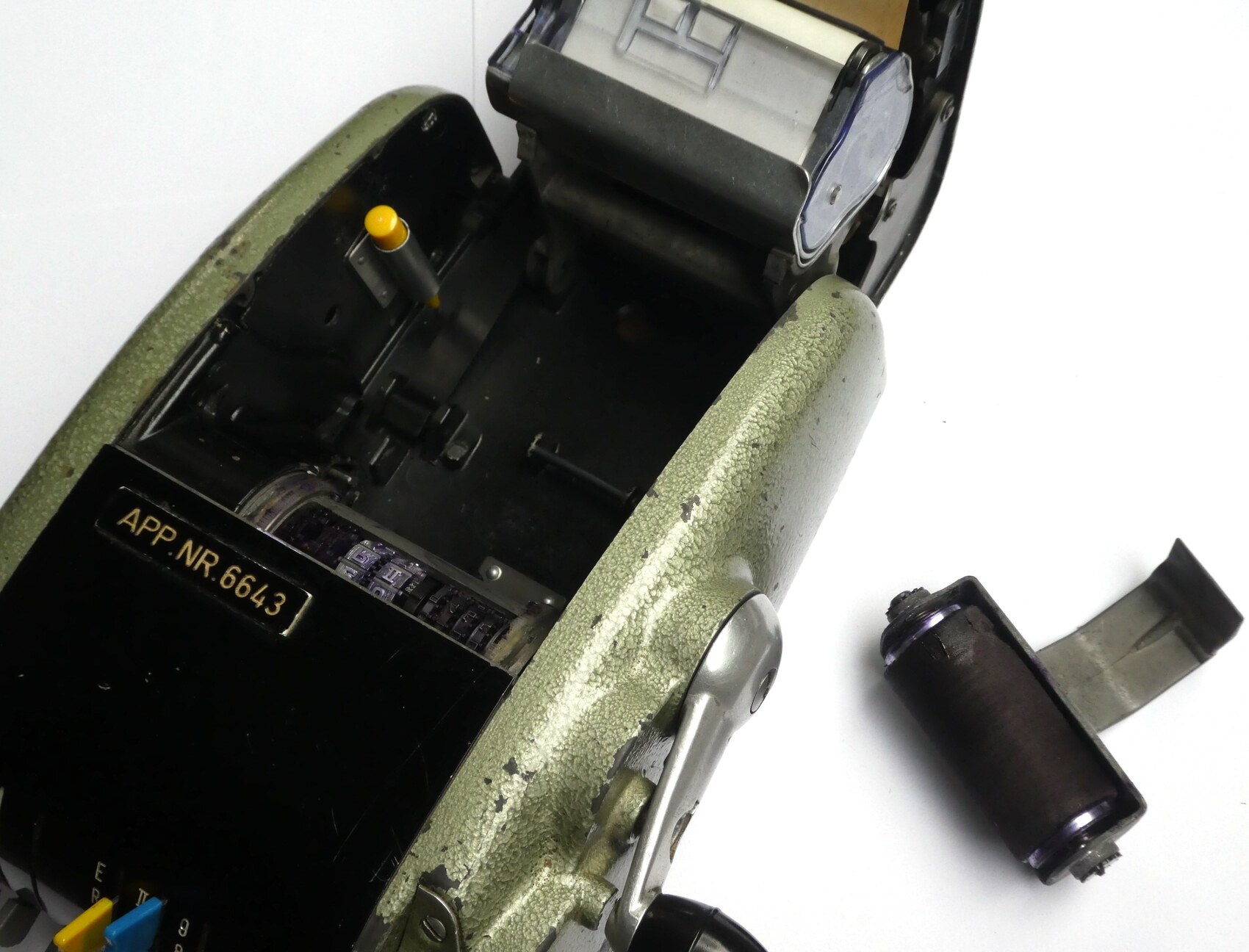

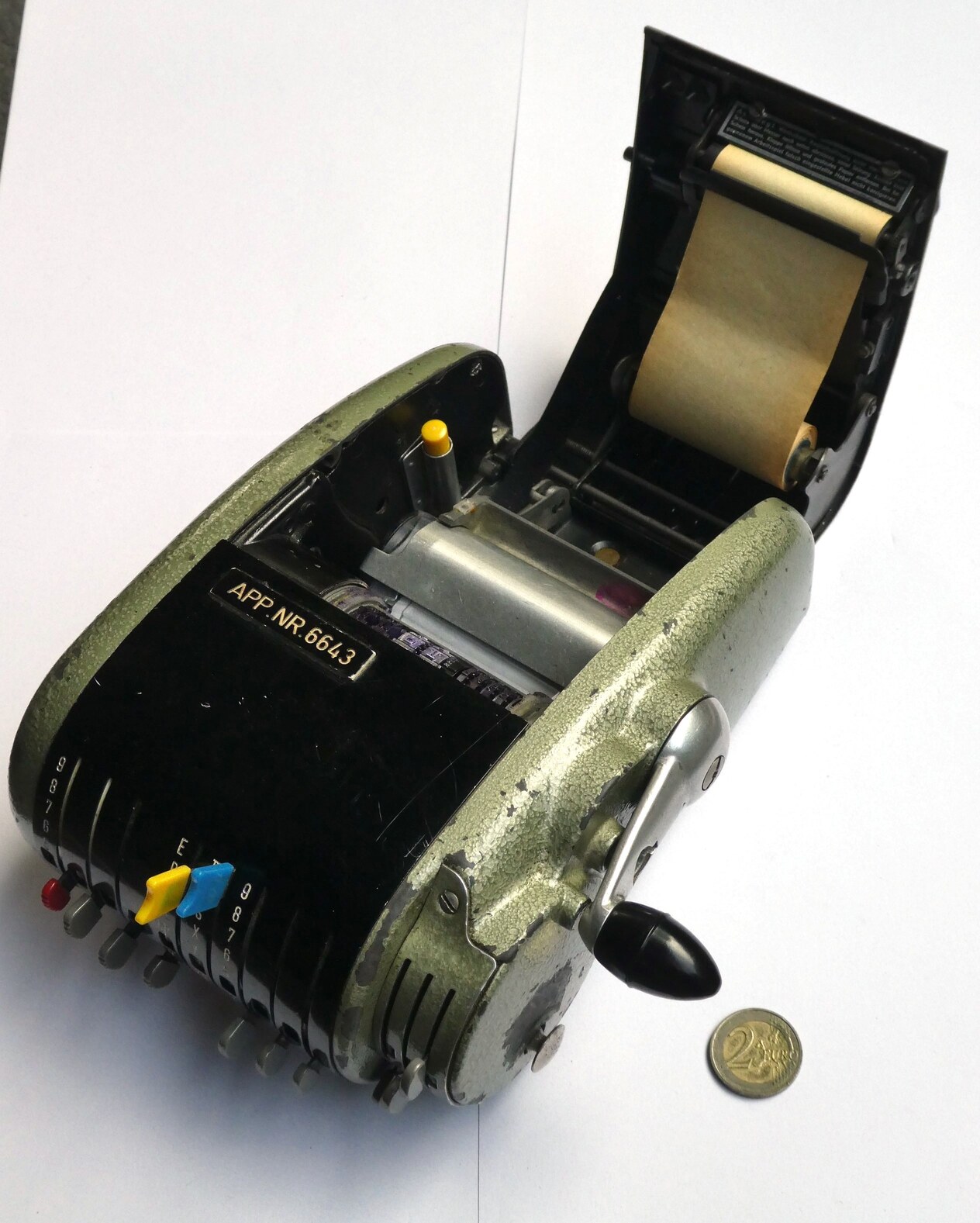

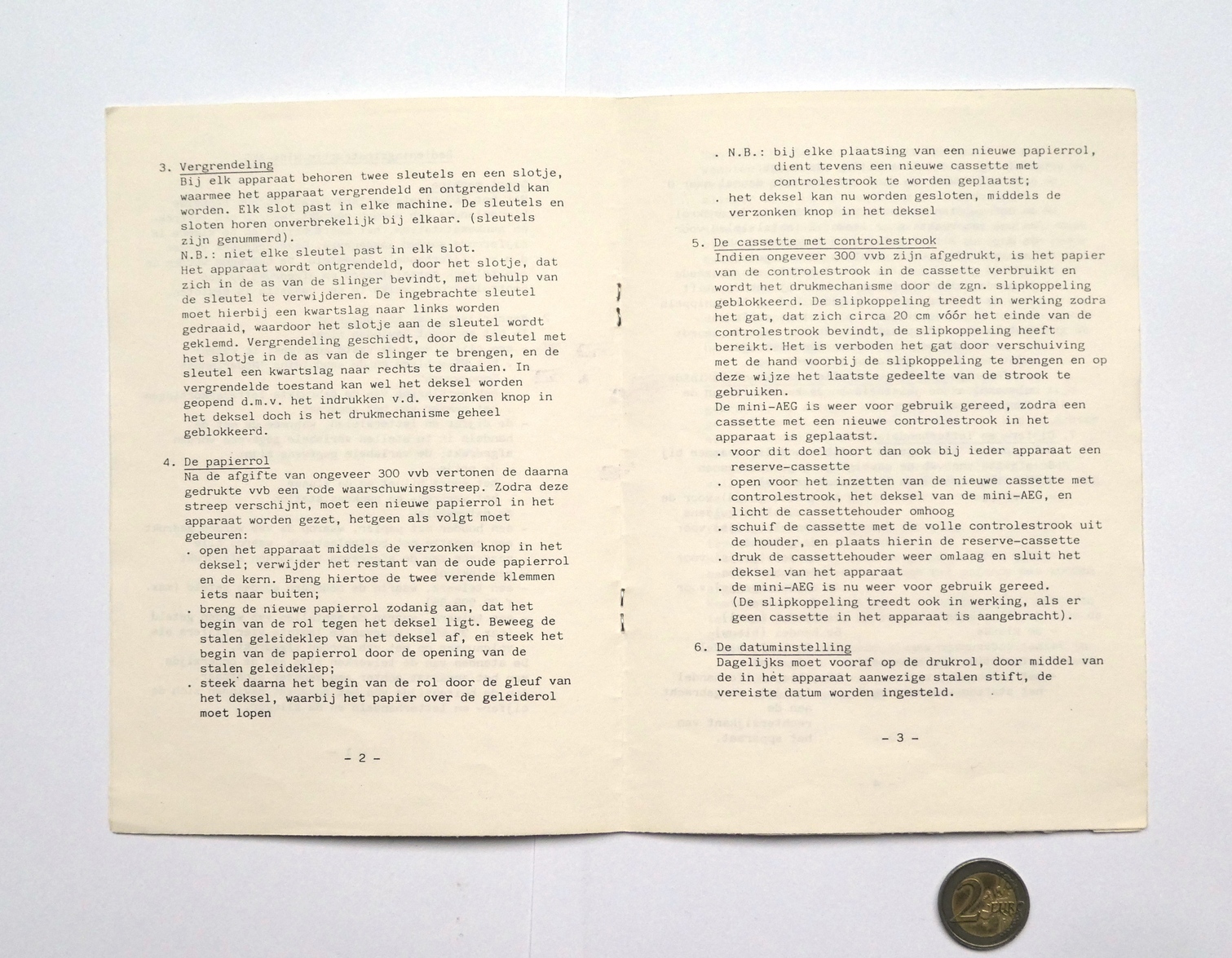

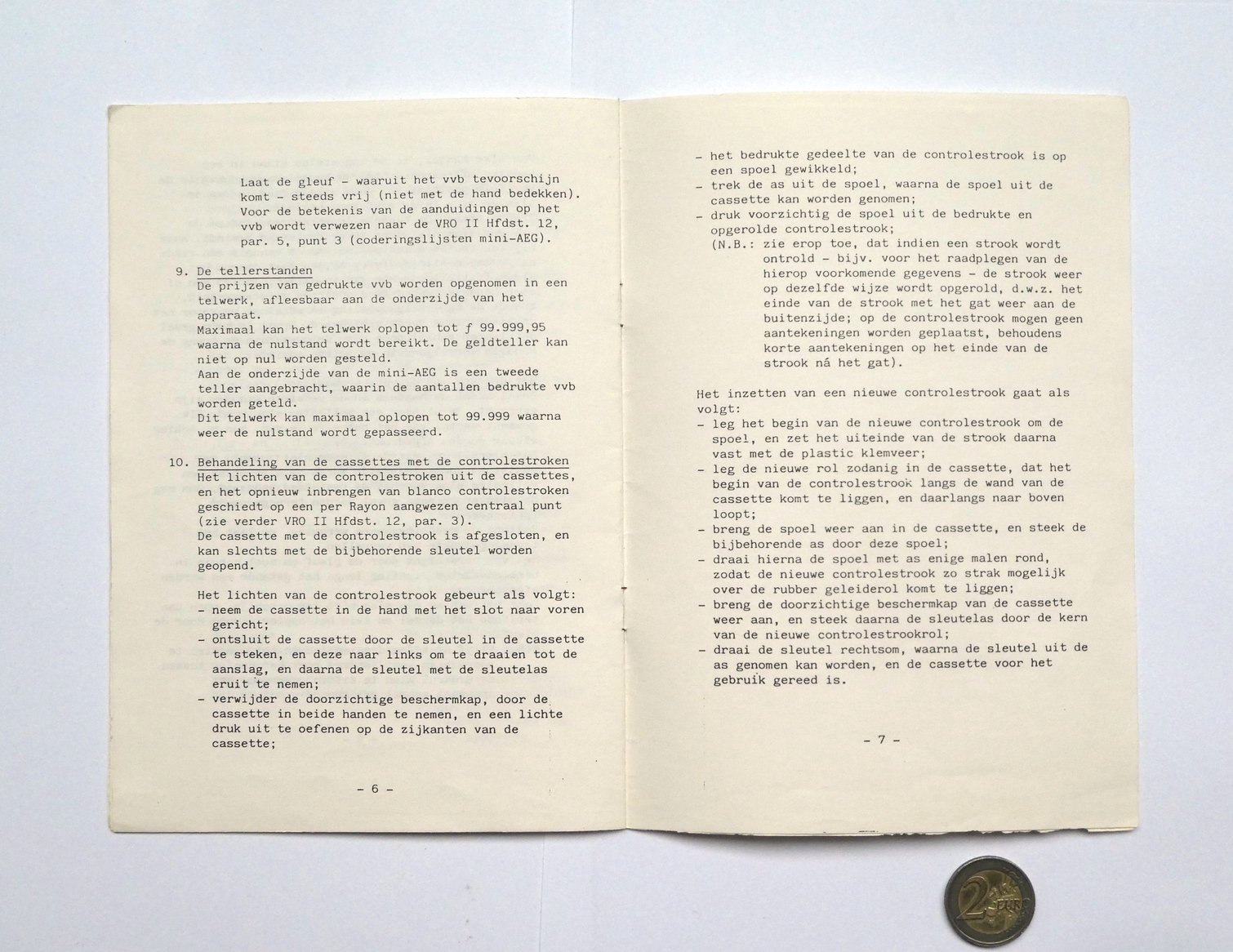

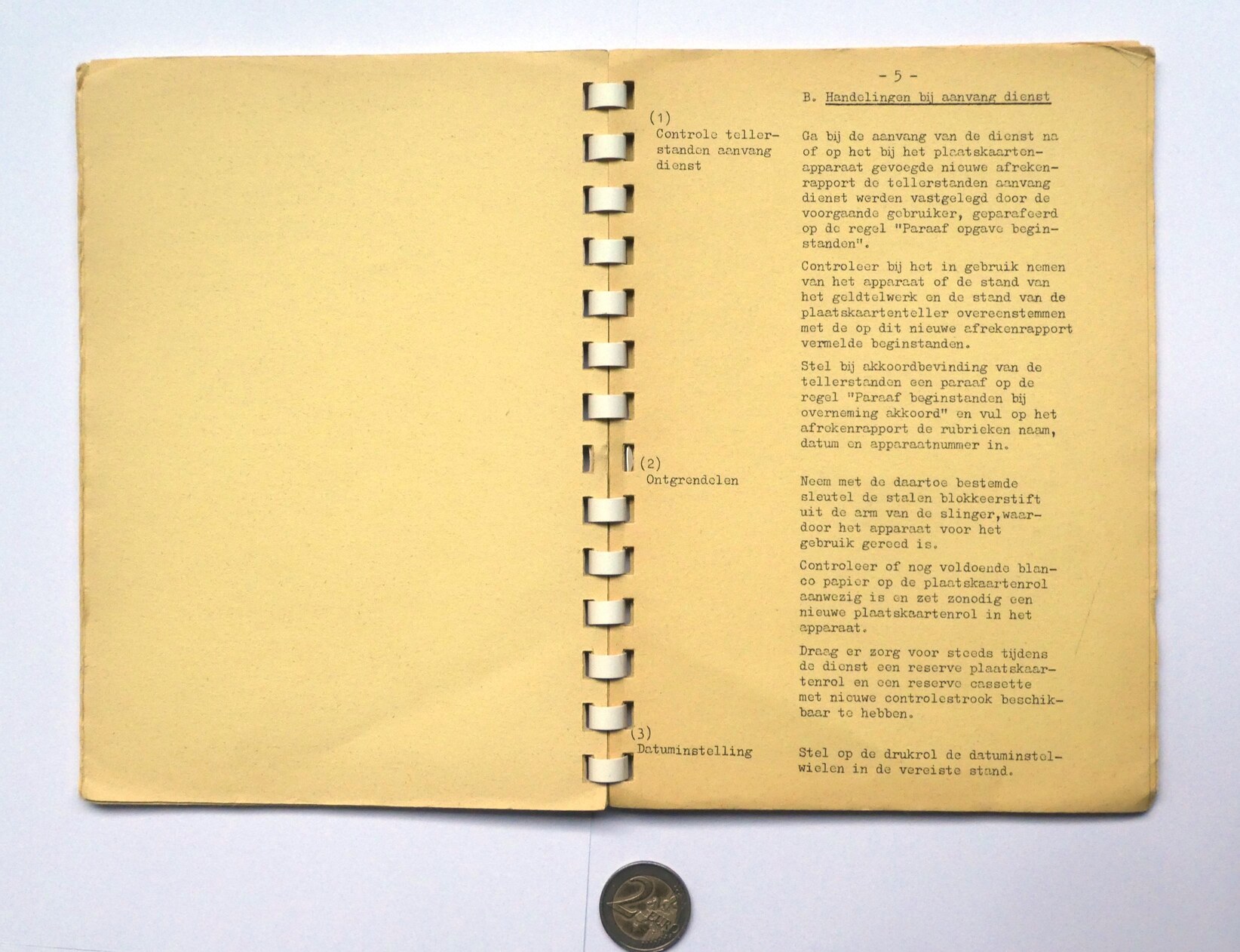

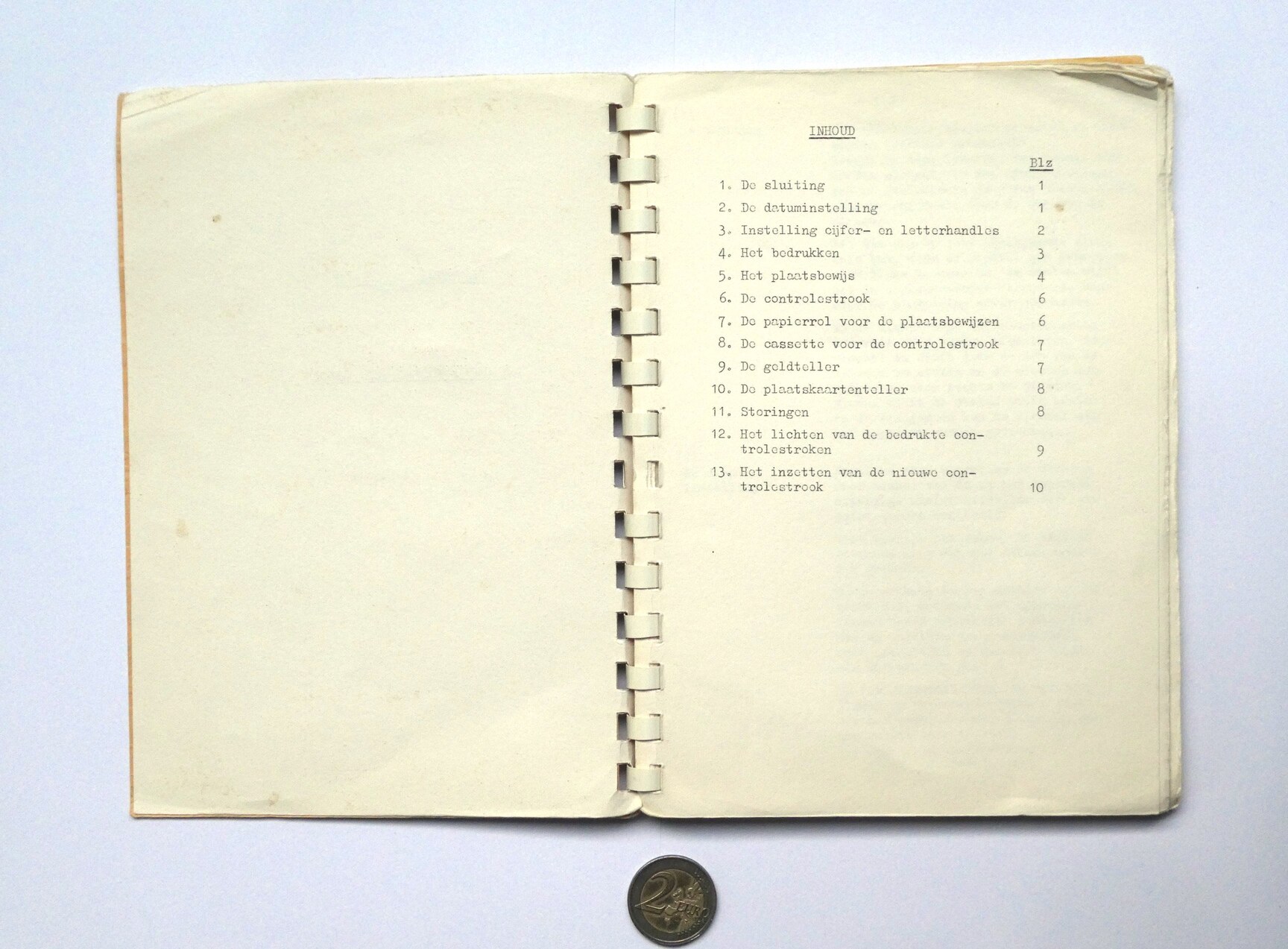

If you tilt the metal button on top of the machine, the top cover is unlocked and hinges open. The paper roll can be easily be refilled. There is also a locked cartridge containing a second paper roll. For every ticket that is printed, a copy is printed on the second roll. This cartridge is held in a metal frame that can hinge outwards, and then you can slide it out and replace it with a fresh one. The locked cartridges could be emptied at and refilled in the central office. Hidden below the cartridge frame is the ink roller, which can be removed by pulling a metal tab. The metal printing cylinder is also visible. On the left is a yellow plastic stylus in a holder. The stylus can be used to turn the date wheels on the printing cylinder to set the correct date at the start of the day.

Mini-AEG ticket machine
Mini-AEG ticket machine
Mini-AEG ticket machine
Mini-AEG ticket machine
Mini-AEG ticket machine
Mini-AEG ticket machine
Mini-AEG ticket machine
Mini-AEG ticket machine
Mini-AEG ticket machine
Mini-AEG ticket machine
Mini-AEG ticket machine
Mini-AEG ticket machine
Mini-AEG ticket machine
Mini-AEG ticket machine
Mini-AEG ticket machine
Mini-AEG ticket machine
Mini-AEG ticket machine
Mini-AEG ticket machine
Mini-AEG ticket machine
Mini-AEG ticket machine
Mini-AEG ticket machine
Mini-AEG ticket machine
Mini-AEG ticket machine



Video




Ticket details

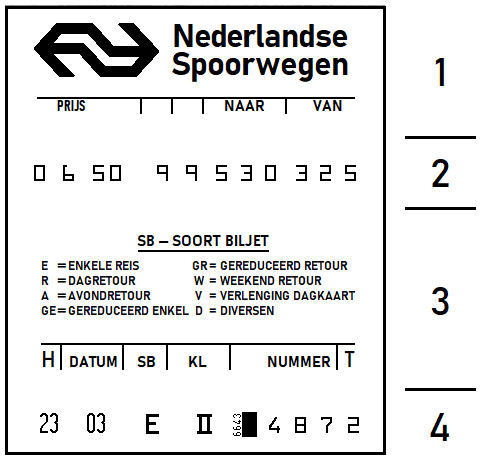

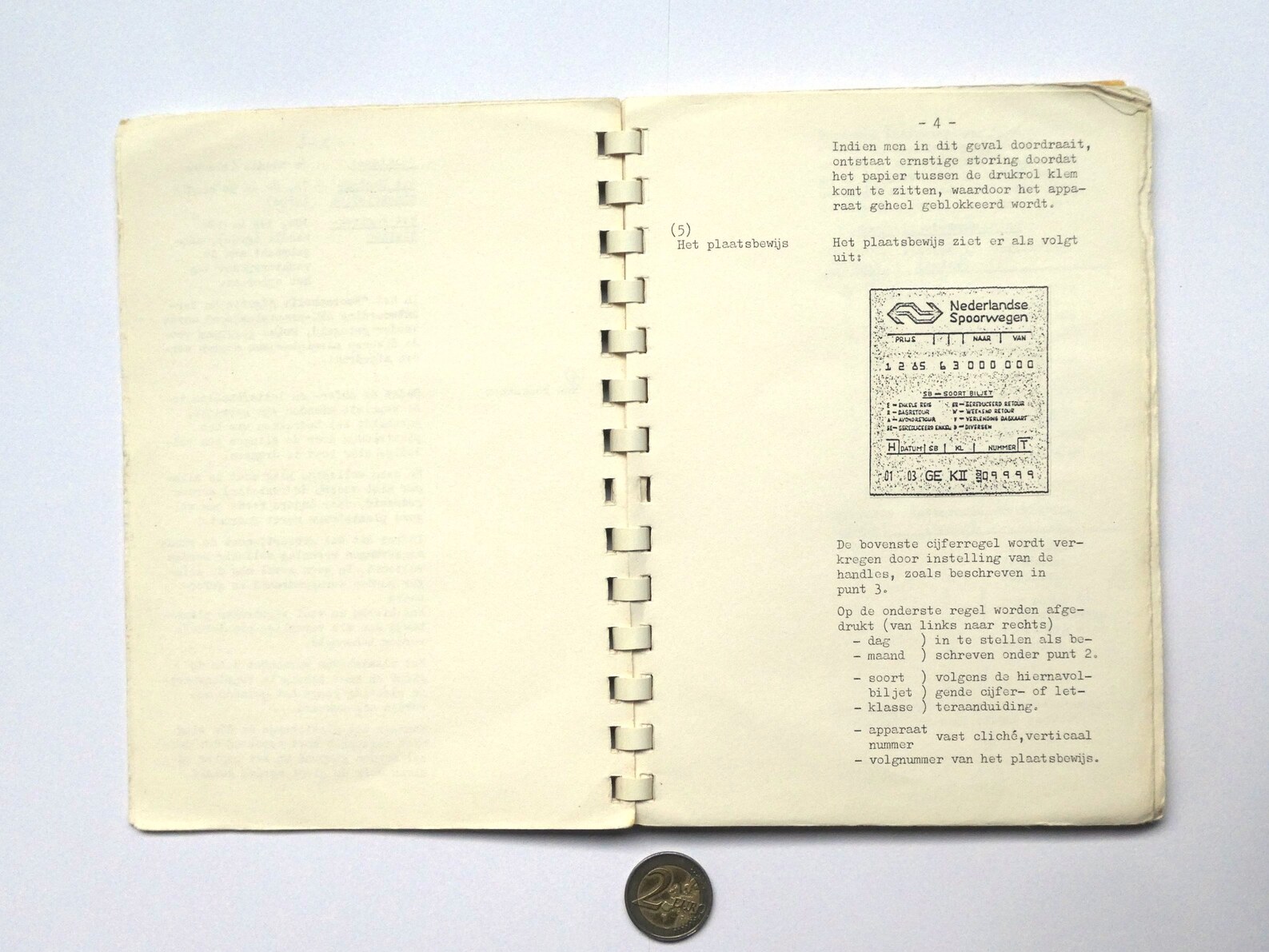

The print on a ticket consists of four parts:

Ticket
  1. A header containing the logo of the Dutch railways. The printing plate for this was removed when the machine was decomissioned, so that it could no longer print any valid tickets.
  2. A line of numbers containing the 4-digit fare price, two unknown digits, a 3-digit destination code, and a 3-digit origin code.
  3. A fixed header containing the list of the types of ticket.
  4. A line of numbers and letters, containing the date (set by using the stylus inside the machine), type of ticket, class, machine number (small and vertical), and ticket number.

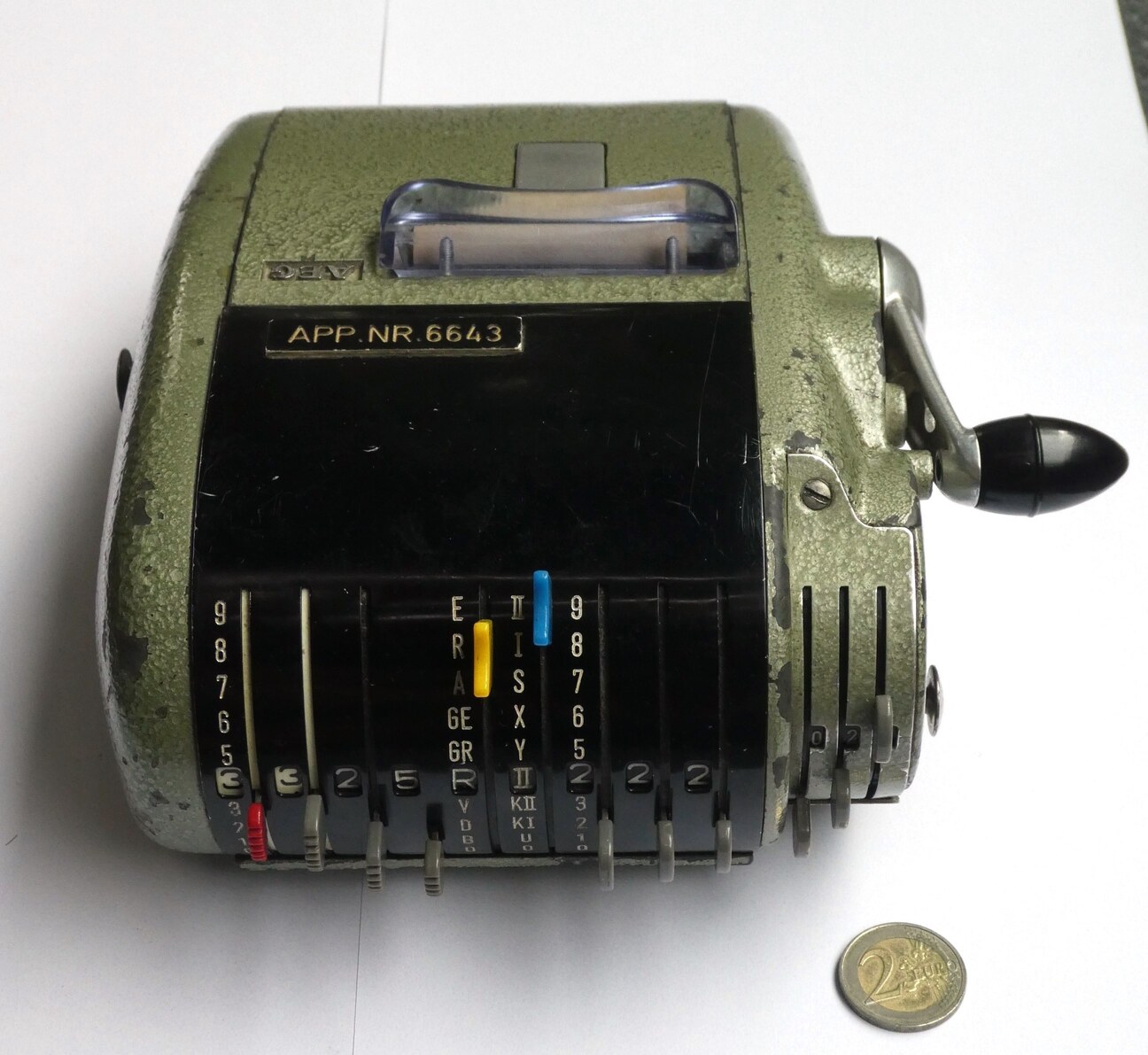

The input levers are as follows, from left to right:

Ticket Type

E Enkele reis (Single)
R Dagretour (Return)
A Avondretour (Evening return)
GEGereduceerde enkel (Reduced single)
GRGereduceerde retour (Reduced return)
W Weekend retour (Weekend return)
V Verlenging dagkaart (Extension daytime ticket)
D Diversen (Miscellaneous)
B ?
O ?

Class

IISecond class
I First class
S ?
X ?
Y ?
Z ?
KII?
KI?
U ?
O ?

History

The Allgemeine Elektricitäts-Gesellschaft (AEG) was a German company that was founded in 1883 in Berlin, and which made many electrical goods, from white goods to electric train locomotives. There were many different subsidiary companies to cater for different types of products. For example, Olympia Büromaschinenwerke was their subsidiary that made typewriters and adding machines. To complement their involvement in electric trains and trams, there was a subsidiary AEG Fahrkartendrucker GMBH which made many kinds of ticket machines, from large self-service machines in the station halls, machines for use in kiosks, and portable ones for use by conductors. This subsidiary was set up in the 1930s, based in Hennigsdorf, but after the war it was restarted in Kassel, West Germany, in the factory building where Junker aeroplane engines used to be built.

The ticket machines that AEG Fahrkartendrucker made were very succesfull all over Europe. The national railways of the Netherlands started to use AEG's large ticket printing machines in their major stations in the 1950s. These machines printed thick cardboard tickets. Smaller stations generally used pre-printed tickets in most cases, and else had to write out tickets by hand. Conductors would also issue hand-written tickets. To cater for this AEG developed a portable ticket machine, the KAL machine. These were popular in Germany itself, and also came into use in the Netherlands in about 1972.


Articles

Here are a few mentions of the mini-AEG and its train tickets in Dutch newspapers.

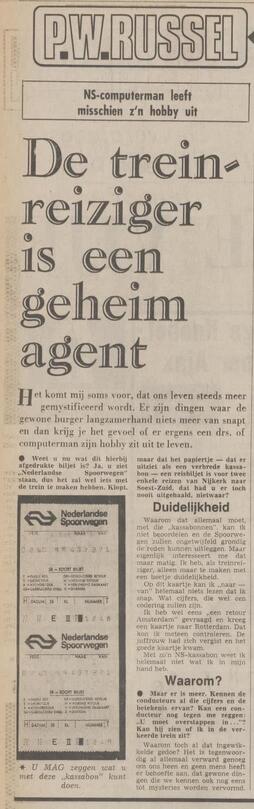

1973-01-10 Alegmeen Dagblad

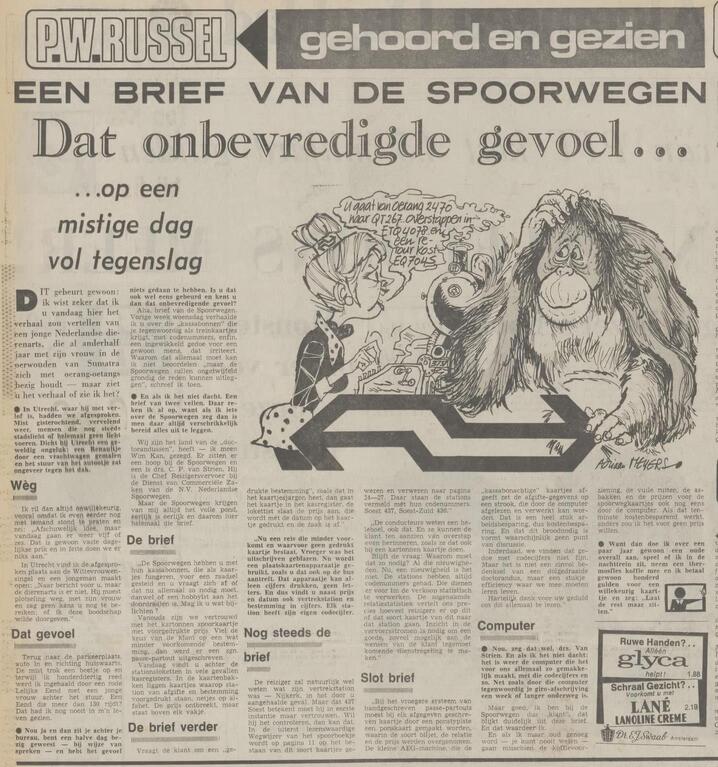

1973-01-18 Alegmeen Dagblad
1975-08-09 Trouw



Patents

PatentFiling datePublish dateNameDescription
DE 835,07702-10-194802-08-191Fritz Haseloff; Licentia GmbHControl cartridge with locking mechanism
See also: GB 714,161; US 2,822,751.
DE 1,137,58311-07-195804-10-1962Fritz Haseloff; Licentia GmbHPortable ticket machine
DE 1,202,04102-01-195930-09-1965Ernst Wittkowsky; Licentia GmbHPortable ticket machine with input pins
See also: GB 887,612.
DE 1,276,38419-07-196029-08-1968Fritz Haseloff; Licentia GmbHPortable ticket machine with settable and fixed digits
DE 1,774,29718-05-196816-12-1971Fritz Haseloff; Licentia GmbHPortable ticket machine with control cartridge
DE 1,922,32602-05-196912-11-1970Fritz Haseloff; Licentia GmbHPortable ticket machine with detection of end of paper
DE 7,117,047 U03-05-197112-06-1974Licentia GmbHControl cartridge
