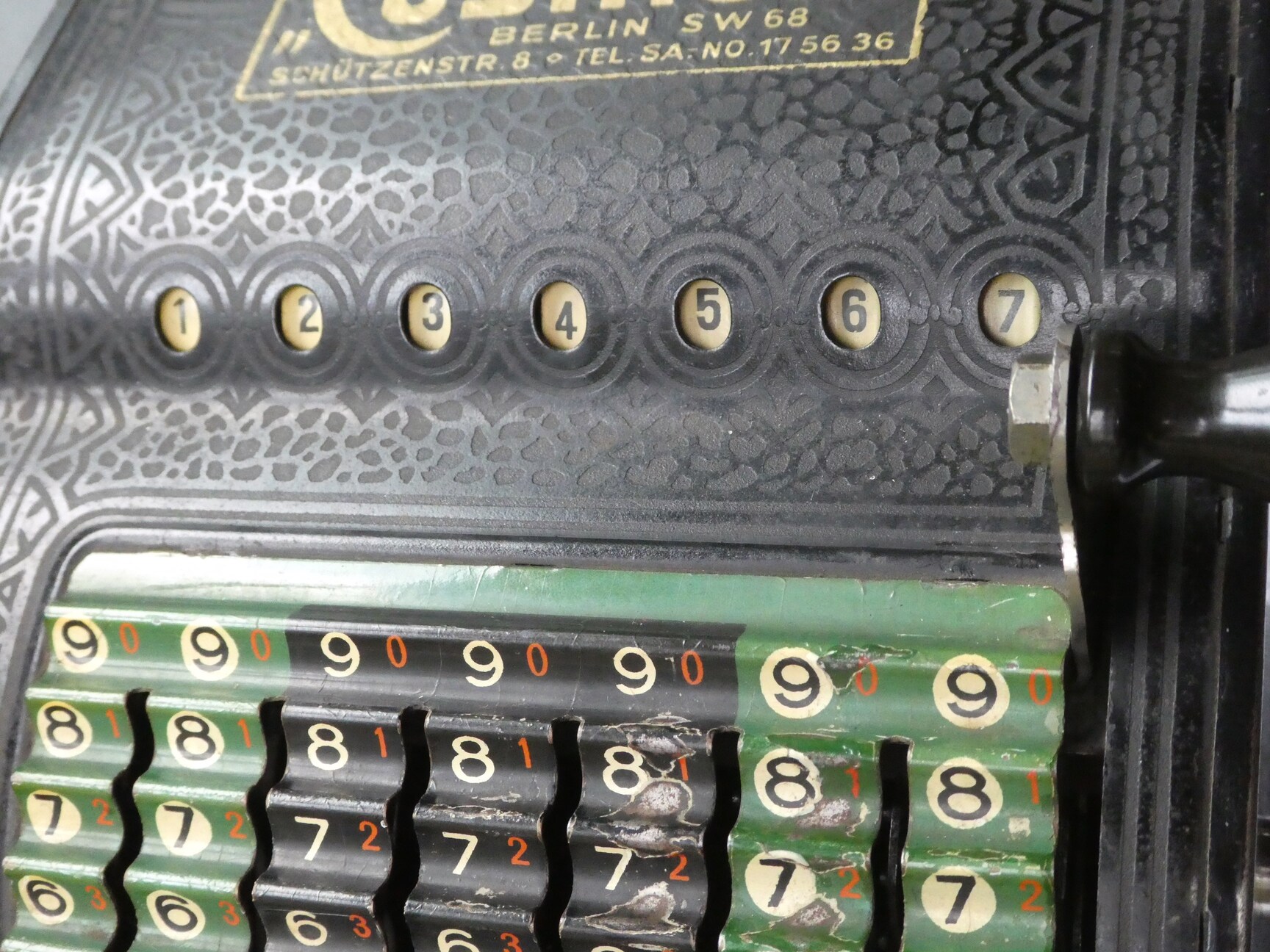

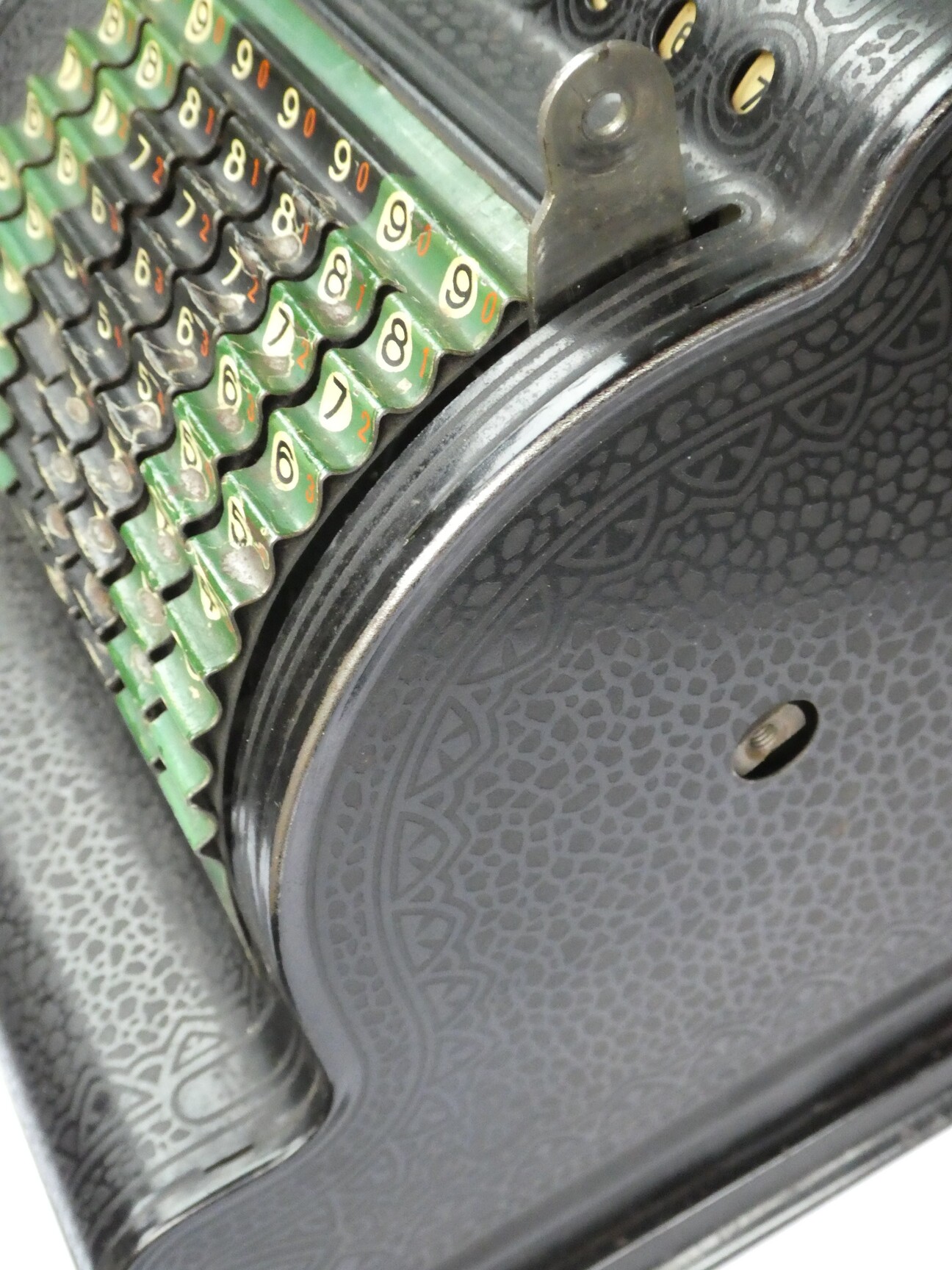

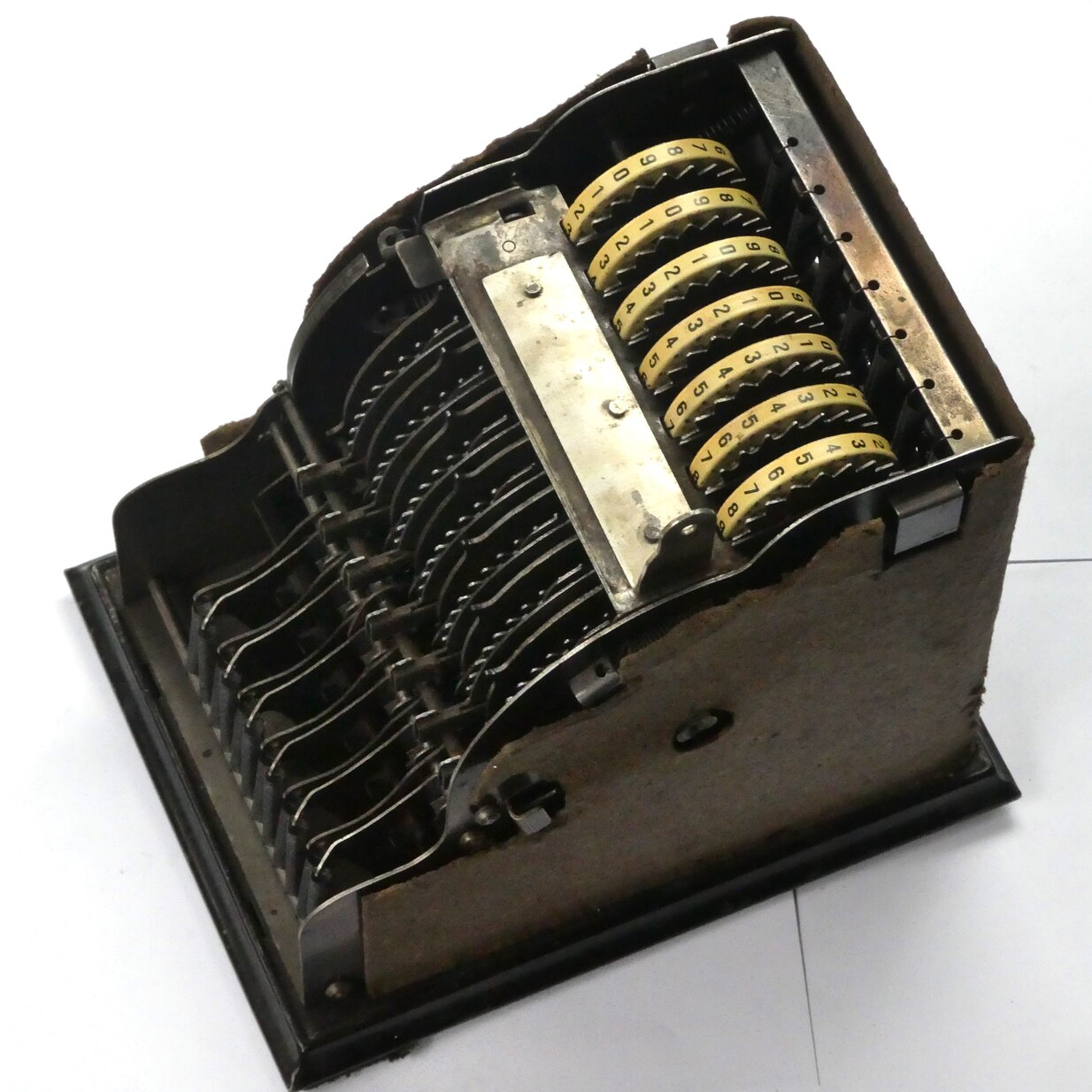

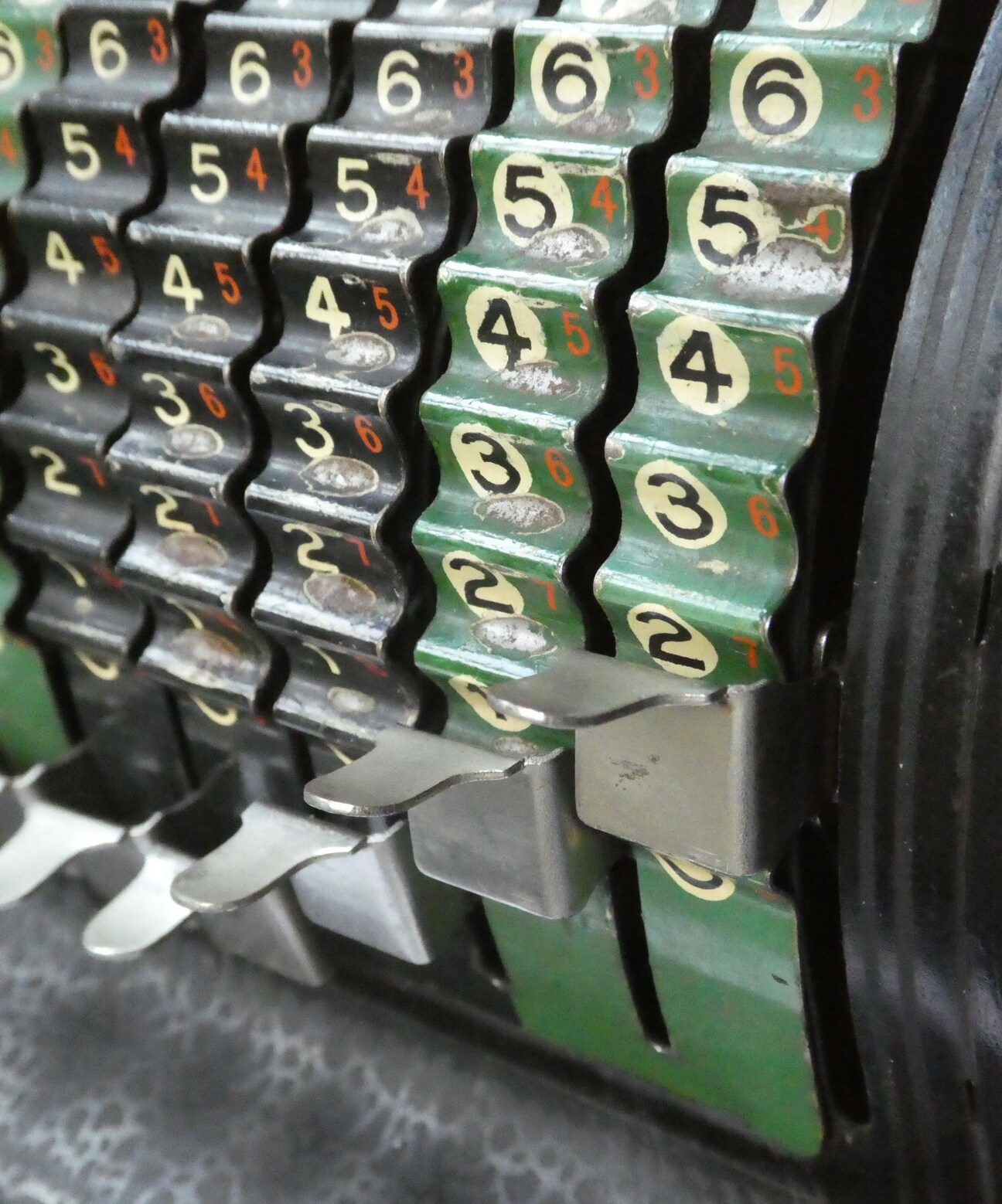

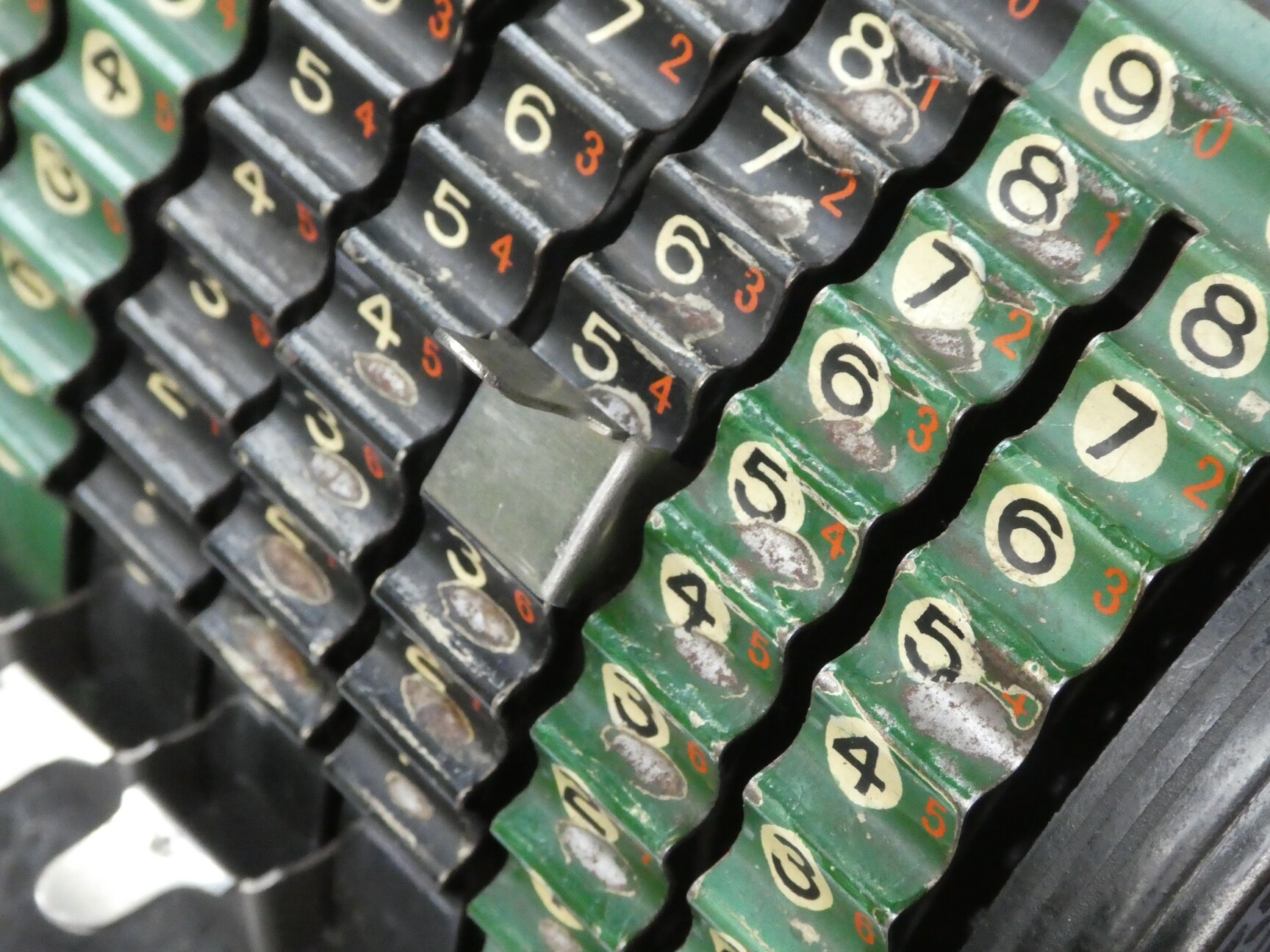

This adding machine looks like a small cash register. It has a 7-digit register at the top, with corresponding input levers in front of that. The input method is somewhat unusual. The part of the metal case along each lever's slot is corrugated, with the indentations numbered from 1 to 9. You put your forefinger into the indentation of the digit you want, and use your thumb to lift up the lever until it reaches the forefinger. According to the patent, this pinching motion is faster and more accurate than other input methods.

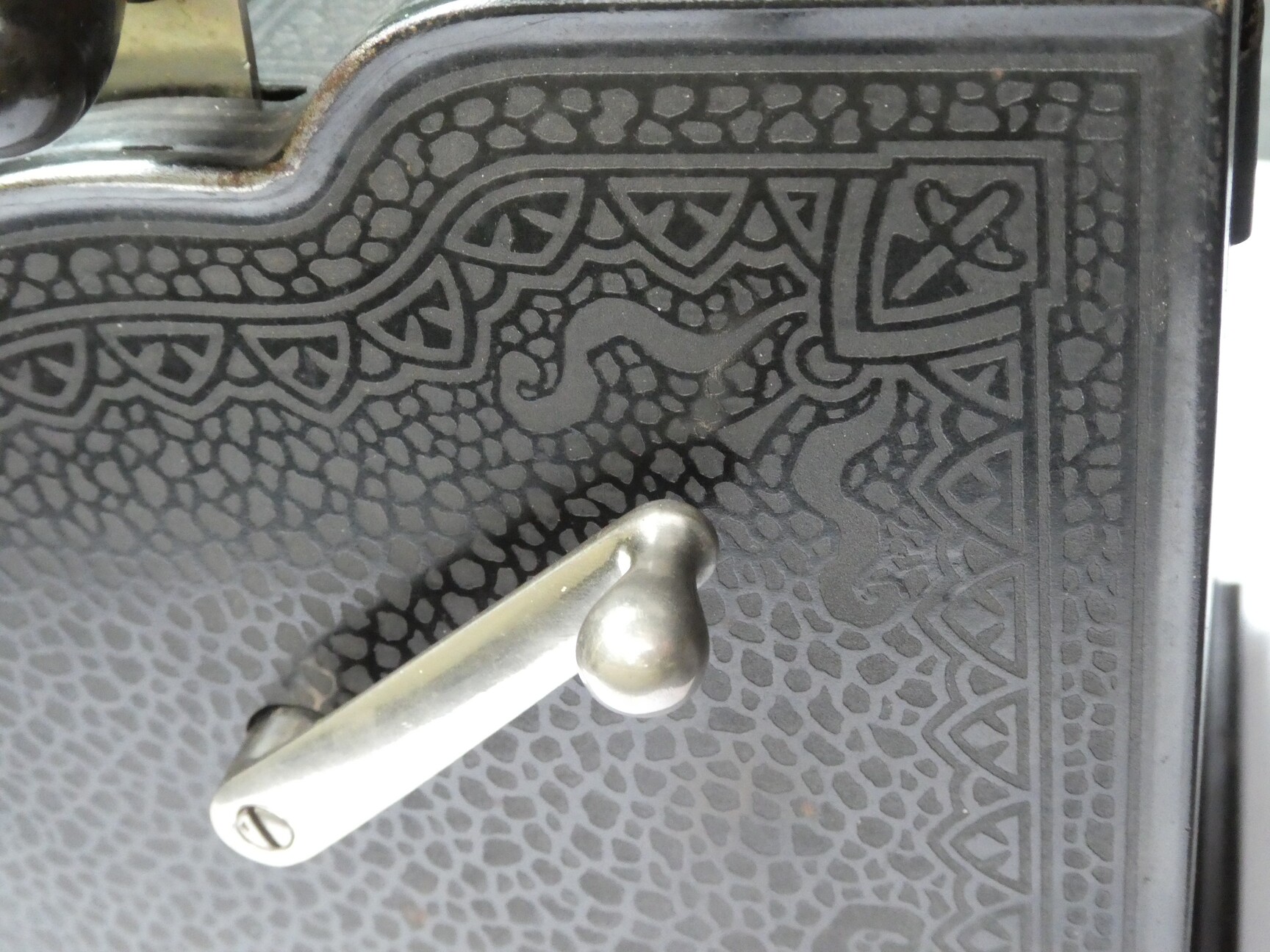

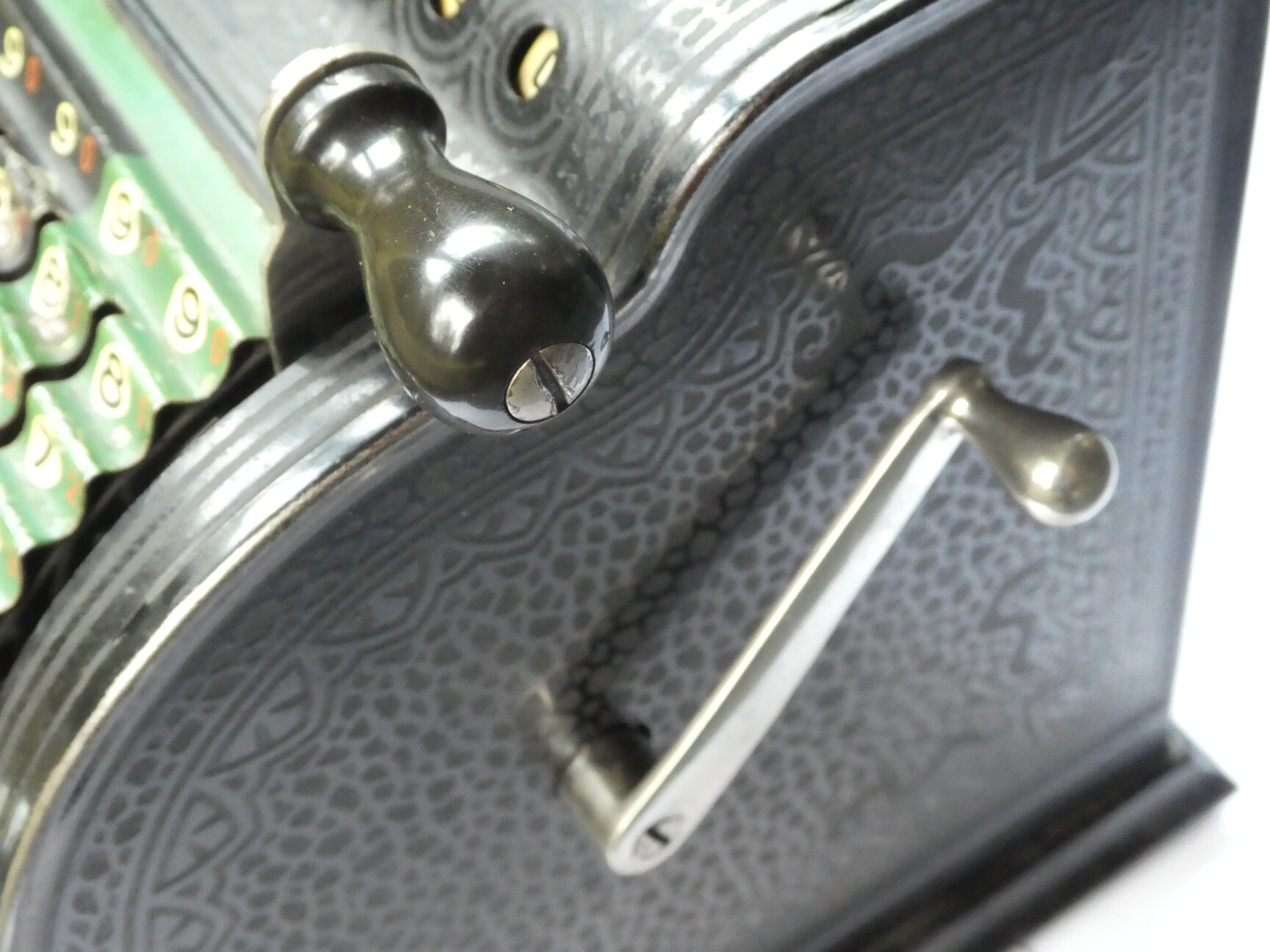

When a number has been inputted, it is added by pulling the large lever forward. This also resets the input levers. The input levers can be reset without adding with the small lever on the side of the machine. To clear the register, pull the adding lever when no input has been set.

American Adding Machine
American Adding Machine
American Adding Machine
American Adding Machine
American Adding Machine
American Adding Machine
American Adding Machine
American Adding Machine
American Adding Machine
American Adding Machine
American Adding Machine
American Adding Machine
American Adding Machine
American Adding Machine
American Adding Machine
American Adding Machine

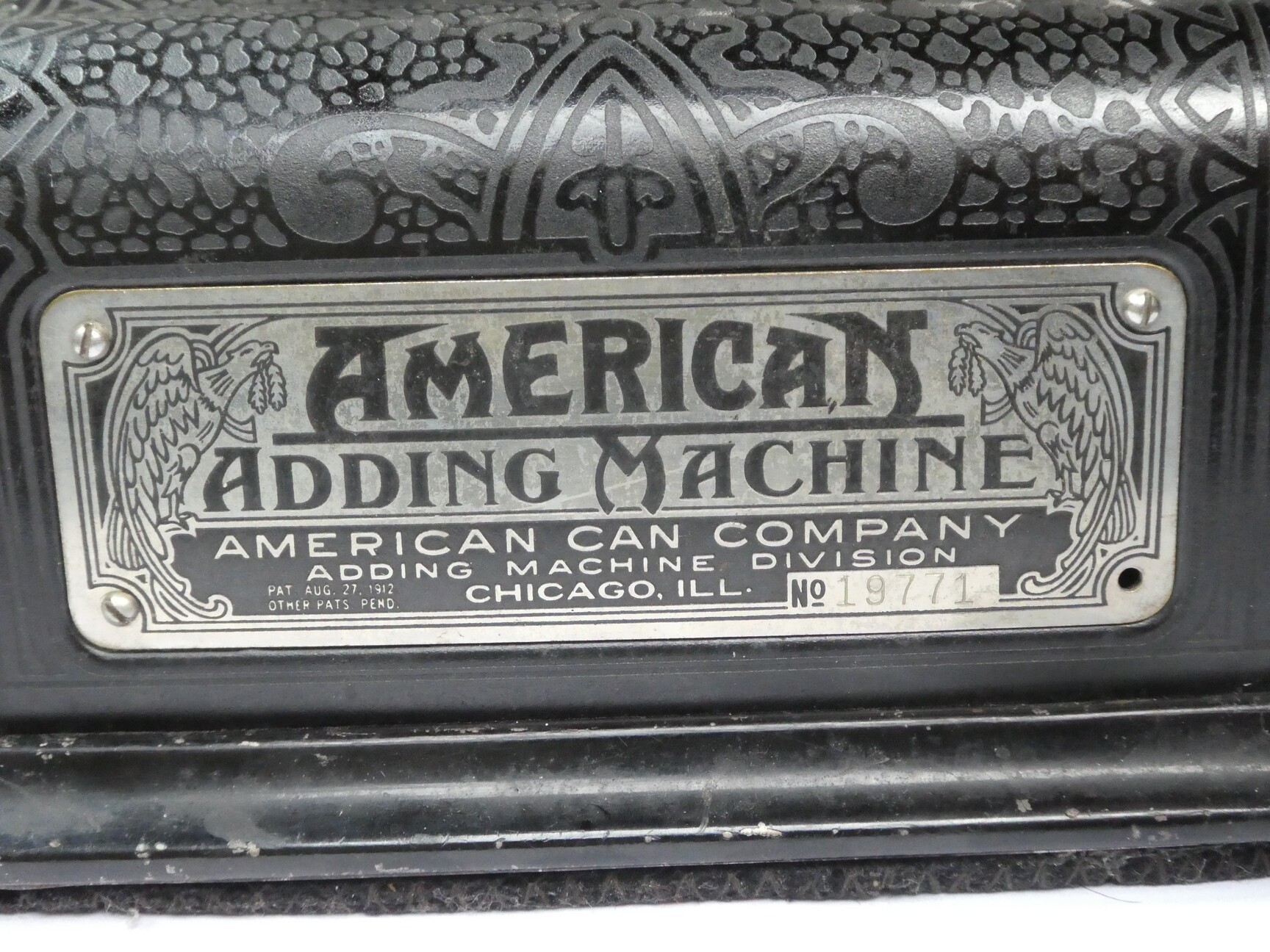

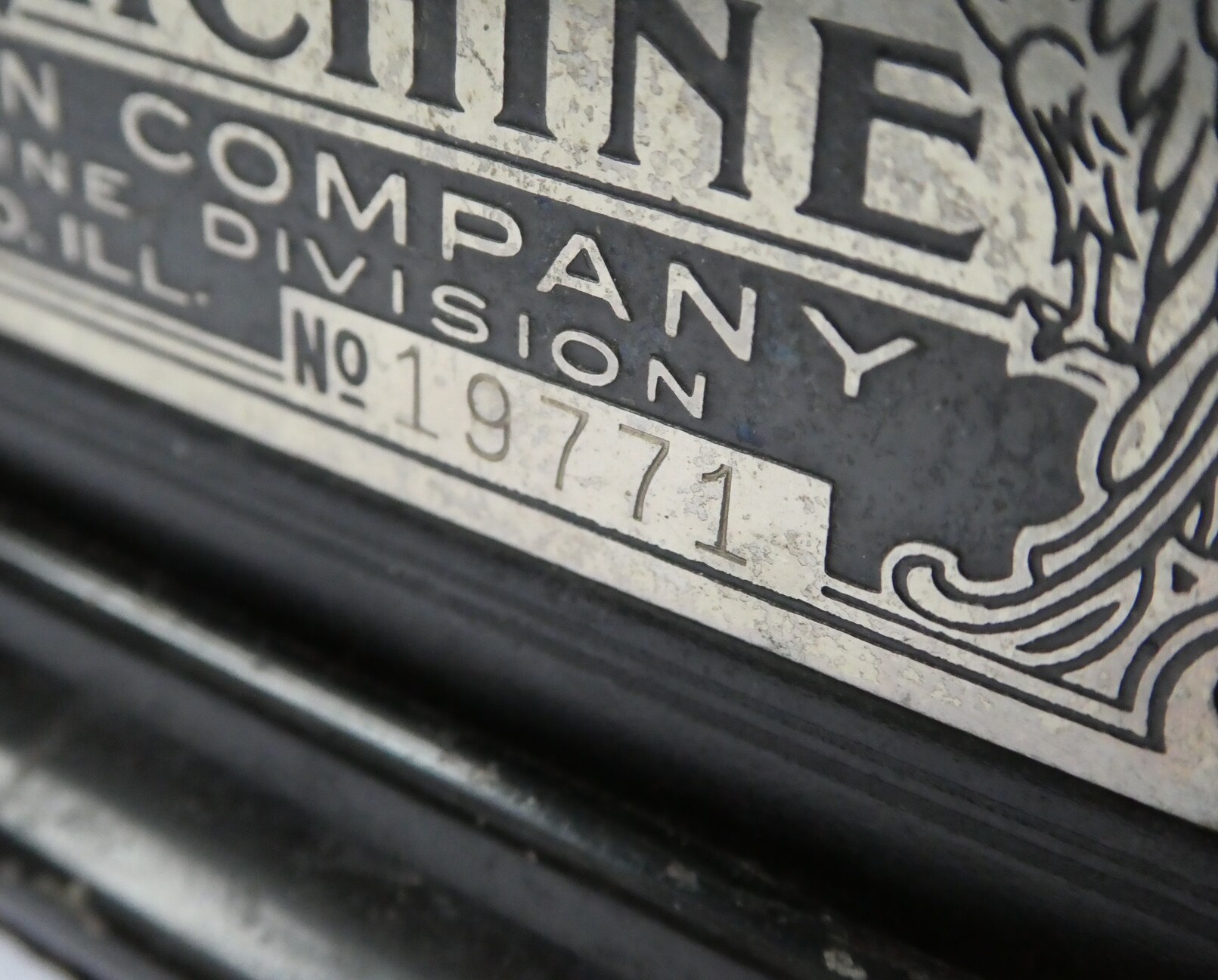

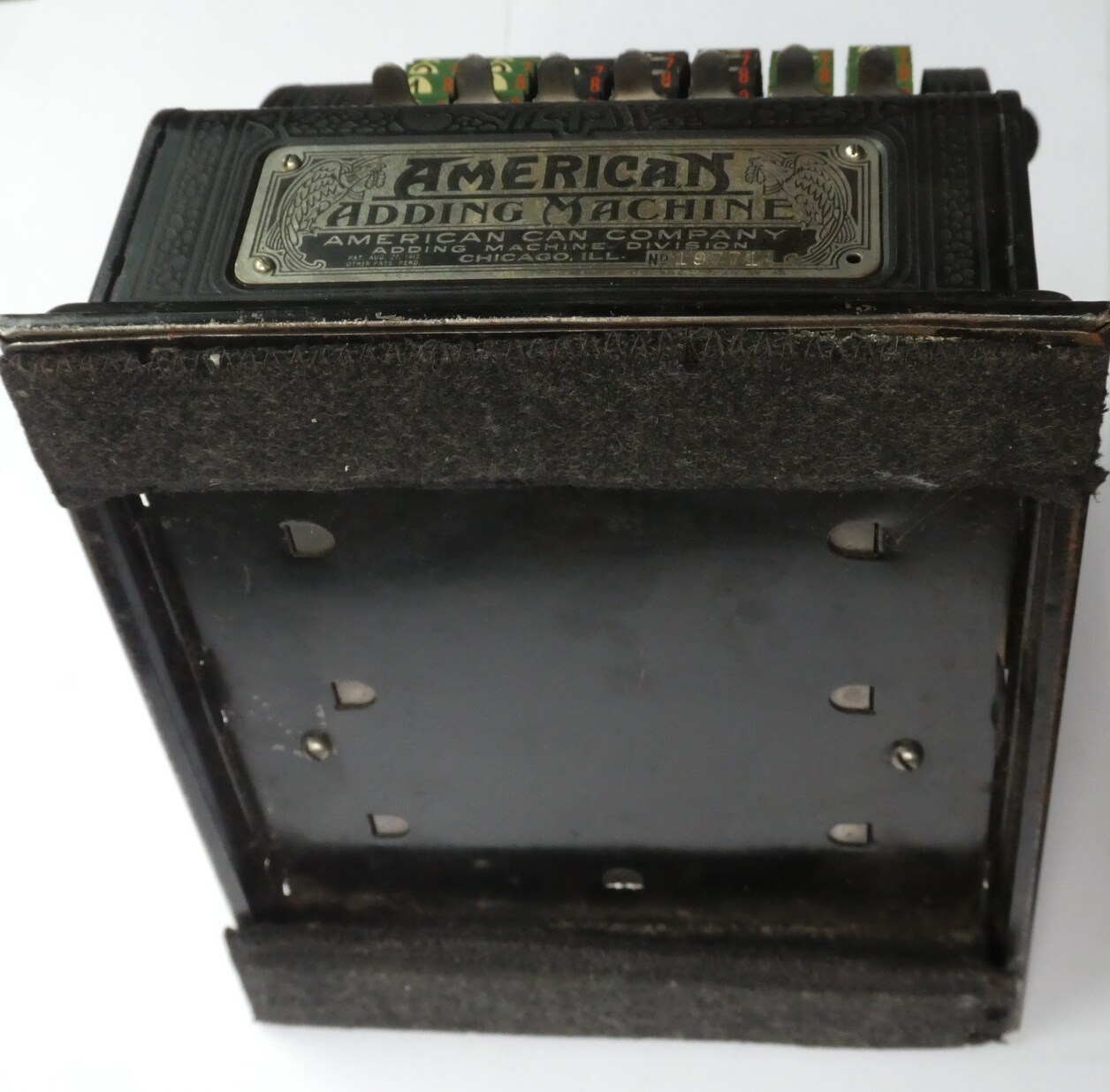

The writing on front plaque is "AMERICAN ADDING MACHINE, AMERICAN CAN COMPANY, ADDING MACHINE DIVISION, CHICAGO, ILL.", and shows the serial number 19771. It also lists the patent date Aug. 27, 1912. The serial number indicates this machine was made in 1914 or 1915.

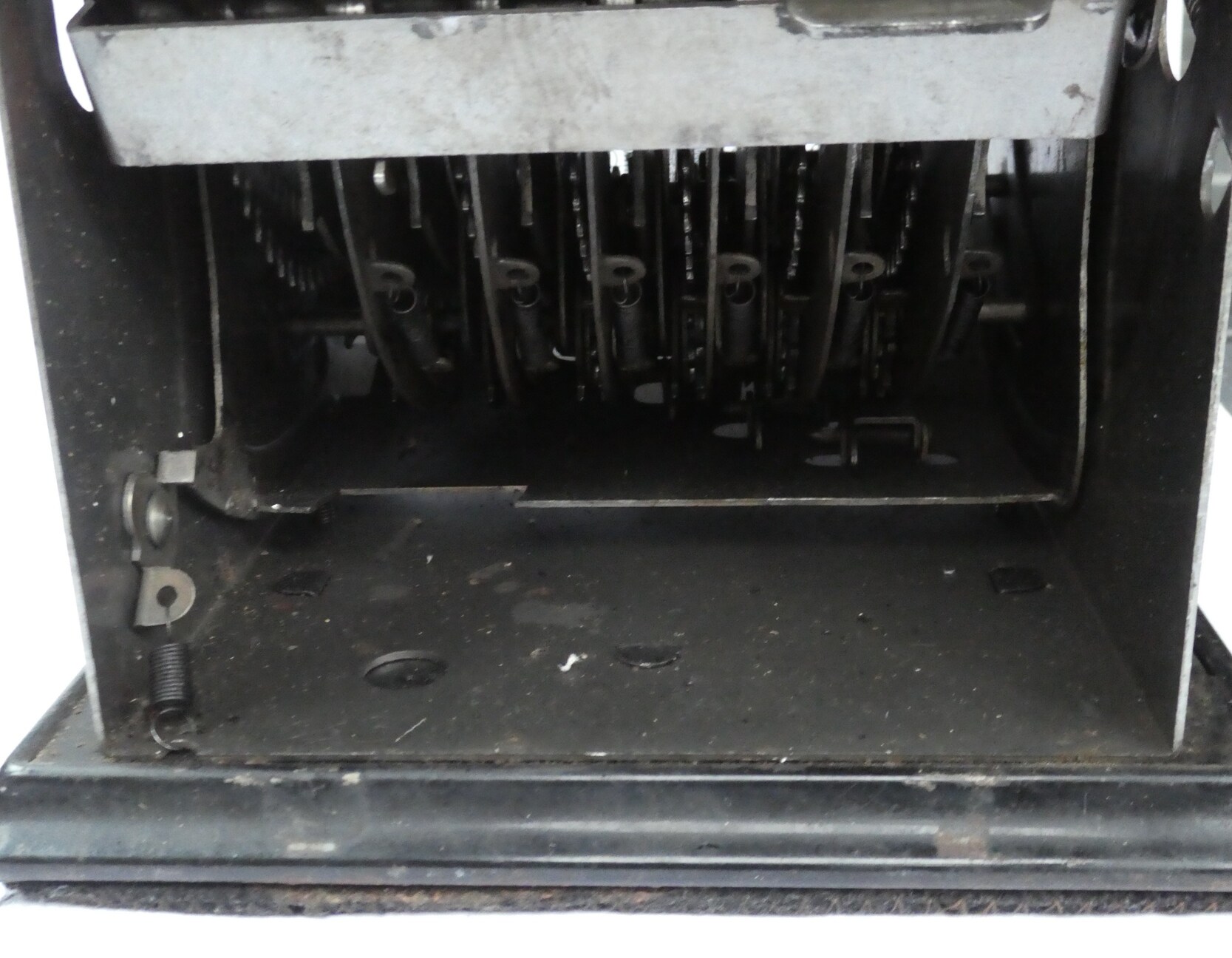

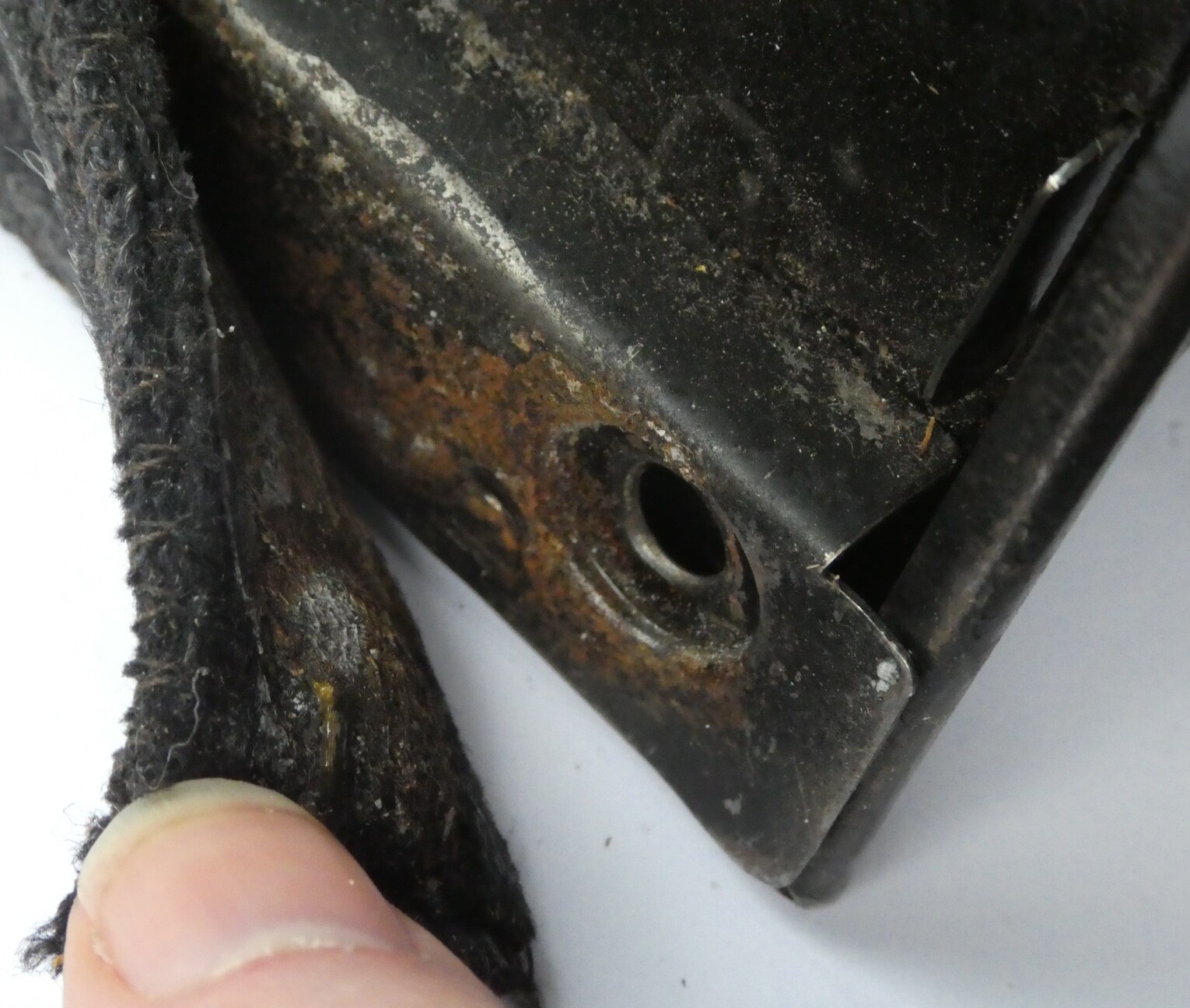

It is missing its original rubber feet, and two felt strips have been glued on instead. There should also be two small metal plates screwed to the bottom that keep the case locked in place.

American Adding Machine
American Adding Machine
American Adding Machine
American Adding Machine
American Adding Machine
American Adding Machine
American Adding Machine
American Adding Machine
American Adding Machine
American Adding Machine
American Adding Machine
American Adding Machine
American Adding Machine
American Adding Machine
American Adding Machine
American Adding Machine
American Adding Machine
American Adding Machine



Video

Below is a video I made that demonstrates the American Adding Machine.


History

Jervis R. Harbeck started his professional career at the turn of the century, running his father's mine. A few years later it was sold, and he used this money to enter the packaging industry by buying an interest in the Gem Fibre Package Company. During the rest of the decade he was granted many patents, which were assigned to the company. Many of them pertain to making cardboard tube cans with tin metal ends (somewhat like a Pringles tube). The company was renamed the Kemiweld Can Company, and in 1911 was sold to the American Can Company. There Harbeck was appointed the president of the subsidiary Charles W. Shonk company in 1911.

The Charles W. Shonk Company was a manufacturing company that made lithographed metal items such as advertising signs and beer trays. William M. Holloway worked there and designed a small coin bank with a counting mechanism that recognises the inserted coins, registers the total, and only unlocks when 10 dollars had been reached. This has some similarities to an adding machine, and it is possible this was the inspiration to make it. Holloway designed the internal mechanism, and Harbeck designed the input method. Their patents were assigned to the Charles W. Shonk Company, but apparently it was considered better to use the parent company to brand the adding machine.

A separate Adding Machine Division was set up which released the American Adding Machine in 1913 for $35. By the end of the year they were making 100 of them every day. Over the next several years, further models were developed, including ones with a printing mechanism.

Jervis Harbeck became a vice president of the American Can Company. This was not his only job, as he also pursued his interest in car engines, becoming president of the Duesenberg Motor Corporation until that was sold to Willys (Duesenberg moved to Indianapolis to start making luxury cars instead of engines and racecars). Harbeck left the American Can Company in 1922 for other pursuits, after which the company lost interest in adding machines. Their adding machine division was sold to rights to the Add-Index Corporation, who mostly made the cash register version. The American Adding Machine Company made the non-printing version only with rapidly diminishing success.


Models

The first generation of American Adding Machine, of which mine is one, was retroactively named model 0. After a few years it was slightly upgraded to the model 00 which has an extra digit in the register (8 digit register, still 7 digits of input) and a repetition counter. This is a single digit counter at the front left which is incremented with every addition, and activated by a lever on the left. This was replaced by the model 5, which is functionally identical, but has a smooth black finish and red input levers.

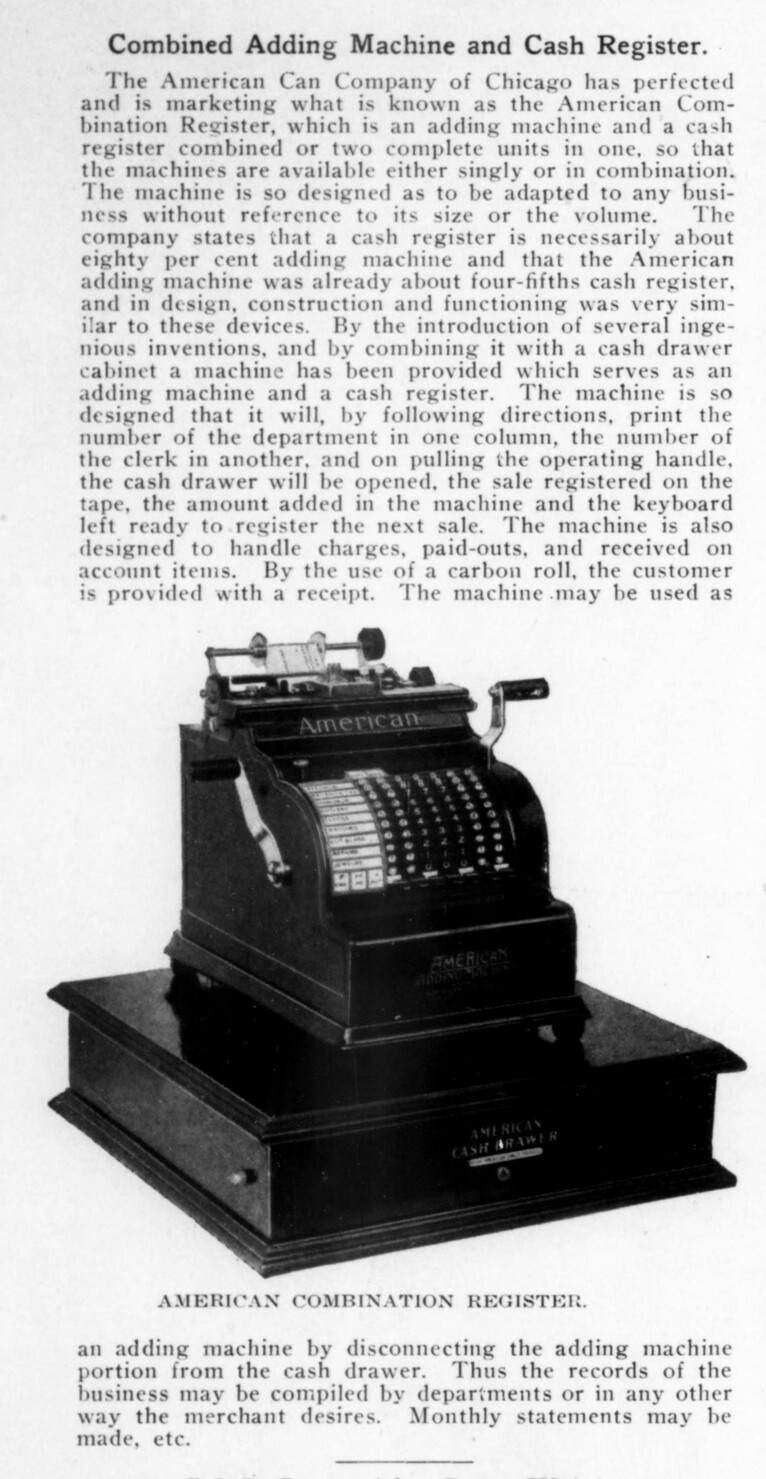

They also developed a version that prints the results - first models 1 and 3 (it is unclear what the differences are, and whether there was ever a model 2) and then the model 4. The latter has the same smooth finish and red keys as the non-listing model 5. Model 4 was also available with a cash drawer for use as a till.

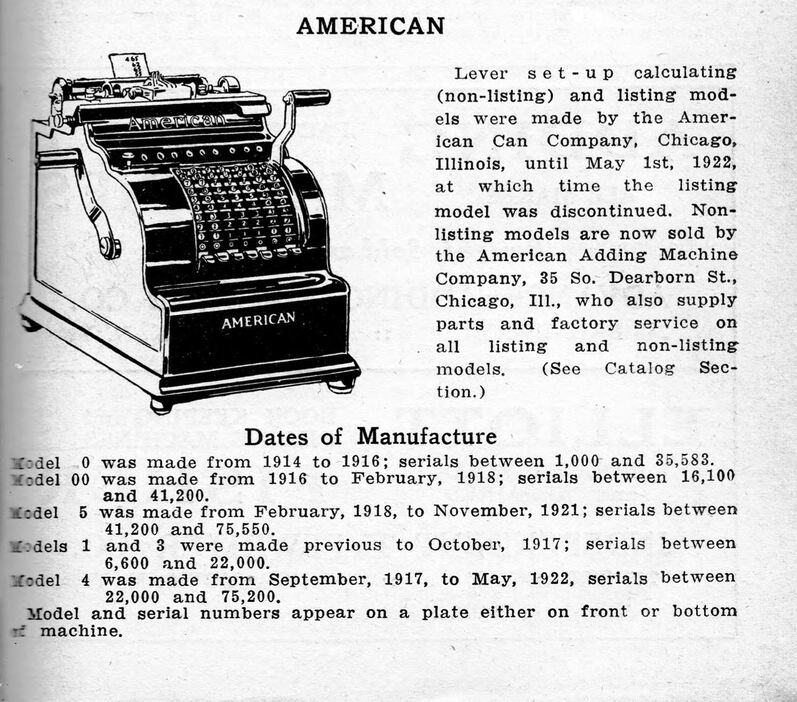

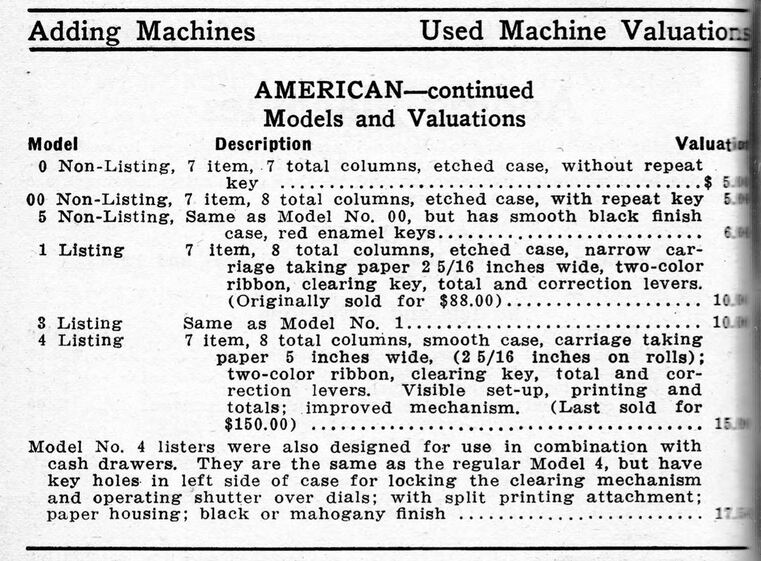

The dates and serial numbers in the table below are taken from the American Digest of Business Machines of 1924, and pertain only to the machines made by the American Can Company. They stopped production in May 1922 and sold the rights to the Add-Index Corporation, which made the cash register version of the model 4, and the American Adding Machine Company, which only produced the model 5. I do not know if they continued the numbering, nor how many they made.

ModelDateSerial No.Description
Non-listing
01914-19161,000-35,5837-digit register, patterned finish, bare metal input levers
001916-02-191816,100-41,2008-digit register, repeat lever, patterned finish, bare metal input levers
502-1918-11-192141,200-75,5508-digit register, repeat lever, smooth finish, red input levers
Listing
1, 3?-09-19176,600-22,0008-digit register, patterned finish, bare metal input levers
409-1917-05-192222,000-75,2008-digit register, smooth finish, red input levers

Articles

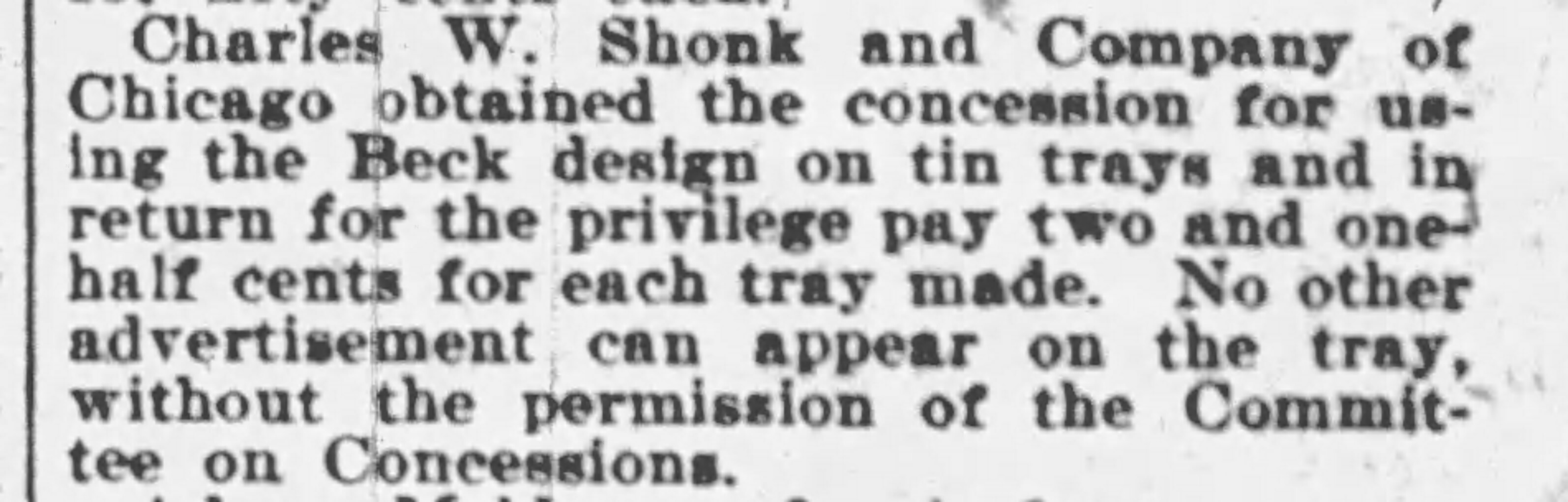

1899-09-19 Buffalo Courier (New York)

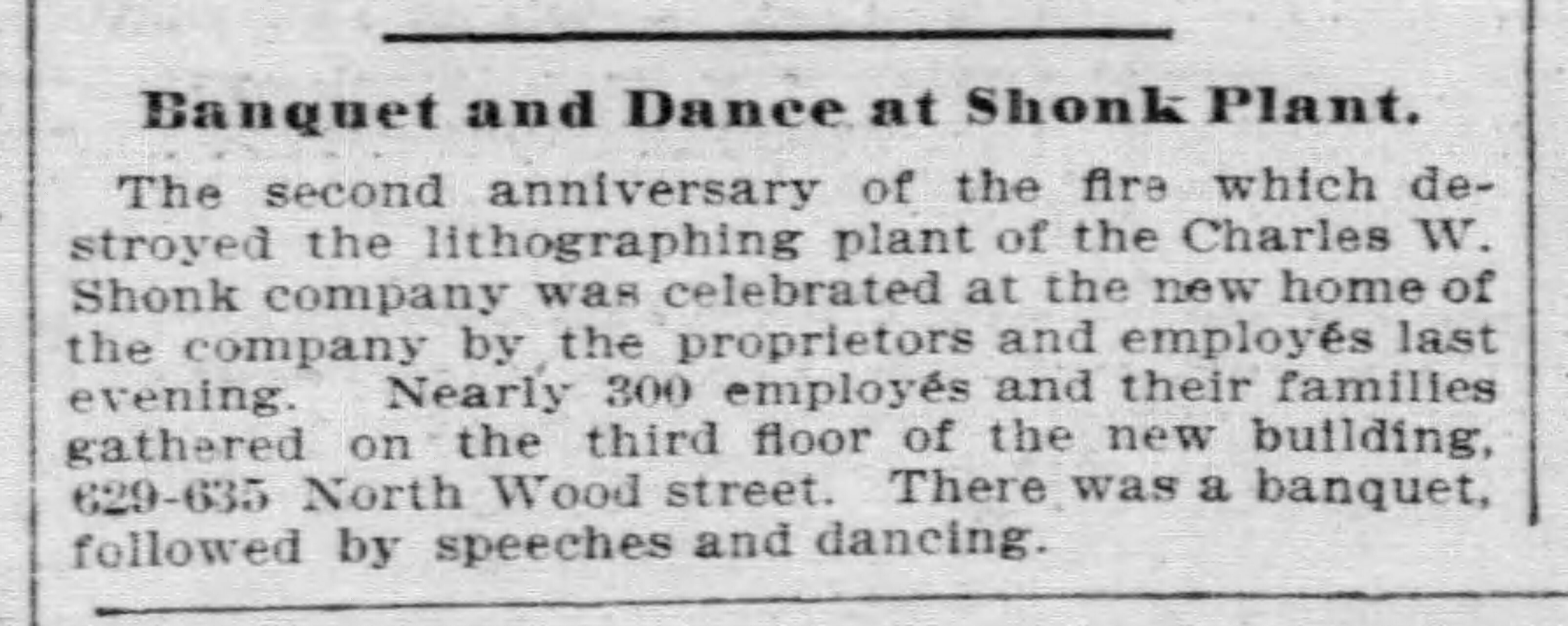

1901-11-10 Chicago Tribune (Illinois)

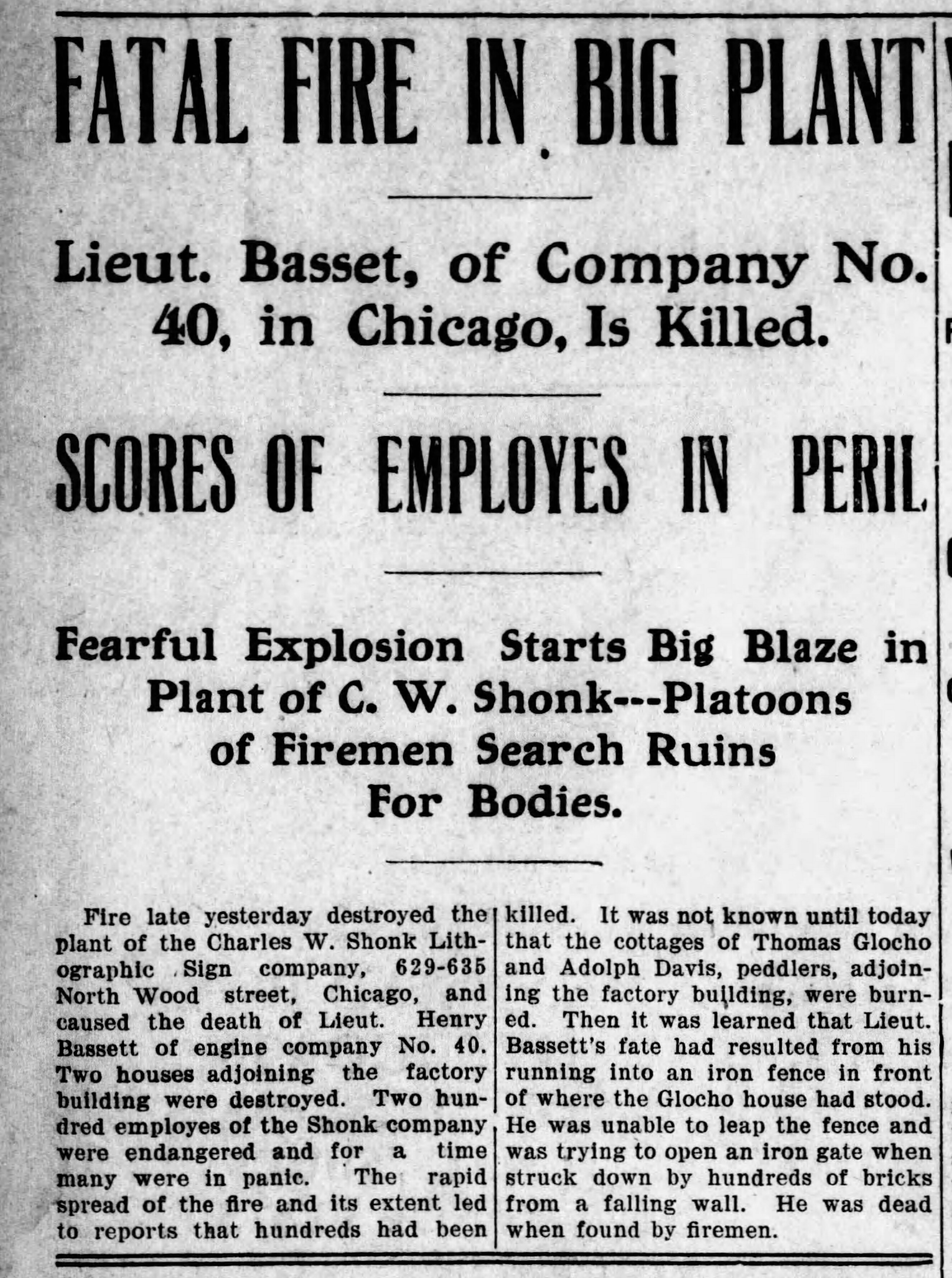

1905-12-20 The Joliet Evening Herald News (Illinois)

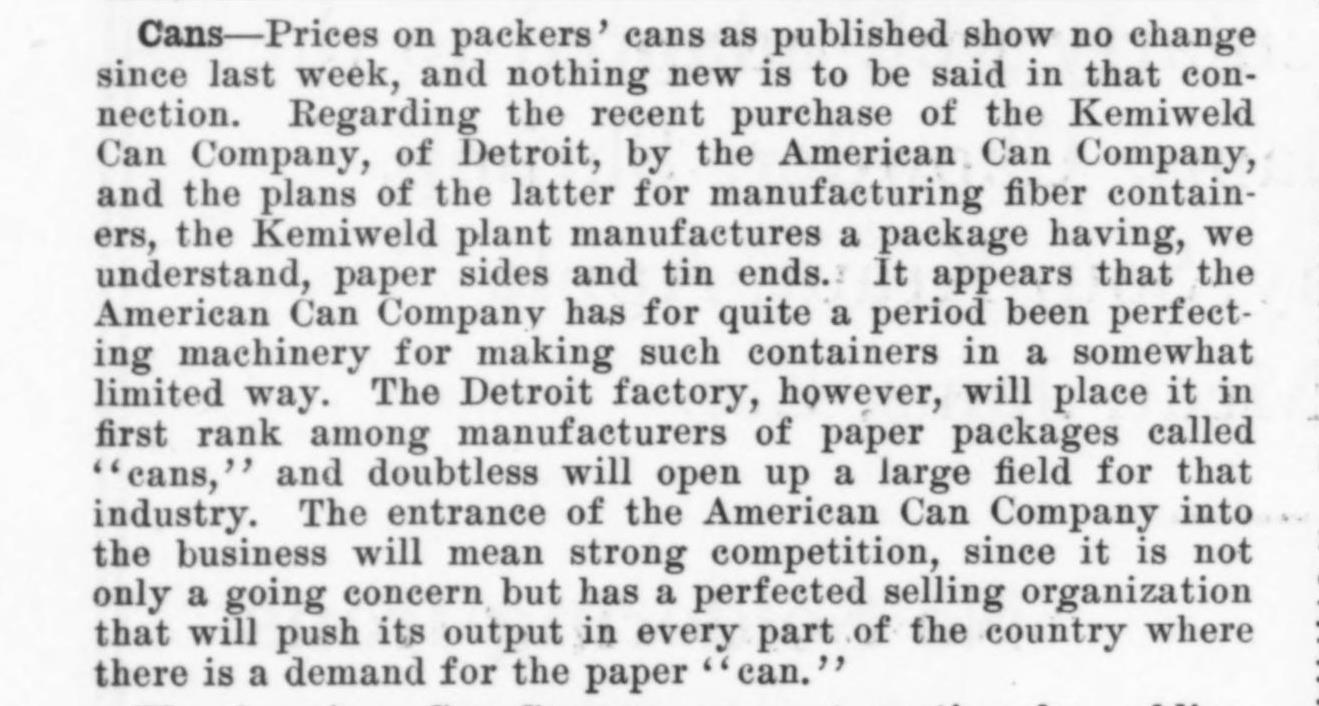

1910-03-10 Canner and Dried Fruit Packer

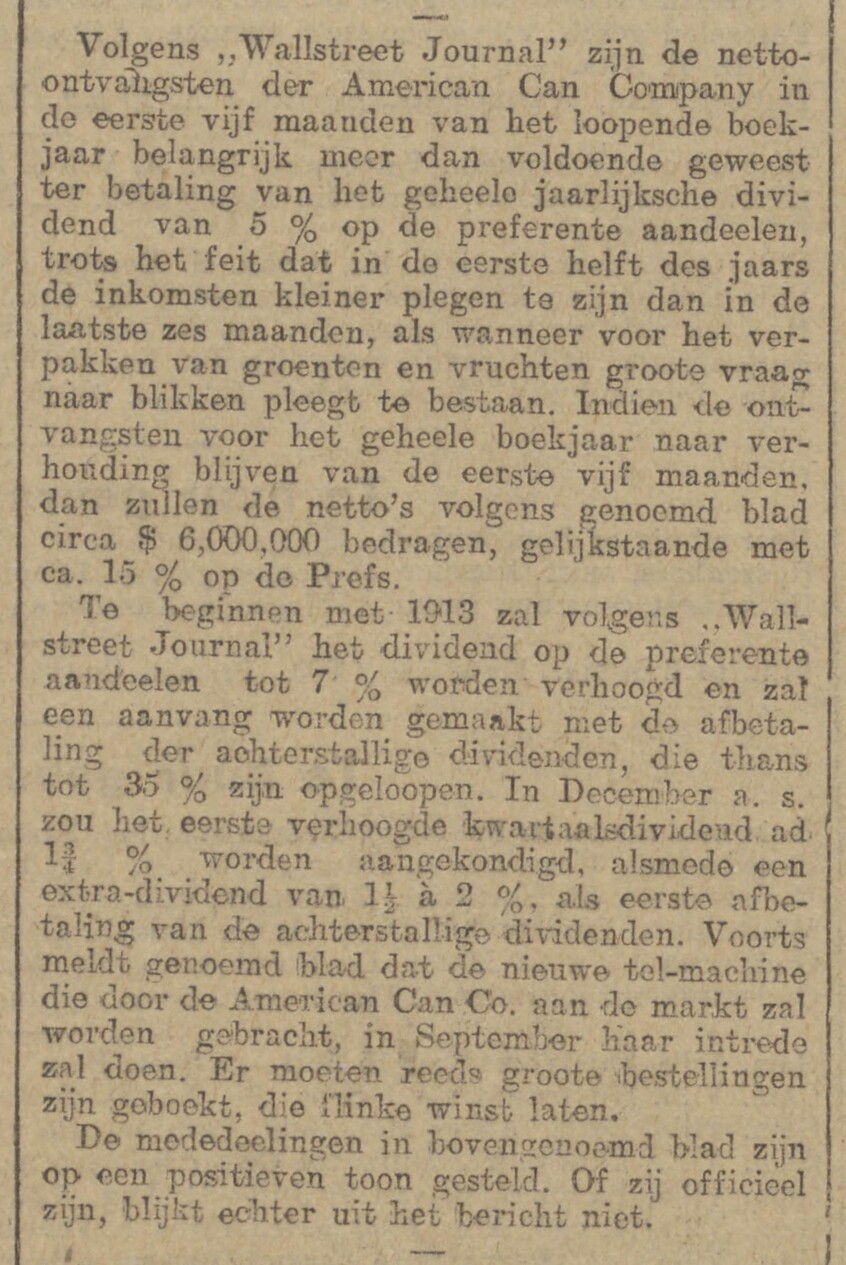

1912-07-18 Algemeen Handelsblad

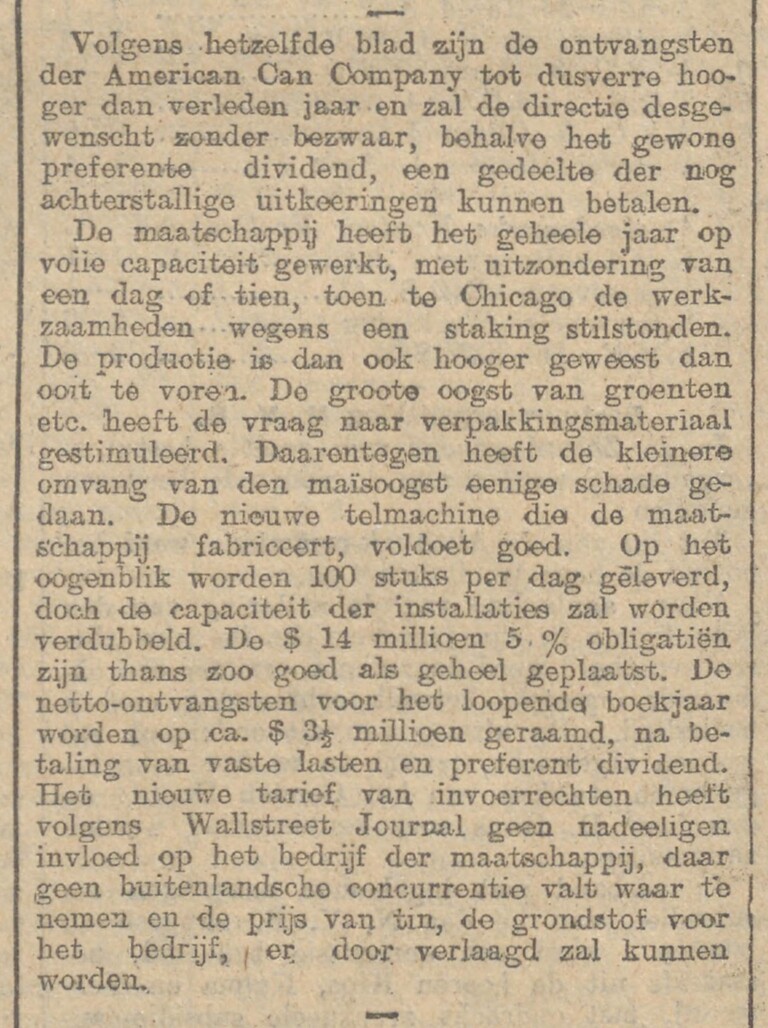

1913-11-24 Algemeen Handelsblad

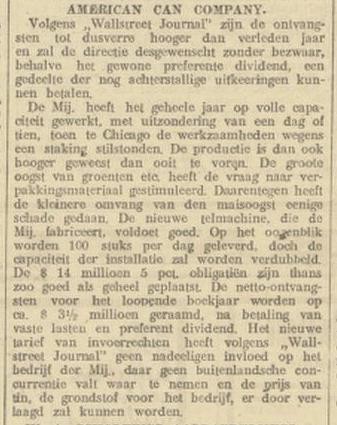

1913-11-25 De Maasbode - American Can Co

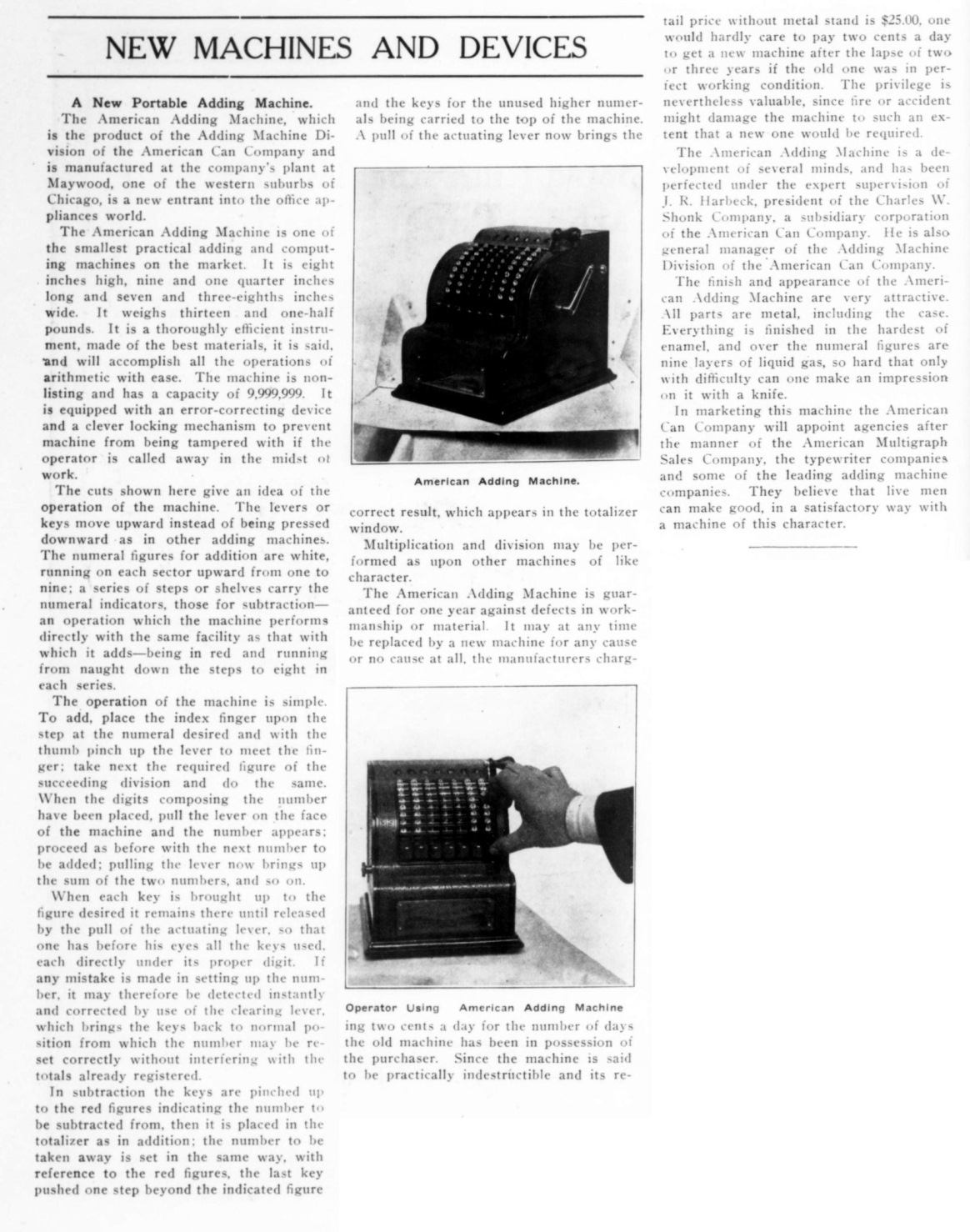

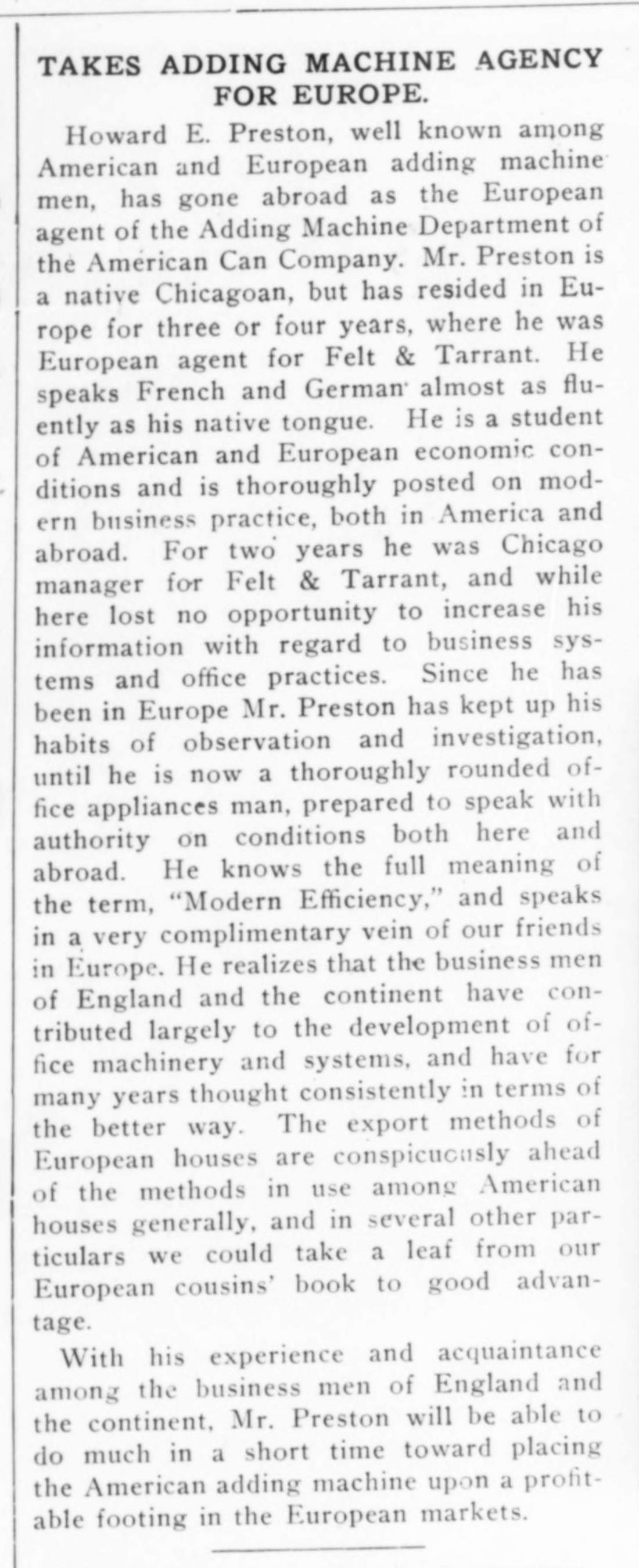

1913-12 Office Appliances 2

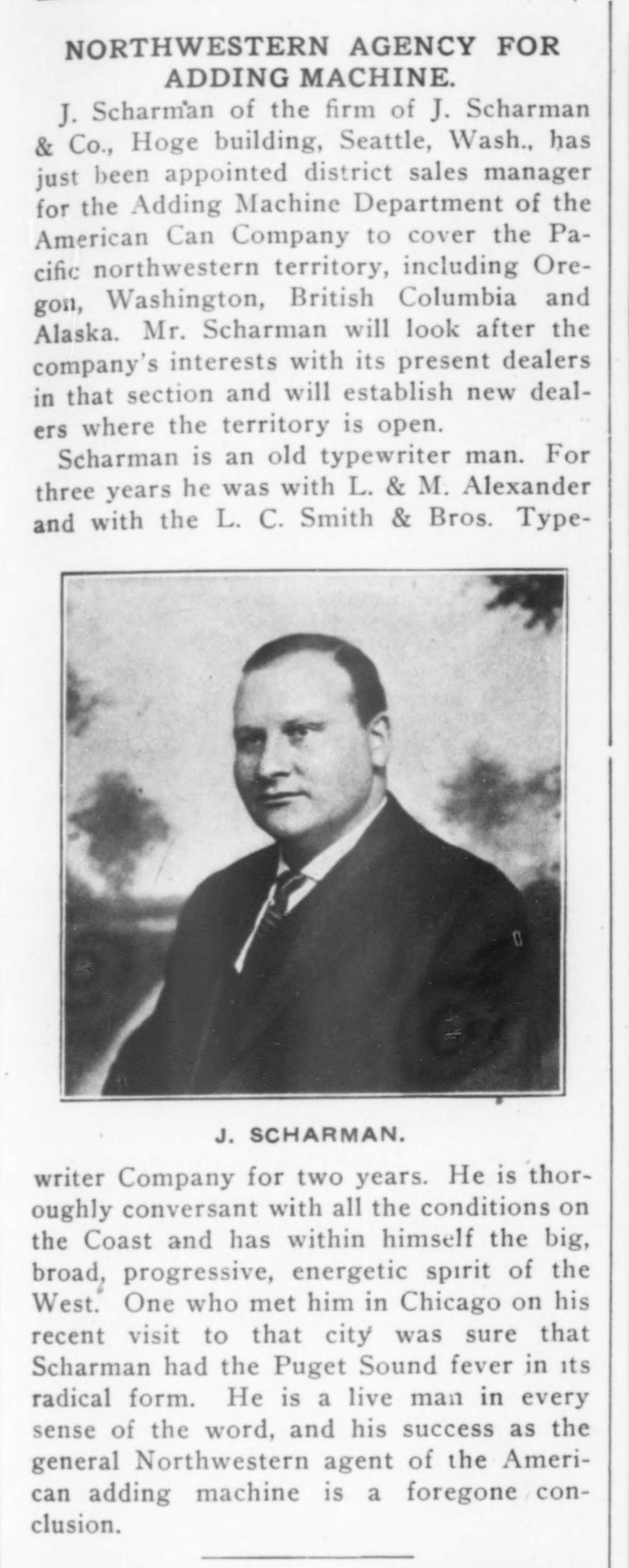

1913-12 Office Appliances 3

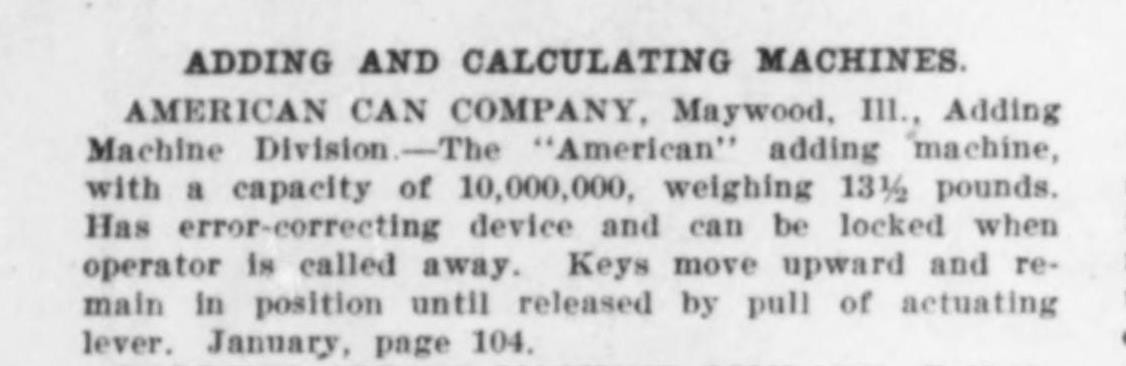

1913-12 Office Appliances 4

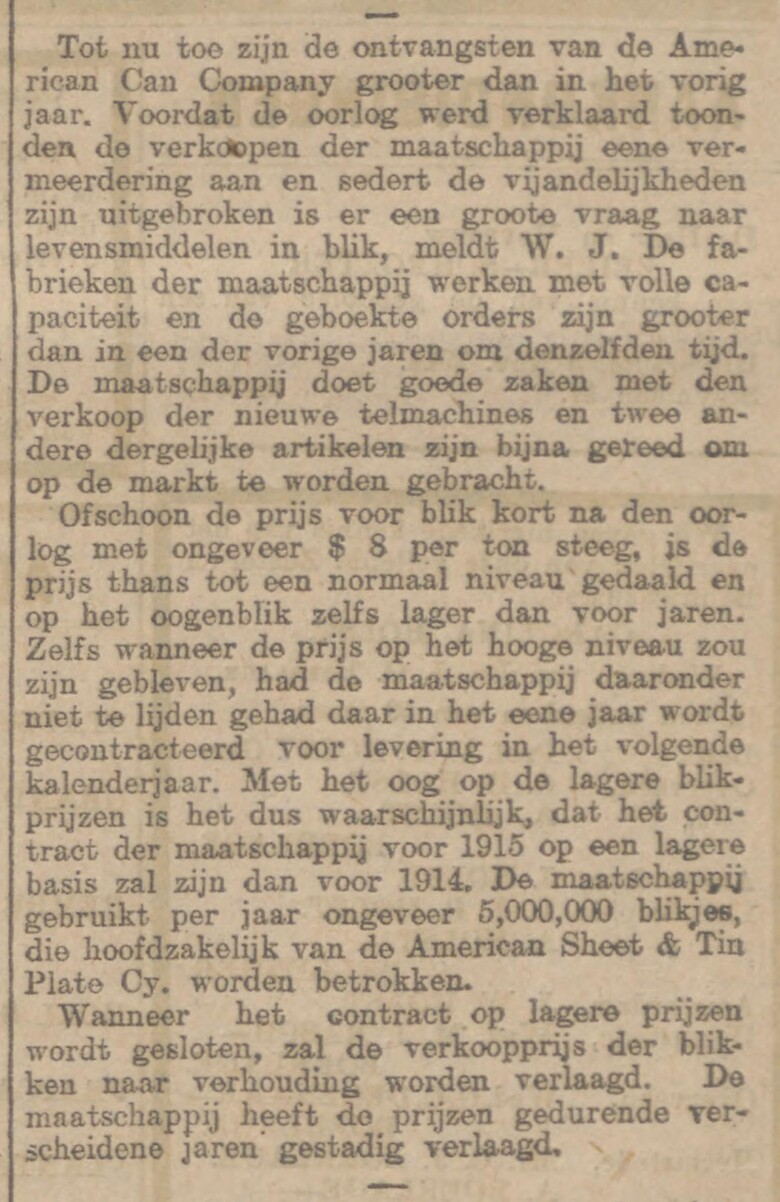

1914-11-04 Algemeen Handelsblad

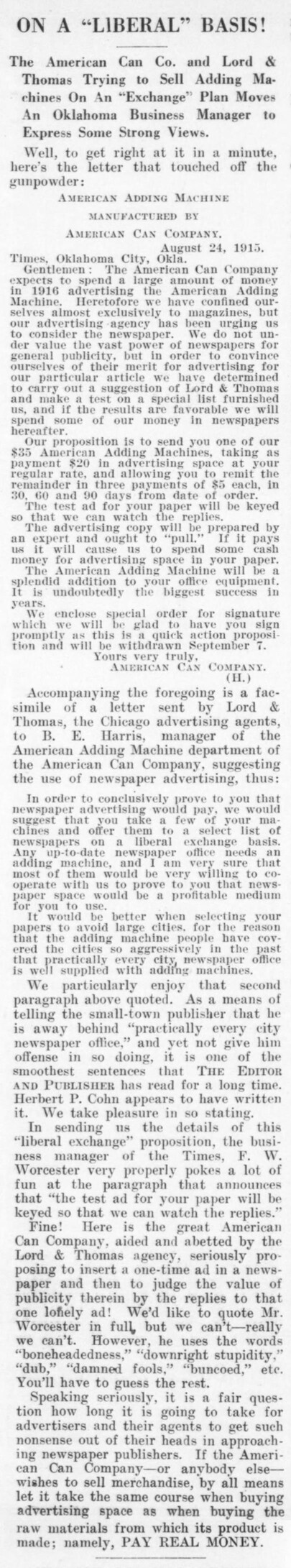

1915-09-11 The Editor and Publisher

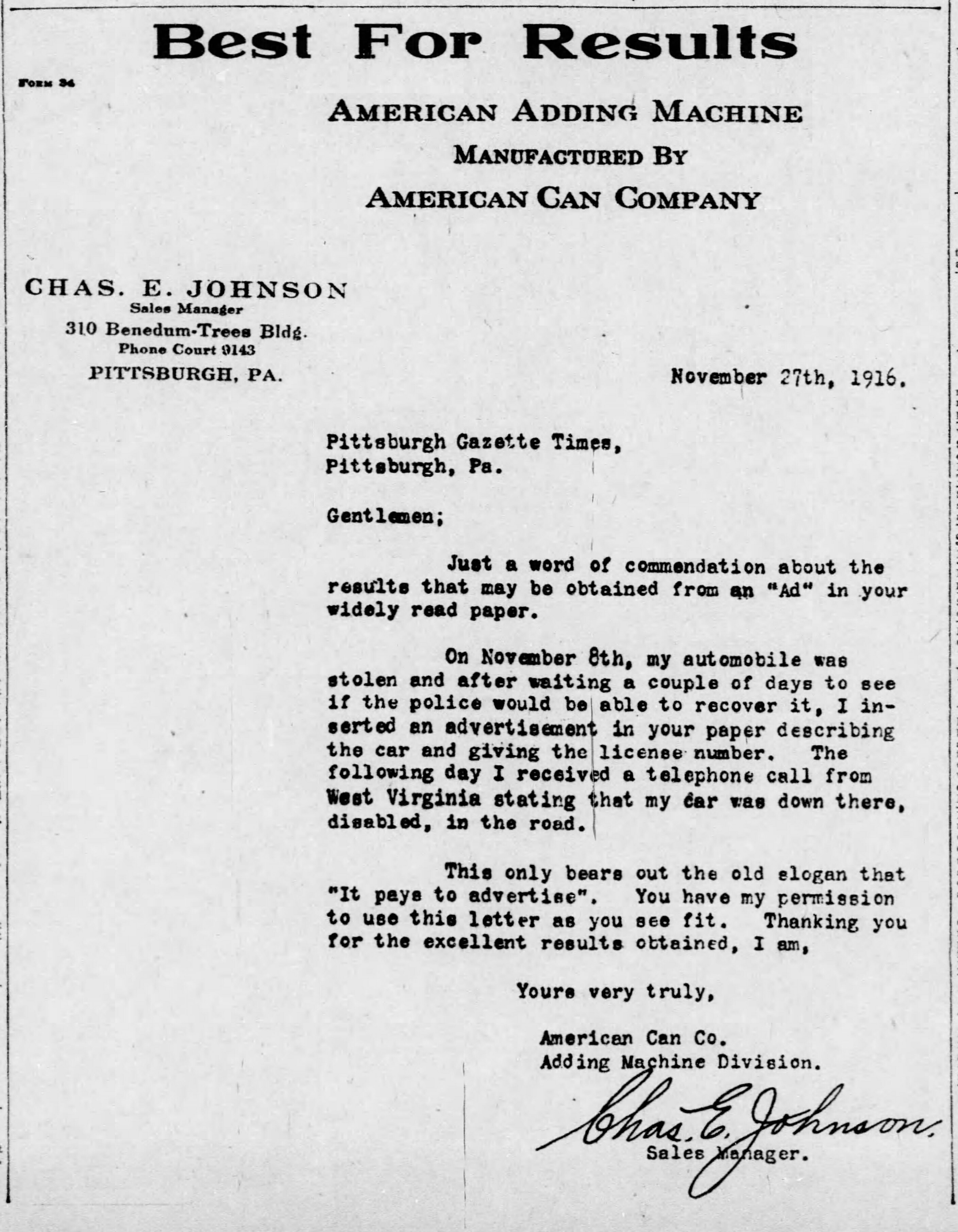

1916-11-29 Pittsburgh Post Gazette (Pennsylvania)

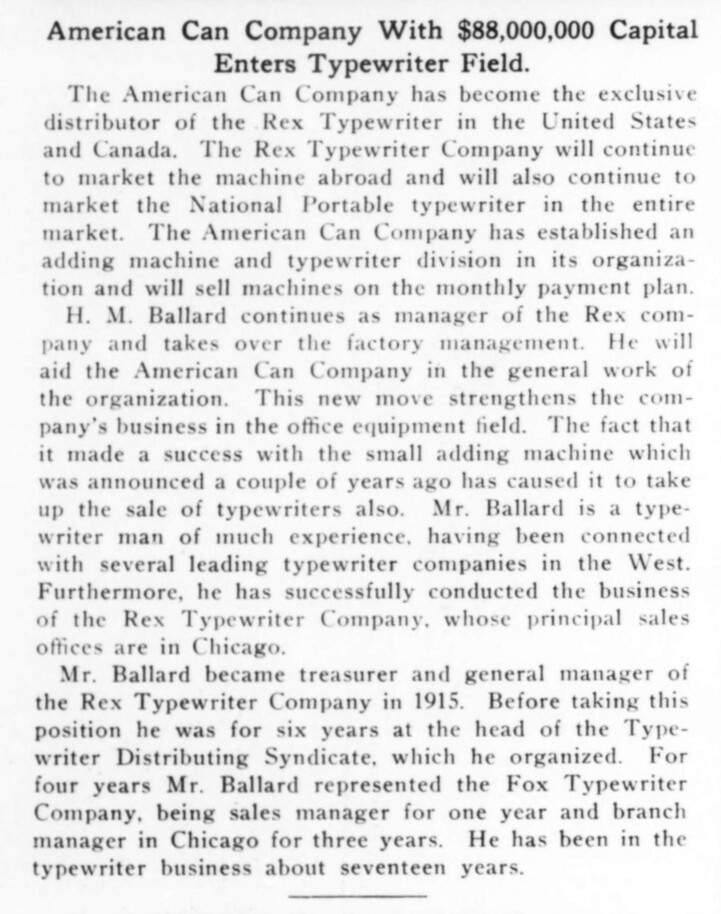

1917-12 Office Appliances

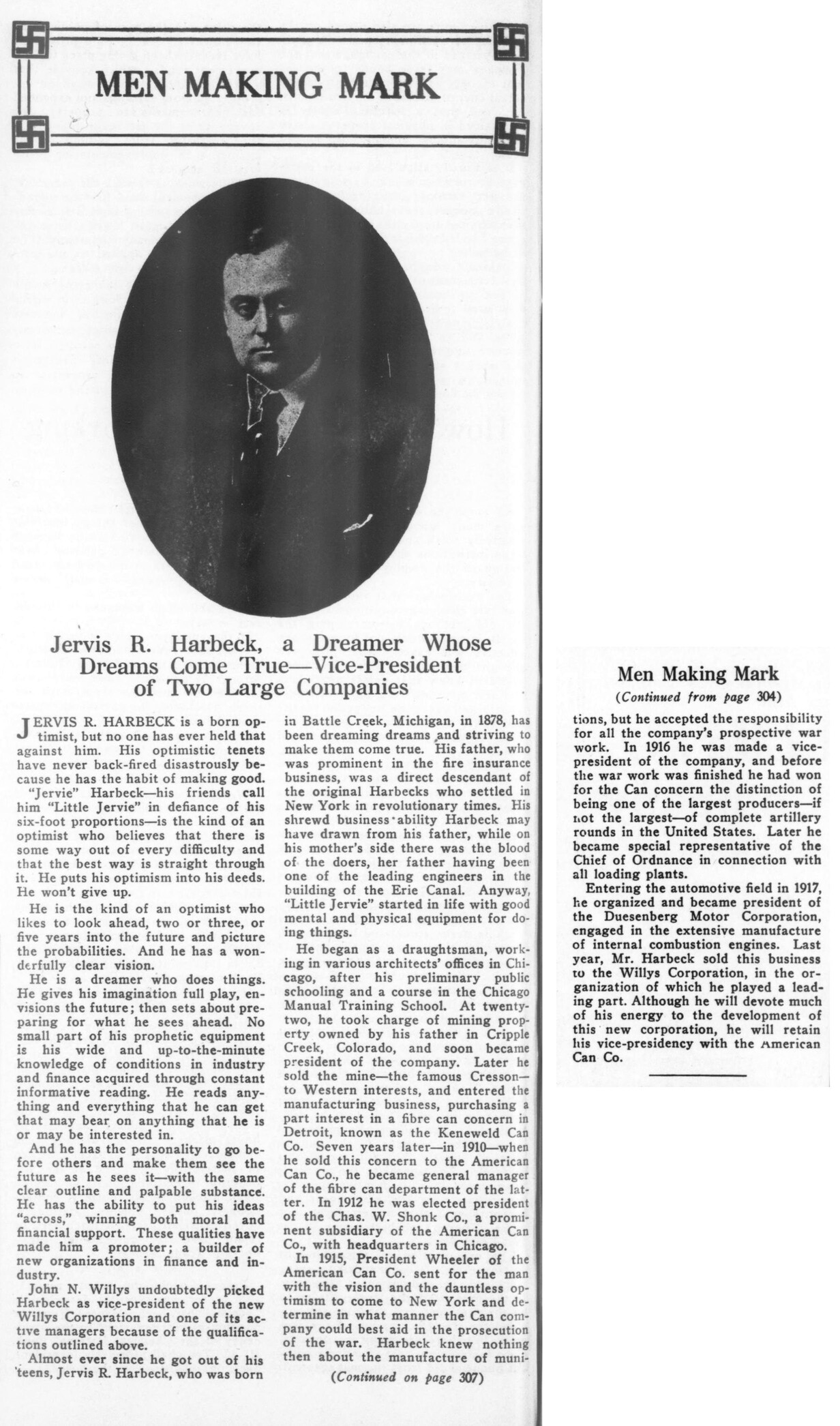

1920-02-07 Forbes
1920-06 Office Appliances

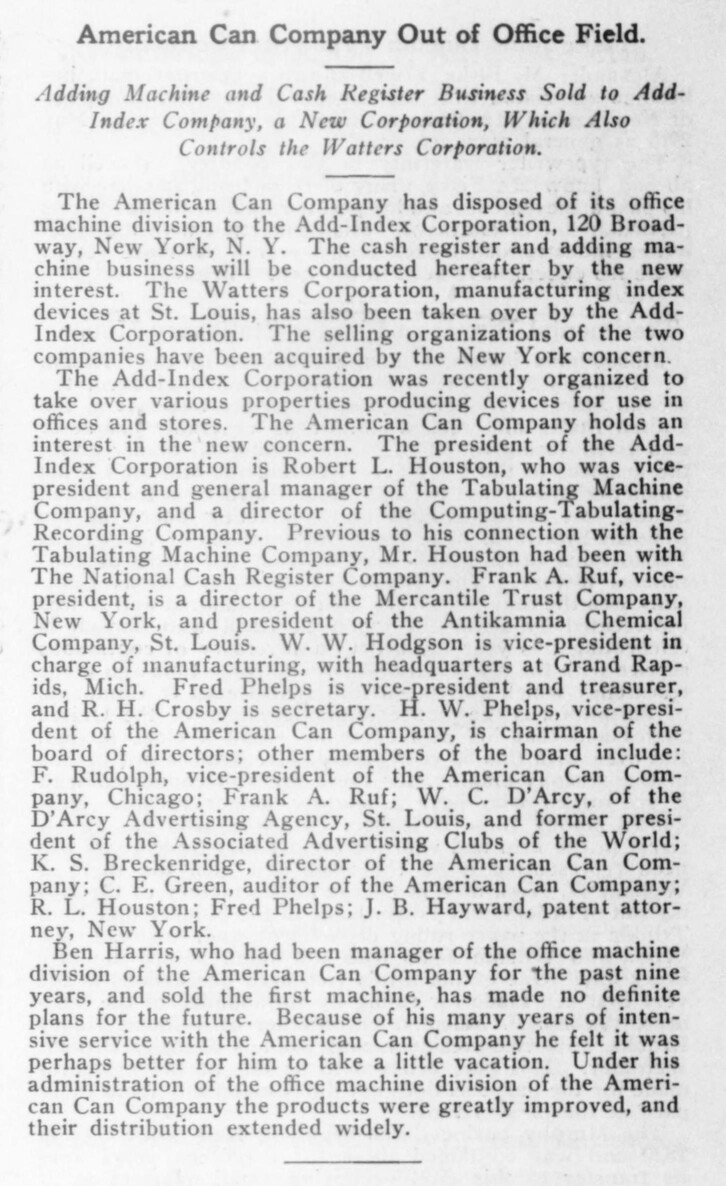

1922-06 Office Appliances

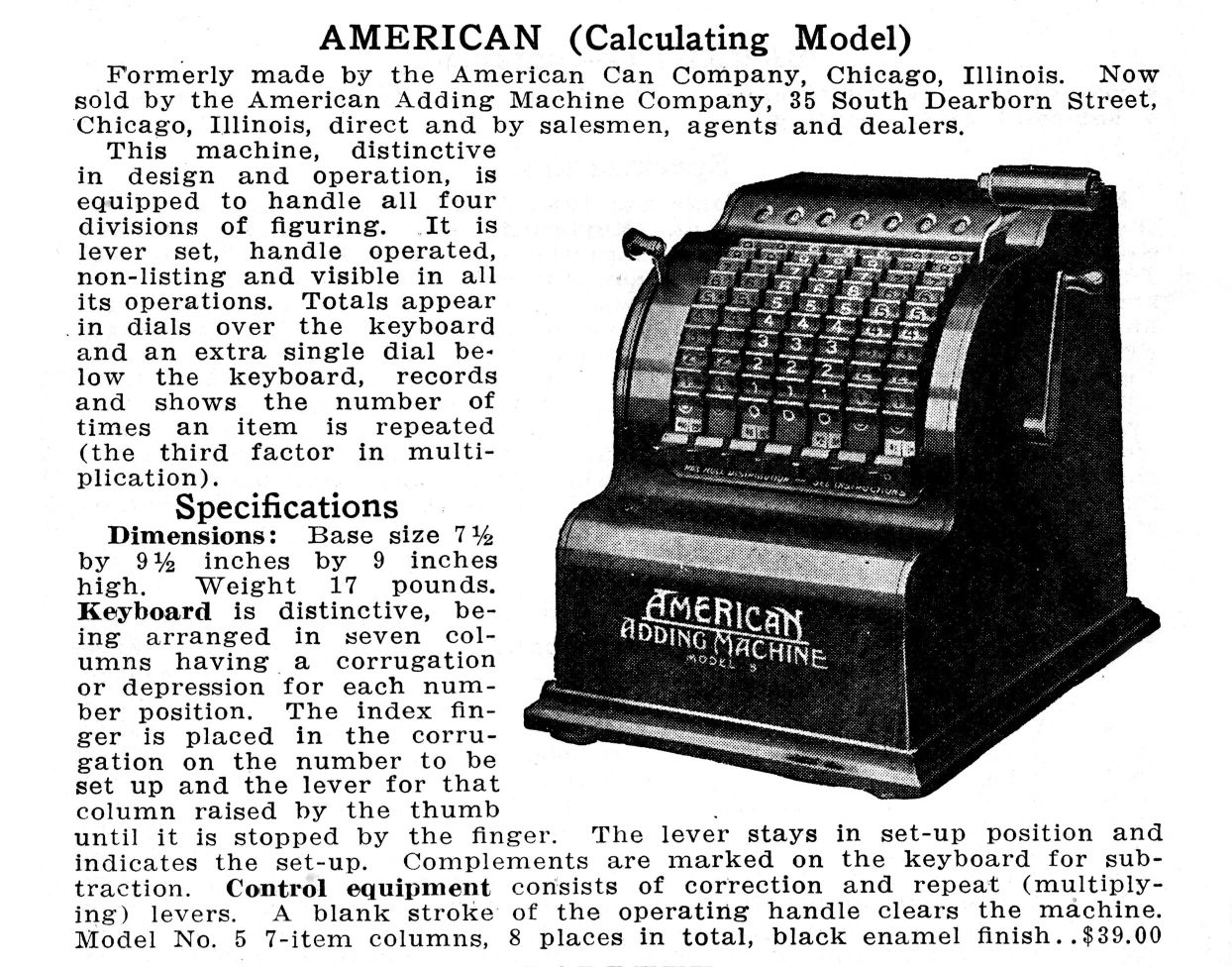

1924 The American Digest Of Business Machines 1
1924 The American Digest Of Business Machines 2

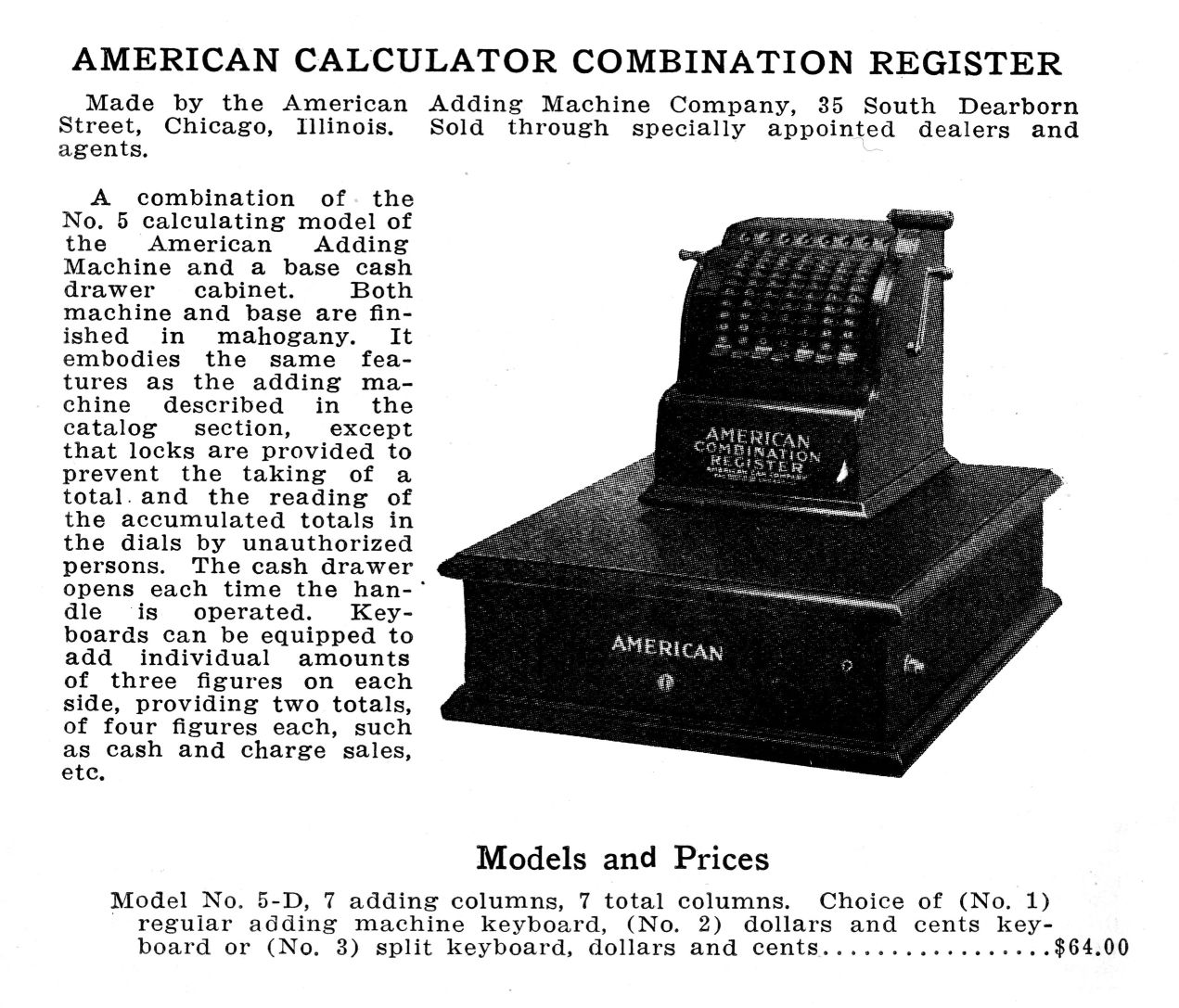

1924 The American Digest Of Business Machines 3

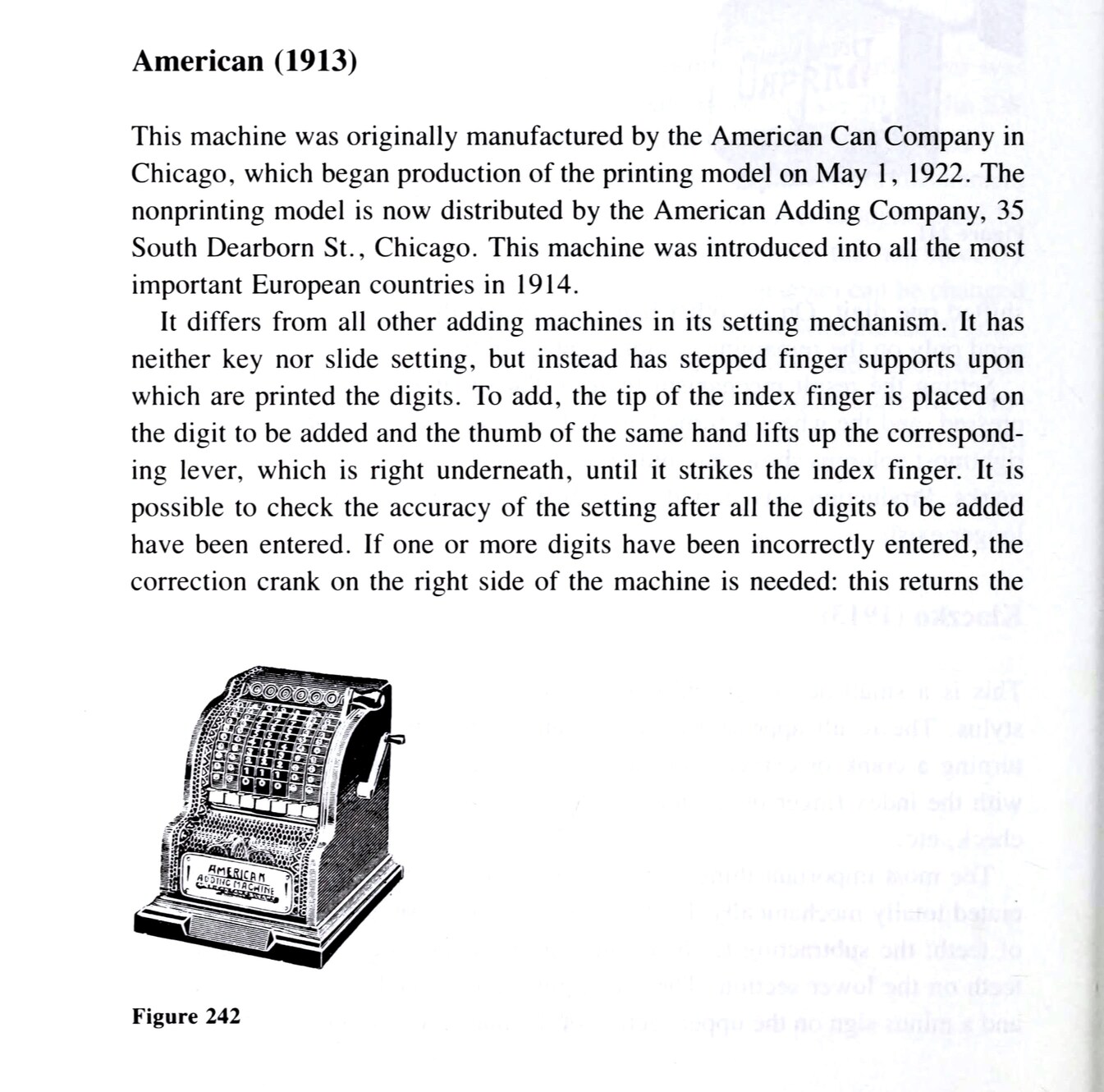

1925 Ernst Martin American 1

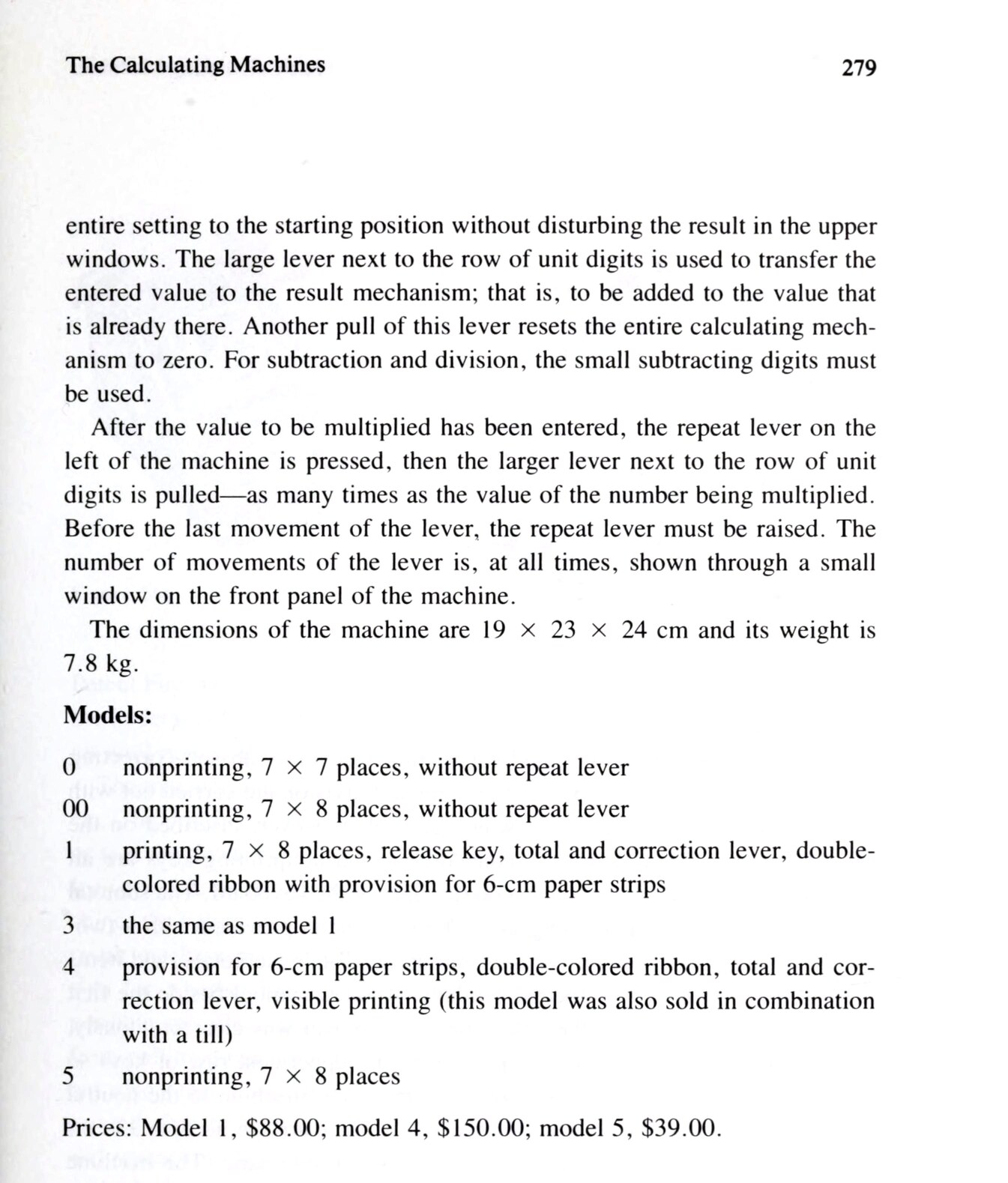

1925 Ernst Martin American 2

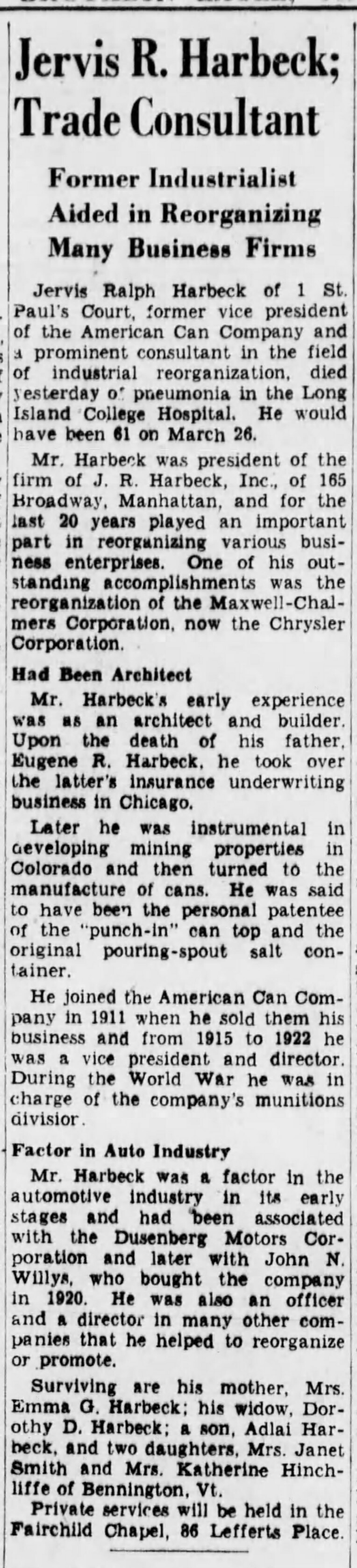

1939-03-02 The Brooklyn Daily Eagle (New York)

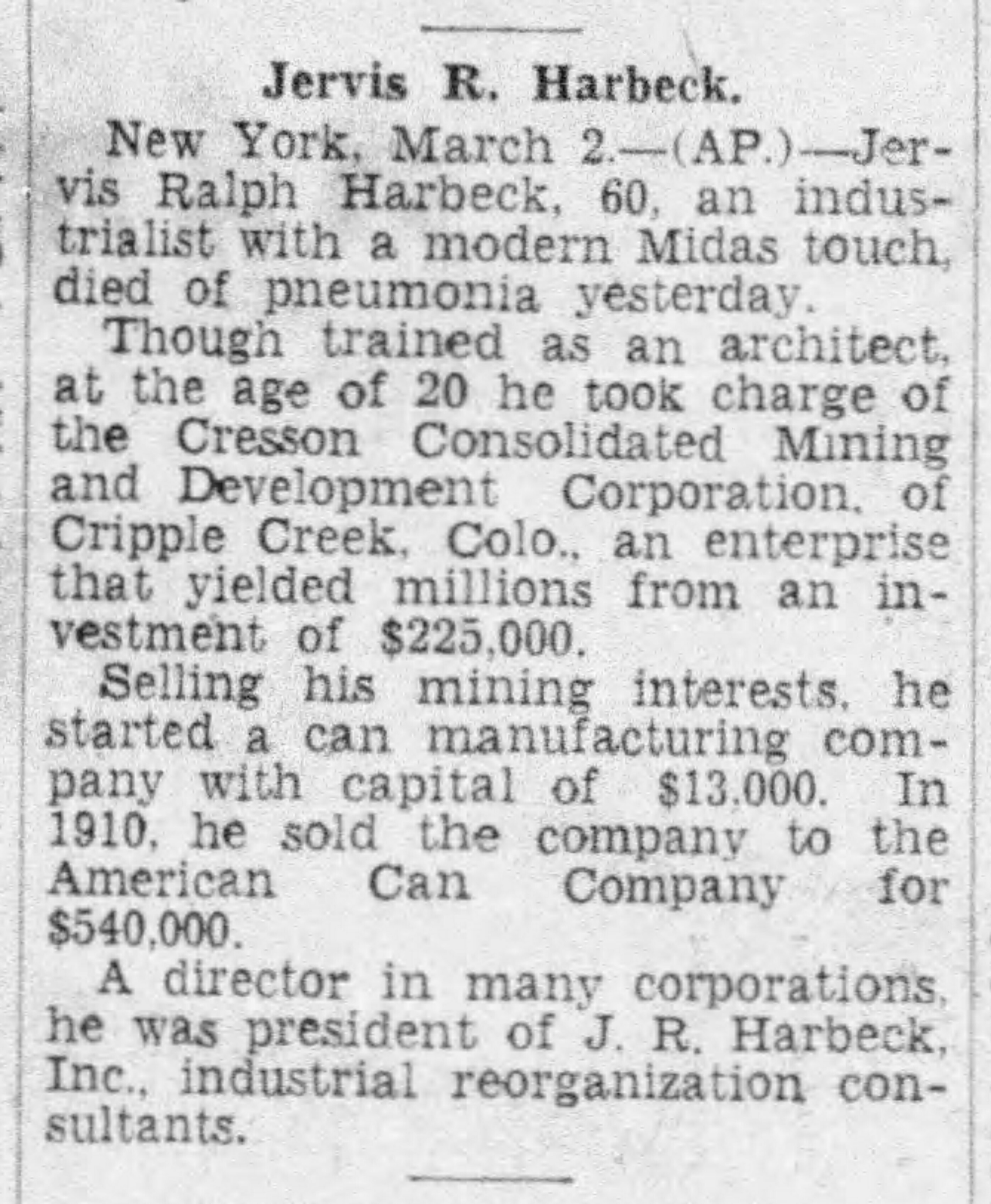

1939-03-03 Hartford Courant (Connecticut)
1939-03-03 The Palm Beach Post (West Palm Beach Florida)

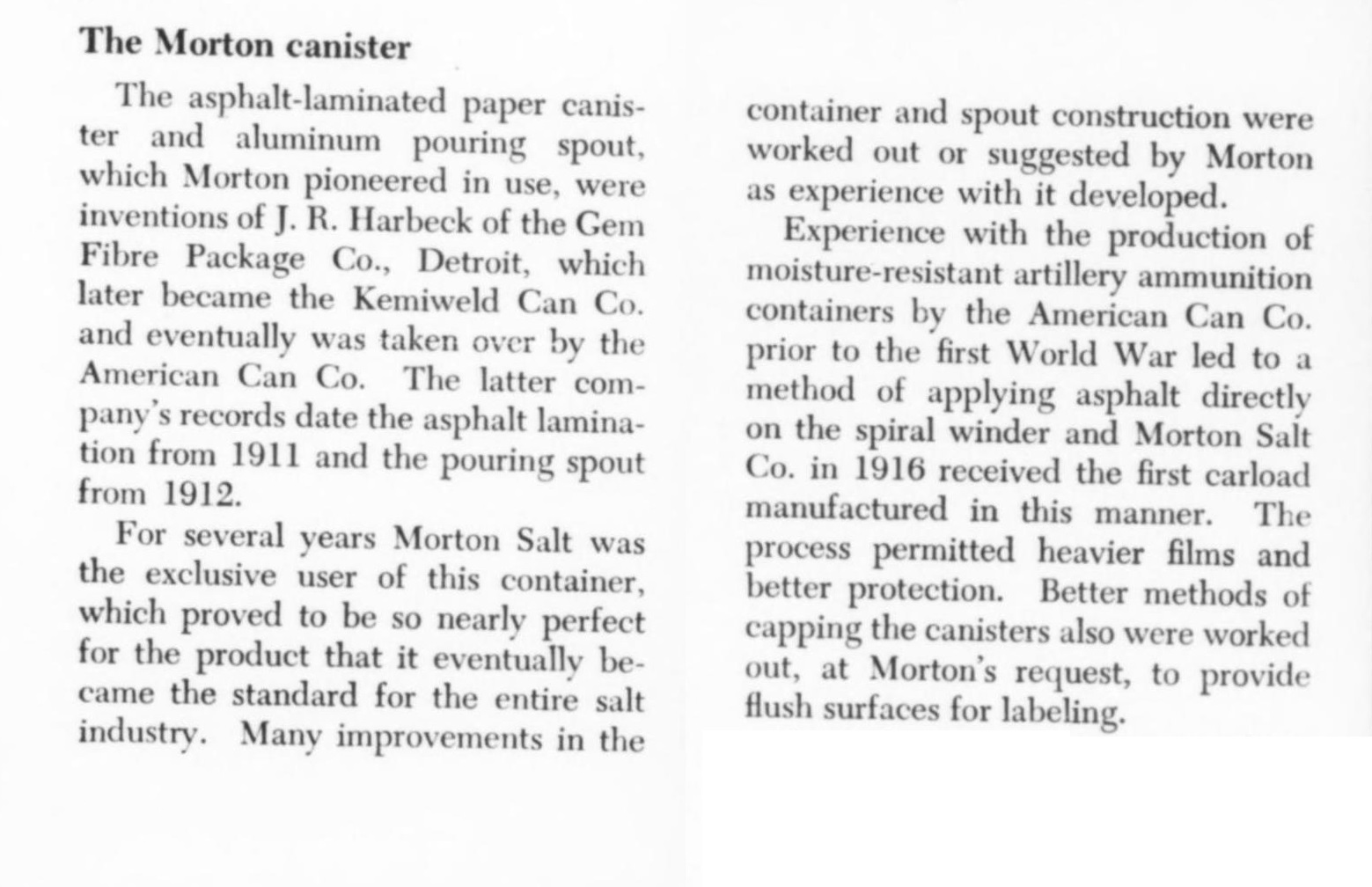

1950-07 Modern Packaging

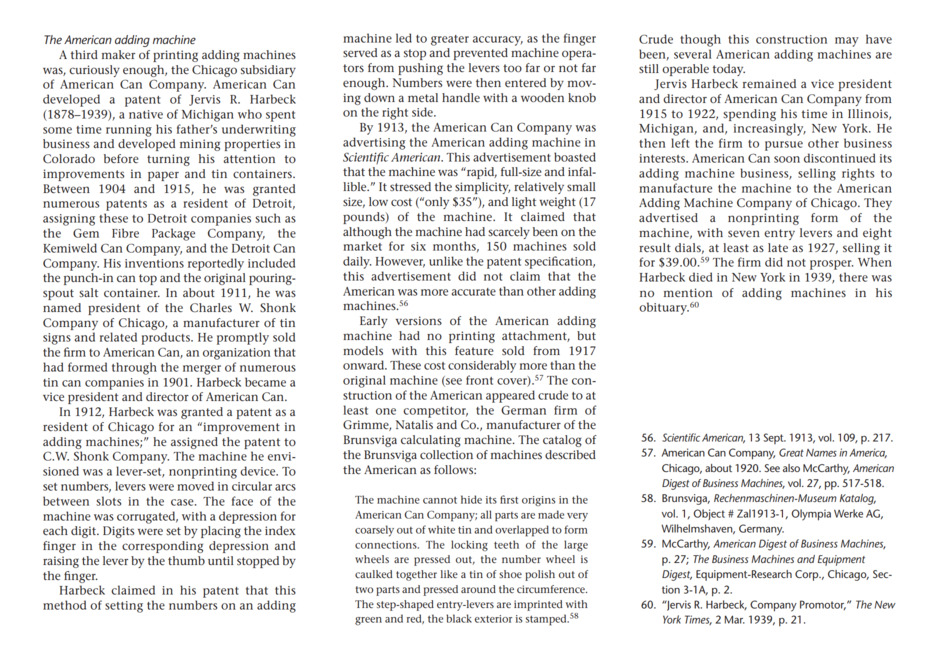

2001 - Yours for Improvement - Peggy Kidwell



Advertisements

1912-05-18 The Saturday Evening Post

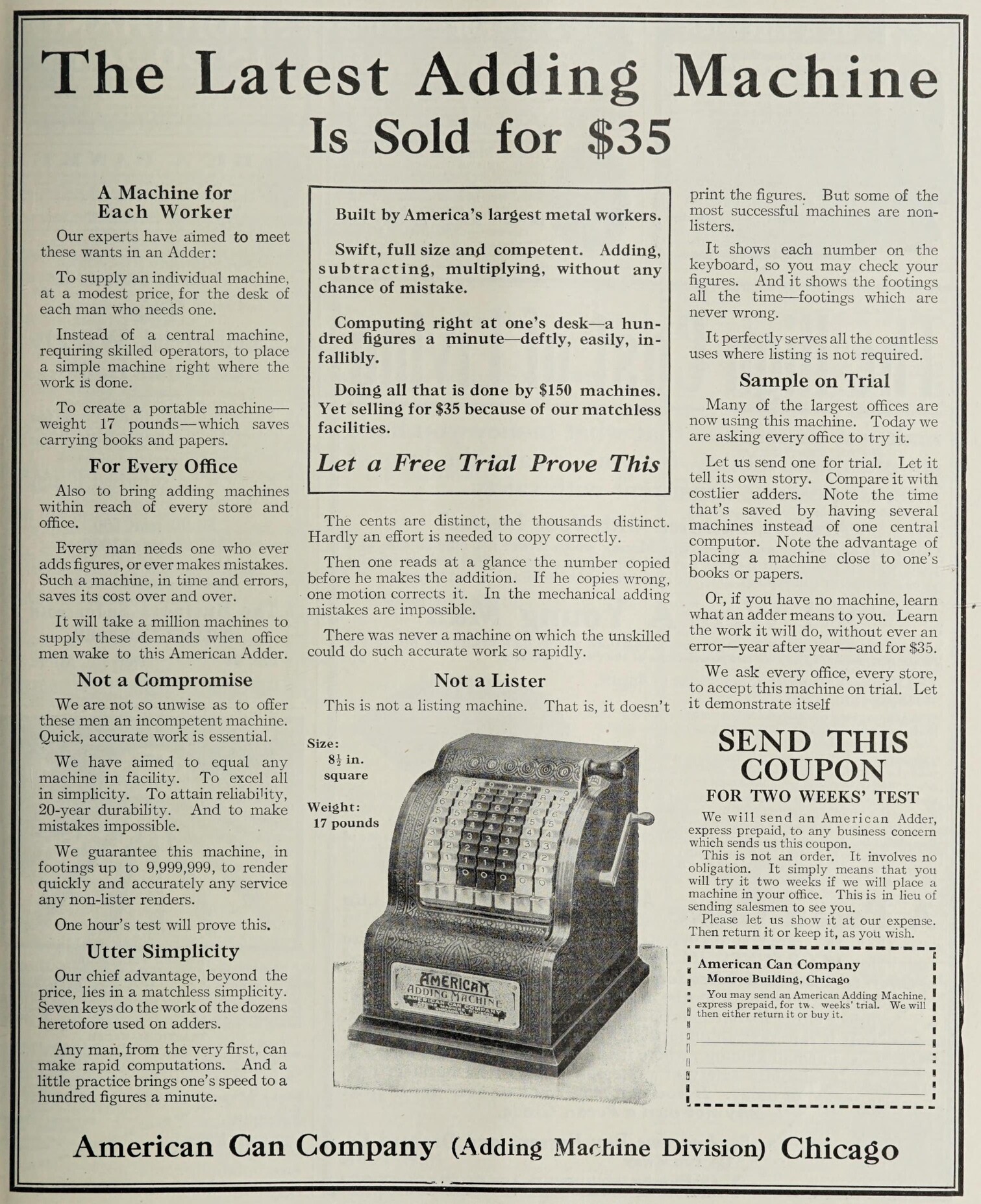

1913-05 Business
1913-05-25 Star Tribune (Minneapolis Minnesota)
1913-05-29 Saturday News (Watertown South Dakota)
1913-06-07 Fort Wayne Daily News (Indiana)
1913-06-30 The Champaign Daily Gazette (Champaign Illinois)
1913-07-02 The Champaign Daily Gazette (Champaign Illinois)
1913-07-10 The Mitchell Capital (South Dakota)
1913-07-15 Buffalo Courier (New York)
1913-07-26 Republican Gazette (Lima Ohio)

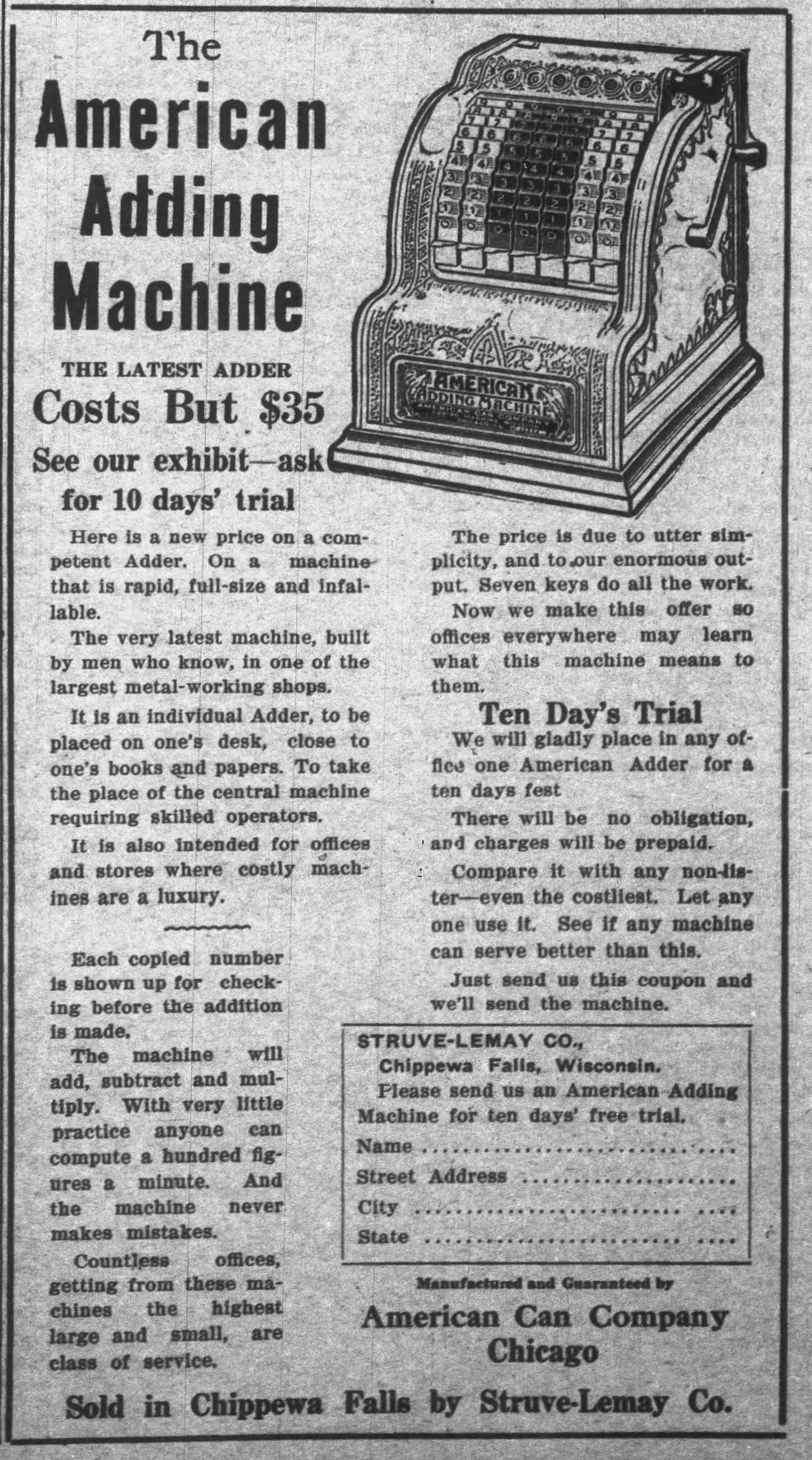

1913-07-27 Chippewa Herald Telegram (Chippewa Falls Wisconsin)

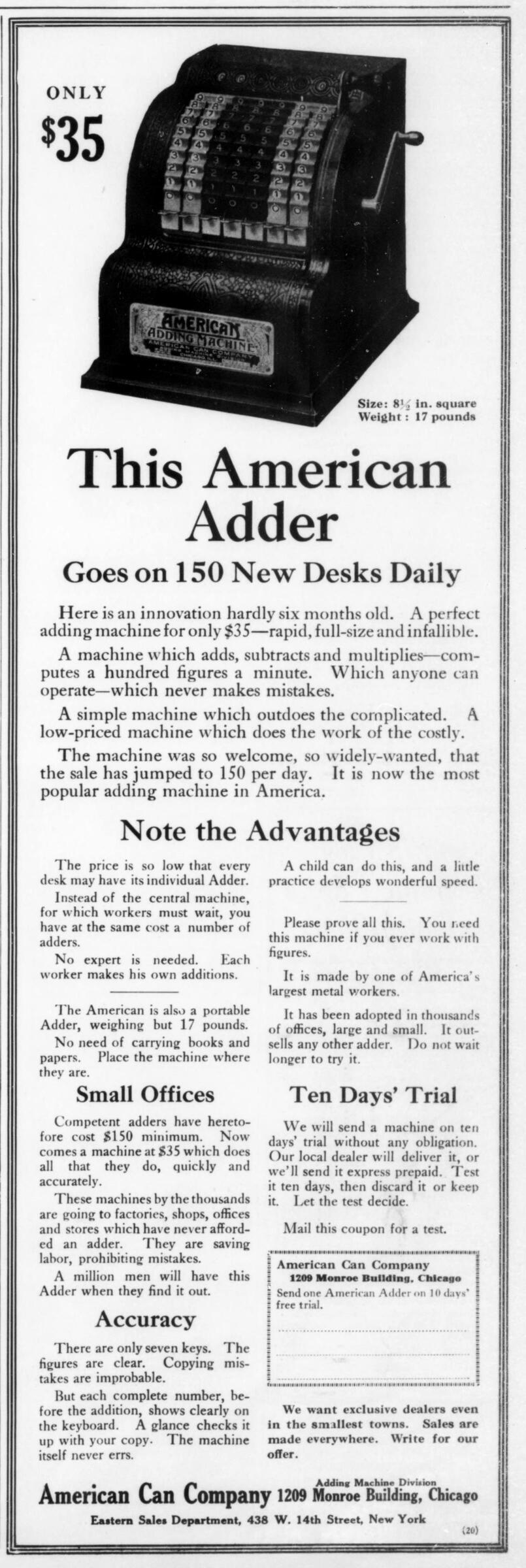

1913-09-13 Scientific American

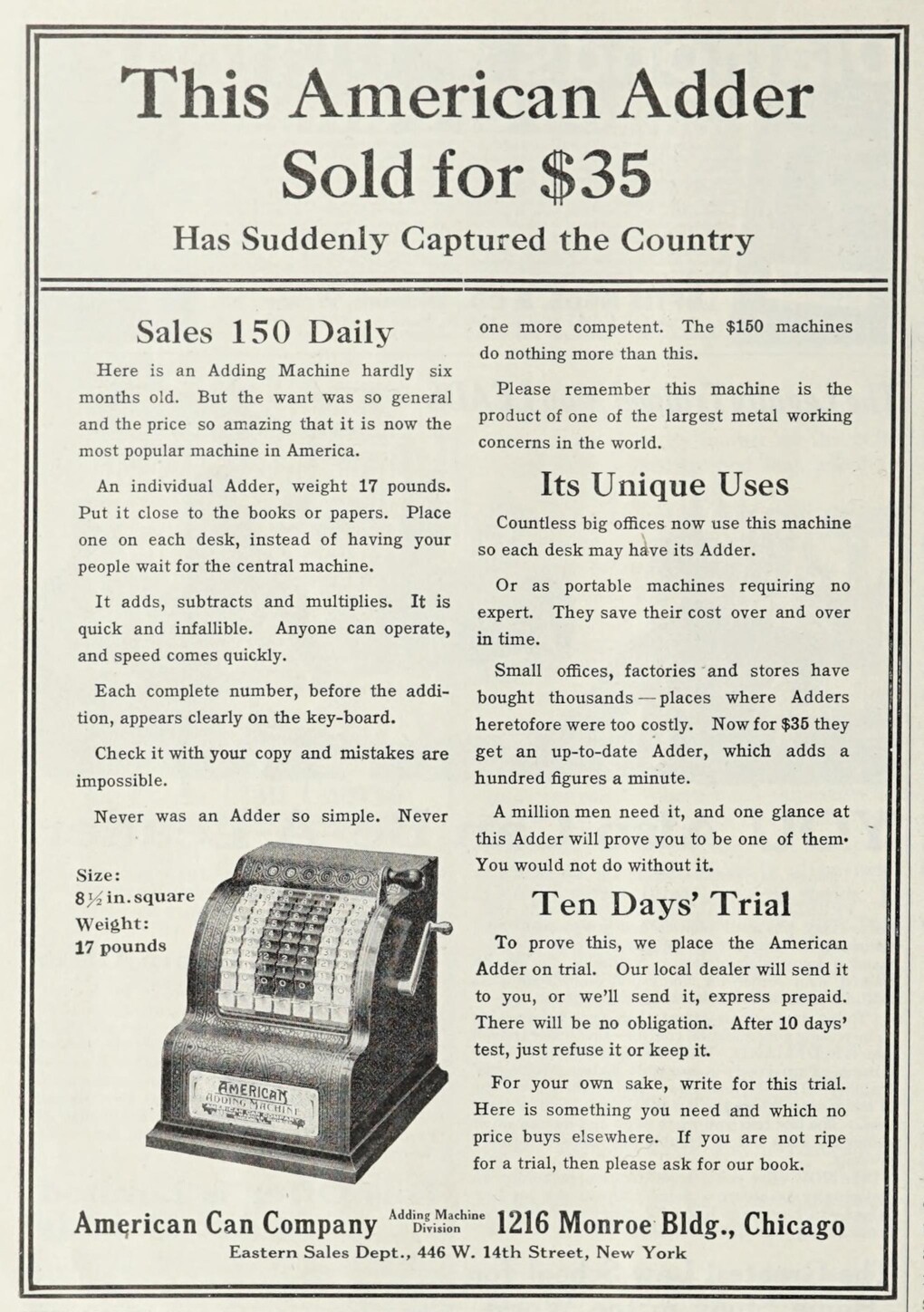

1913-11 Business
1913-11-05 Philadelphia Real Estate Record and Builders Guide
1913-11-05 The Mt Sterling advocate
1913-12 Canadian printer & publisher

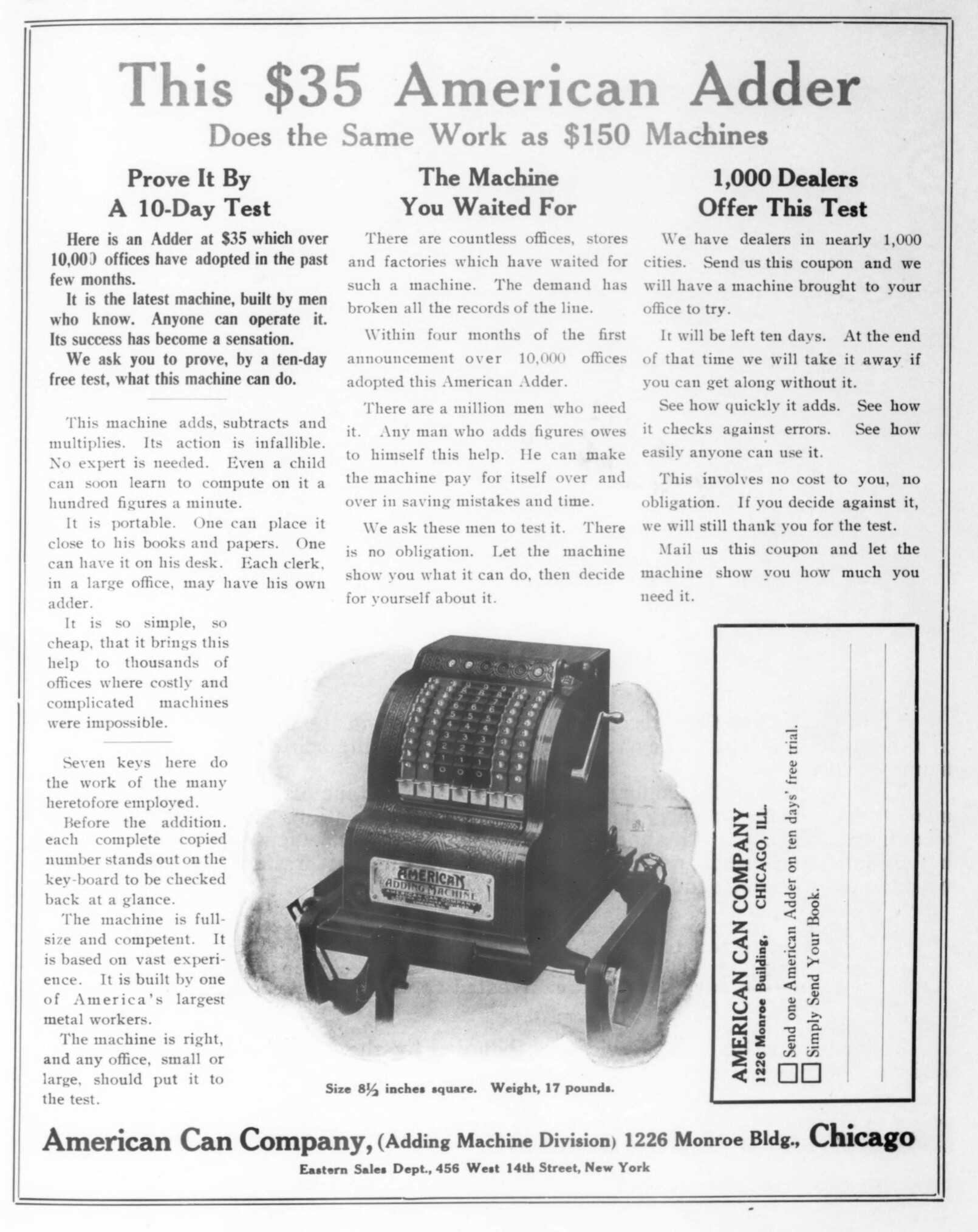

1913-12 Office Appliances 1
1914-01-23 Algemeen Handelsblad

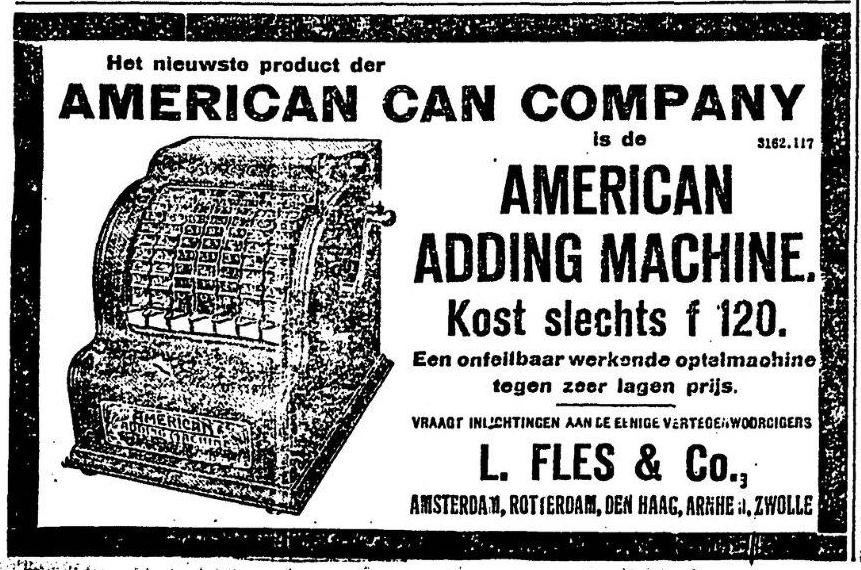

1914-01-23 Nieuwe Rotterdamsche Courant
1916-04-13 Printers' Ink

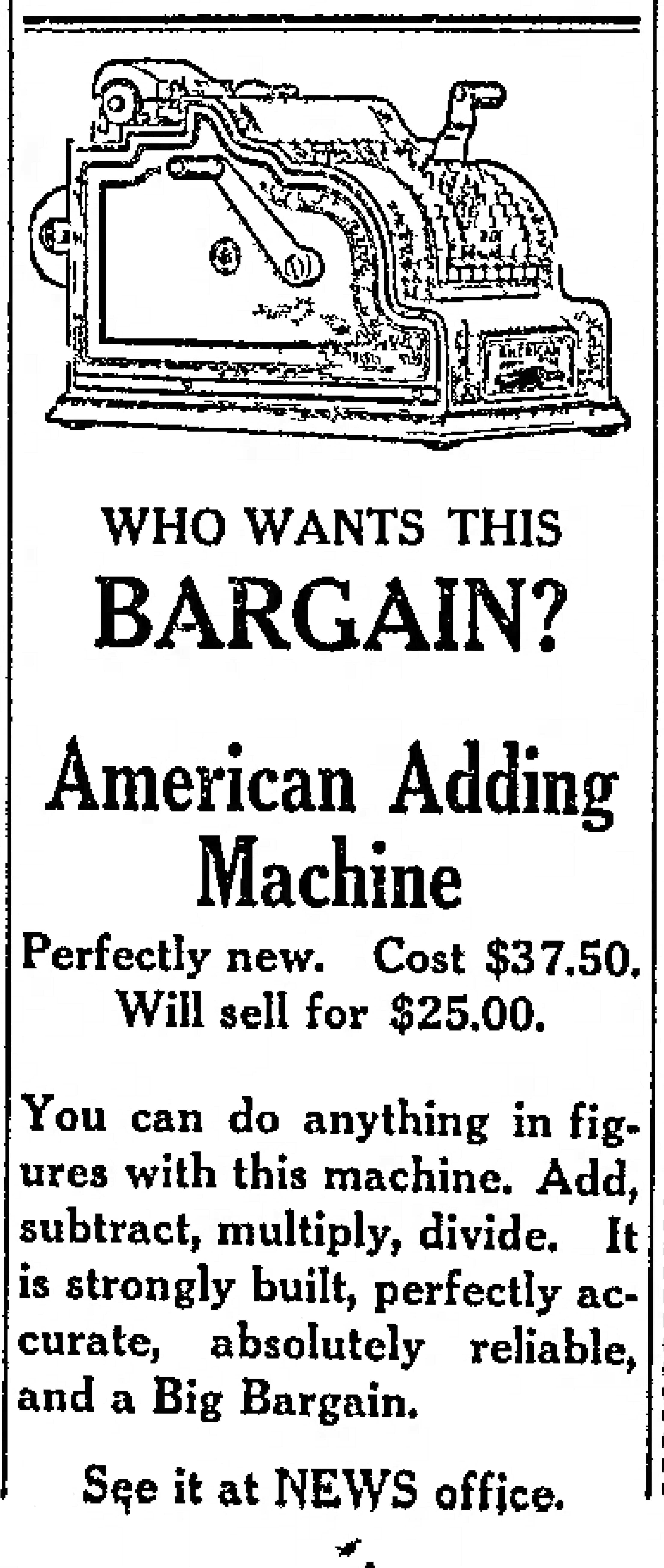

1917-07-26 Washington County News (Saint George Utah)
1917-12-28 The Times (Munster Indiana)
1918-04-06 The Pathfinder

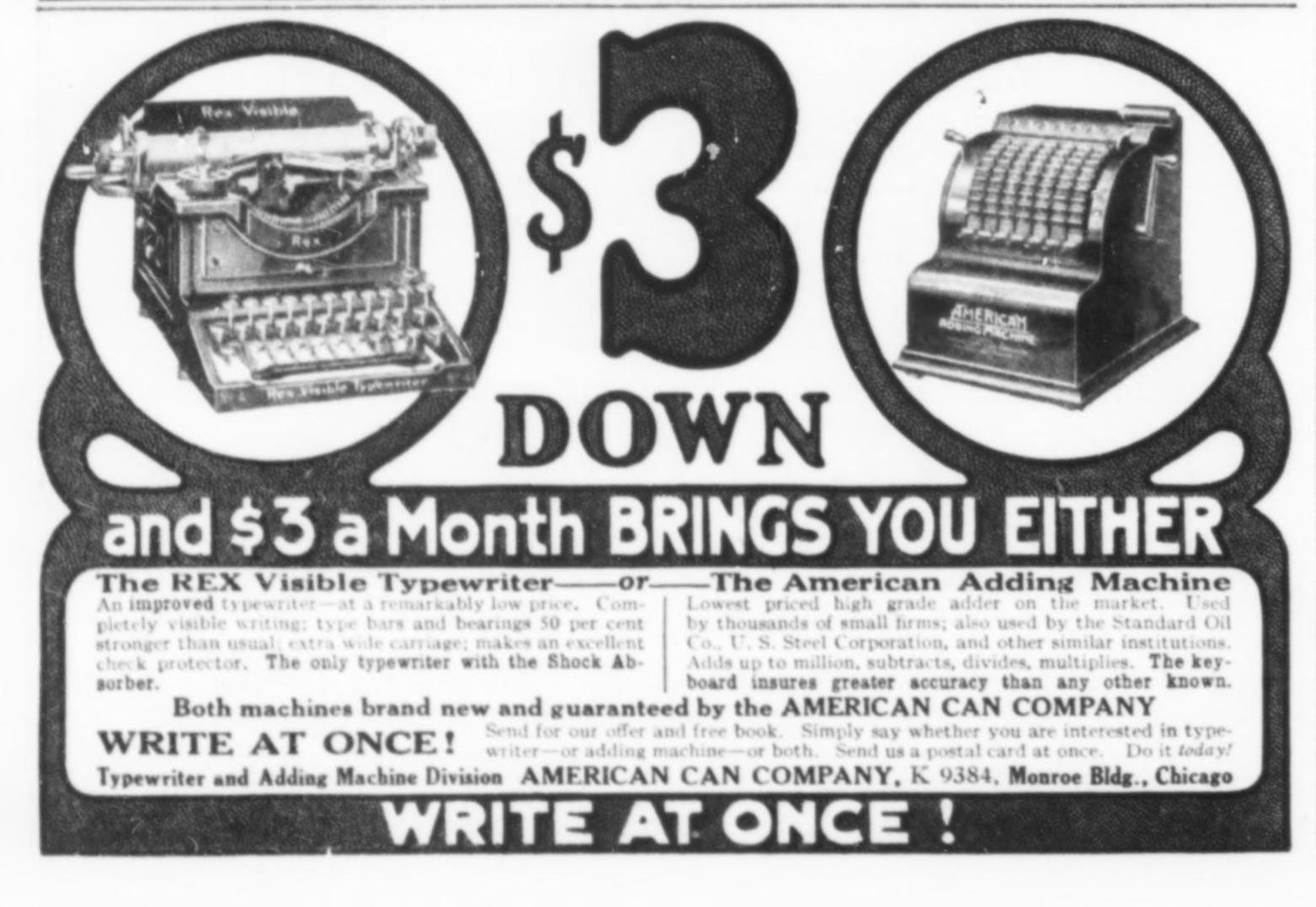

1918-04-20 The Saturday Evening Post

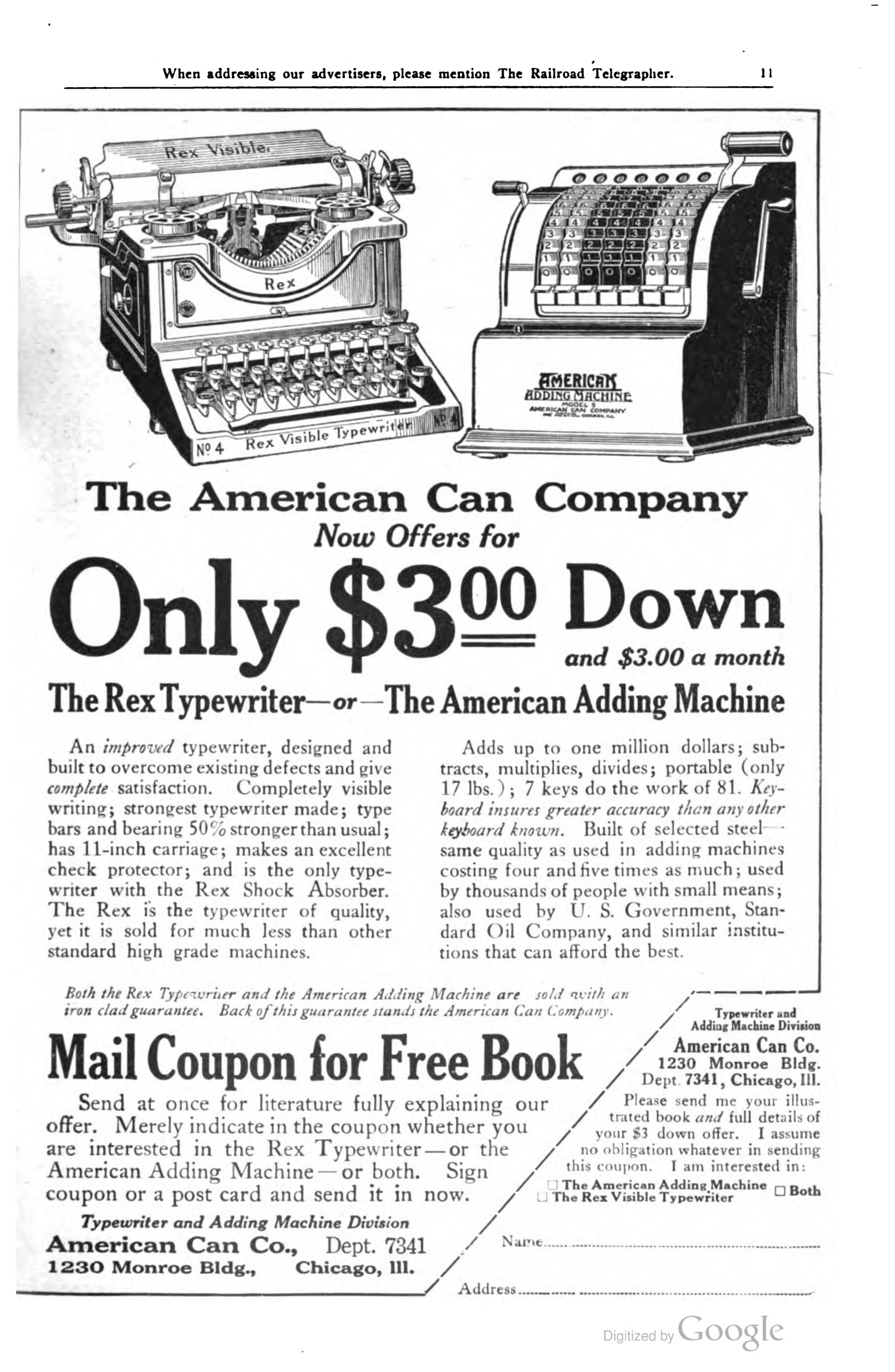

1918-06 The Railroad Telegrapher
1918-12 Popular Mechanics
1920-12 Office Appliances
1923-10 Typewriter Topics - american adding machine
1925-06-24 The Wilsonville Review (Nebraska)
1926-04-16 Mount Carmel Item (Pennsylvania)



Patents

PatentFiling datePublished dateNameDescription
US 1,131,62819-05-191109-03-1915William M. Holloway, Charles W. Shonk CompanyCoin Bank
US 1,036,61410-04-191227-08-1912Jervis R. Harbeck, Charles W. Shonk CompanyAdding machine input method
US 1,337,59925-10-191220-04-1920William M. Holloway, Charles W. Shonk CompanyAdding machine mechanism
See also: CH 69,504, DK 20,277 C, FR 463,085, GB 1913/21049.
US 1,186,57804-11-191213-06-1916William M. Holloway, Charles W. Shonk CompanyCoin Bank
US 1,154,23918-07-191321-09-1915William P. Dun Lany, Charles W. Shonk CompanyCoin Bank

Links

The National Museum of American History has several examples of the American Adding Machine: Model 0, Model 0, Model 00, Model 1 or 3, Model 4, and Model 5.
Rechnerlexikon does not yet have this adder, but does have a page of American Adder material.
Christian Hamann has a Model 00.
The Science Museum Group has a Model 0.
Compuseum has a Model 5.
Rechenmaschinen Illustrated has pictures of Models 0, 4, and 5.
bss1250's YouTube channel has videos about repairing an American Adding Machine, model 0: Part 1, Part 2, Part 3.
