The Business, Master, and Sirius adding machines

Business adding machine Master adding machine Sirius adding machine


The Business adding machine
The Master adding machine
   Video
The Sirius adding machine
   Video
History
Patents
Links


The Business adding machine

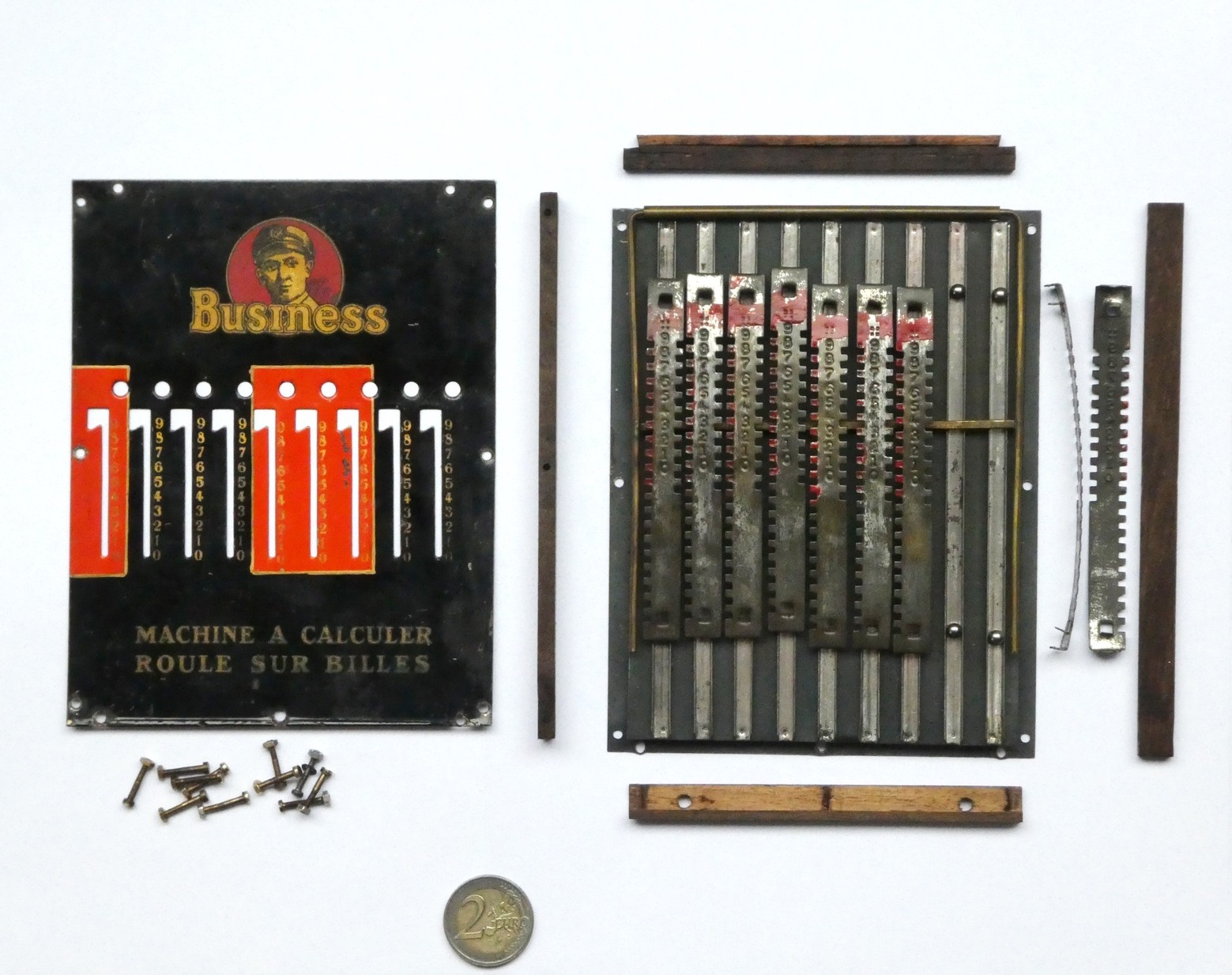

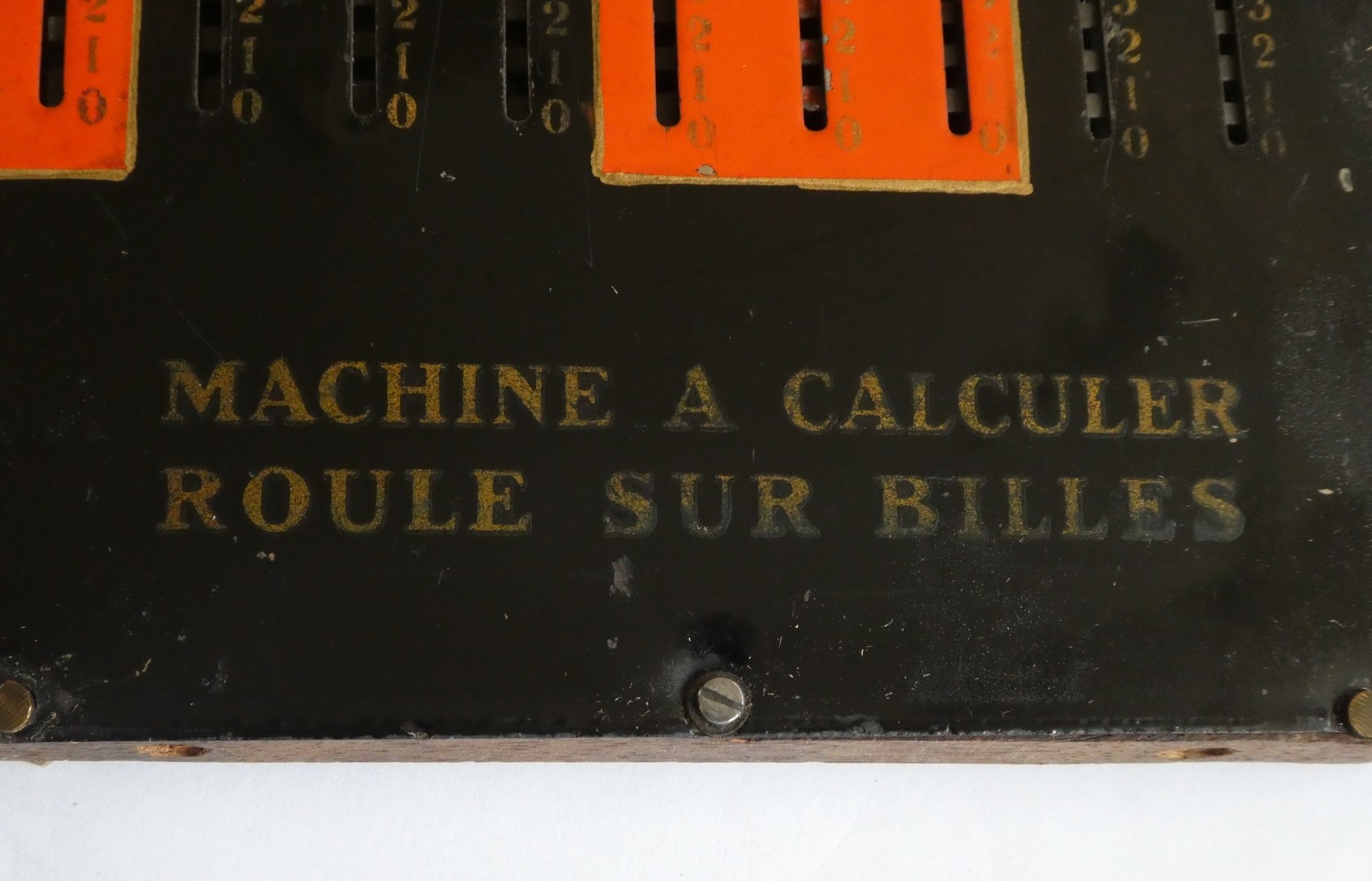

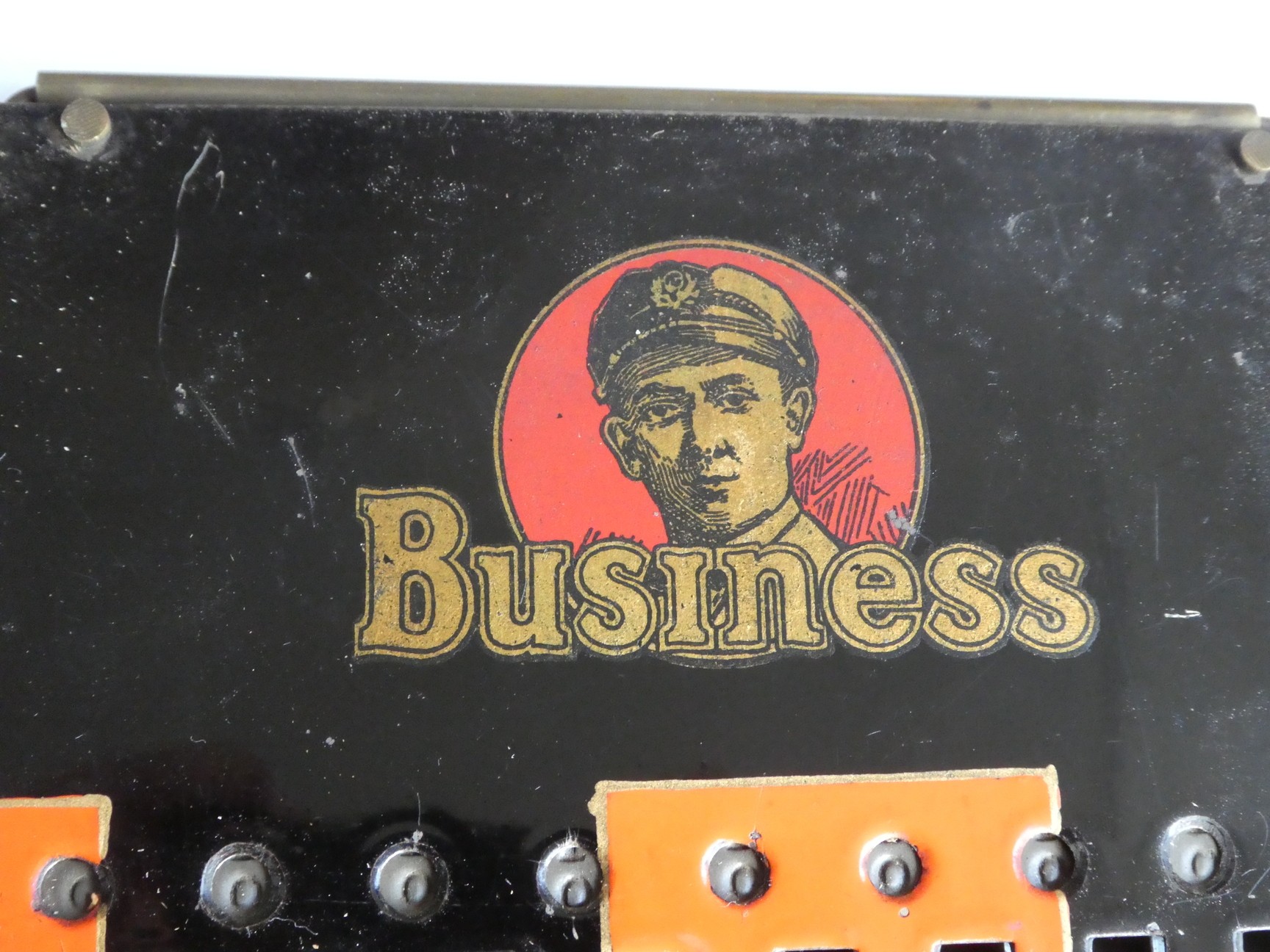

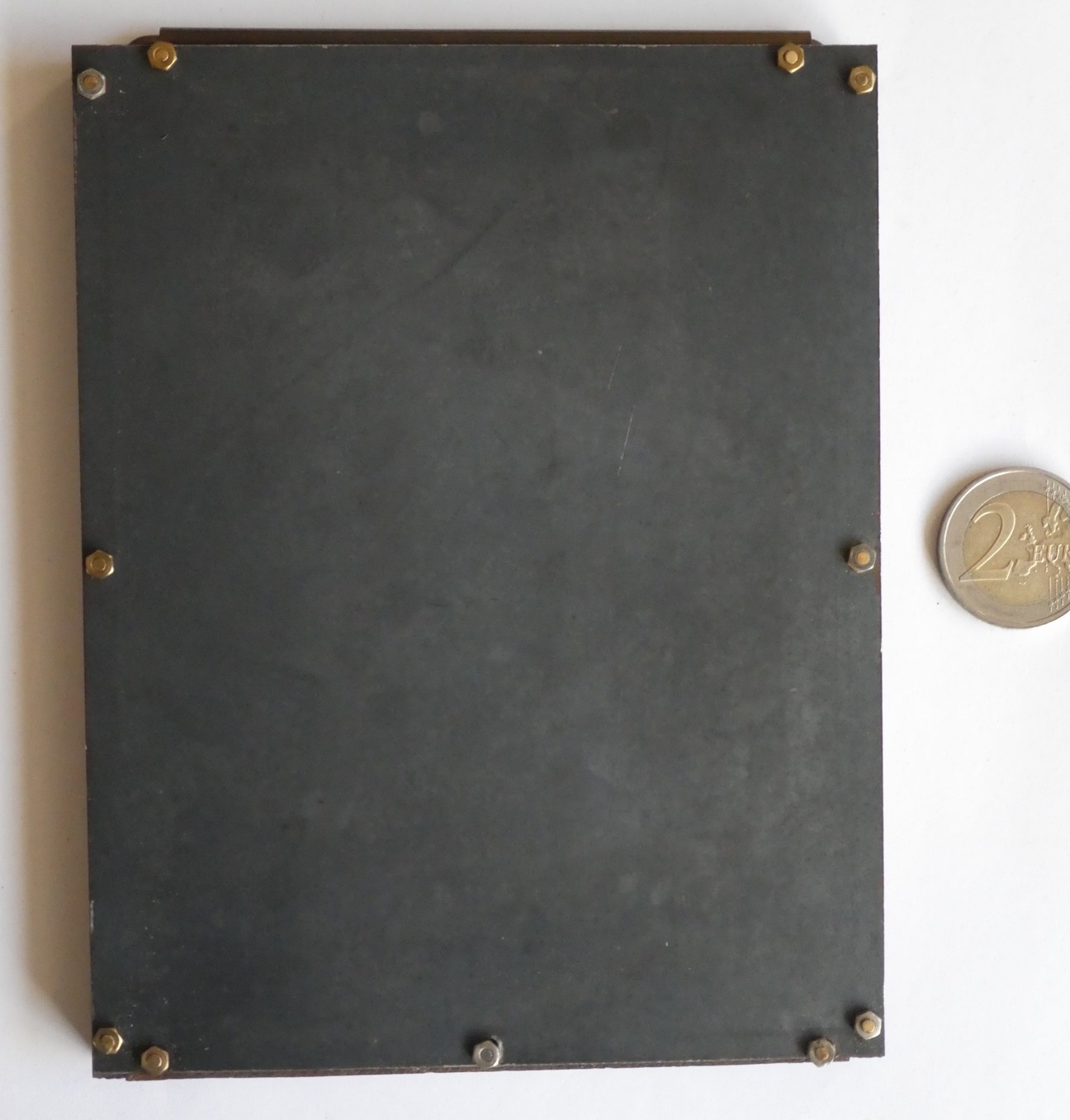

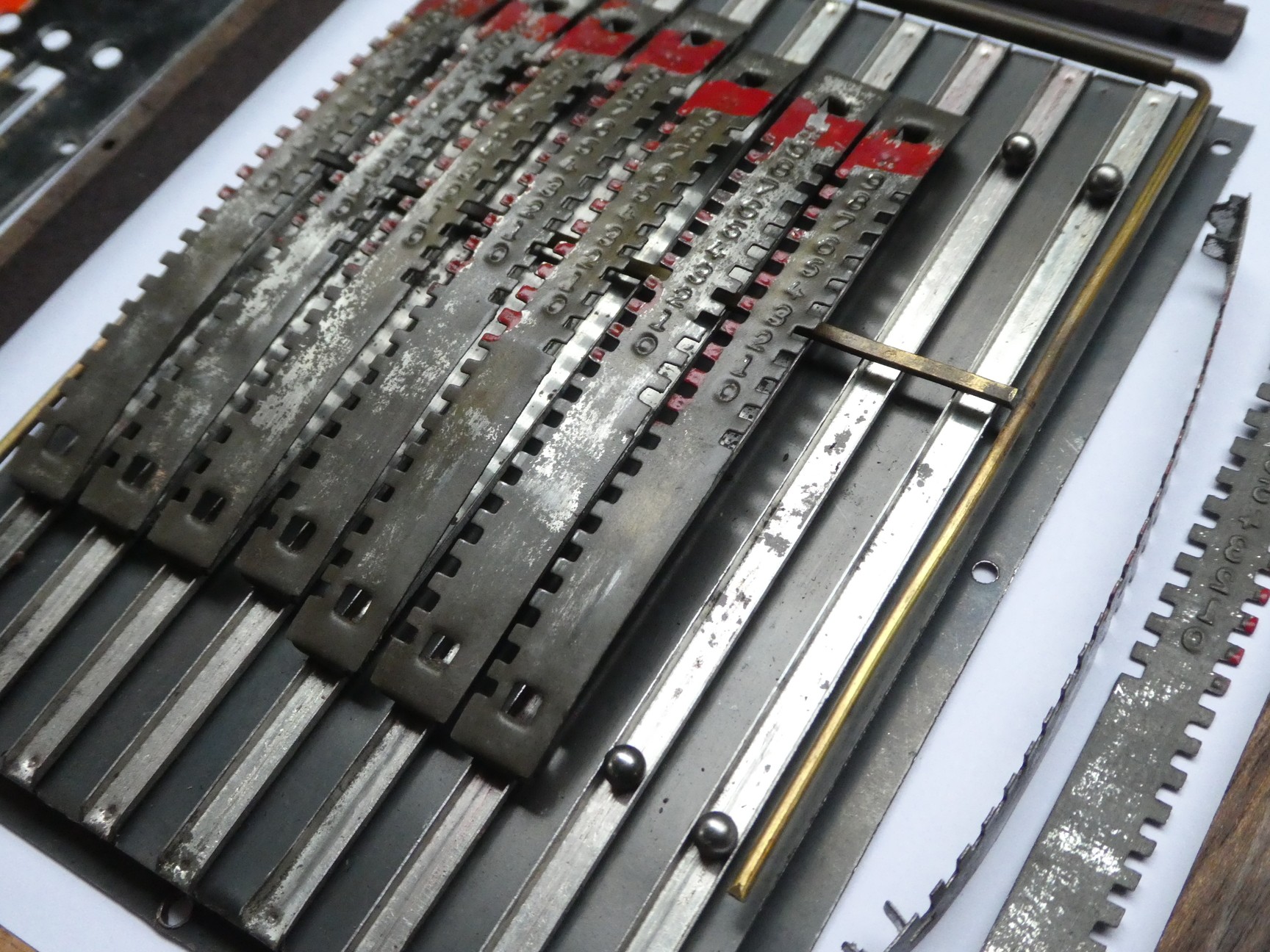

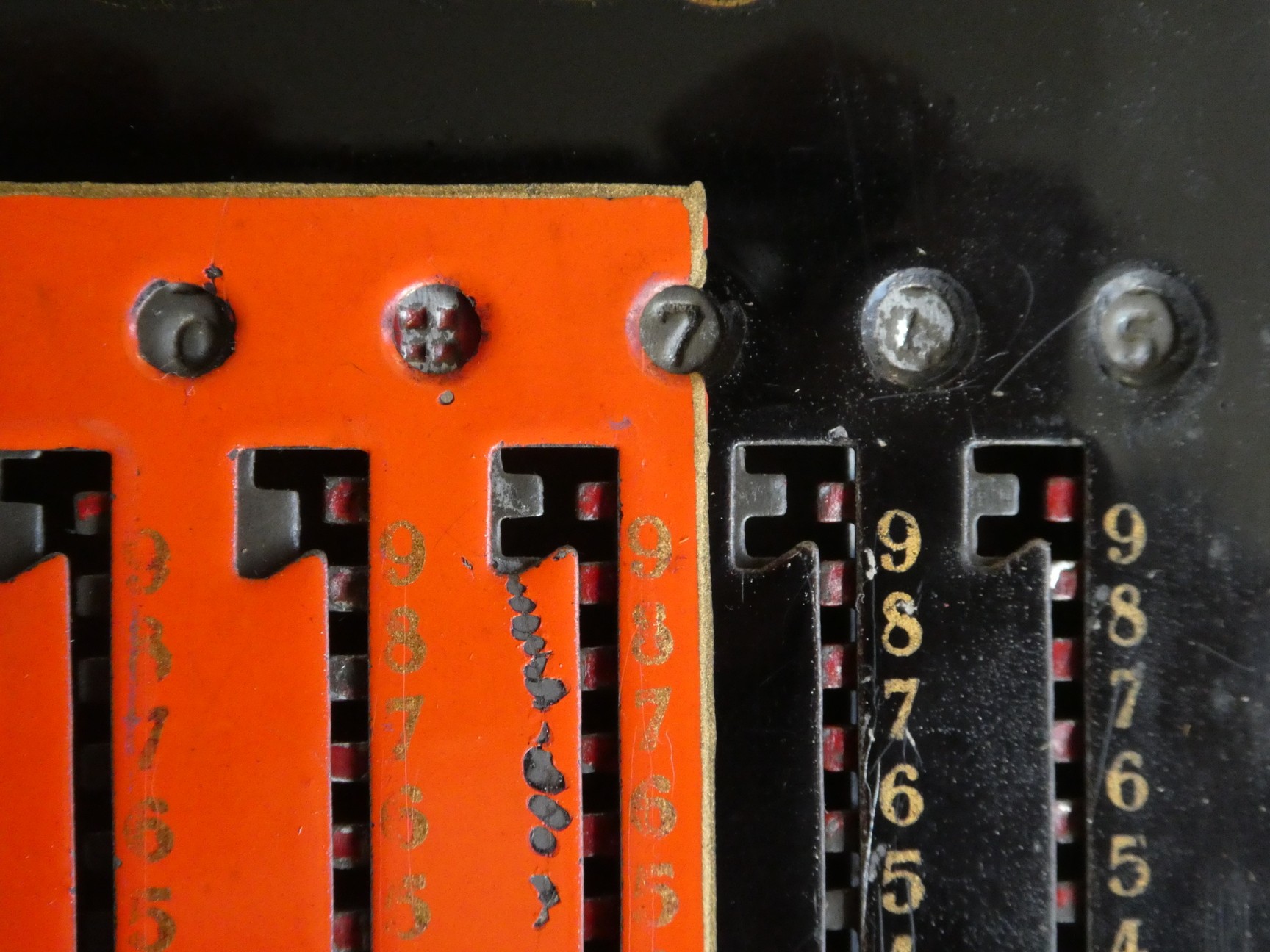

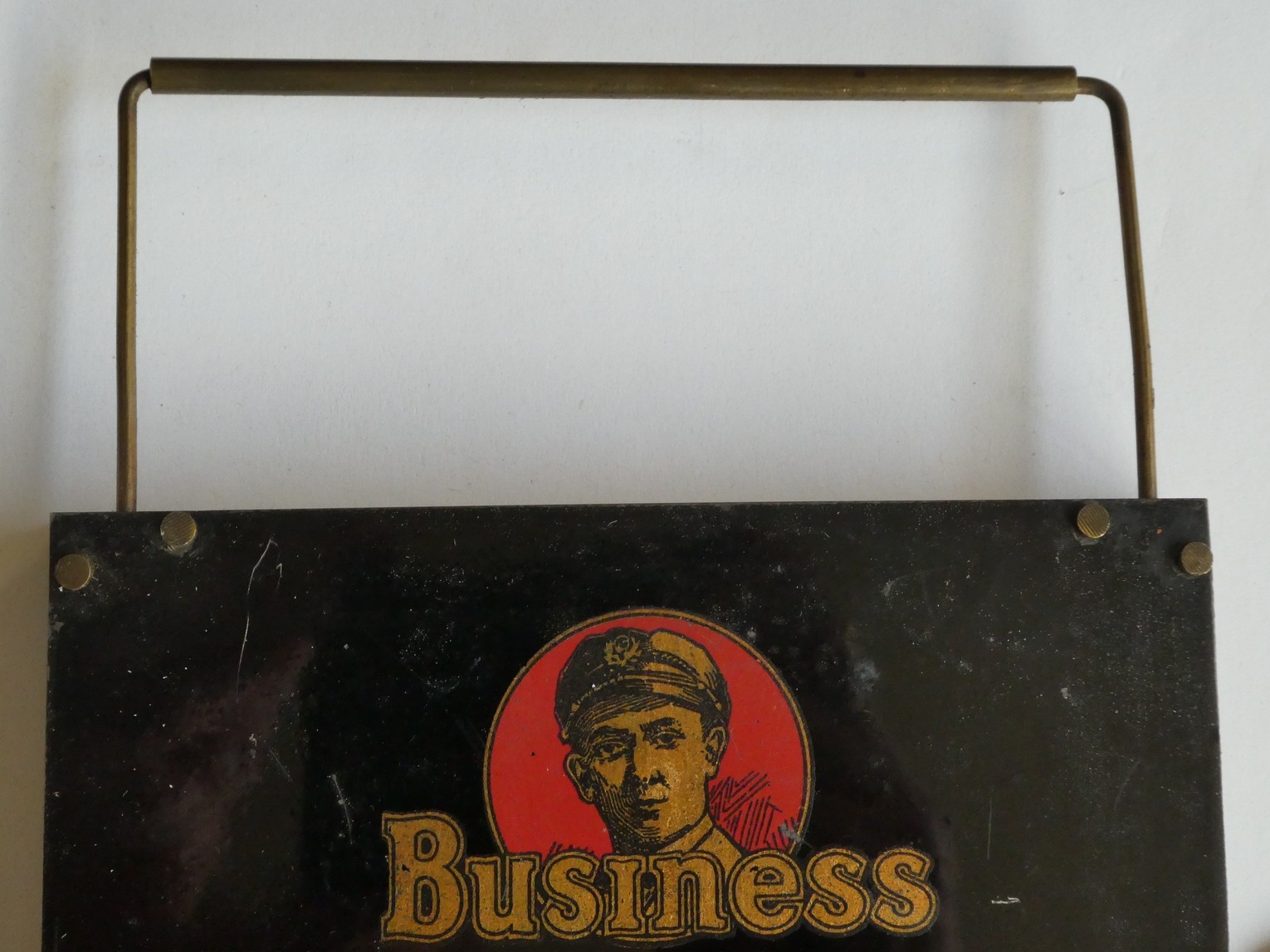

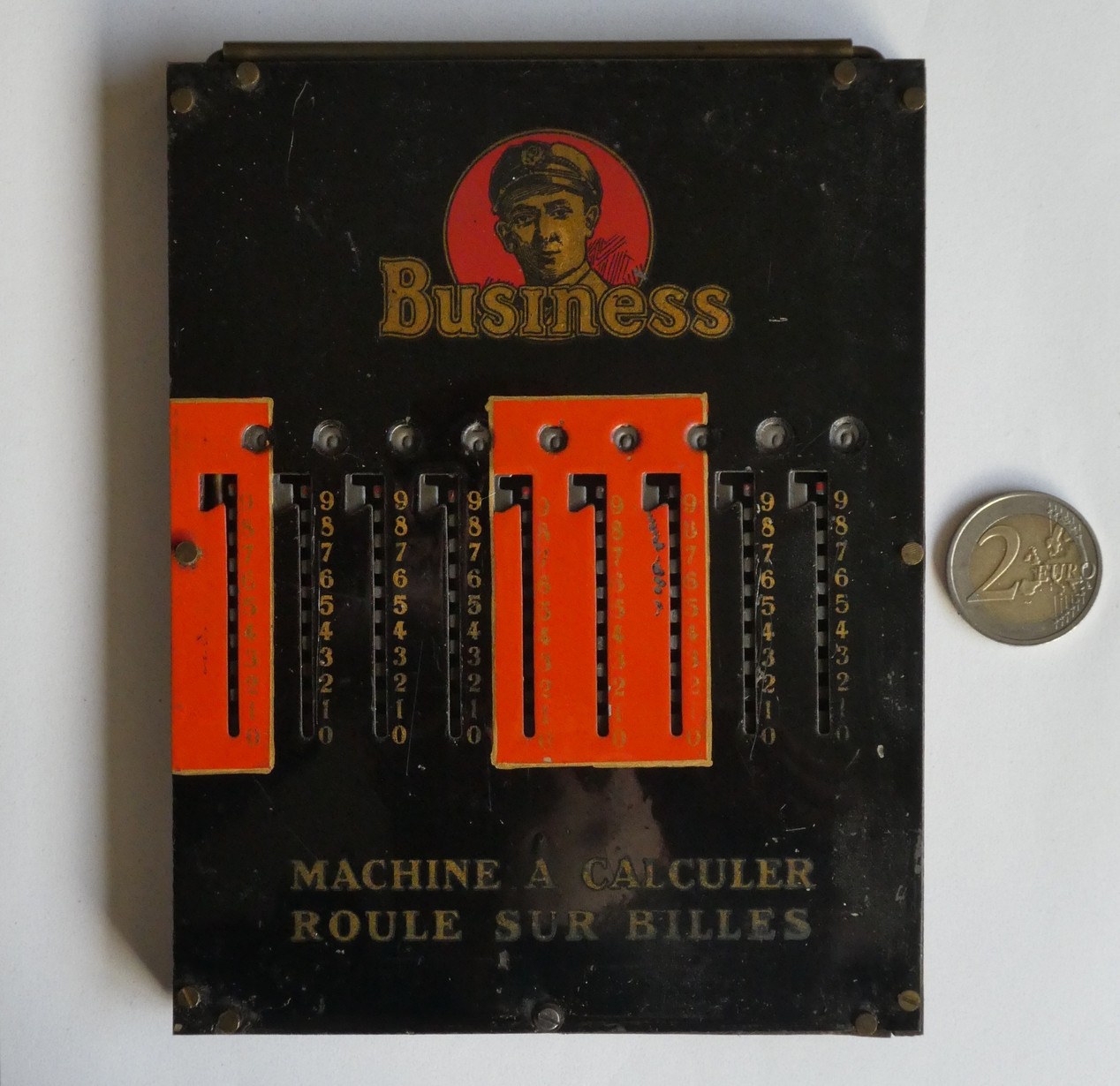

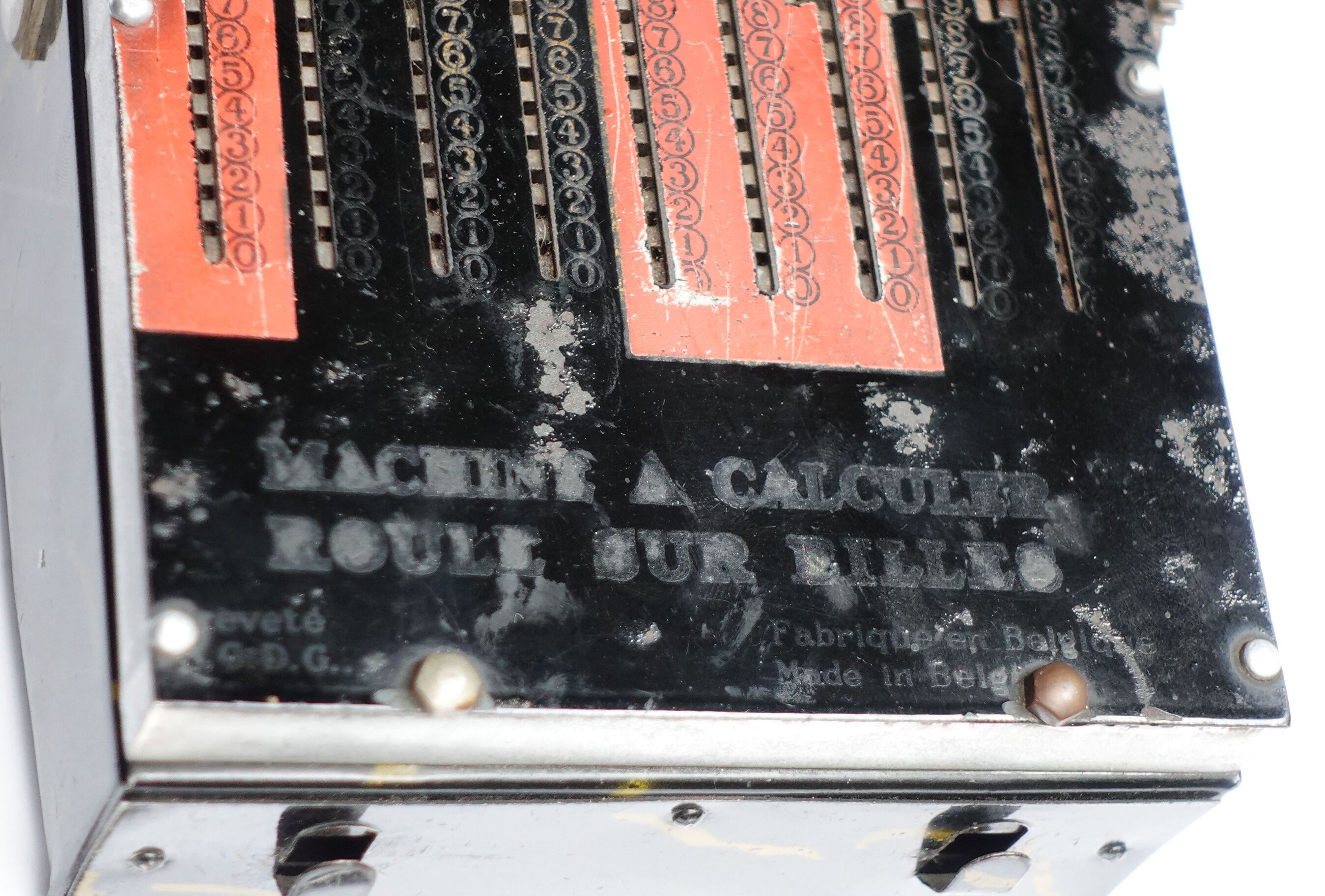

The Business adder is a troncet adder that was made in the 1920s. It has 9 sliders that you can move with a stylus. The front plate features a logo showing a portrait of a man in a uniform cap, and there is also the text "Machine a Calculer, Roule sur Billes". The latter literally means rolling on balls, and it is indeed true that the sliders rest on a ball bearing at each end. The front and back plates of the case are made of metal, but the sides are of wood.

In later models the wood was replaced by a metal frame. They were also often mounted on a slanted base for use on a desk. From 1931 those desk models would use a lever or crank on the side to clear the register instead of the bar at the top.

Business
Business
Business
Business
Business
Business
Business
Business
Business
Business
Business

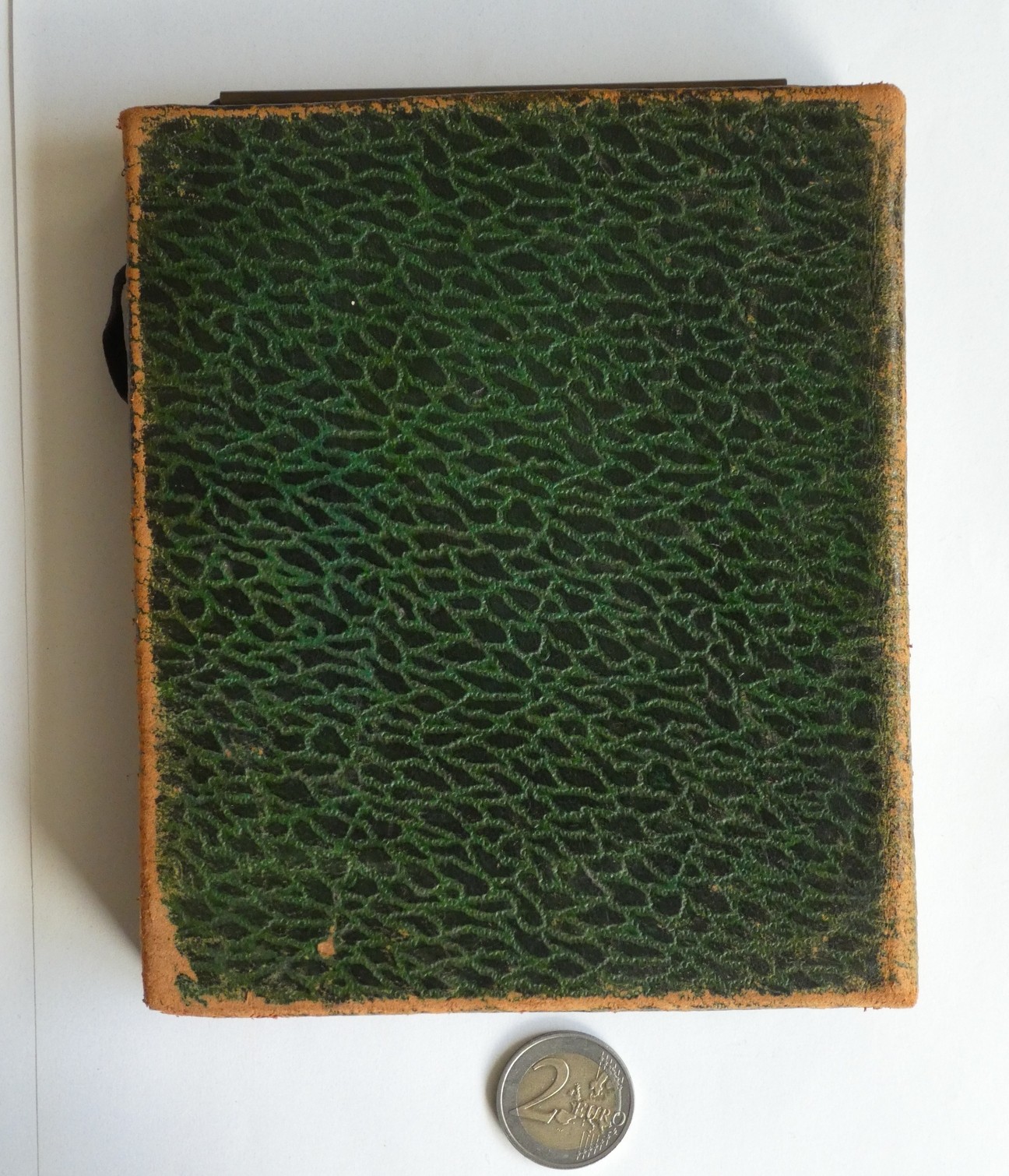

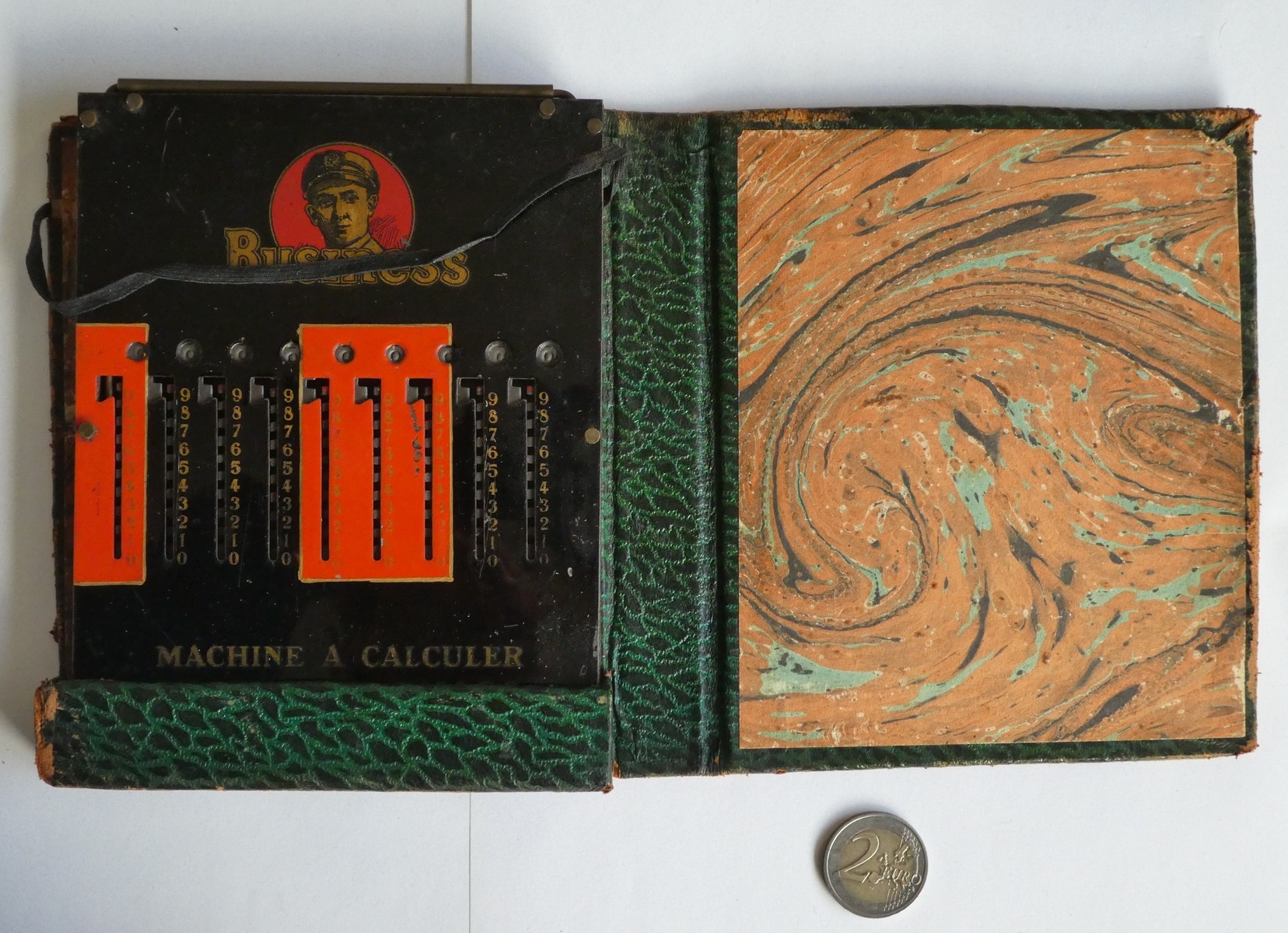

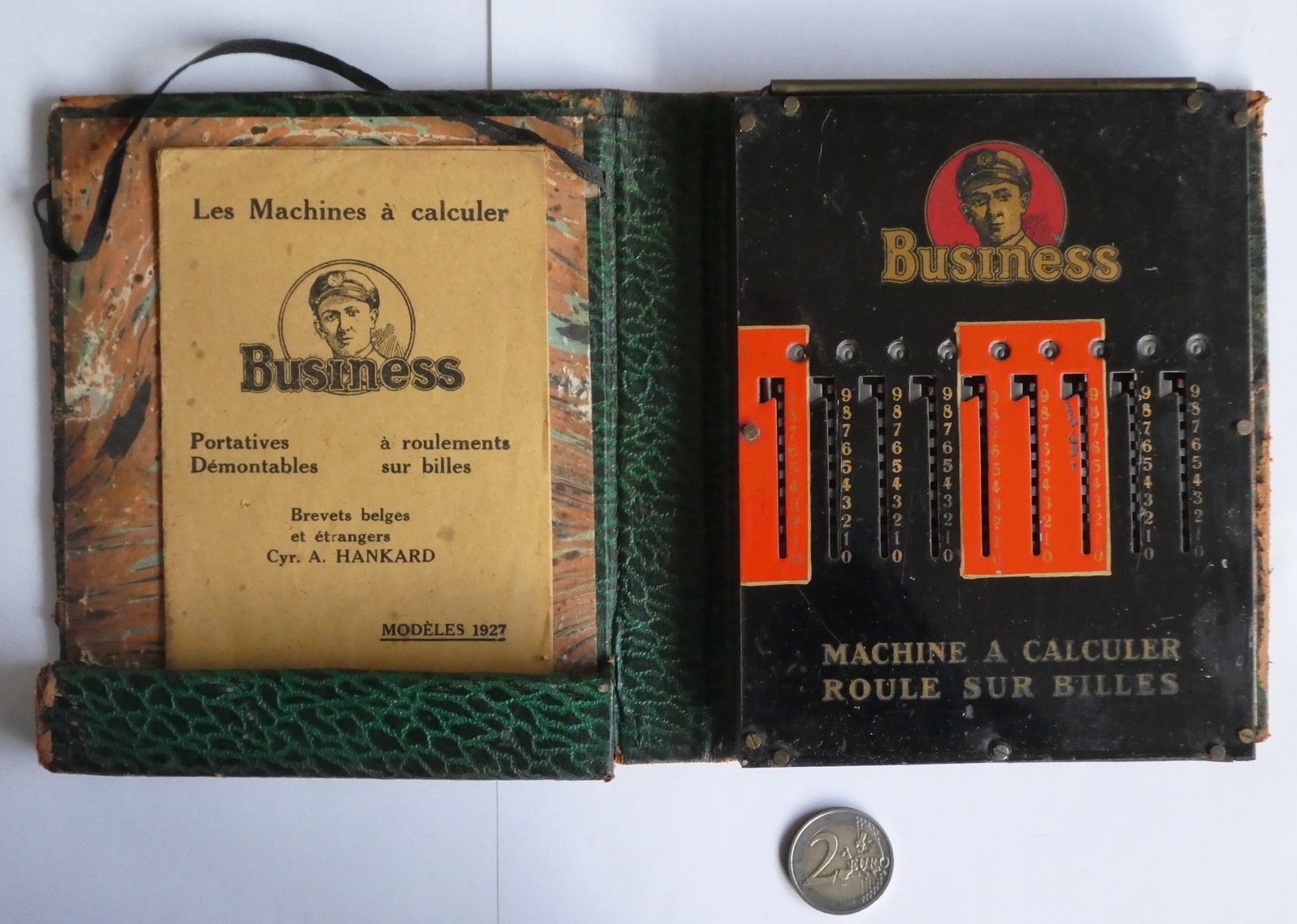

The instruction leaflet says that this is the 1927 model, and it comes in a cardboard folding case with imitation leather print. It does not have the original stylus.

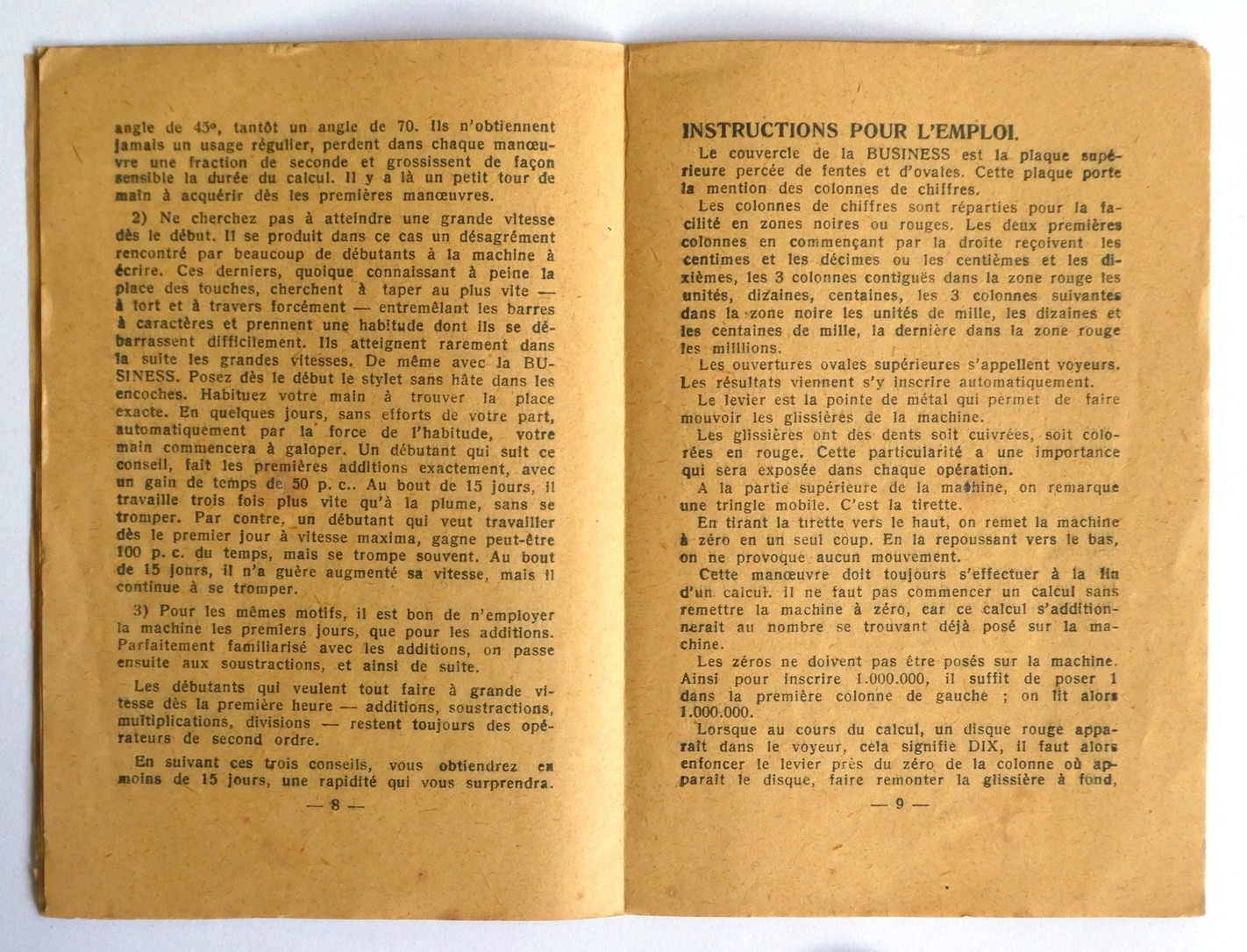

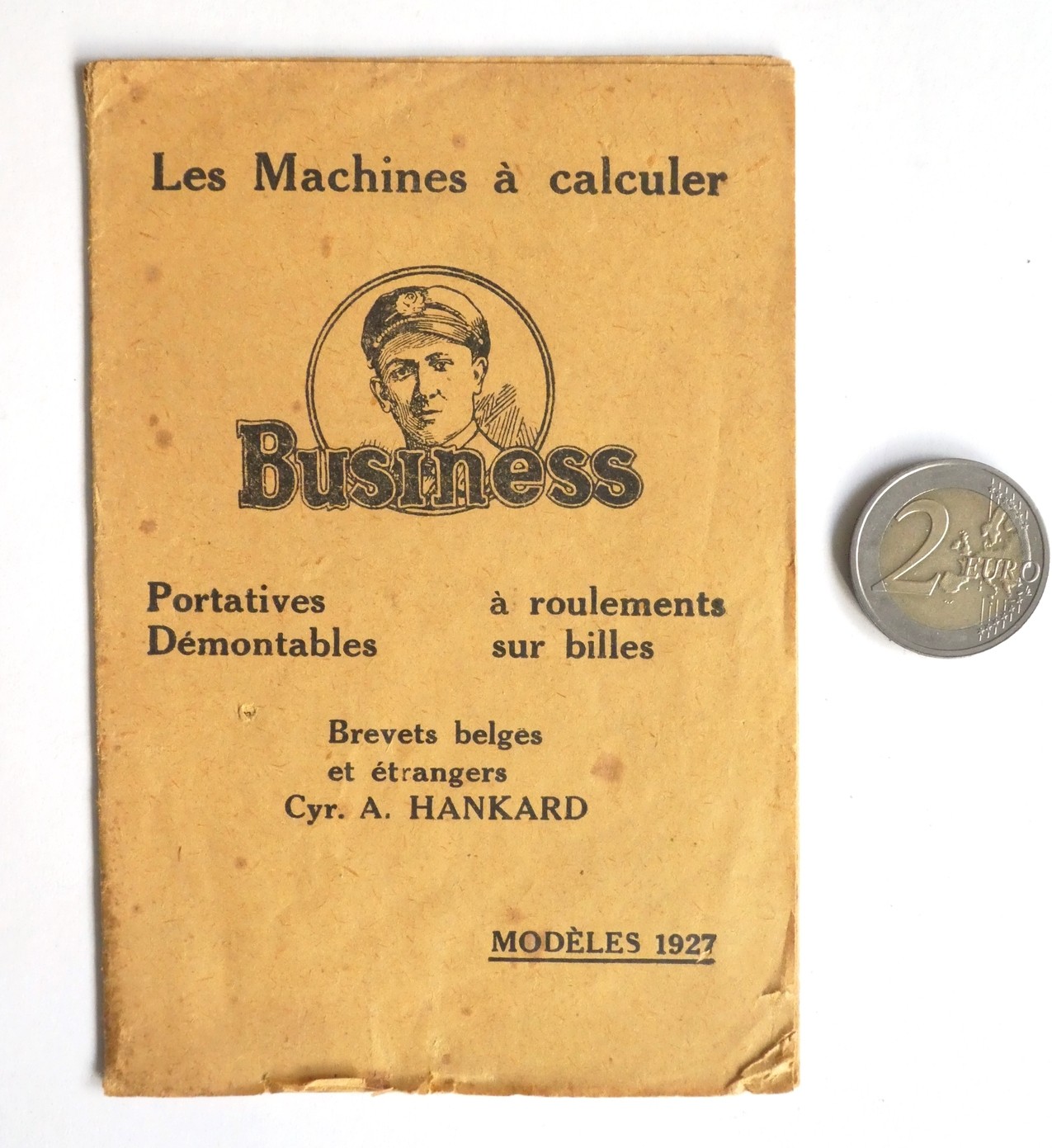

Les machine à calculer Business    (PDF, 2.71 MB or archive.org)
Cyrille A. Hankard
1927
16 page leaflet
90mm × 134mm

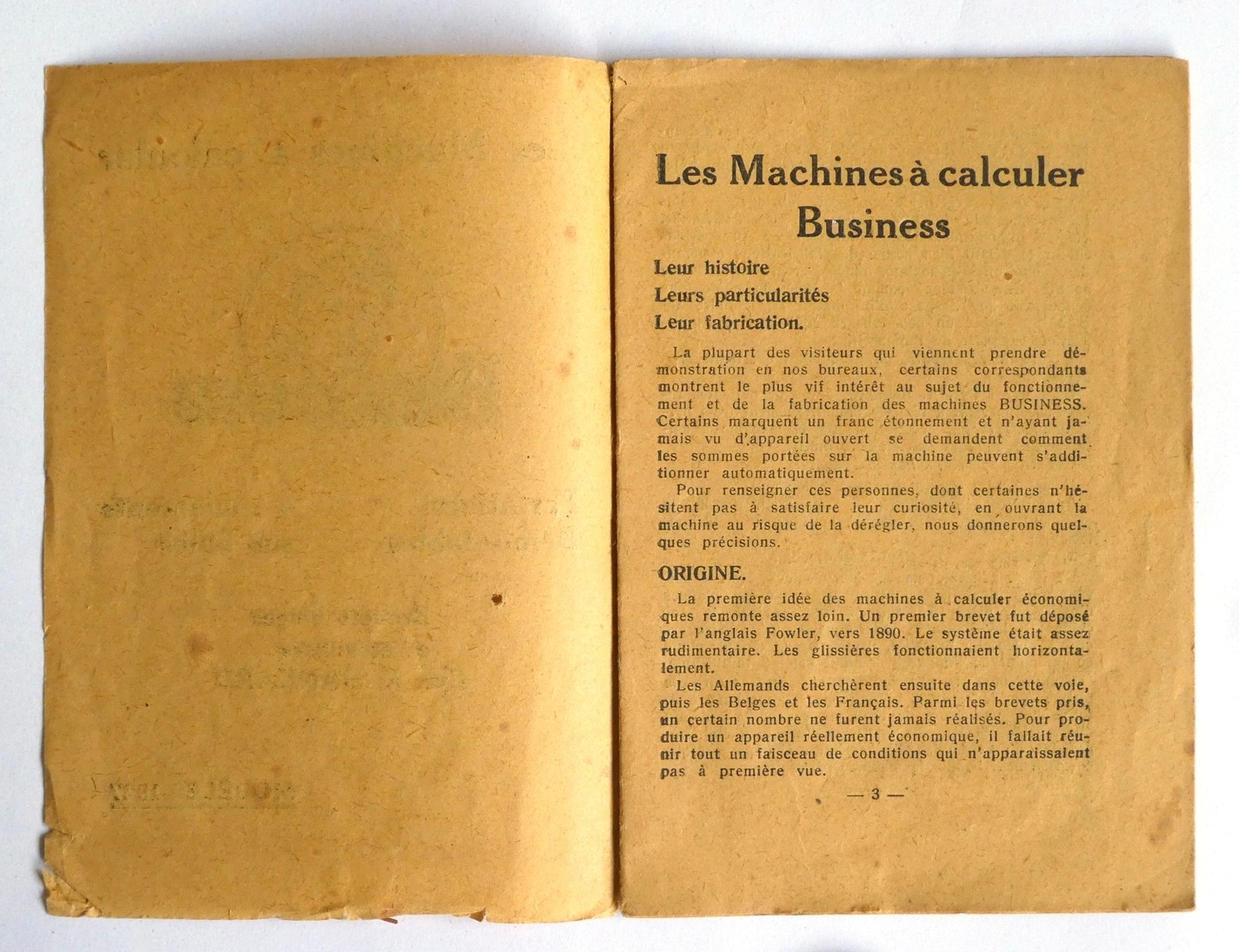

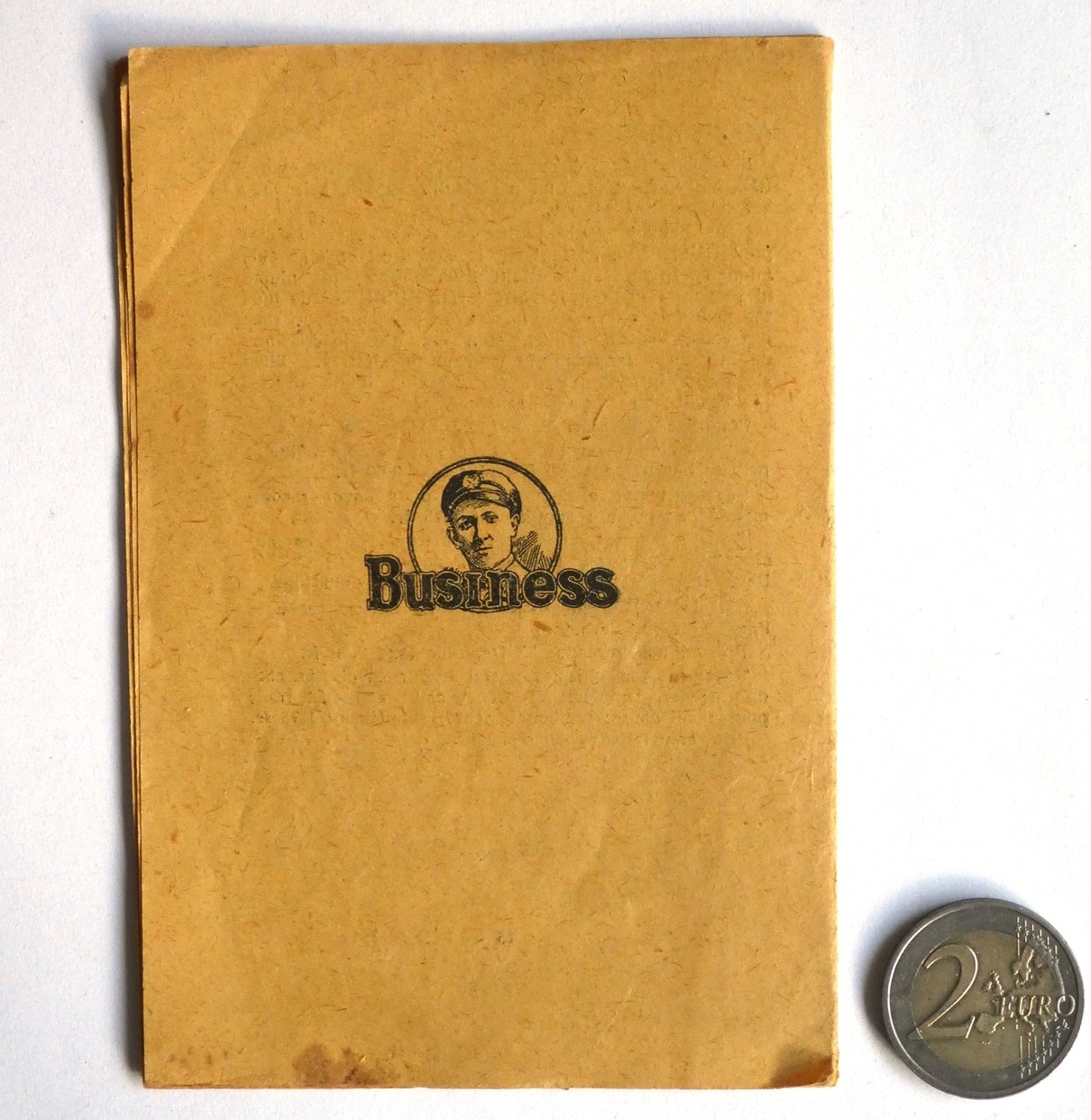

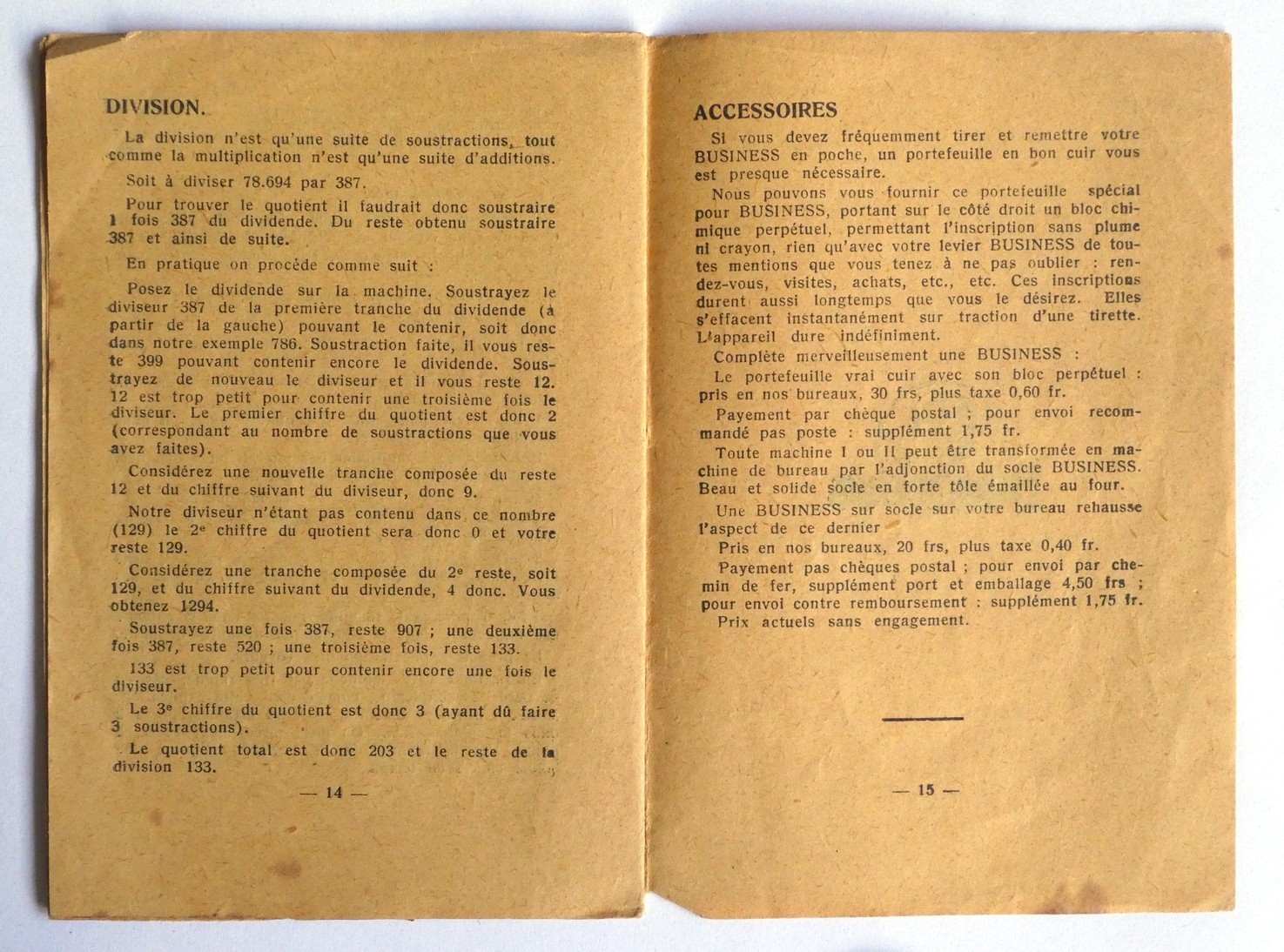

This is the small instruction leaflet. It has more pages extolling the virtues and origins of the adder than explaining its usage.

Business instructions
Business instructions
Business instructions
Business instructions
Business instructions



The Master adding machine

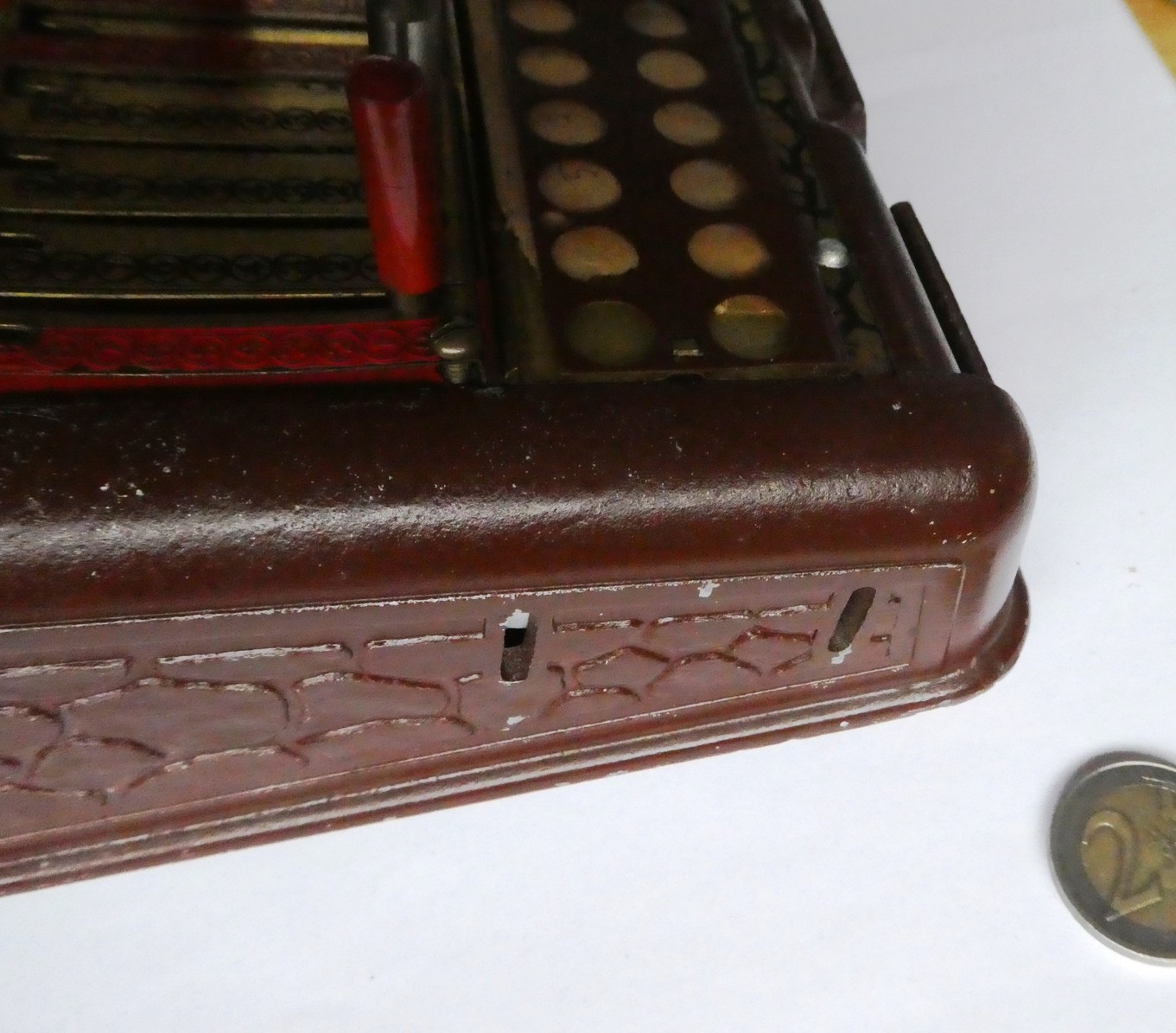

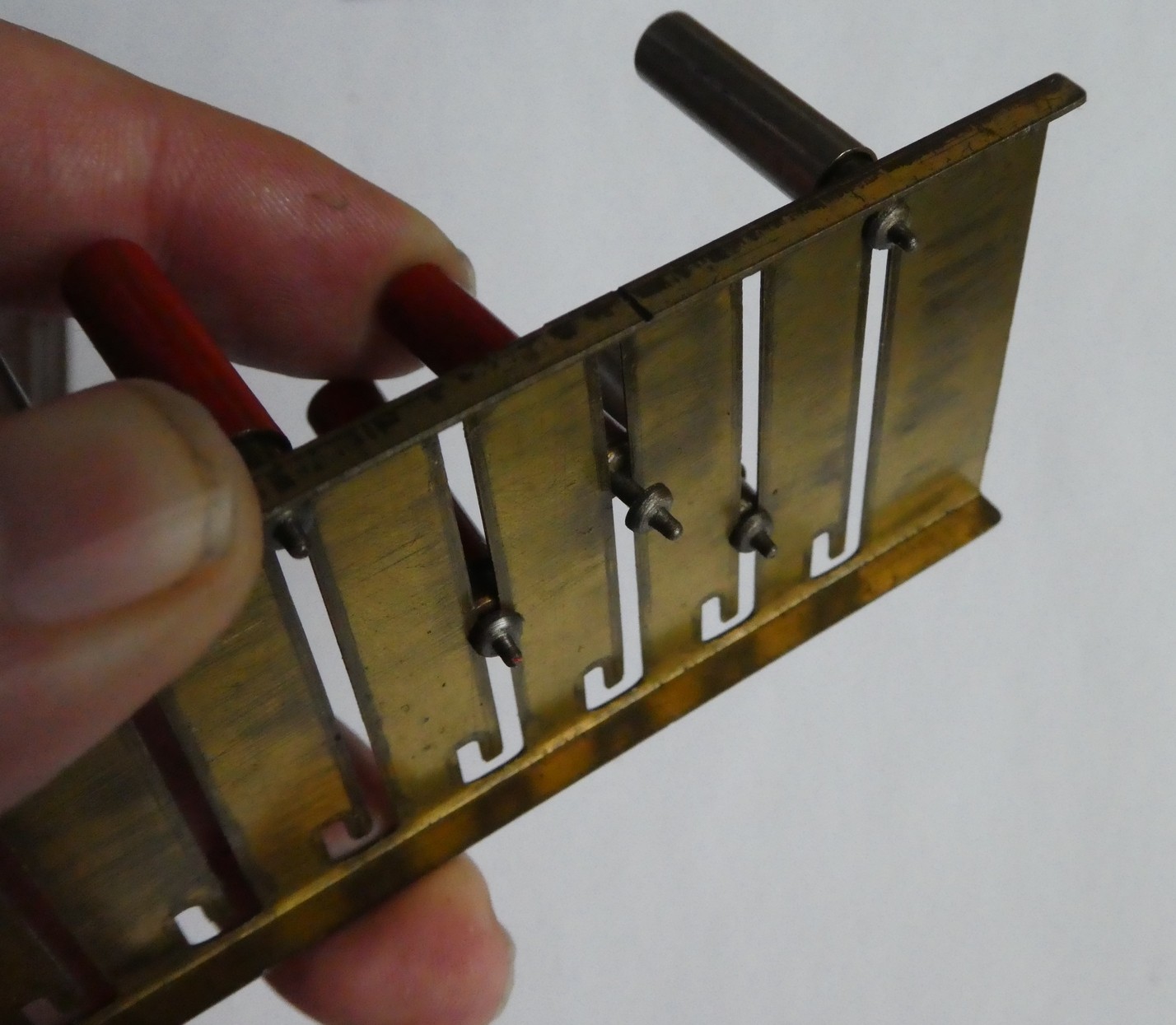

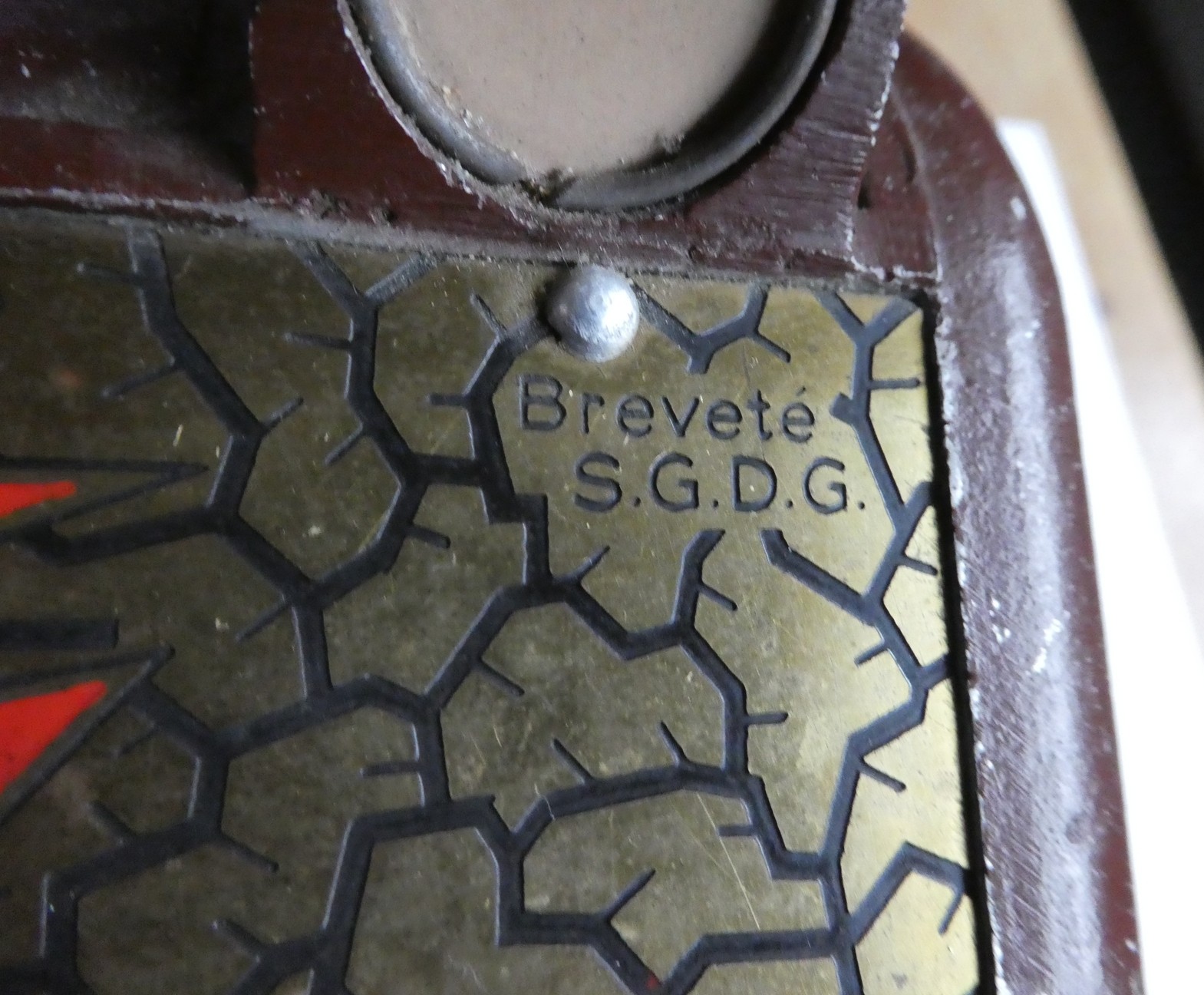

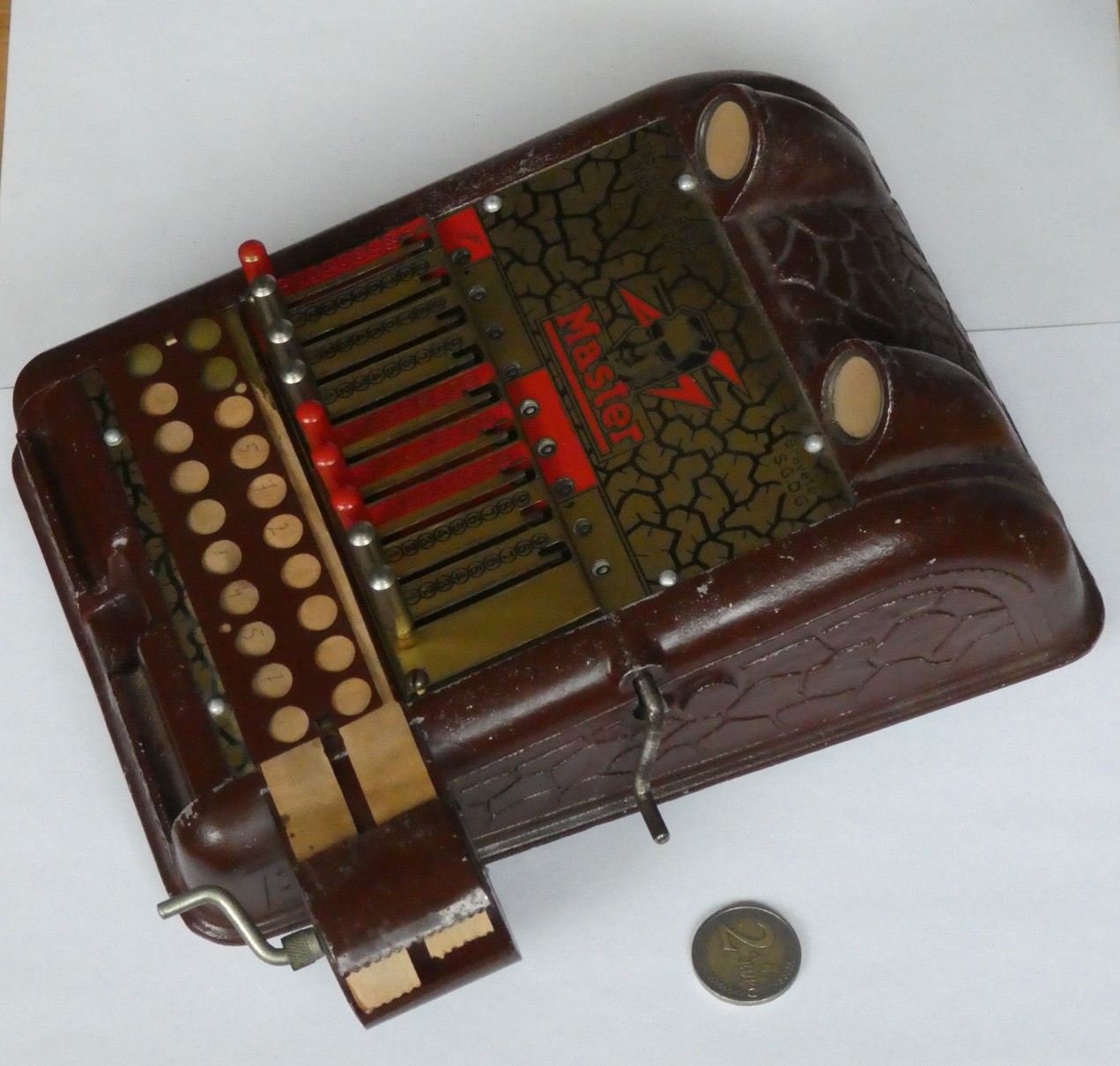

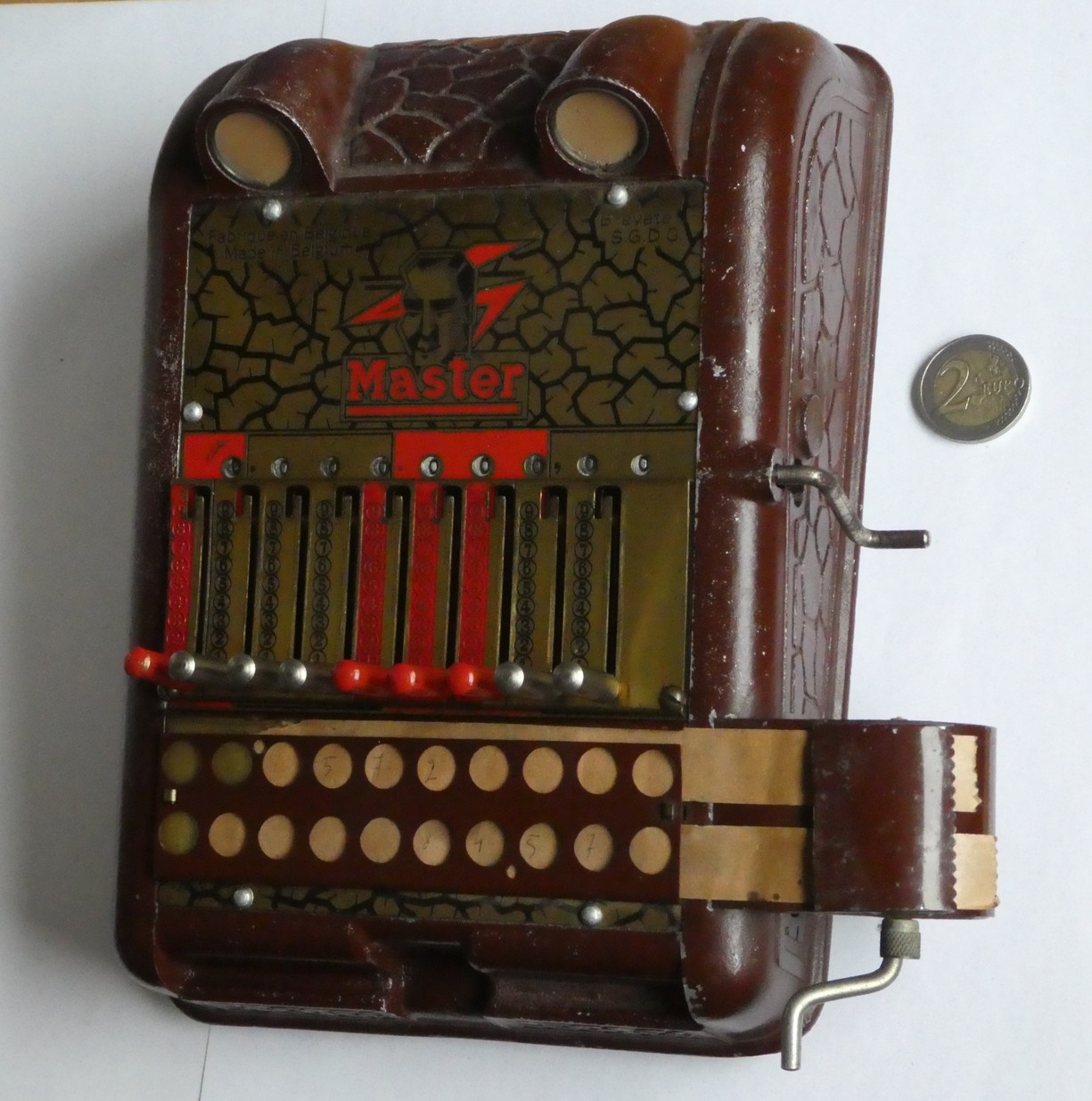

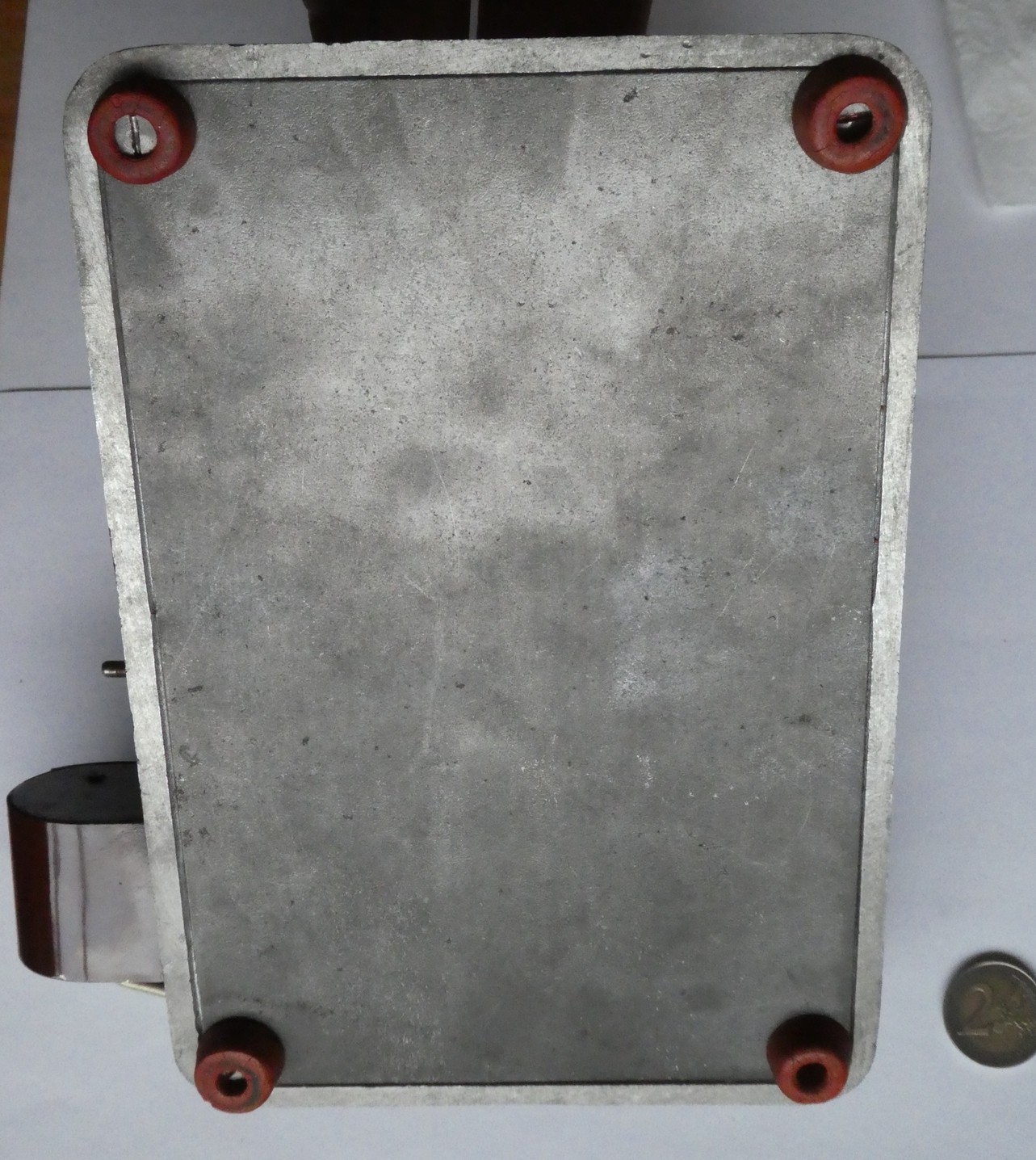

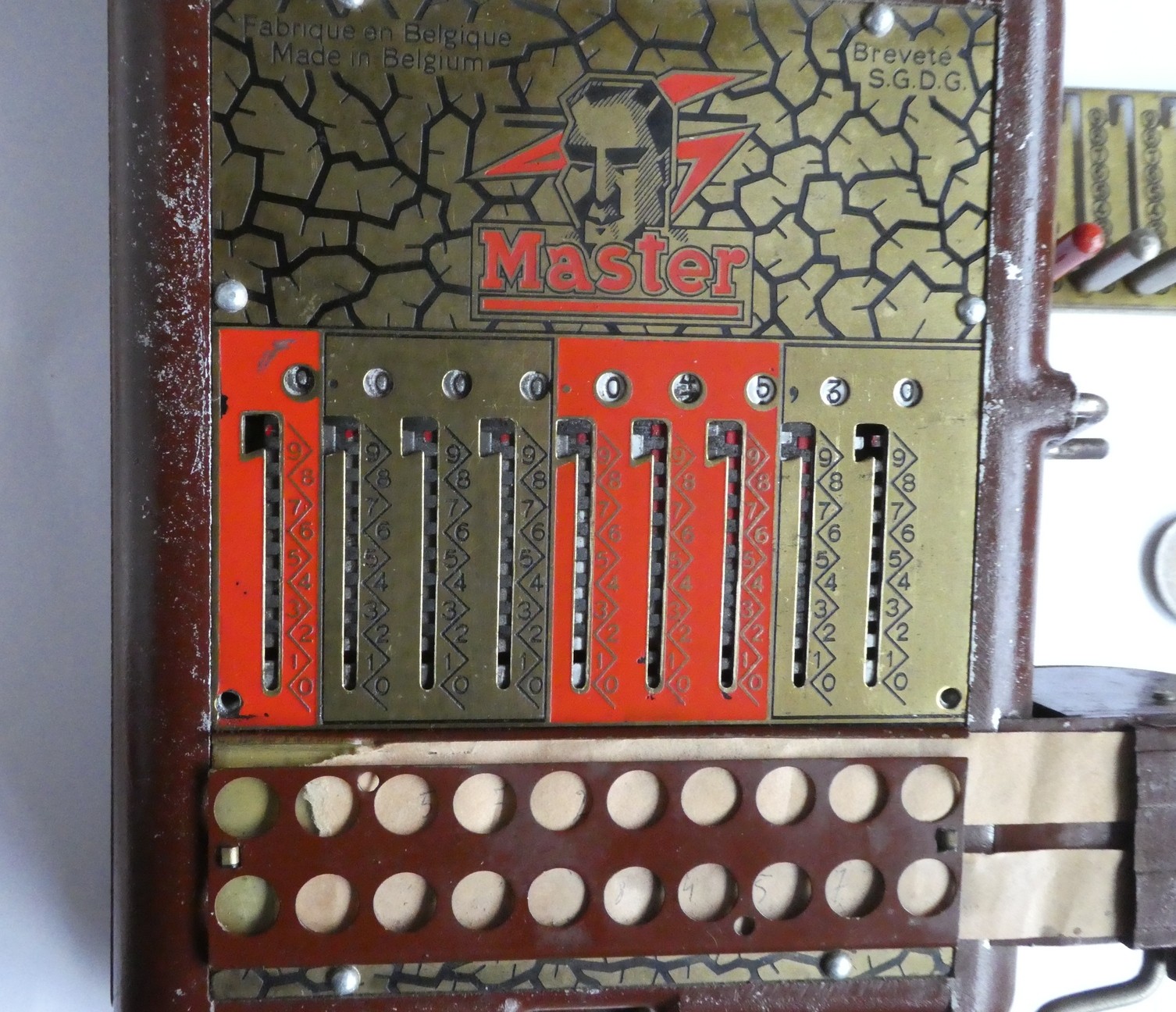

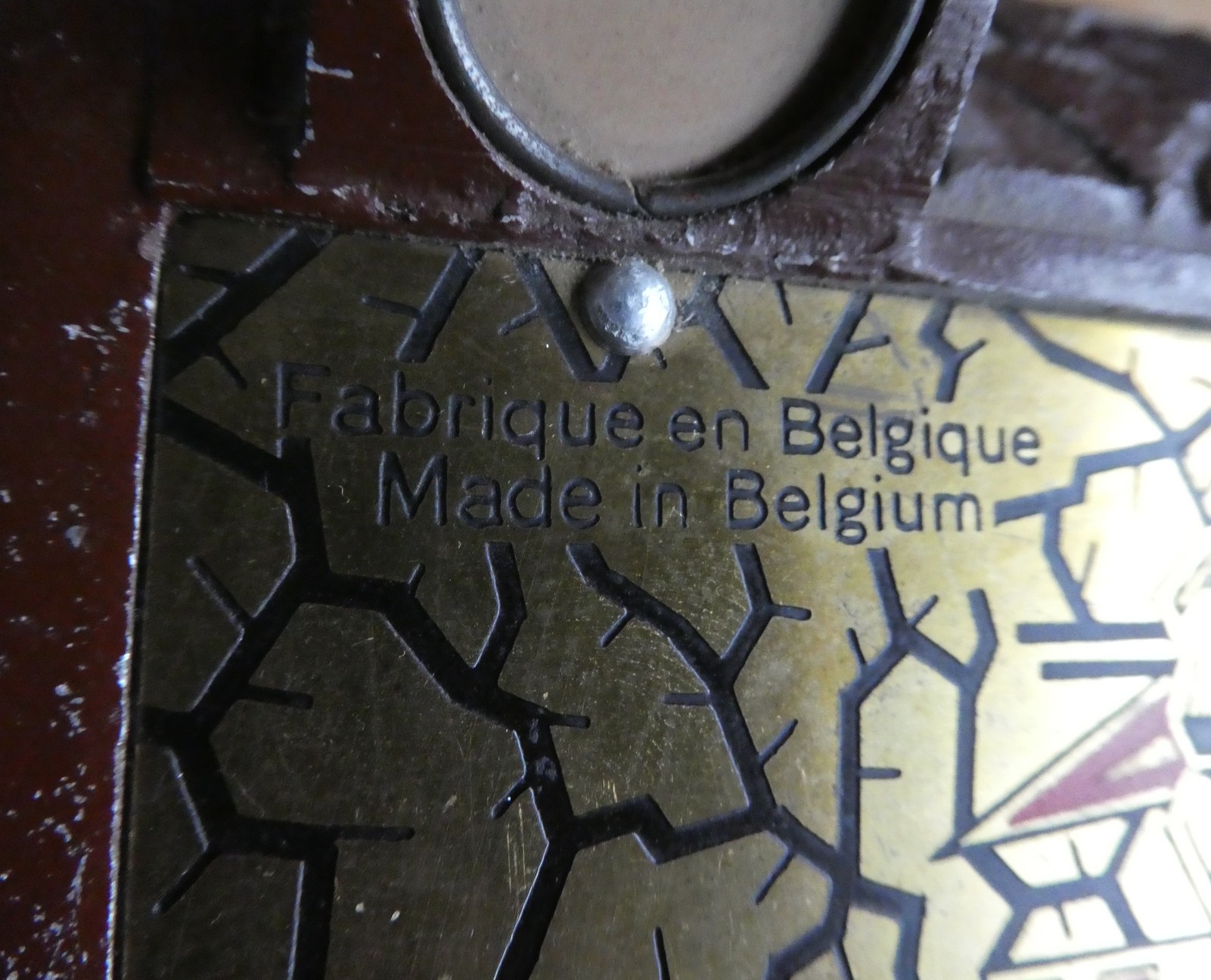

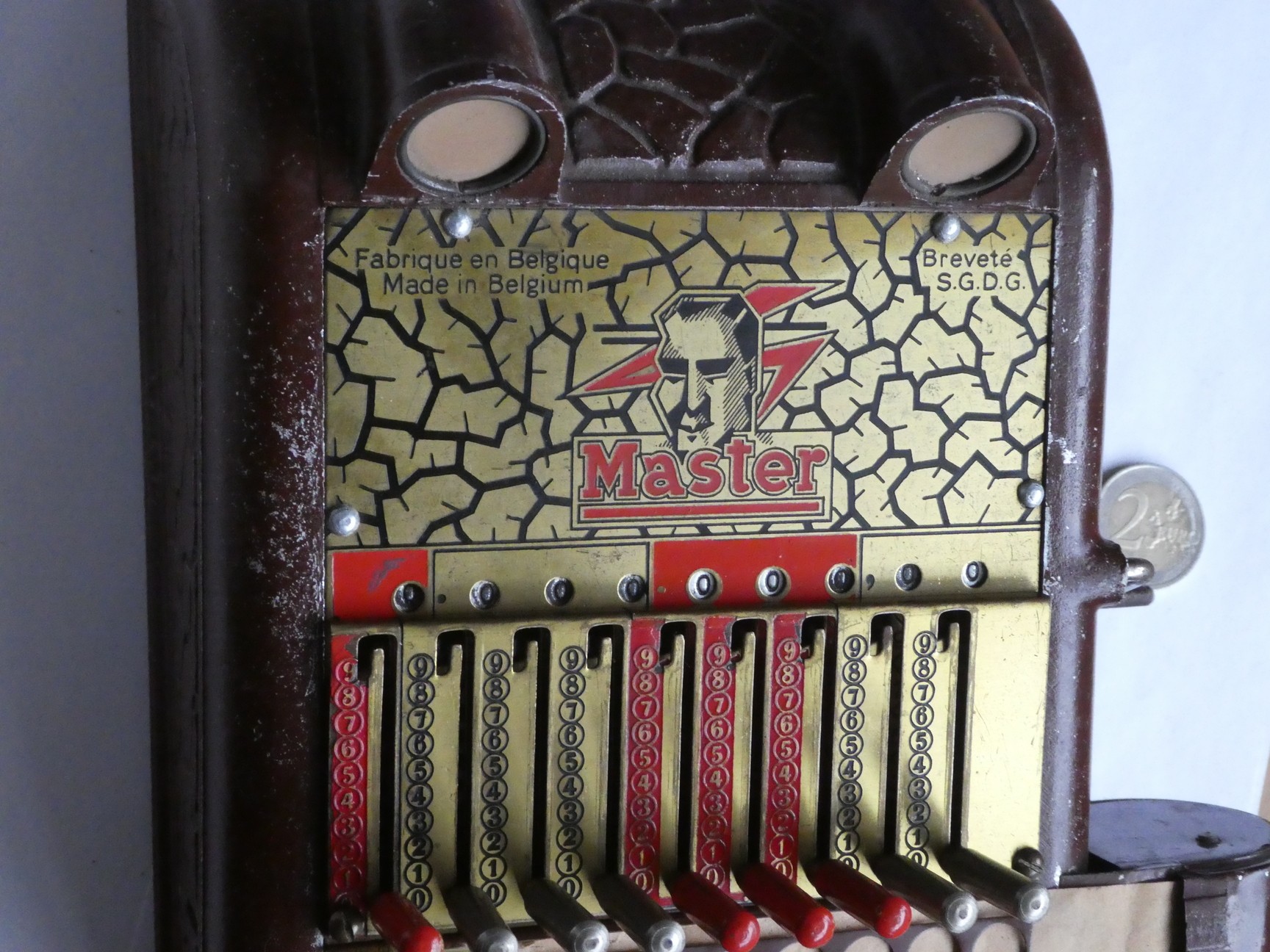

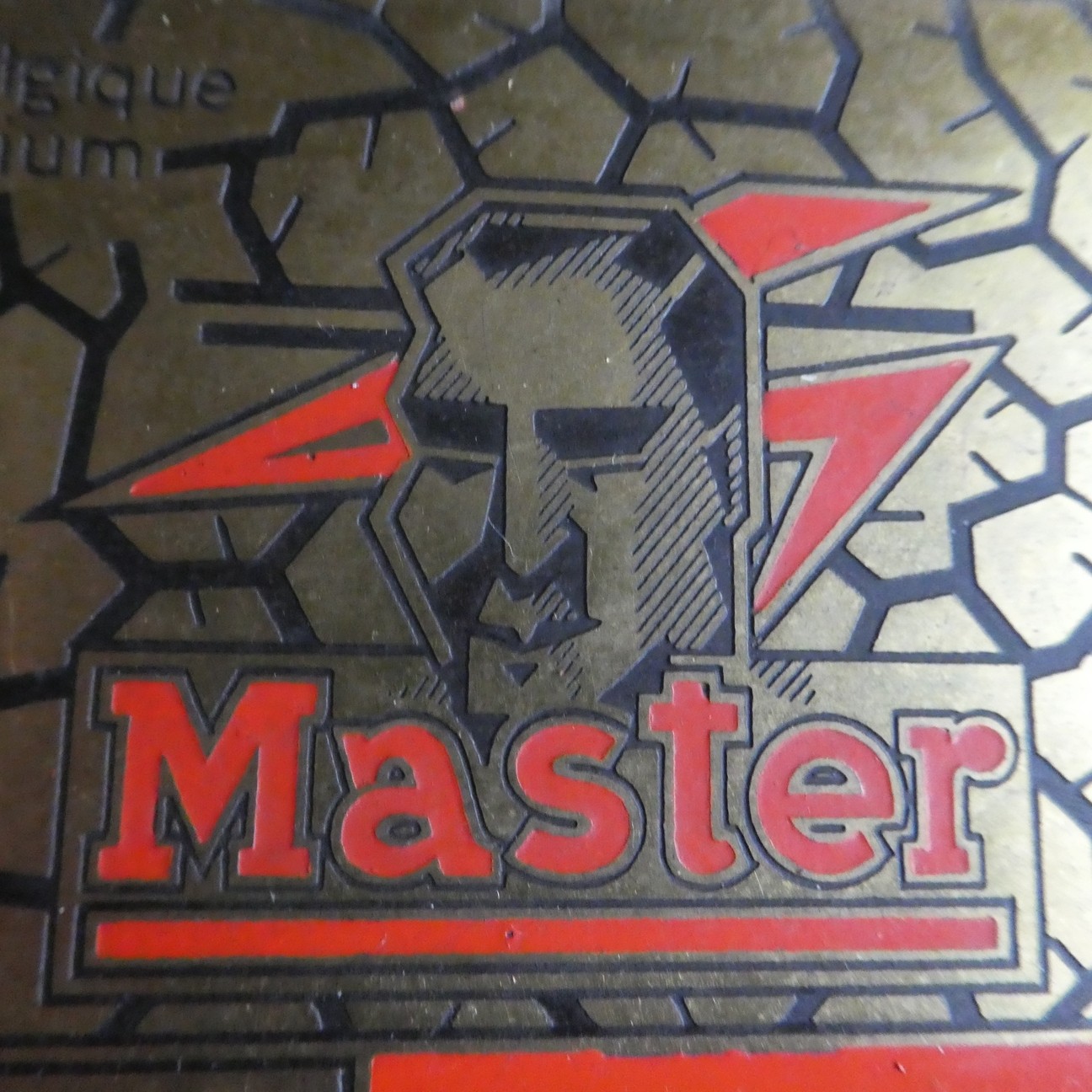

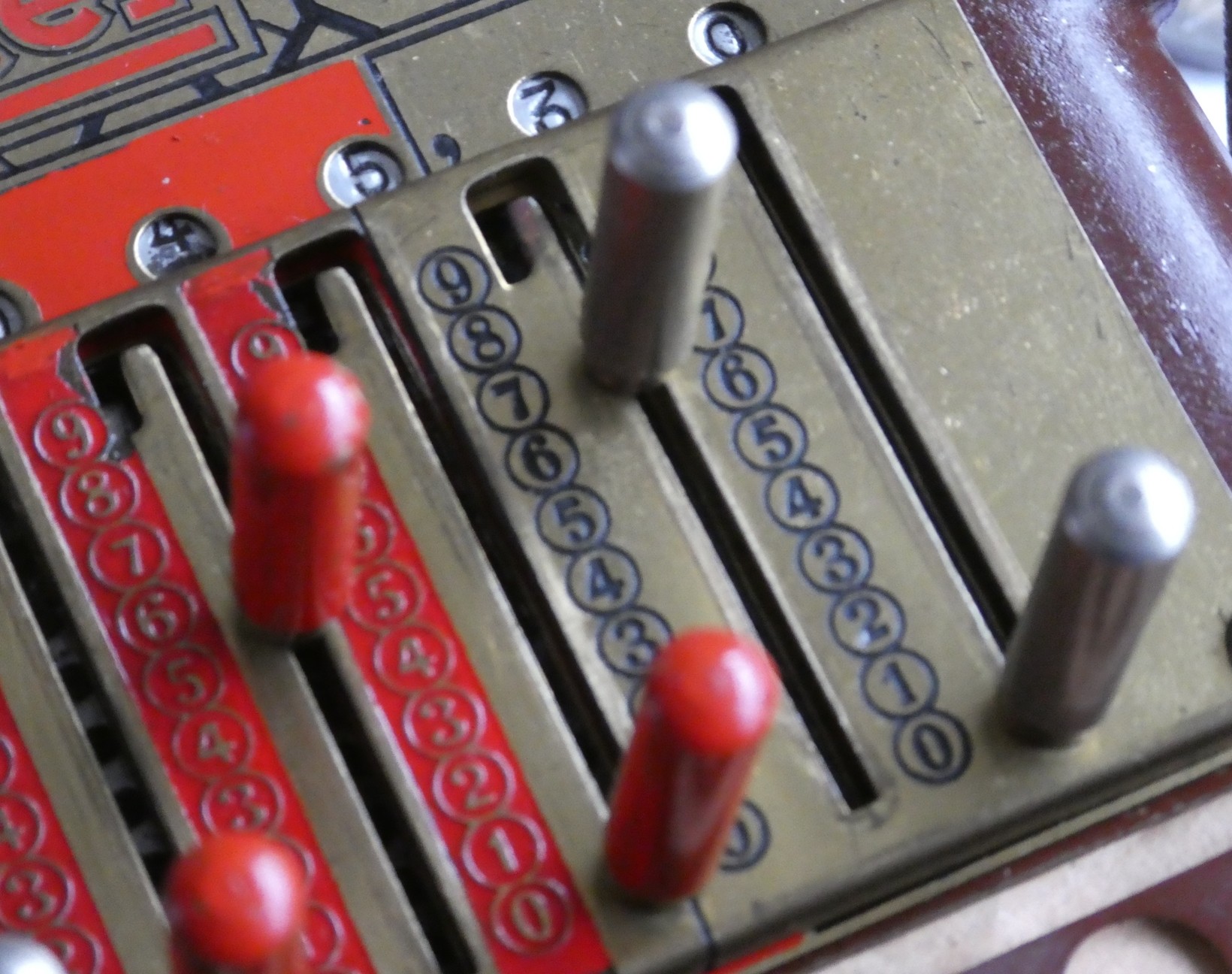

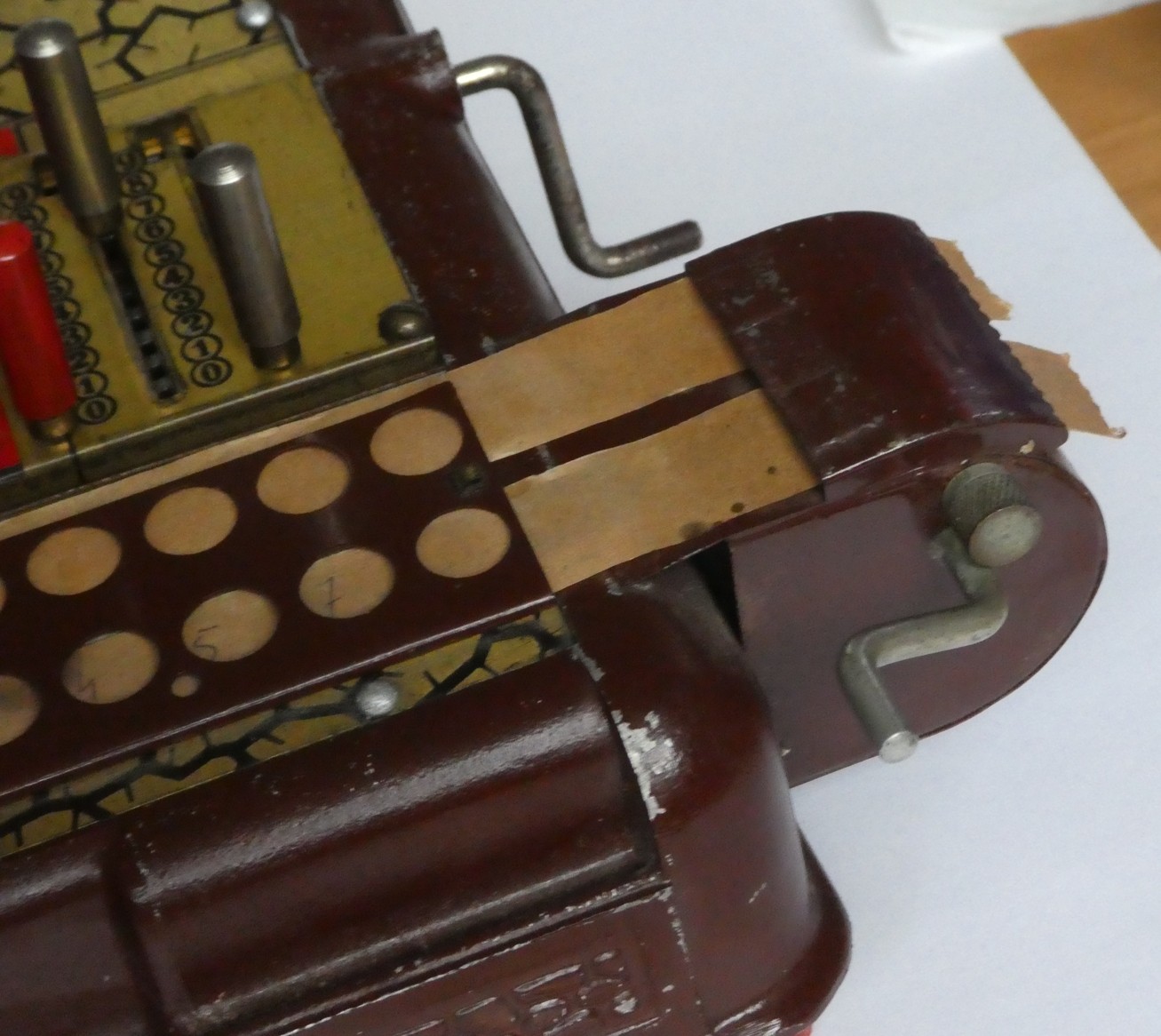

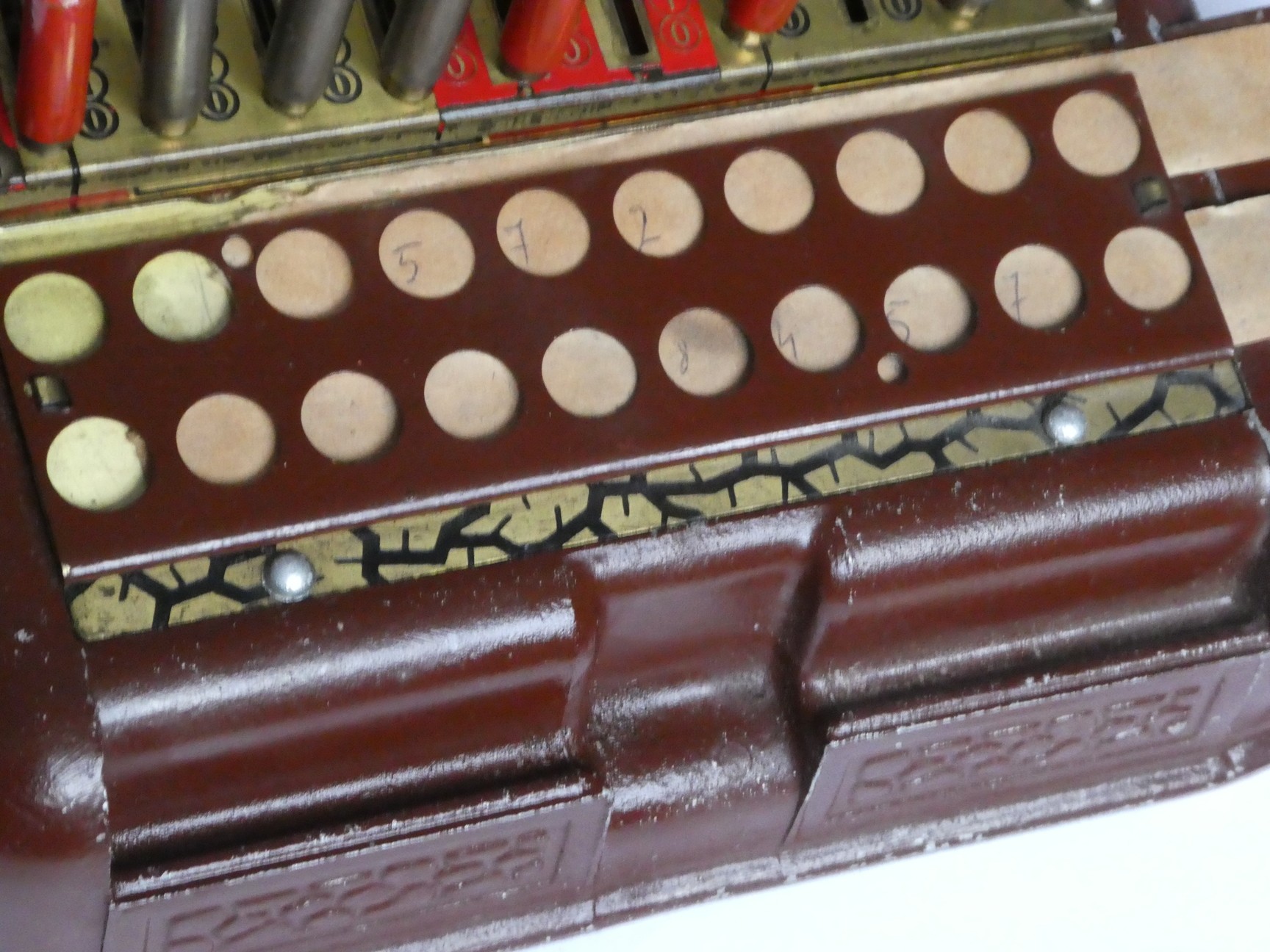

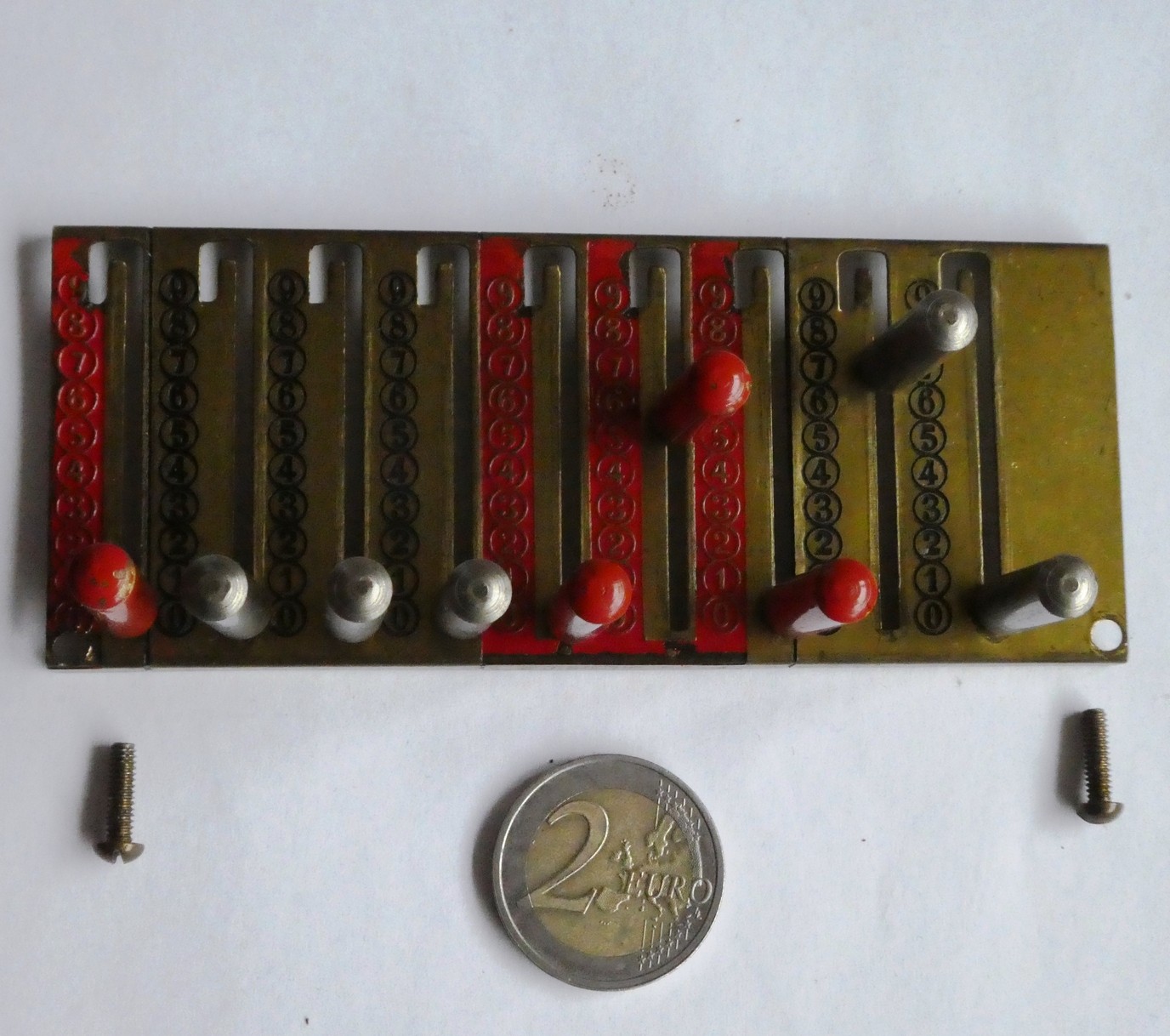

The Master adding machine is a troncet adder in a bulky cast-metal casing. It was made in the second half of the 1930s in many somewhat ludicrous variants. Some features of the Master are:

Master
Master
Master
Master
Master
Master
Master
Master
Master
Master
Master
Master
Master
Master



Video

Here is a video where I demonstrate the Business and Master adding machines.

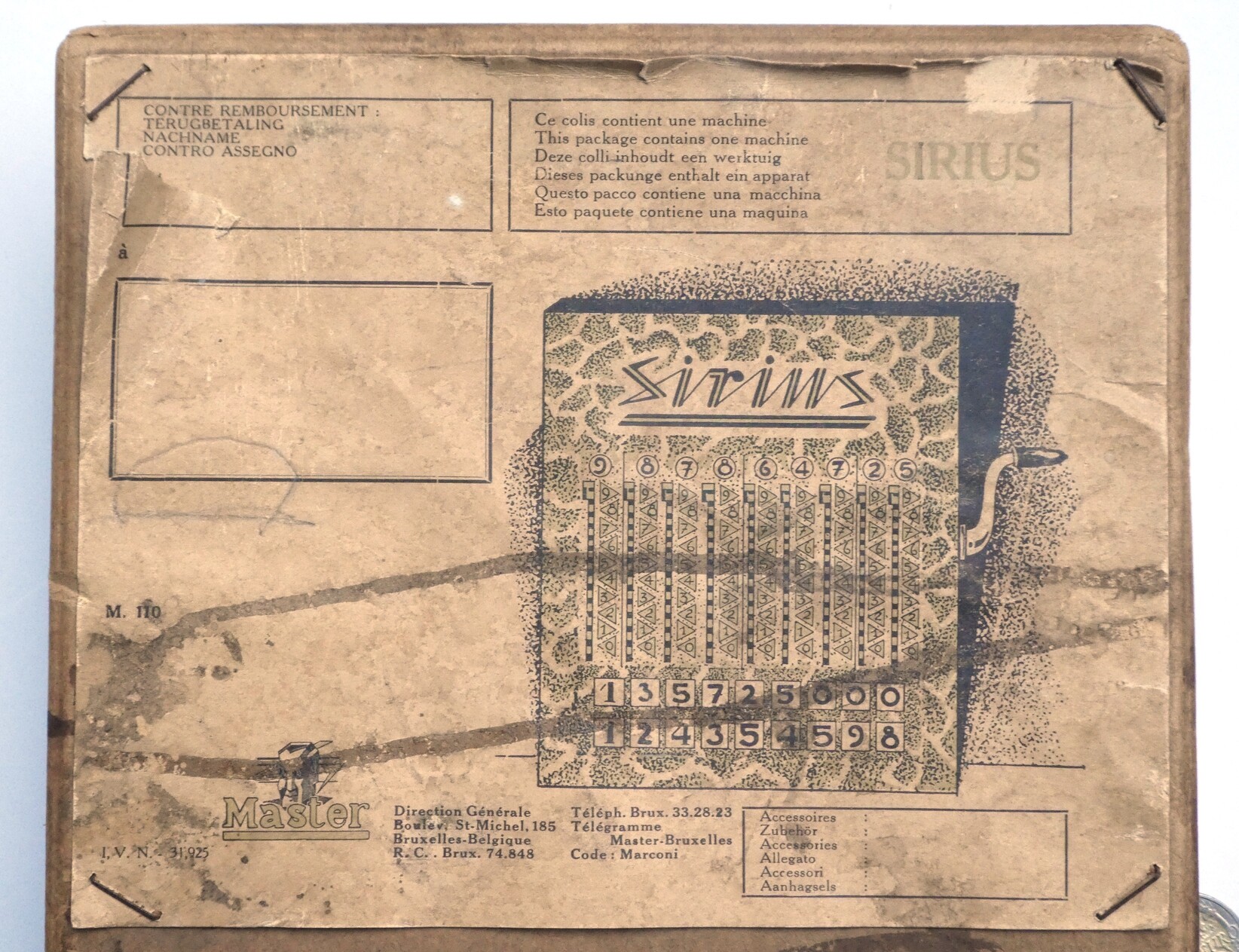

The Sirius adding machine

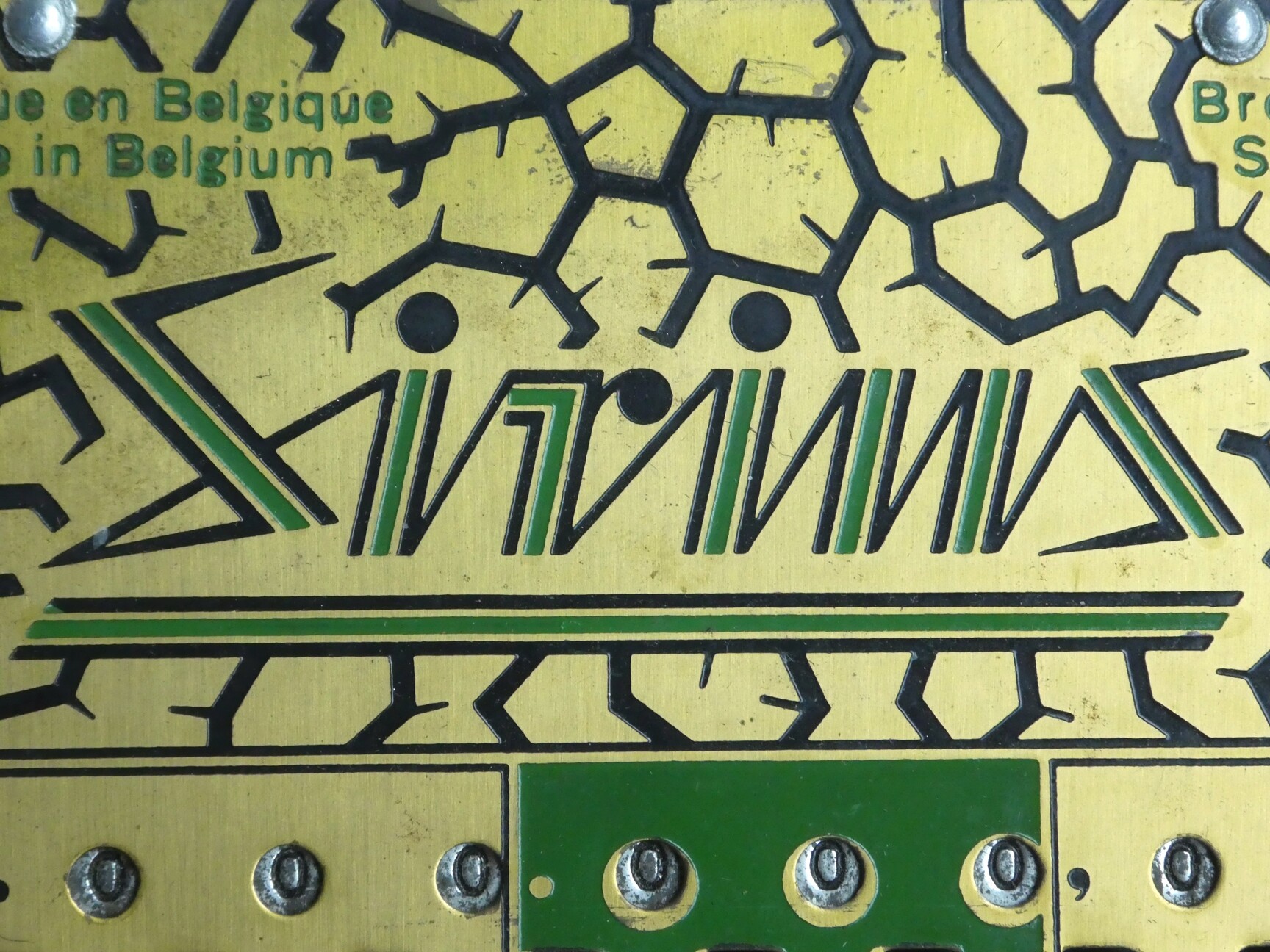

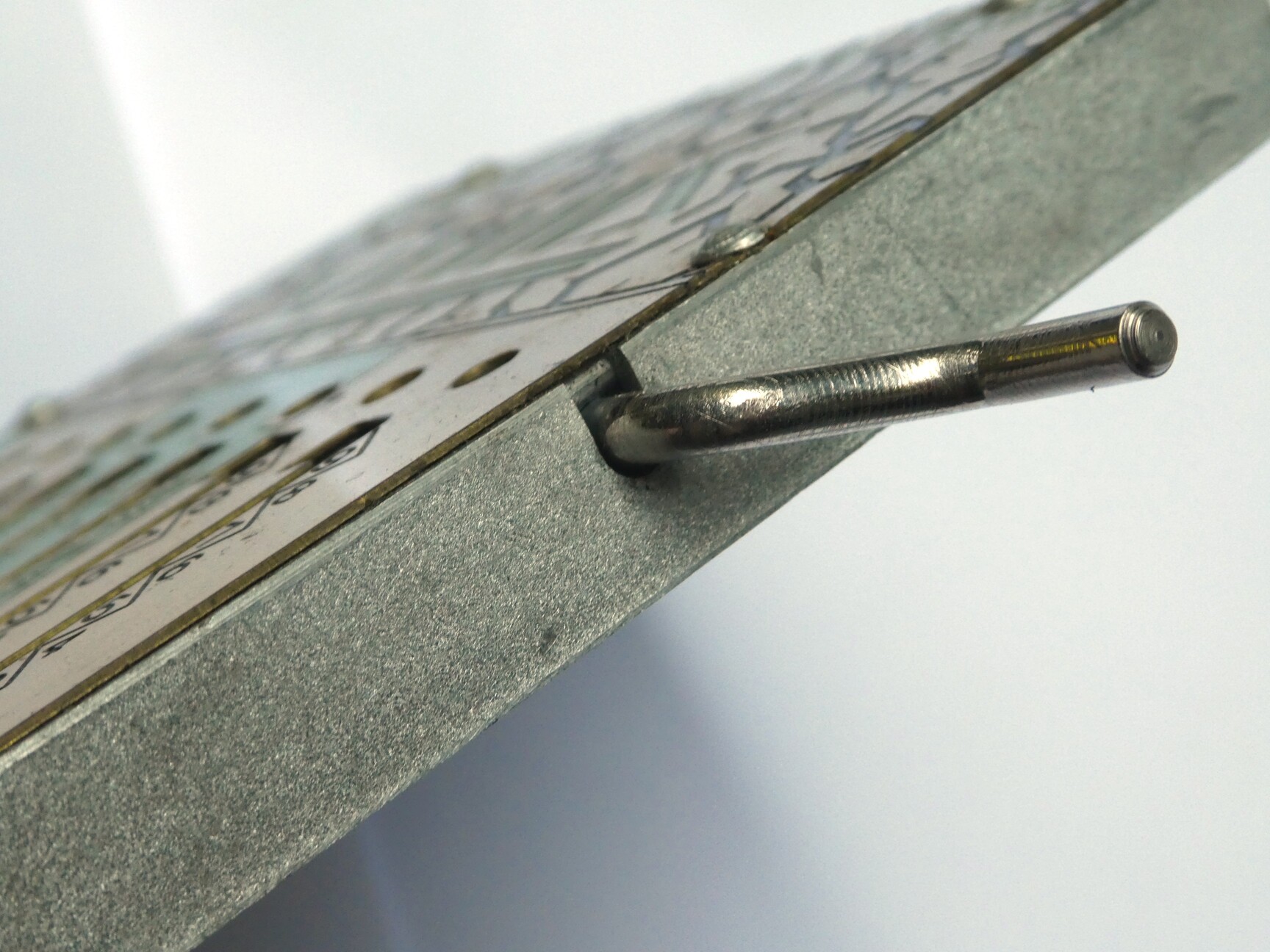

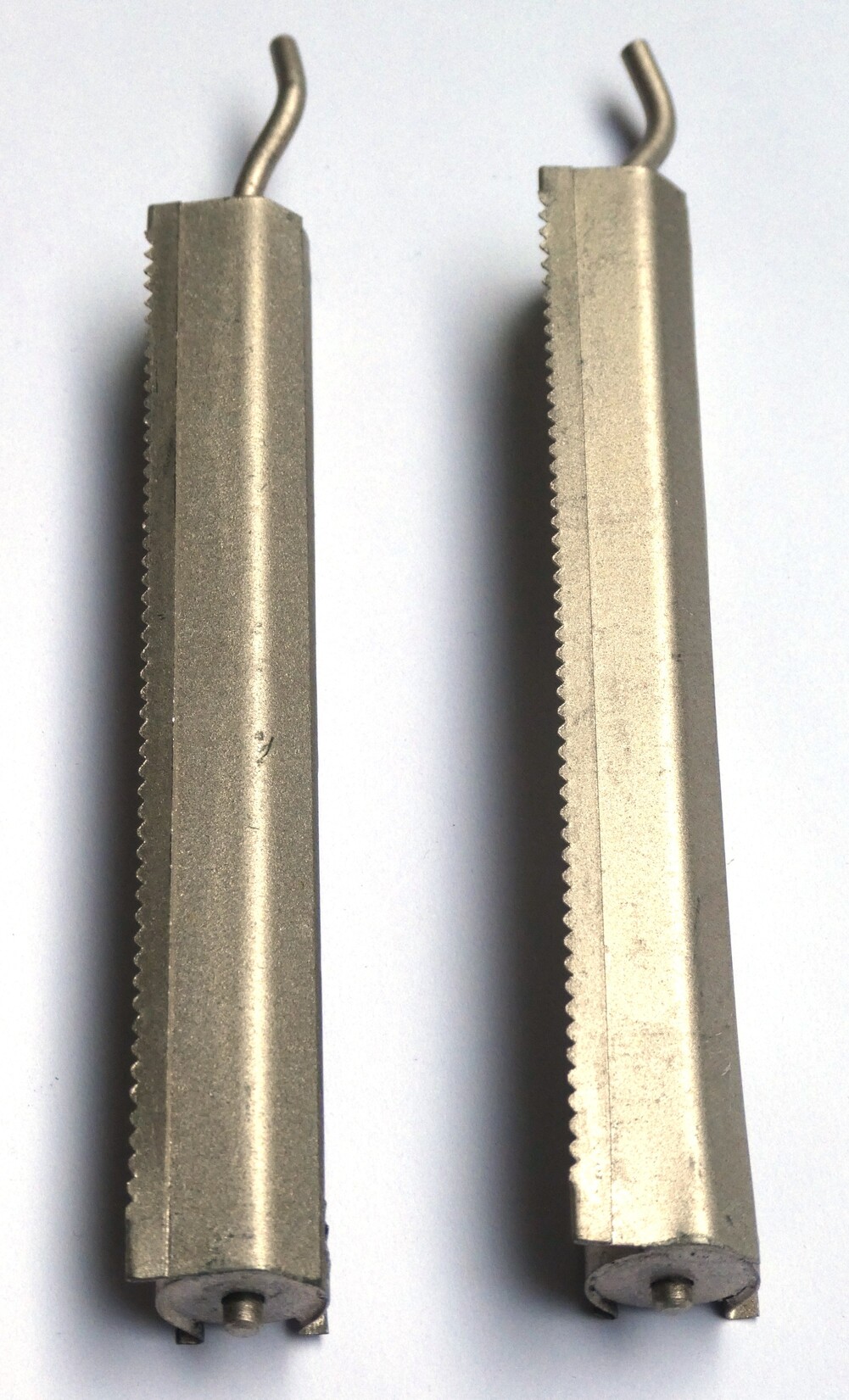

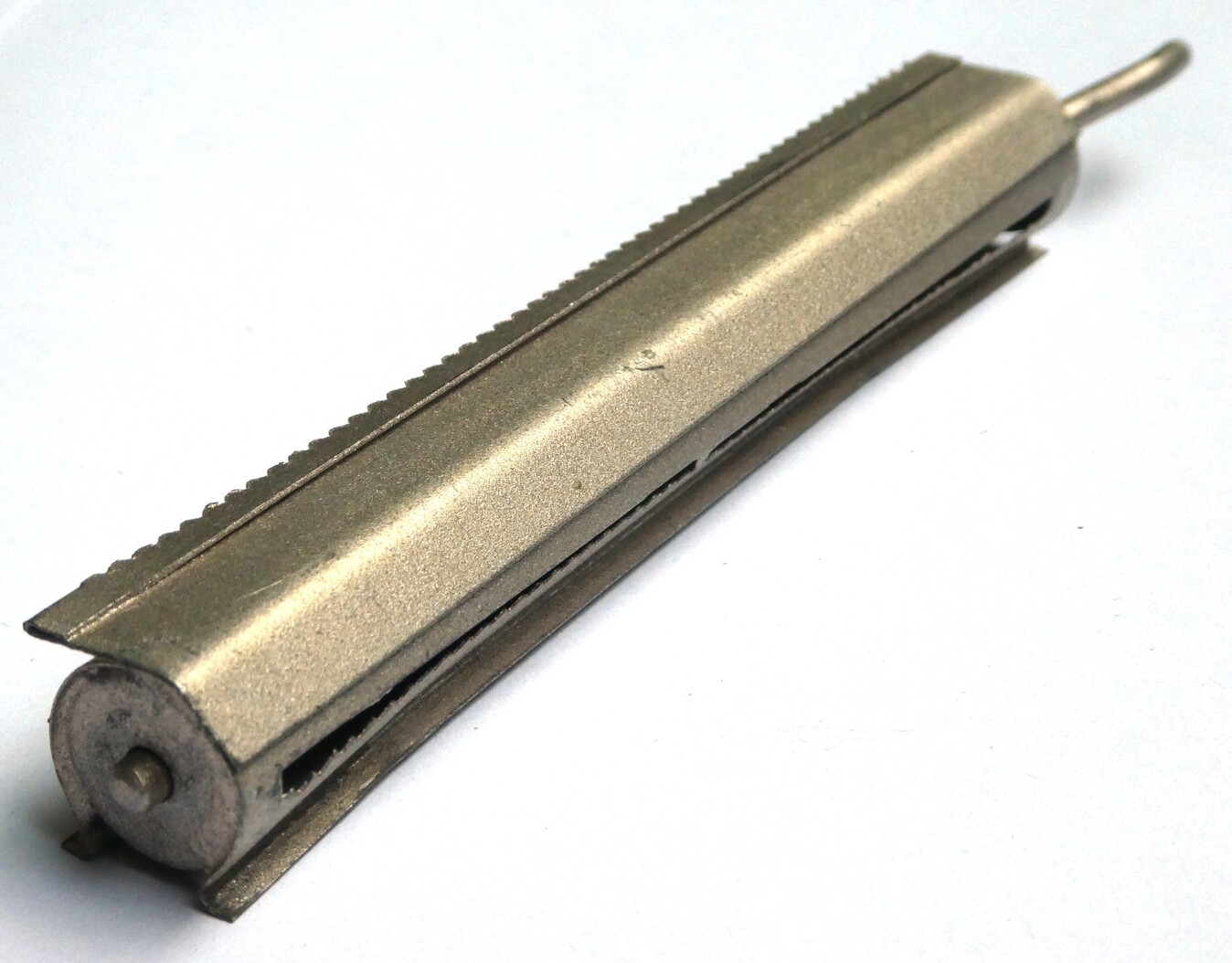

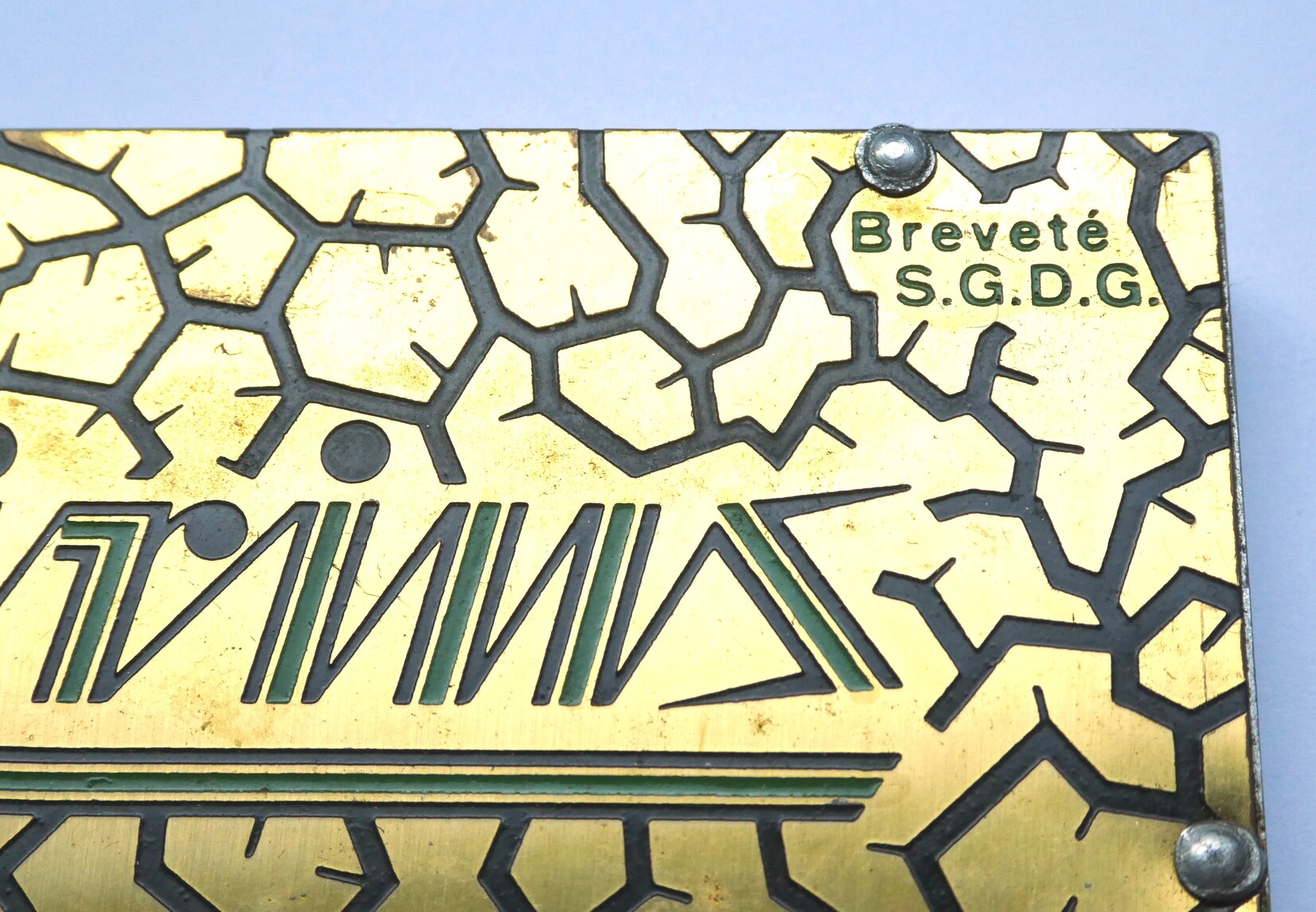

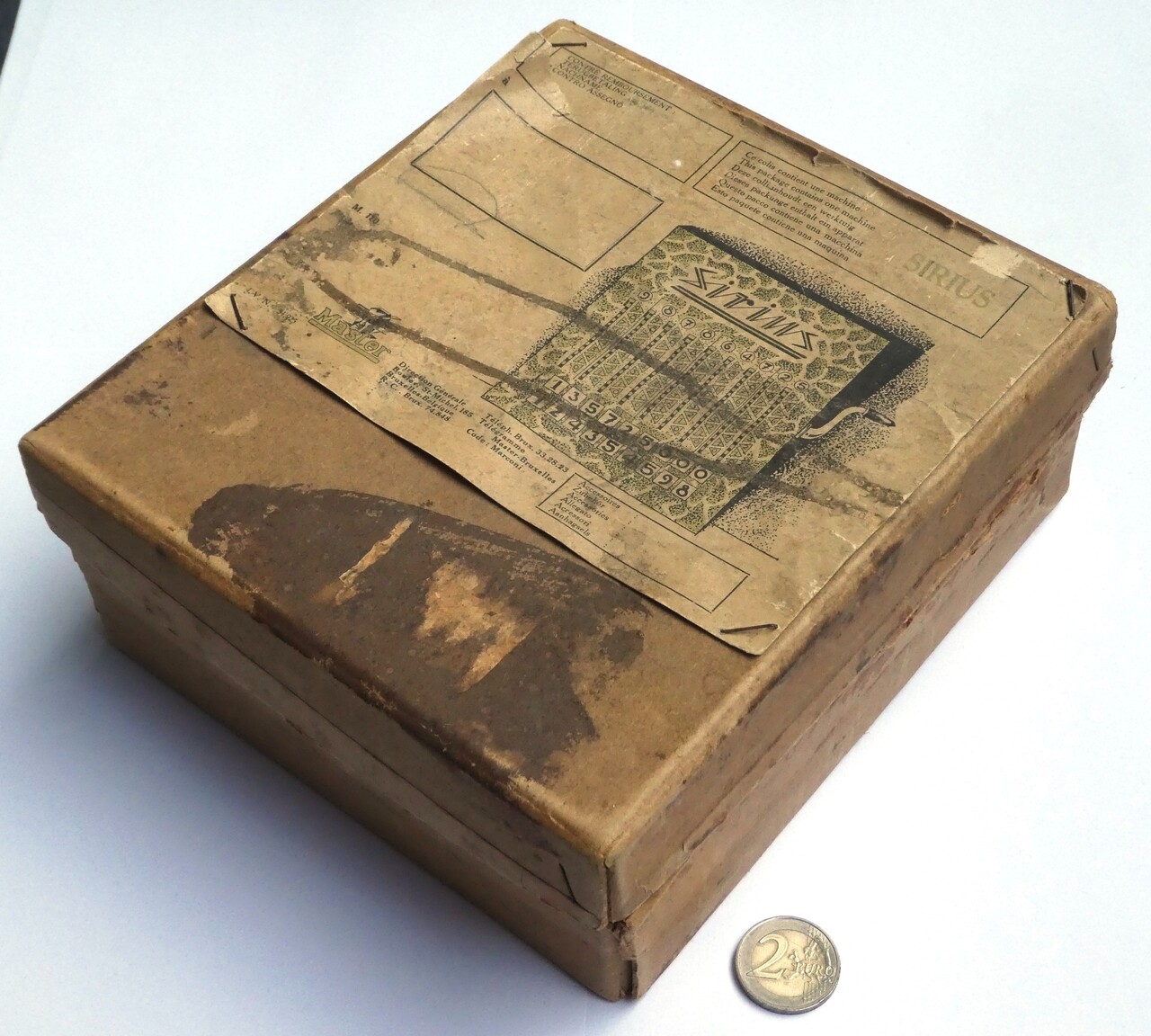

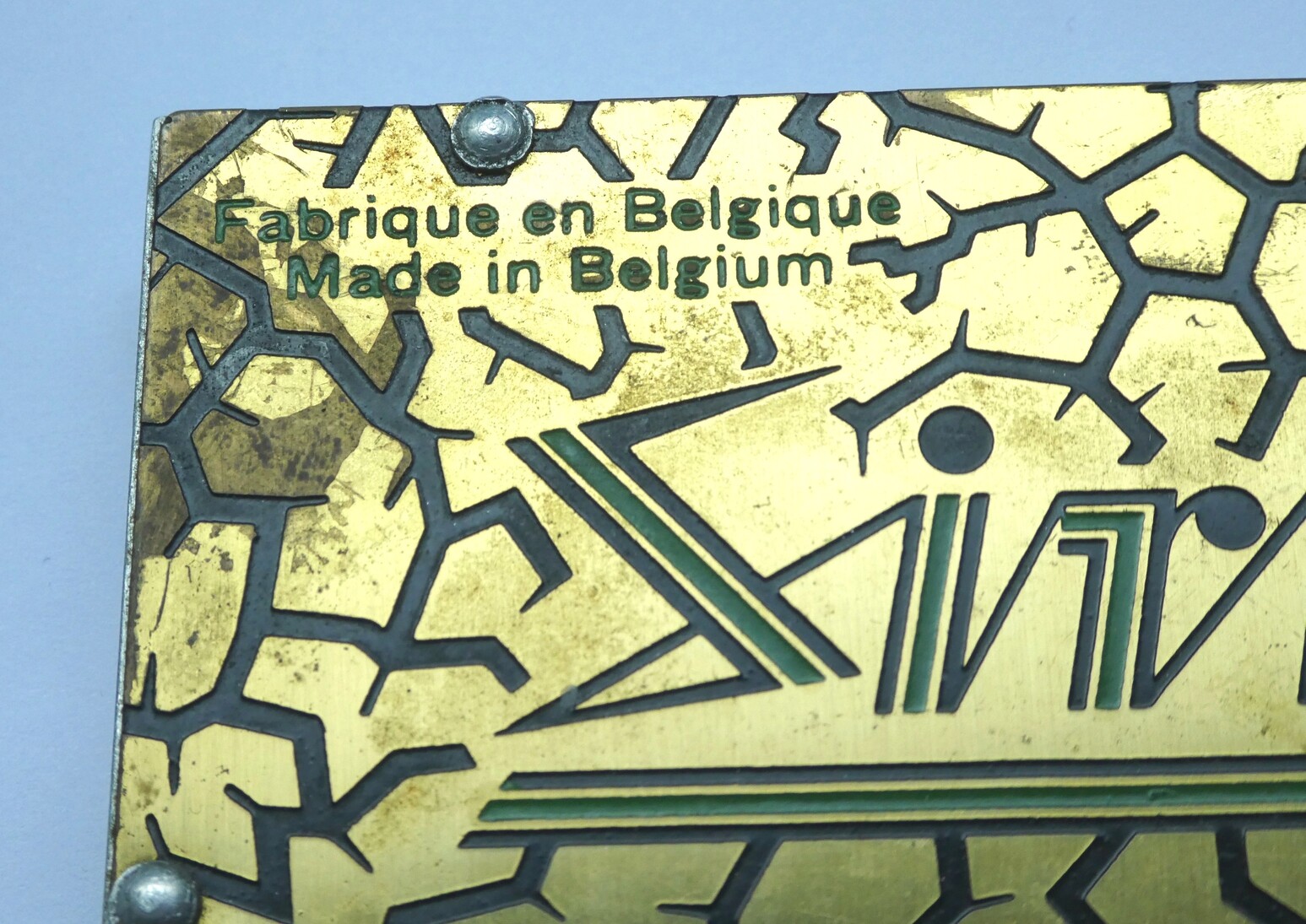

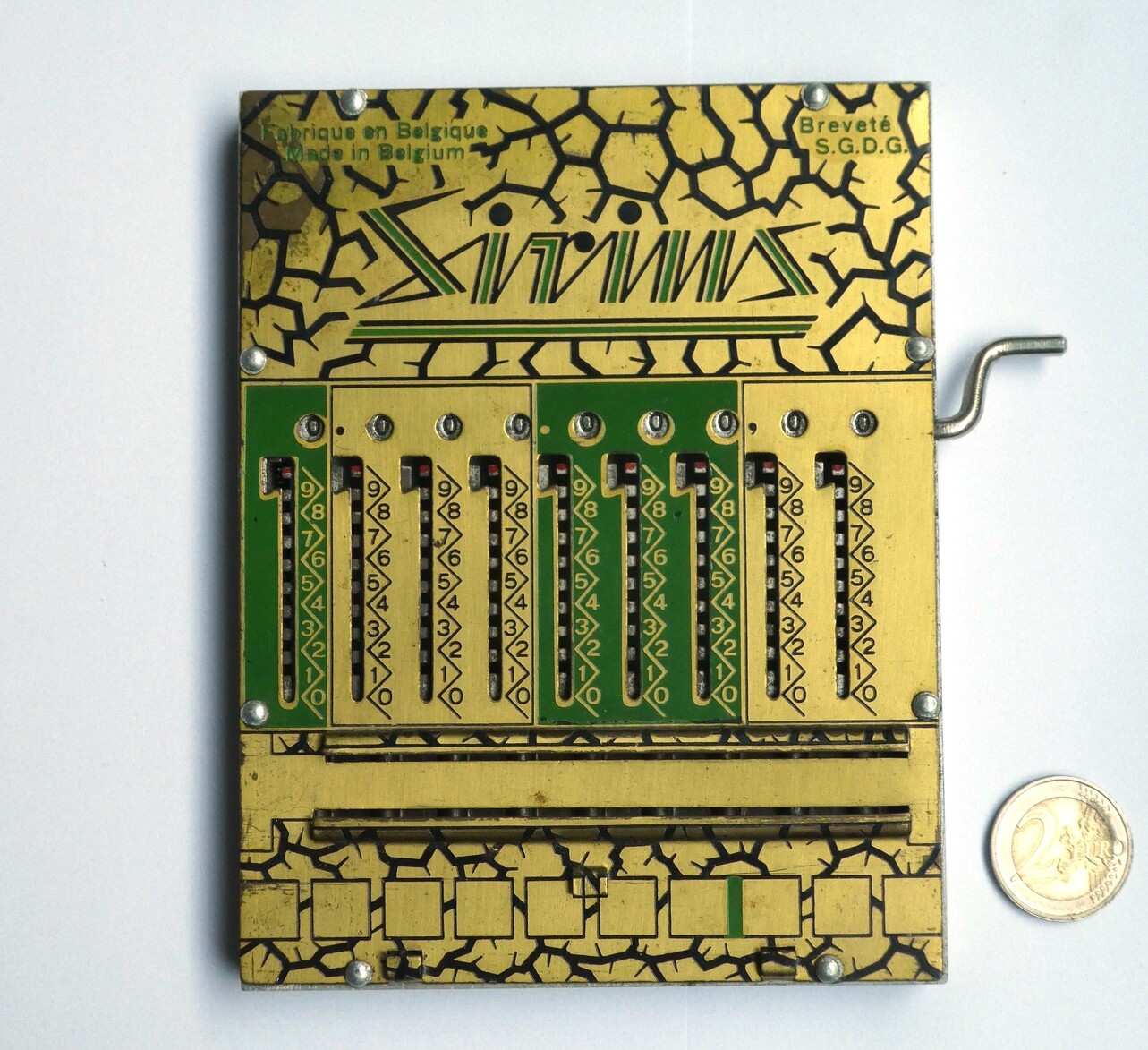

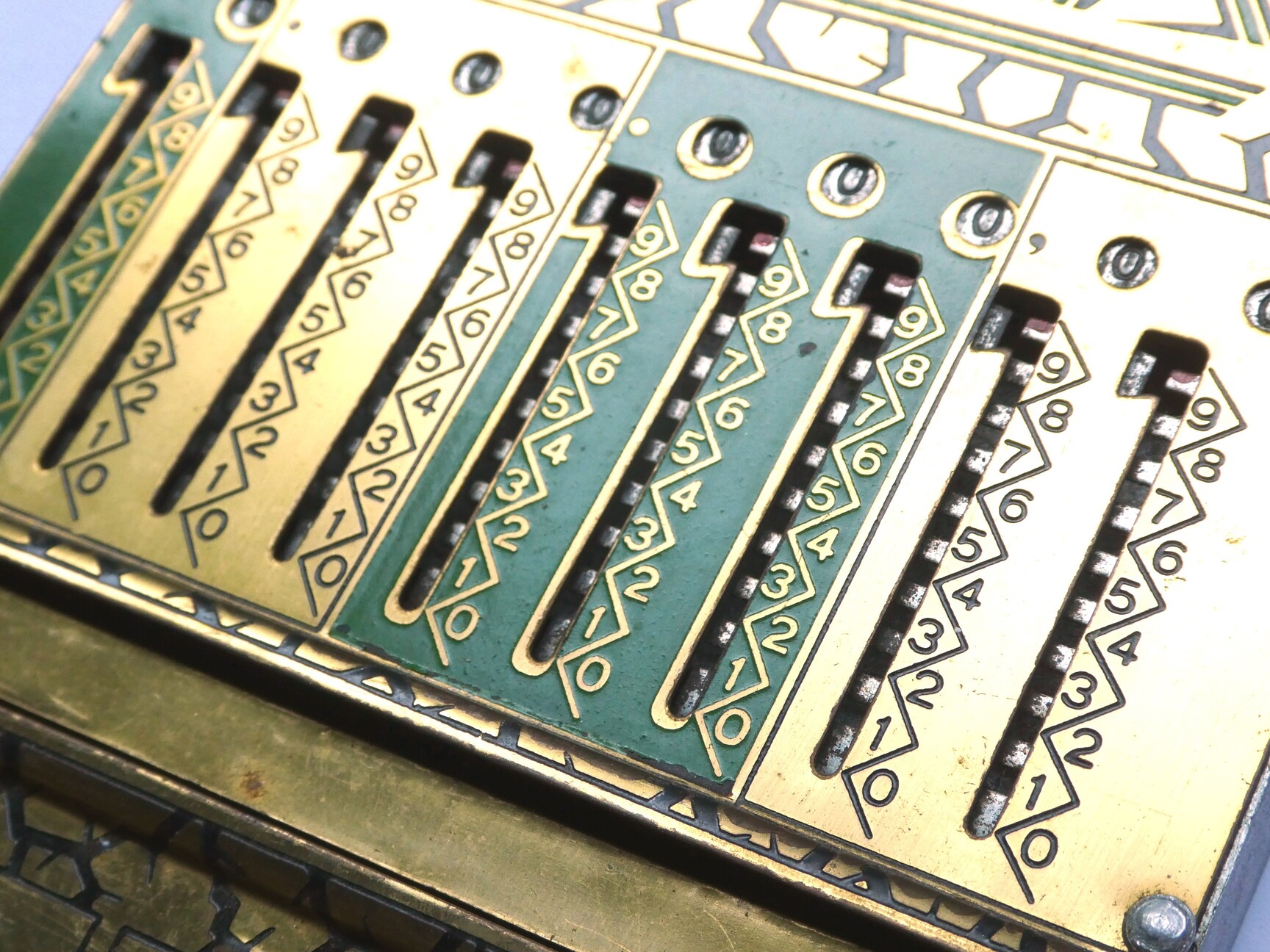

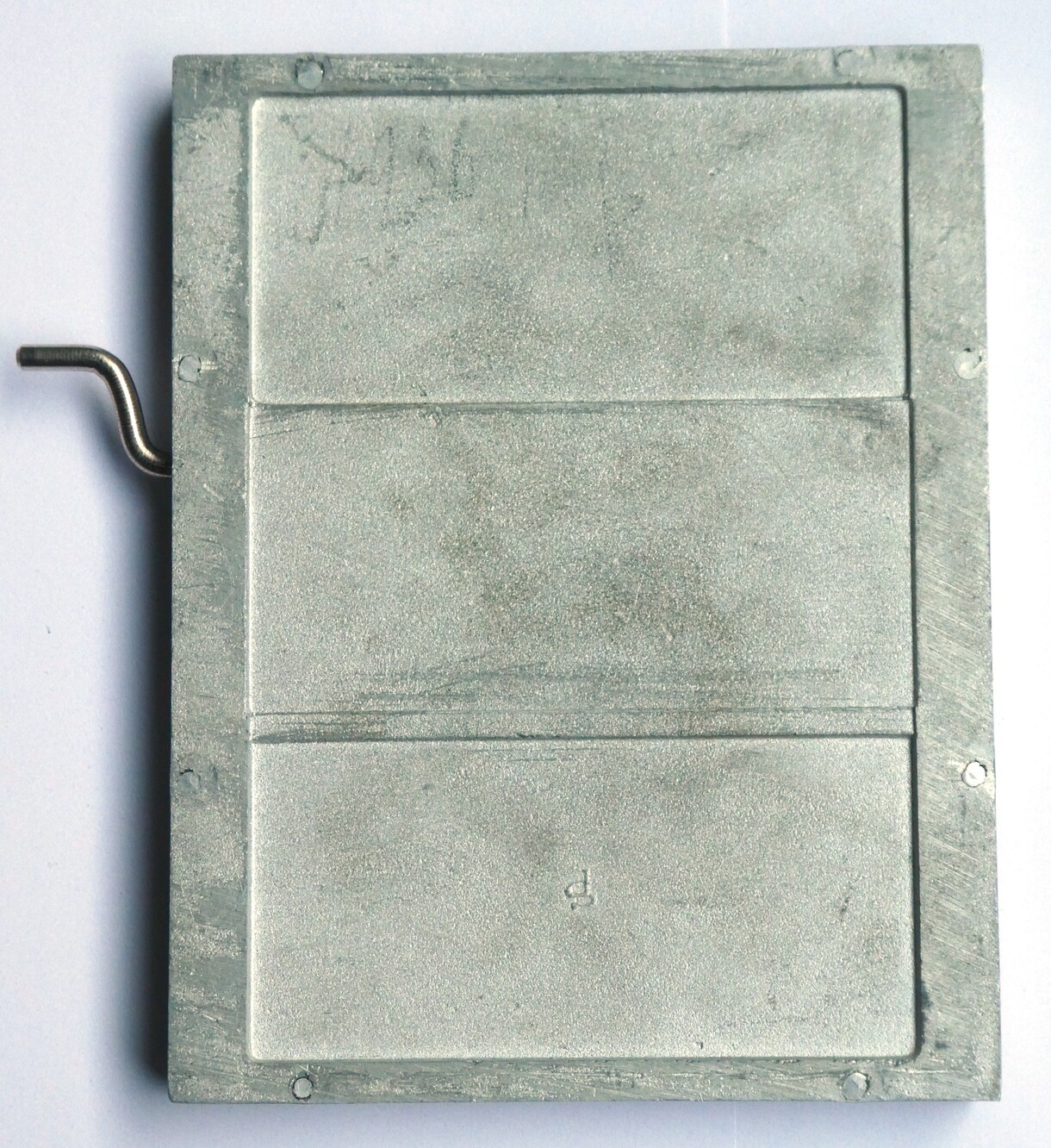

The Sirius adding machine is a troncet adder with a heavy cast metal base. It was intended for desk use. It has a crank handle on the right for clearing the register - turn it a few times anti-clockwise until all the sliders are on zero, and then turn it clockwise as far as it will go to release the sliders for the next calculation. It was made in the second half of the 1930s.

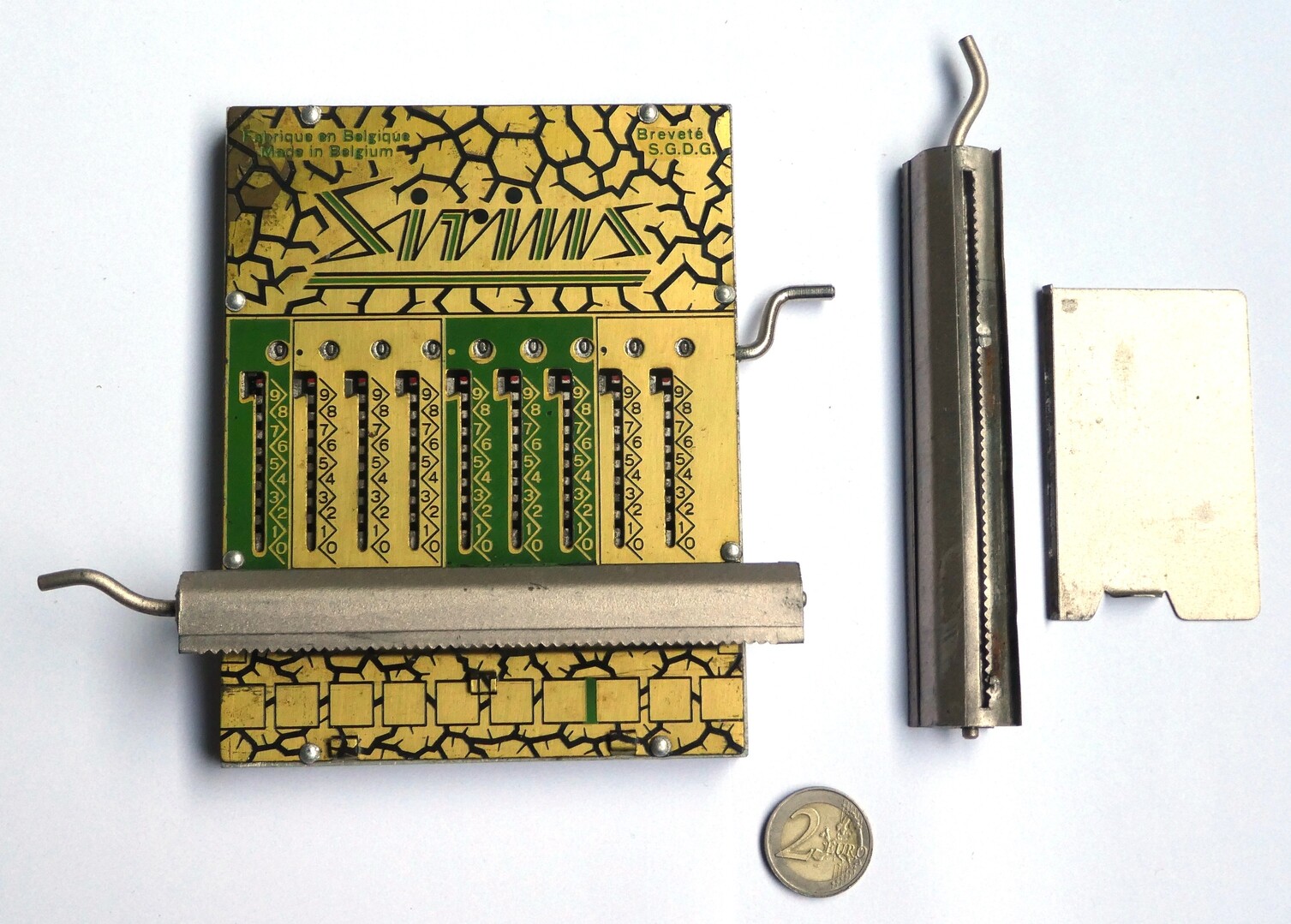

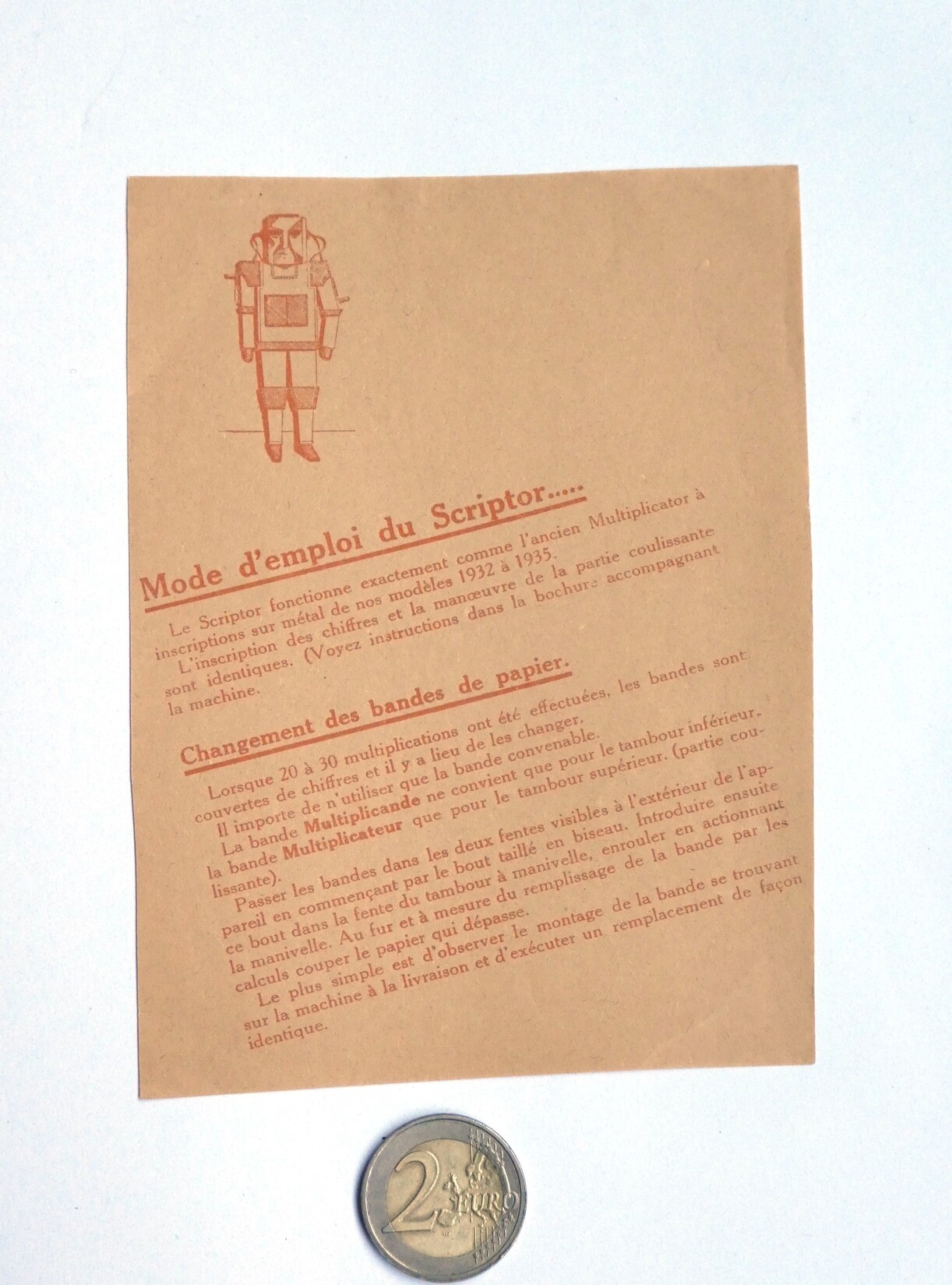

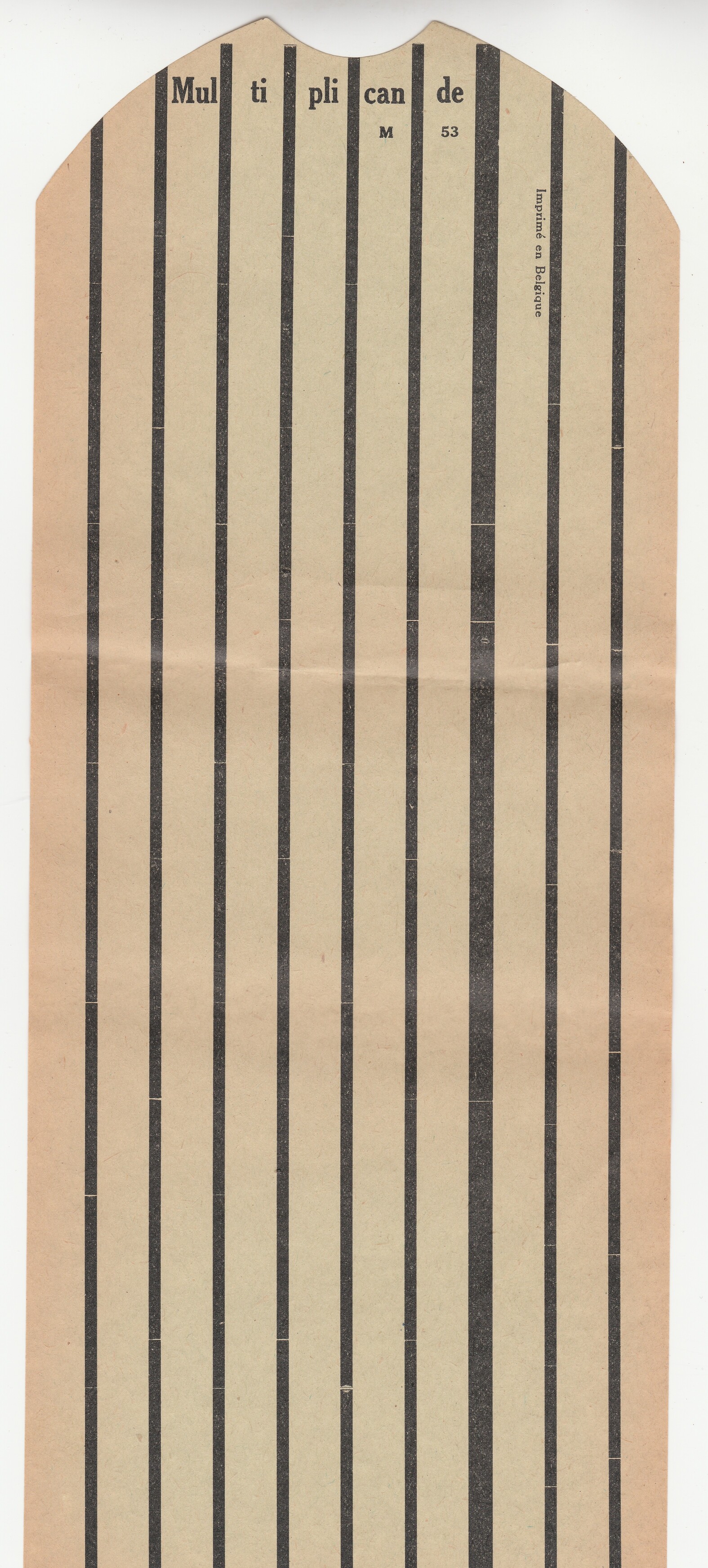

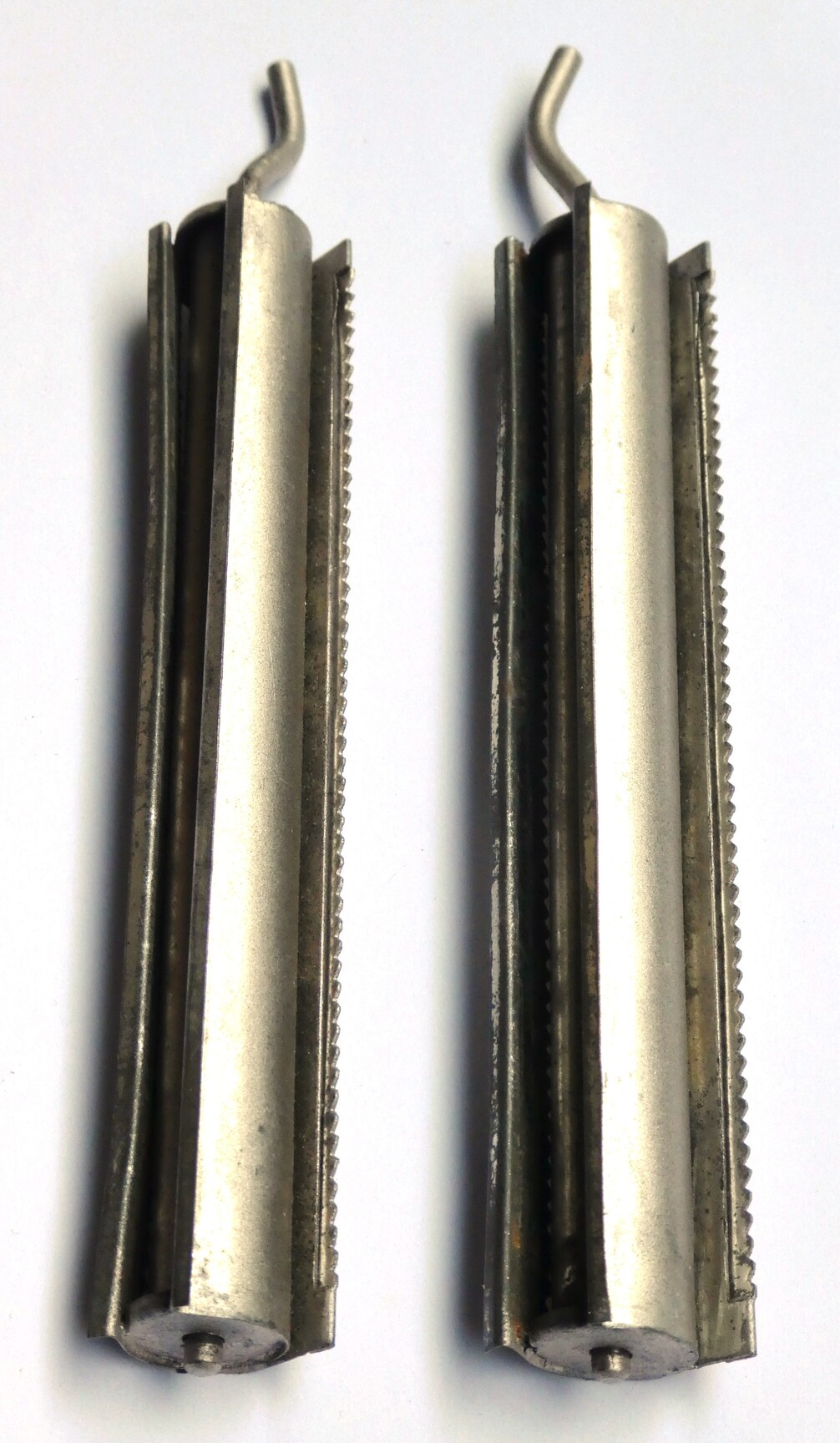

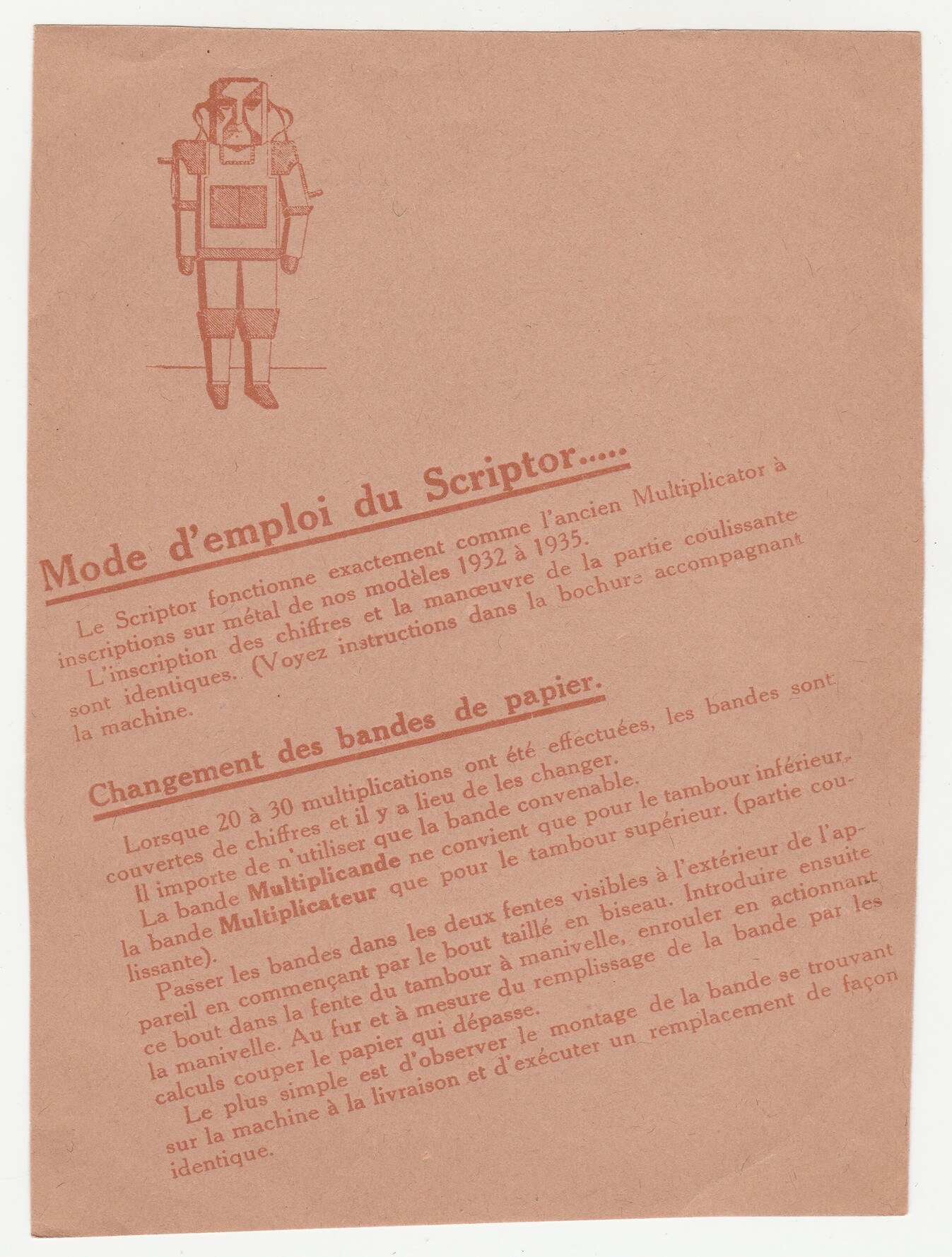

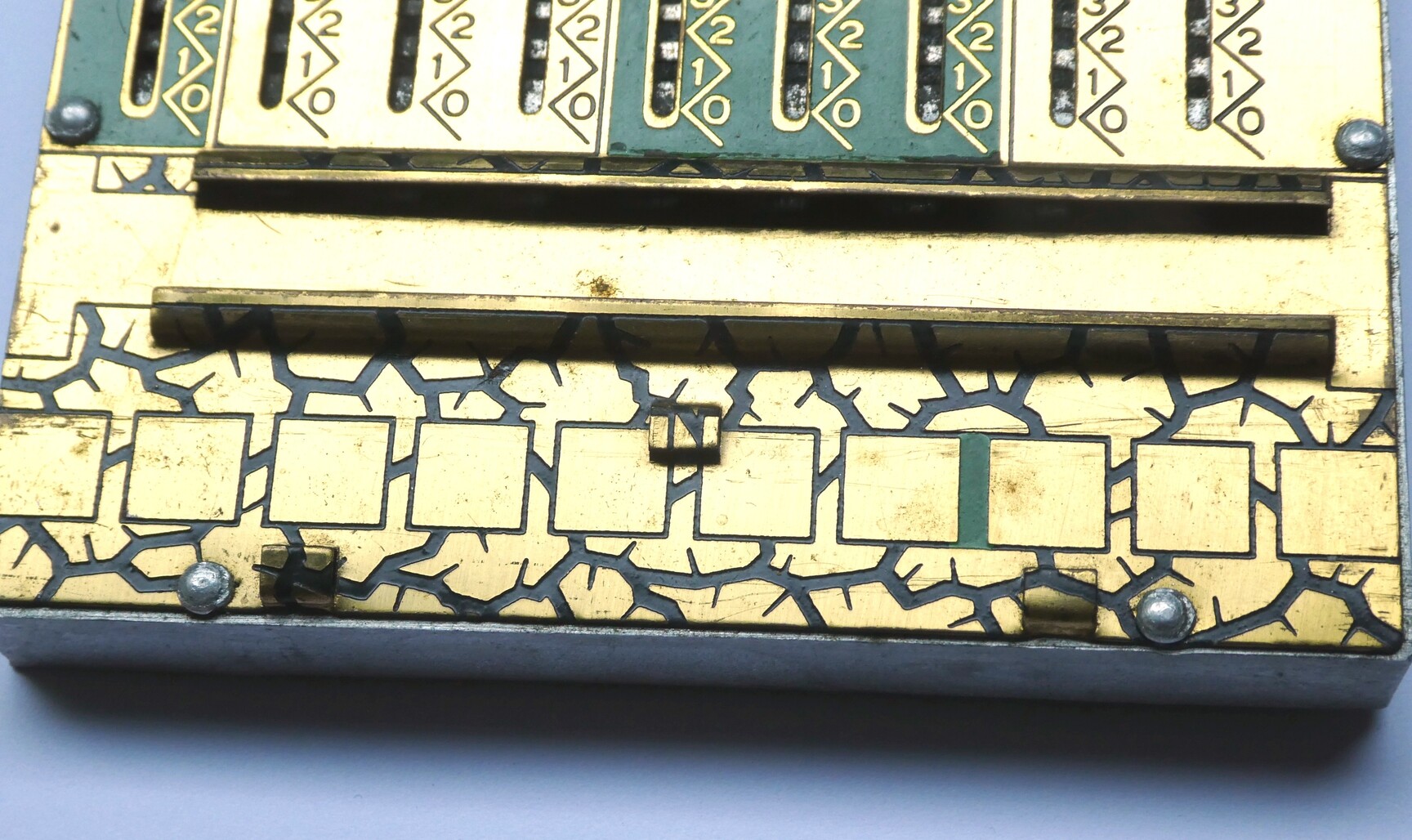

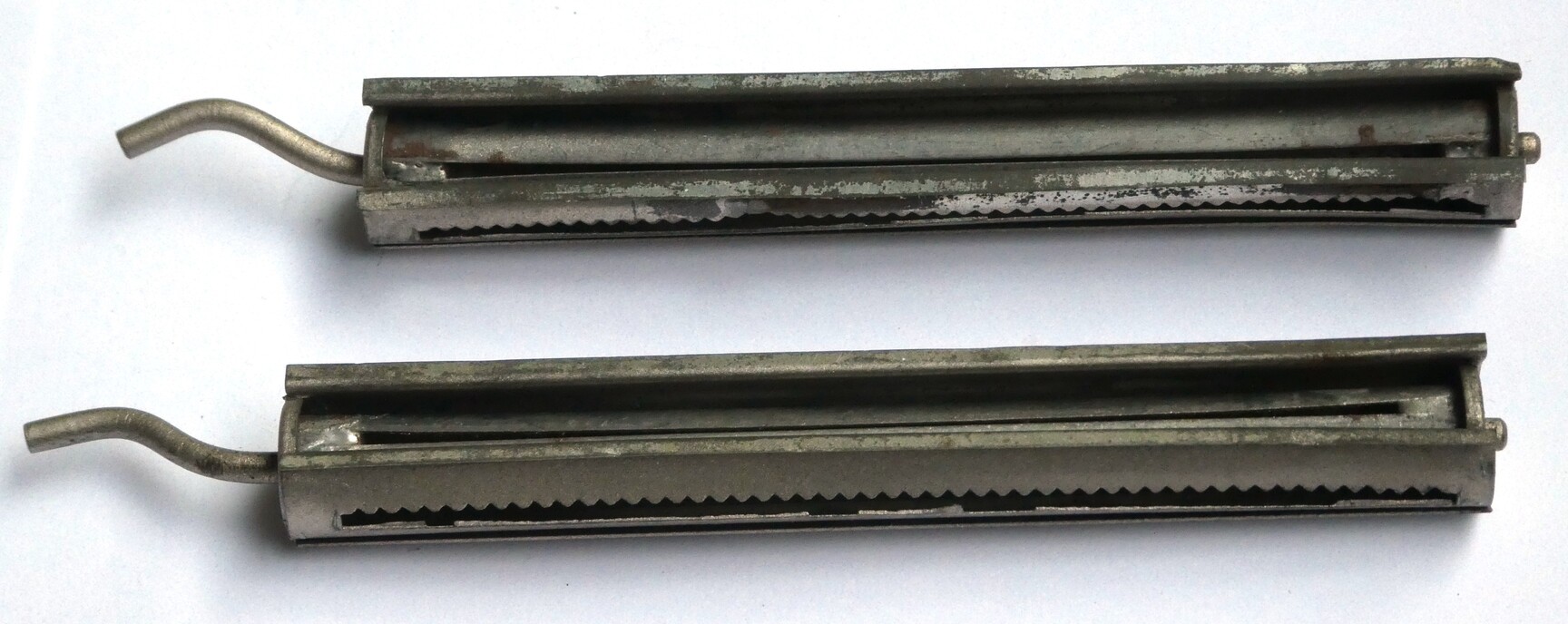

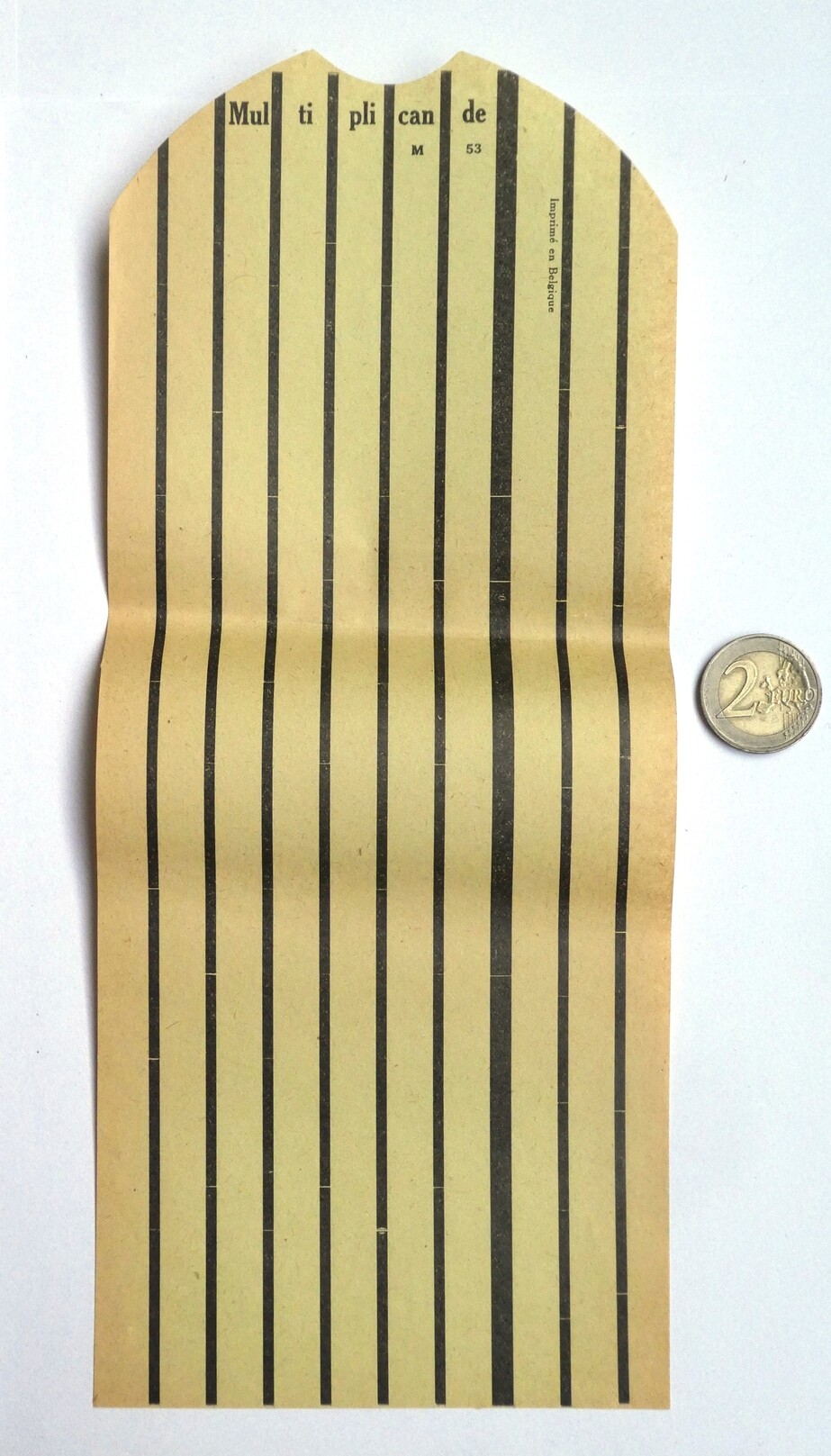

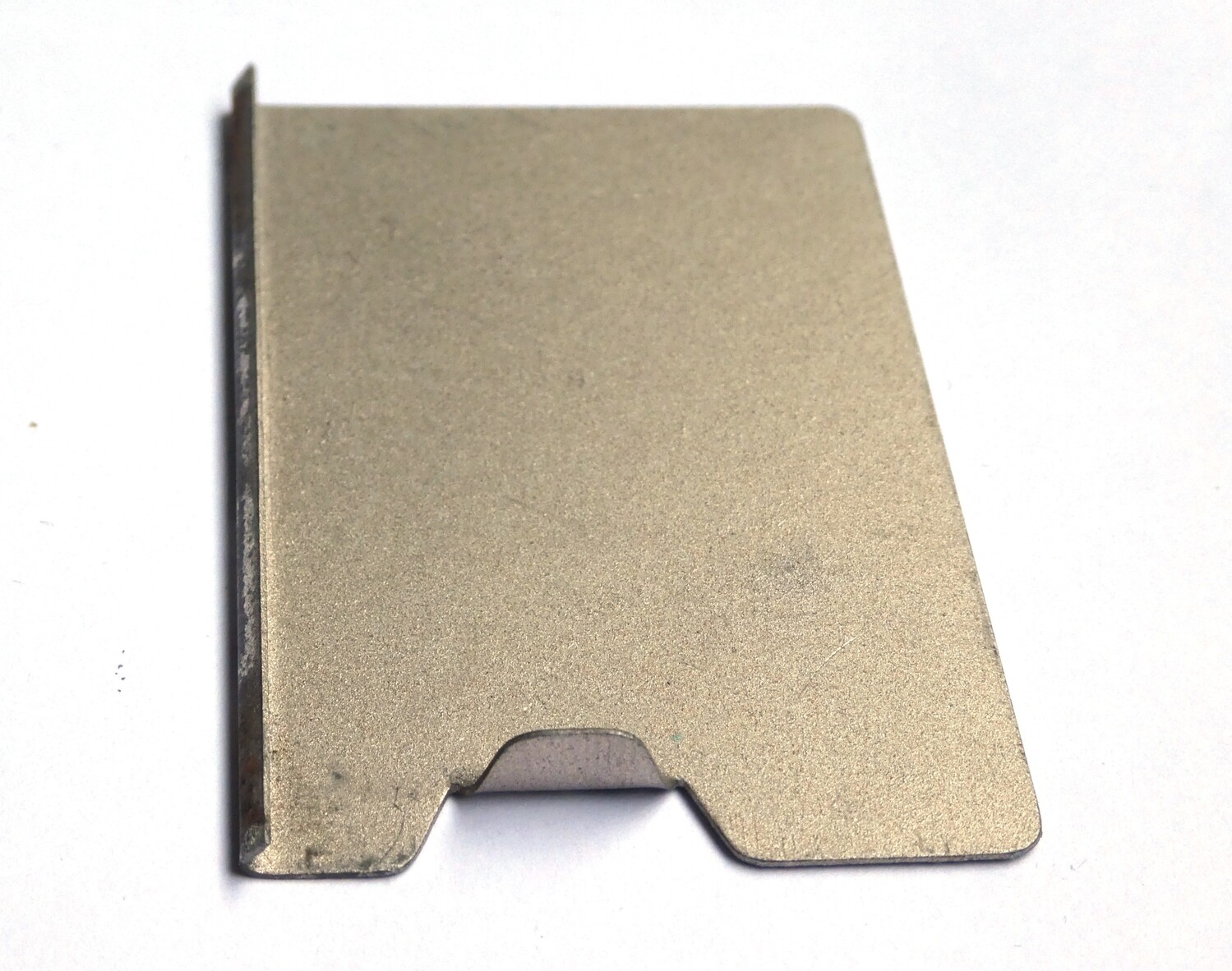

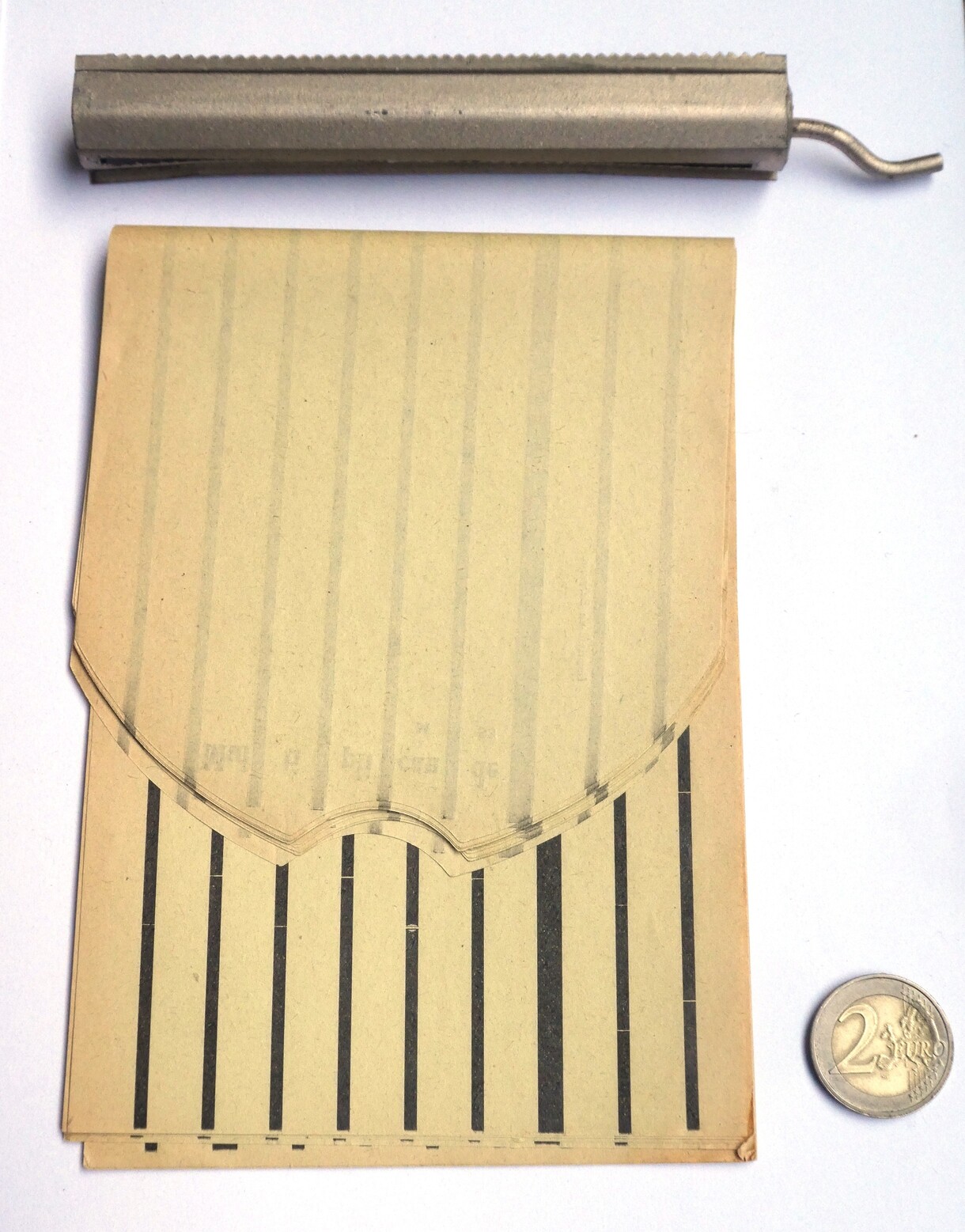

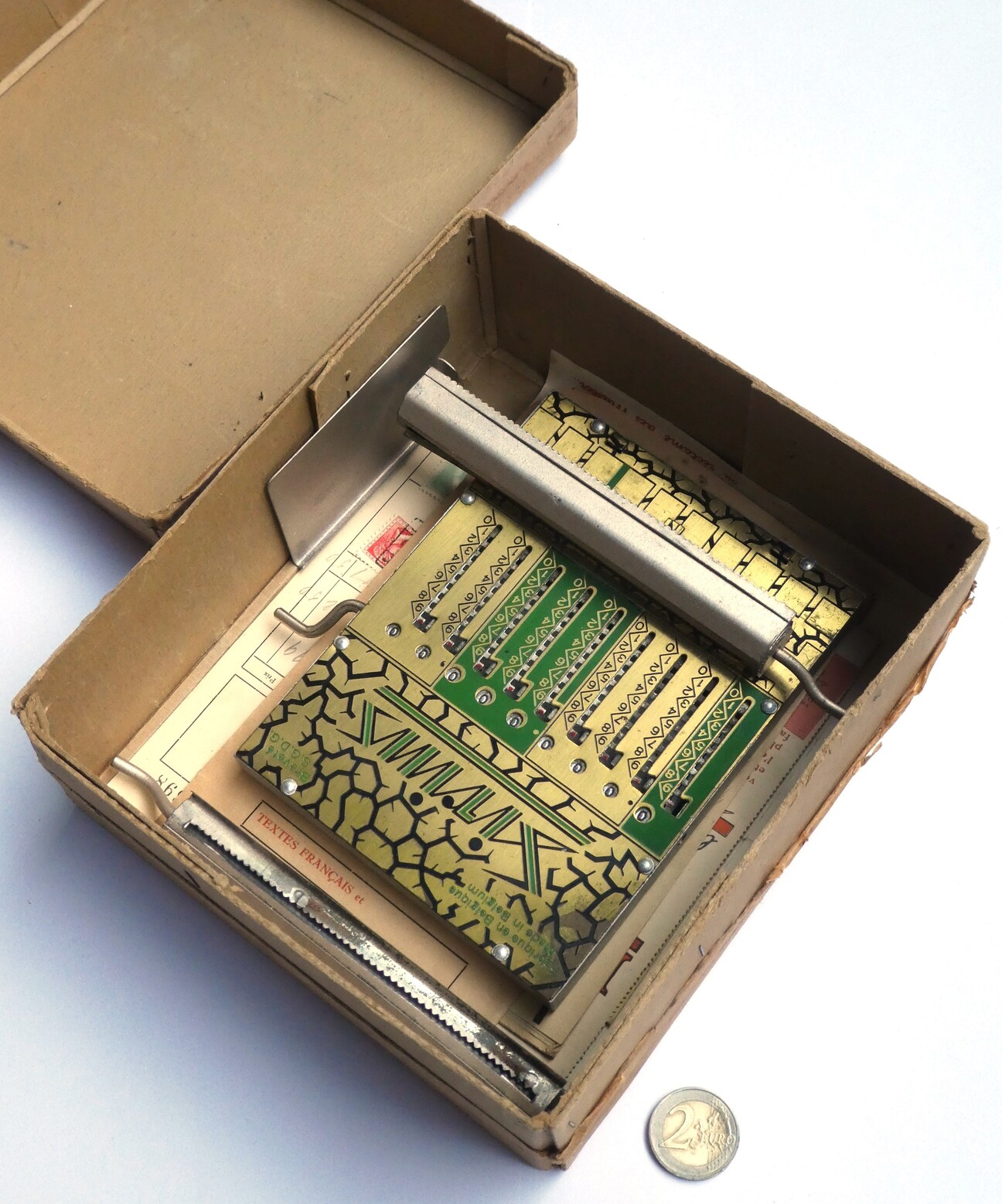

This version of the Sirius comes with a "Scriptor", two metal drum attachments that allow you to have a scroll of paper for yotting down intermediate results or multiplication factors. There is also a rectangular plate that can be attached which covers some of the input sliders, and which can be shifted to the right digit by digit as you perform a multiplication. These attachments do not work well, or at all, and are mostly useless.

Sirius adding machine
Sirius adding machine
Sirius adding machine
Sirius adding machine
Sirius adding machine
Sirius adding machine
Sirius adding machine
Sirius adding machine
Sirius adding machine
Sirius adding machine
Sirius adding machine
Sirius adding machine
Sirius adding machine
Sirius adding machine
Sirius adding machine
Sirius adding machine
Sirius adding machine
Sirius adding machine
Sirius adding machine
Sirius adding machine


It came with two instruction booklets, one French and one Dutch.

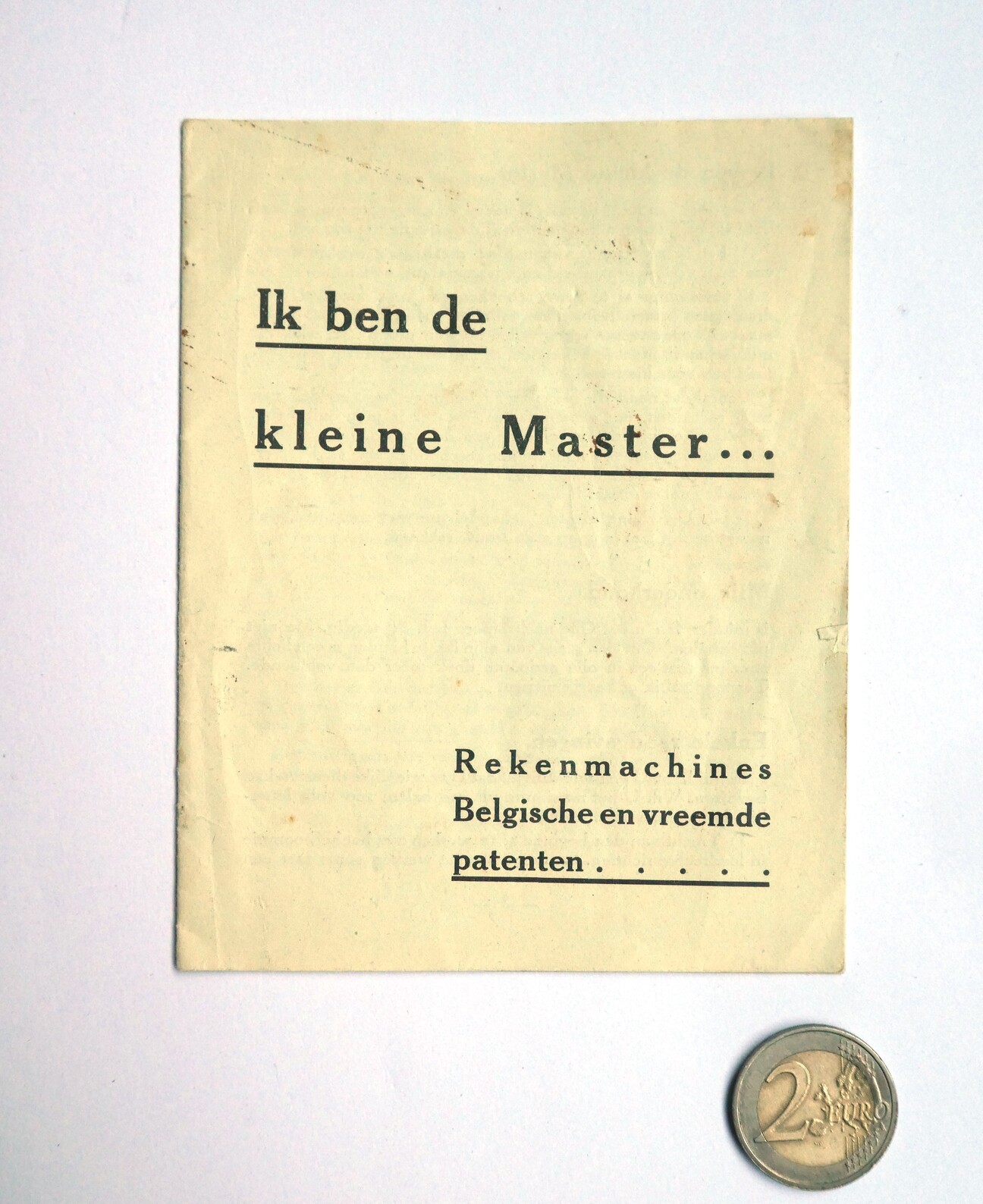

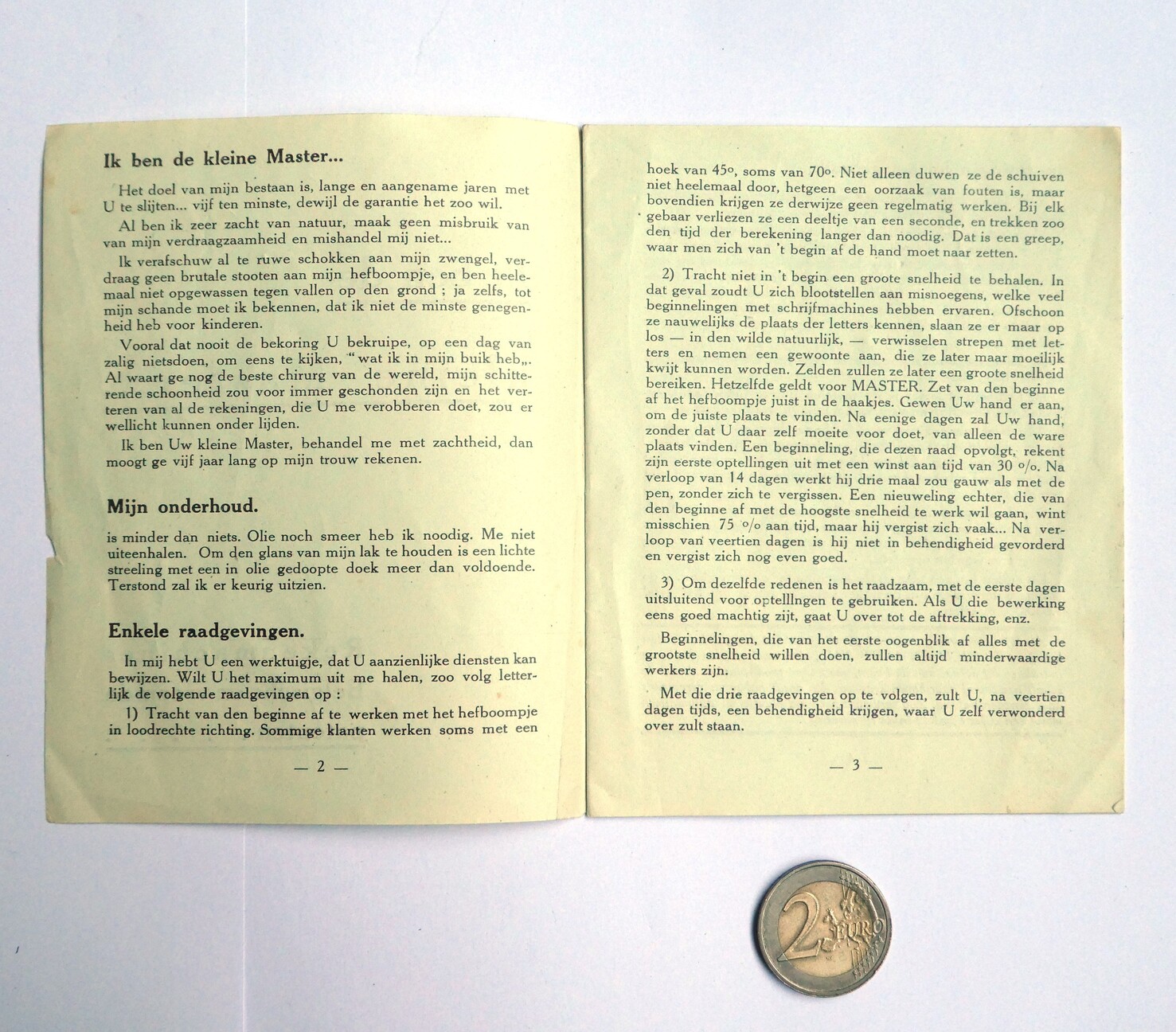

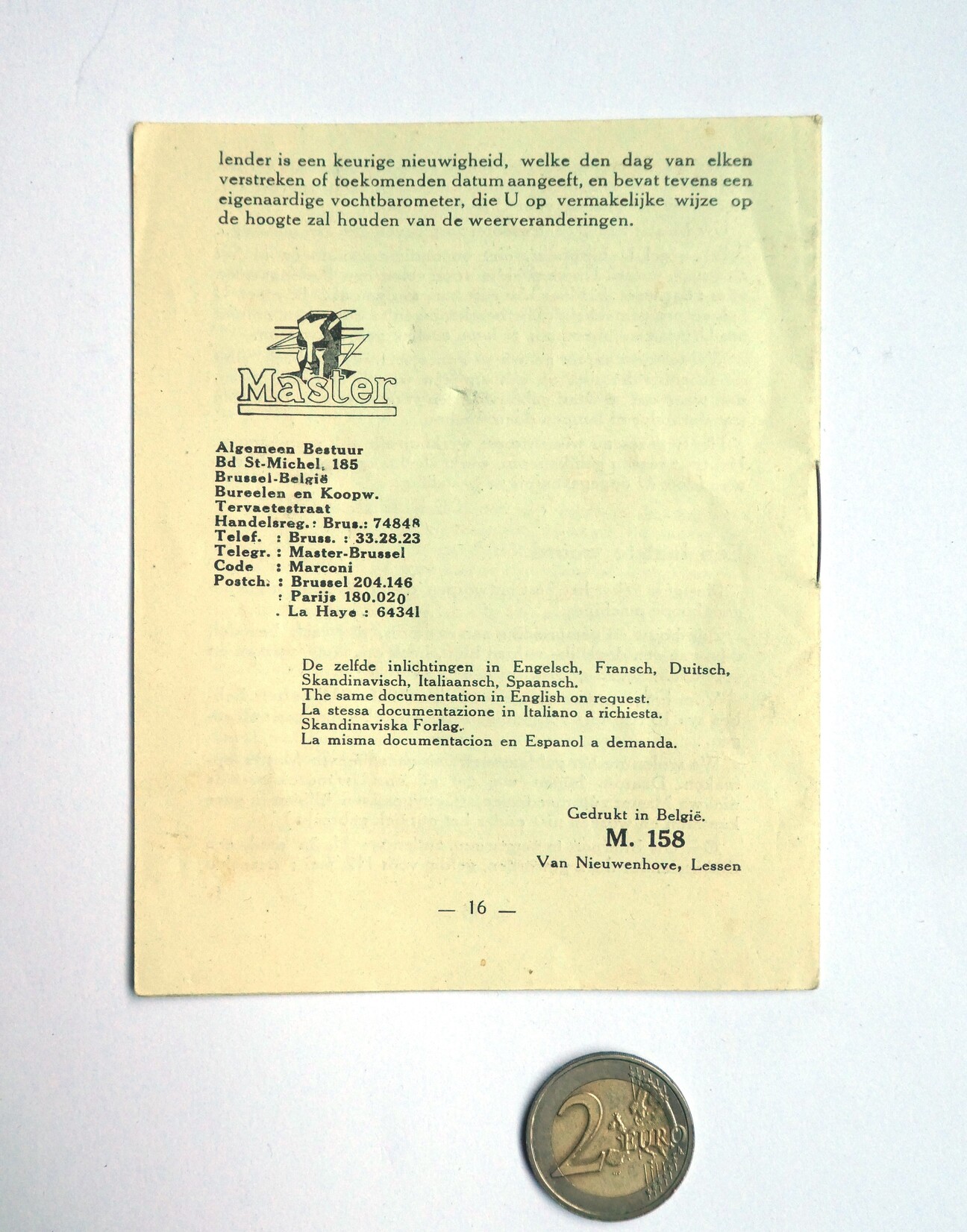

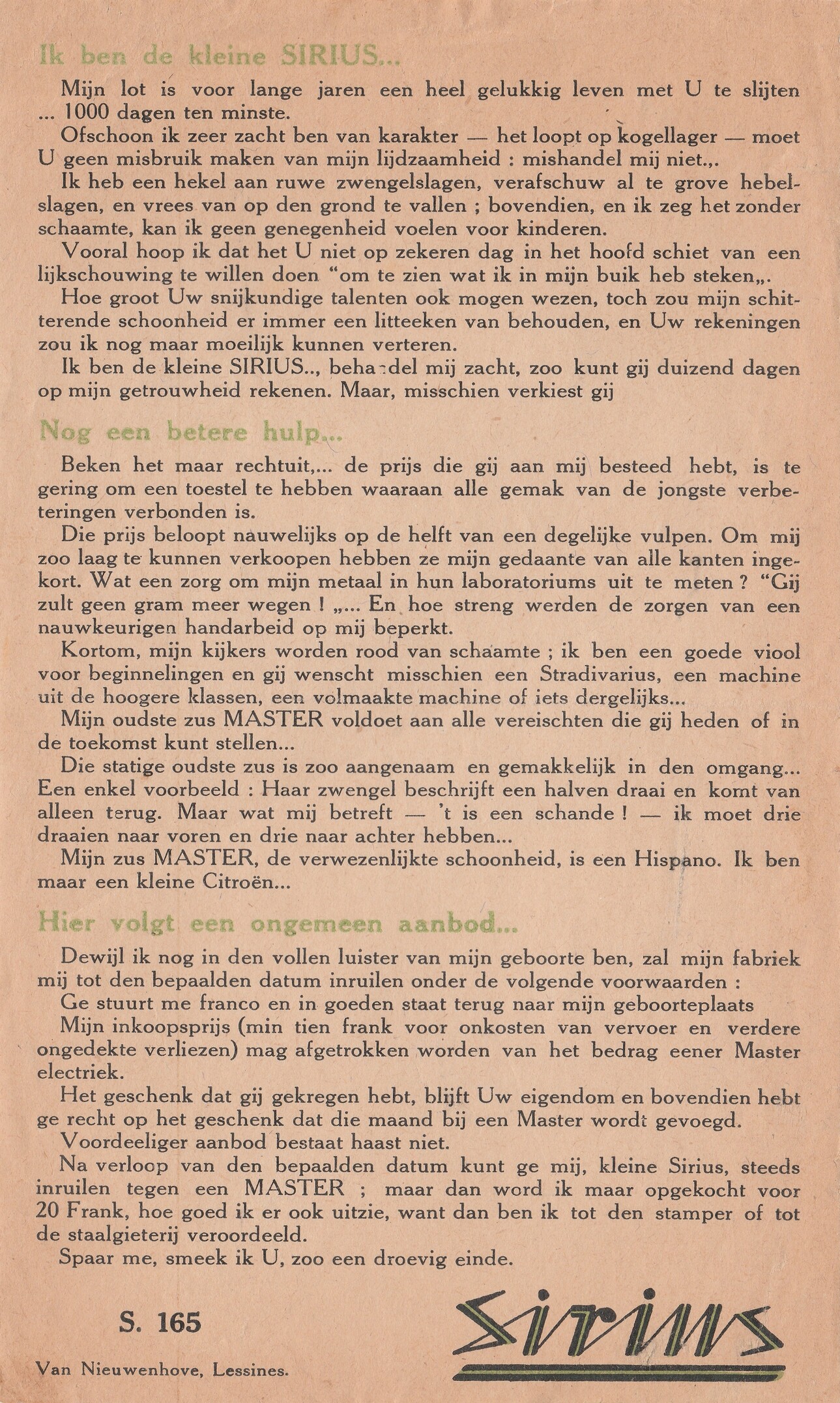

Ik ben de kleine Master    (PDF, 2.91 MB or archive.org)
16 page stapled leaflet
104mm × 133mm

This is the small instruction leaflet in Dutch. The first few pages are written in the first person, as if the machine itself is speaking.

Sirius adding machine
Sirius adding machine
Sirius adding machine

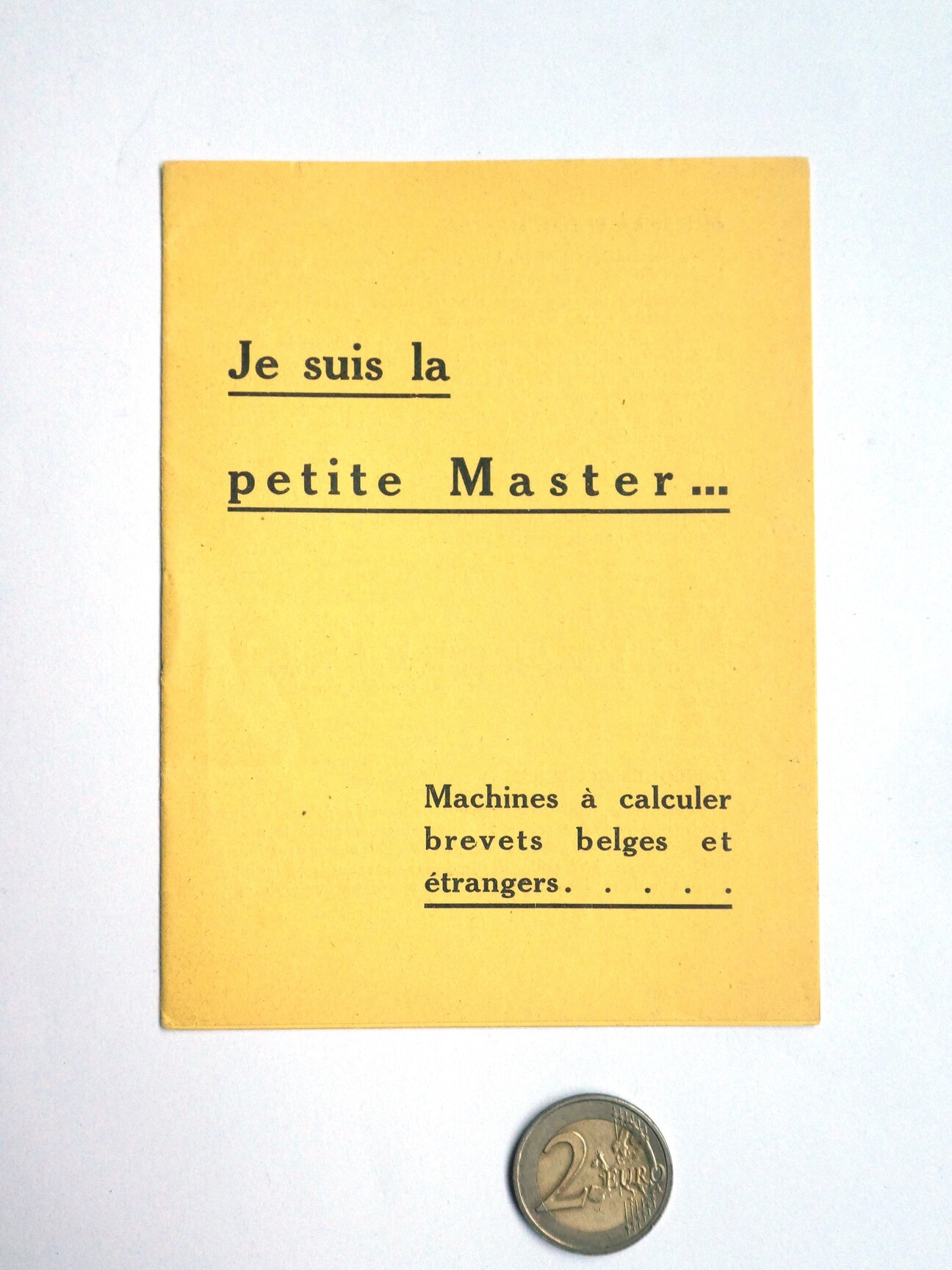

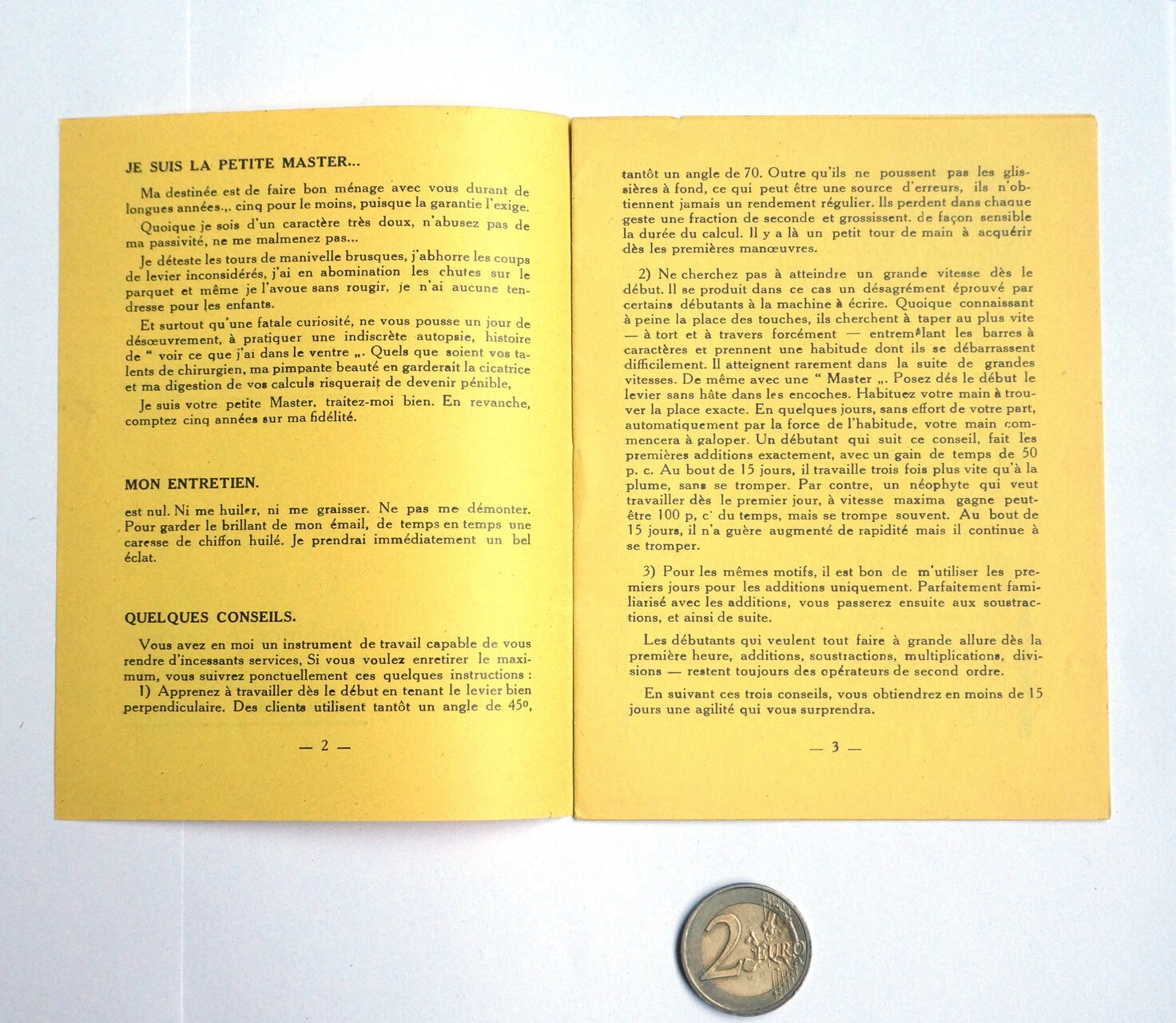

Je suis la petite Master    (PDF, 3.27 MB or archive.org)
16 page stapled leaflet
106mm × 141mm

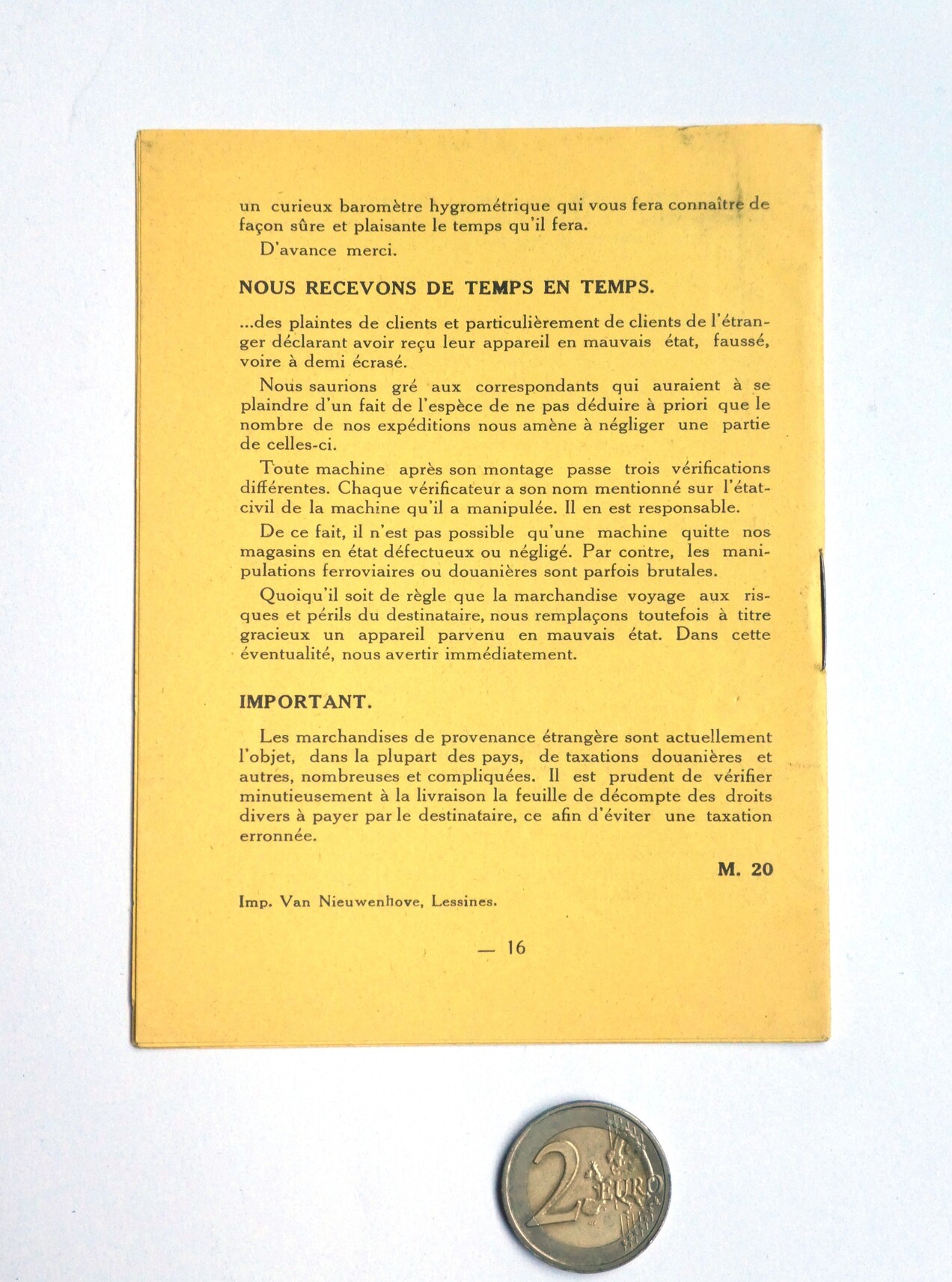

This is the small instruction leaflet in French. The first few pages are written in the first person, as if the machine itself is speaking.

Sirius adding machine
Sirius adding machine
Sirius adding machine

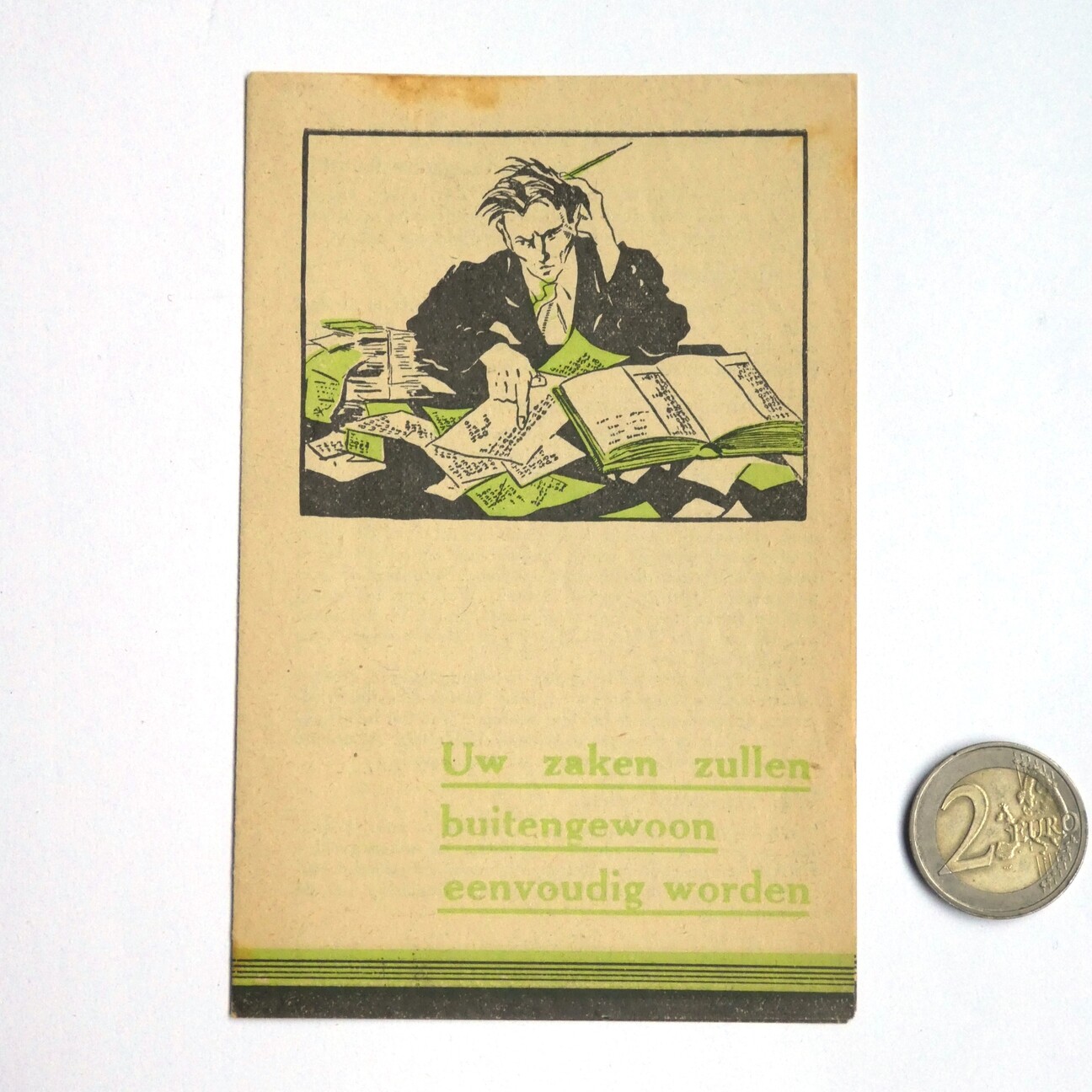

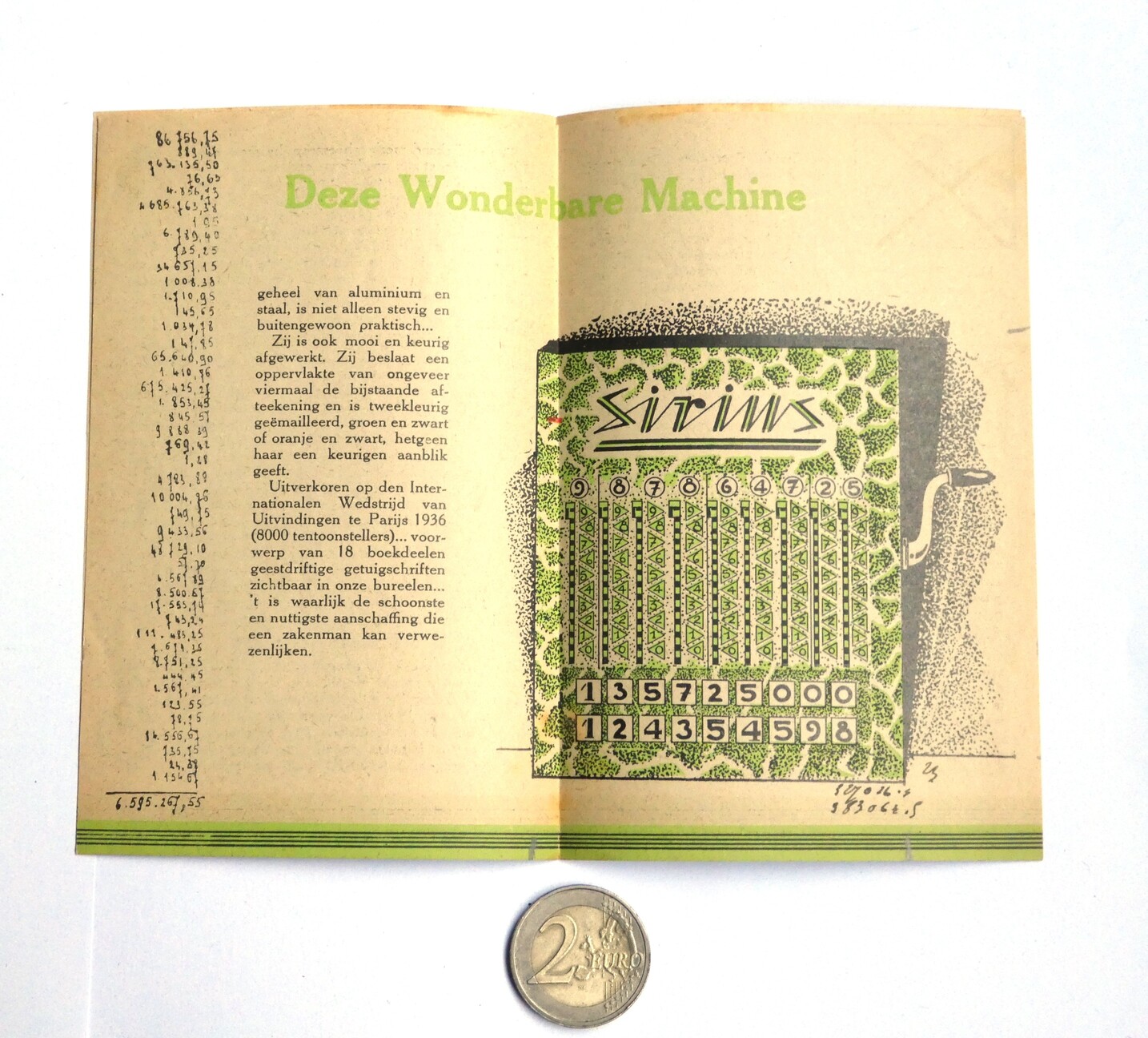

Uw zaken zullen buitengewoon eenvoudig worden    (PDF, 1.94 MB or archive.org)
8 page leaflet
90mm × 140mm
1937

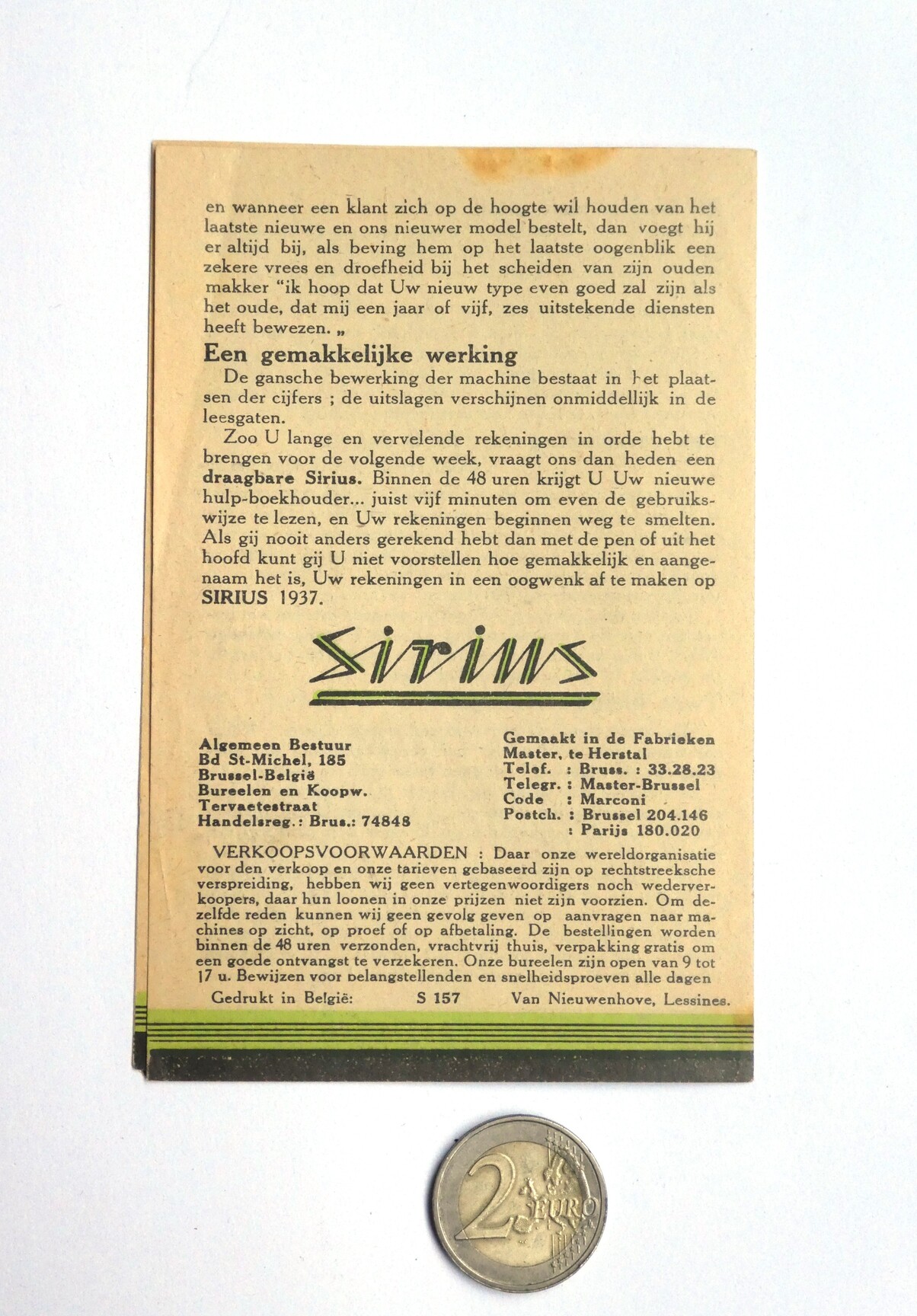

This is a Dutch booklet advertising the Sirius adding machine.

Sirius adding machine
Sirius adding machine
Sirius adding machine

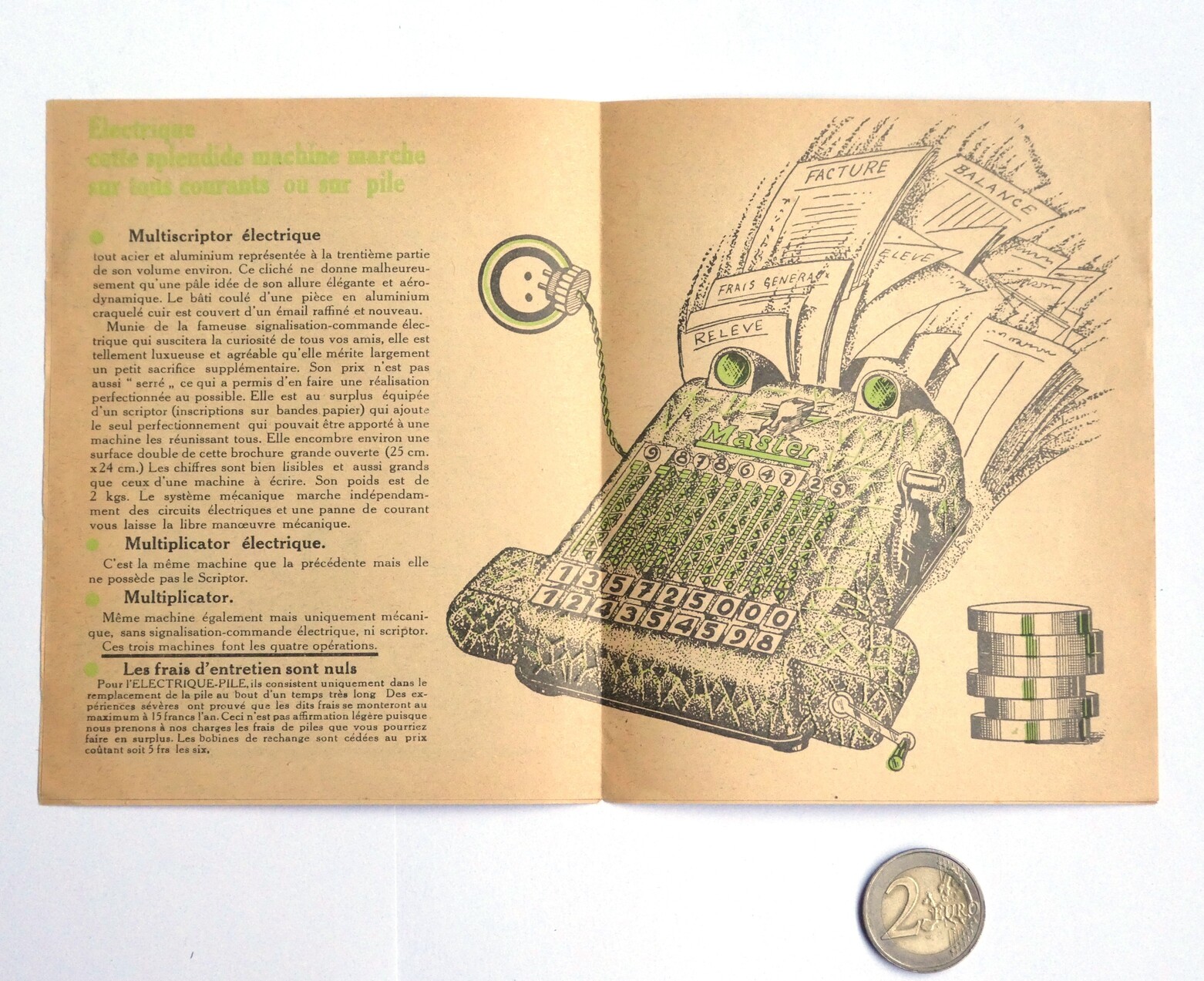

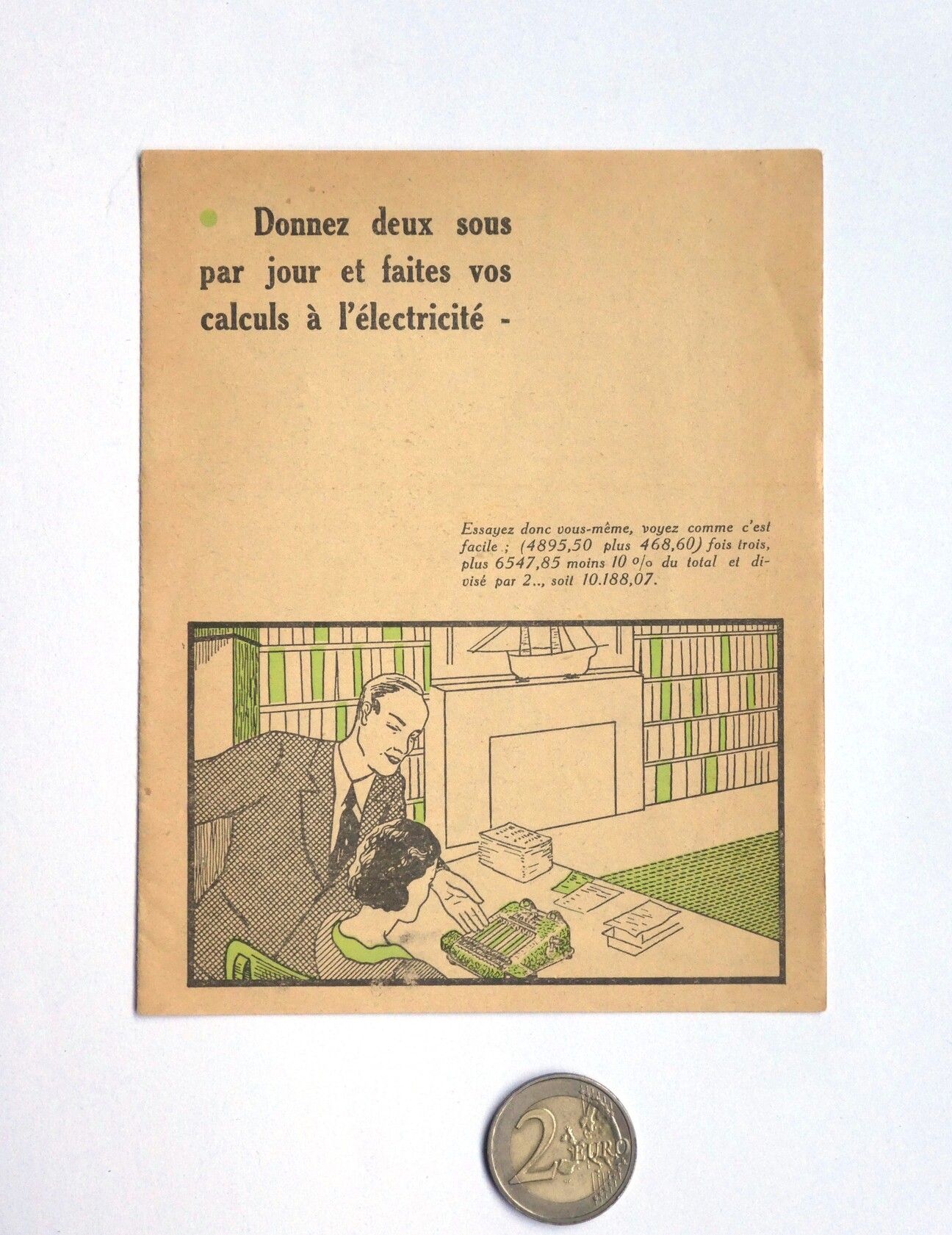

Donnez deux sous par jour et faites vos calculs à l'électricité    (PDF, 2.60 MB or archive.org)
8 page leaflet
119mm × 150mm

This is a French booklet advertising the electric Master adding machine.

Sirius adding machine
Sirius adding machine
Sirius adding machine

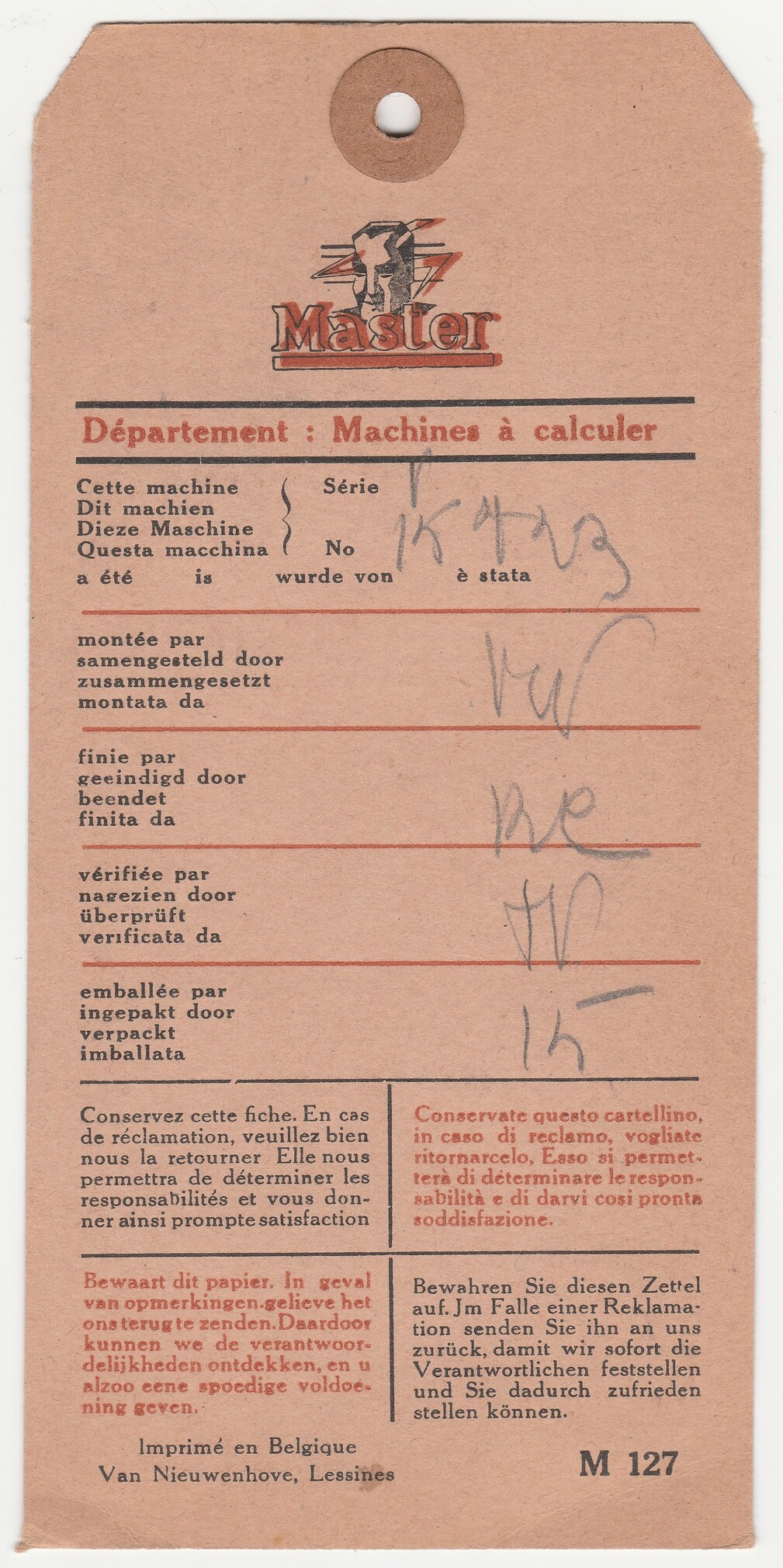

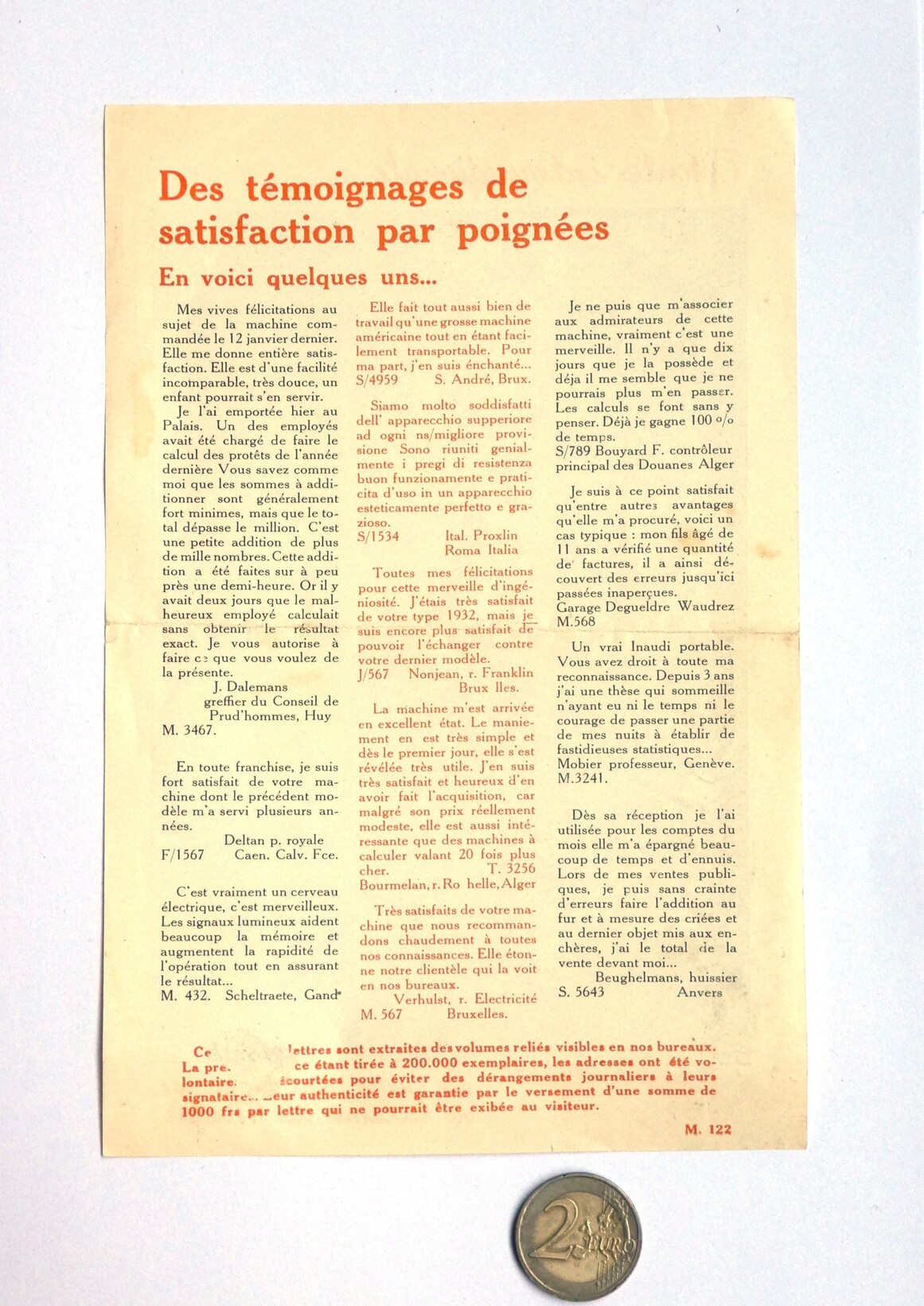

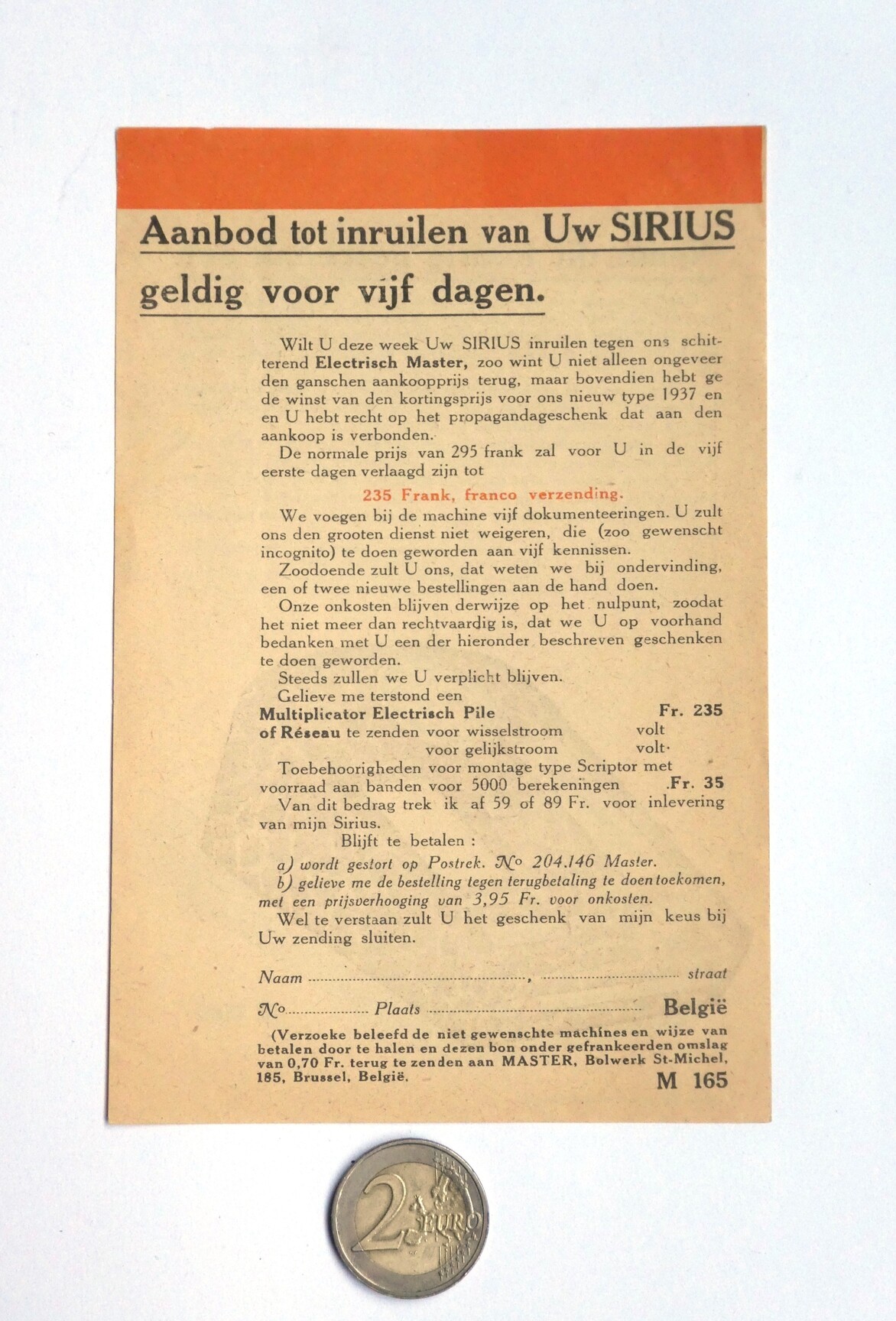

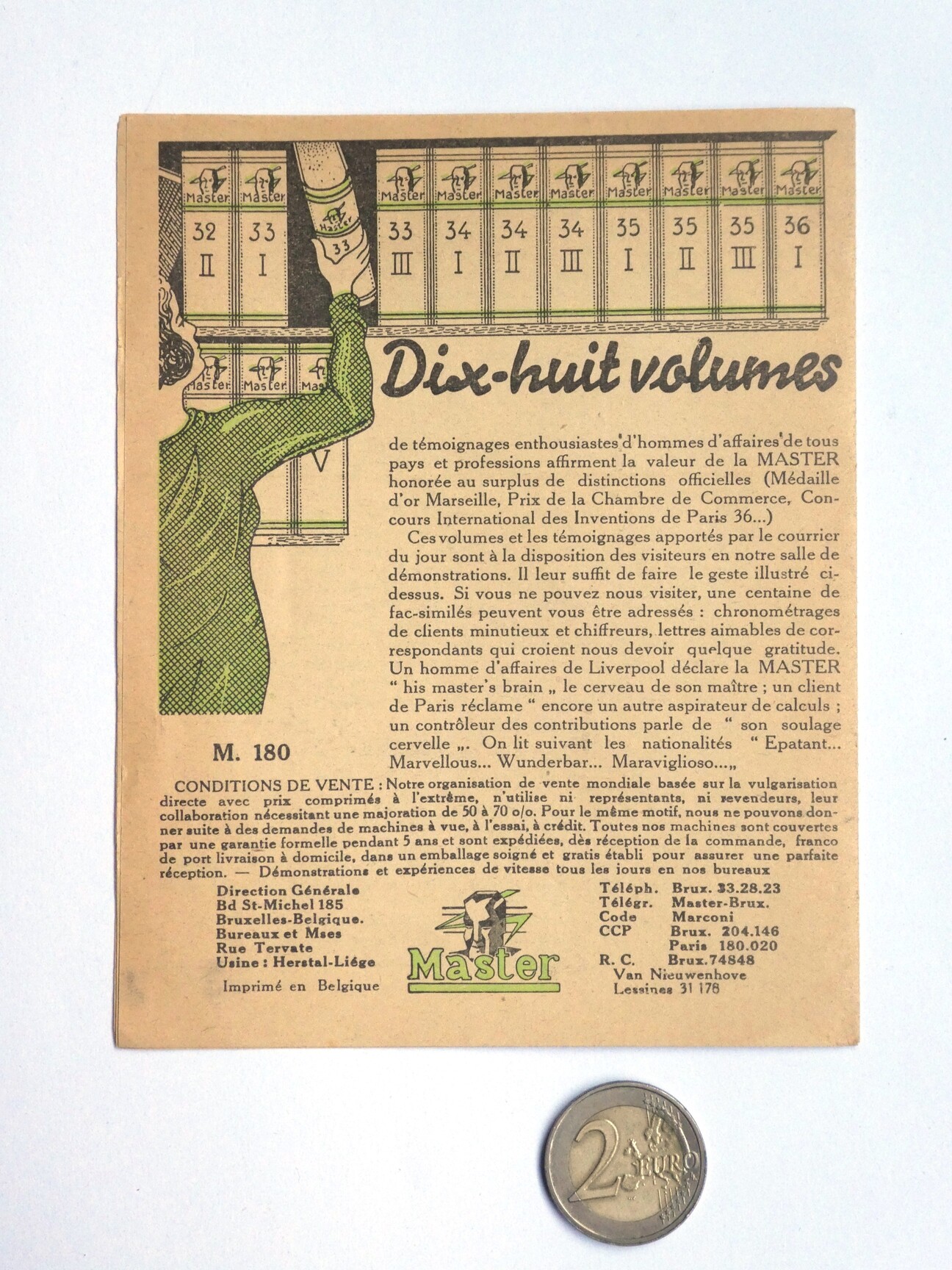

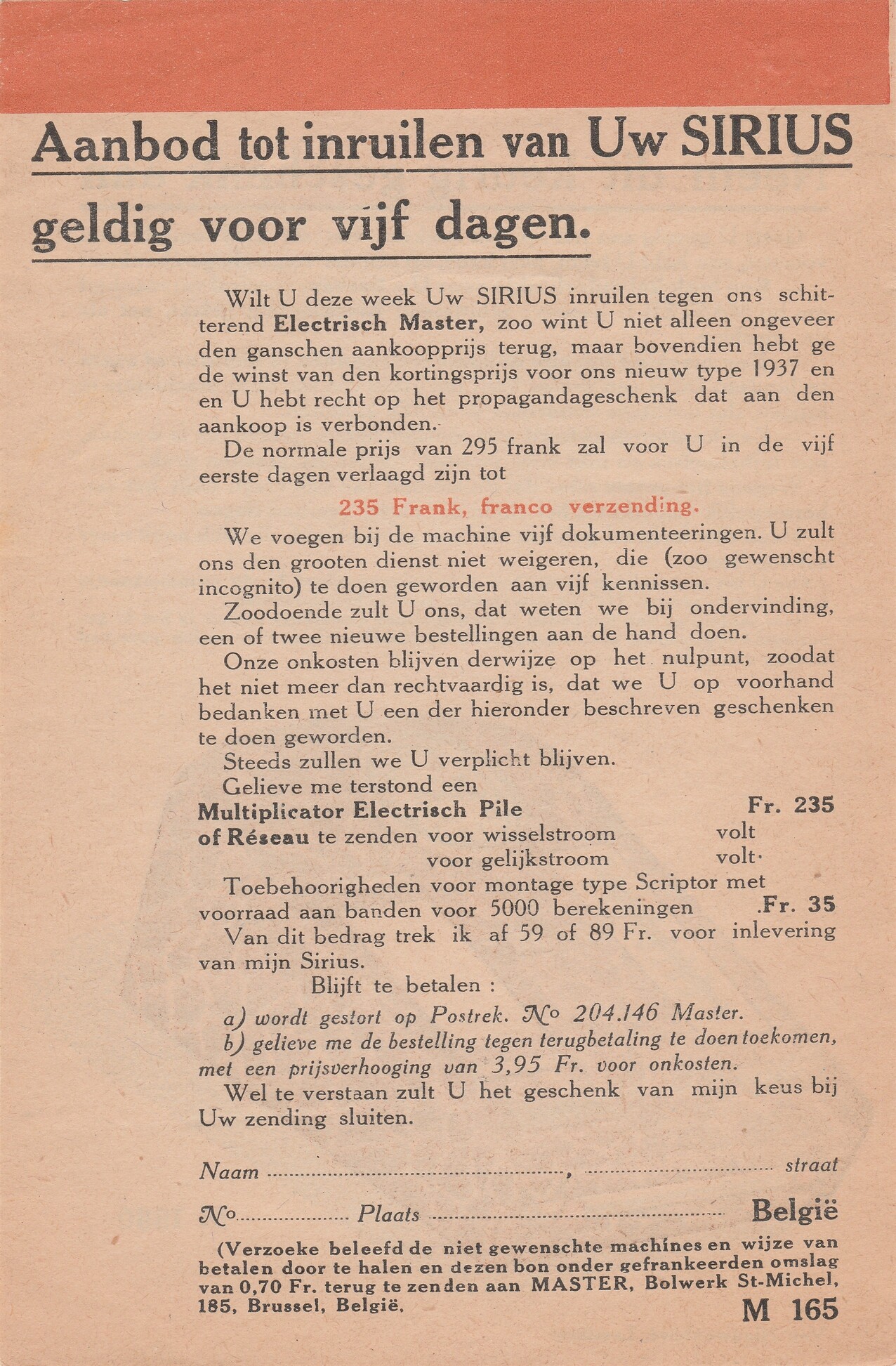

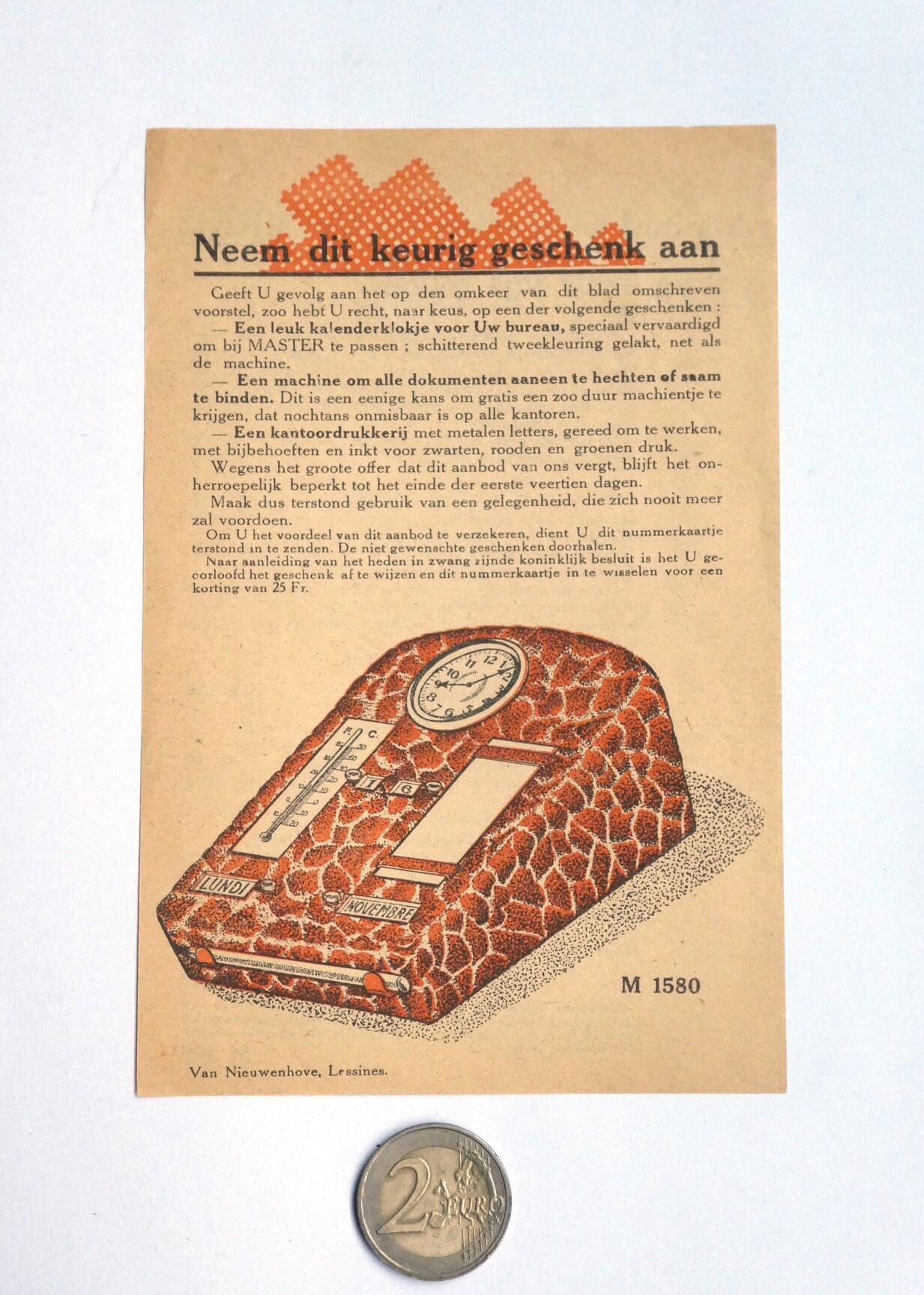

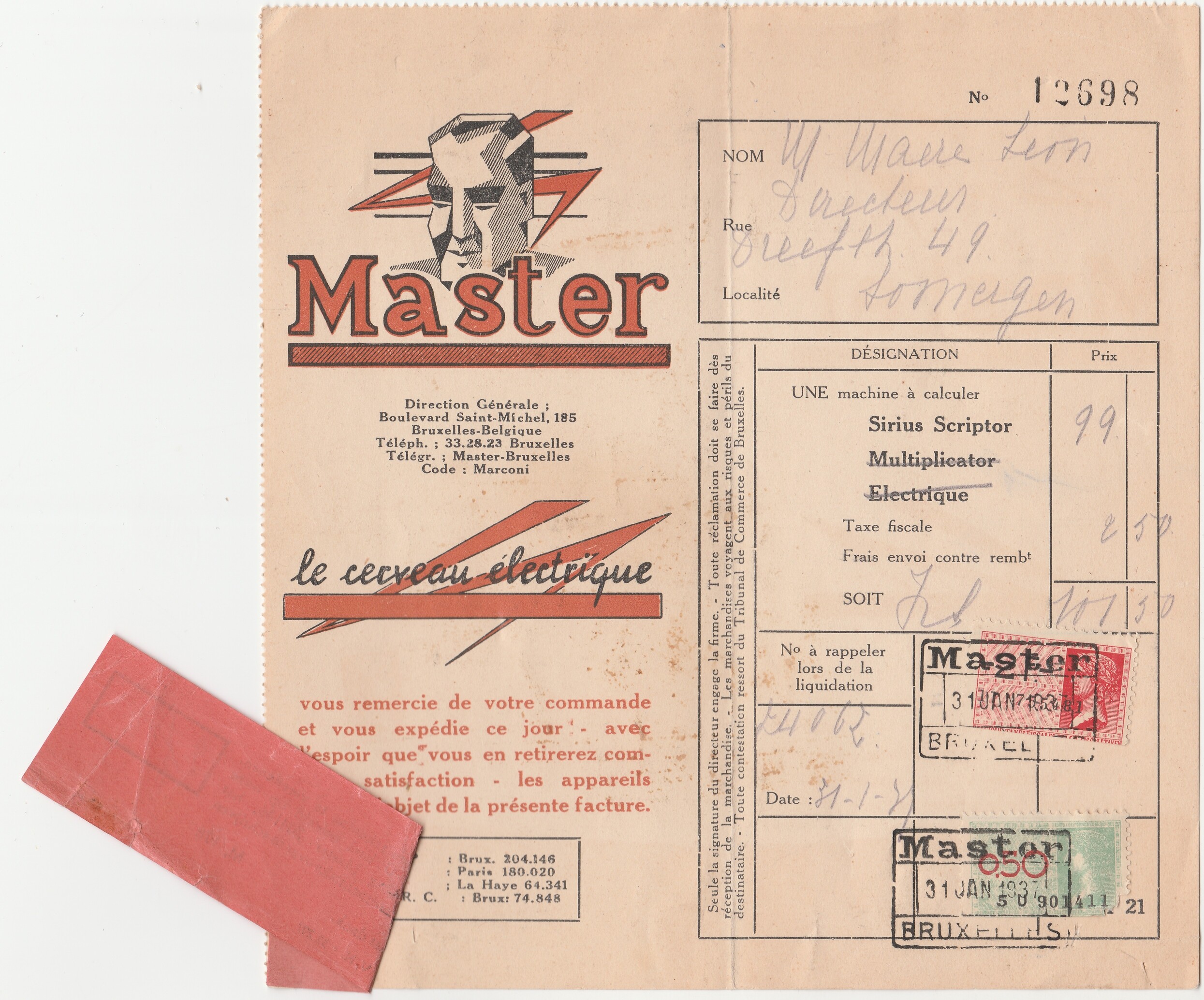

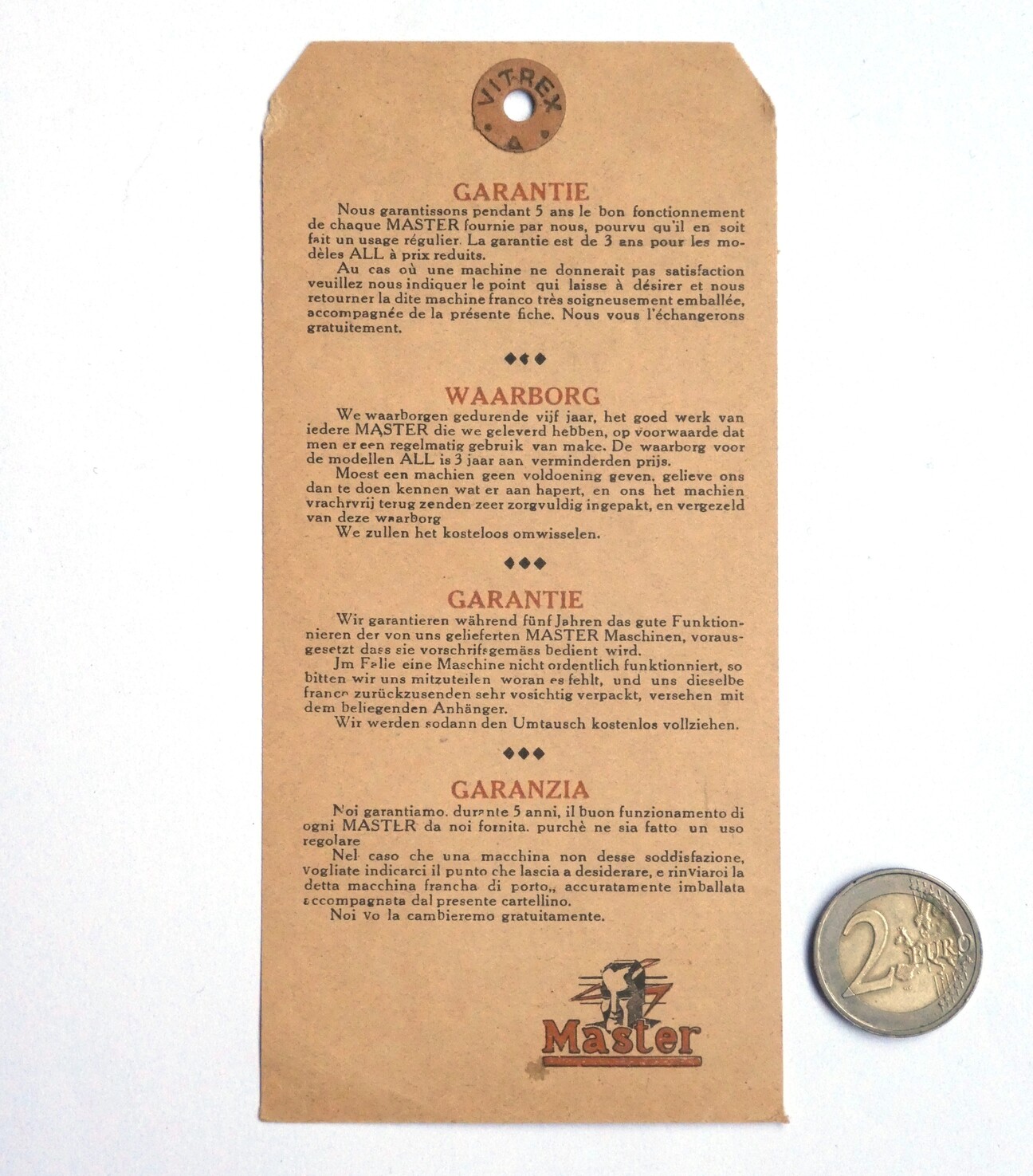

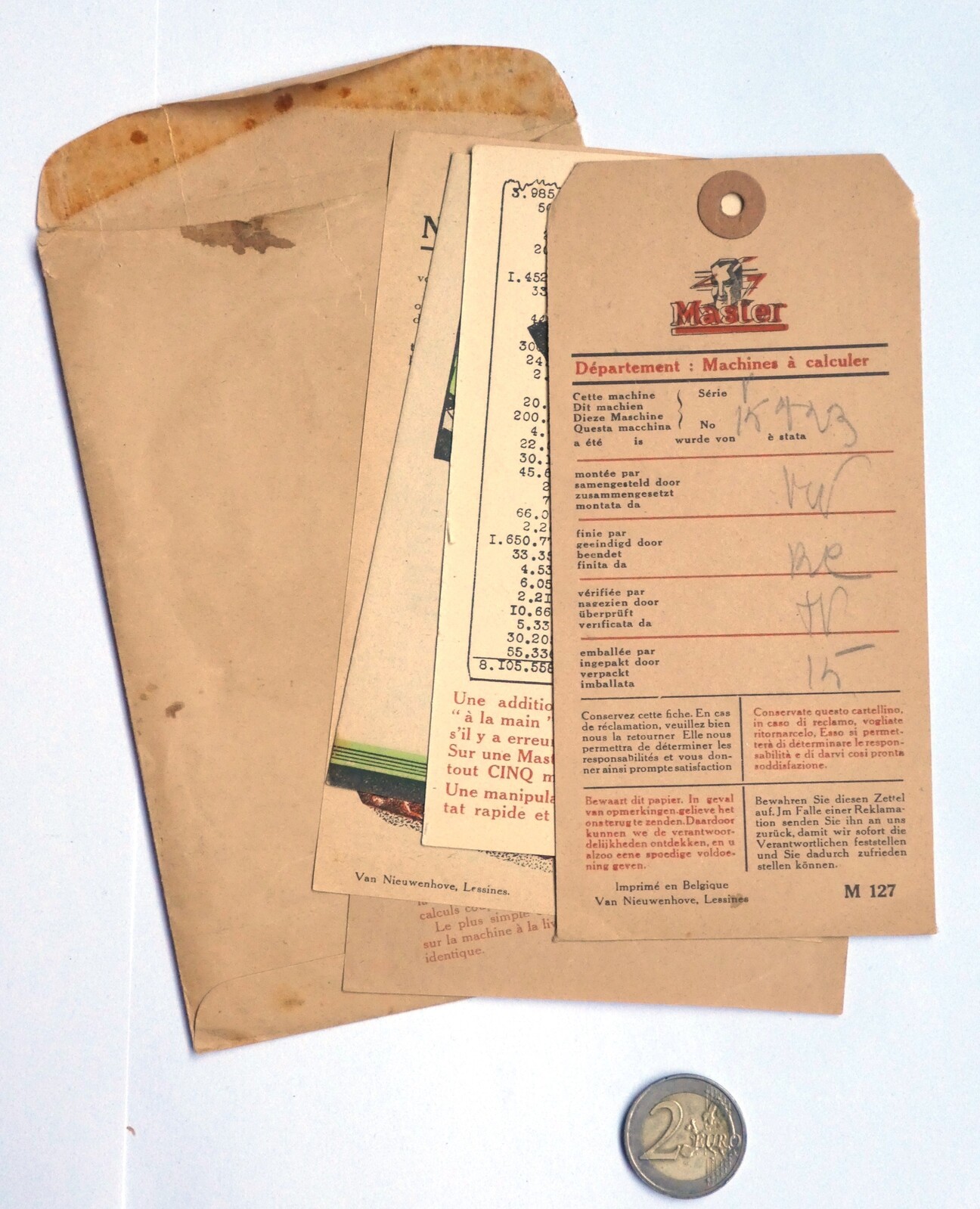

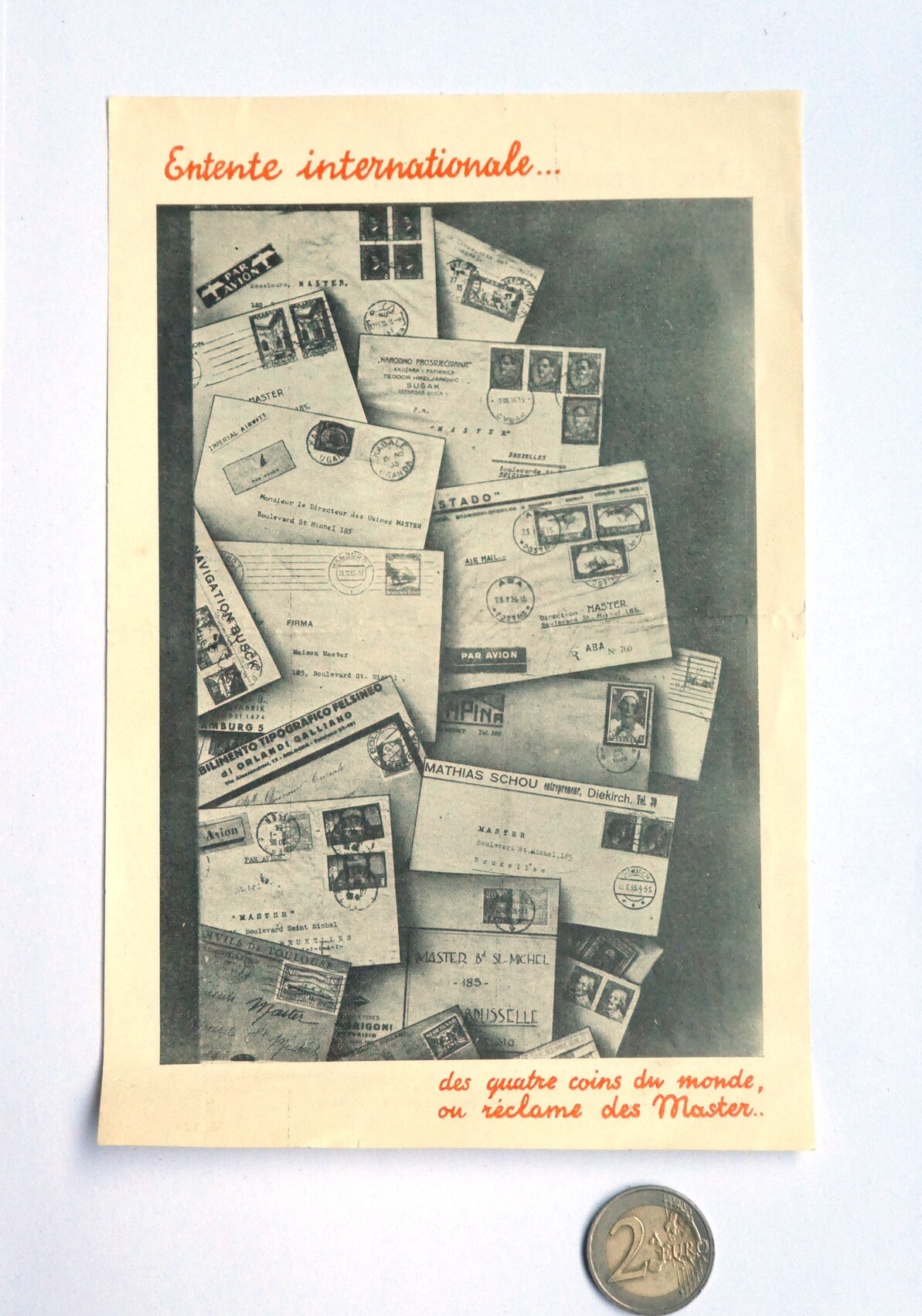

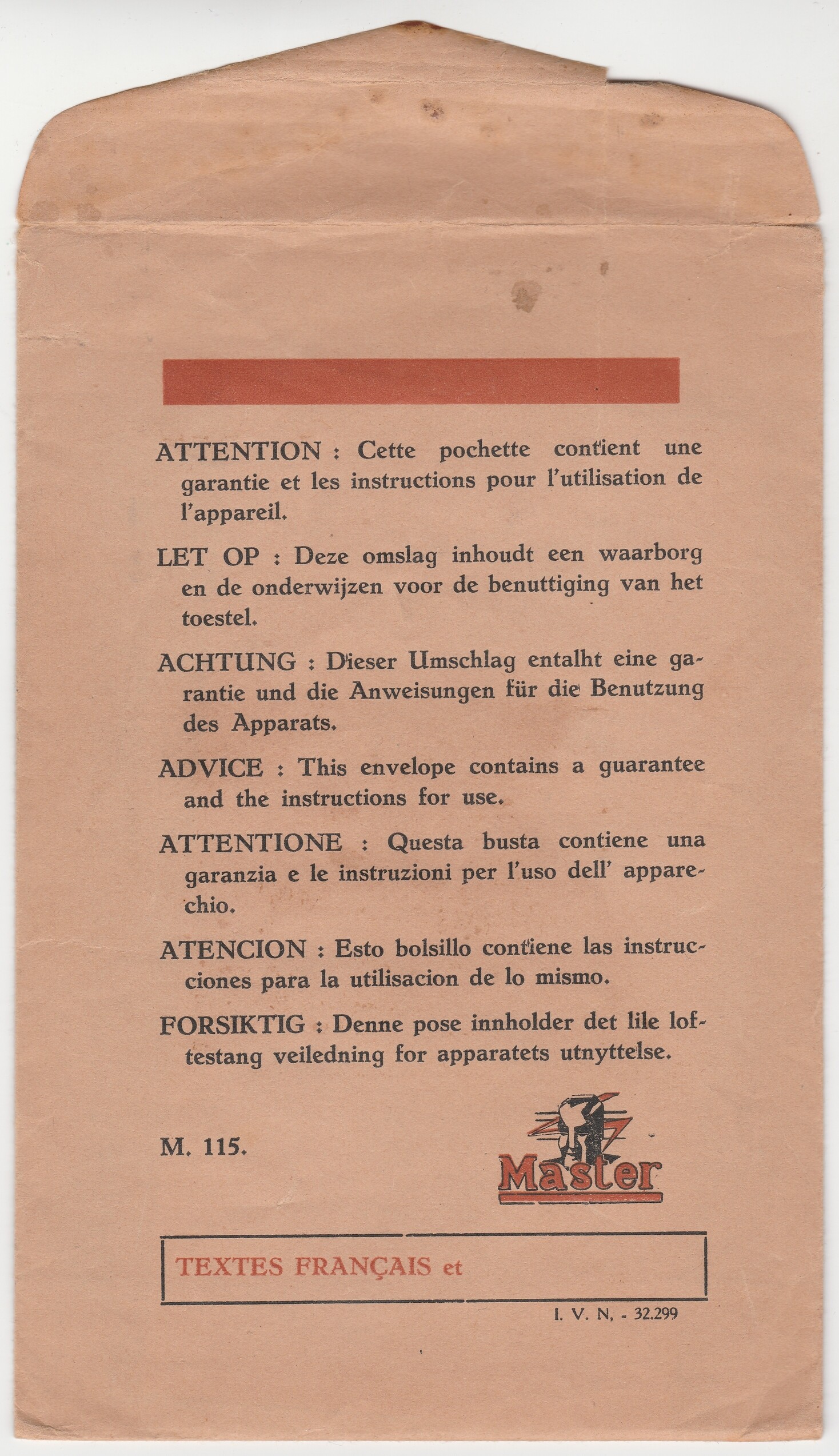

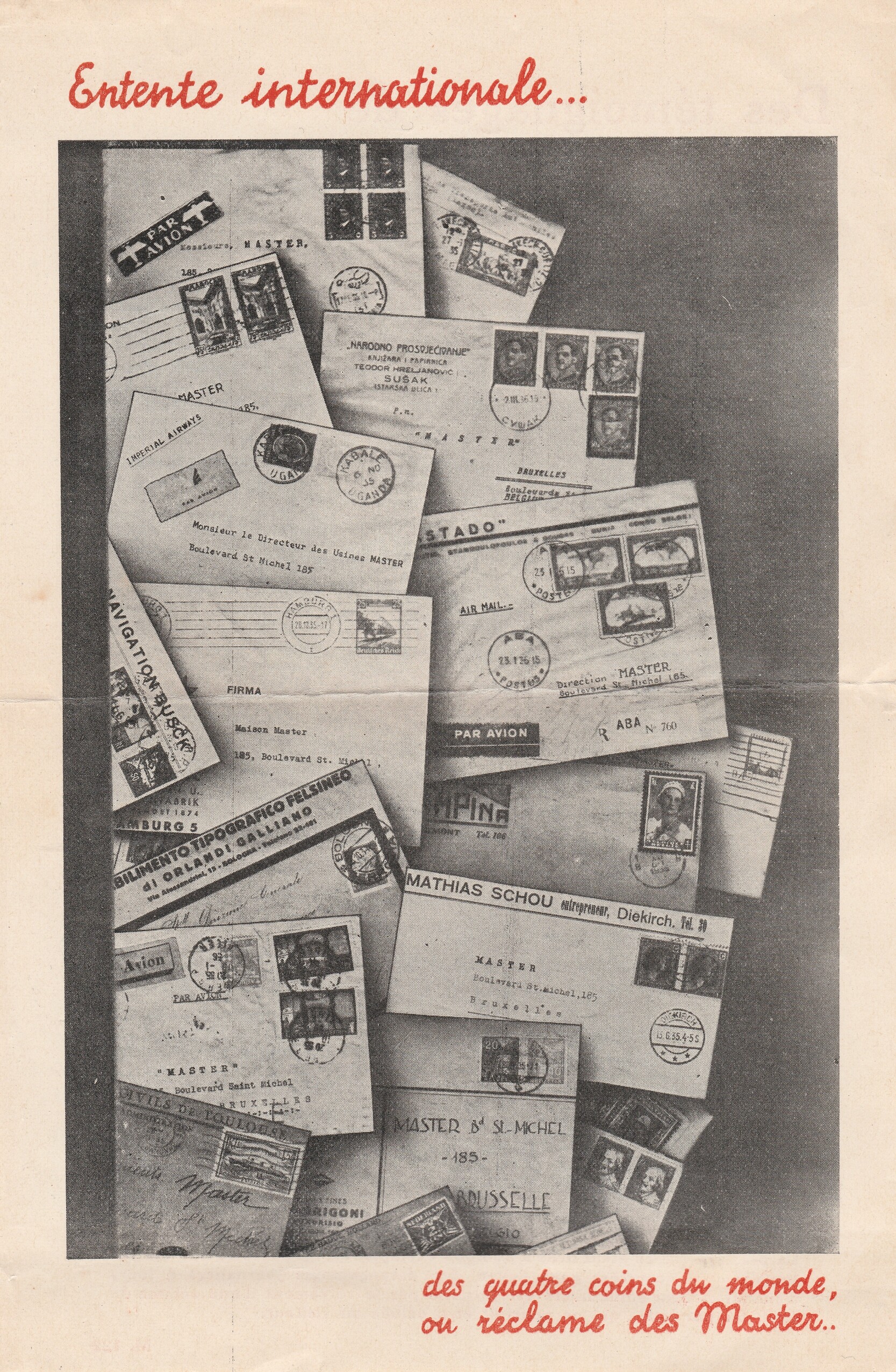

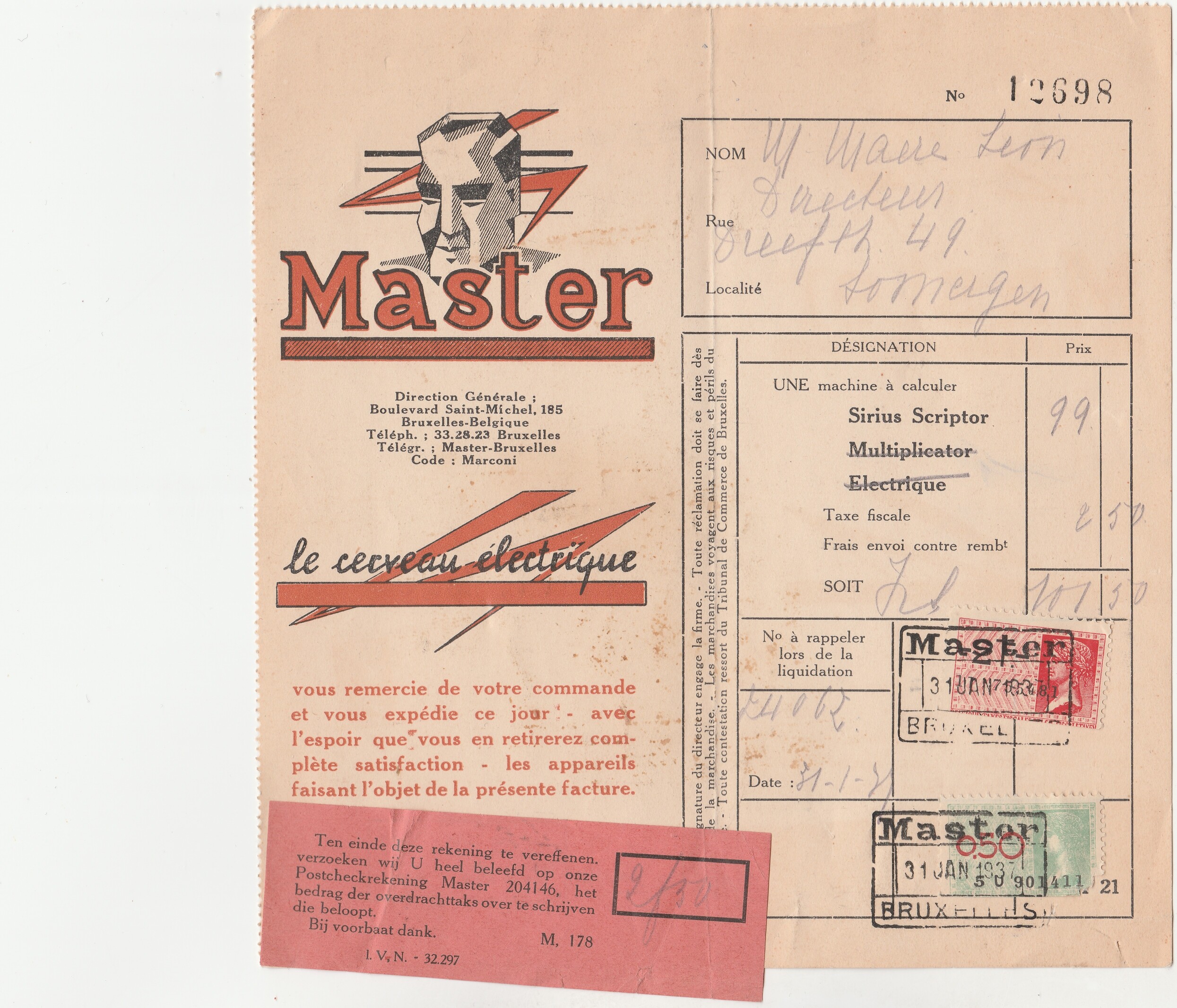

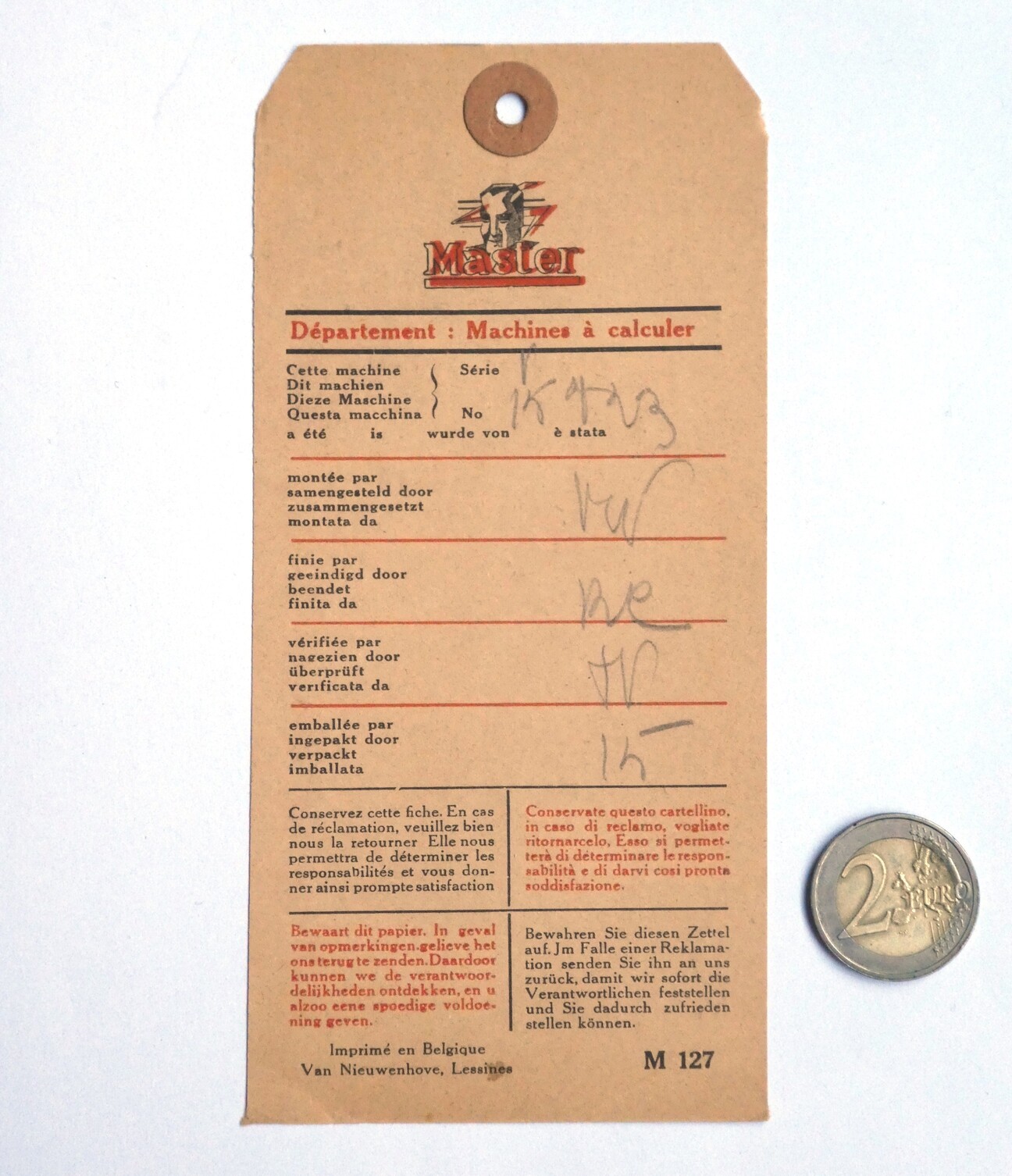

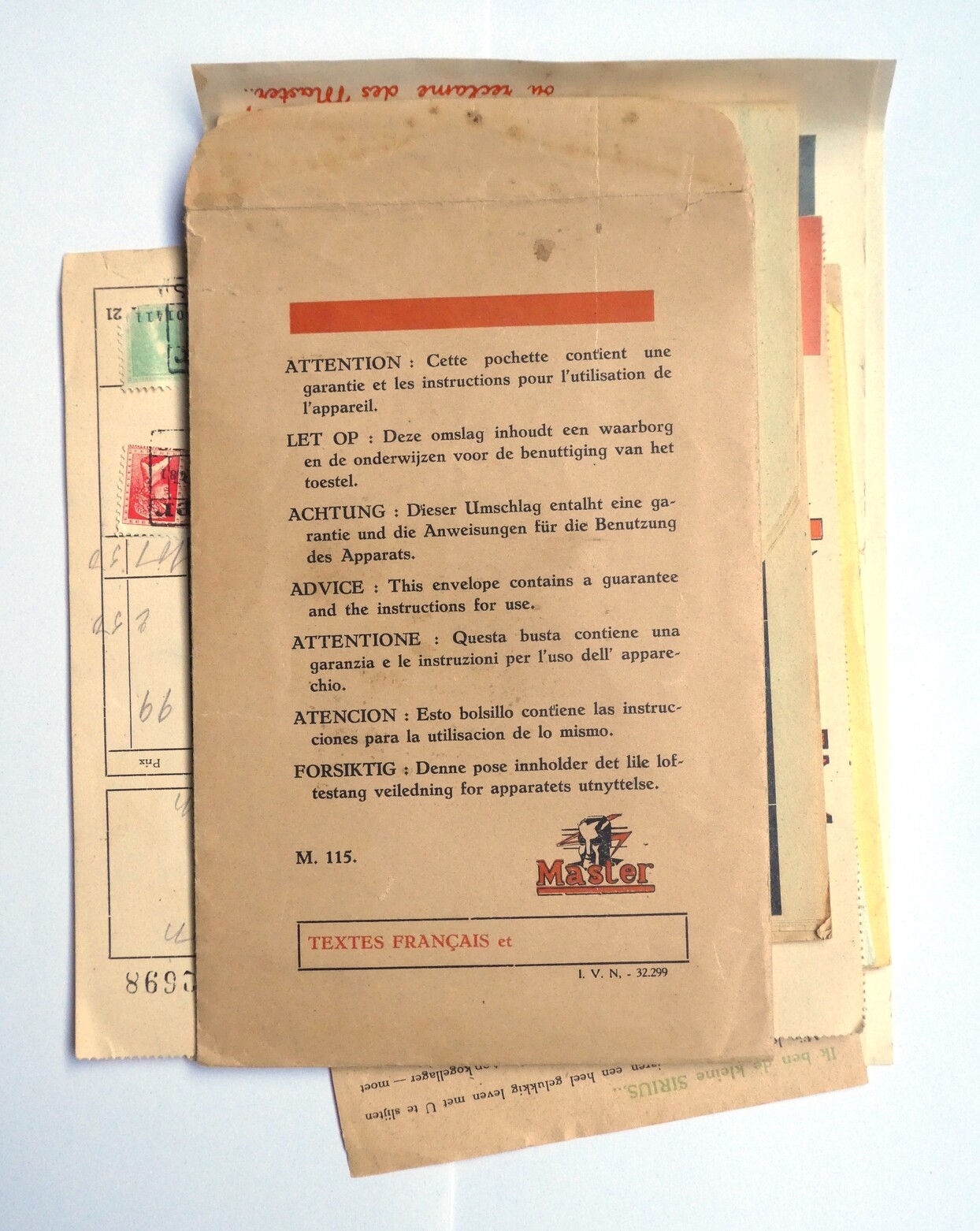

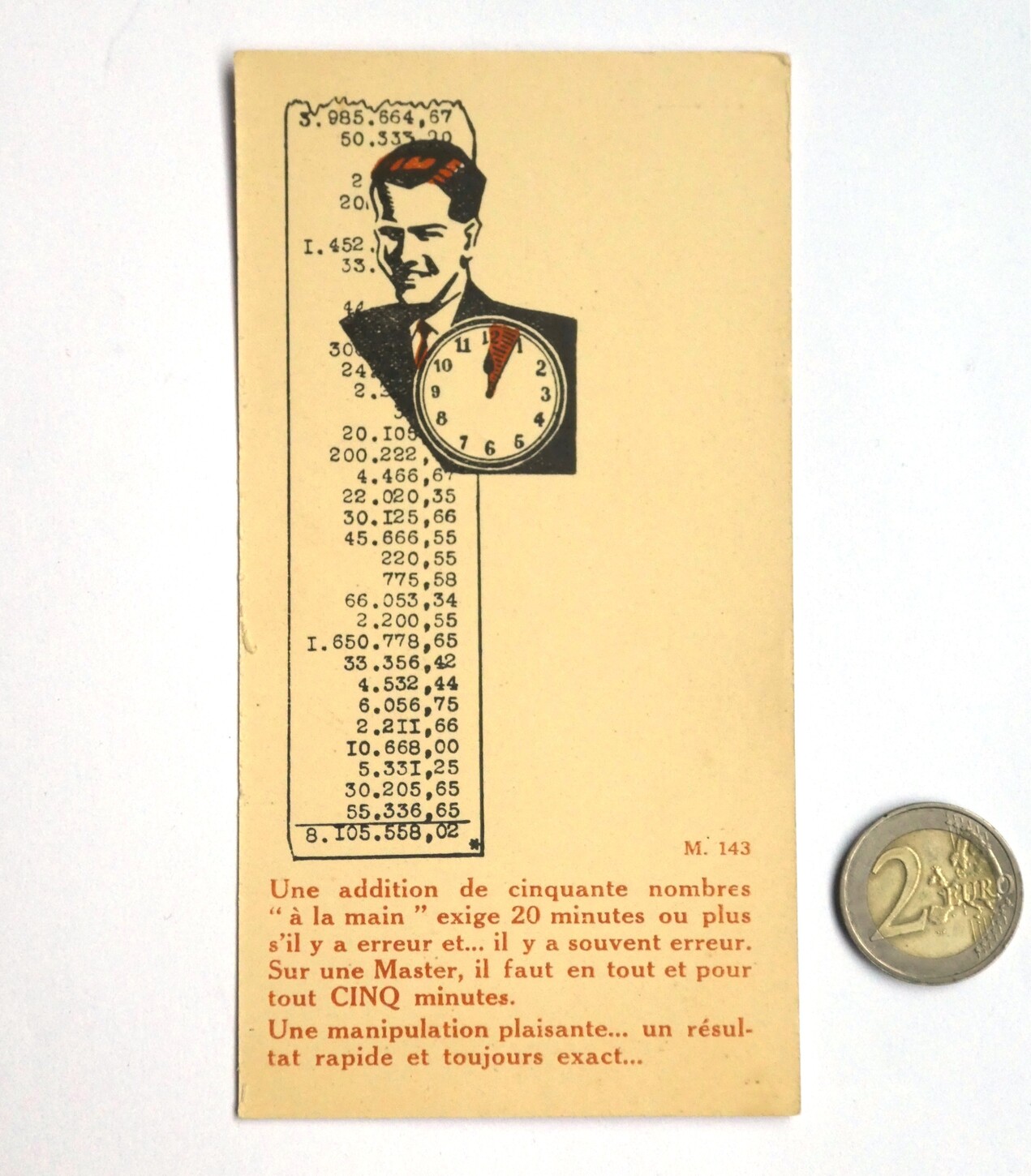

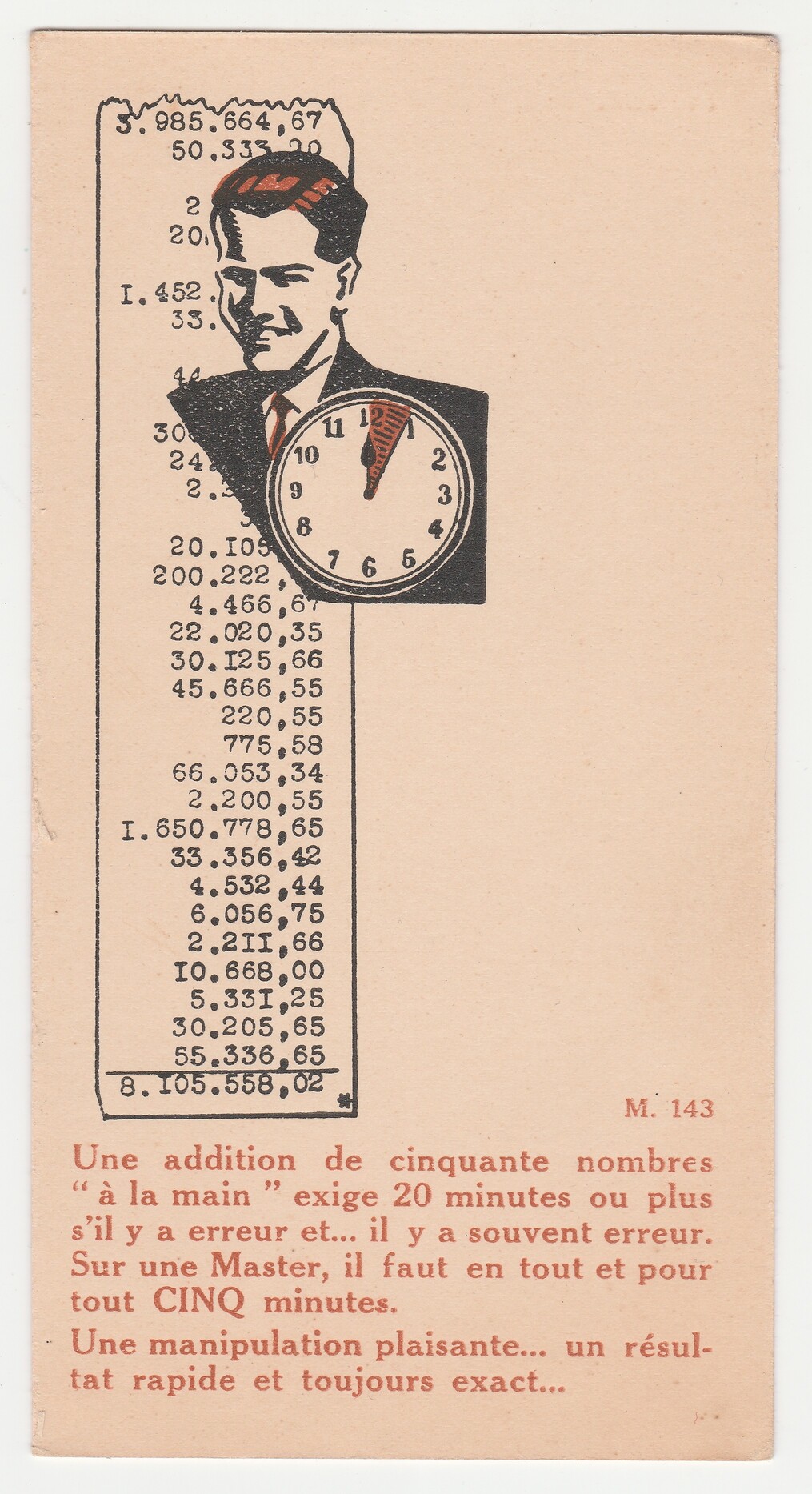

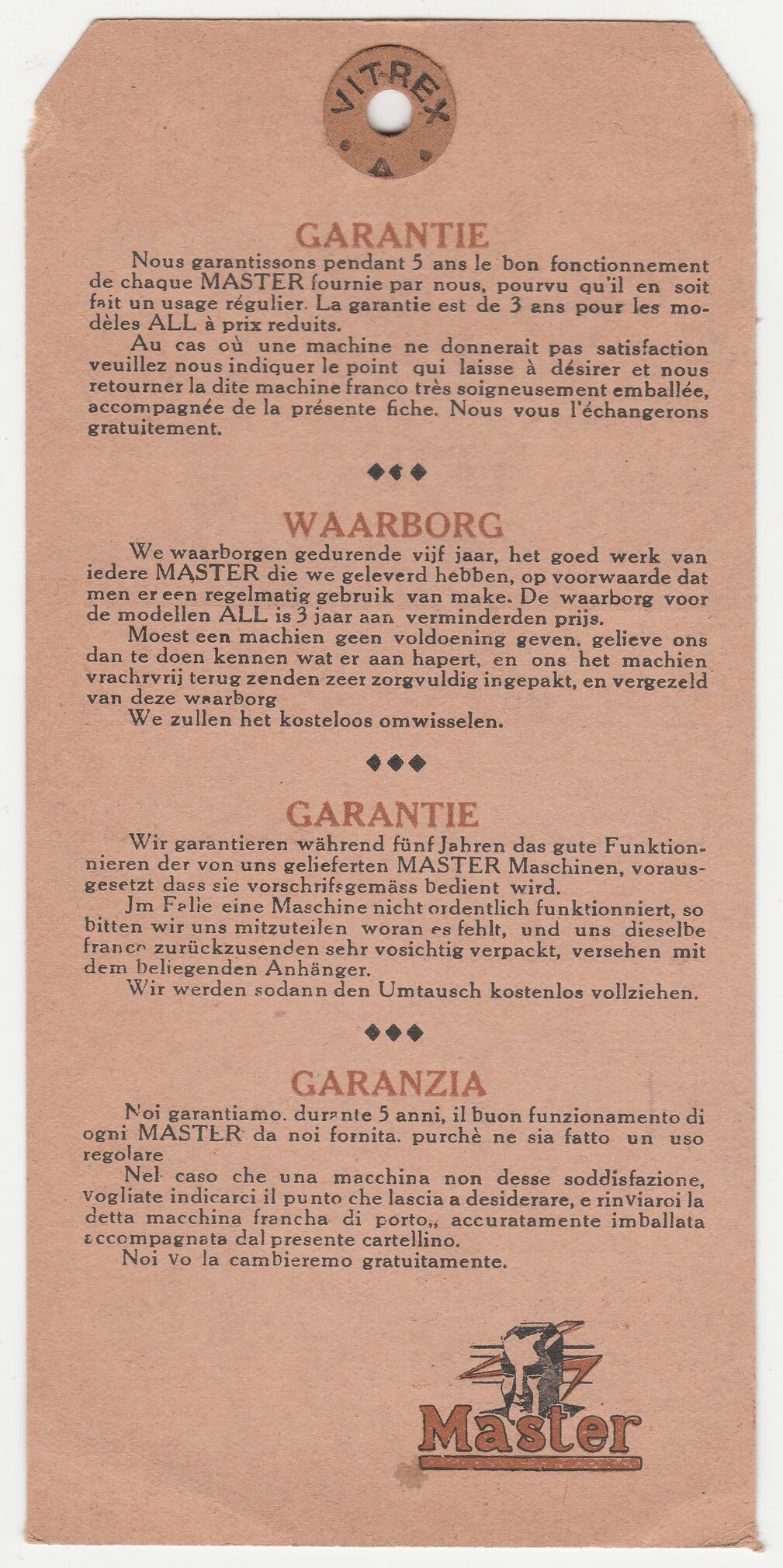

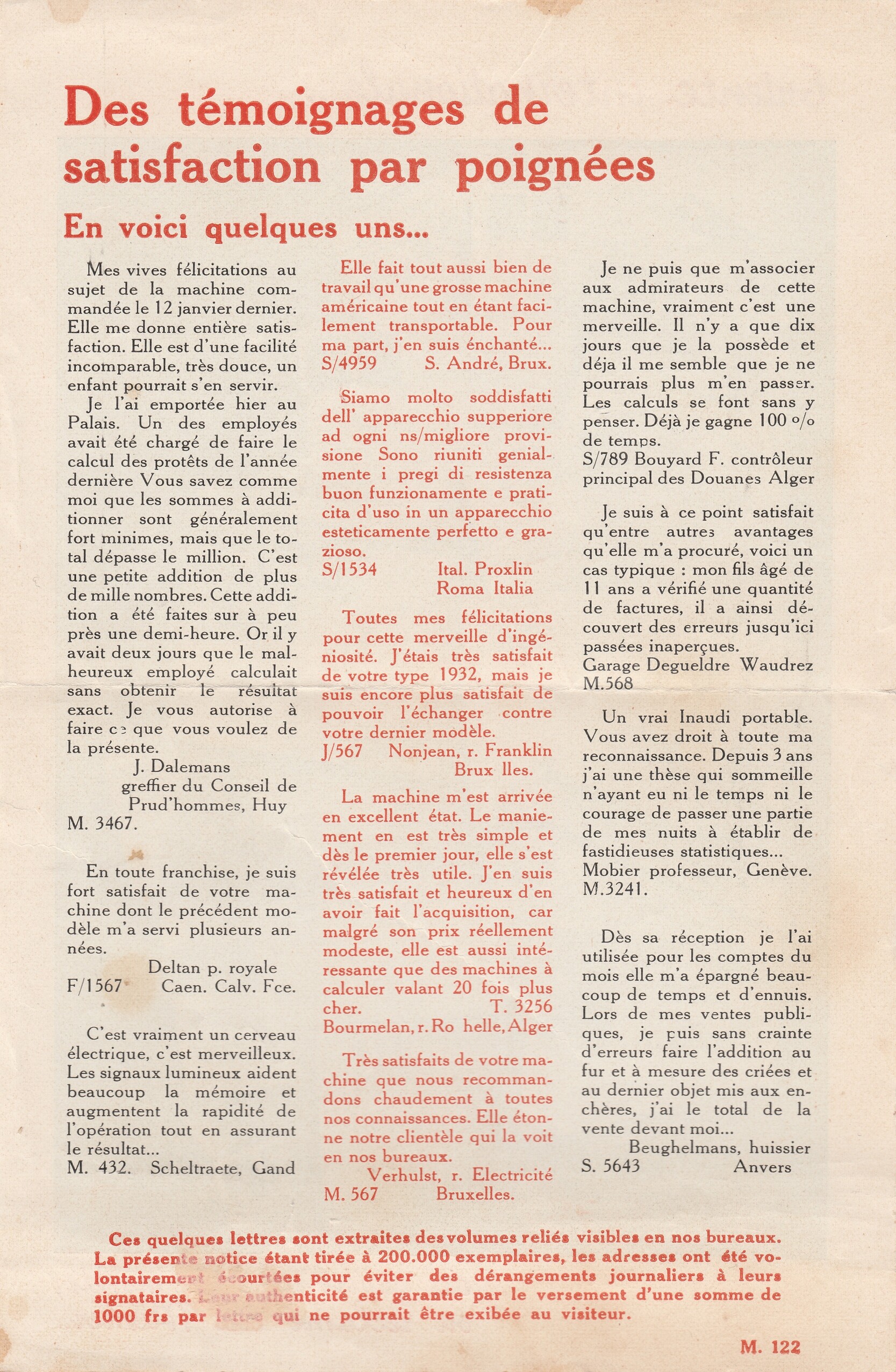

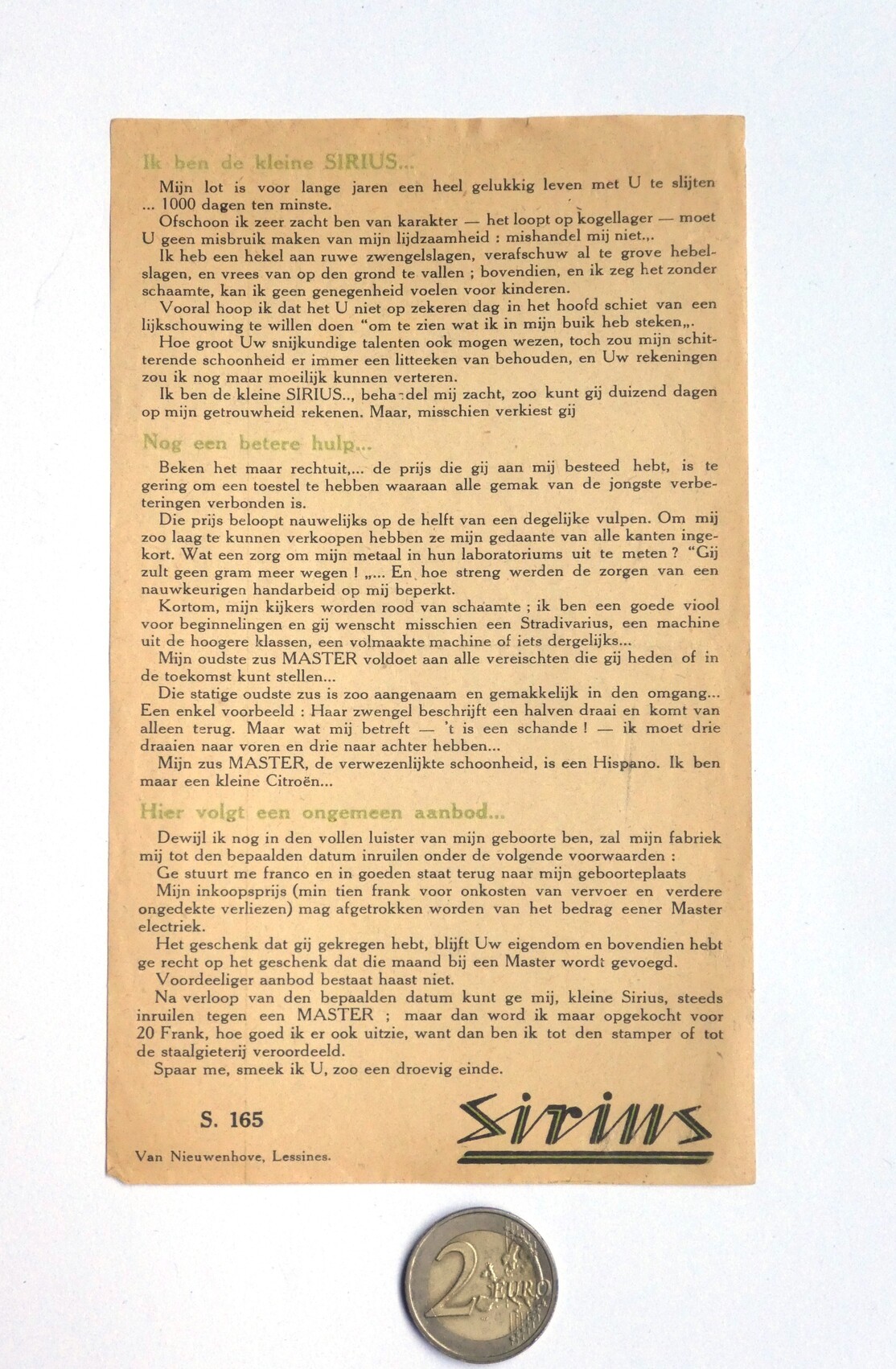

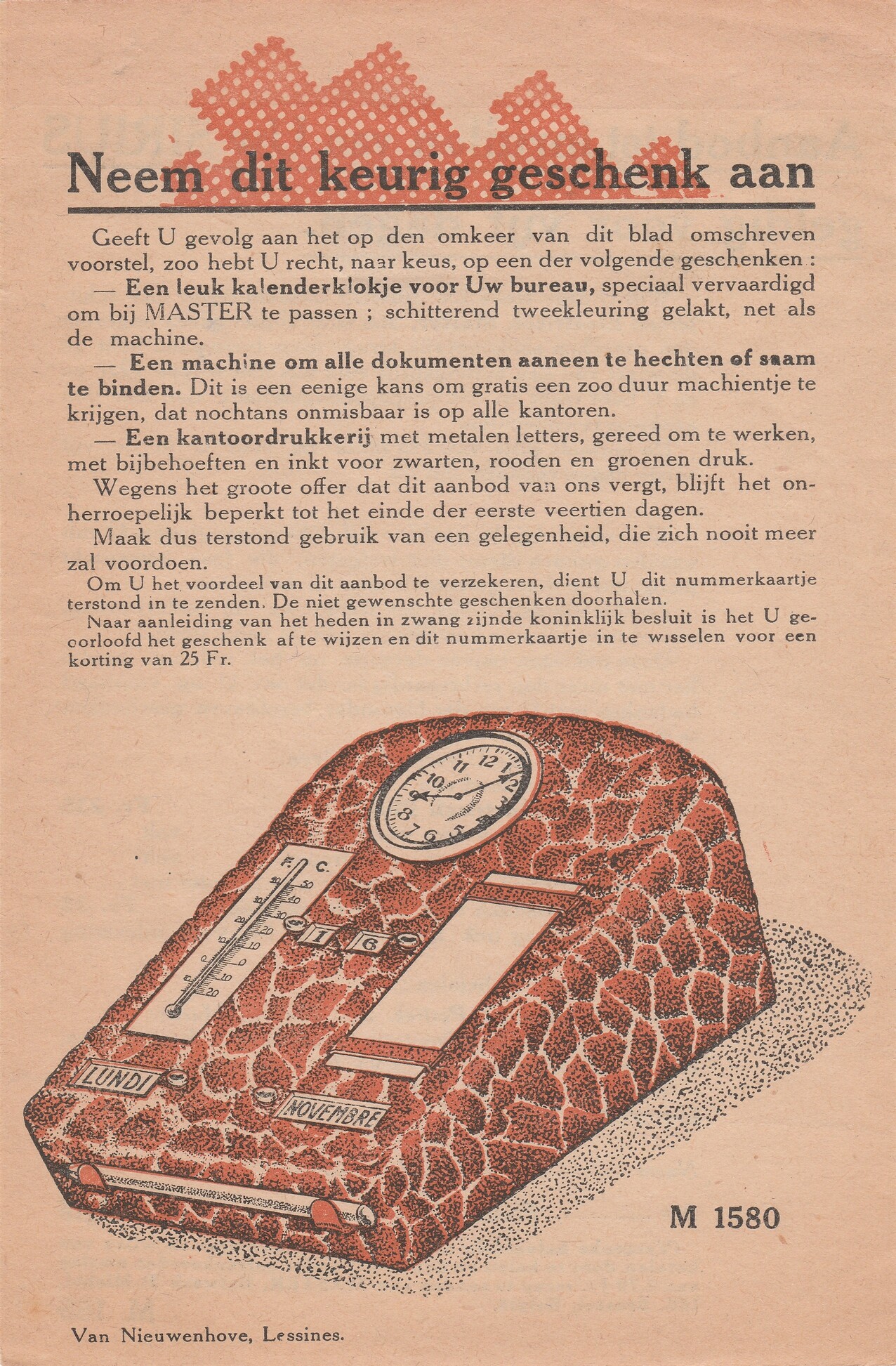

The other papers include the original receipt, a guarantee certificate, some ads, and testimonials, and a special offer.

Sirius adding machine
Sirius adding machine
Sirius adding machine
Sirius adding machine
Sirius adding machine
Sirius adding machine
Sirius adding machine
Sirius adding machine
Sirius adding machine
Sirius adding machine
Sirius adding machine
Sirius adding machine
Sirius adding machine
Sirius adding machine
Sirius adding machine
Sirius adding machine
Sirius adding machine
Sirius adding machine
Sirius adding machine
Sirius adding machine
Sirius adding machine
Sirius adding machine
Sirius adding machine
Sirius adding machine
Sirius adding machine



Video

Here is a video where I show the Sirius adding machine and all the documents that came with it.




History

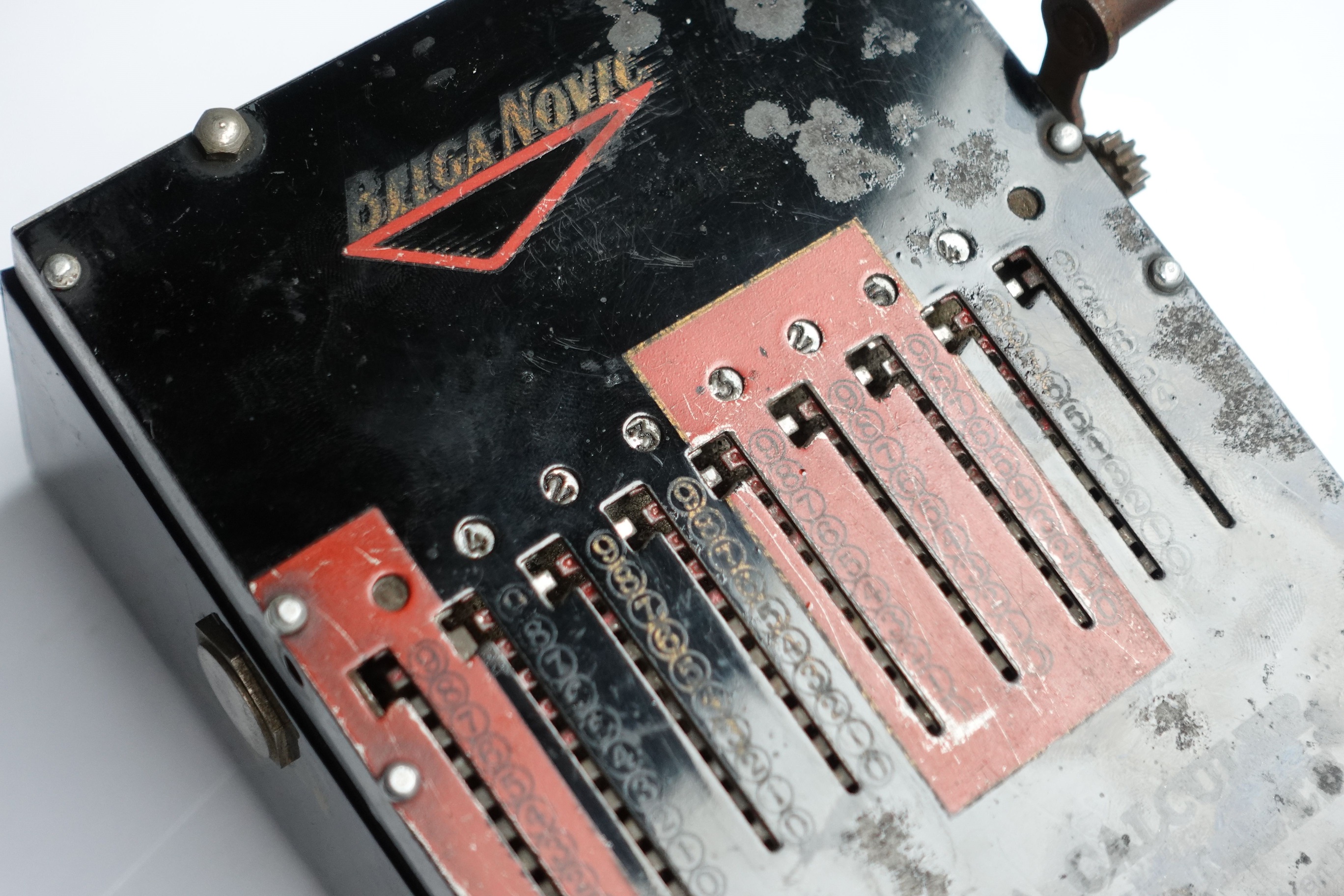

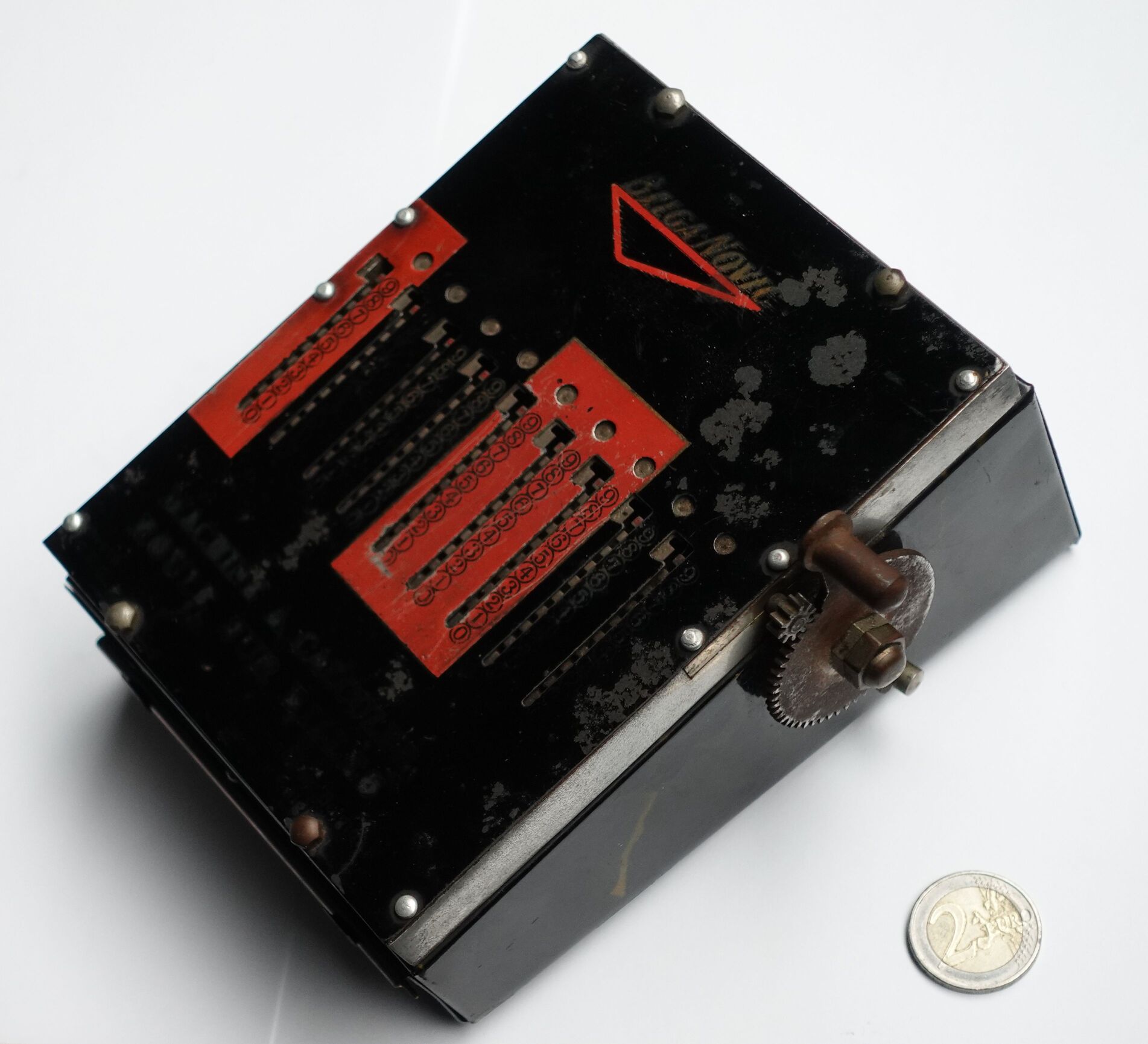

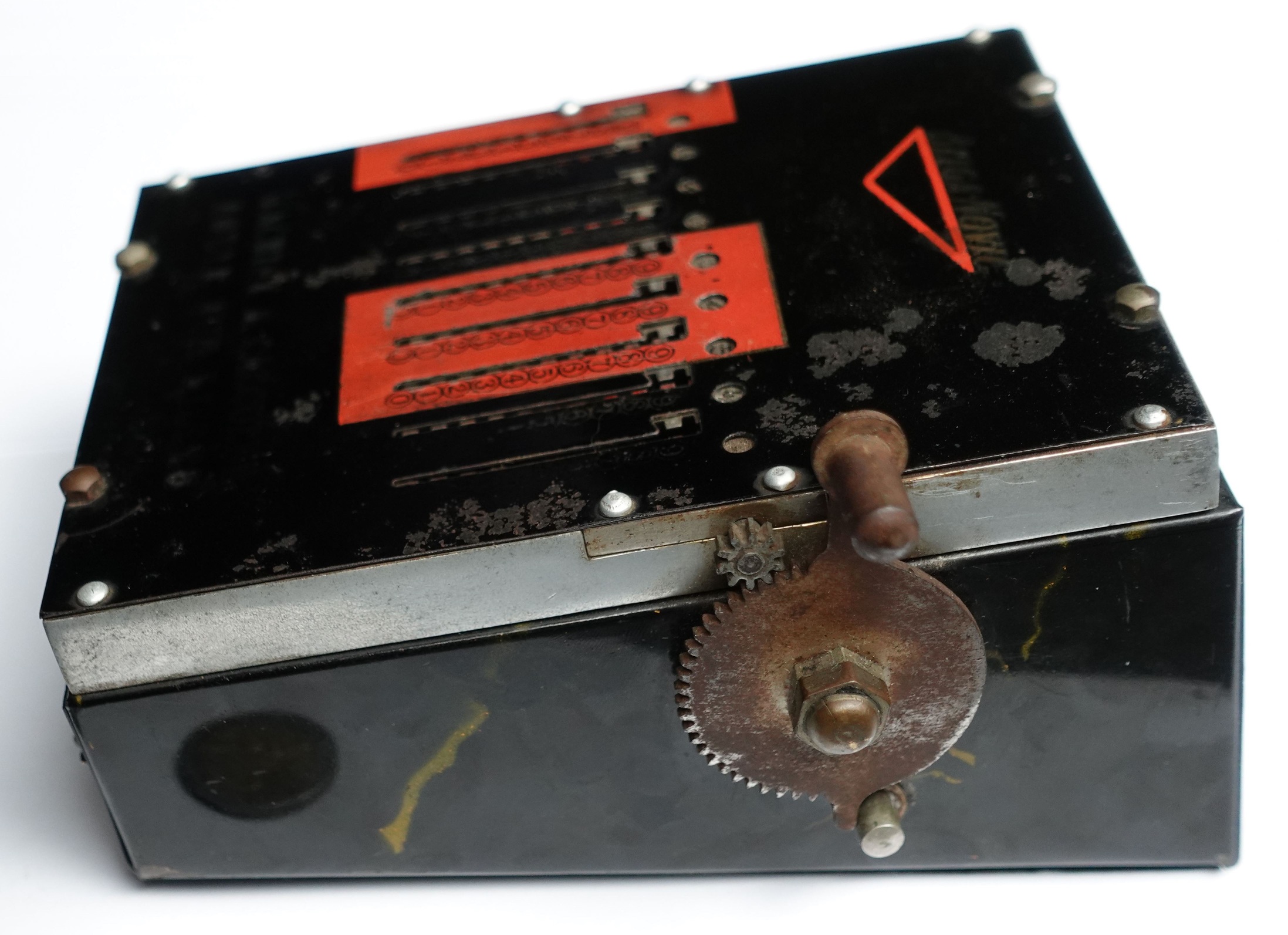

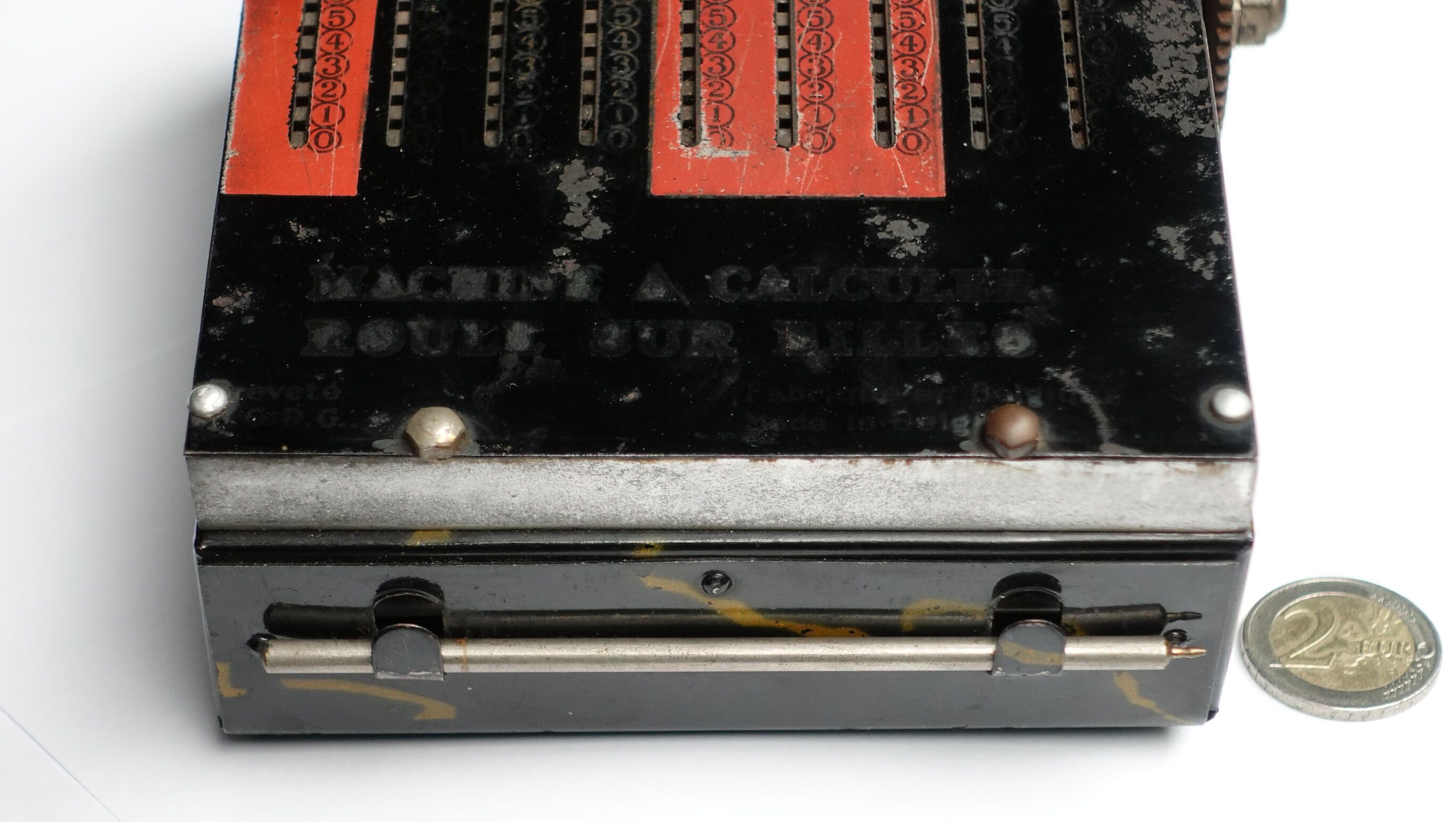

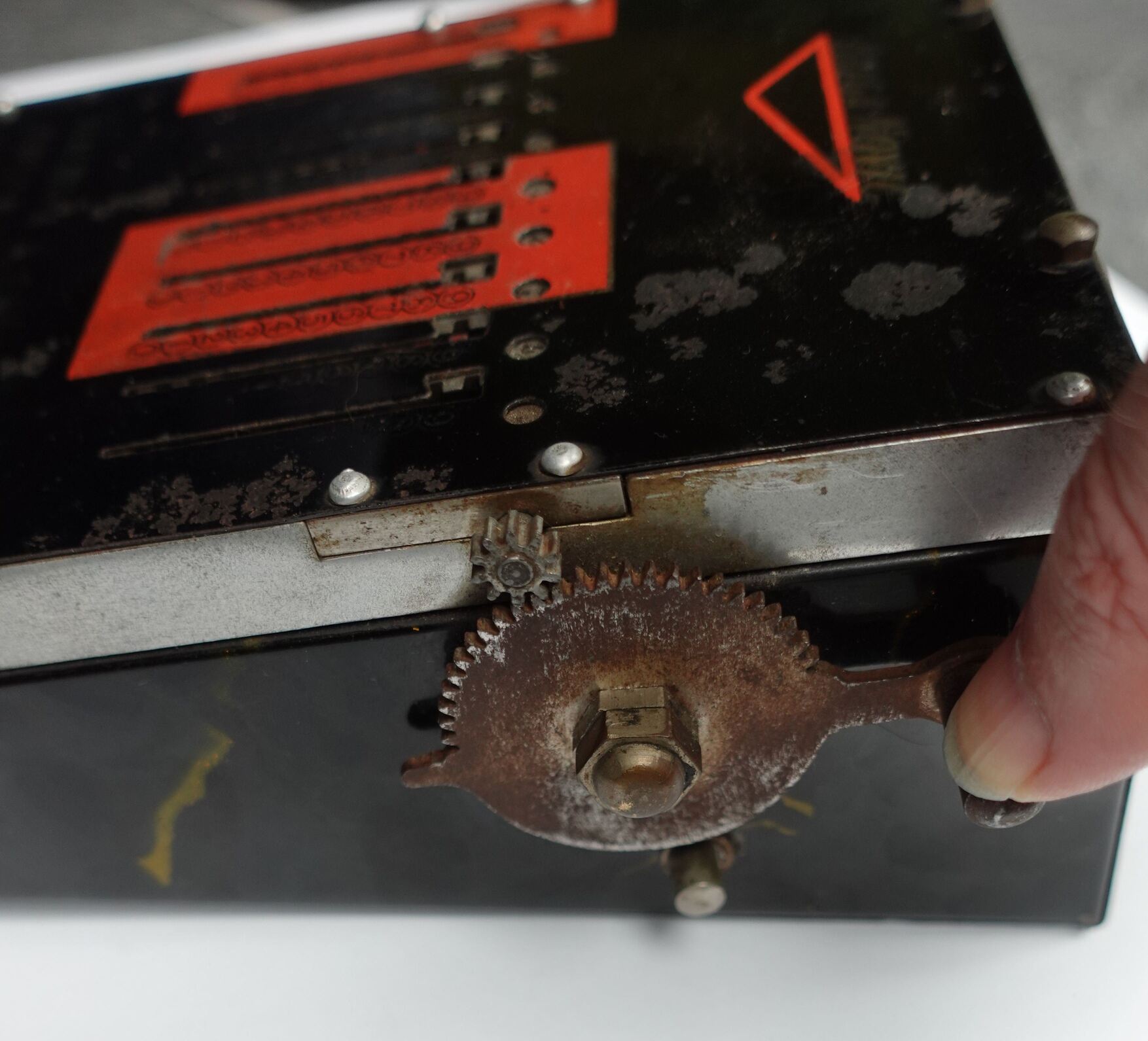

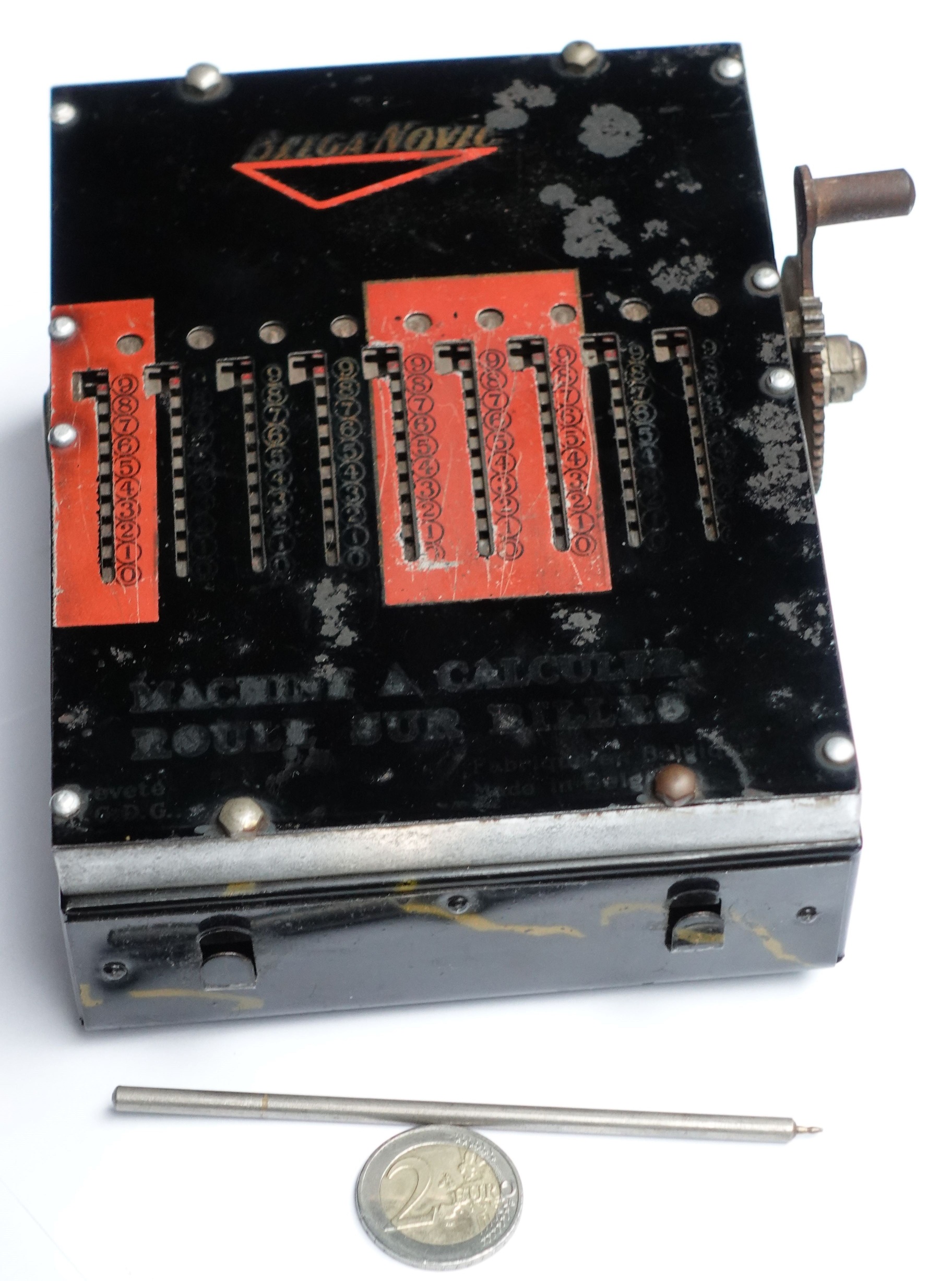

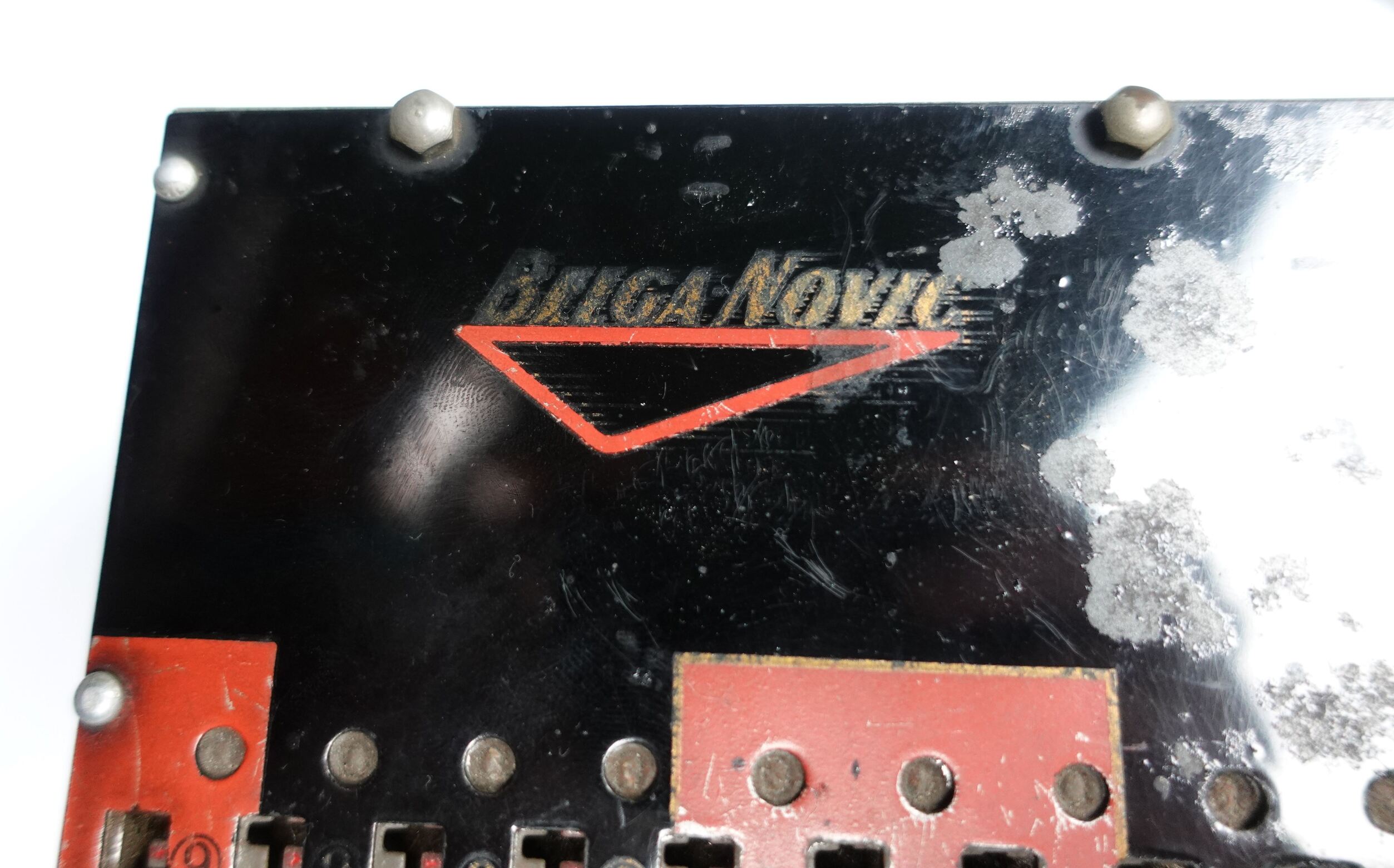

The Business, Sirius and Master adders were very likely all made by Cyrille Alphonse Ghislain Hankard, who was born 12-03-1903 in Temploux, Belgium. In the 1920s he set up his business in Liège, with the production in Herstal the adjacent industrial town. Later there was also an office address in Brussels. Very little is known about this company, which called itself either Business or Master. The company made basic slide adders, and many quaint variations on them, which were sold under many different names such as Business, Belga Novic, Sirius, All, Efficience, Master, and DA 702.

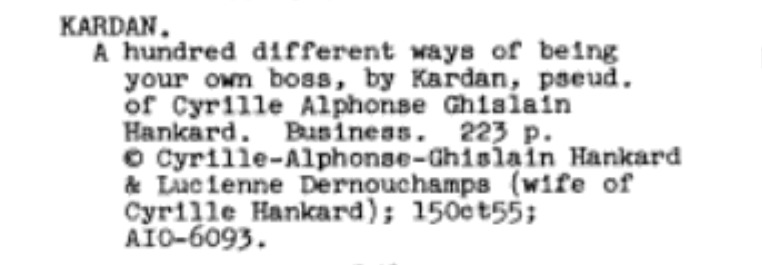

In the 1940s Cyrille Hankard wrote many books about running your own business, with titles such as "A hundred different ways of being your own boss", "Cent situations indépendantes à domicile", "Je débute, progresse et réussis dans une affaire indépendante", "Une de ces cent affaires nouvelles fera votre fortune", "Les clefs du succès en publicité et vente par correspondance" etc. It is quite possible that many of these were minor variations of the same text. These books were self-published under the pseudonym C. A. Kardan, which is his surname with the syllables swapped and the silent H dropped.


Patents

I have not found any patents for these adding machines, probably because the early Belgian patents have not been digitised. I only found a French patent by Hankard for a printing mechanism.

PatentFiling datePriority dateNameDescription
FR 663,08727-10-192816-08-1929Cyrille Alphonse HankardPrinting mechanism
