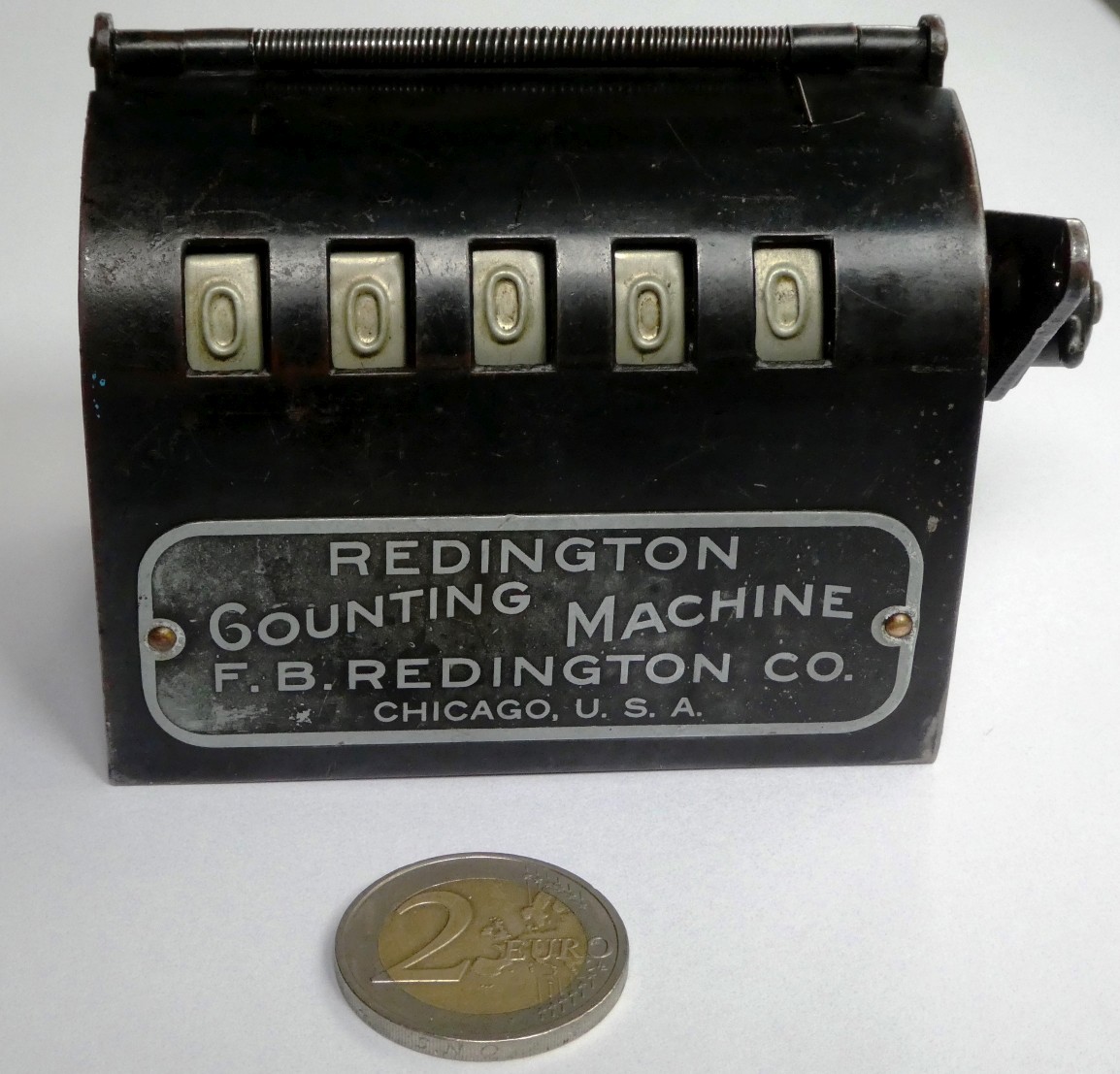

This is a 5-digit counter. It is intended for industrial use, and was often used with printing presses. There were many different attachments available with which it could be connected to almost any industrial machine in order to count how many cycles were done, e.g. how many items were produced. There is a small lever on the right hand side, and pushing it down increments the counter.

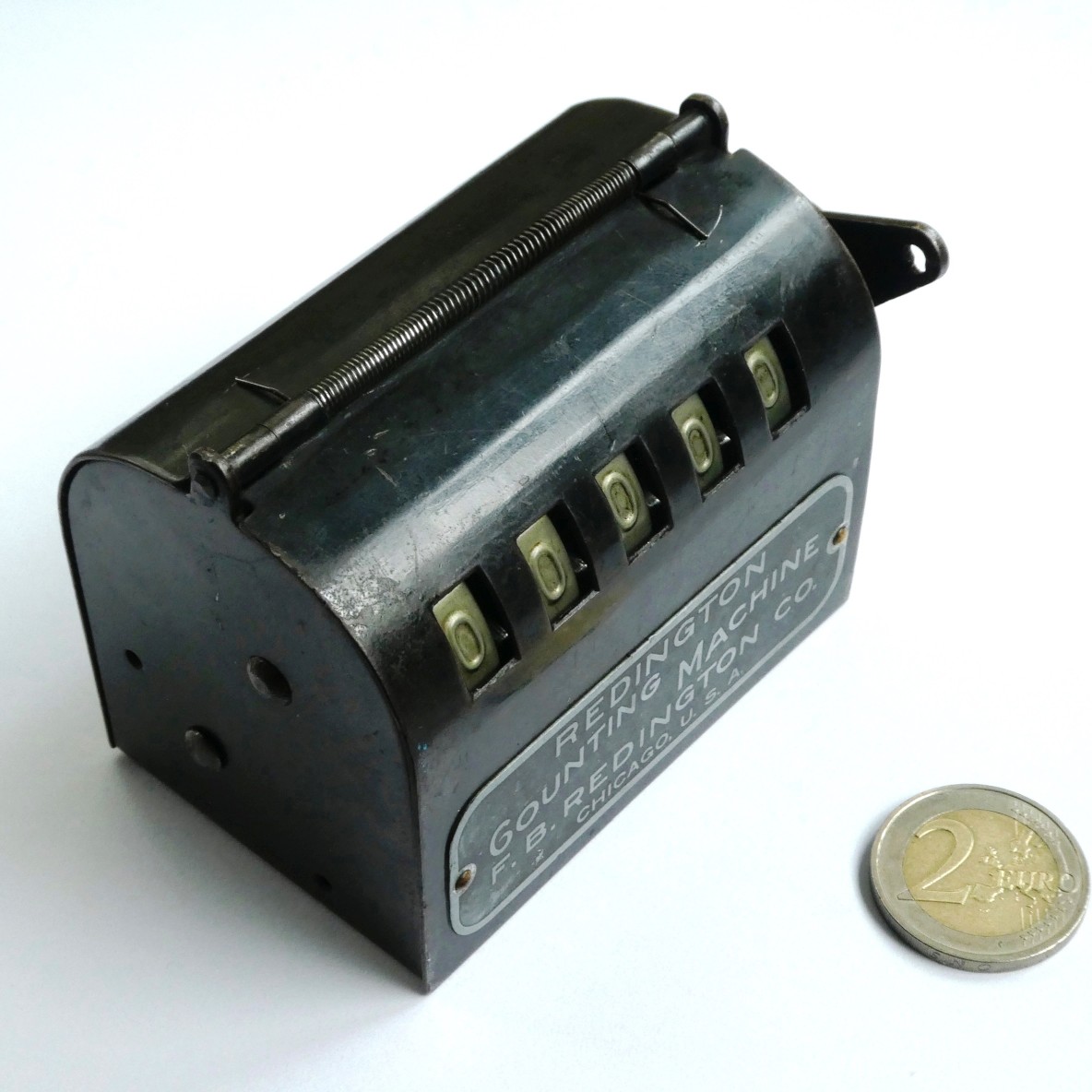

redington01
redington02

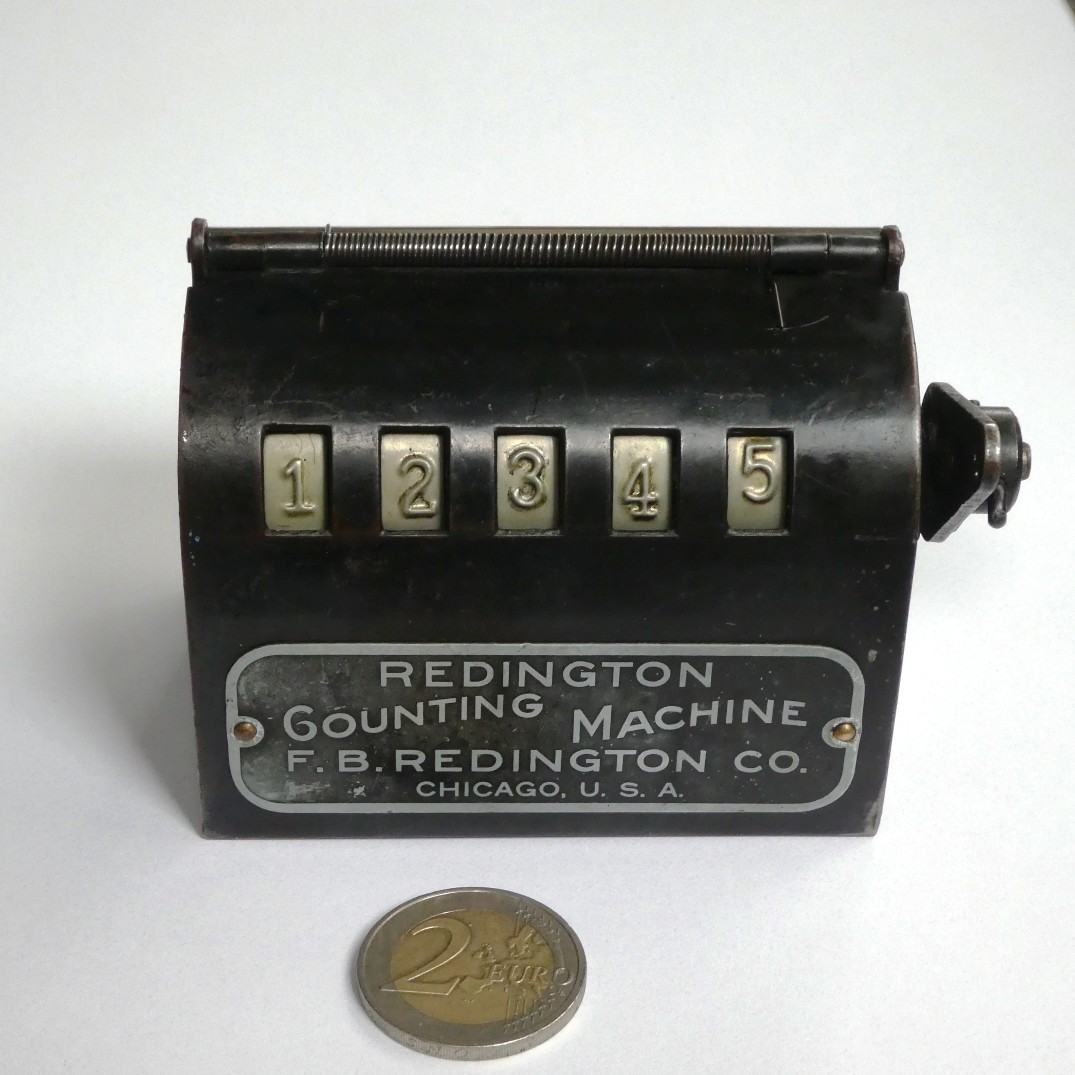

redington03

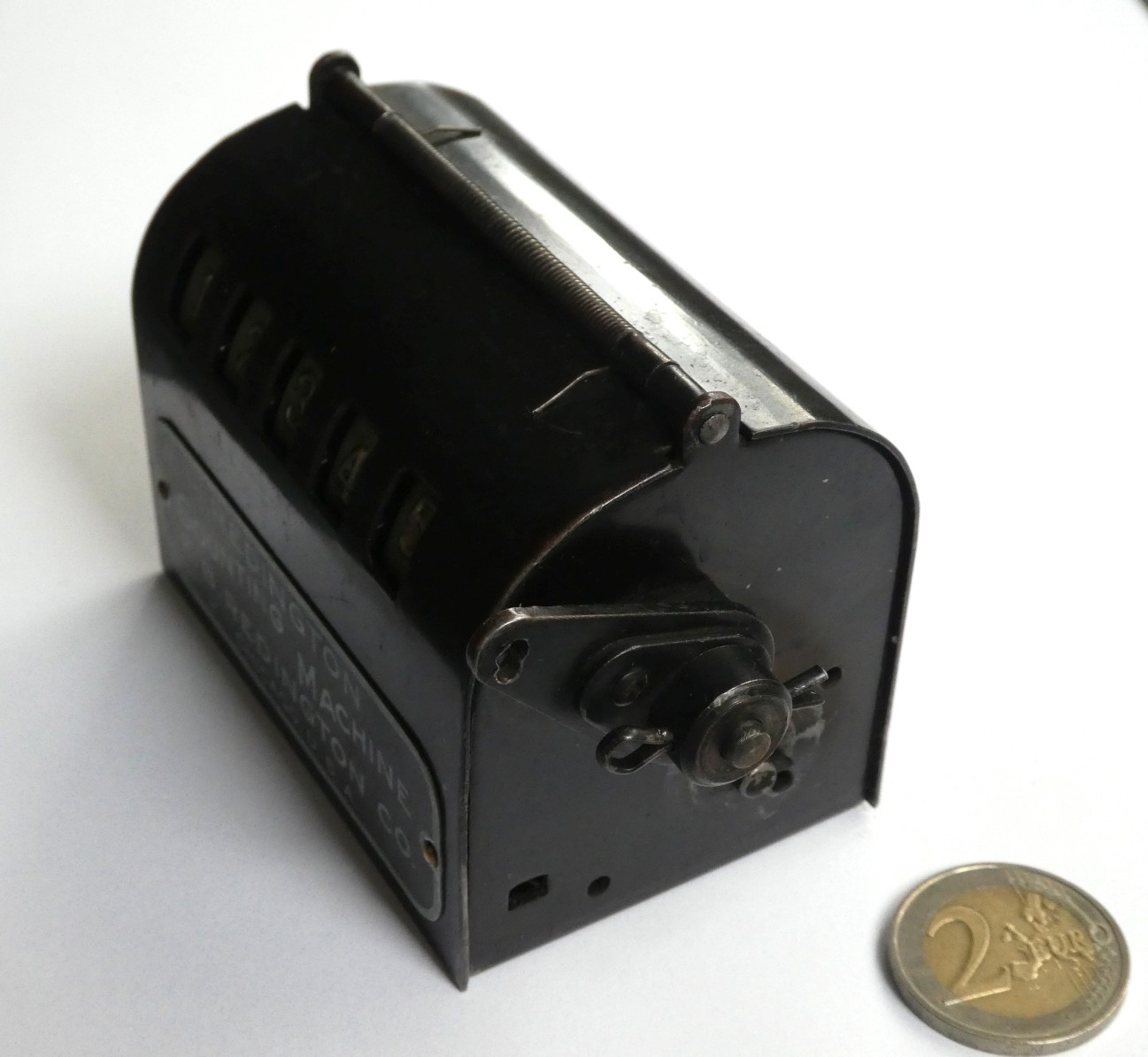

redington04

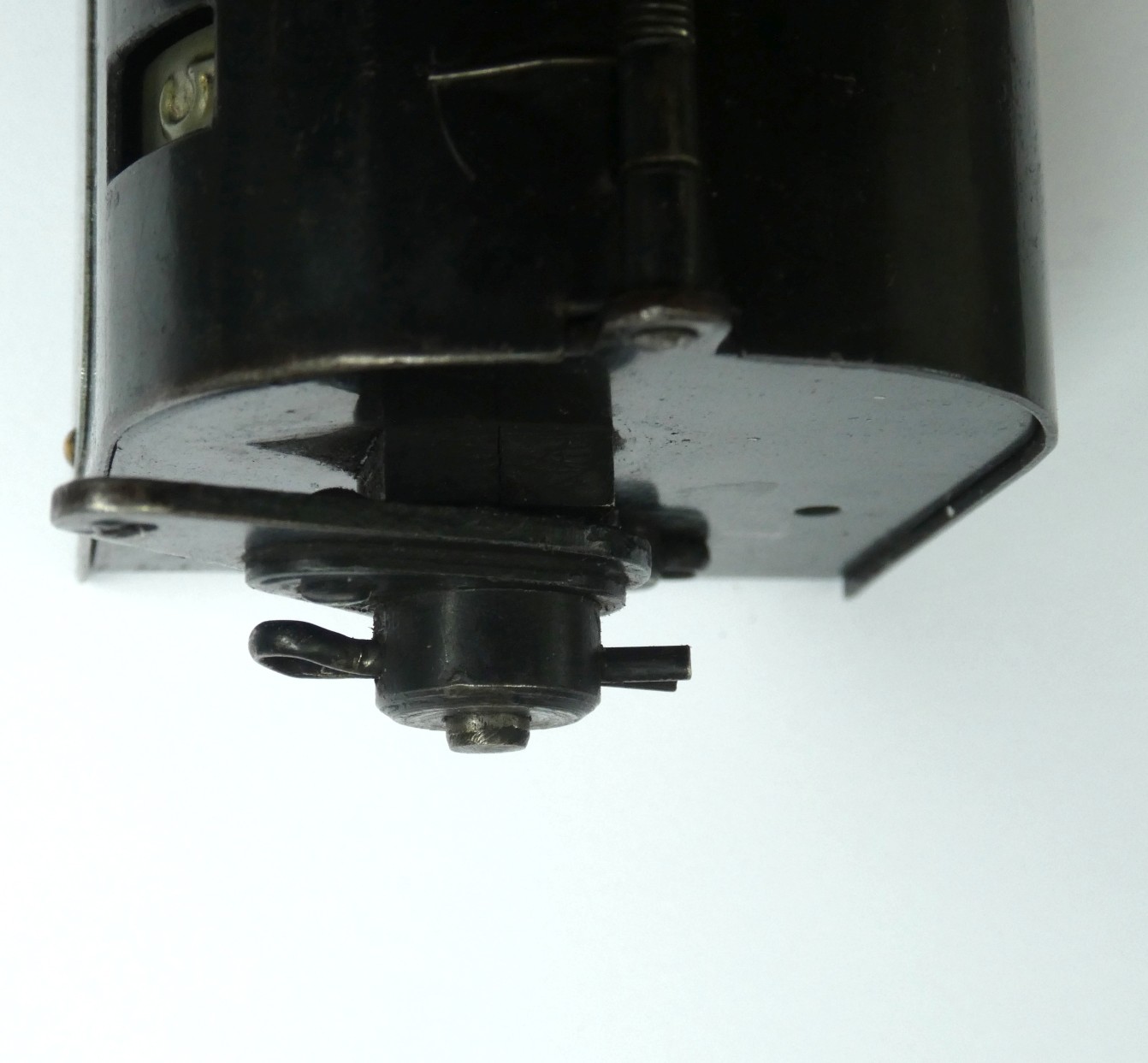

redington05
redington06

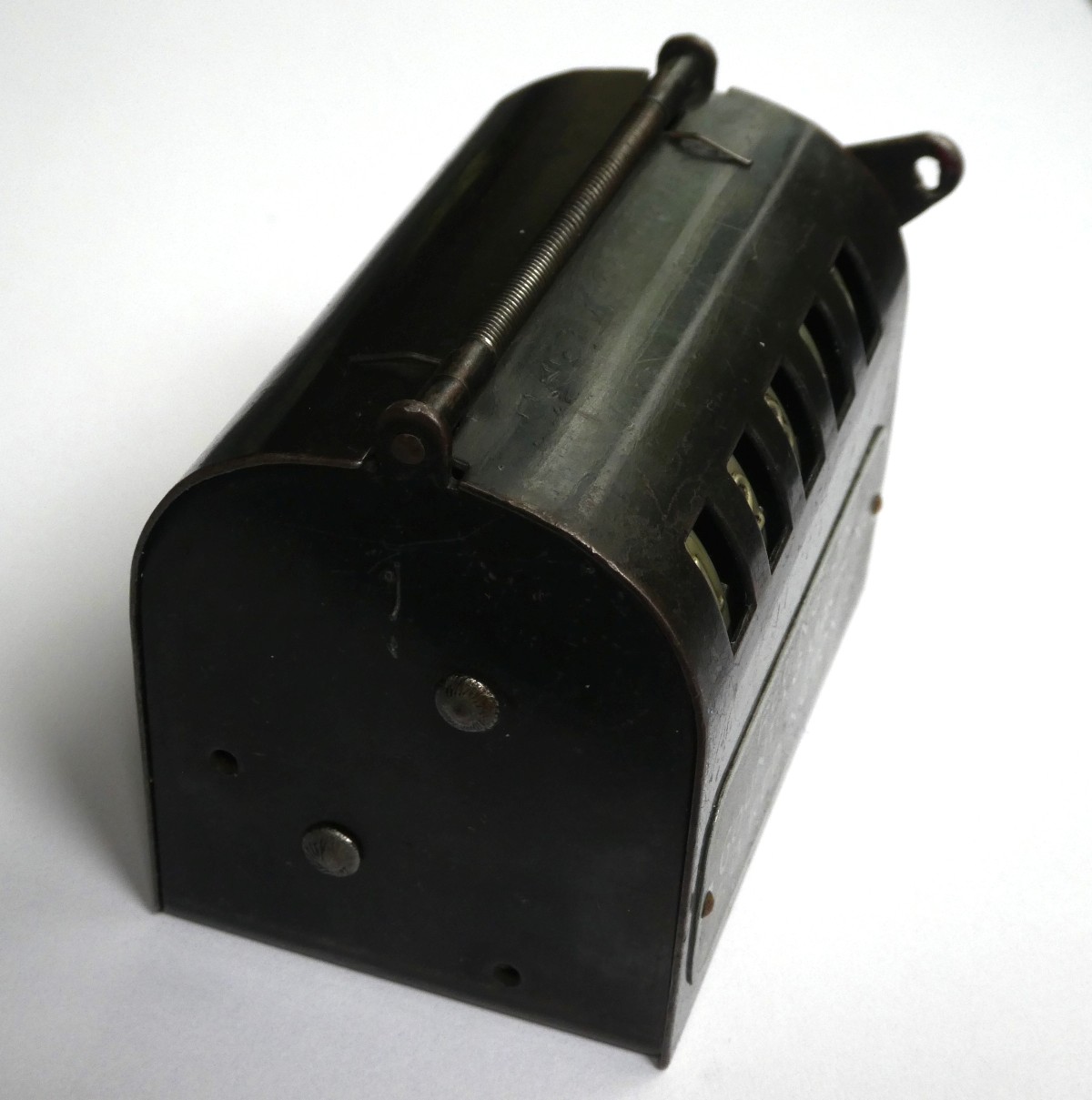

redington07

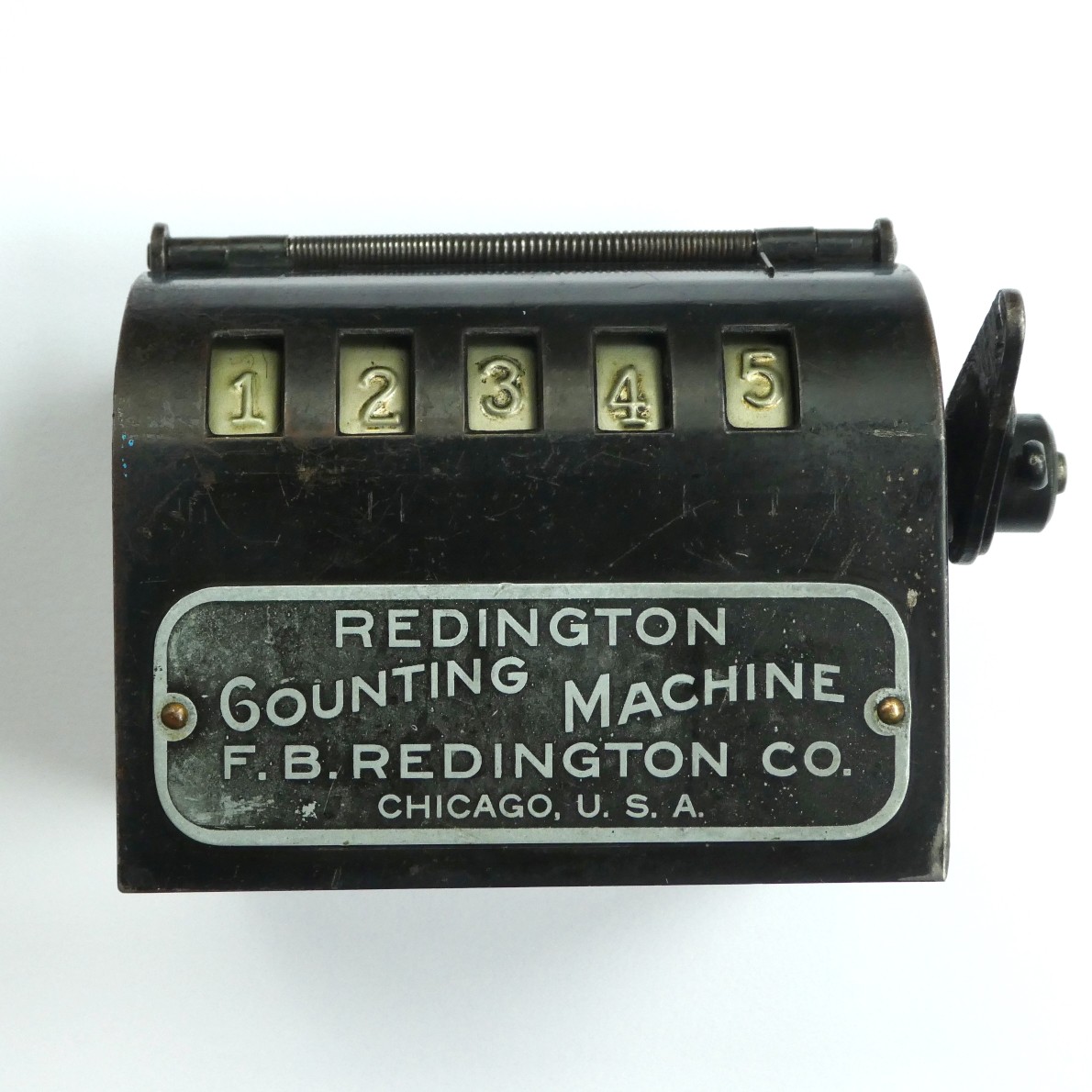

redington08

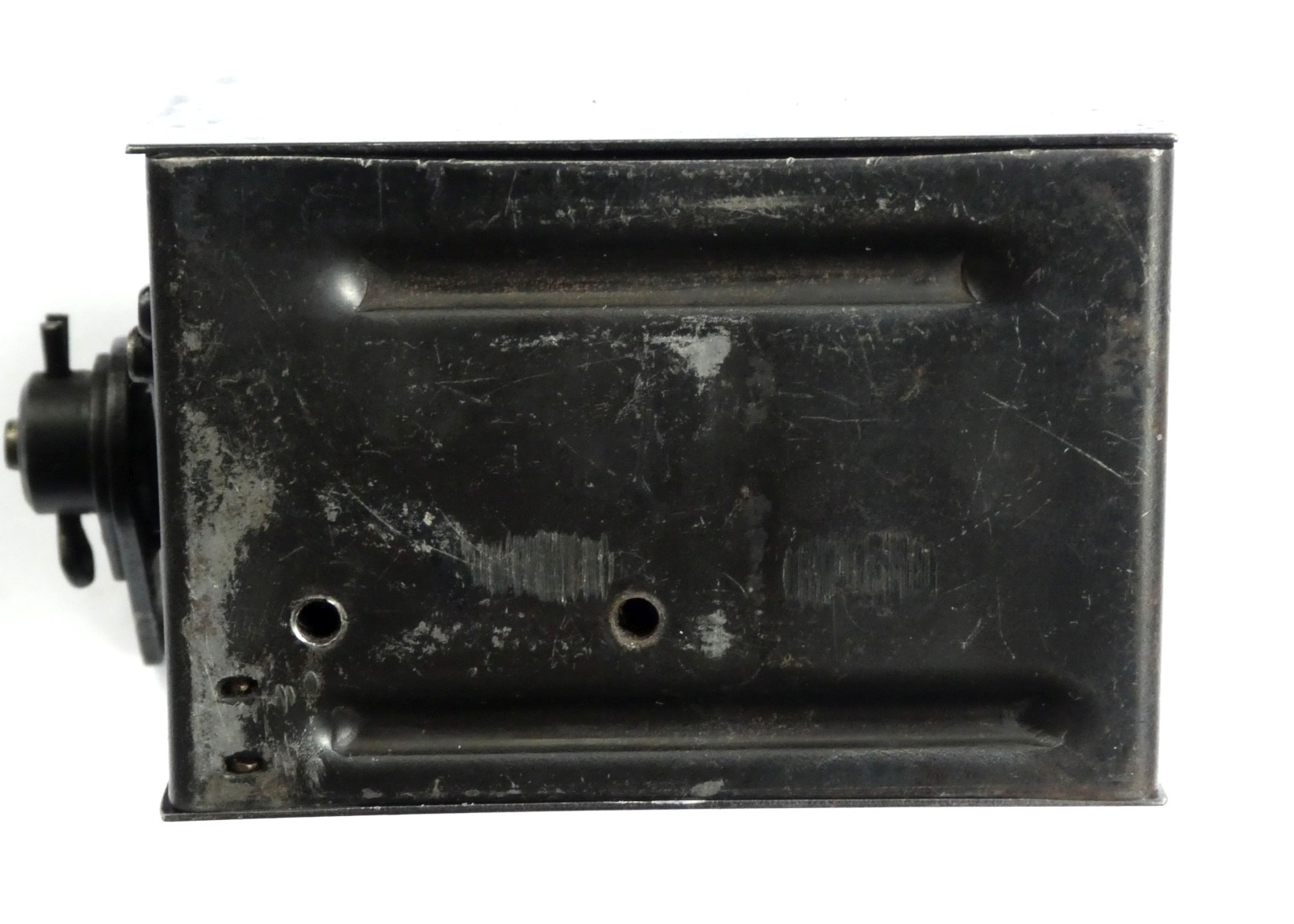

redington09

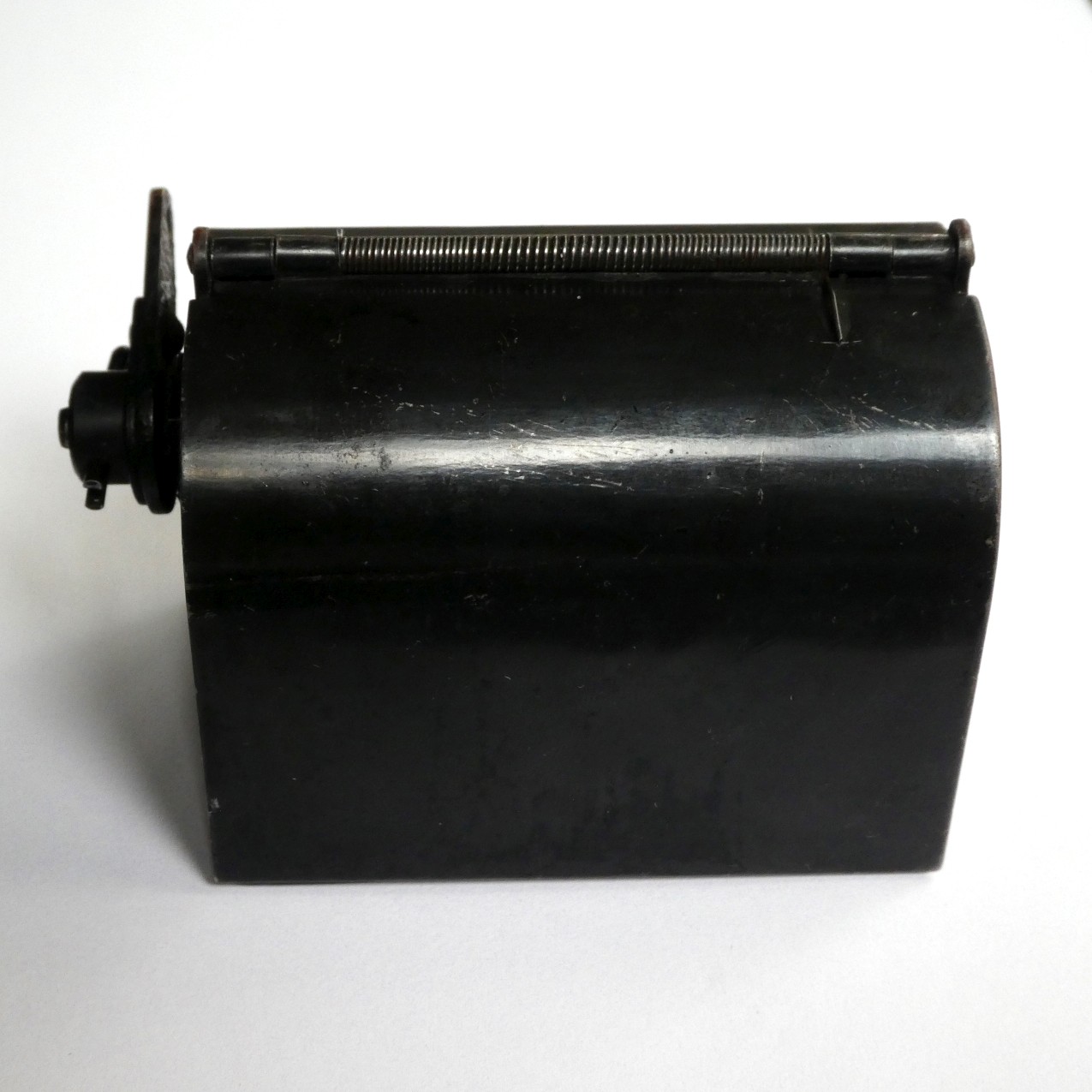

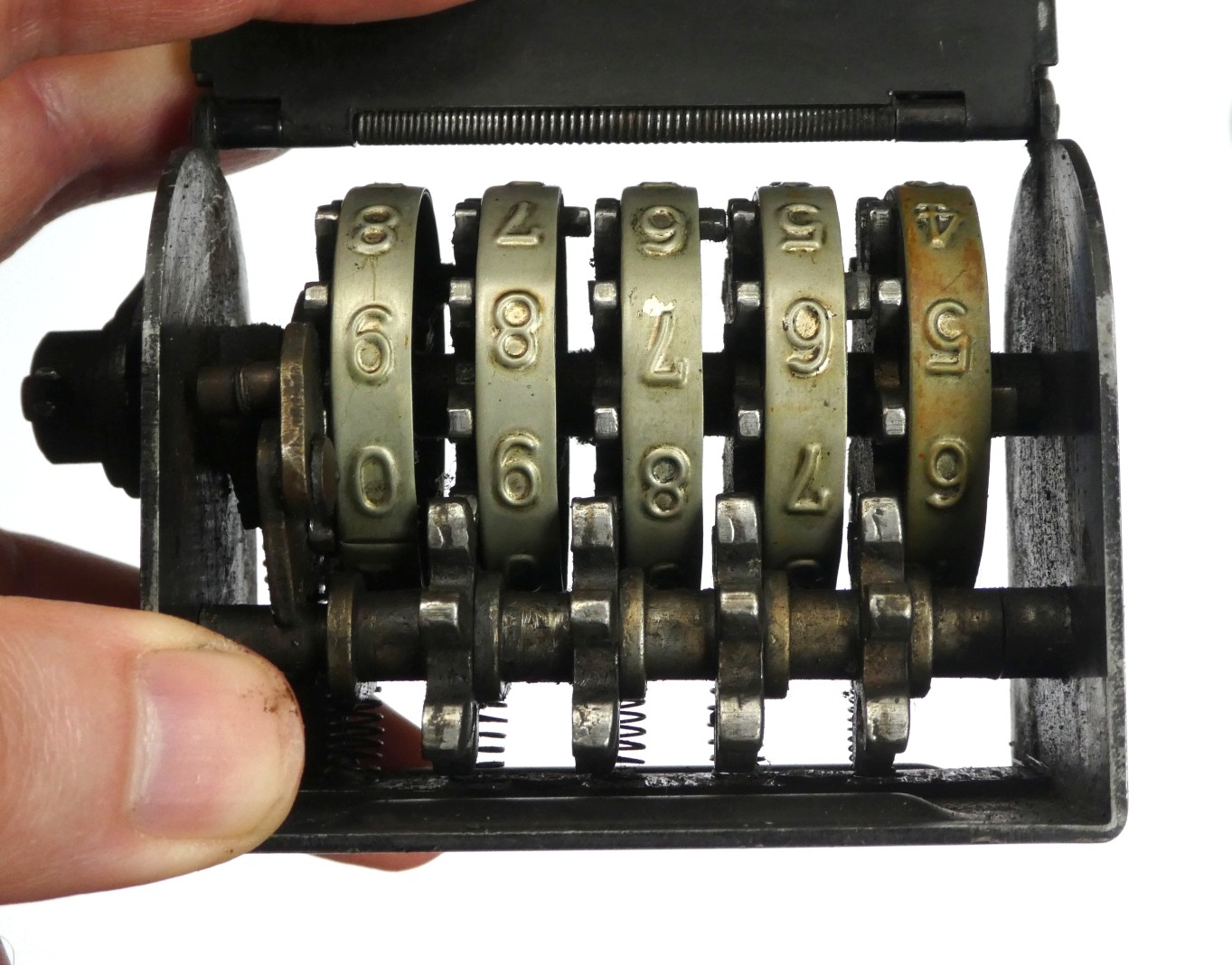

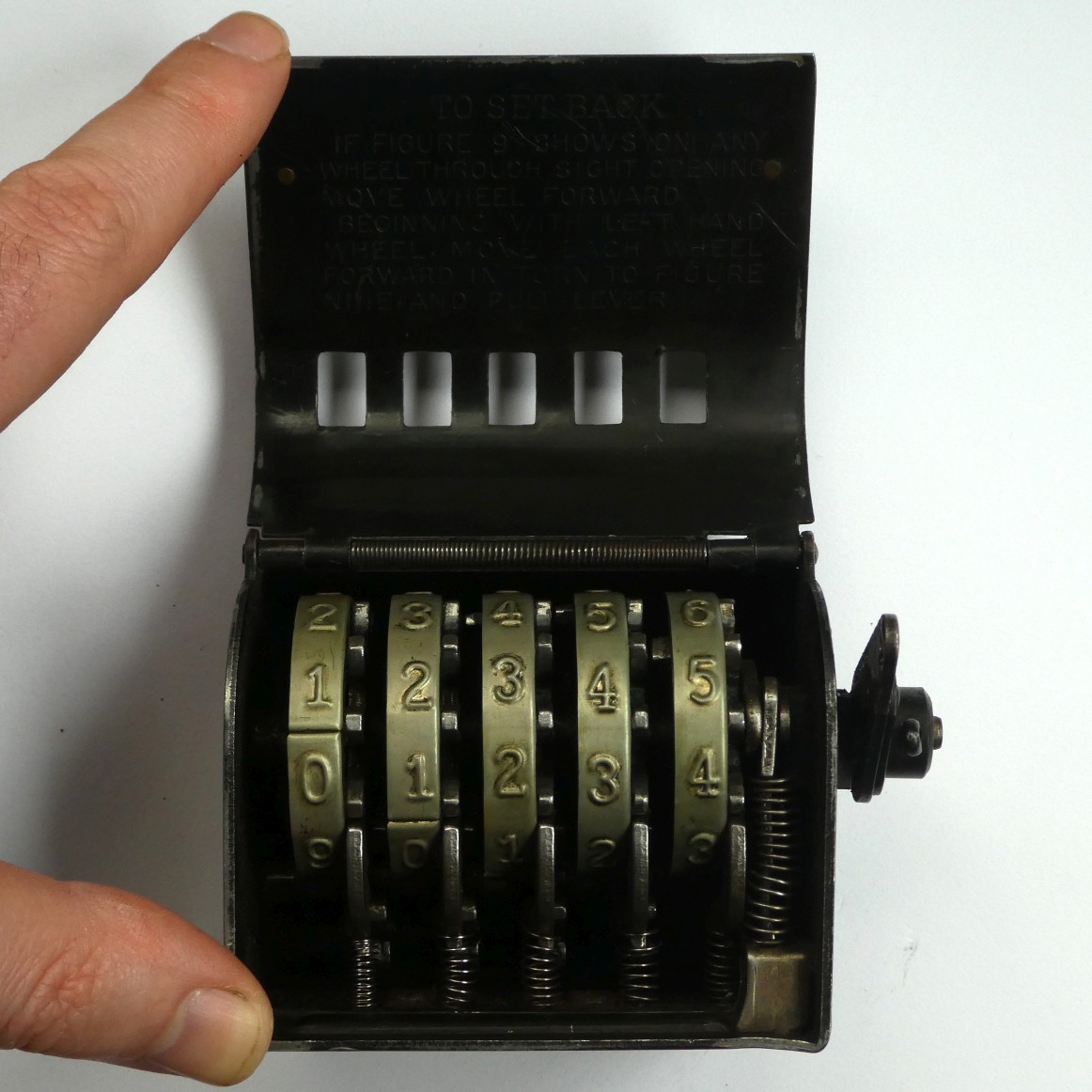

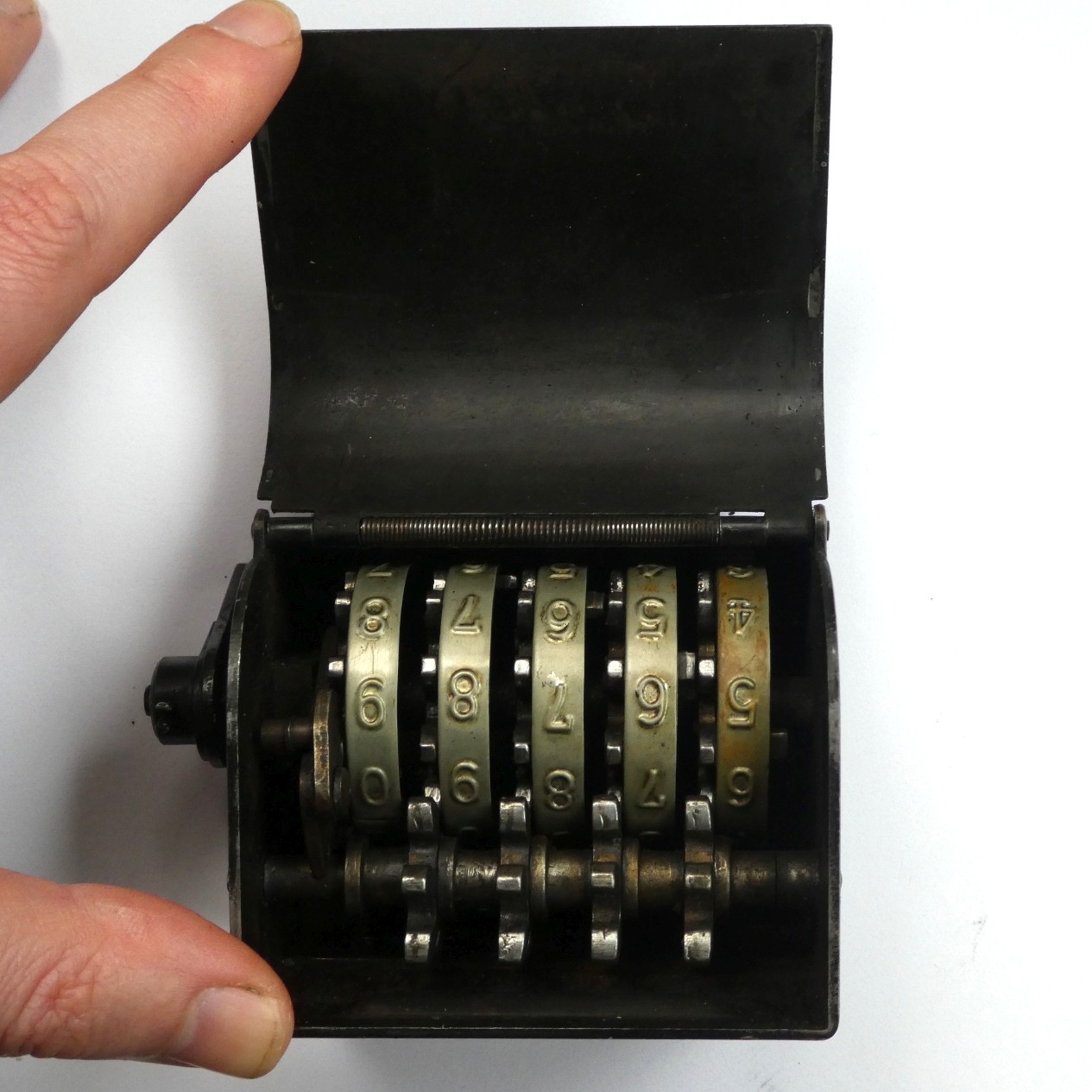

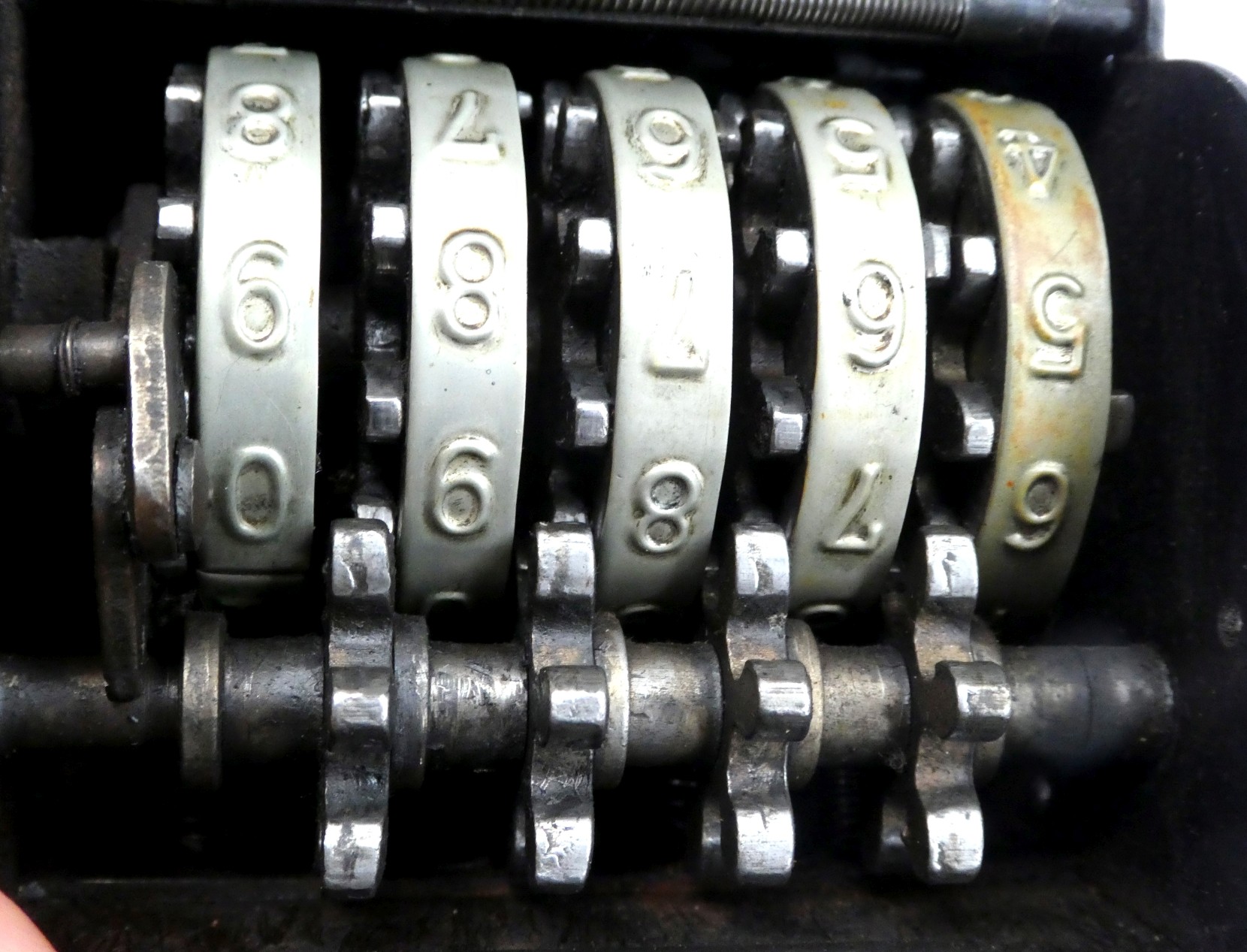

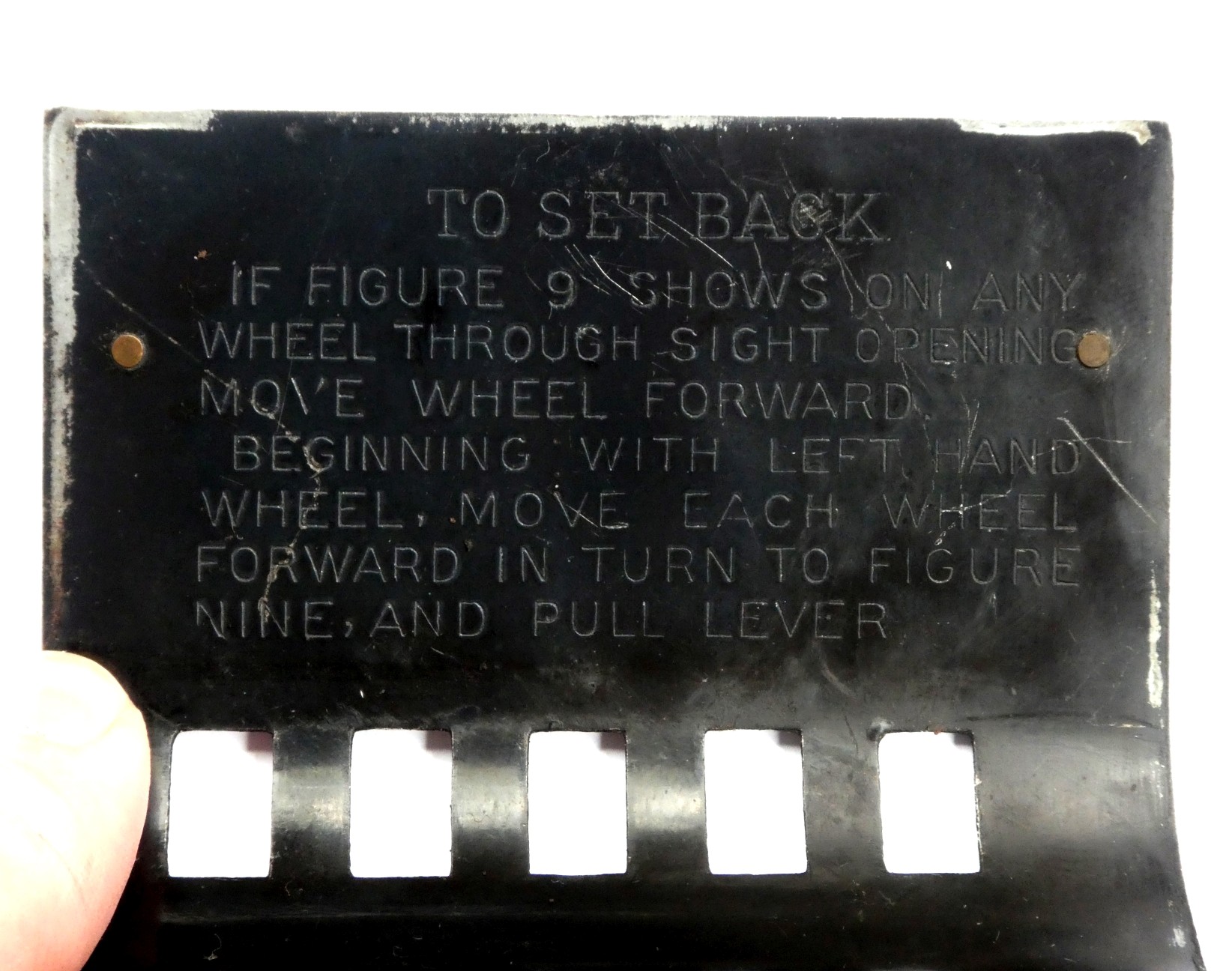

The front and back of the covers are hinged at the top with a spring, so they can be flipped up to access the mechanism. There is no clearing mechanism. Resetting is done by hand, following the instructions engraved on the inside of the front cover:

TO SET BACK
  IF FIGURE 9 SHOWS ON ANY
WHEEL THROUGH SIGHT OPENING
MOVE WHEEL FORWARD.
  BEGINNING WITH LEFT HAND
WHEEL, MOVE EACH WHEEL
FORWARD IN TURN TO FIGURE
NINE, AND PULL LEVER.
redington10
redington11

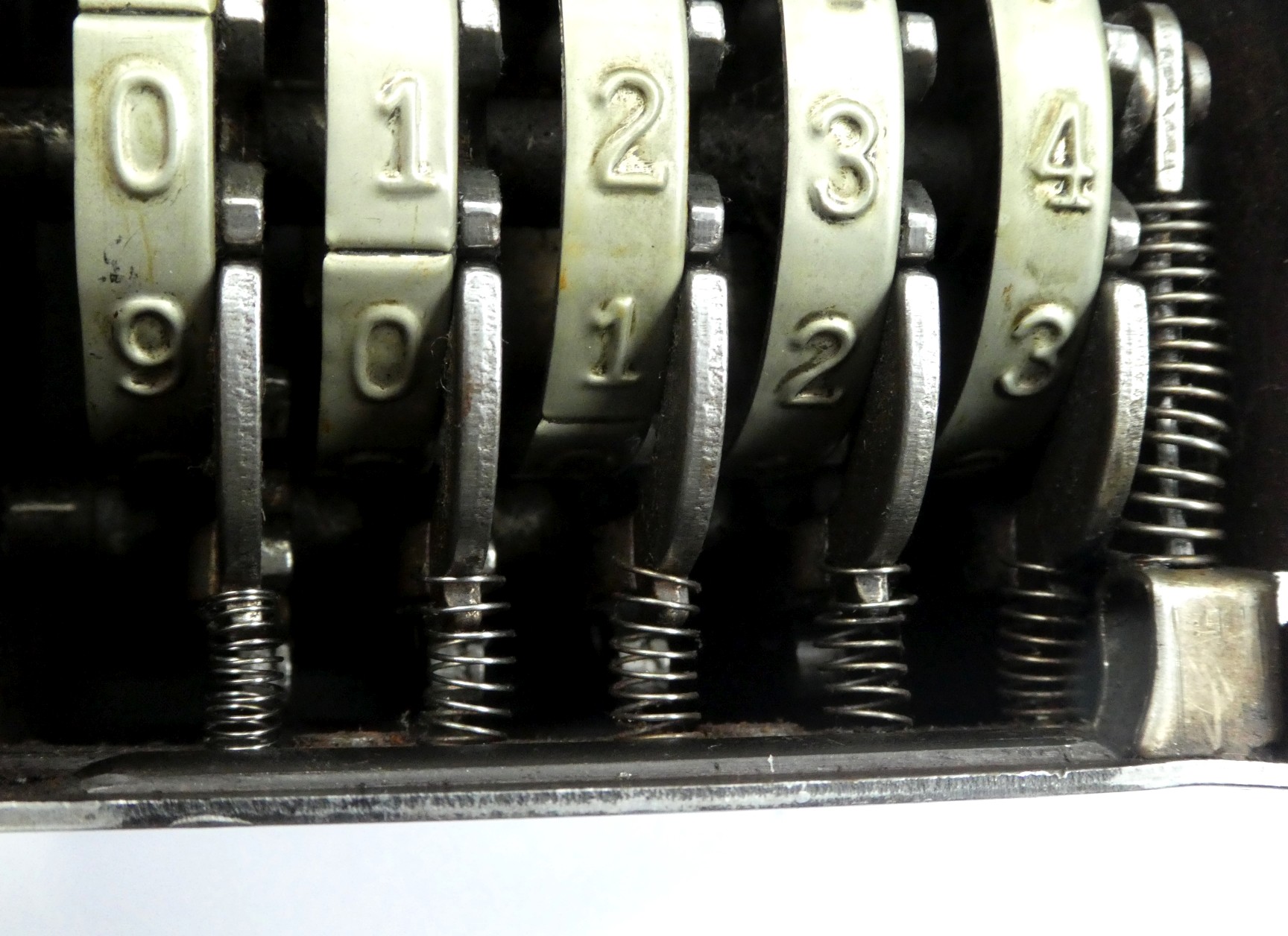

redington12
redington13
redington14
redington15



History

Frank Brown Redington's father was co-founder of the Sanford Manufacturing Company, which made pens and ink. Frank apparently did not want to follow his older brother into that business. After some not so successful ventures he became superintendant at the Zeno Manufacturing company in Chicago. This was a subsidiary of the Rubber Paint Company that his brother-in-law was vice president of. Zeno made chewing gum — not only their own brand but also the gum for William Wrigley Jr. The wrapping and packaging of the chewing gum was done by hand, and this manual process was unable to keep up with the demand for chewing gum that Wrigley was creating. In 1895 Redington invented a gum wrapping machine to overcome this bottleneck. William Wrigley's chewing gum business grew so successful that he bought Zeno in 1911. Redington's wrapping machine was the foundation for Wrigley's chewing gum's success.

Redington meanwhile set up his own company, the F. B. Redington Company in 1897. This company made various wrapping machines, but also had a sideline in machining parts to order. Redington designed the Redington Counting Machine in 1906, and it was used extensively in various industries but especially in the printing industry that the rest of Redington's family were involved in. In 1913 various packaging companies joined forces to form the Package Machinery Co., and Frank Redington became its president.

F. B. Redington Co. continued making and developing wrapping, packing, and labelling machines. Their Counting Machine also remained in production with only minimal changes. Frank Redington retired from the company in 1953, at the age of 86. In about 1961 the company merged with the packaging arm of Crompton & Knowles, but it seems that the counter business was split off as a separate company, Redington Counters Inc. In 2011 Redington Counters became part of Trumeter Technologies.


Advertisements and Articles

Here are various advertisements and catalogue listings of this counter that I found in online archives.

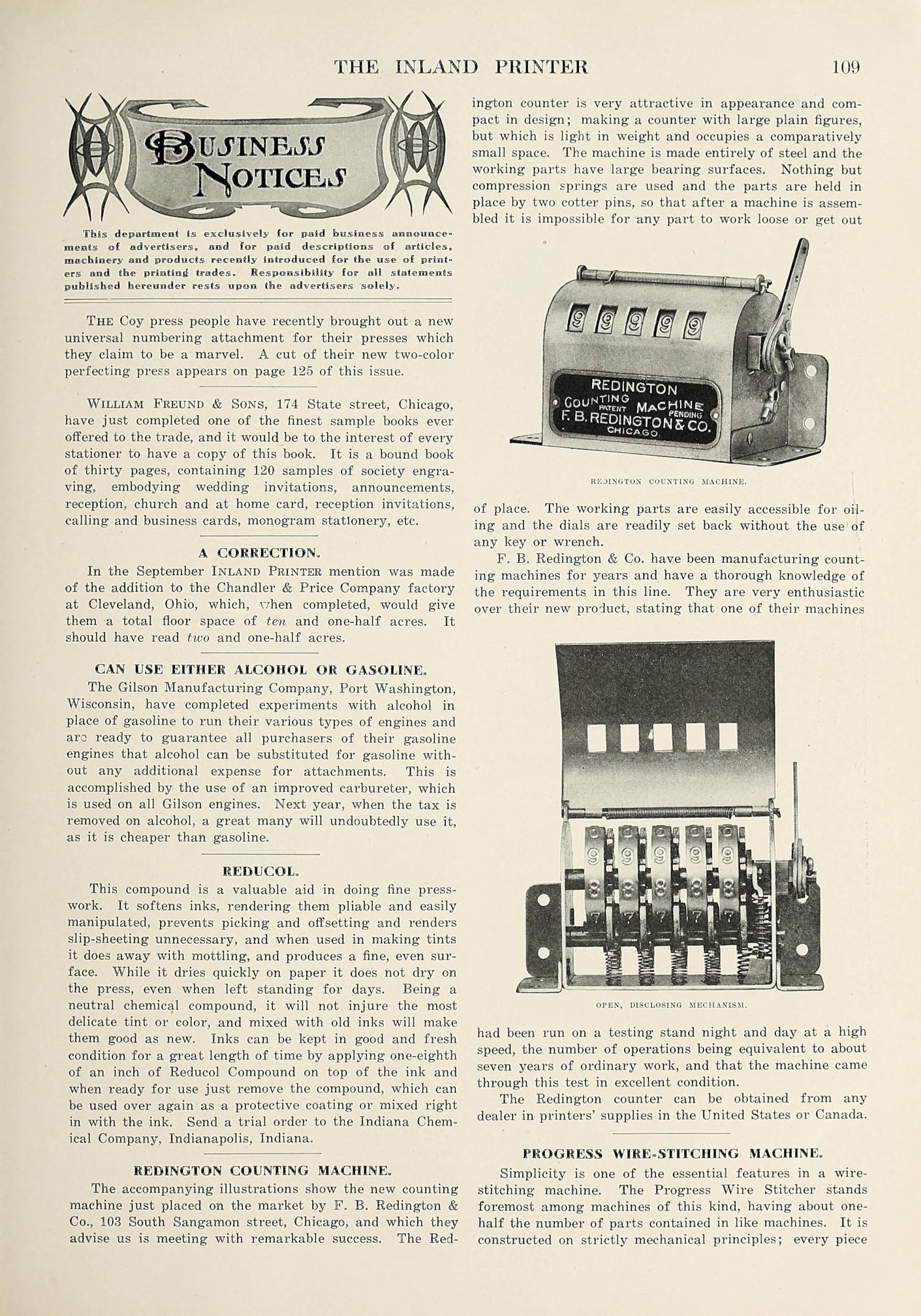

1906-10 Inland Printer 1
1906-10 Inland Printer 2
1910-10 Inland Printer 2

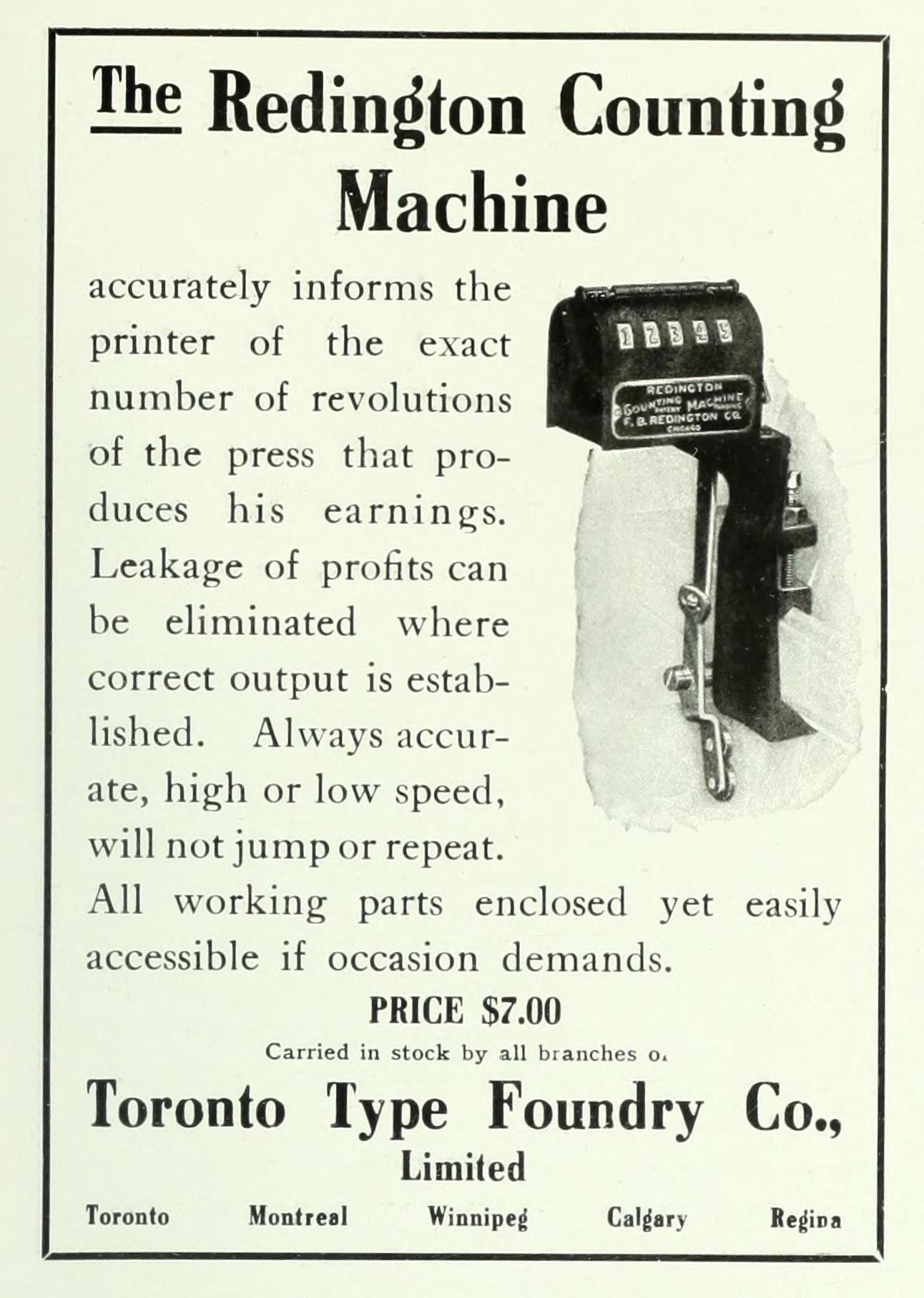

1910-10 Inland Printer
1910-11 Inland Printer
1910-12 Inland Printer
1911-02 Inland Printer 1
1911-03 Inland Printer
1911-04 Inland Printer
1911-05 Inland Printer 2

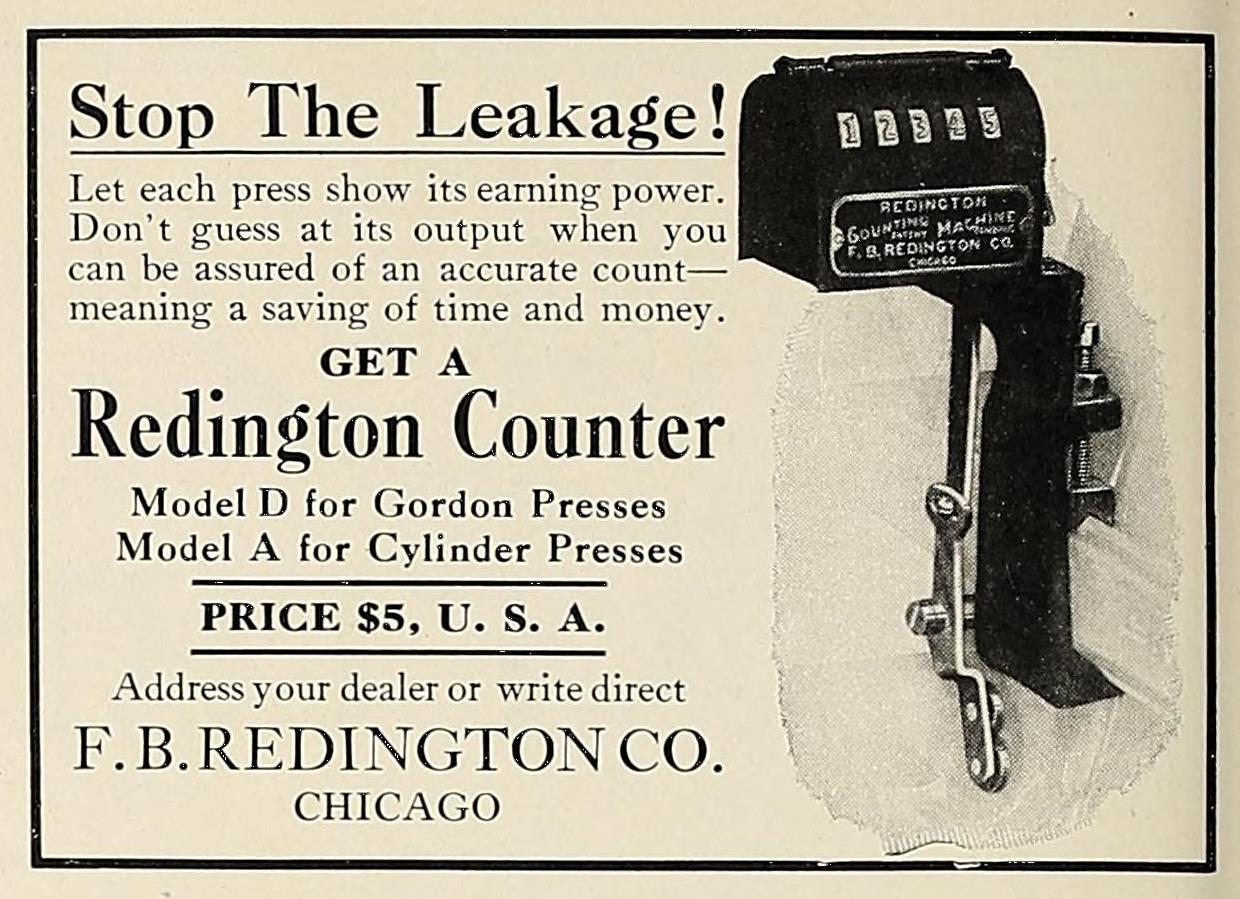

1911-06 Inland Printer
1911-10 Inland Printer
1911-11 Inland Printer
1911-12 Inland Printer

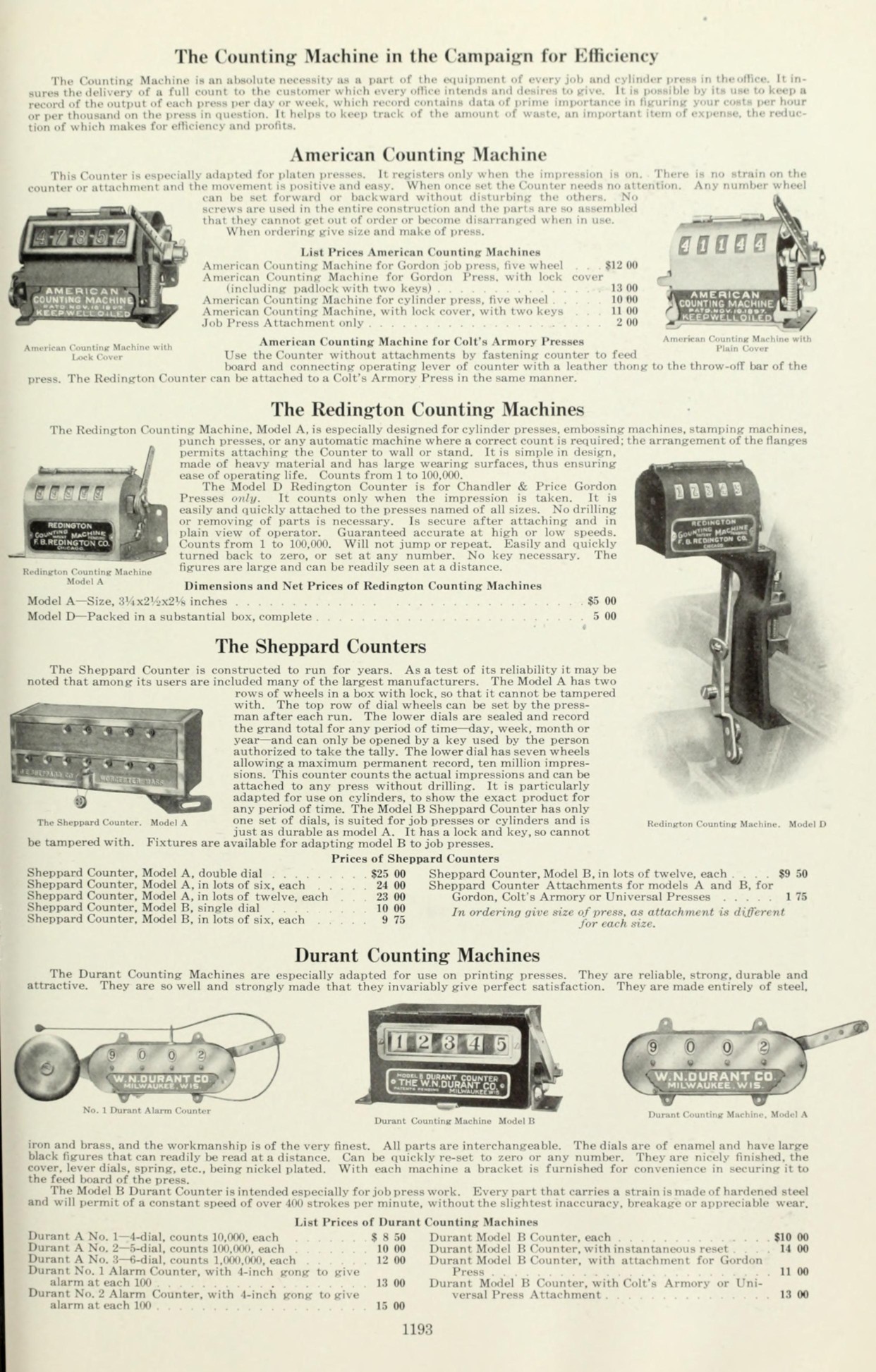

1912 American specimen book of type styles
1912-01 Canadian printer and publisher
1912-01 Inland Printer
1912-02 Inland Printer
1912-03 Canadian printer and publisher
1912-04 Canadian printer and publisher
1912-04 Inland Printer
1912-06 Canadian printer and publisher
1912-06 Inland Printer
1912-08 Canadian printer and publisher
1913-04 Inland Printer
1913-05 Inland Printer
1913-07 Inland Printer
1913-11 Inland Printer
1914-01 Inland Printer
1914-03 Inland Printer
1916-04 Inland Printer
1916-05 Inland Printer
1916-07 Inland Printer
1916-08 Inland Printer
1916-09 Inland Printer
1916-10 Inland Printer
1916-11 Inland Printer
1916-12 Inland Printer

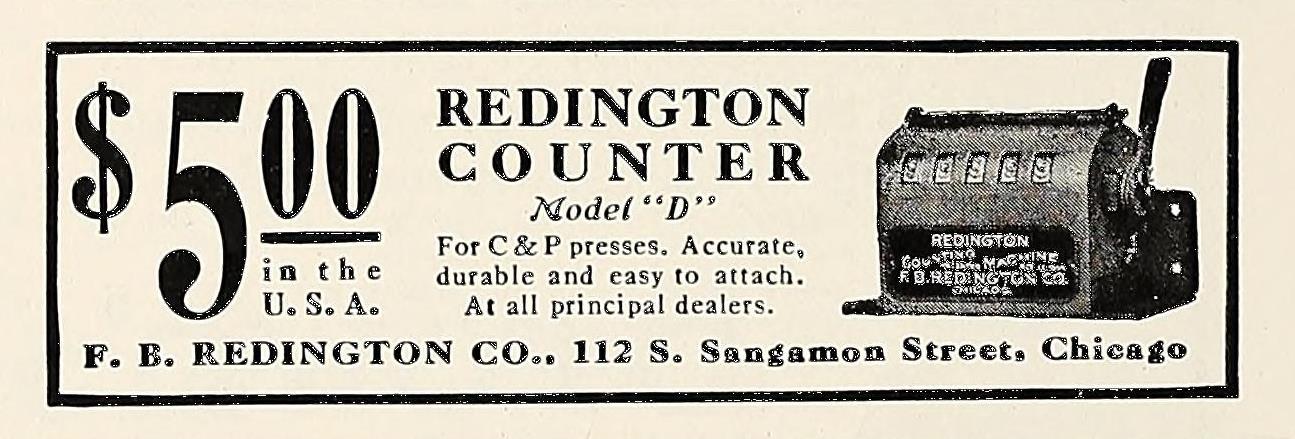

1917-01 Inland Printer
1917-02 Inland Printer
1917-04 Inland Printer
1917-05 Inland Printer

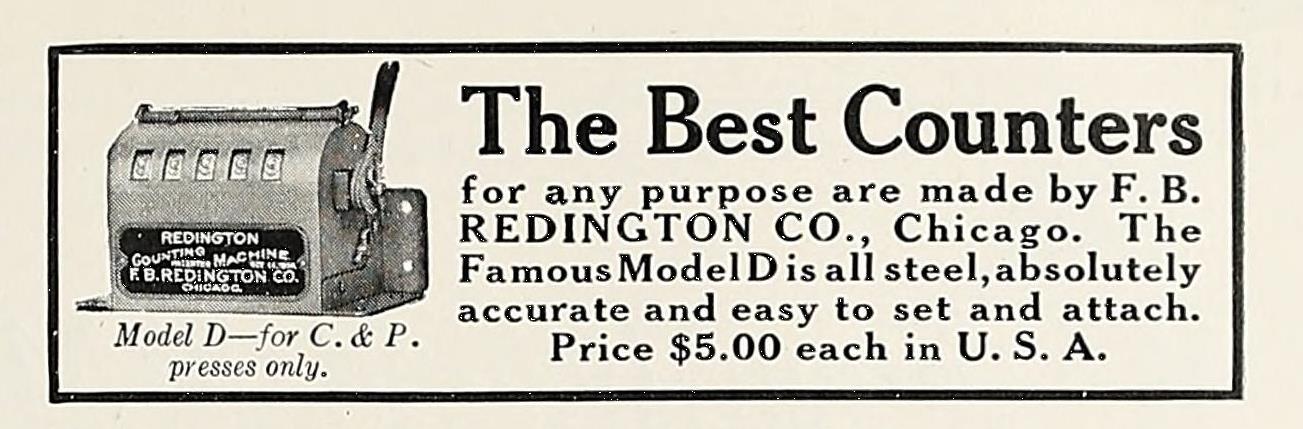

1917-06 Inland Printer
1917-07 Inland Printer
1917-08 Inland Printer
1917-09 Inland Printer
1918-05 Inland Printer
1918-08 Inland Printer
1918-09 Inland Printer
1923 American Type Founders Specimen Book and Catalogue

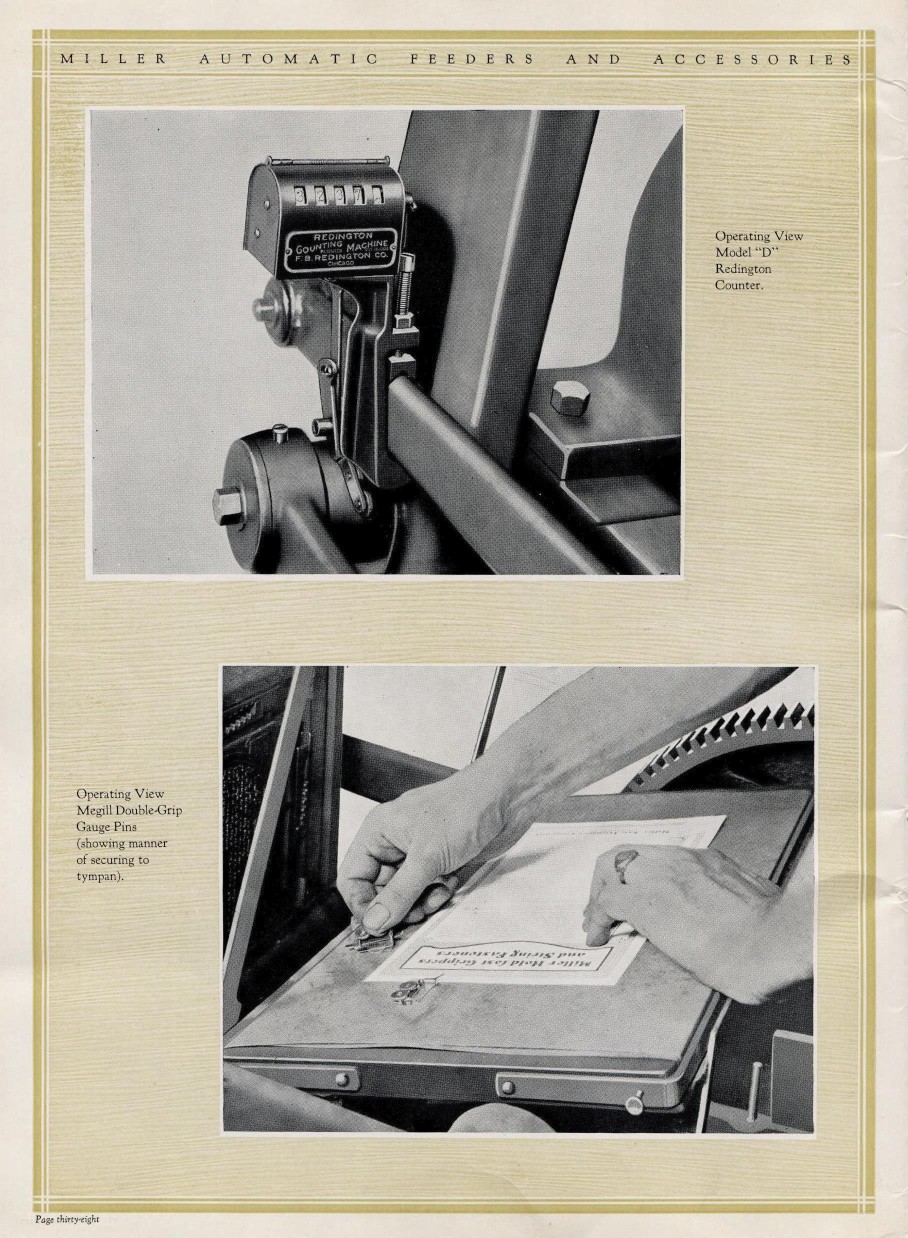

1926  Miller Automatic Feeders Catalog 1

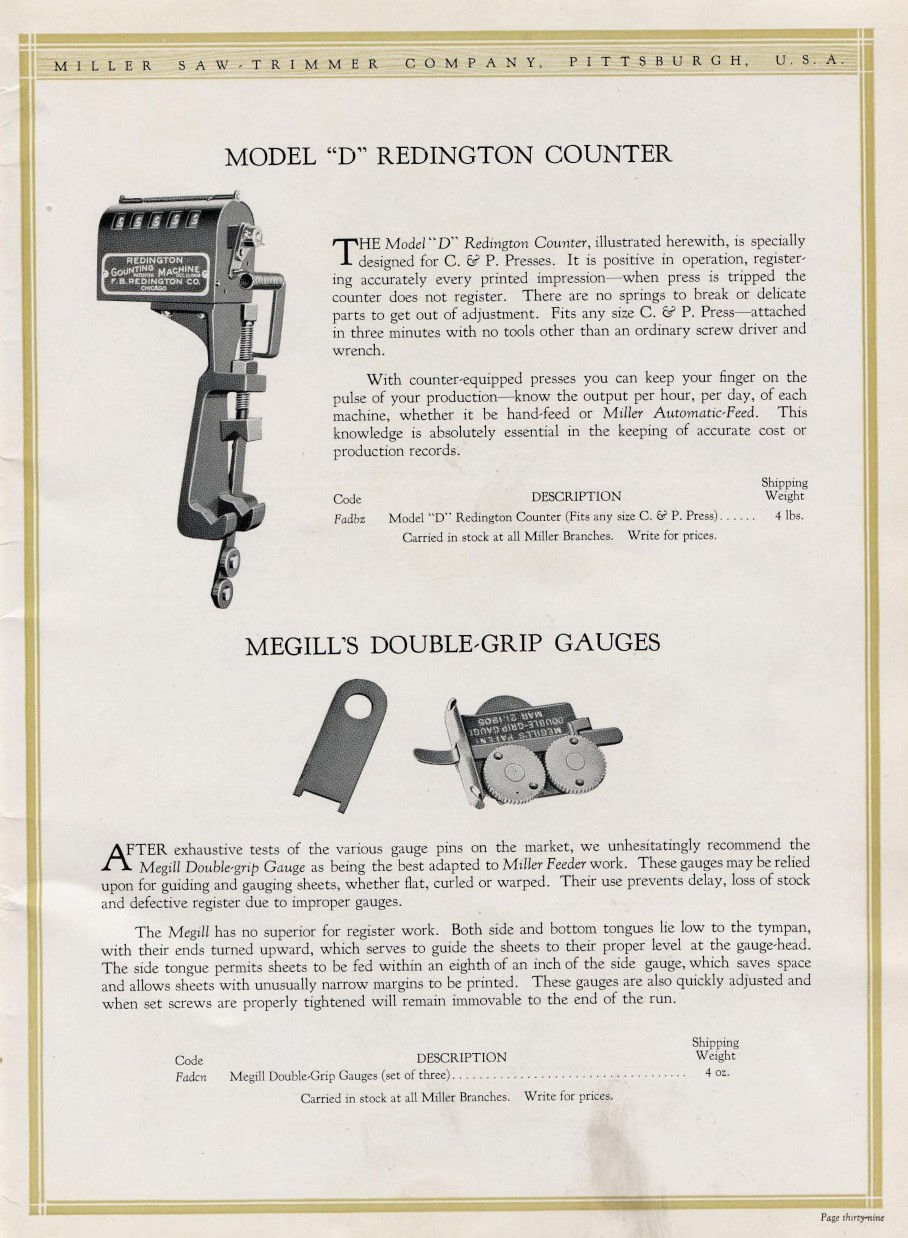

1926  Miller Automatic Feeders Catalog 2

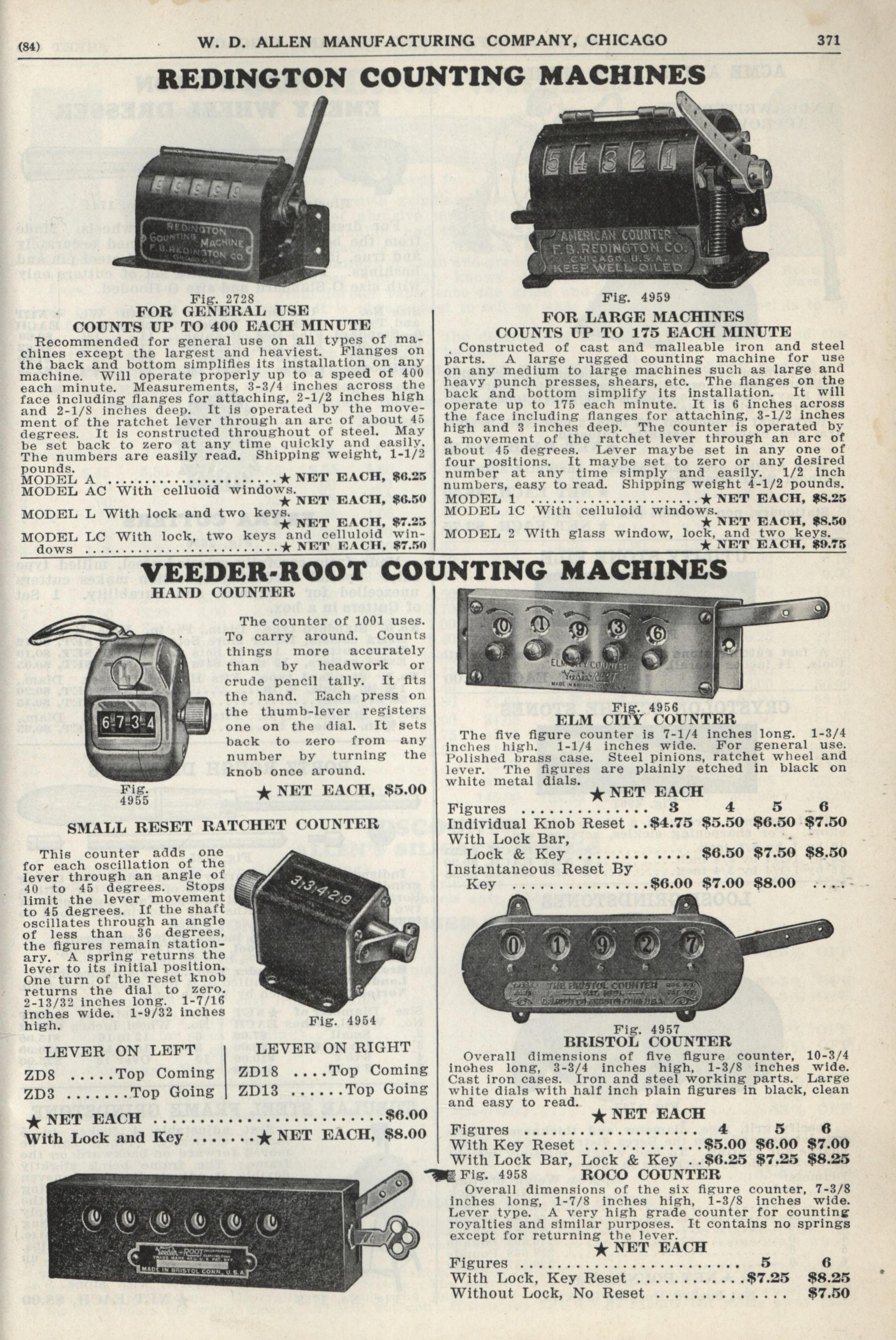

1939-04 Allen's red book

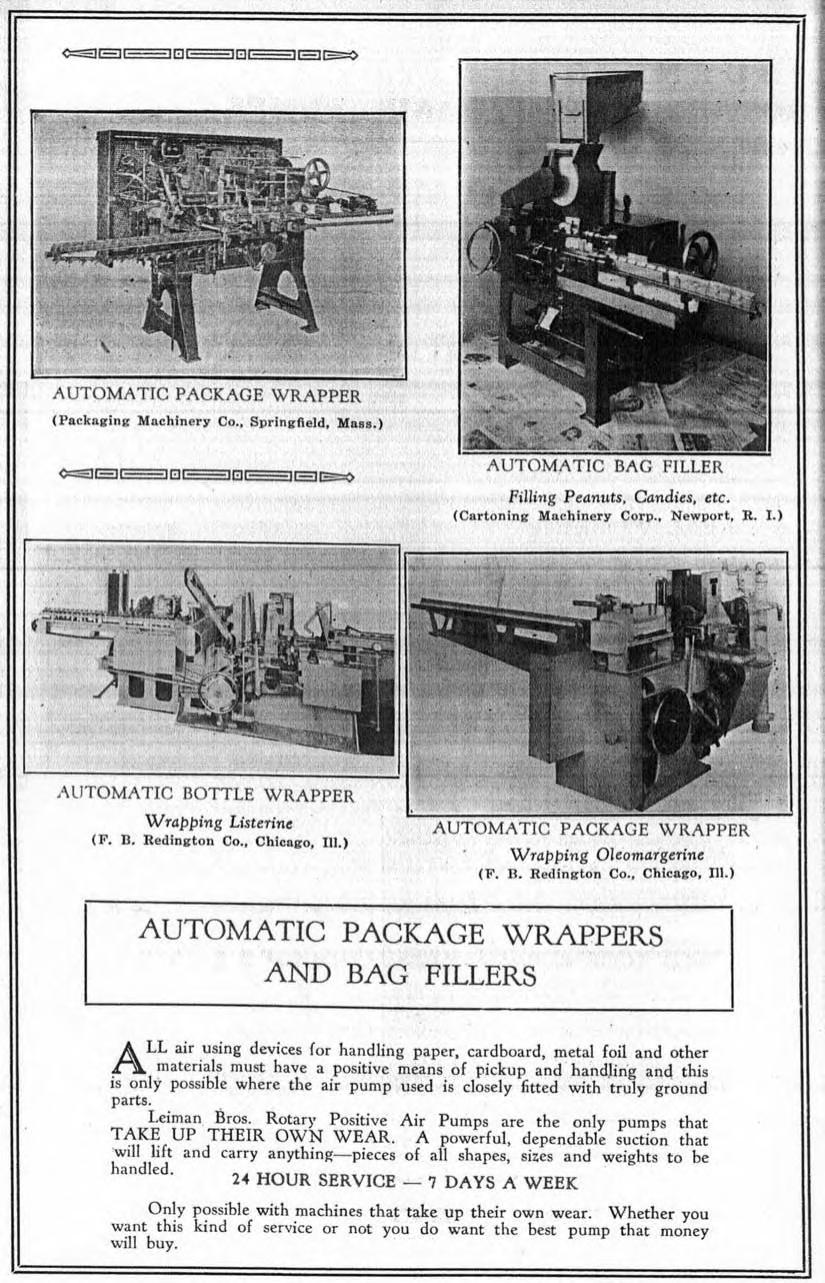

Leiman Bros -A New Era In Air Pumps


Here are a few articles related to Frank Redington and the company.

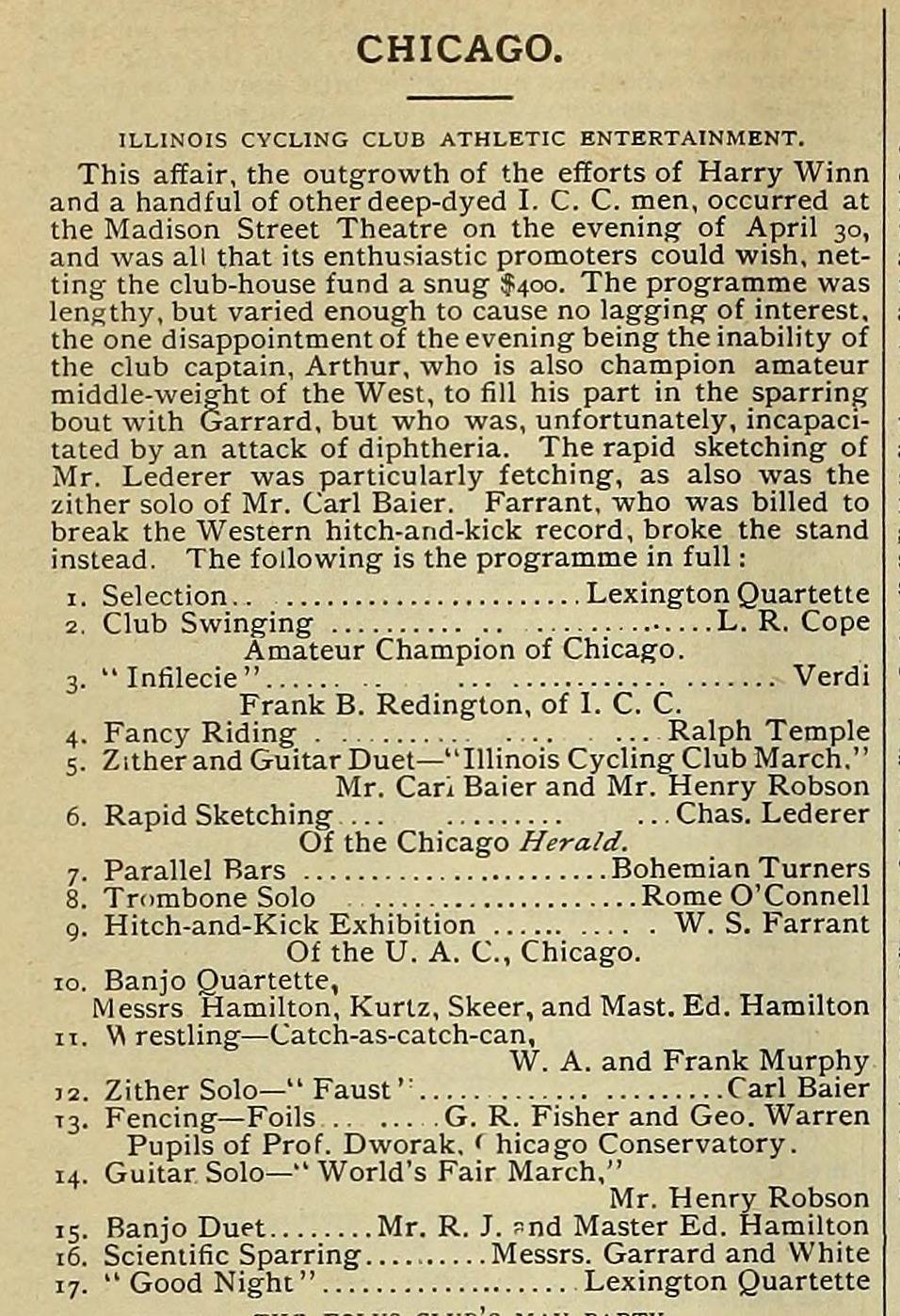

1890-05-09 The Wheel and cycling trade review

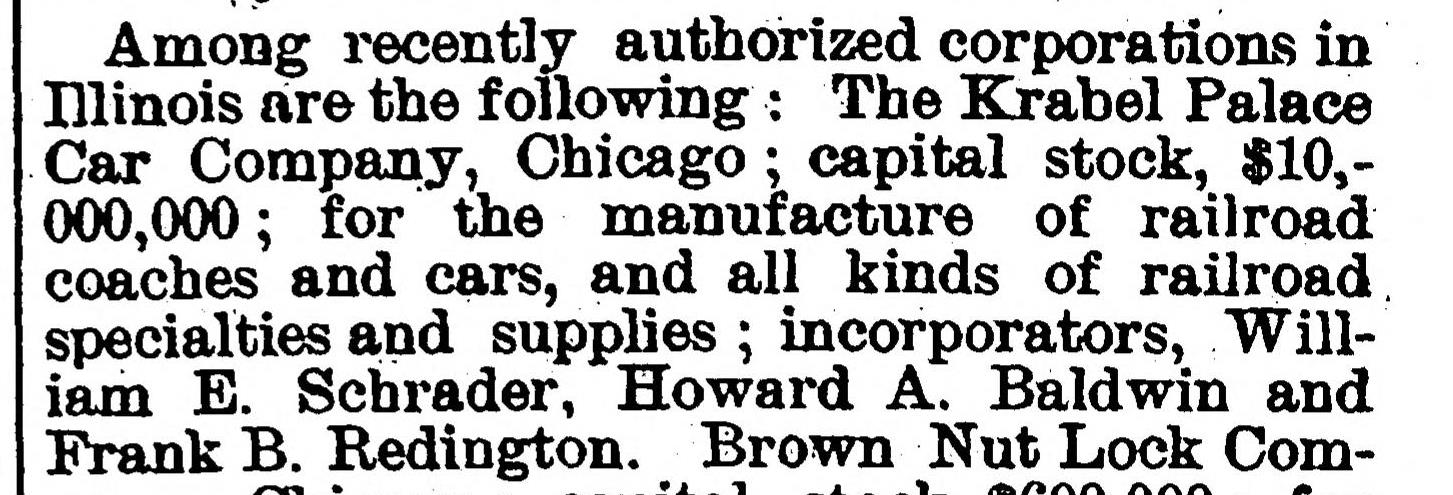

1893-05-04 The Iron Age

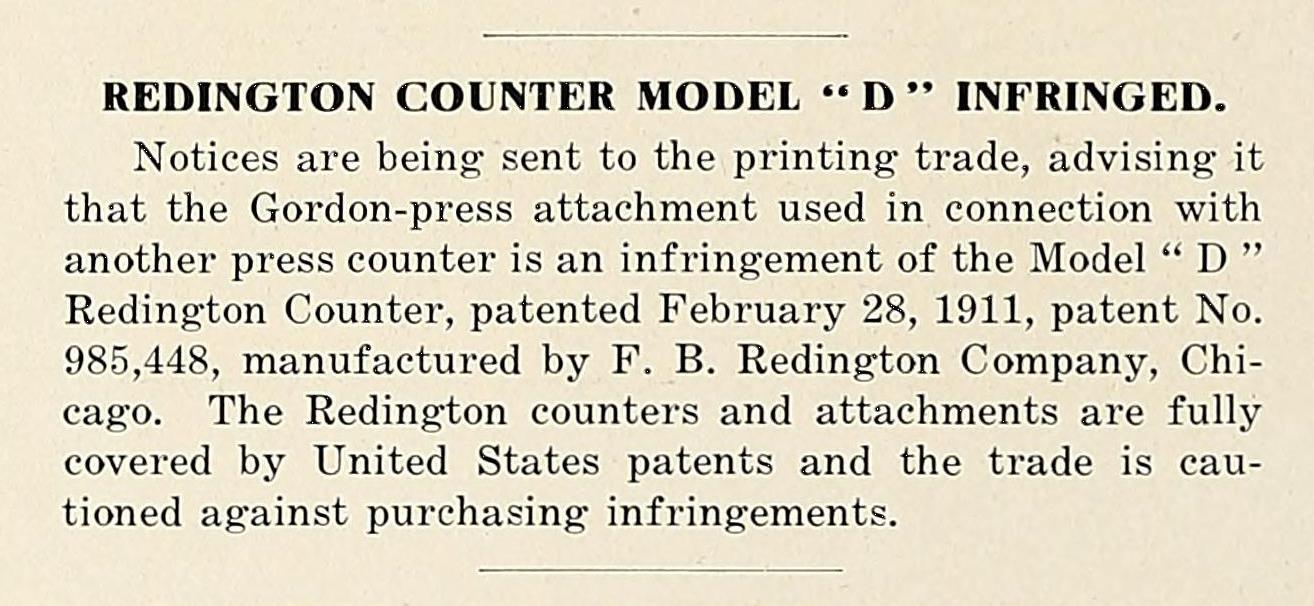

1911-05 Inland Printer 1

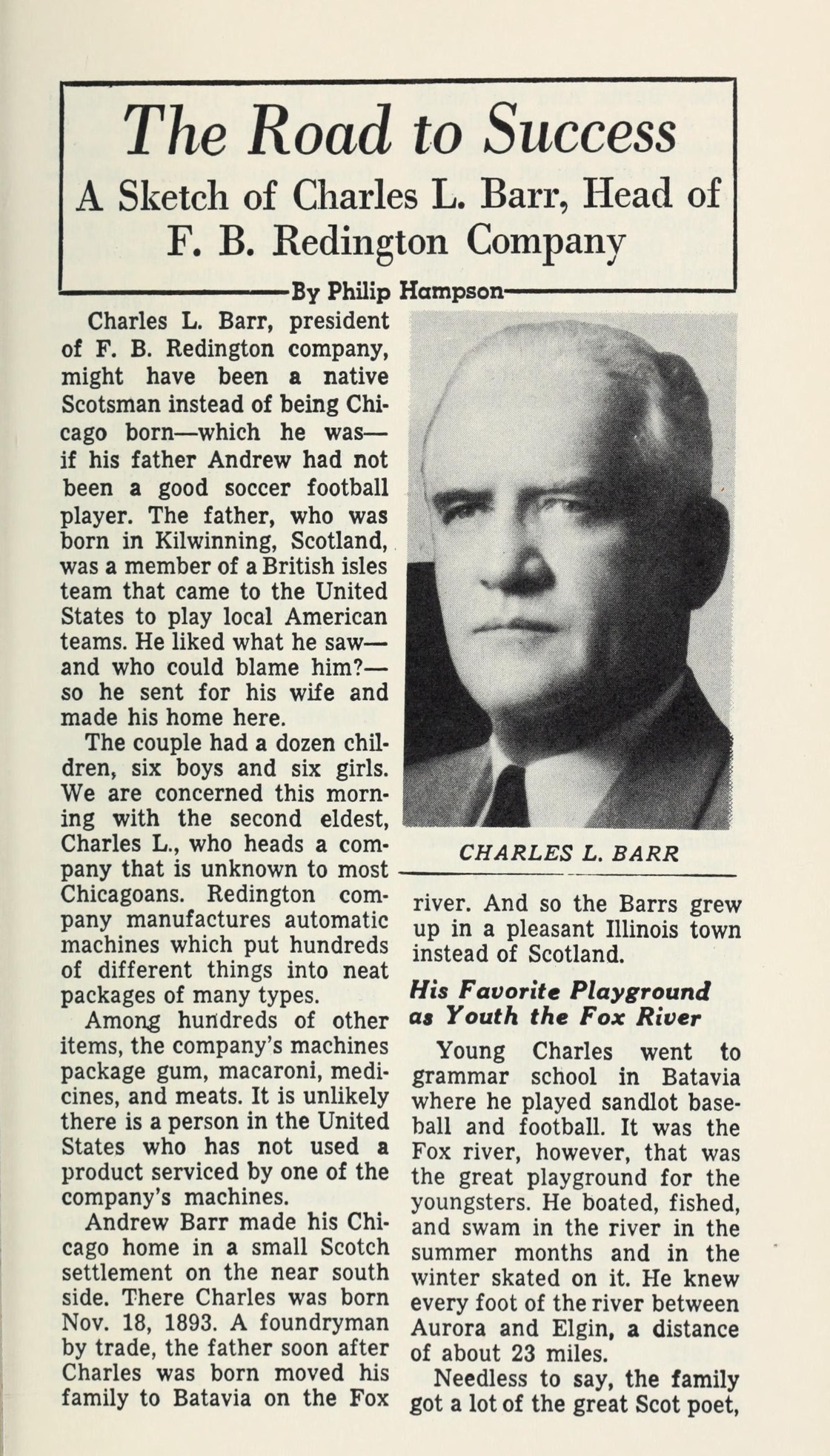

1953 The road to success - Philip Hampson 1

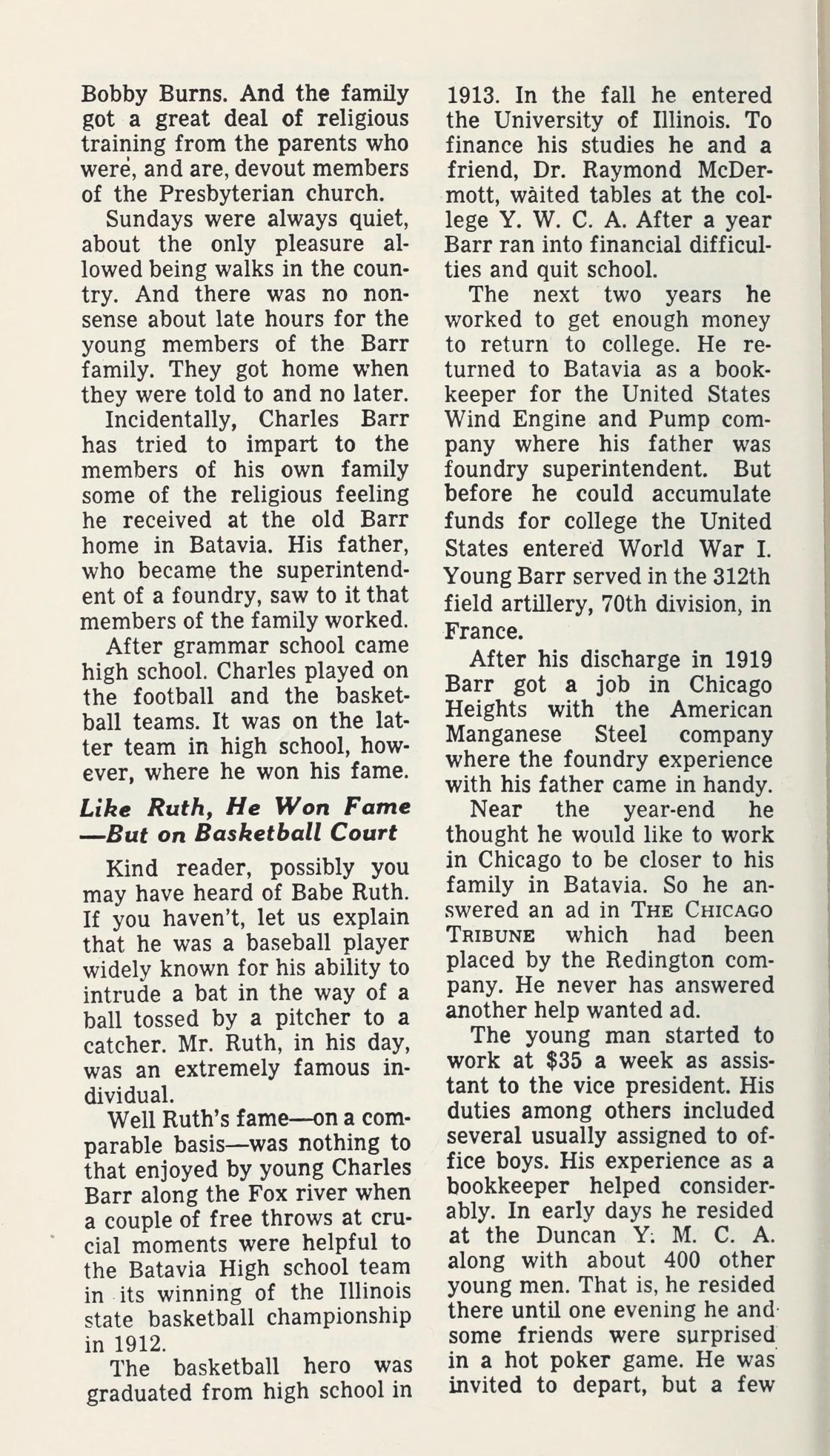

1953 The road to success - Philip Hampson 2

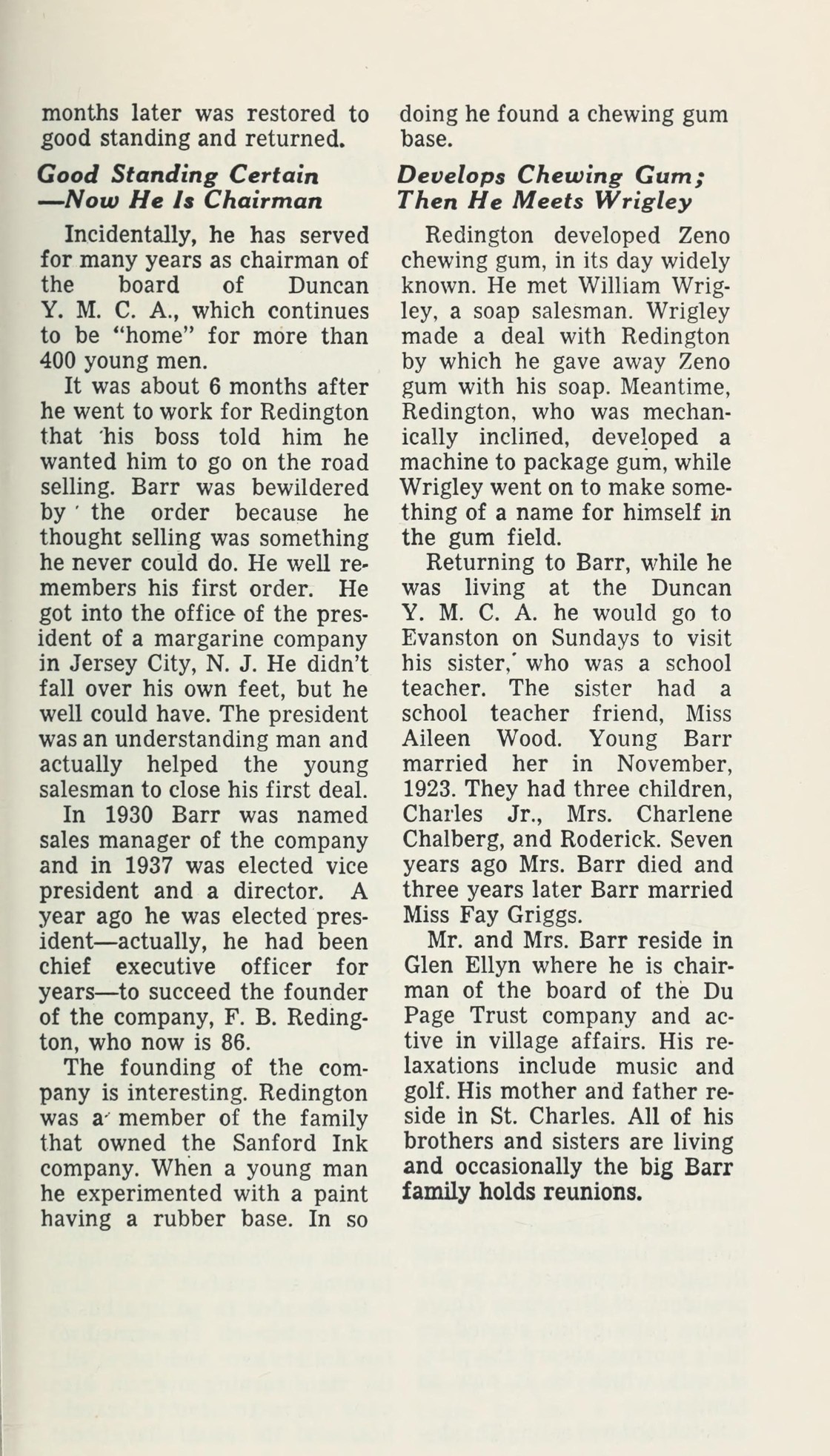

1953 The road to success - Philip Hampson 3



Patents

Frank Redington has several patents to his name, but only one is for the counter, and another for attachments to it. There are many later patents assigned to the company, and those are not listed here.

PatentFiling datePriority dateNameDescription
US 534,40723-05-189419-02-1895Frank B. Redington, Charles U. TrowbridgeChewing gum wrapping machine
US 715,14729-04-190102-12-1902Frank B. RedingtonSeat for a printing press
US 900,95427-08-190613-10-1908Frank B. RedingtonCounting Machine
US 985,44803-03-191028-02-1911Frank B. RedingtonCounting Attachment
US 1,117,44203-01-191117-11-1914Frank B. Redington, Michael J. MilmoeWrapping Machine
US 1,133,66822-03-191330-03-1915Frank B. Redington, Michael J. MilmoeChewing-Gum Wrapping Machine
US 1,158,28722-03-191326-10-1915Frank B. Redington, Michael J. MilmoeFeeding Mechanism

Links

Made in Chicago Museum has some Redington counters, and an excellent post about Frank Redington and one about Zeno chewing gum.
MechaniCalculator has a Redington counter.
The Private Press of Dave Celani shows the Redington Counter attached to a printing press.
Redington Counters is the counter company that formed in 1961 and is now part of Trumeter.
