The SuN Adder

The SuN Adder is a chain adder which was made in Germany from about 1910 until the early 1920s. This SuN Adder has serial number 10451. It comes in a nice case, and with a stylus made of Bakelite with a metal tip.

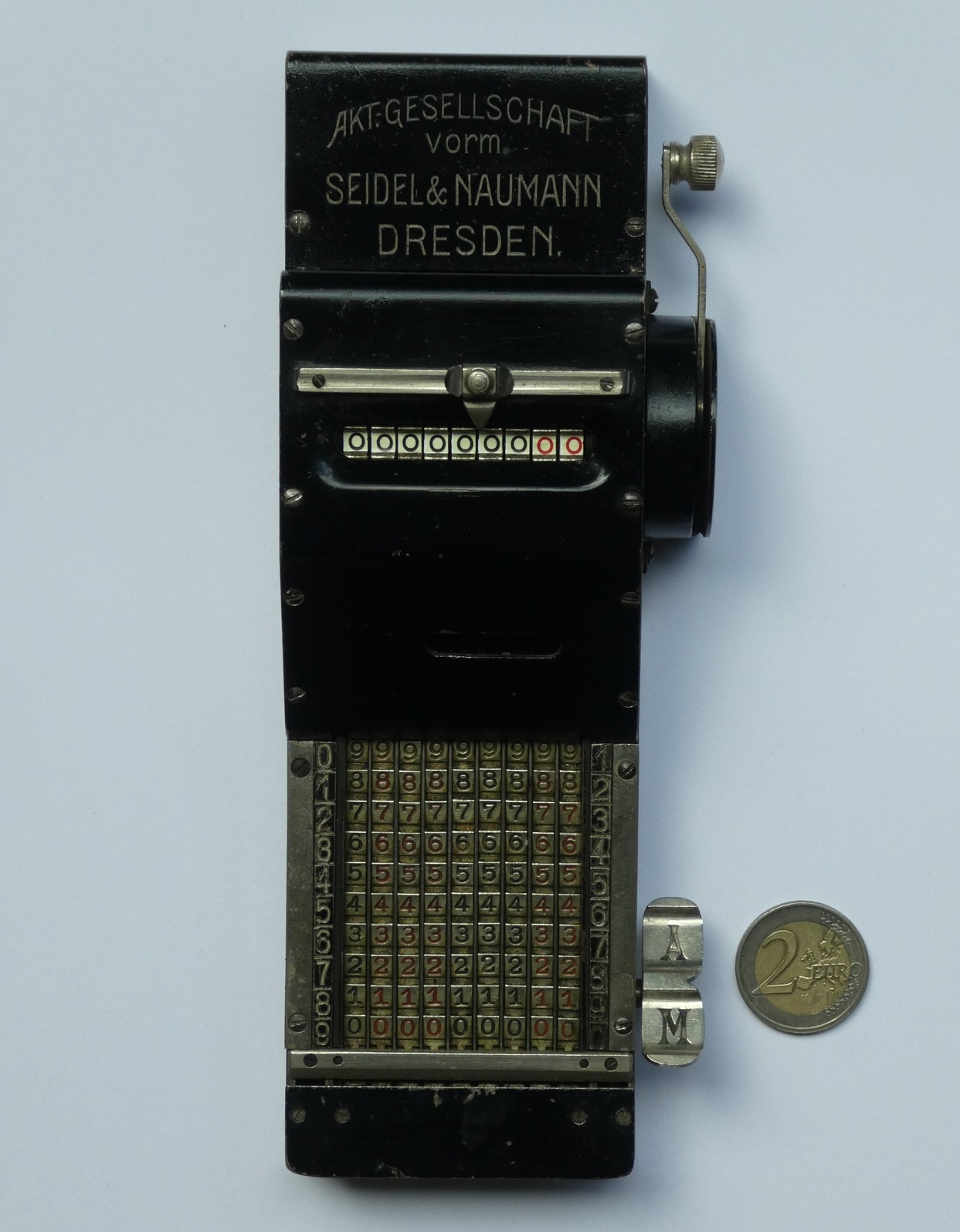

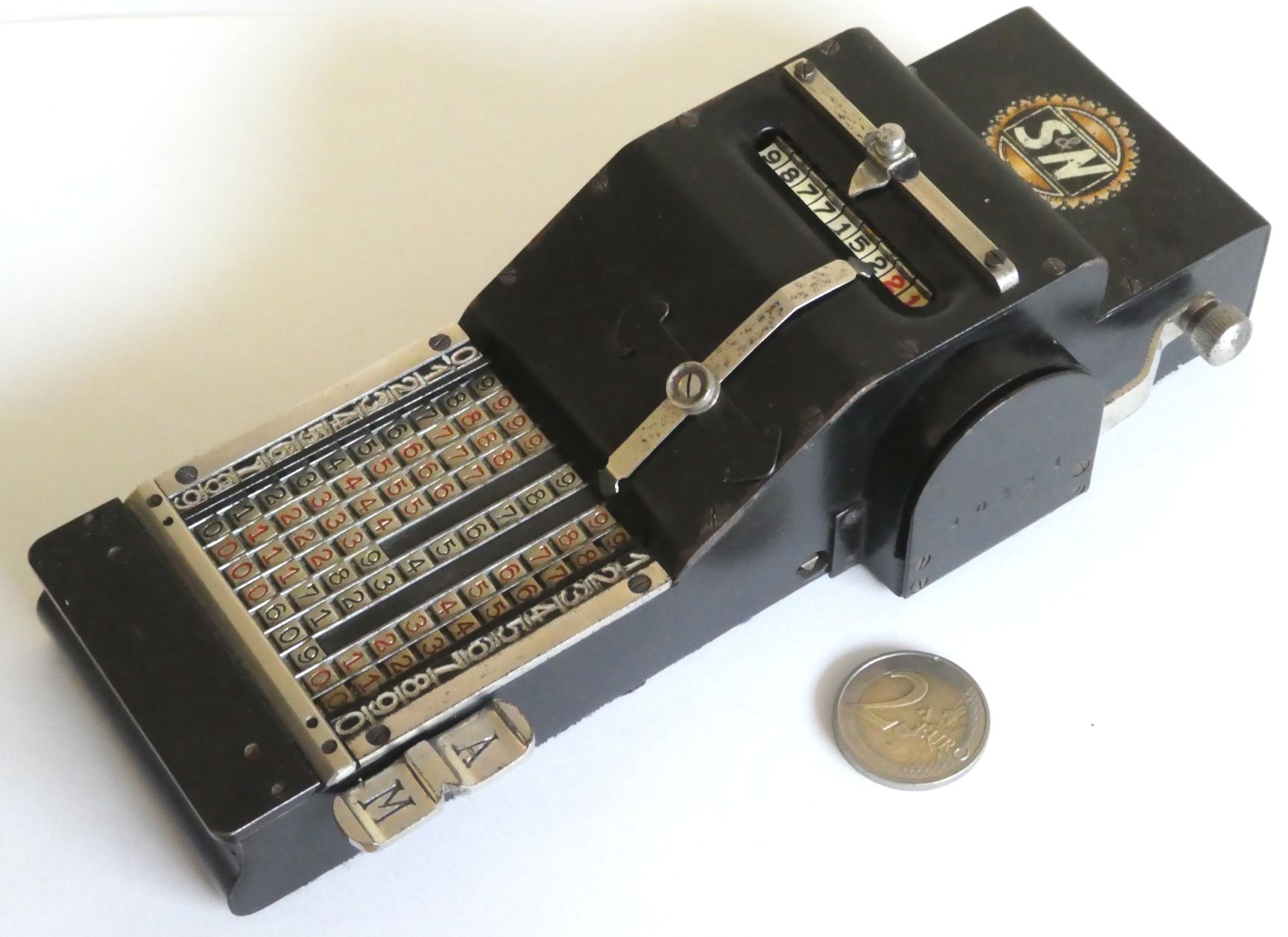

The SuN Adder

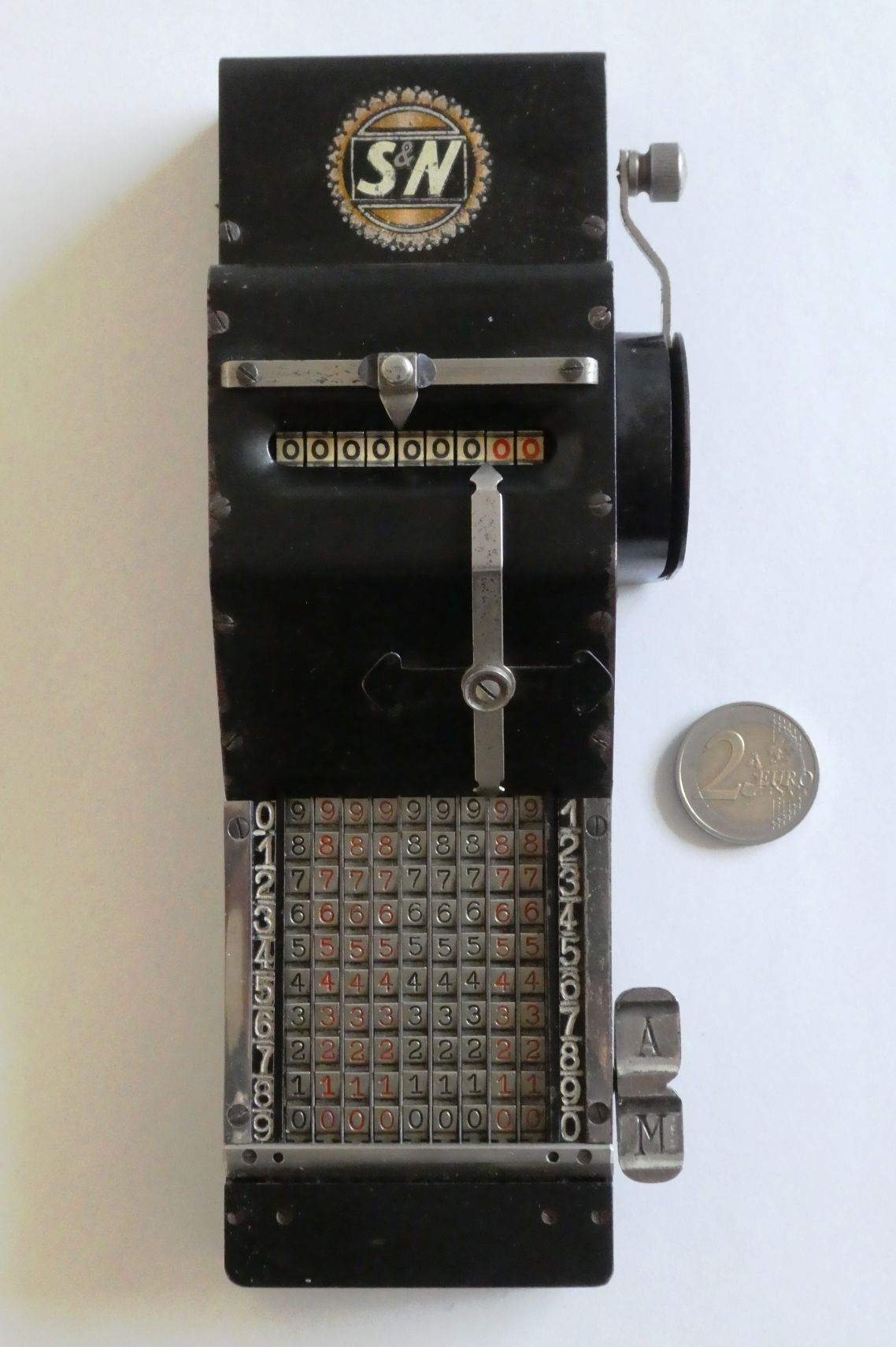

The SuN Adder, front

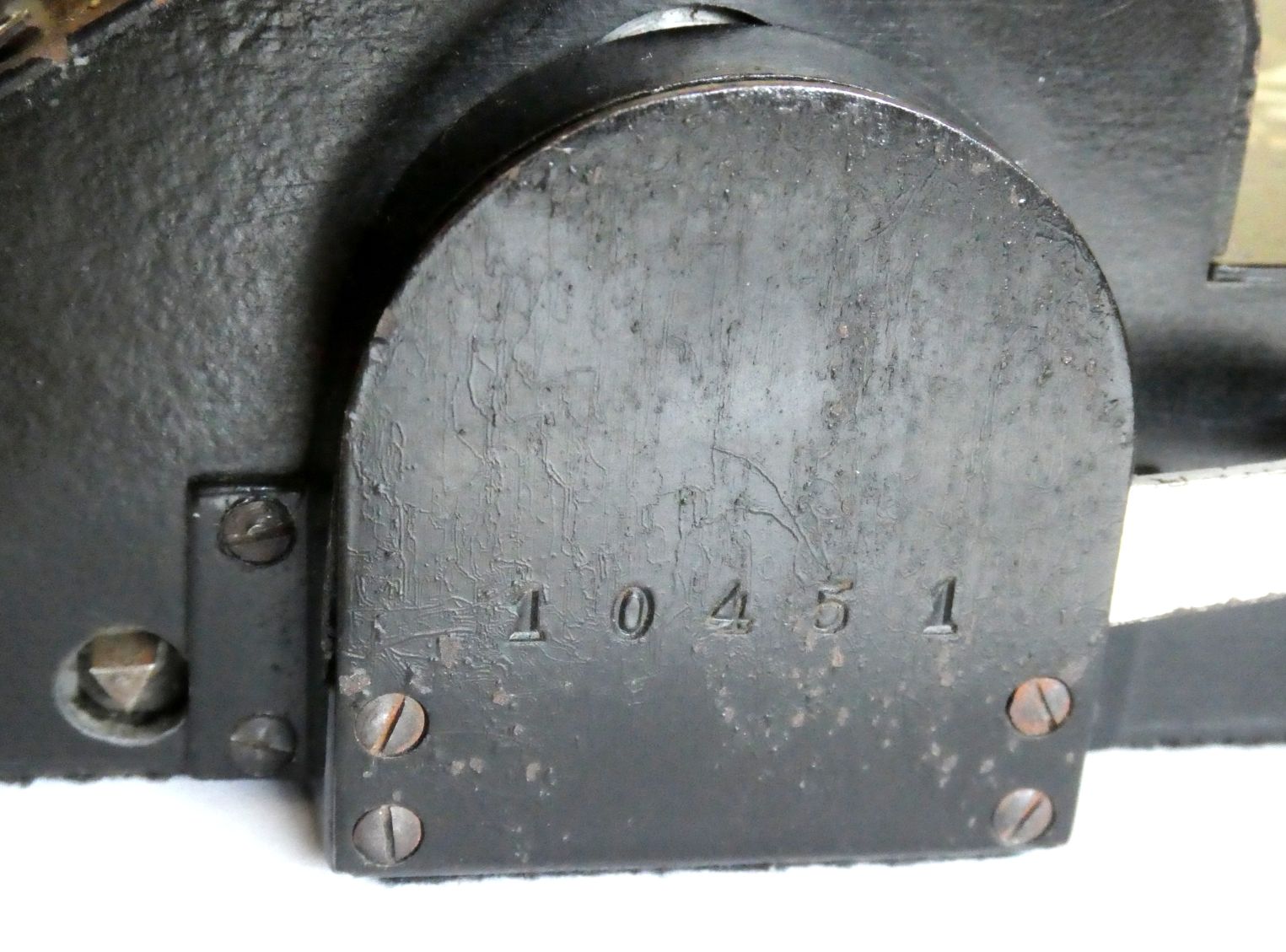

The SuN Adder, serial number

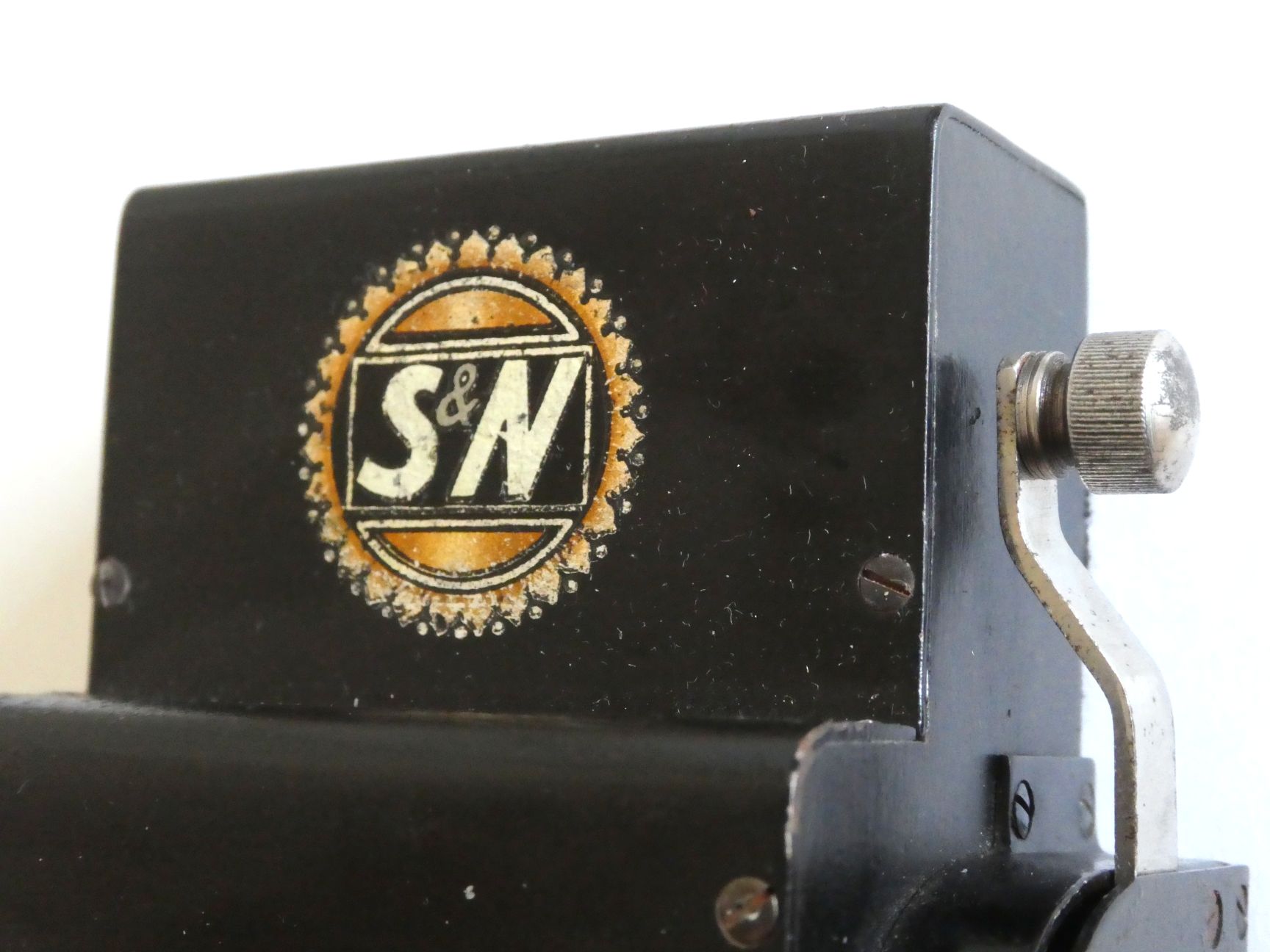

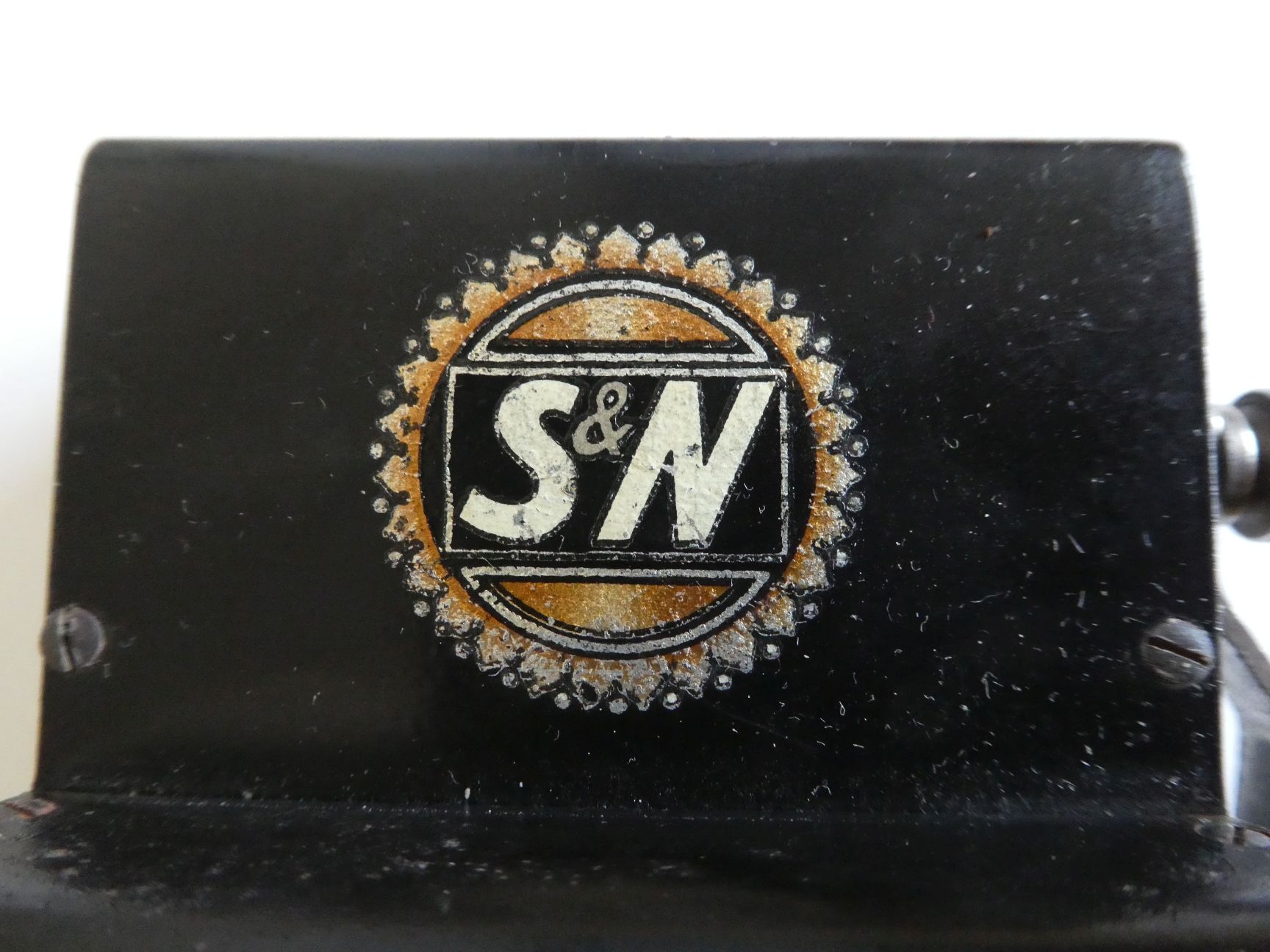

The SuN Adder, logo
The SuN Adder, logo

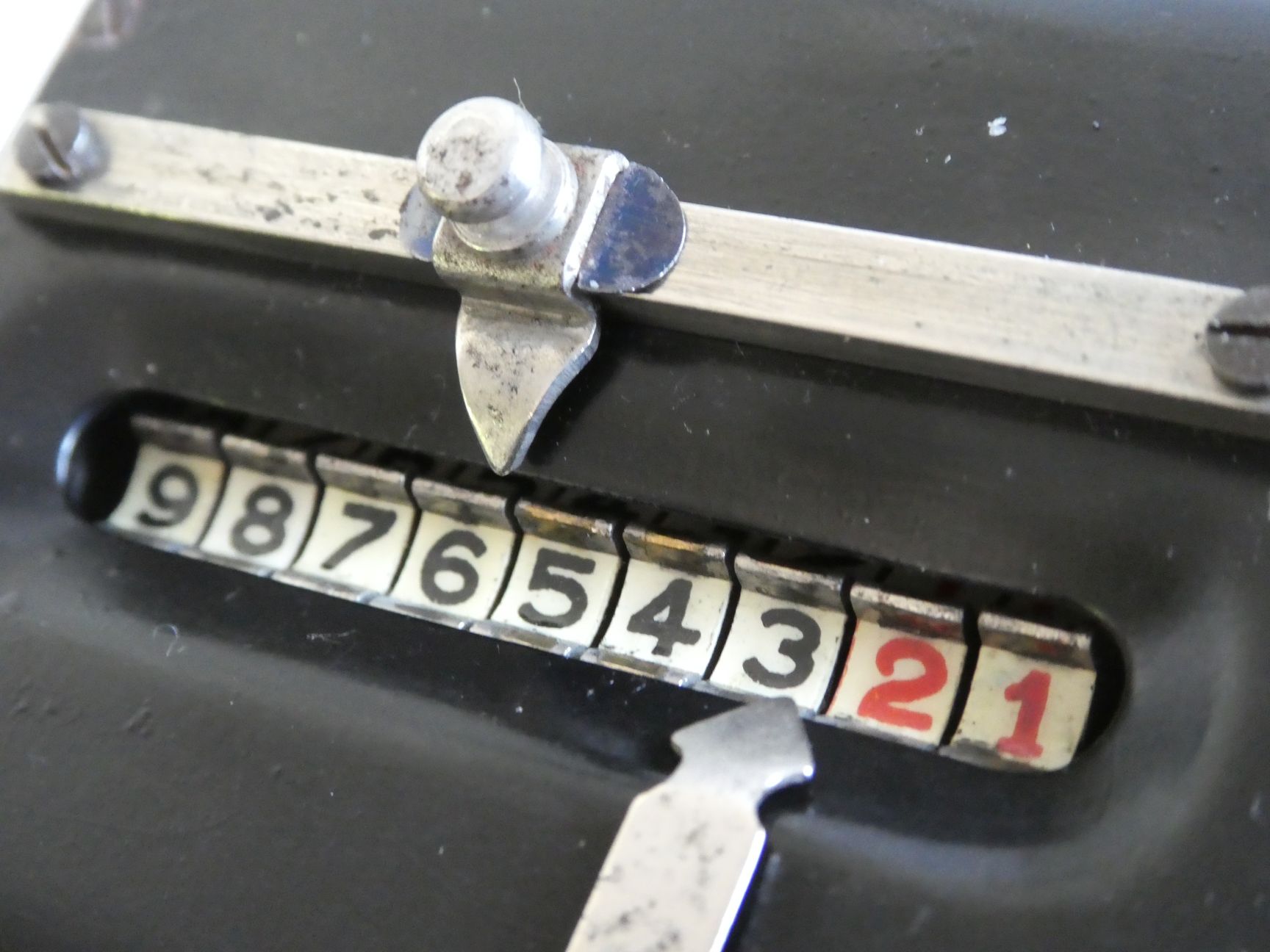

The SuN Adder, register

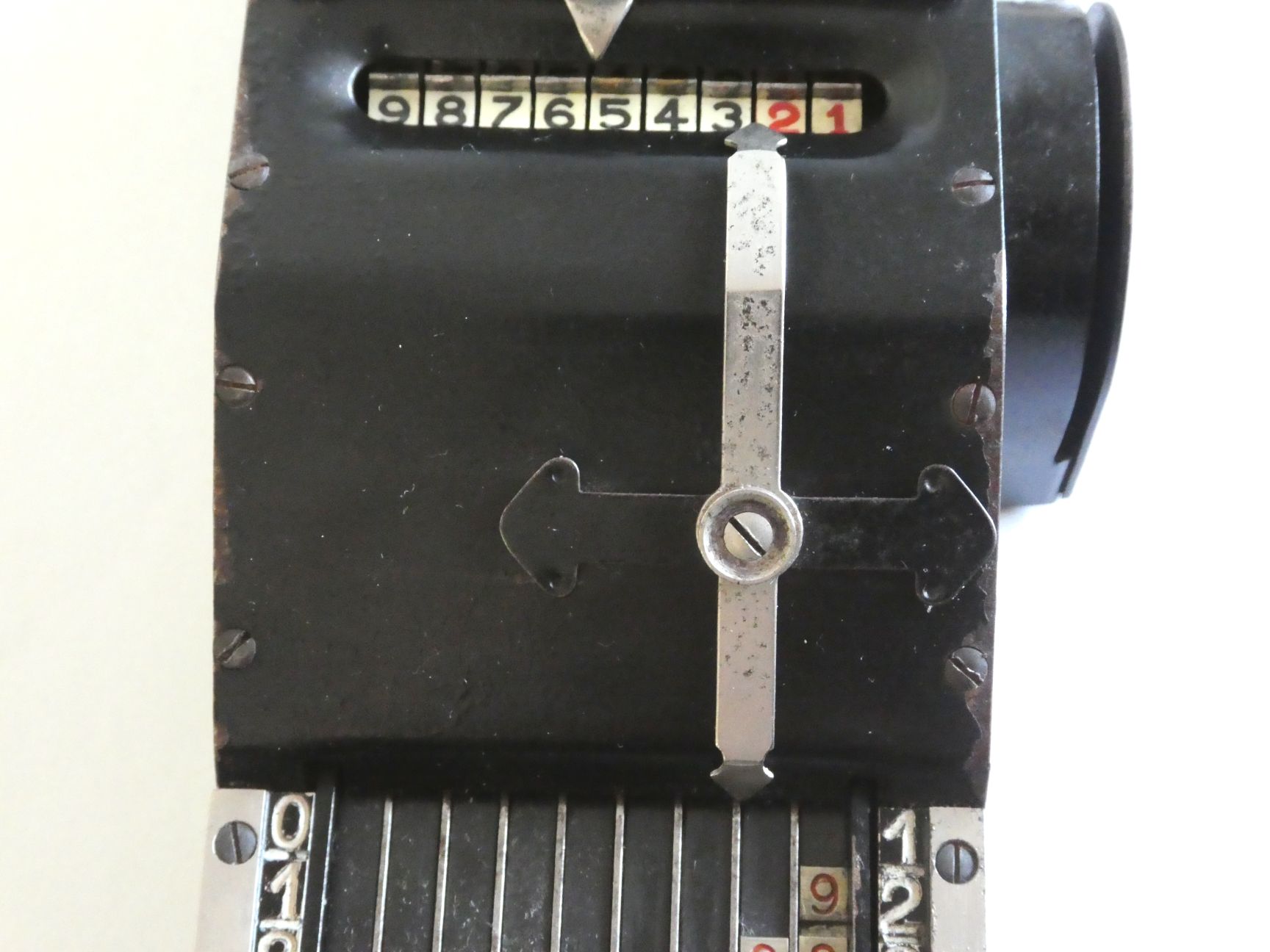

The SuN Adder, decimal pointer
The SuN Adder, chains

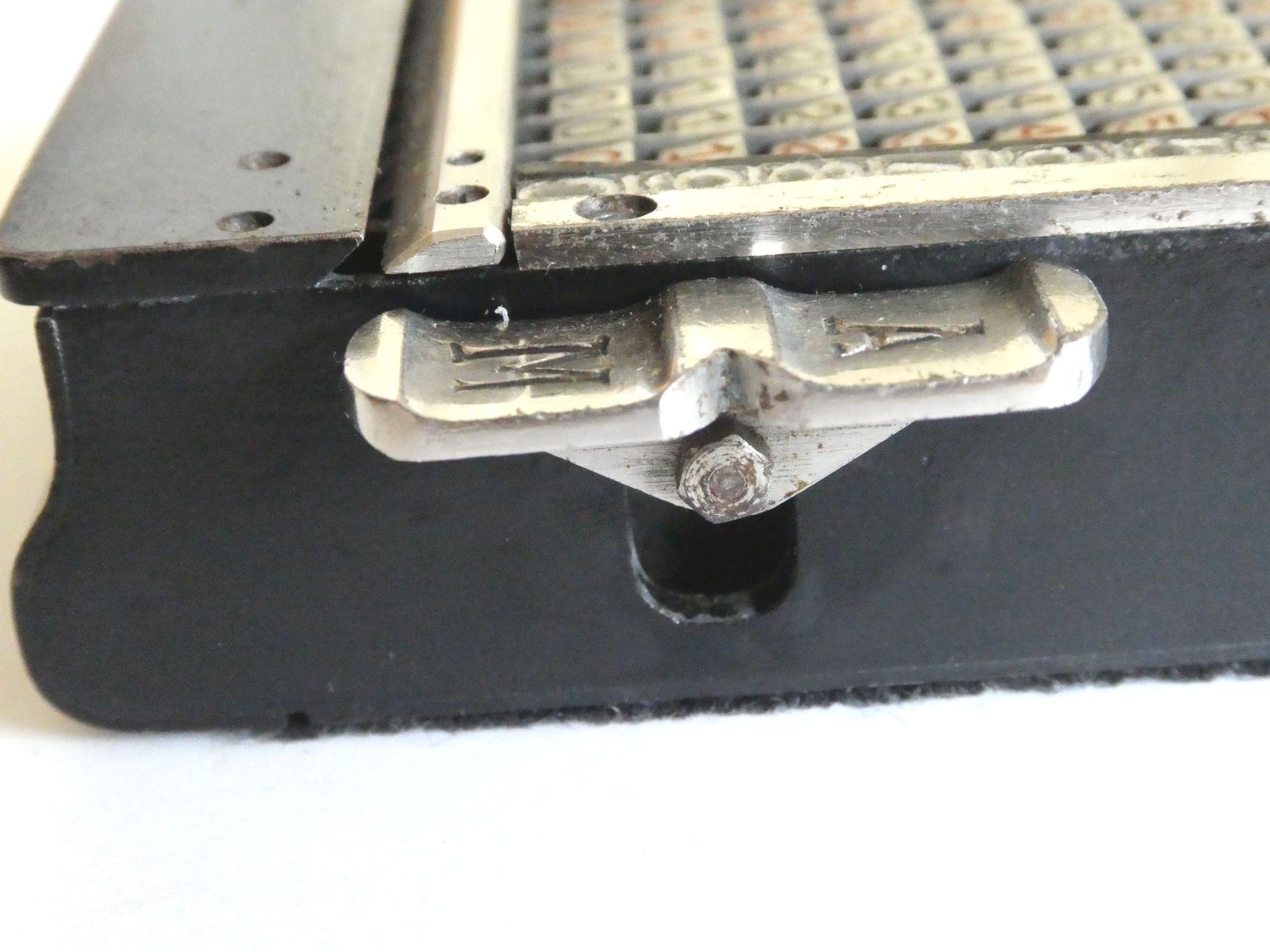

The SuN Adder, input lever
The SuN Adder, input lever A
The SuN Adder, input lever M

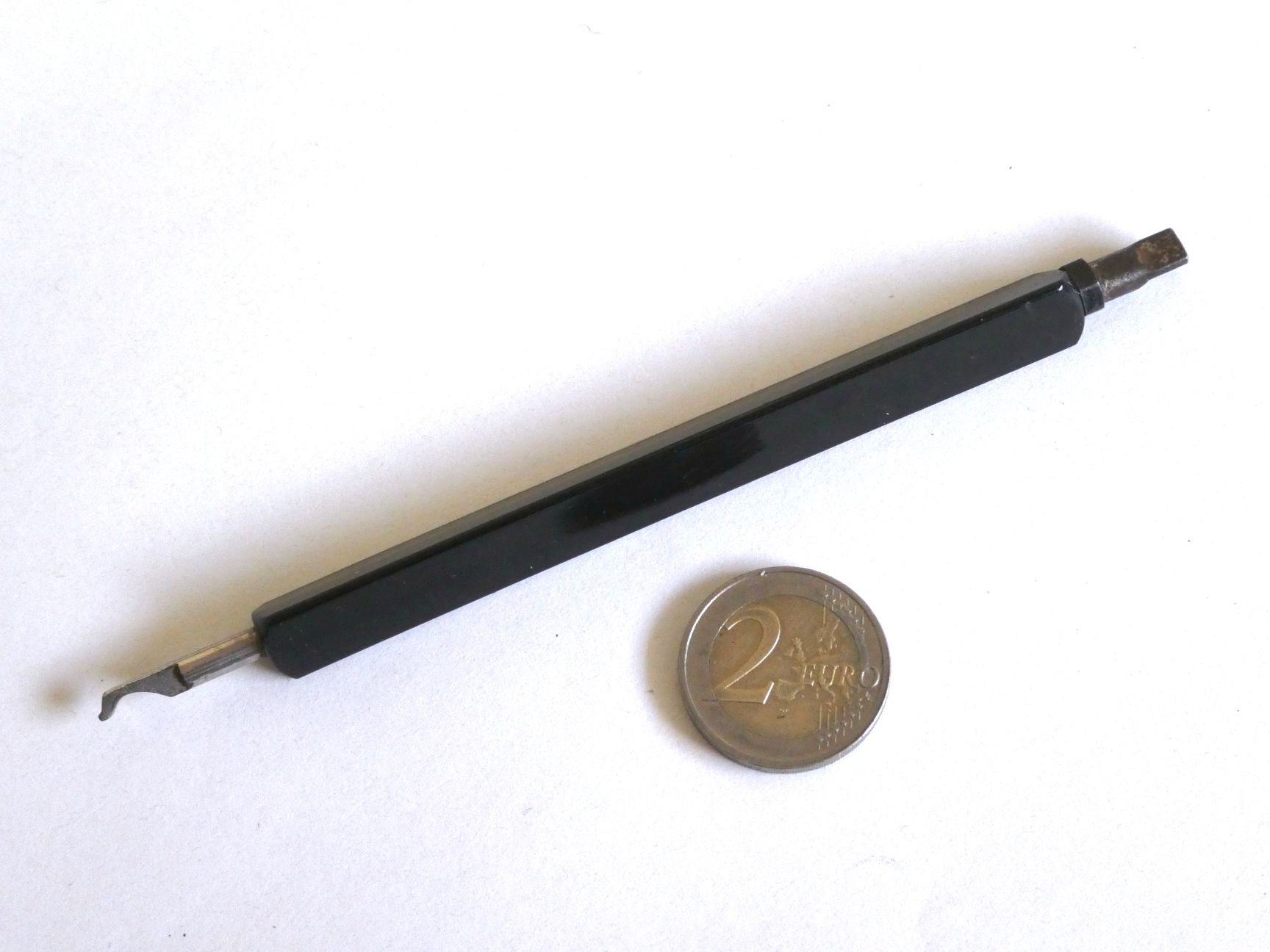

The SuN Adder, stylus

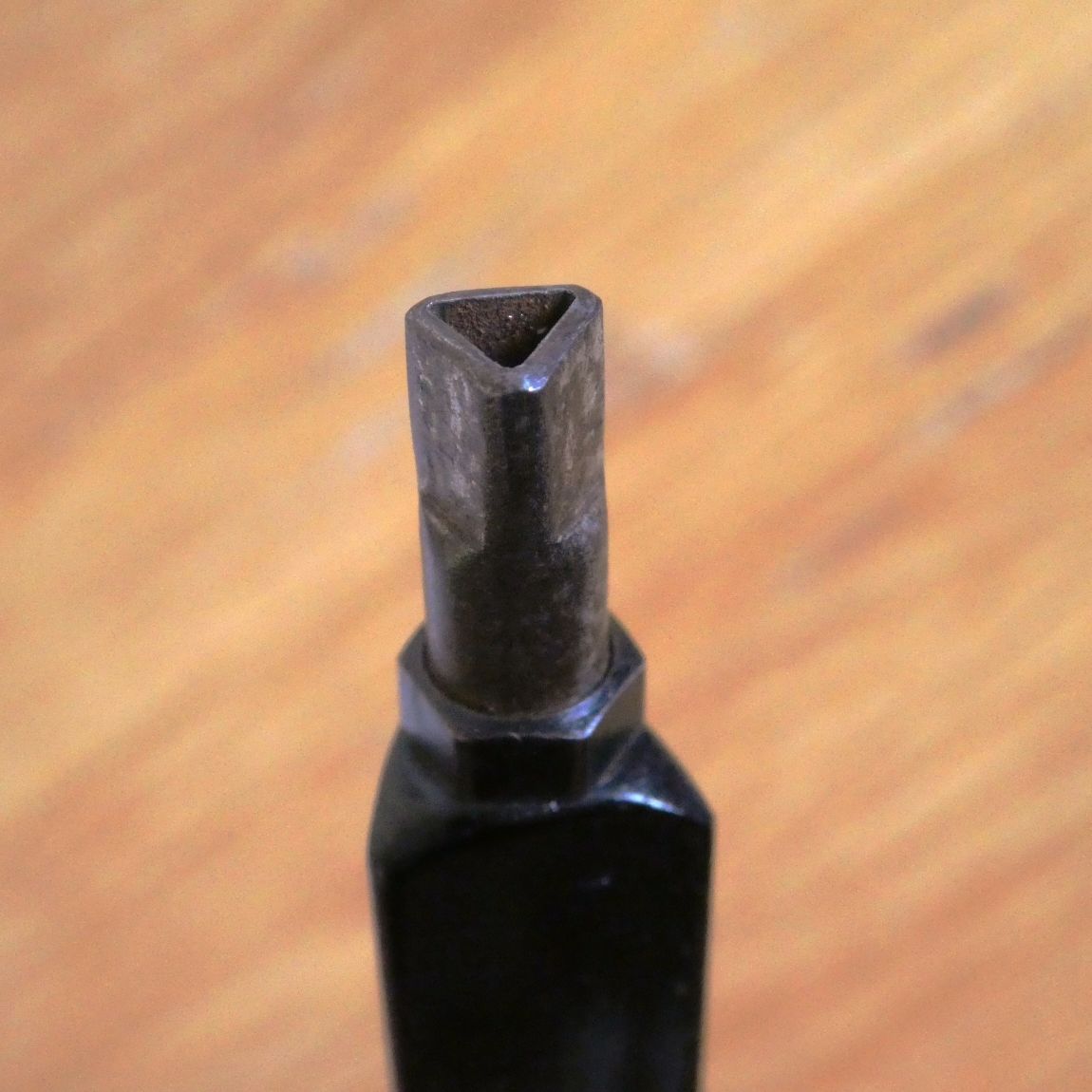

The SuN Adder, stylus triangle

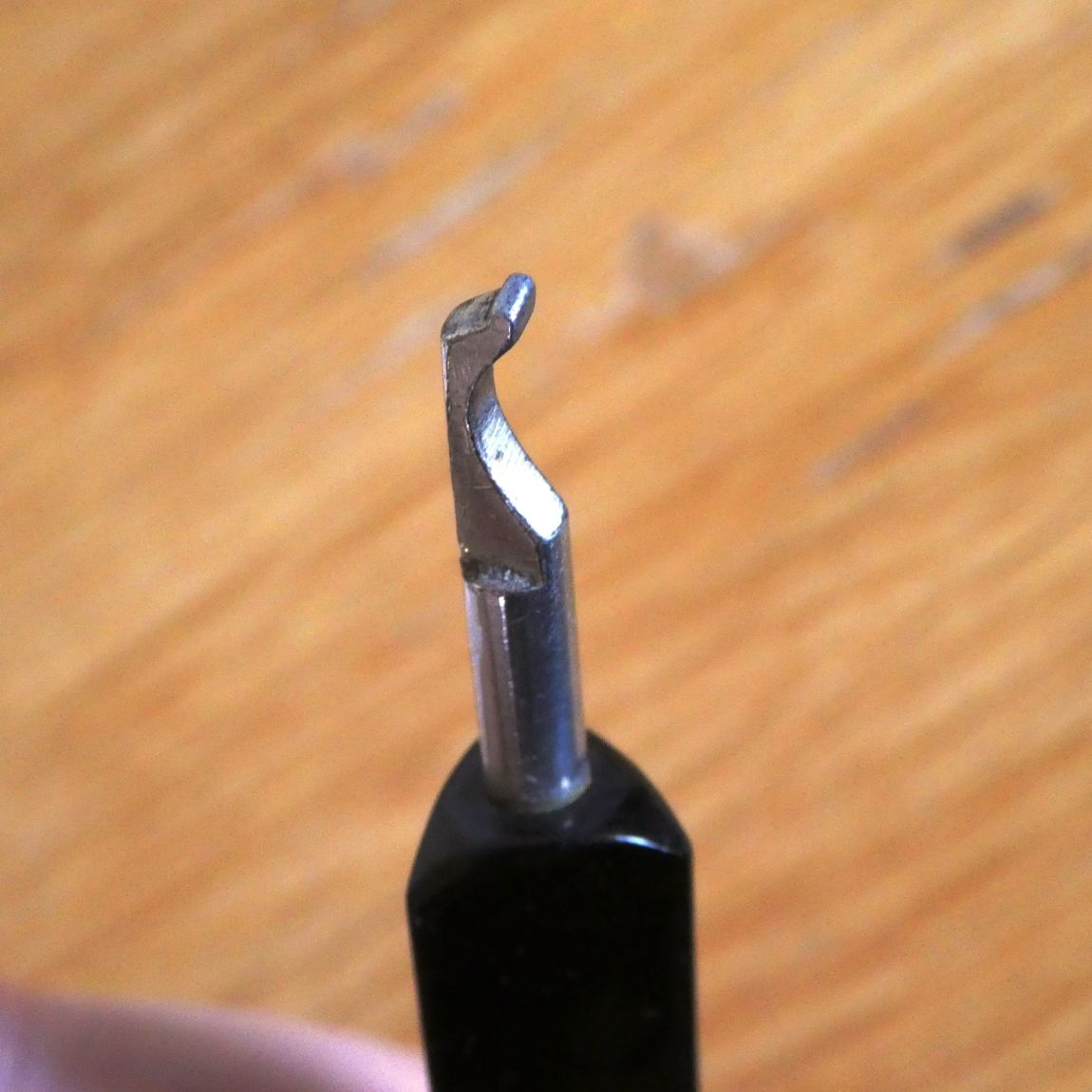

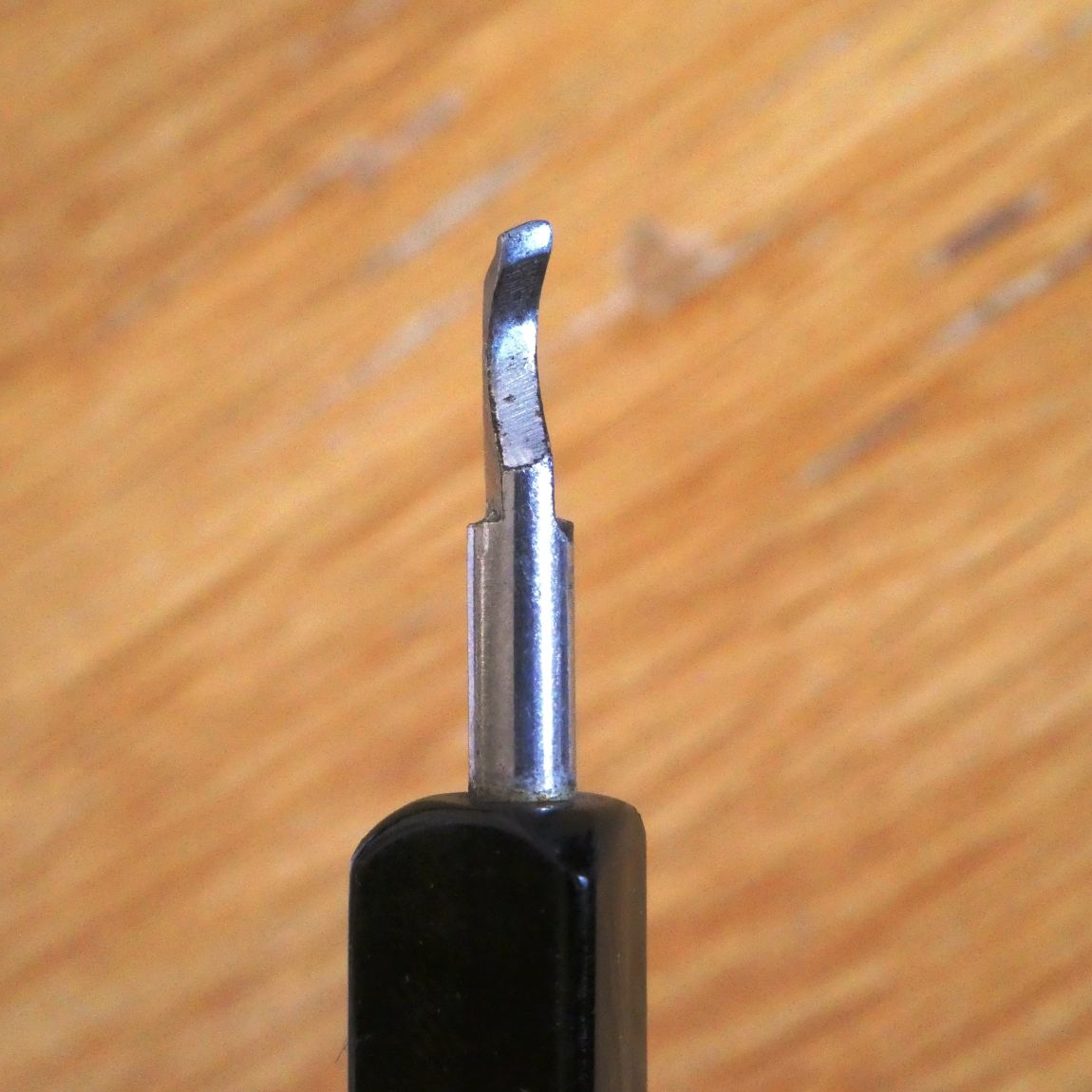

The SuN Adder, stylus hook
The SuN Adder, stylus hook

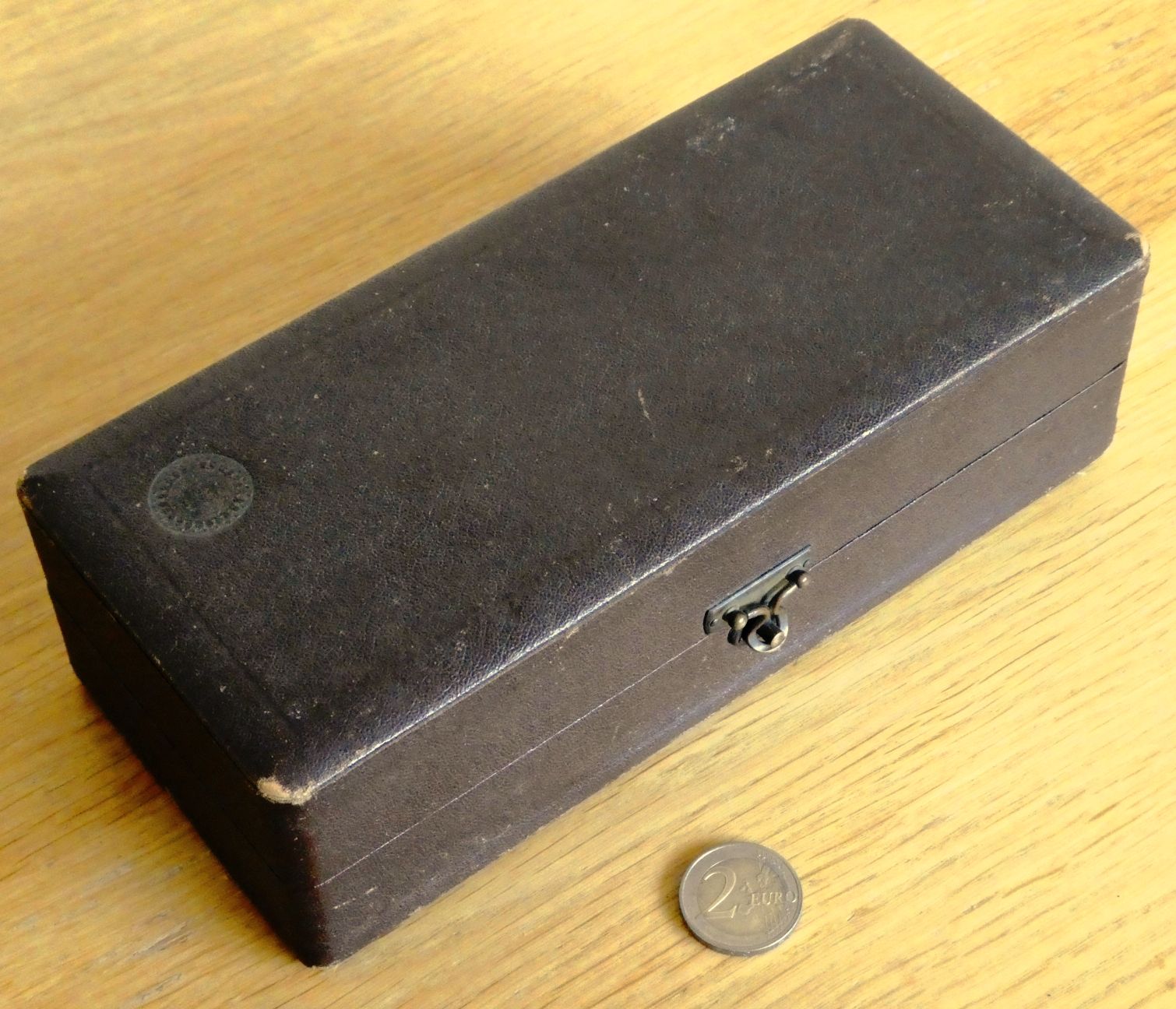

The SuN Adder, box

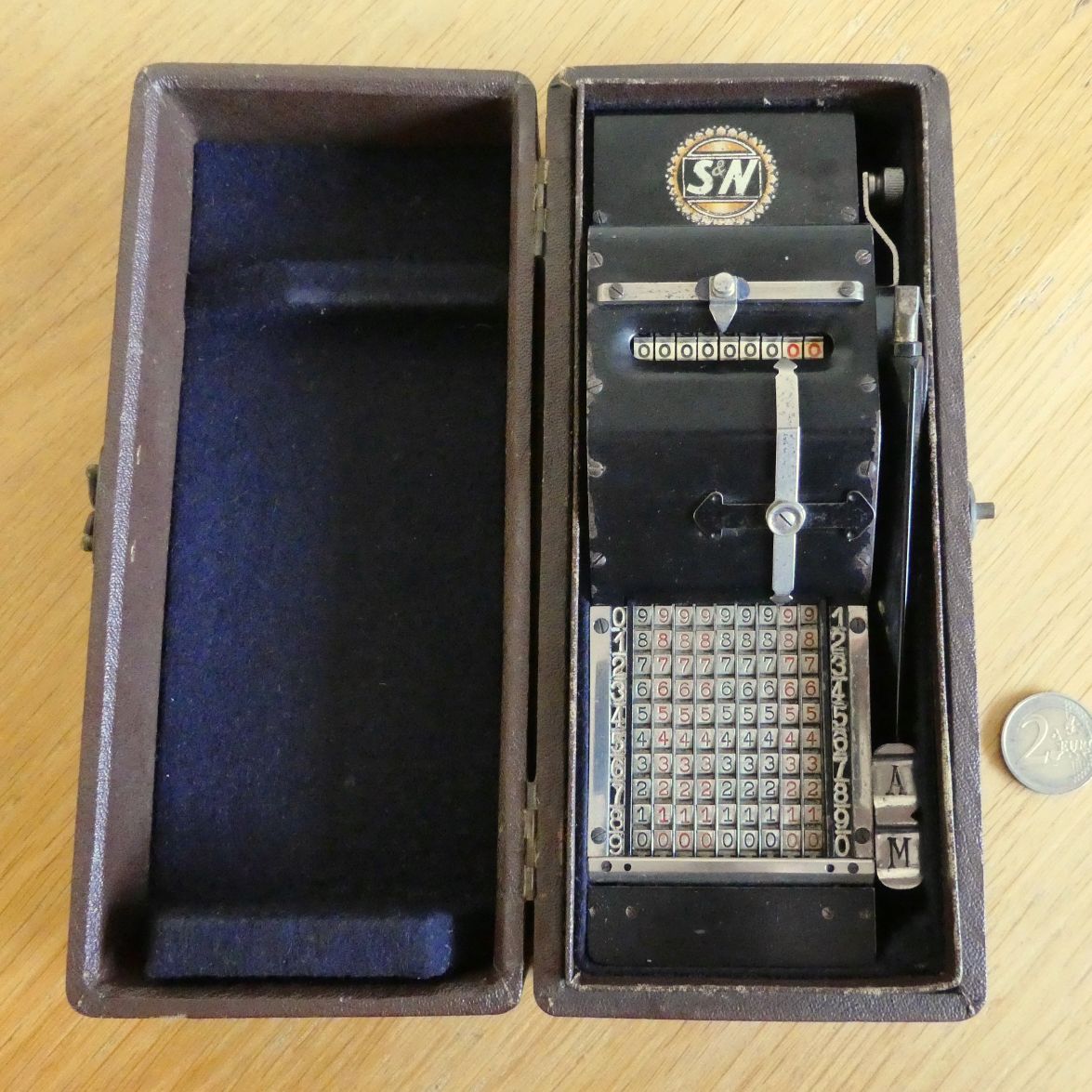

The SuN Adder, in box

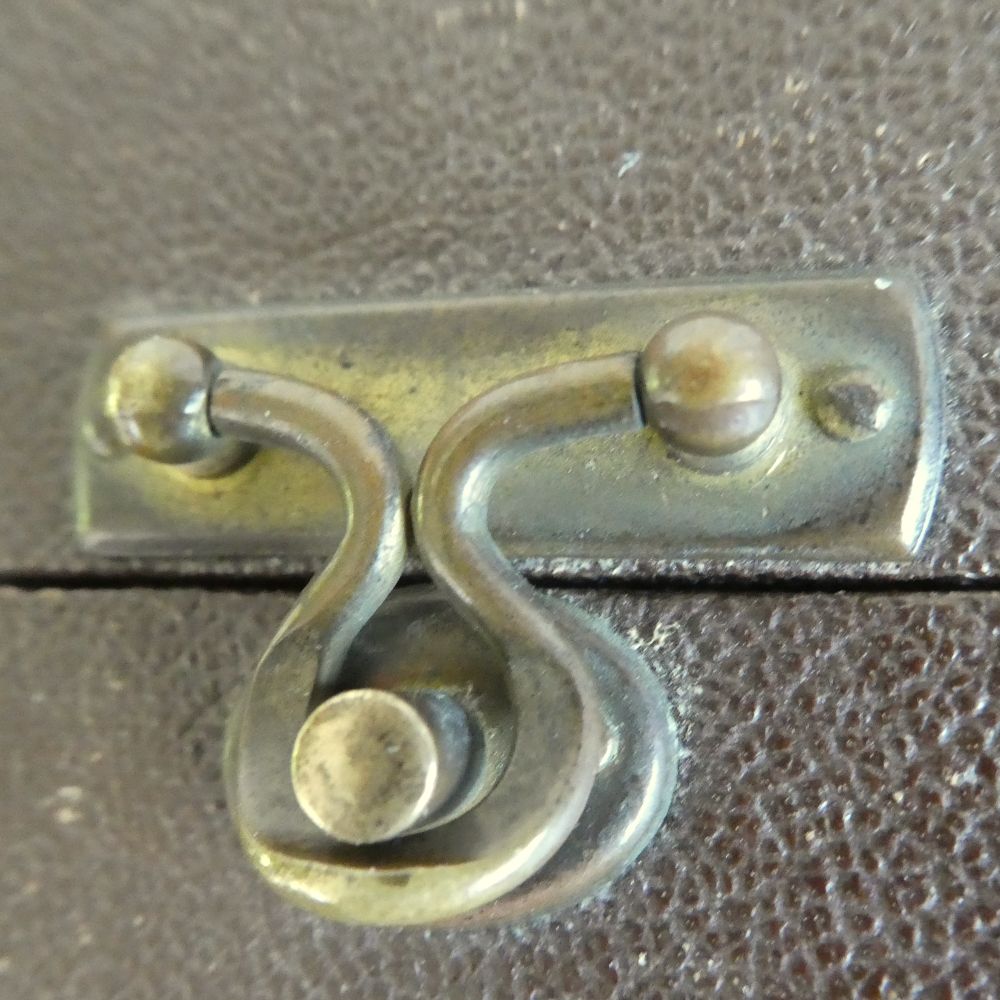

The SuN Adder, clasp closed

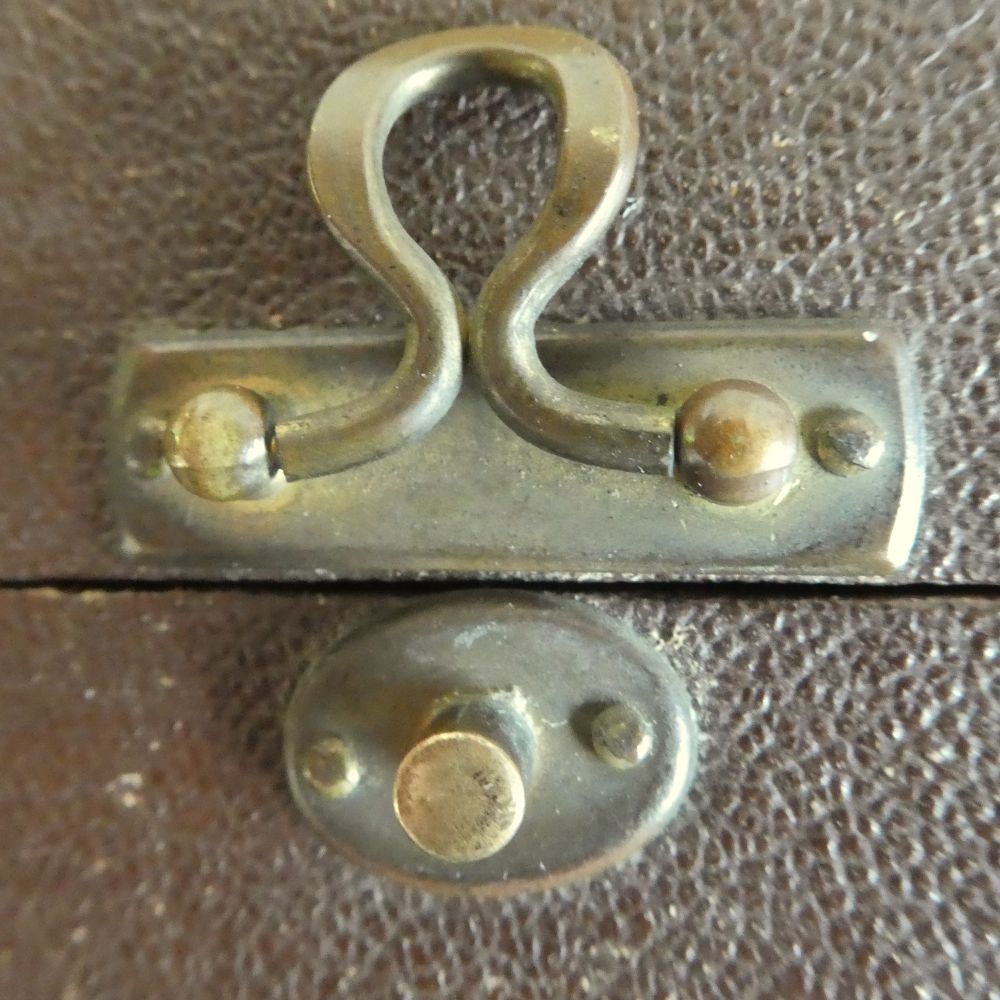

The SuN Adder, clasp open

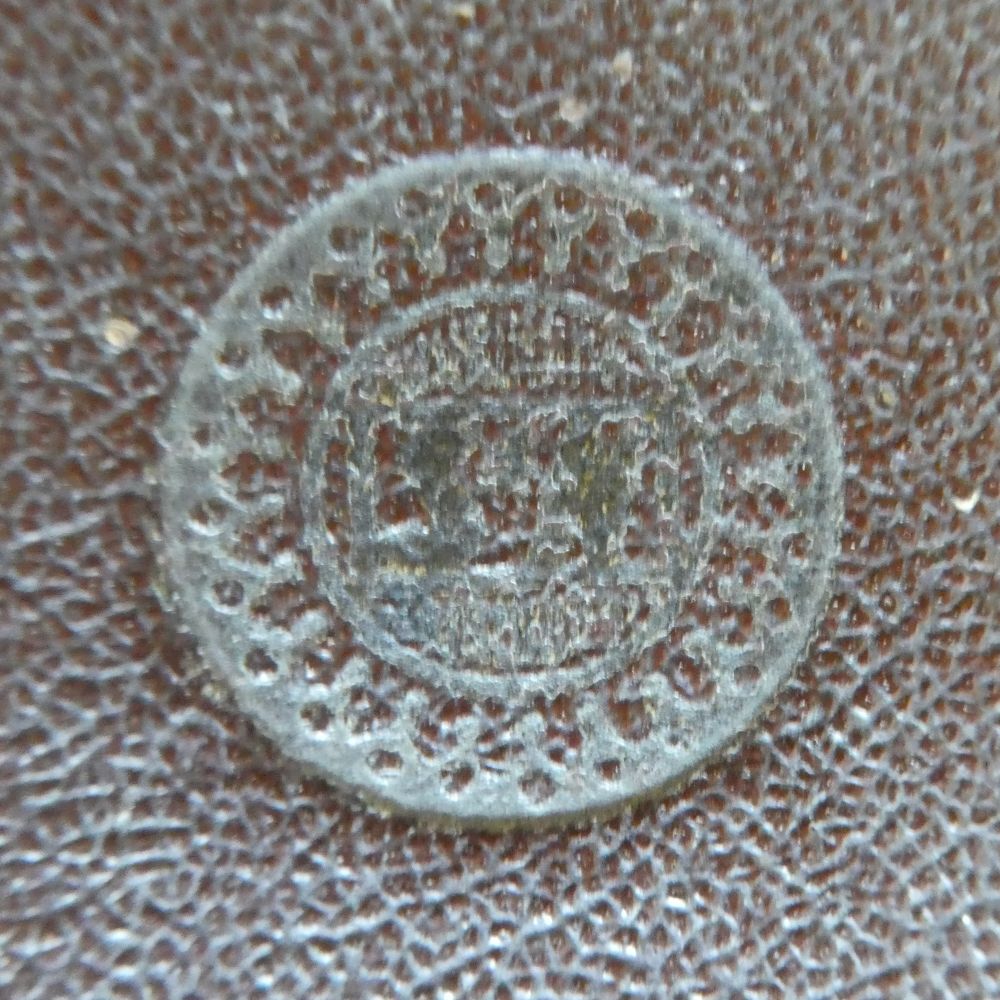

The SuN Adder, box logo

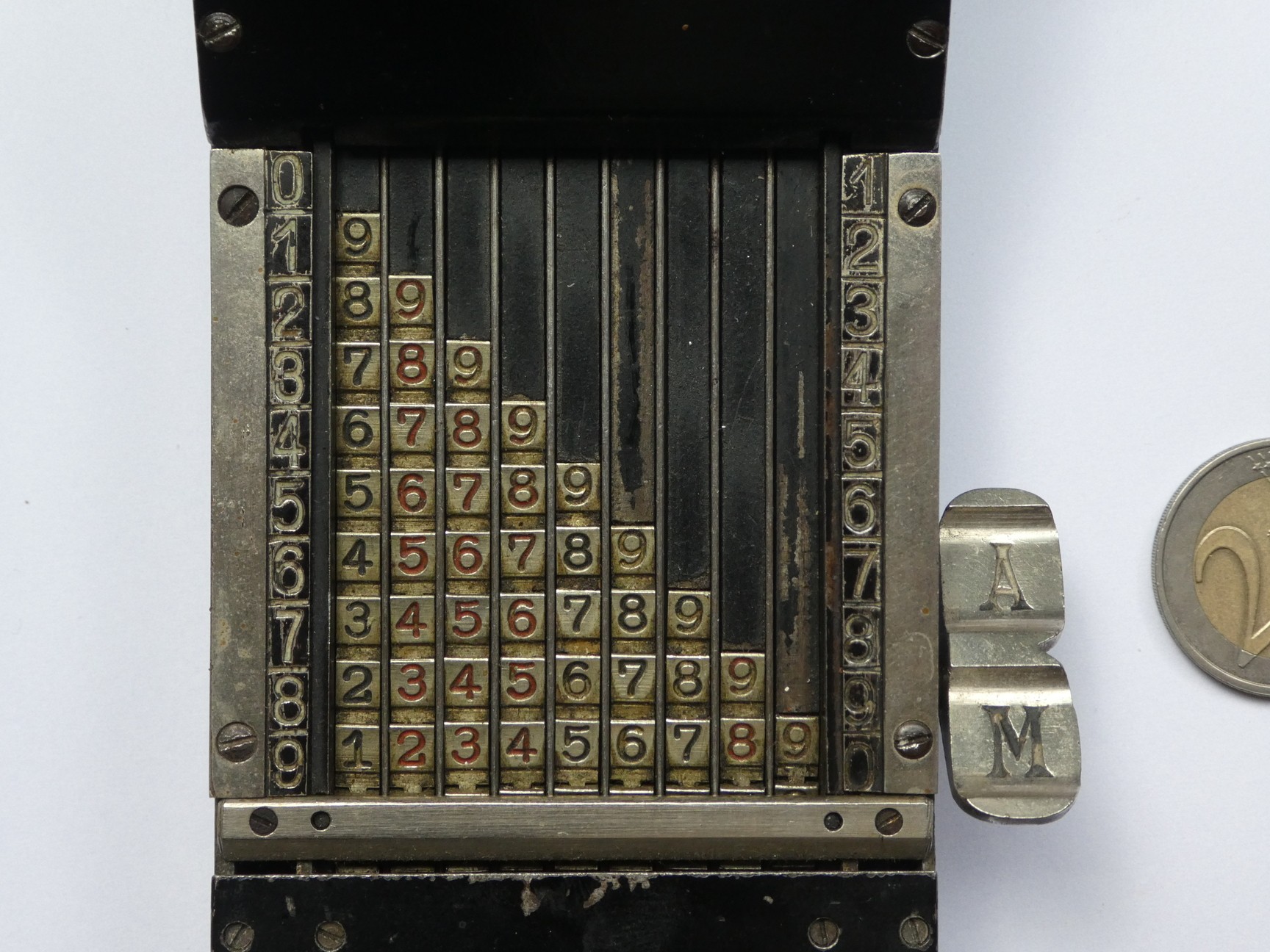

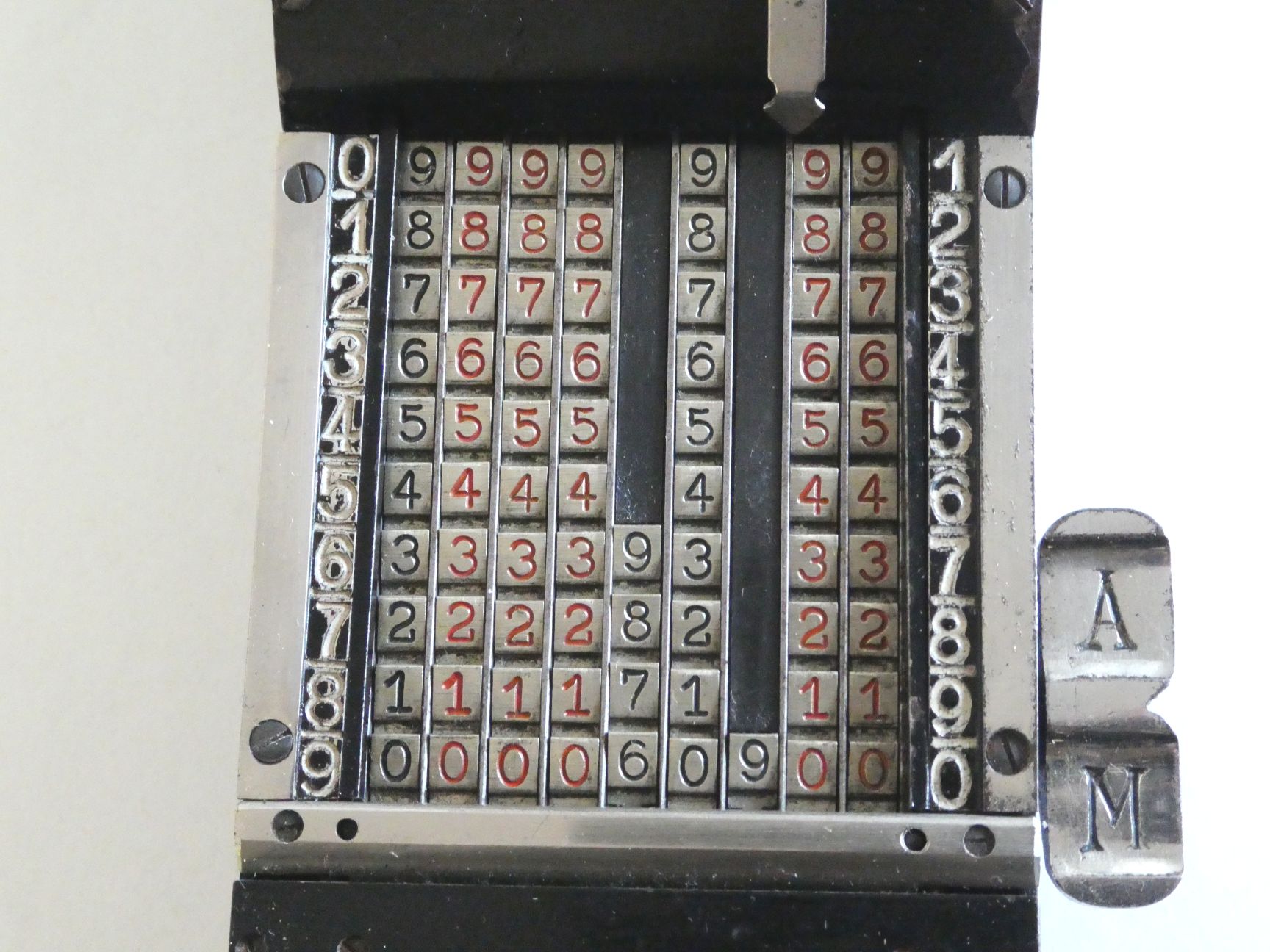

It has a register consisting of 9 parallel number wheels on a single axle. This is the most common size, but there is also a 13-digit version as well as special versions for British currency. Each wheel in the register is driven by teeth attached to a chain belt that passes underneath the wheel. On the front of the machine is an open panel which gives access to the nine chains. The visible chain links are numbered, having the digits 1 to 9 engraved on them. You can use a stylus to pull a numbered link all the way down to the bottom of the panel. This adds the chosen digit to that digit in the register, and the register will automatically carry when a digit exceeds 9.

The chains that you pull down remain in position so that you can read off the number you entered on the bottom row of the visible chain links. To add the next number you first have to clear the input by pressing A on the small lever at the front right of the machine. This releases the chains, allowing them to spring back up without affecting the number in the register.

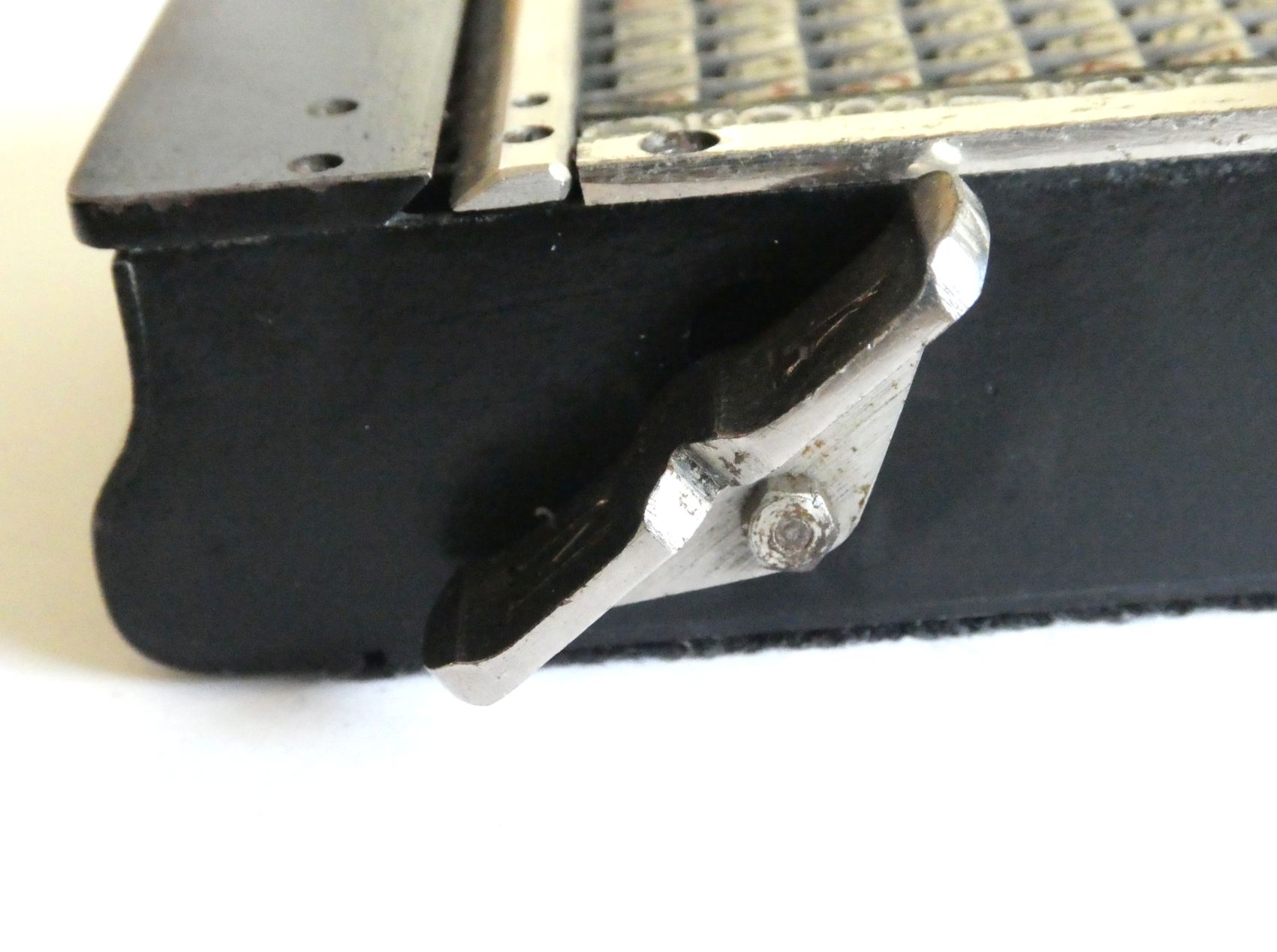

There is a lever in the right side of the machine next to the register. By pulling this lever forward the register can be reset.

The chains and register wheel only move in one direction, so subtraction can only be done through the addition of complementary numbers. On the side of the chain panel the complementary digits are displayed. For the right hand column use the complementary digit shown on the right of the panel, and for all the other columns use the complementary digit shown on the left.

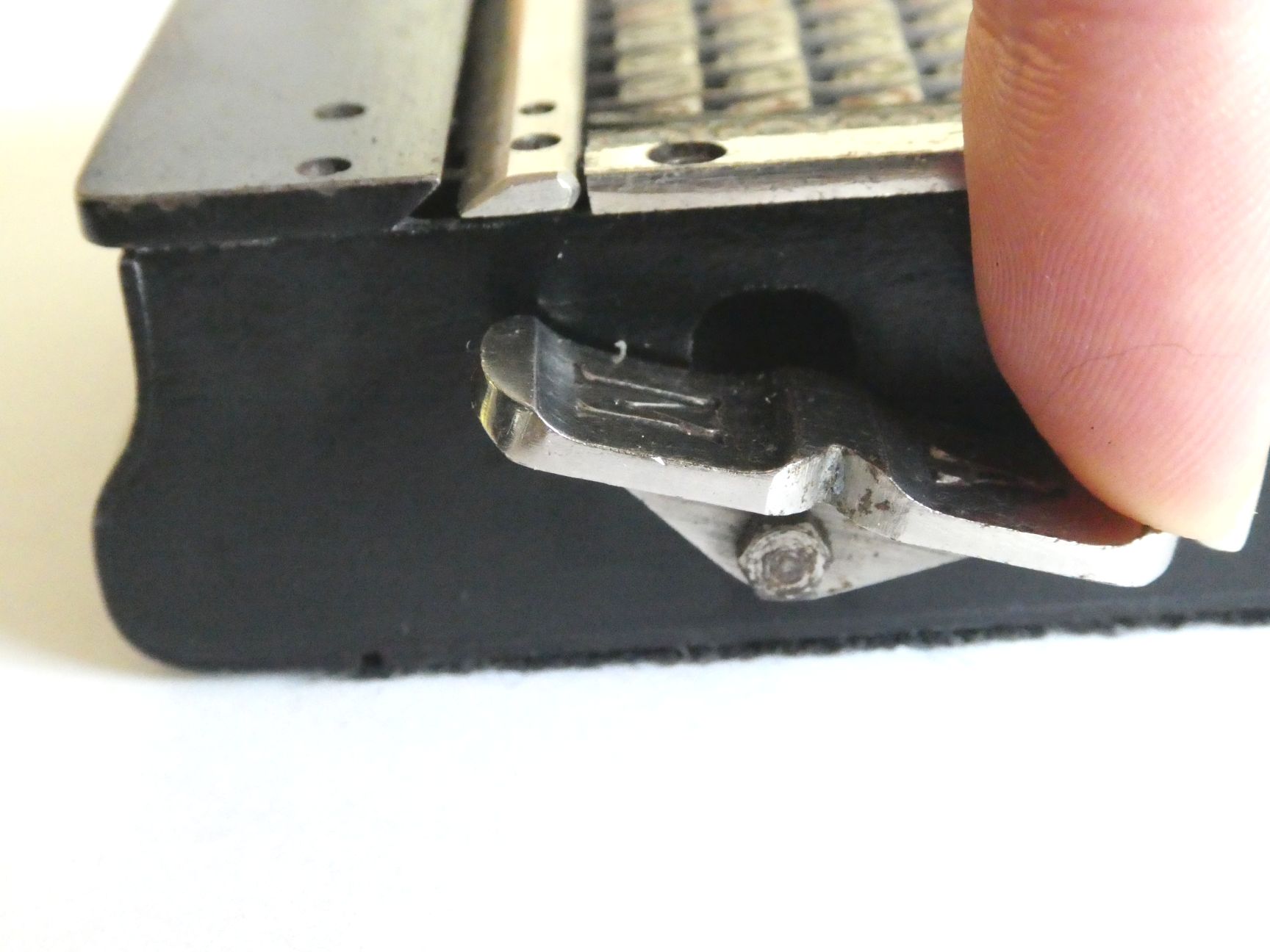

The small lever marked M is for multiplication. If this is pressed down it will lock in place so that input is cleared immediately without needing to press A every time.

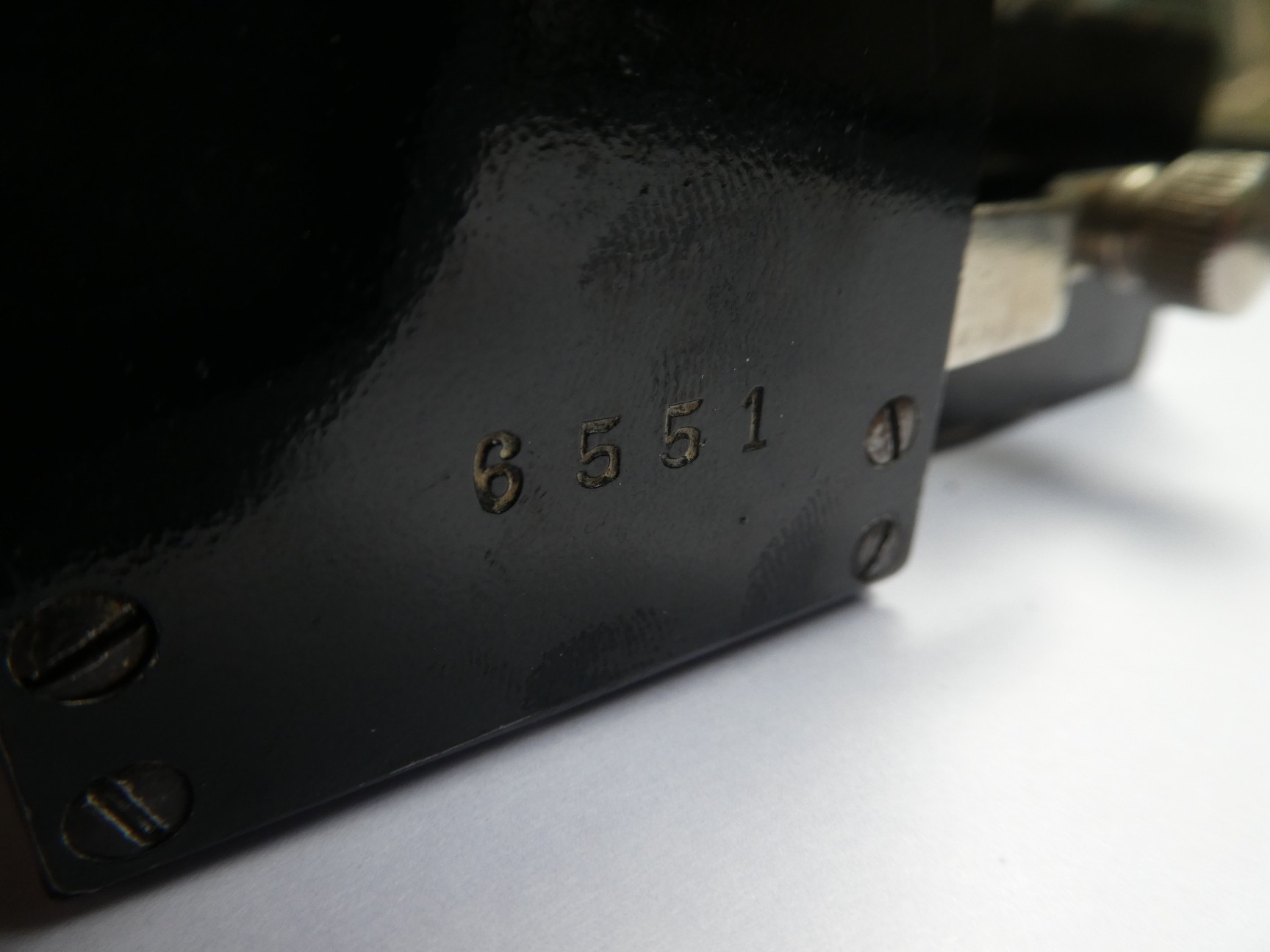

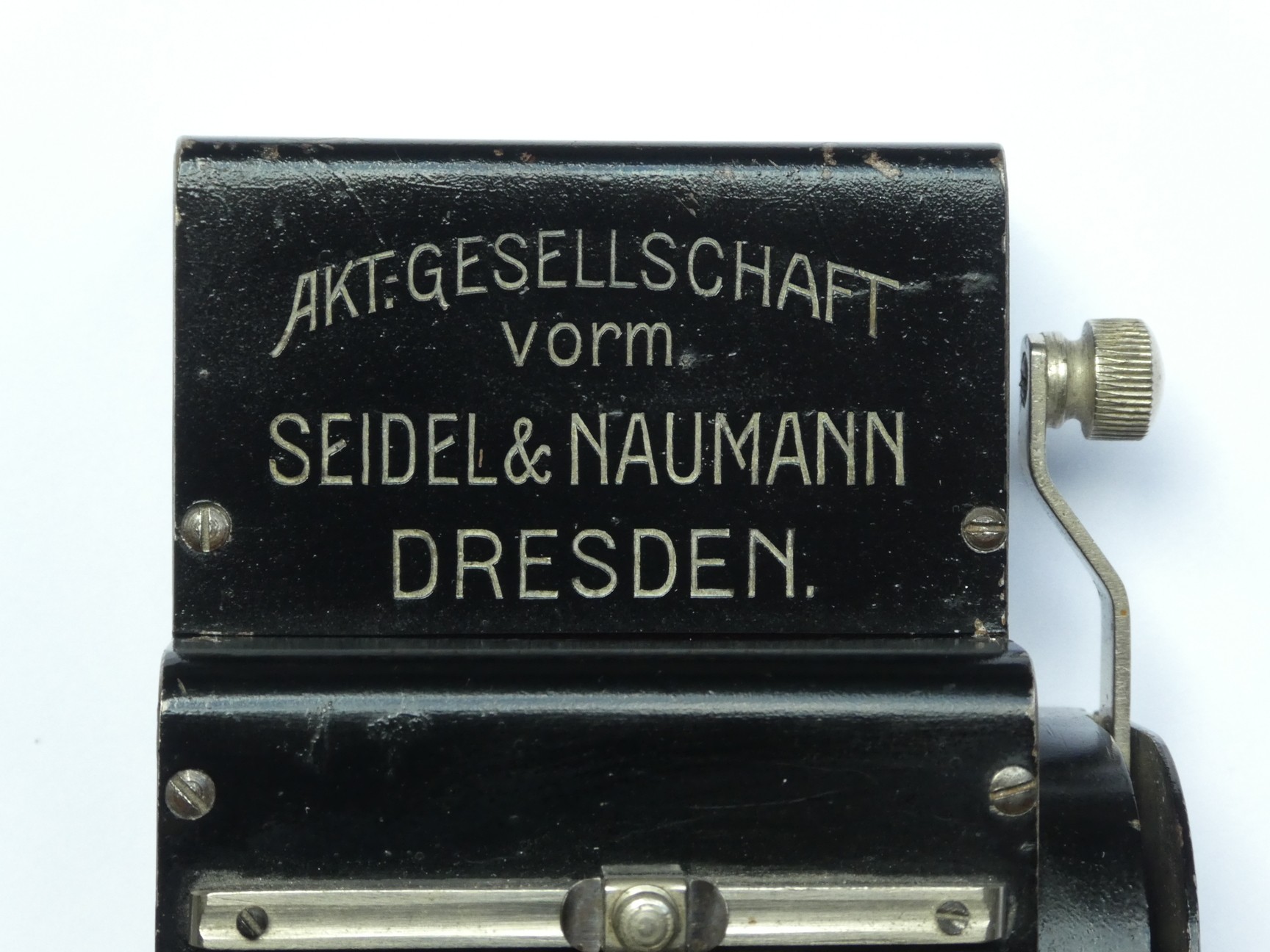

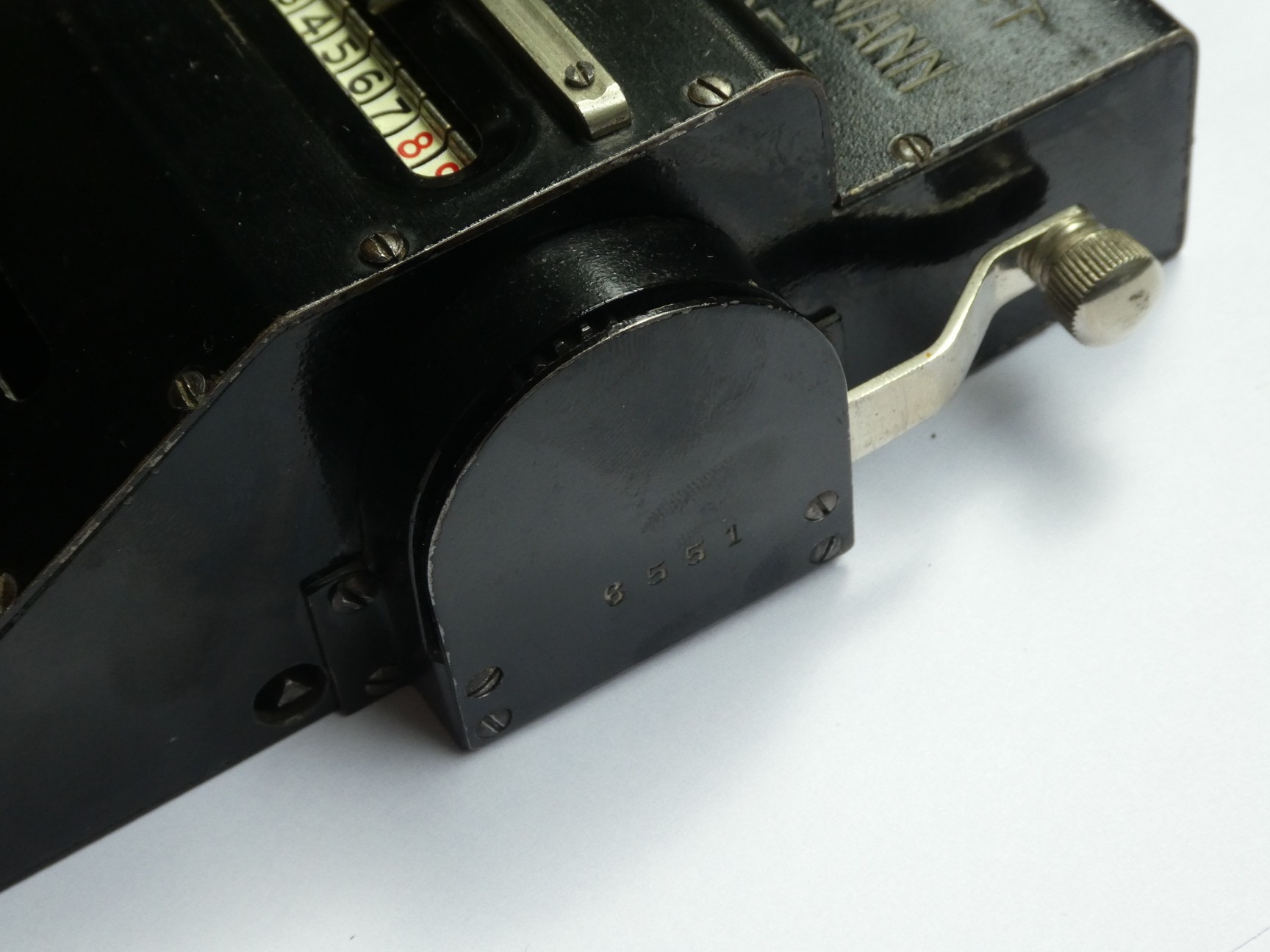

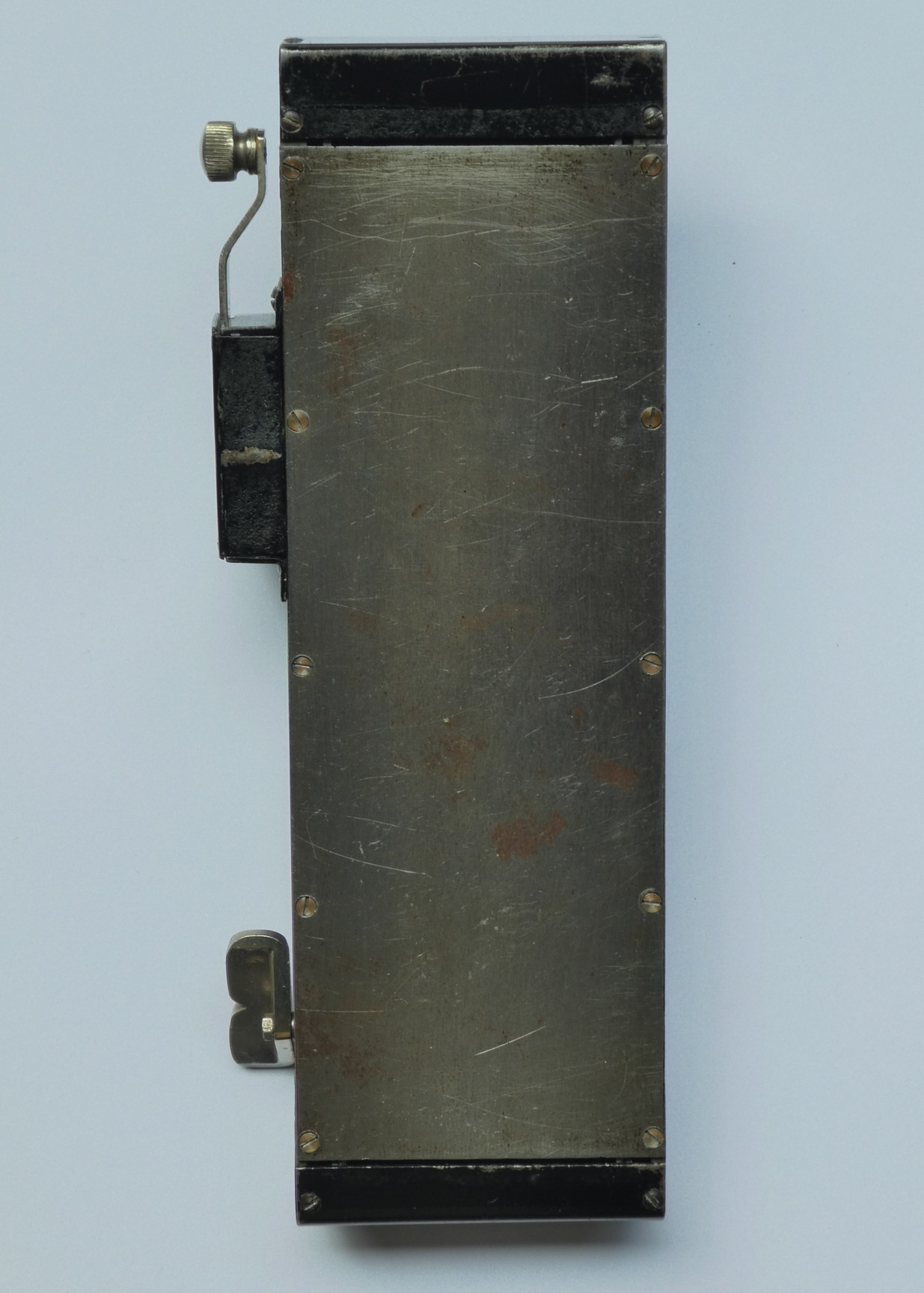

I have acquired a second SuN Adder, which has serial number 6551. I has no stylus or box, and the long pointer between the input sliders and the register is missing leaving an ugly hole. This machine still has the company name engraved in the metal, whereas my other one which was made later uses a decal.

seidelnaumannb01
seidelnaumannb02
seidelnaumannb03

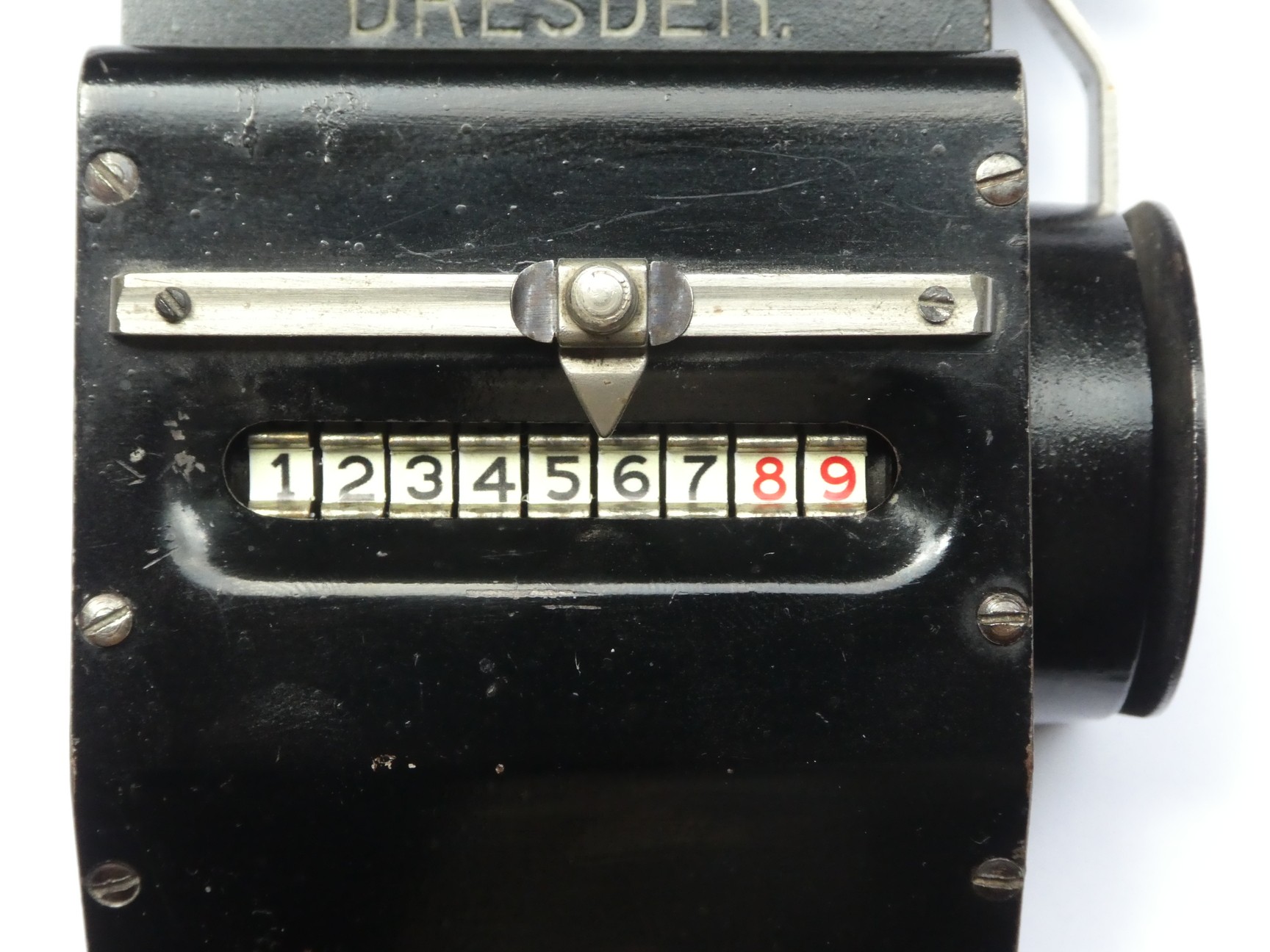

seidelnaumannb04
seidelnaumannb05
seidelnaumannb06
seidelnaumannb07



Video




History

This adder was made by Seidel and Naumann. In 1868 in Dresden, Karl Robert Bruno Naumann zu Königsbrück founded a company based around his small mechanics workshop. There he made sewing machines similar to Singer. A year later the businessman Erich Seidel heavily invested in the company, at which point it was renamed Seidel und Naumann. That name remained even after Seidel left in 1876.

1908 Jahrbuch der Automobil und Motorbootindustrie

As the company grew rapidly, it diversified to other products:

In 1905 they even produced a rally car, though that does not seem to have led to commercial car production.

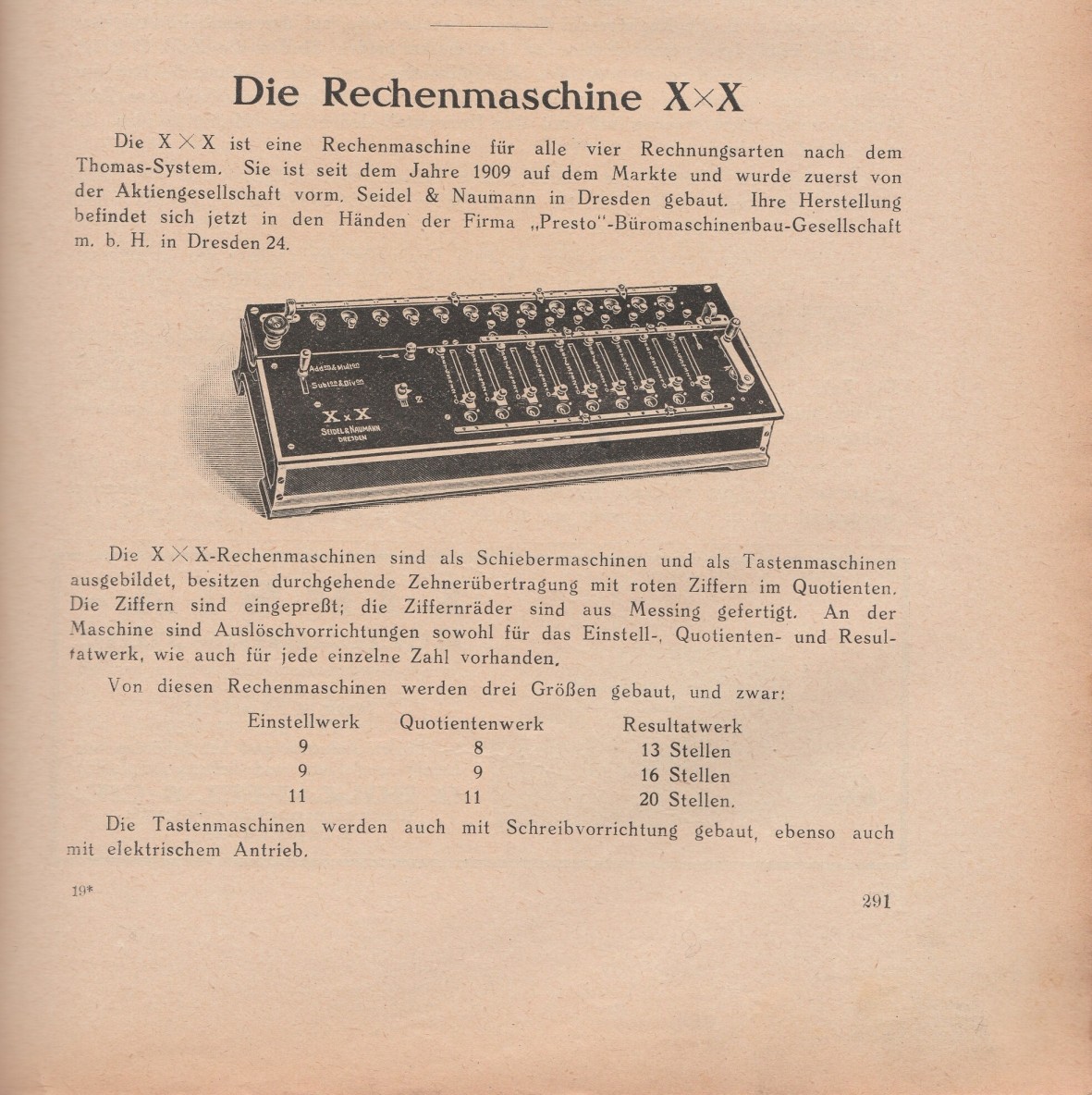

The X×X calculator was based on the classic Thomas de Colmar machine, the Arithmometer, but included a variant with buttons instead of sliders for inputting numbers. The X×X and the SuN were both designed by Bernhard Carl Max Behr, who led the calculator division of the company. Bernhard Behr had a history in both manufacturing and marketing calculators, as he manufactured the Arithstyle for Henry Goldman in Berlin, made and sold his own chain adders the Greif and the Argos, and sold machines from various other manufacturers. He died in 1917.

The company was able to rebuild after sustaining major damage in the bombing of Dresden in 1945, but then seems to have specialised in typewriters only. In 1951 it merged with Clemens Miller AG to become VEB Schreibmaschinenwerk(e) Dresden. The "Erika" line of typewriters was made until 1991 after which the company was liquidated.



Manuals

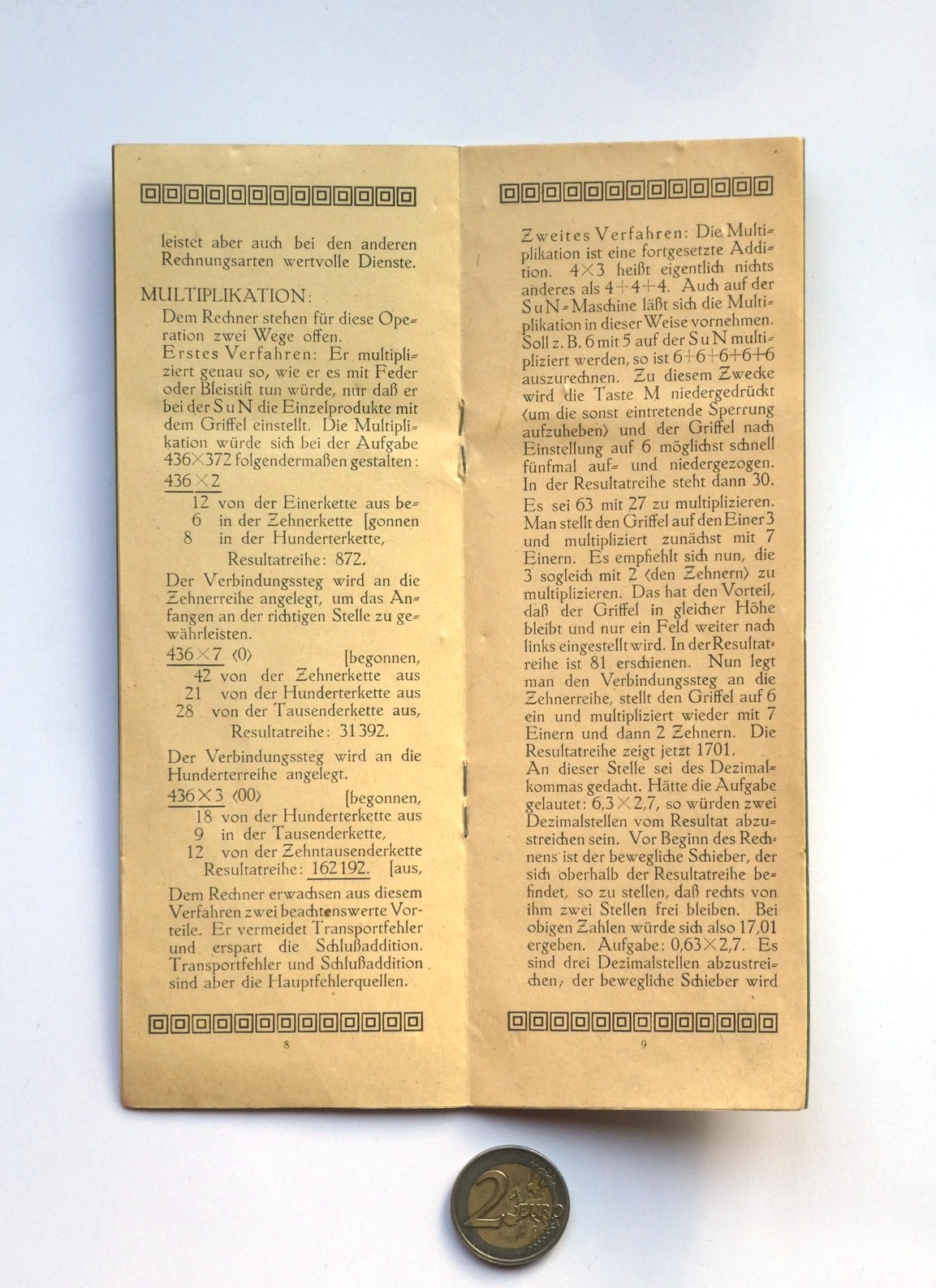

Gebrauchsanweisung für die Additionsmaschine SuN    (PDF, 5.00 MB or archive.org)
Aktiengesellschaft vorm. Seidel & Naumann, Dresden
1920
16 page booklet
74mm × 205mm

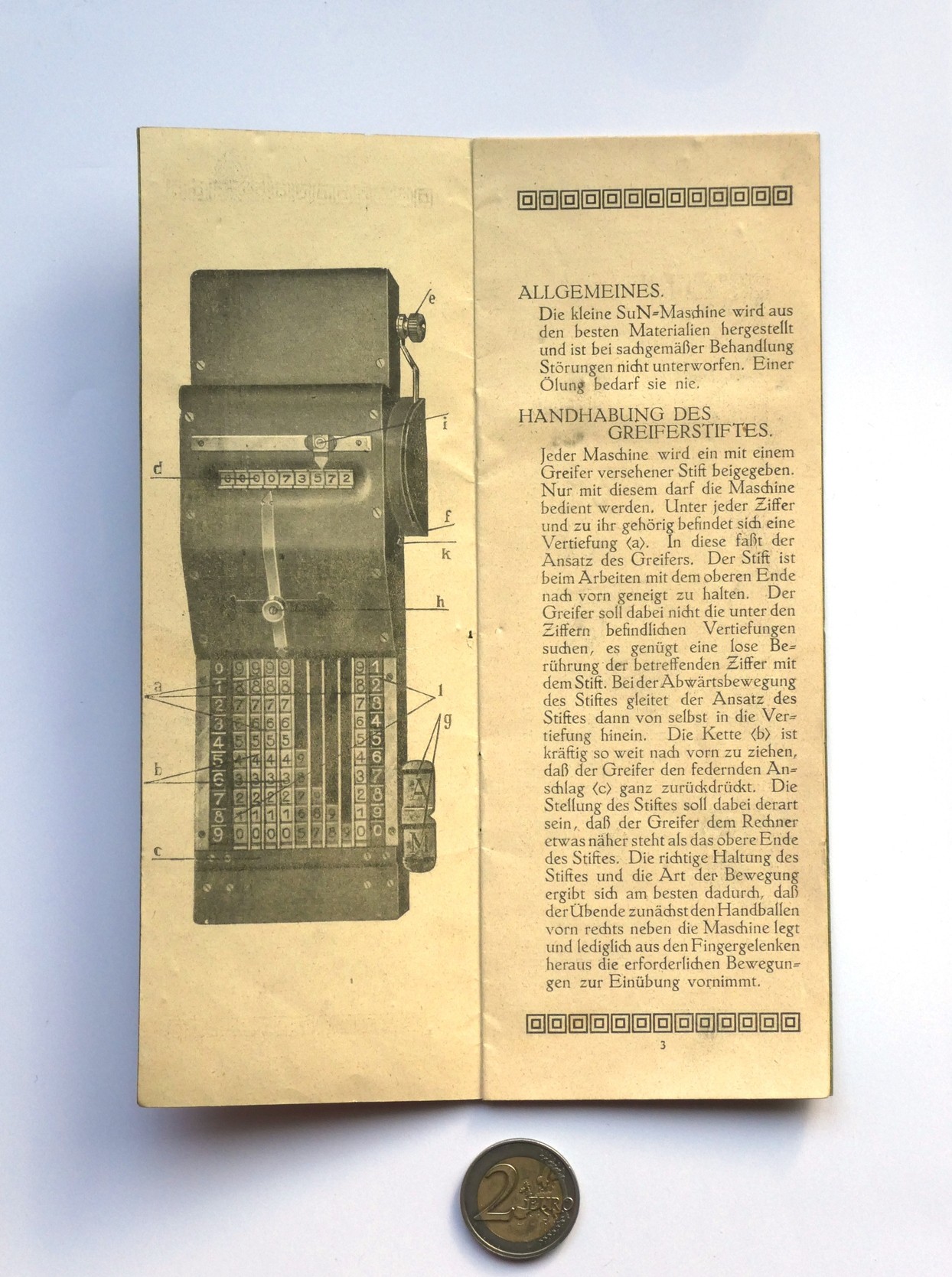

This is the German instruction booklet for the SuN adding machine. It has no copyright year, but the code on the front cover suggests it was printed in 1920.

Gebrauchsanweisung fuer die Additionsmaschine SuN
Gebrauchsanweisung fuer die Additionsmaschine SuN
Gebrauchsanweisung fuer die Additionsmaschine SuN
Gebrauchsanweisung fuer die Additionsmaschine SuN

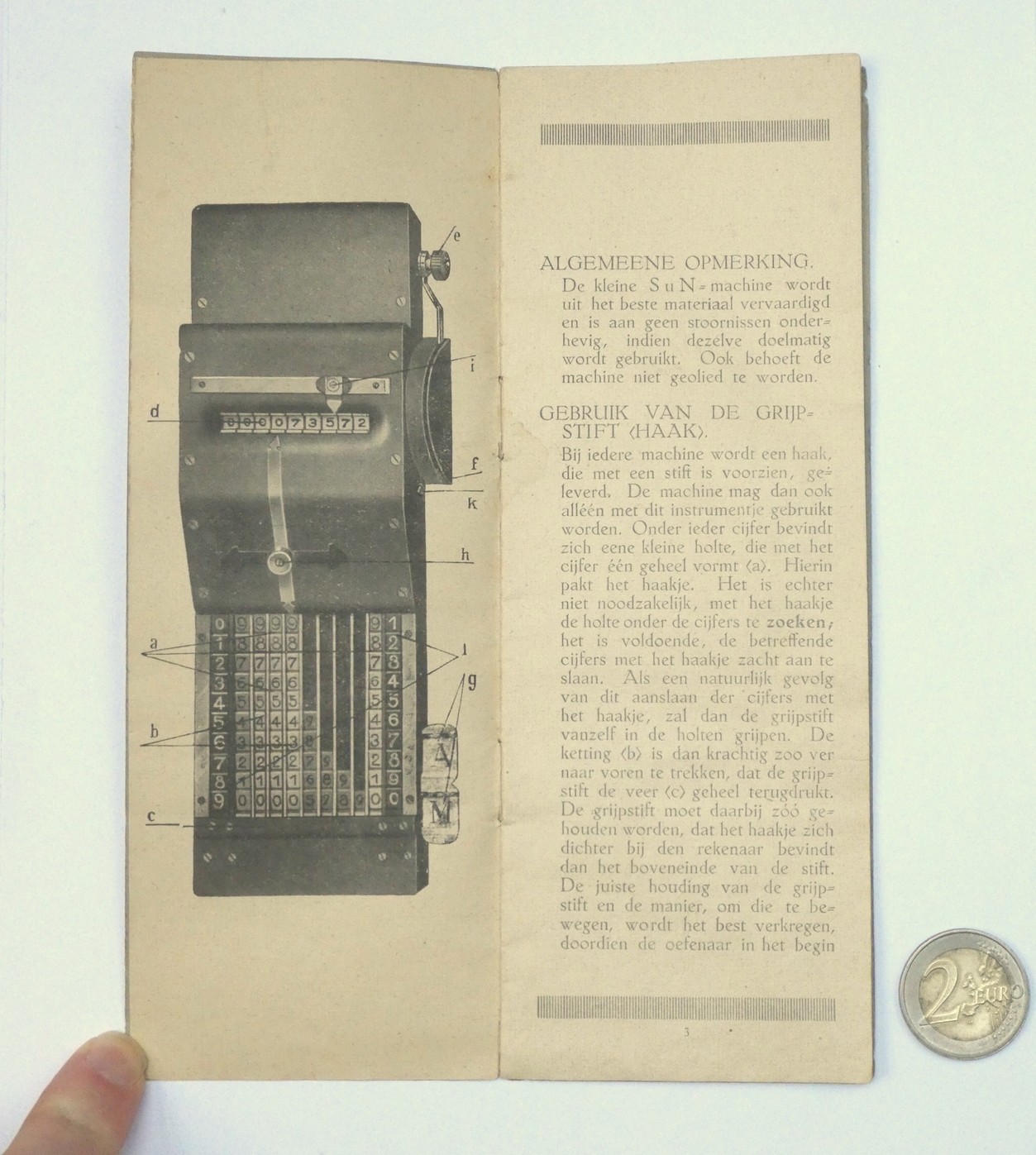

Gebruiks-Aanwijzing voor de SuN-Rekenmachine    (PDF, 2.71 MB or archive.org)
Seidel und Naumann
1919
18 page booklet
74mm × 205mm

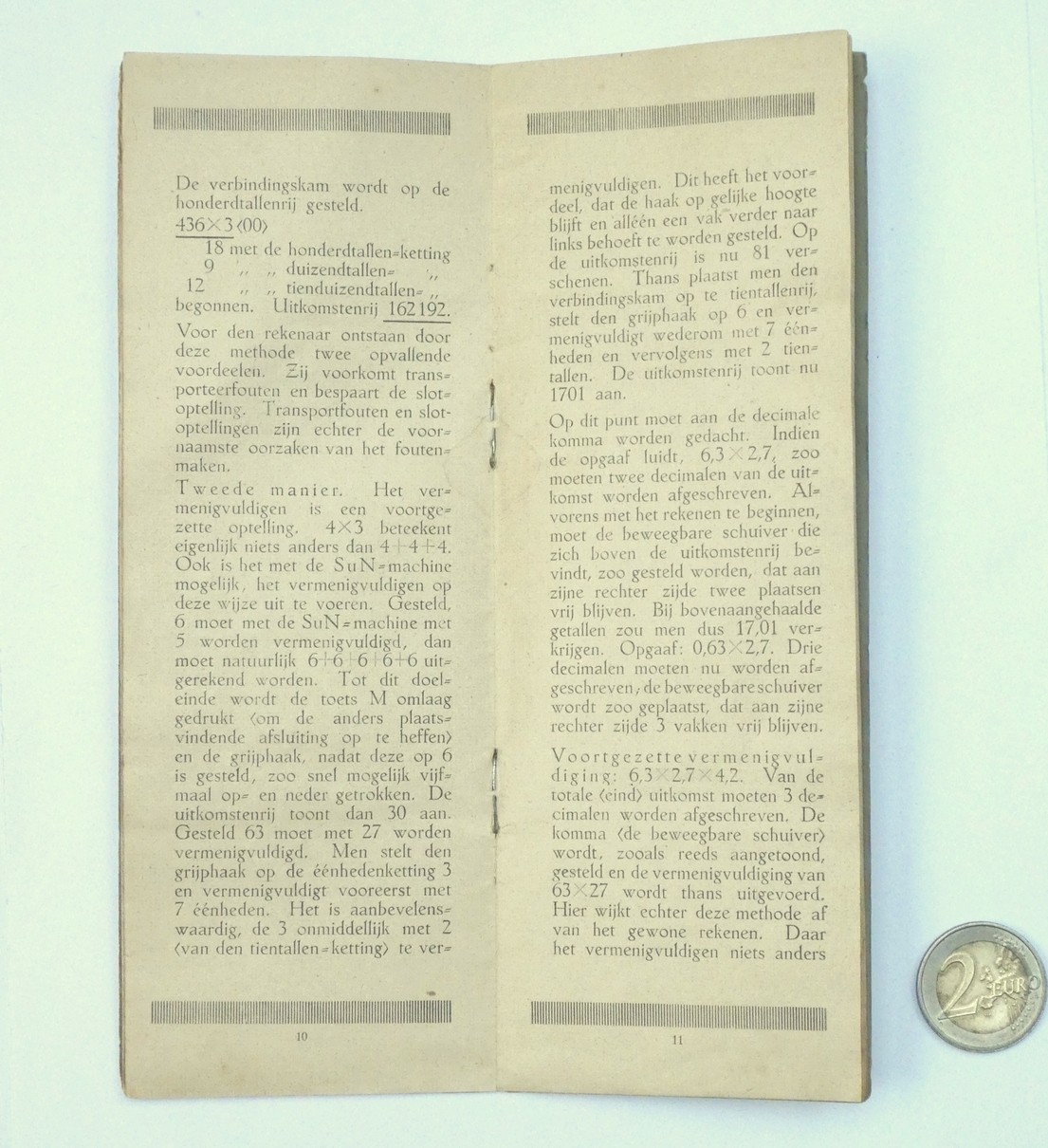

This is the Dutch instruction booklet for the SuN adding machine. It has no copyright year, but the code on the front cover suggests it was printed in 1919.

Gebruiks-Aanwijzing voor de SuN-Rekenmachine
Gebruiks-Aanwijzing voor de SuN-Rekenmachine
Gebruiks-Aanwijzing voor de SuN-Rekenmachine
Gebruiks-Aanwijzing voor de SuN-Rekenmachine



Articles and Advertisements

I have found very little specifically for the SuN adder, but there are some ads from the early 1910s for Seidel & Naumann's other products. The two older Dutch items are an announcement of the trademarks that S&N is about to start selling their "improved Singer" sewing machines in the Netherlands, and a reply notification from Singer's lawyer that they are not allowed to use the Singer name in any way to sell their machines.

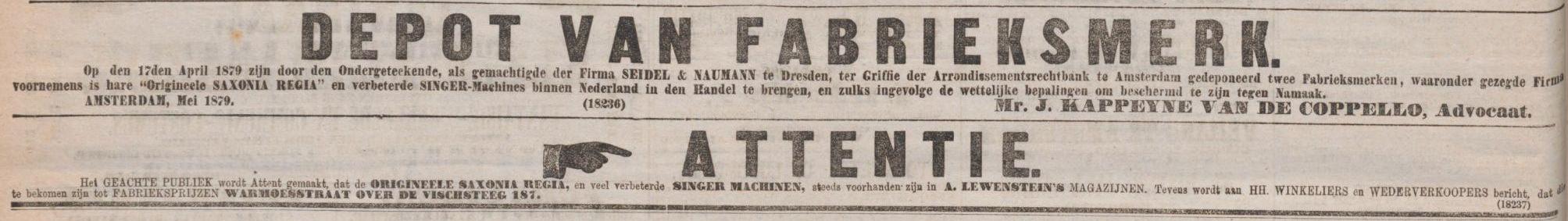

1879-05-13 Algemeen Handelsblad
1879-06-01 Algemeen Handelsblad
1911-07-24 Berliner Tageblatt
1912-02-11 Berliner Tageblatt
1912-10-14 Berliner Tageblatt

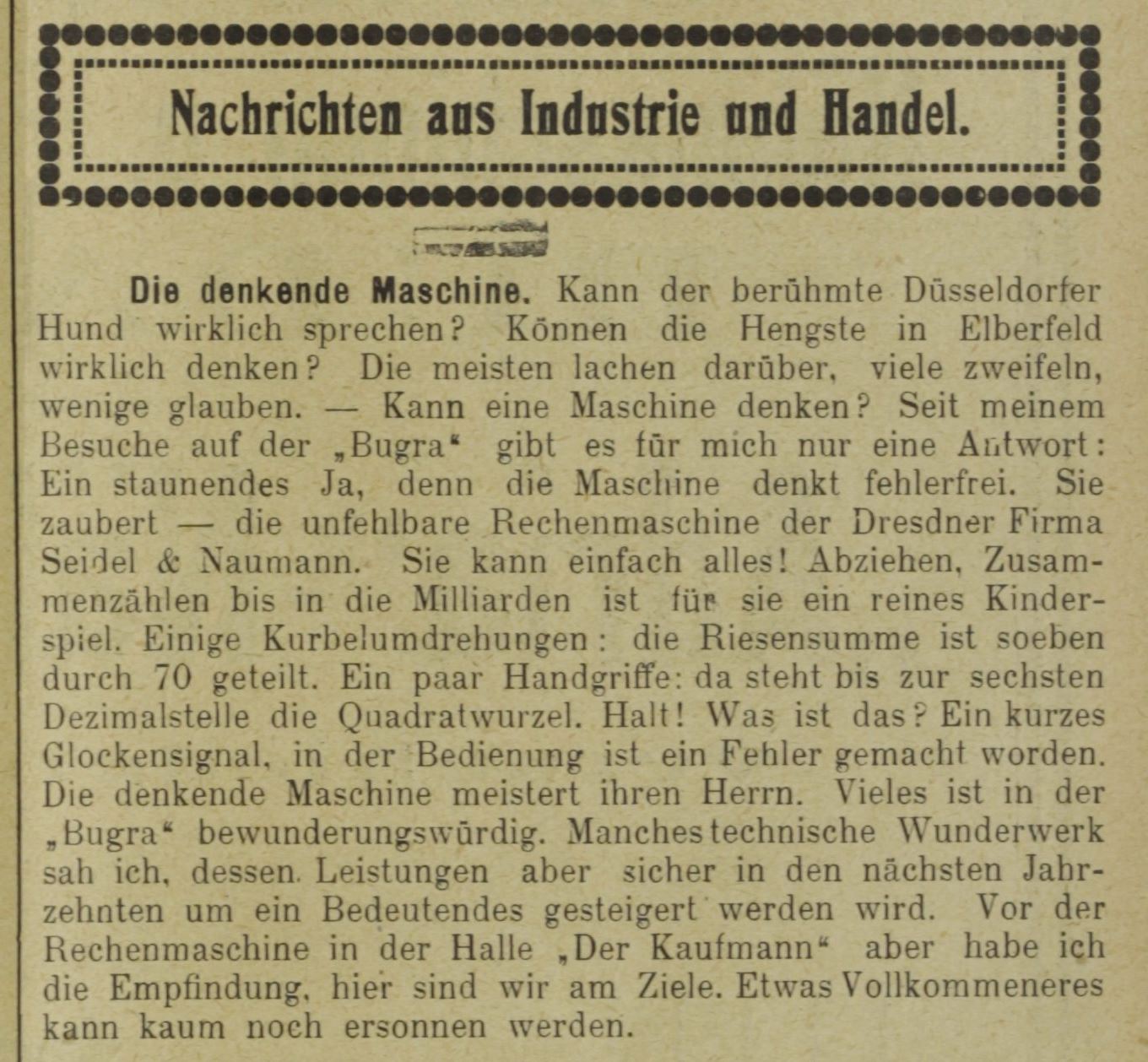

1914-07-31 Oesterreichische Naehmaschinen- und Fahrrad-Zeitung

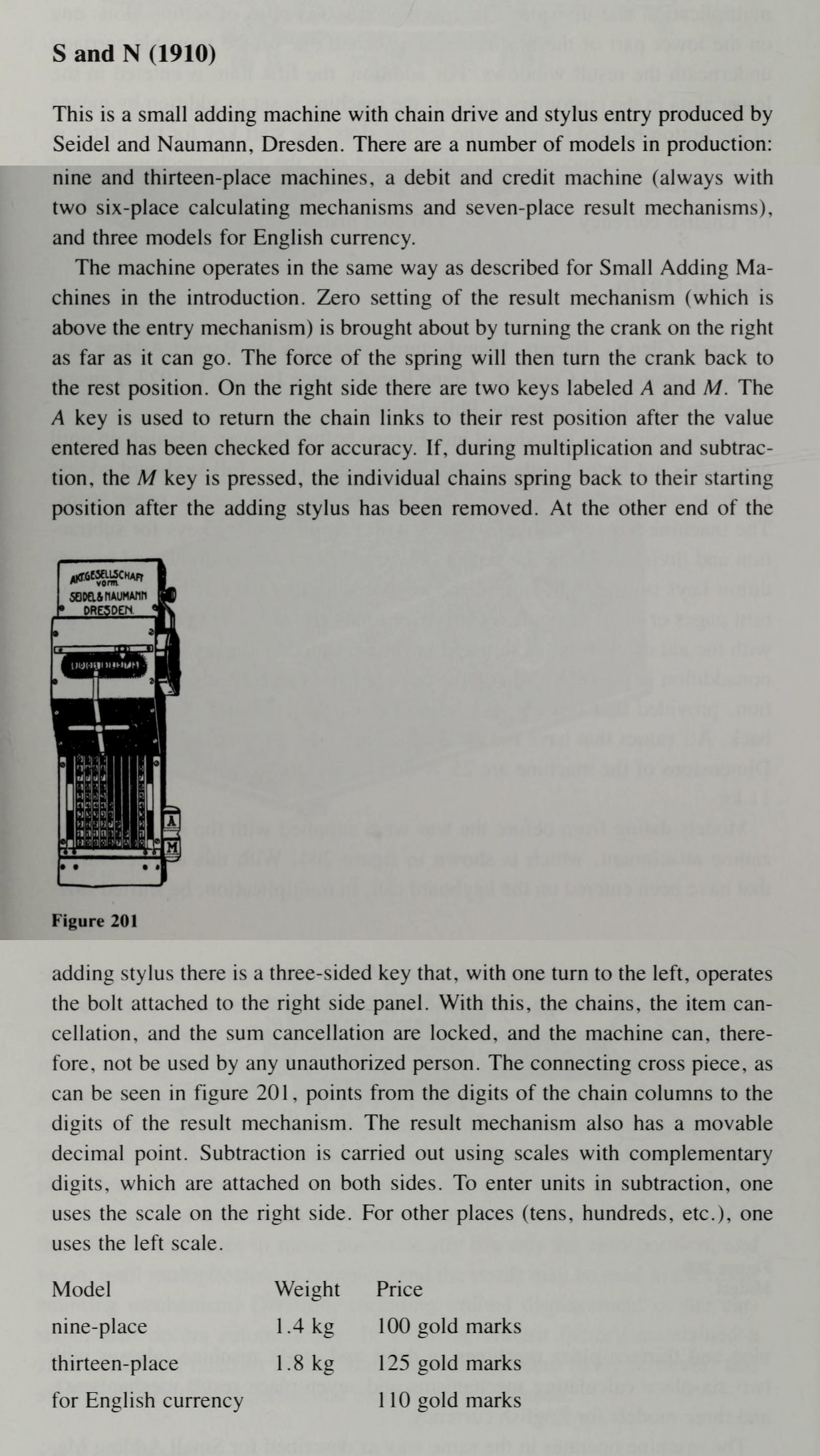

1925 Ernst Martin
1925 Ernst Martin xxx
1931 Moderne Buero-Maschinen



Patents

Here are the patents relating to the SuN chain adder. Bernhard Behr based his design on the Arithstyle chain adder devised by Henry Goldman a decade earlier.

PatentFiling datePublish dateNameDescription
GB 1899 10,23715-05-189914-04-1900Henry GoldmanChain adder
GB 1908 03,40214-02-190815-02-1909Bernhard Carl Max BehrChain adder with two registers
GB 1911 18,73719-08-191111-04-1912Bernhard BehrChain adder. See also:
AT 55,820 B; US 1,096,012; CA 138,507; DE 249,606; FR 433,170
GB 1912 09,01316-04-191216-01-1913Seidel & NaumannCarry mechanism. See also:
AT 61,025 B; FR 443,000

Links

Rechnerlexikon has pictures of a 13-column version of the SuN adder.
Rechnen Ohne Strom has a page showing several types of chain adders.
Rechenwerkzeug has the German manual for the SuN adder.
