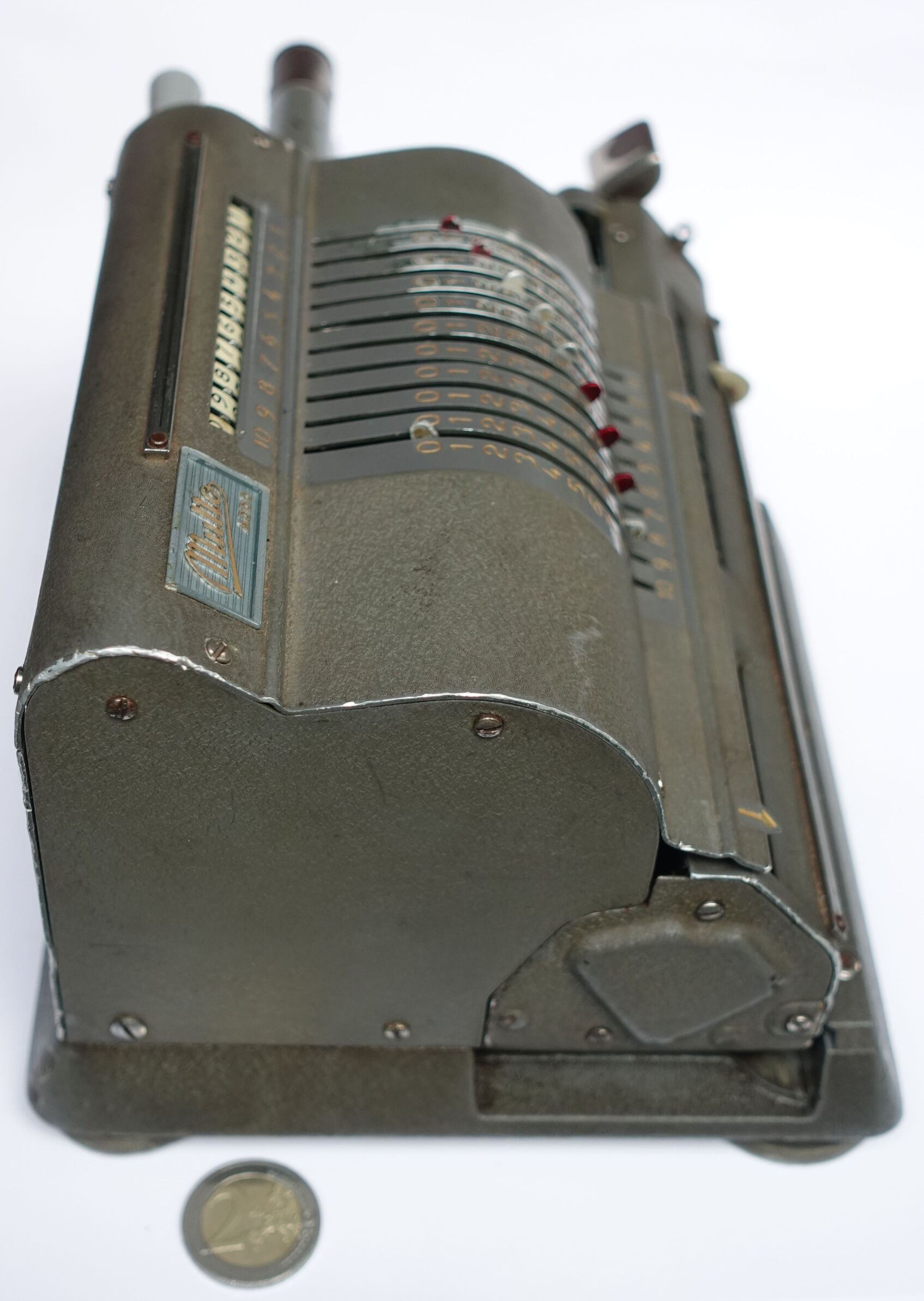

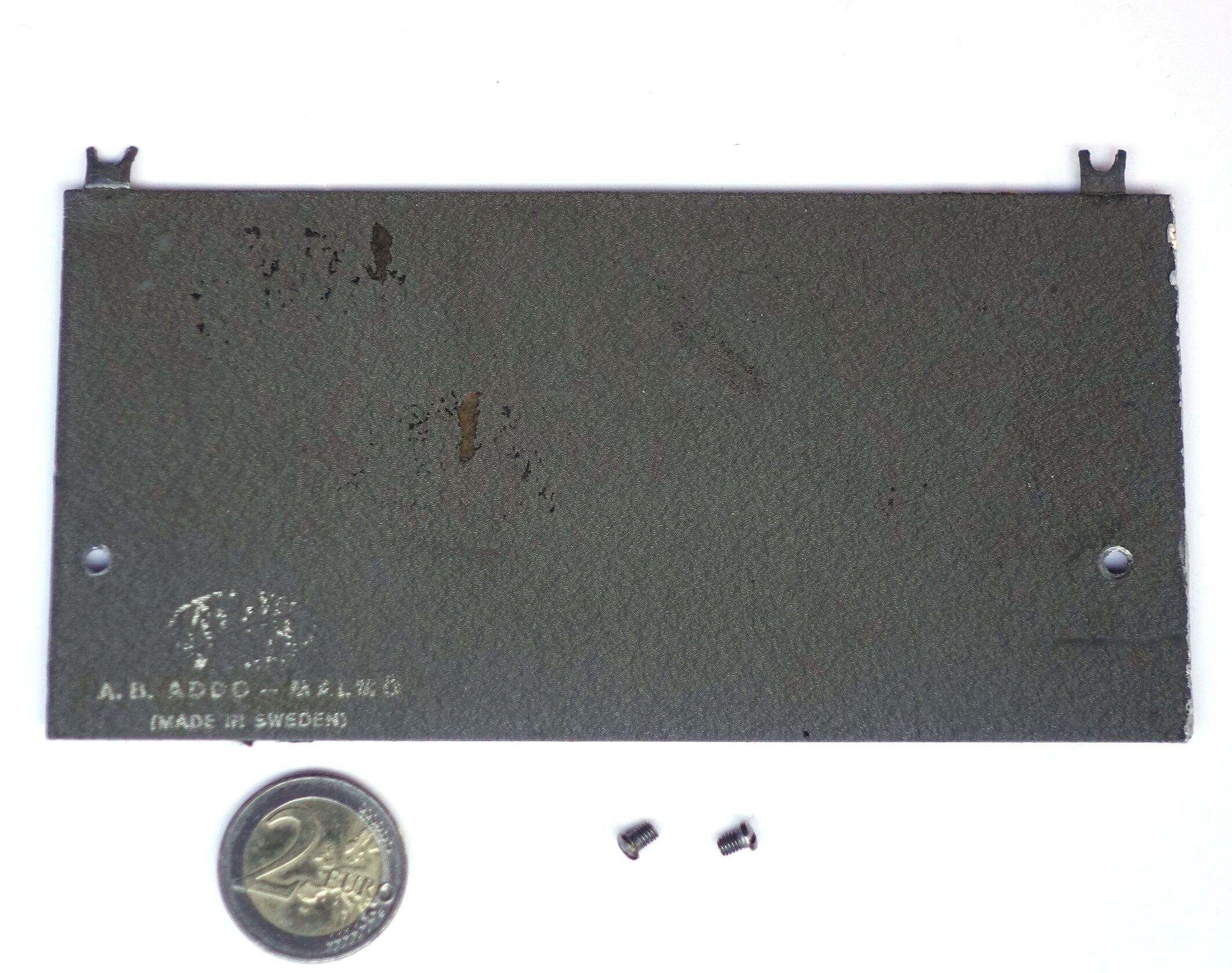

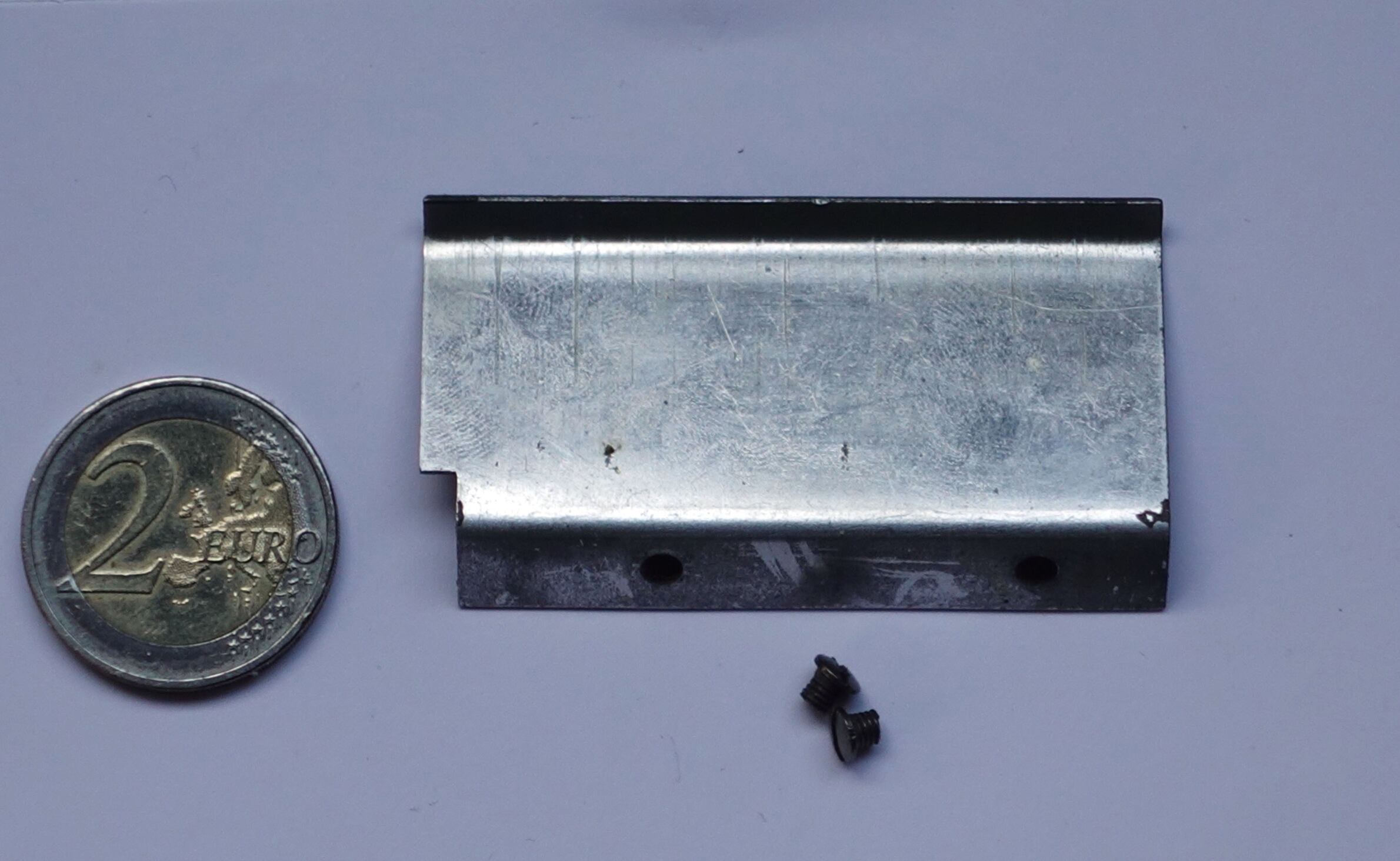

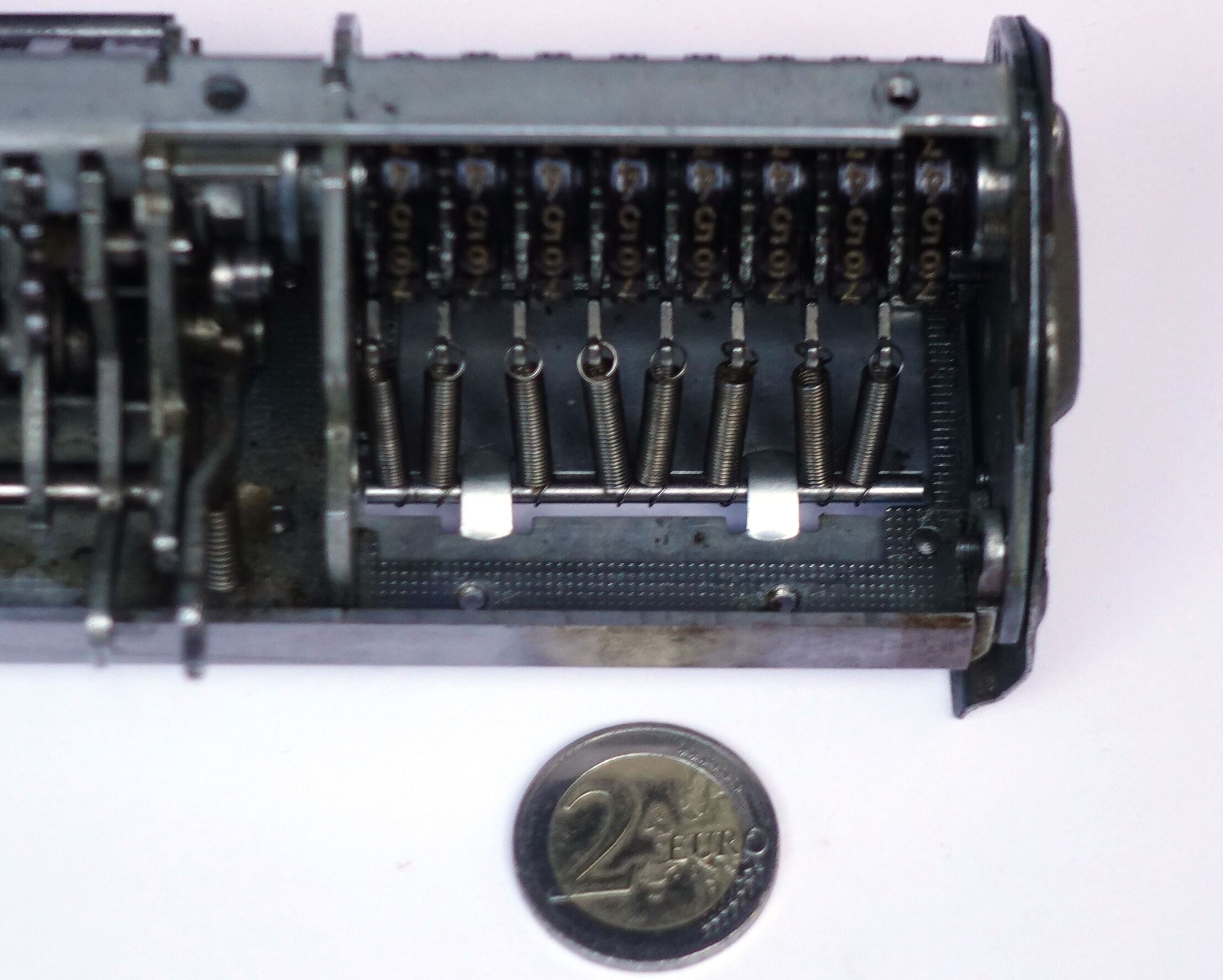

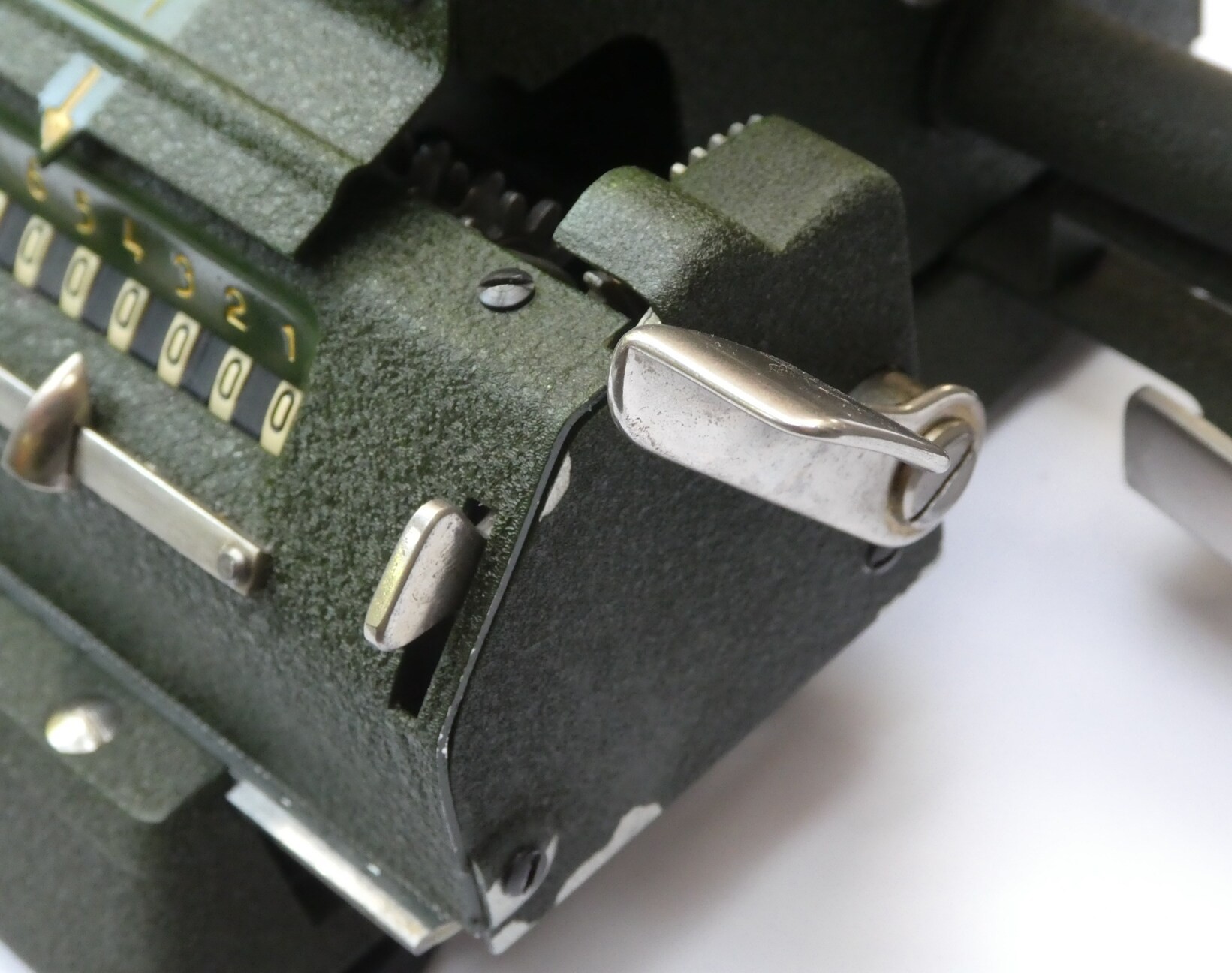

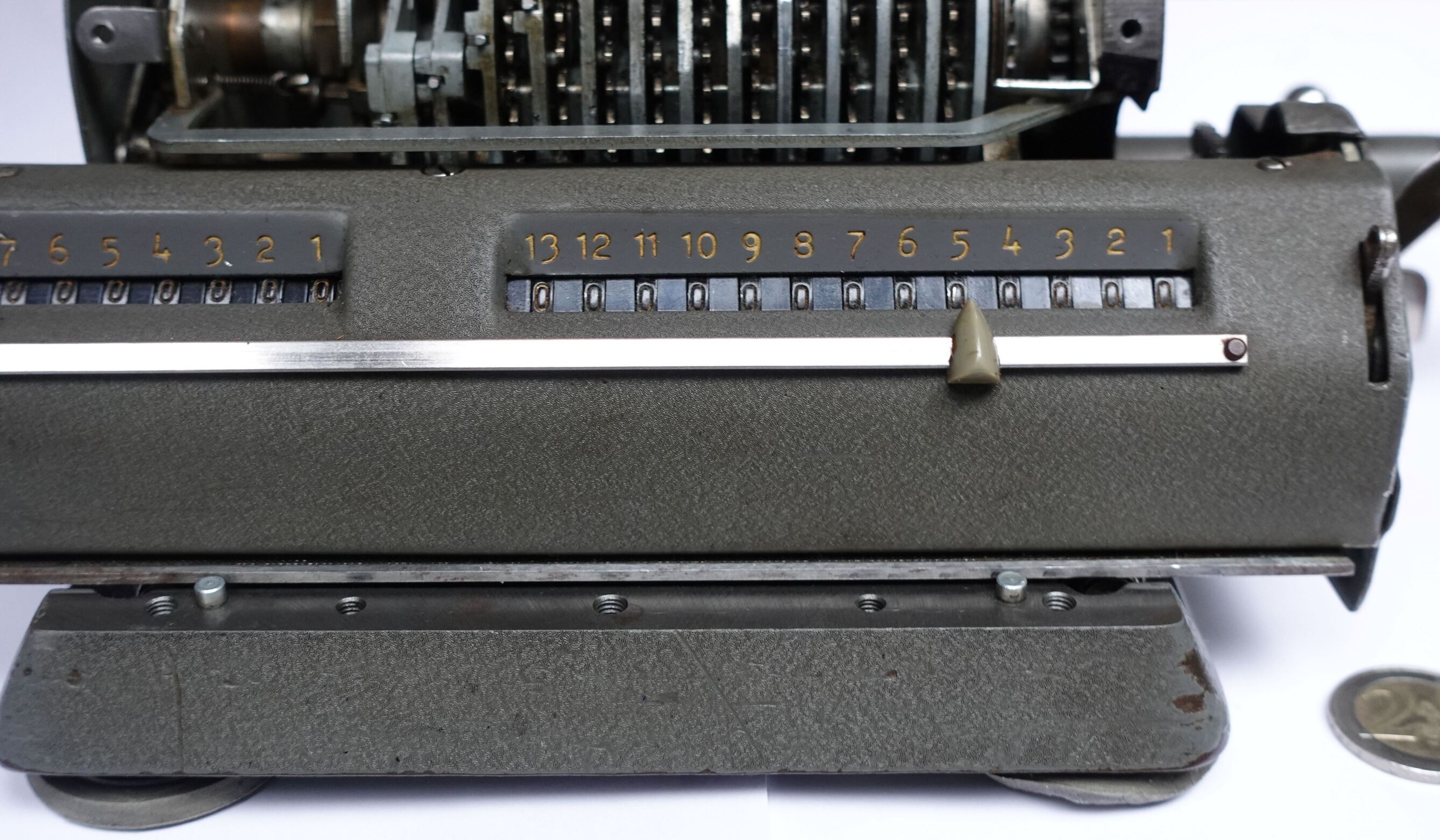

Multo model 3

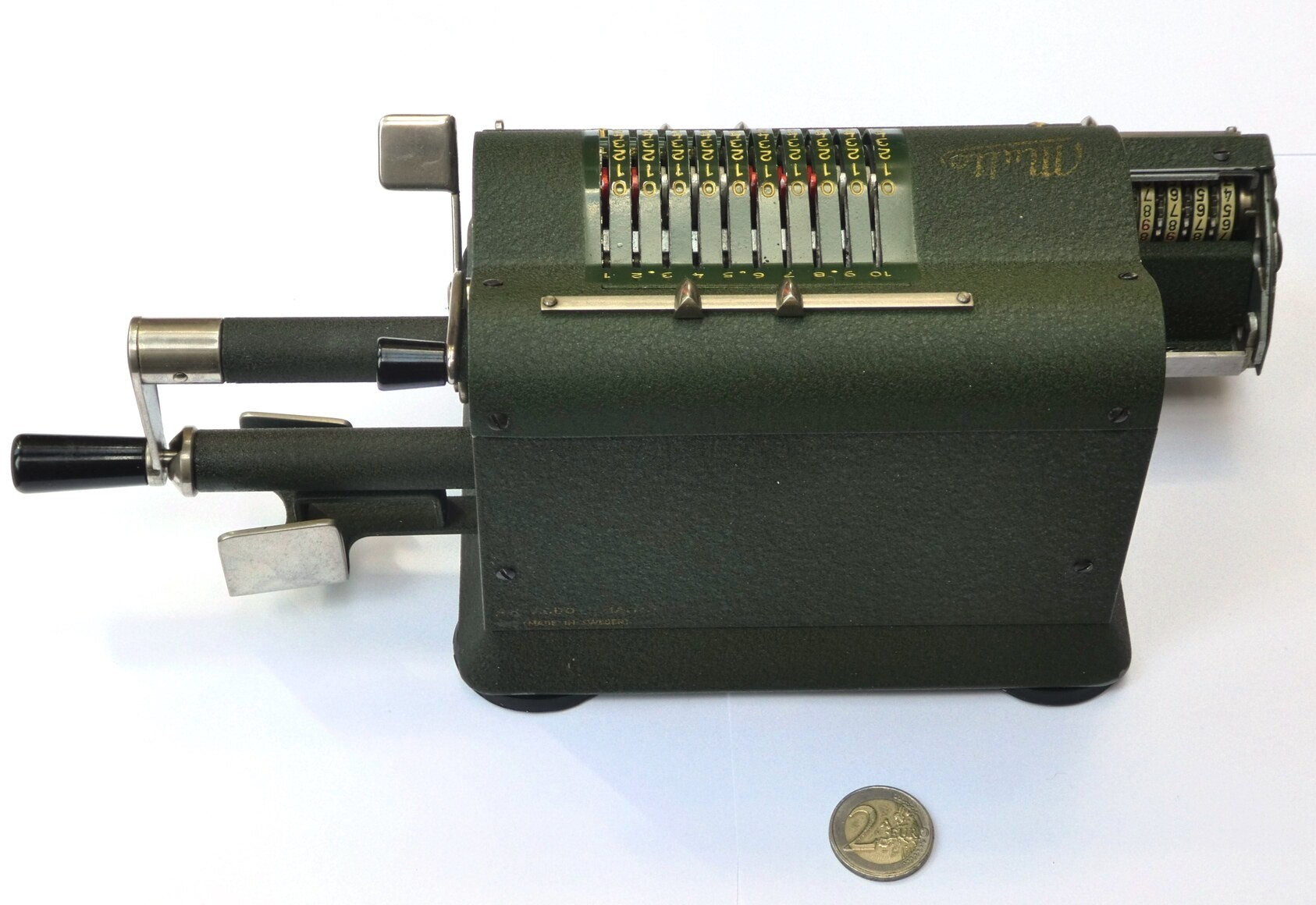

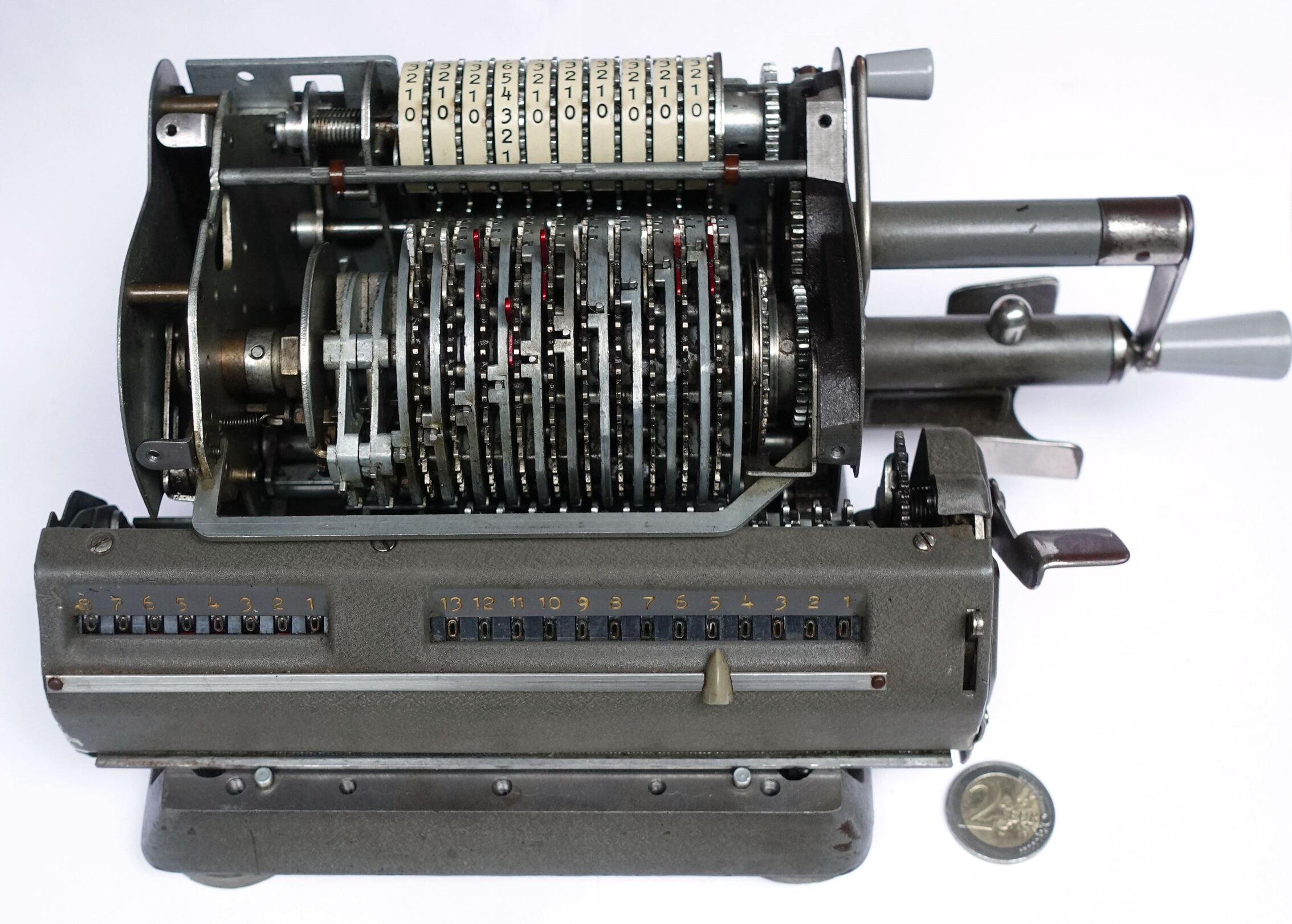

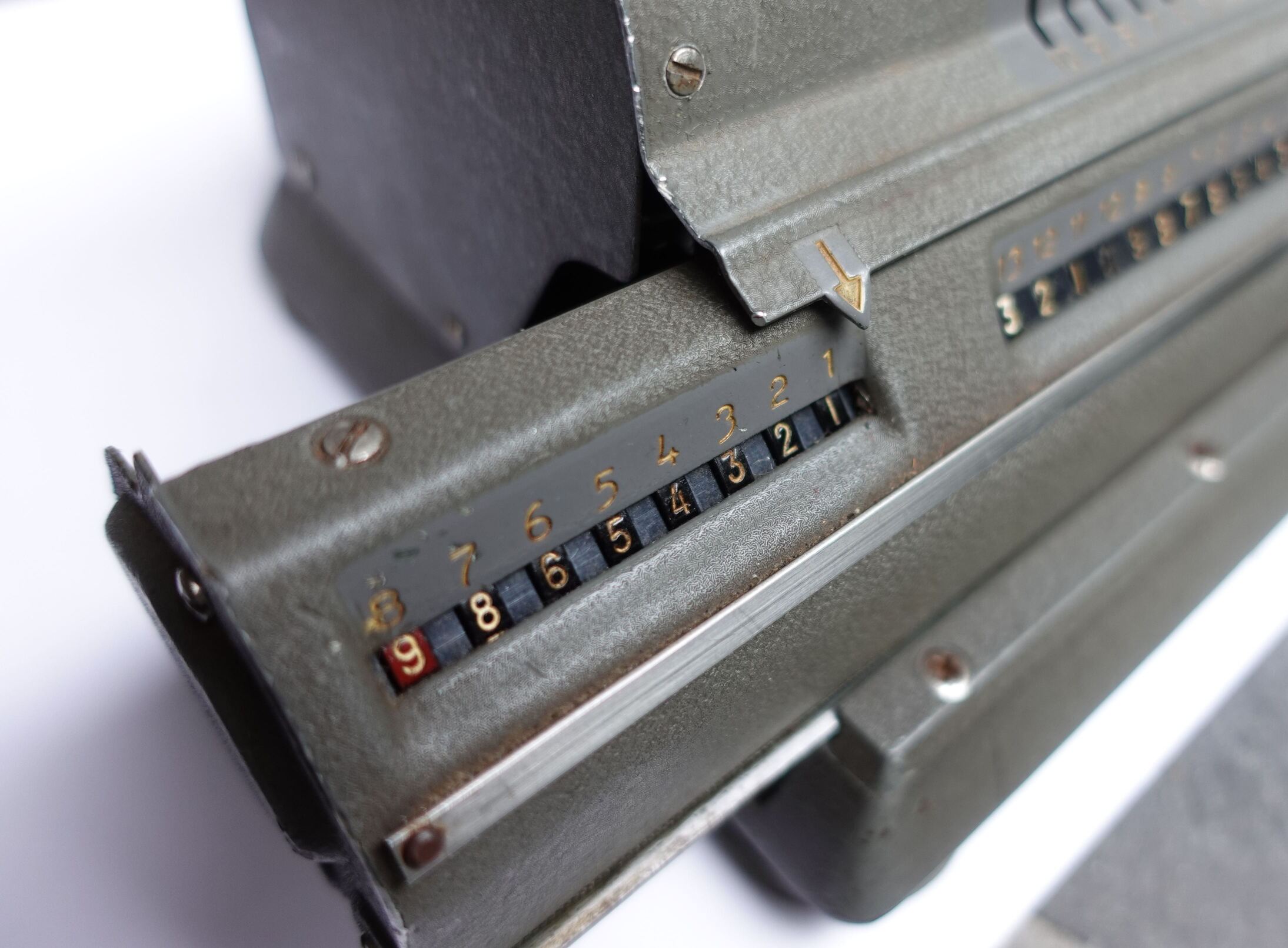

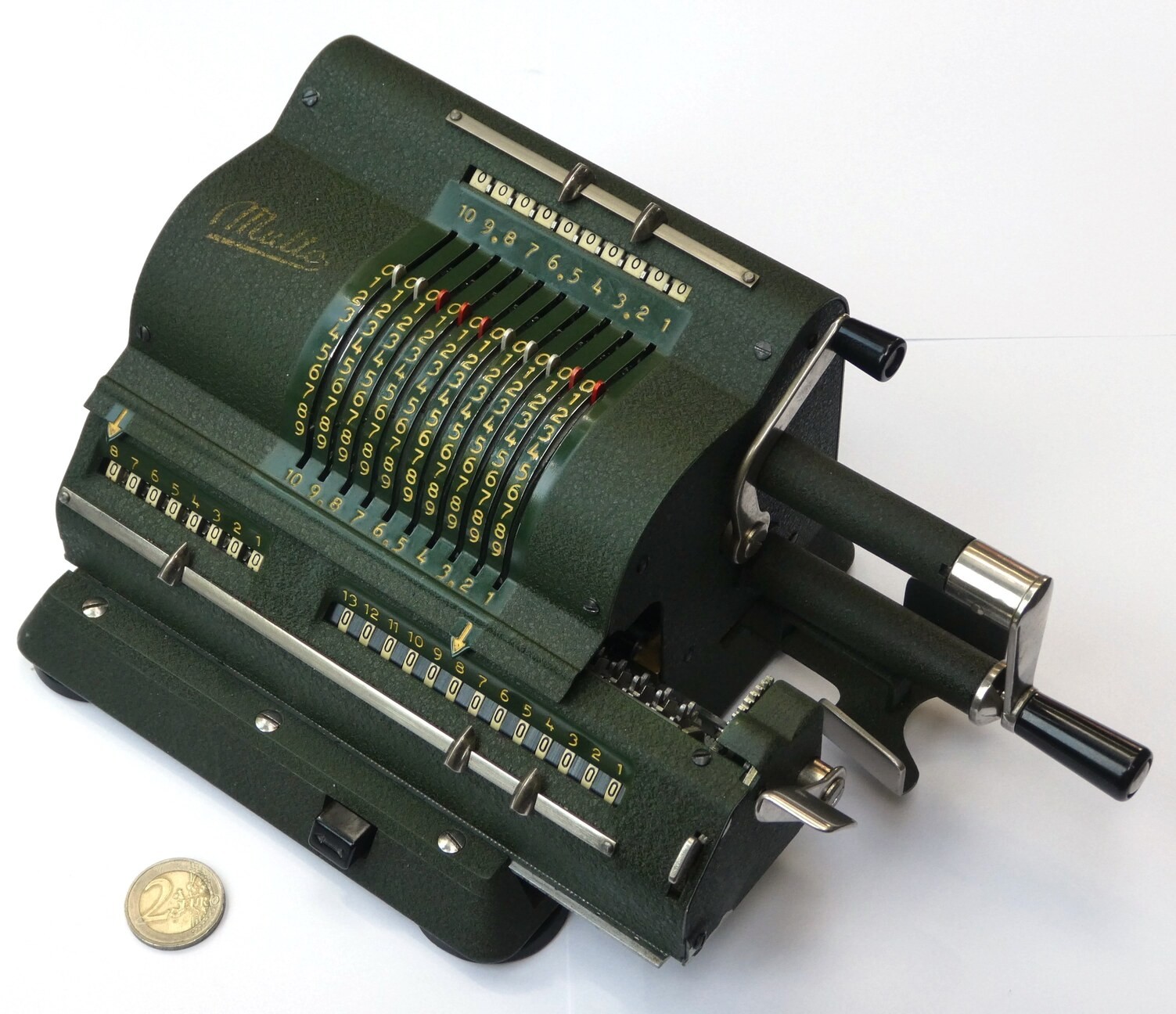

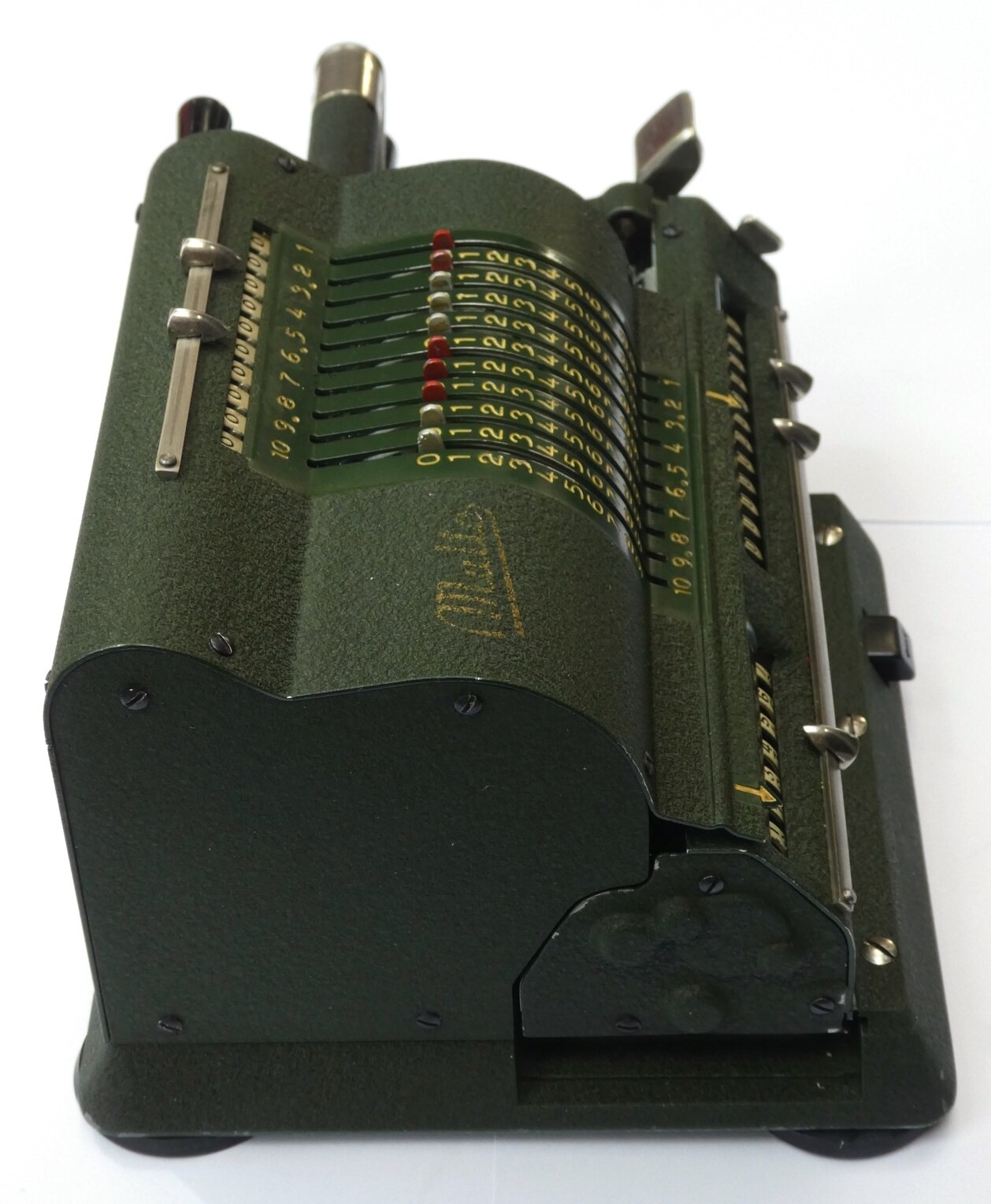

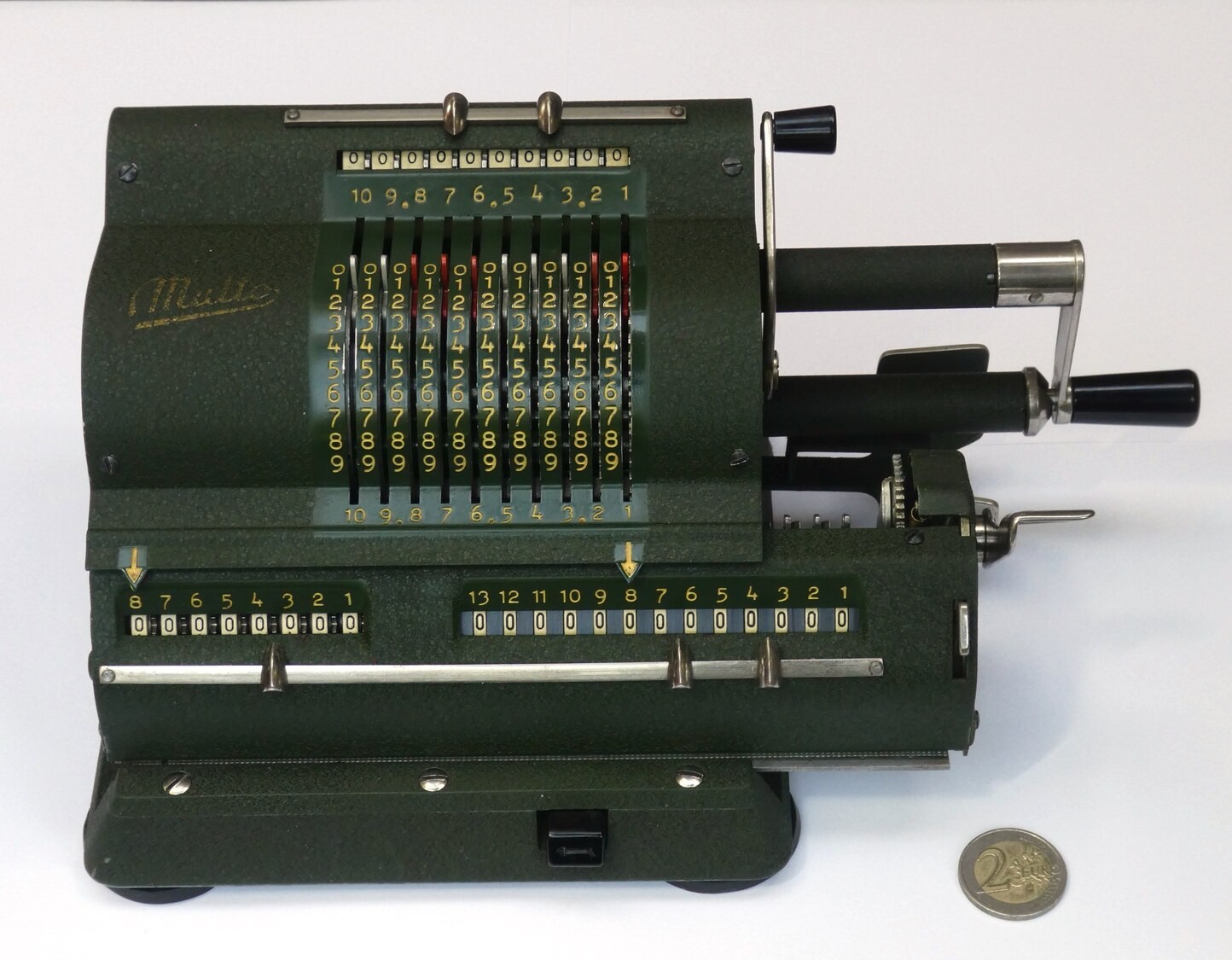

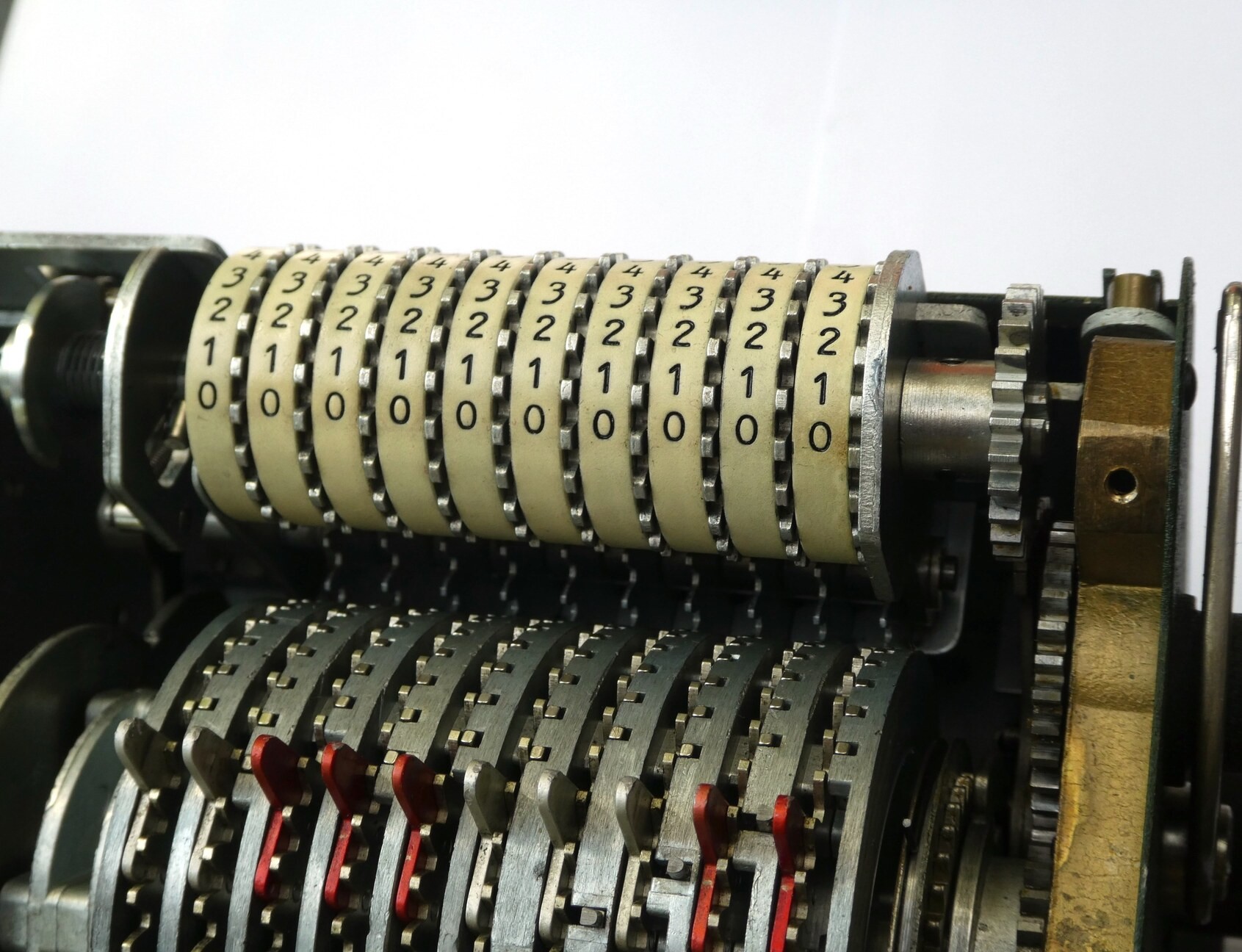

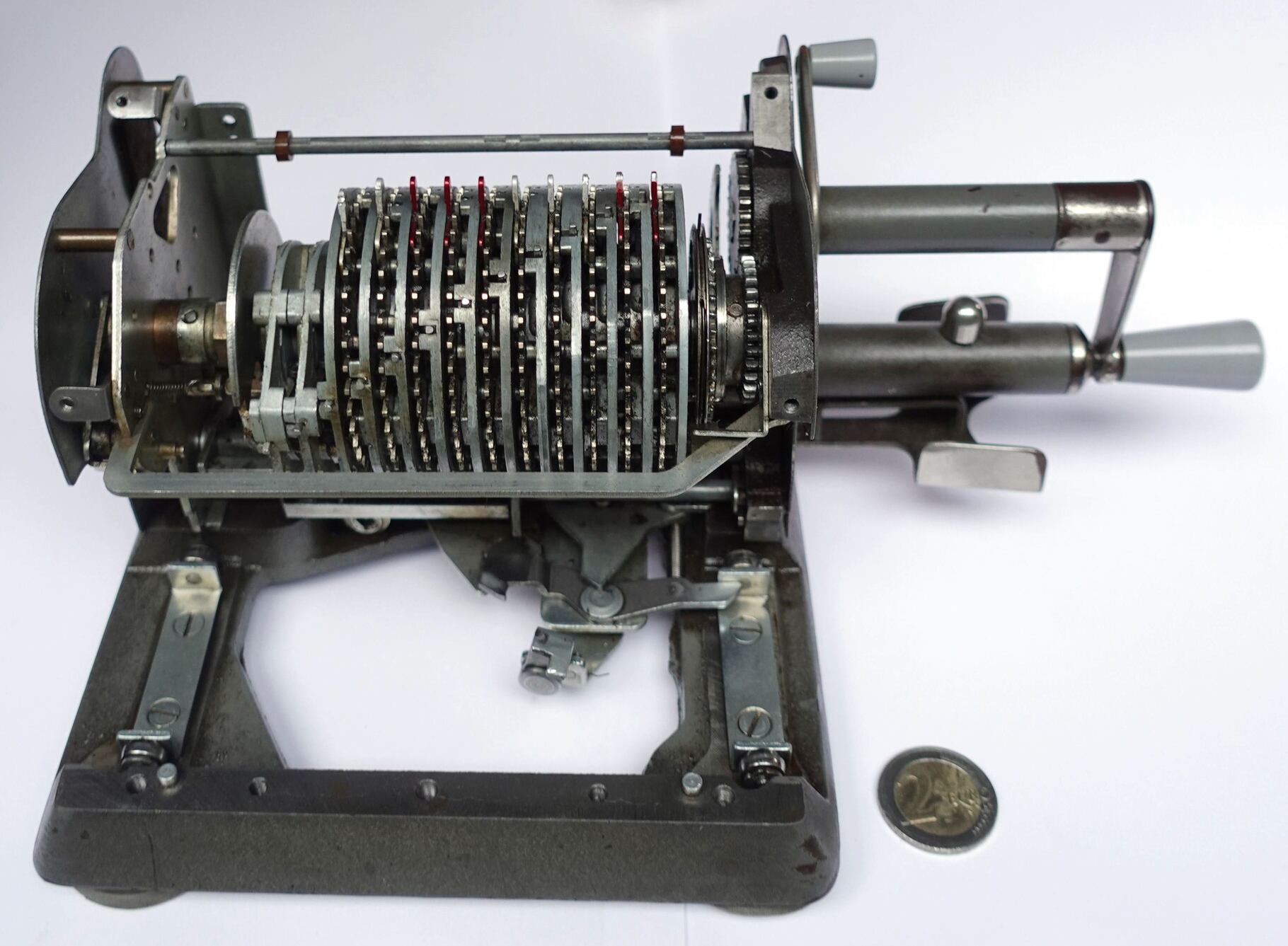

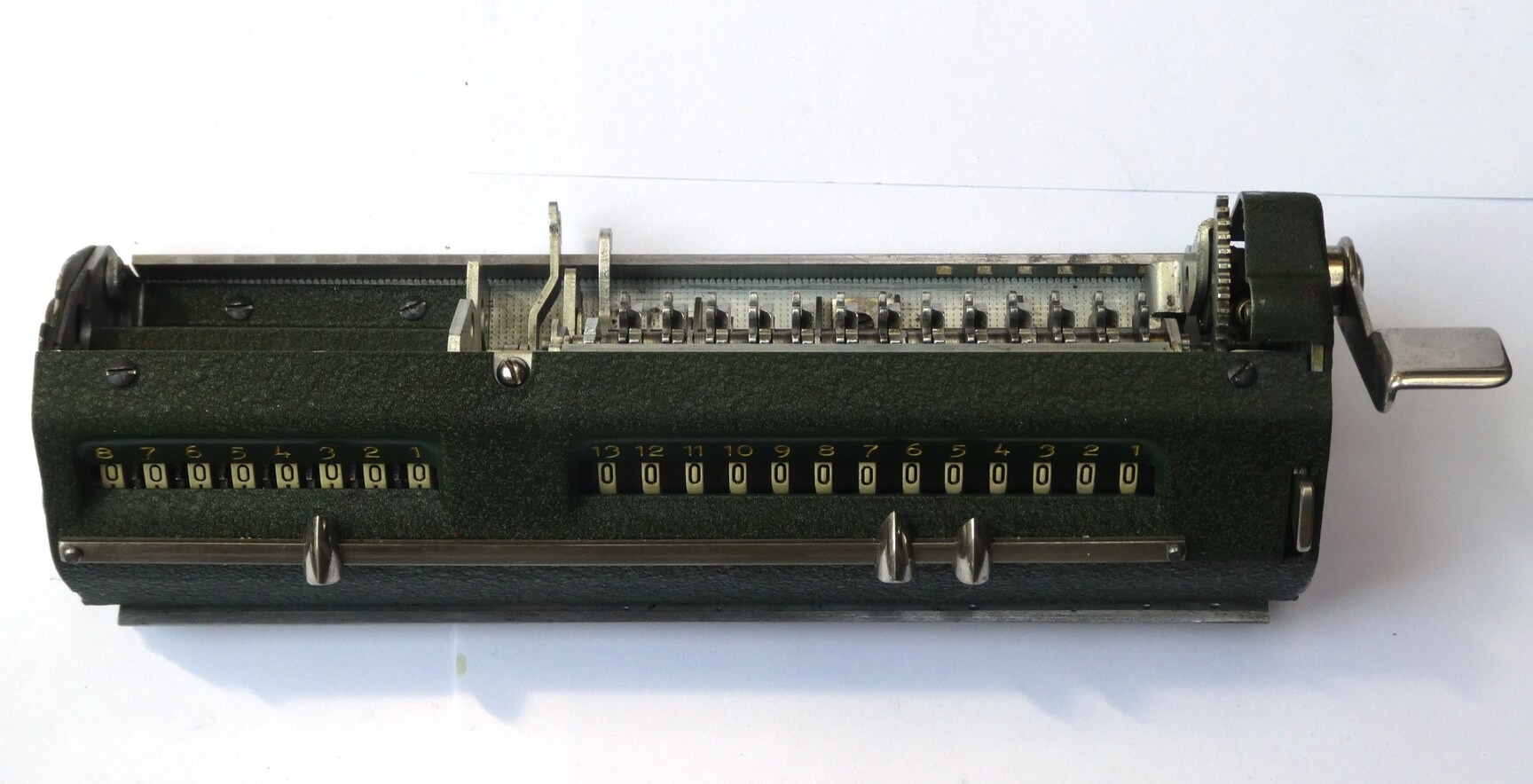

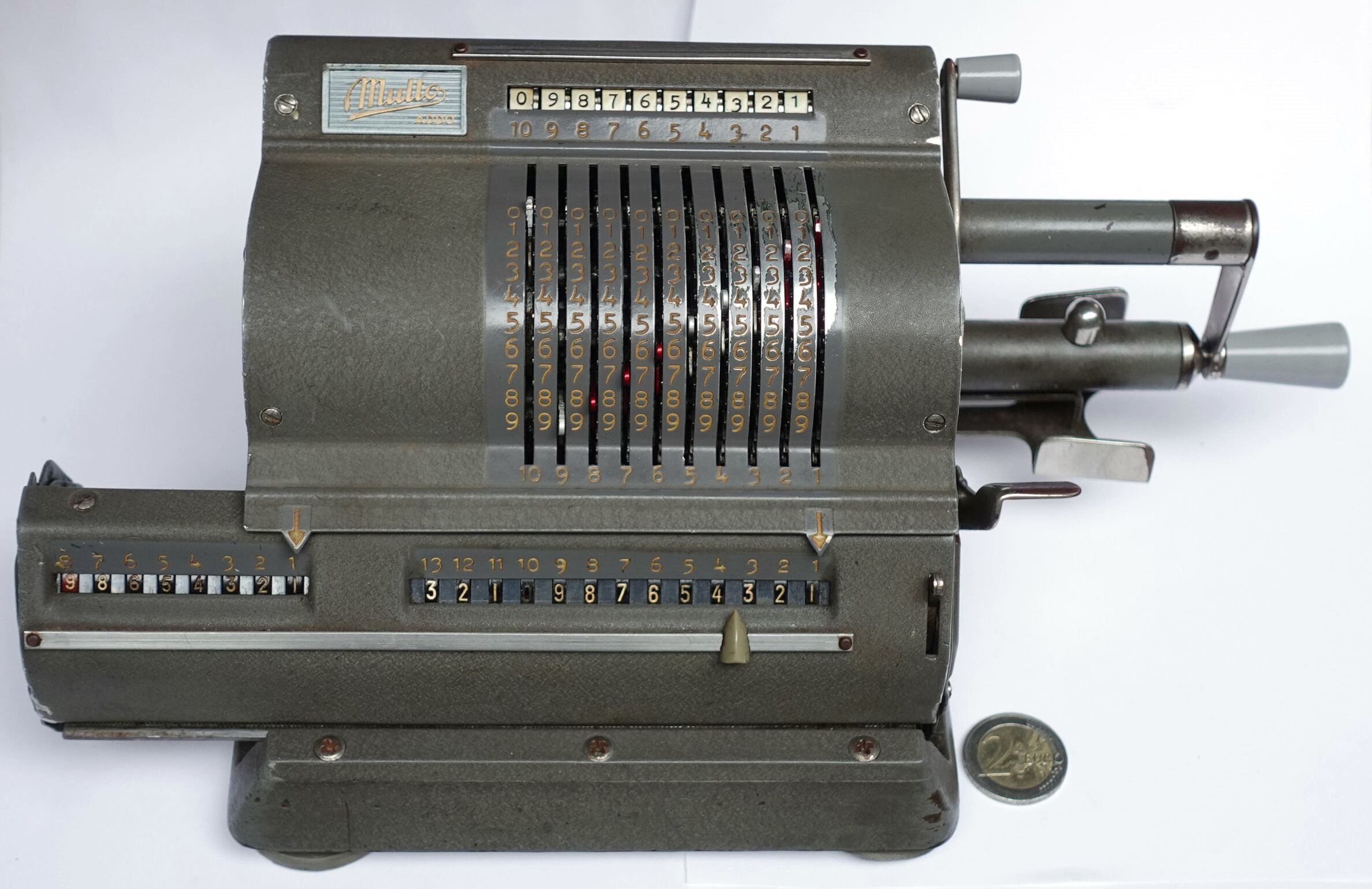

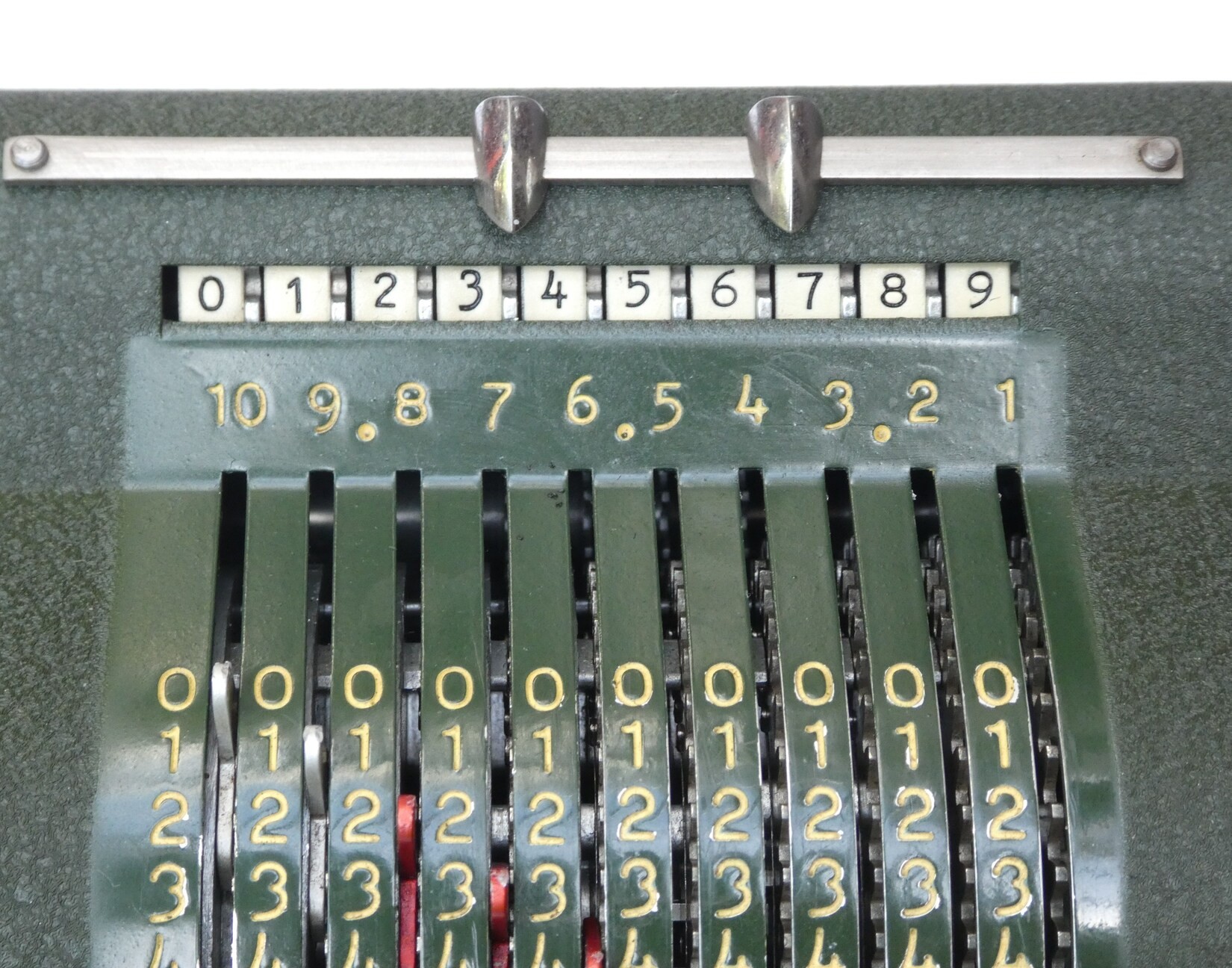

The Multo model 3 is a pinwheel machine with an input display register, but without back transfer and no carry mechanism in the counter register.

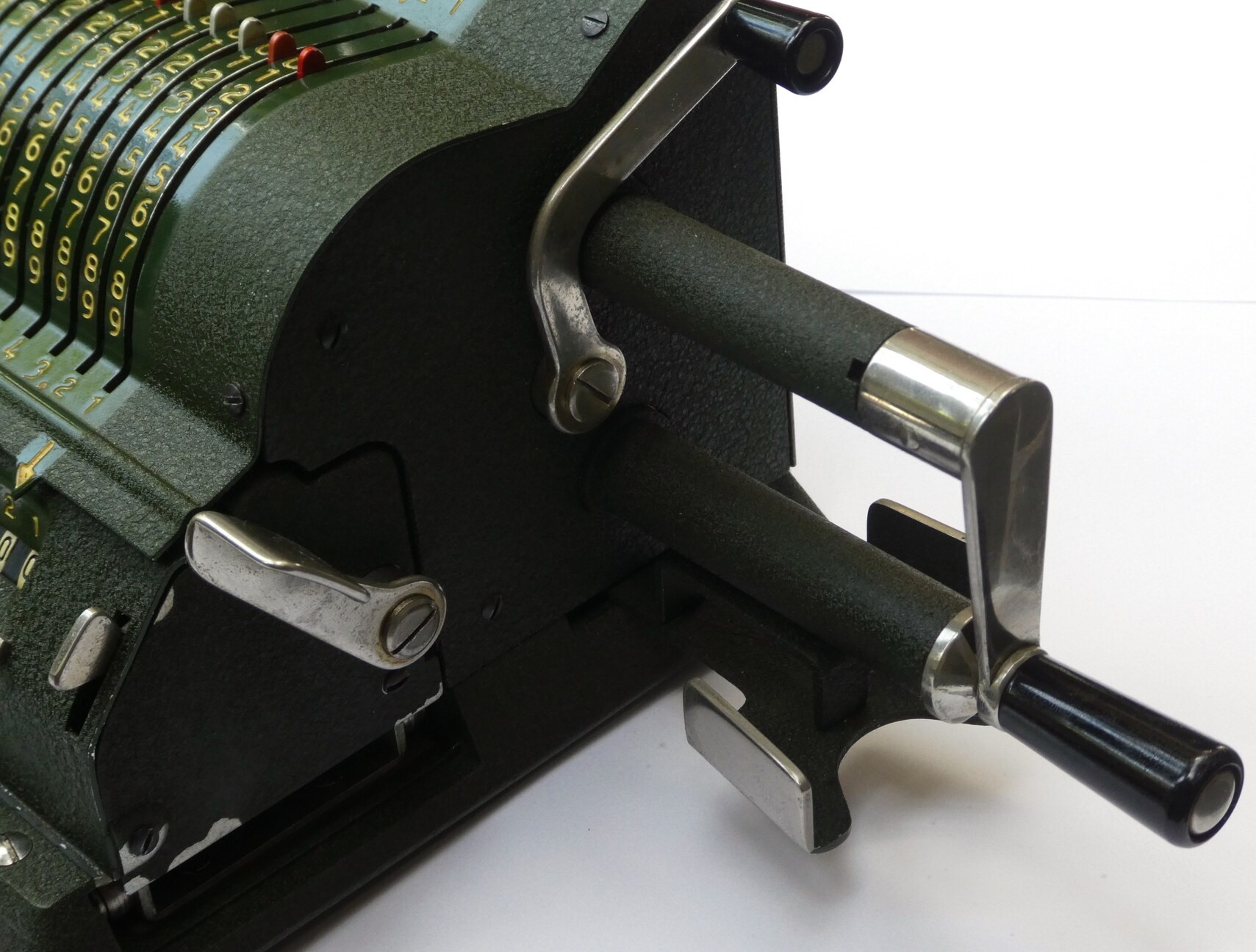

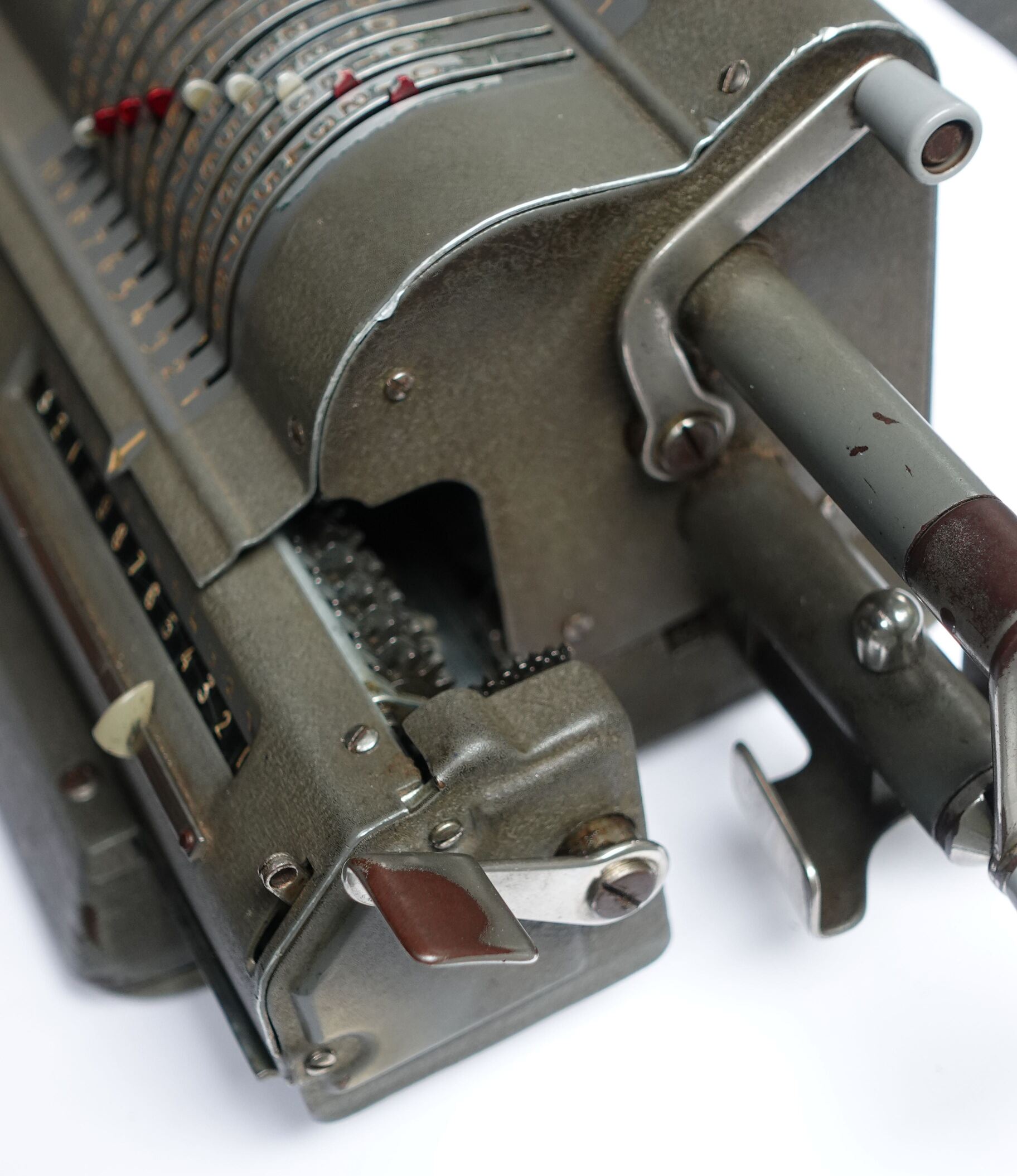

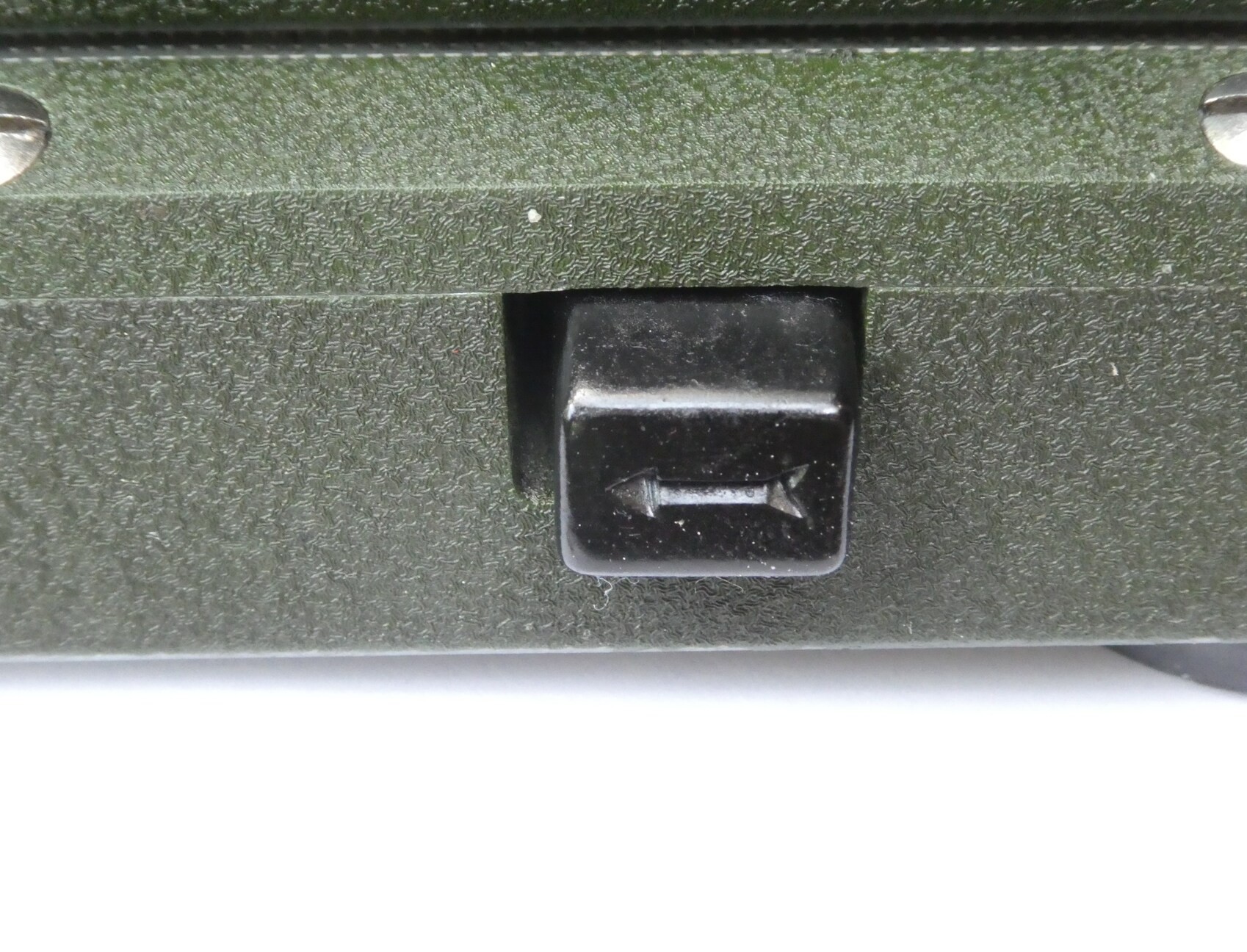

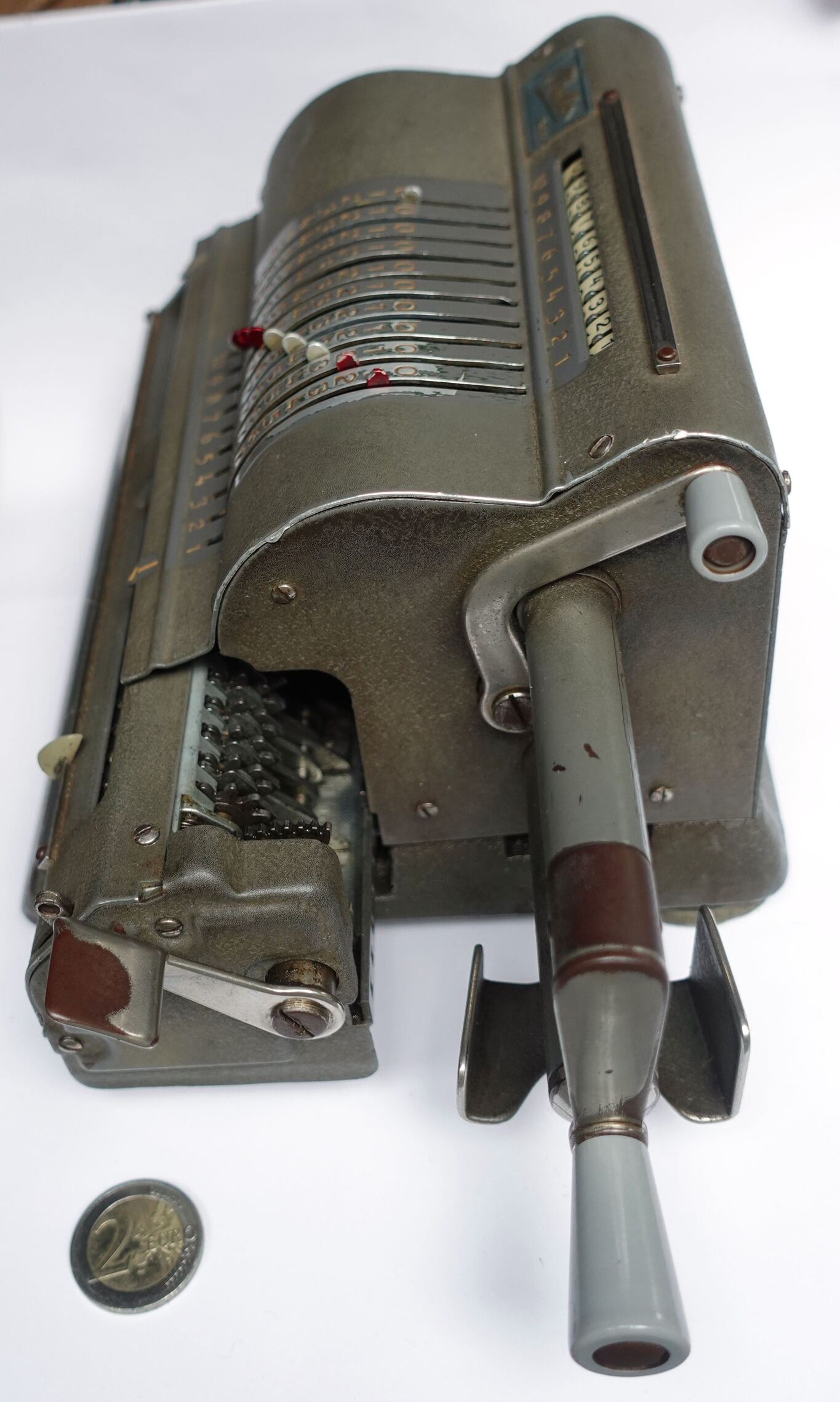

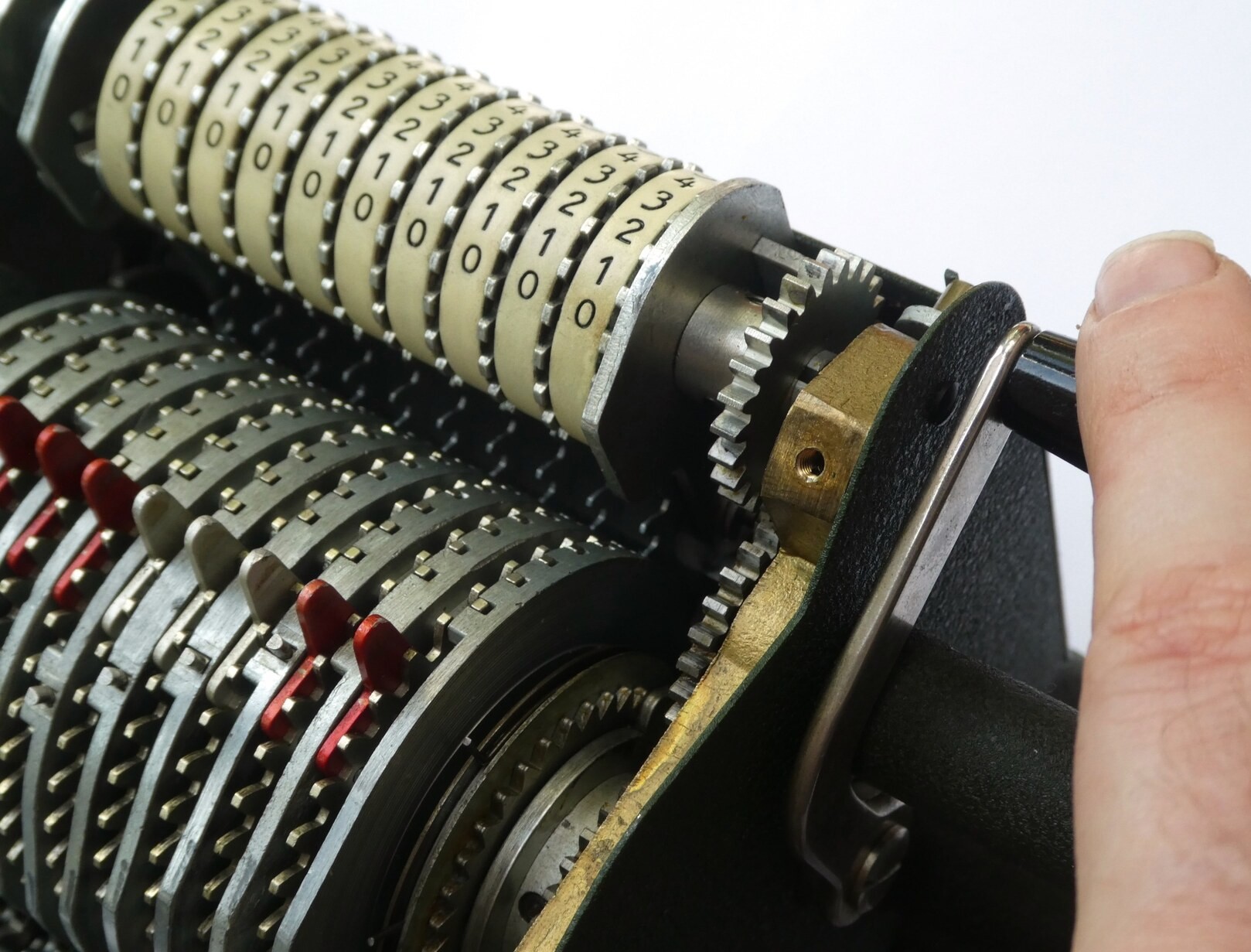

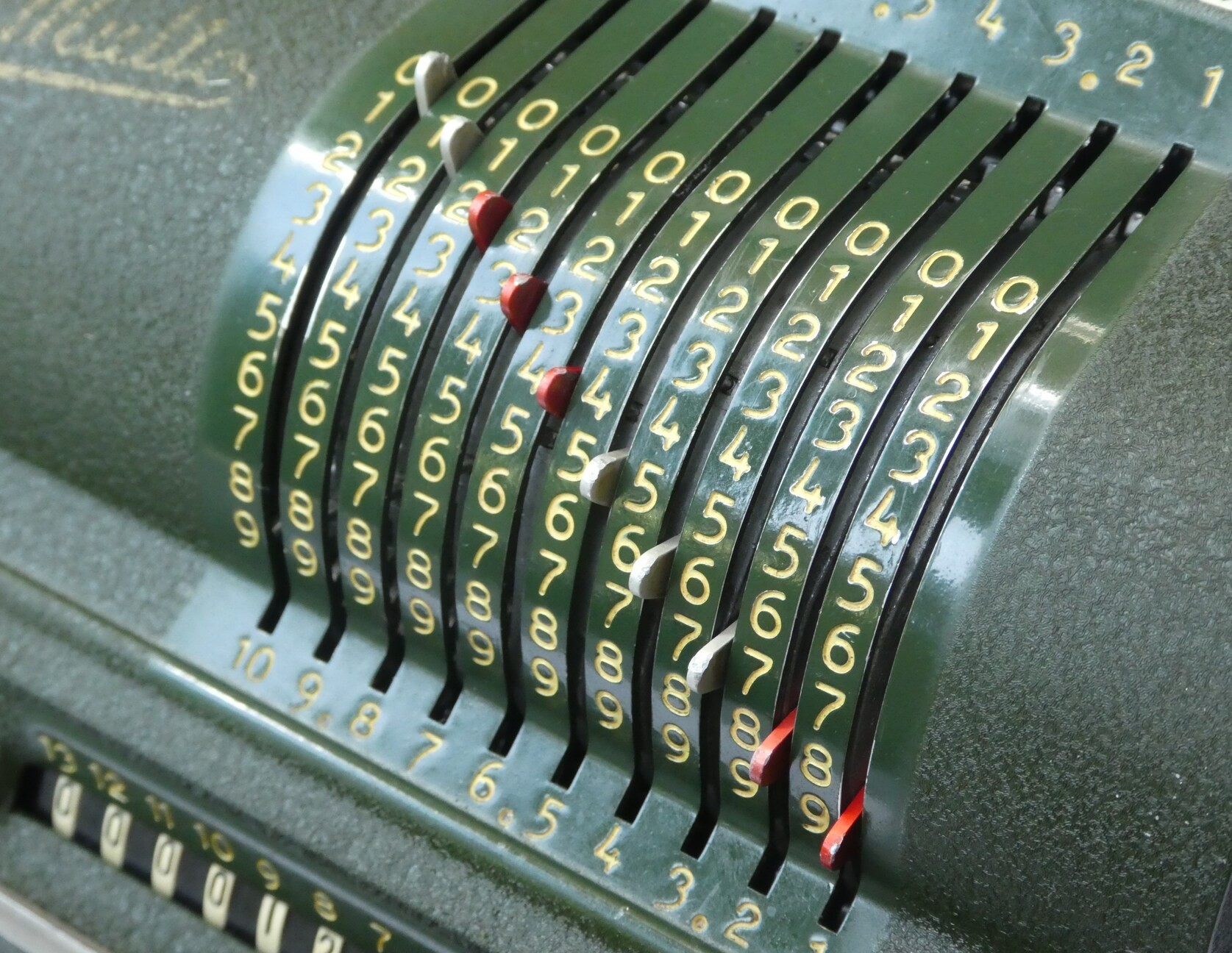

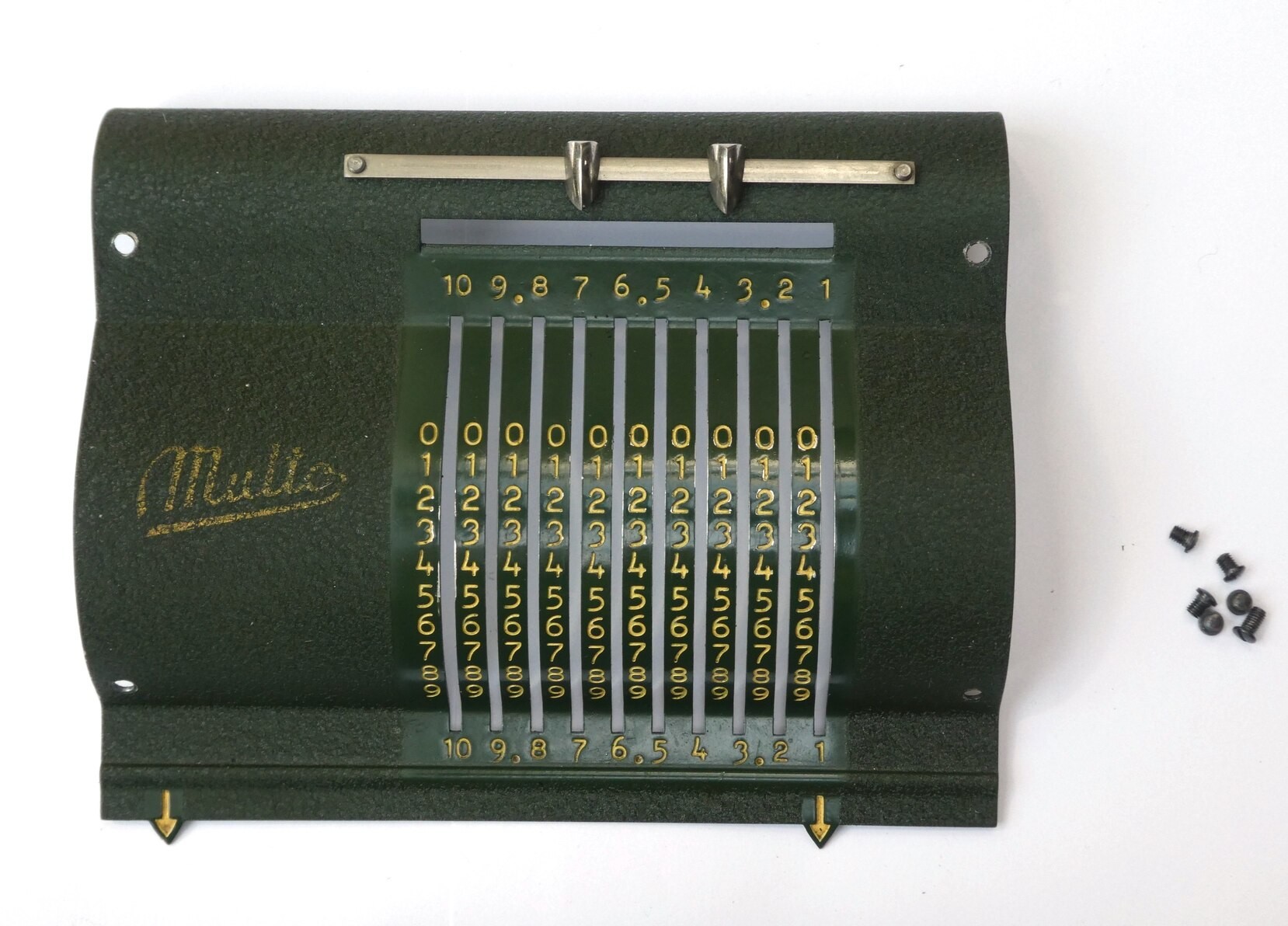

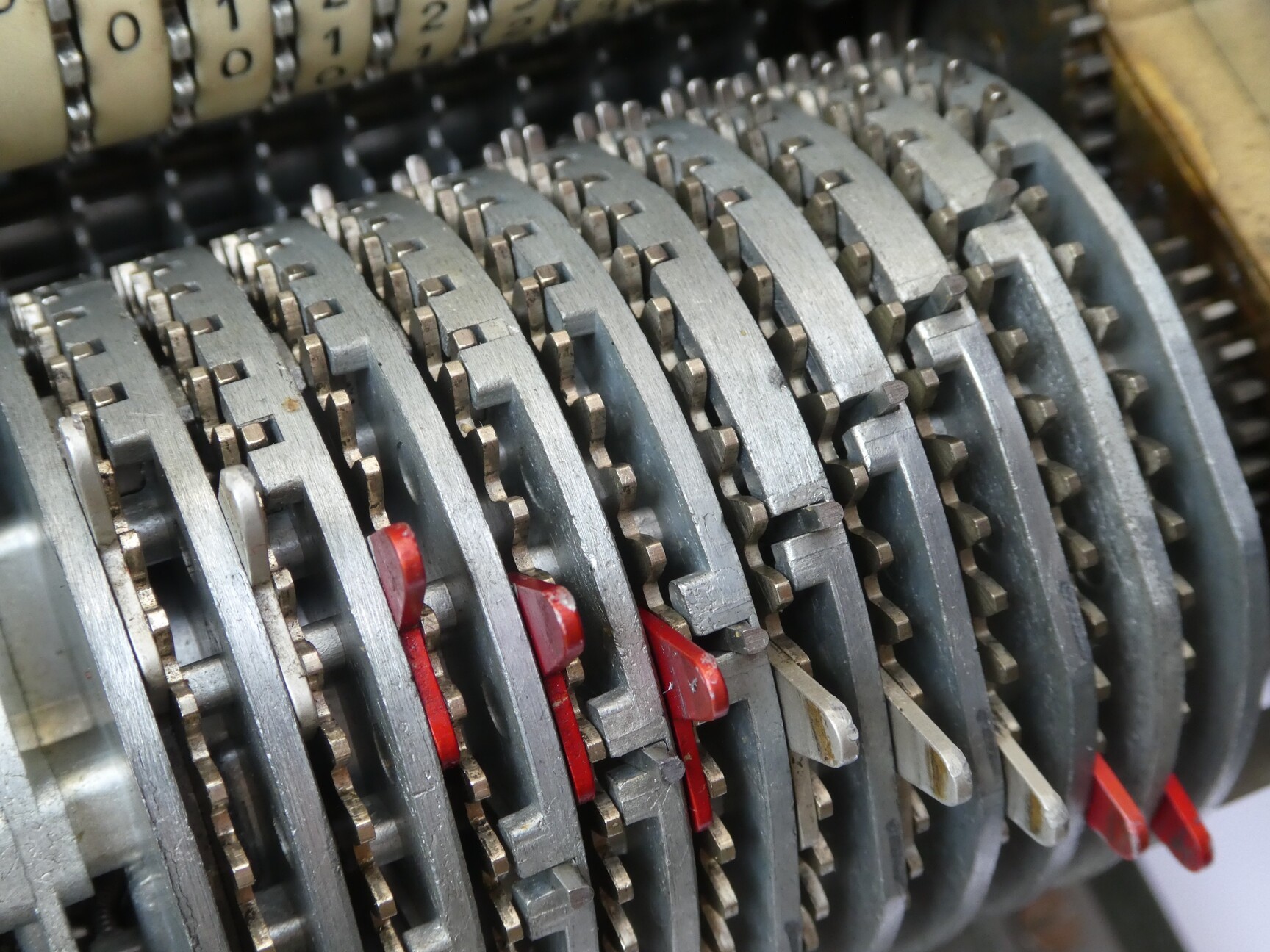

It has all its controls on the right hand side so that it can be operated with only one hand, something that other Swedish pinwheel calculators did not yet do. Other distinguishing features are the input pins which are coloured in groups alternating red and silver, and the black button on the front that shifts the carriage fully to the left by a spring.

Multo model 3
Multo model 3
Multo model 3
Multo model 3
Multo model 3
Multo model 3
Multo model 3
Multo model 3
Multo model 3
Multo model 3
Multo model 3
Multo model 3
Multo model 3
Multo model 3
Multo model 3
Multo model 3
Multo model 3
Multo model 3
Multo model 3
Multo model 3
Multo model 3
Multo model 3

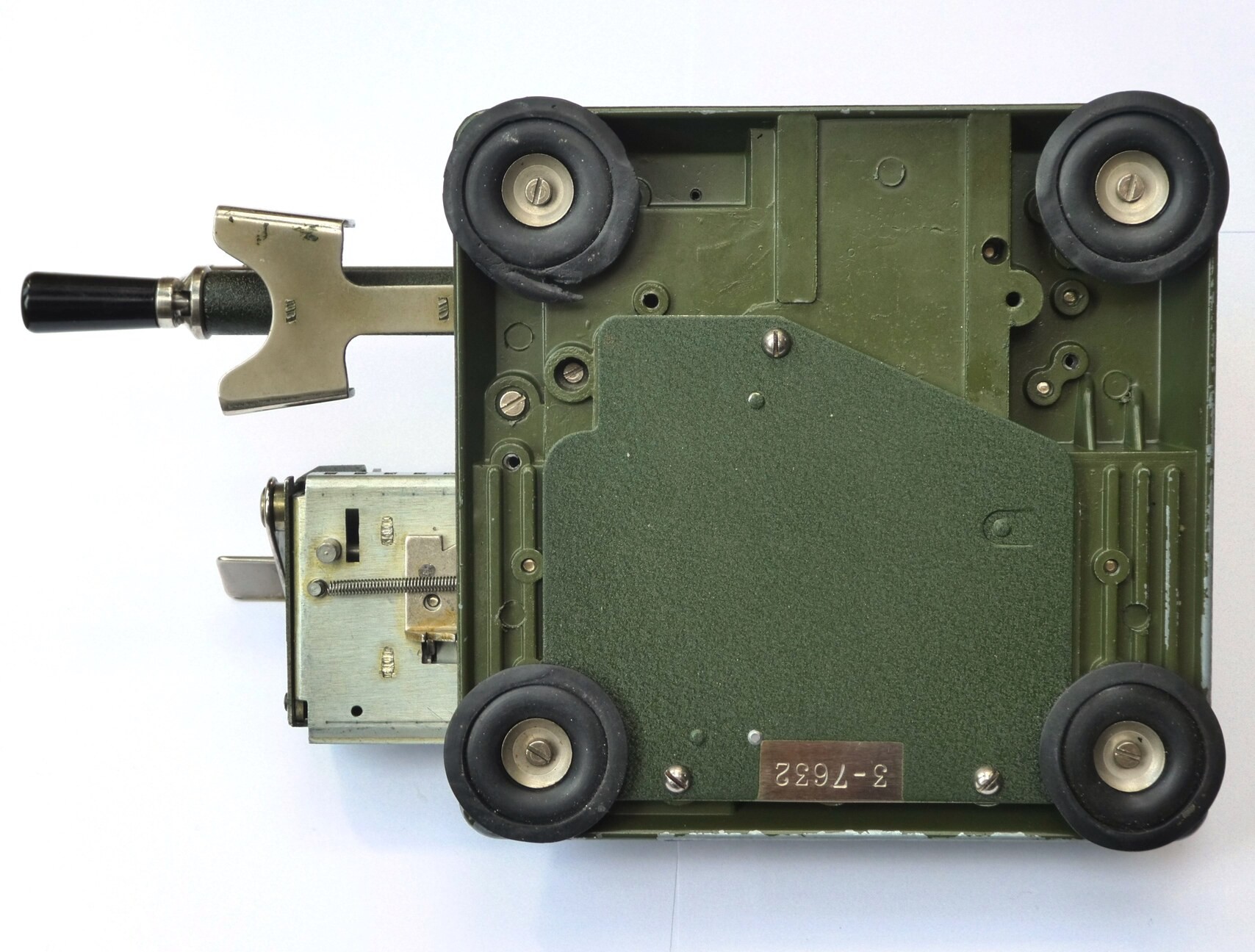

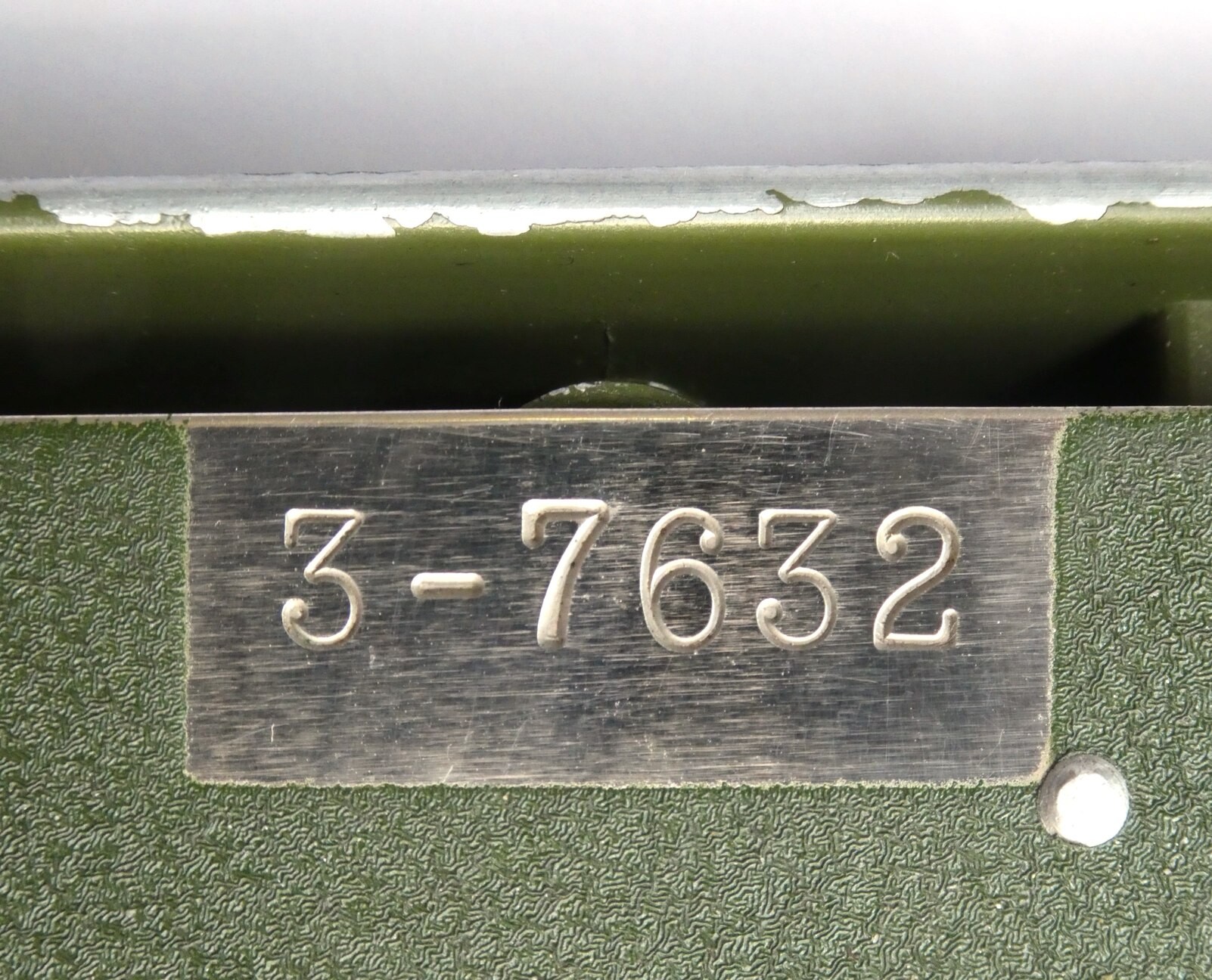

It has serial number 3-7632. It was made somewhere between 1949 and 1953 because the carriage release button is on the front. On later versions the button is located on the crank rest.

Multo model 3
Multo model 3
Multo model 3
Multo model 3
Multo model 3
Multo model 3
Multo model 3
Multo model 3
Multo model 3
Multo model 3
Multo model 3
Multo model 3
Multo model 3
Multo model 3
Multo model 3
Multo model 3
Multo model 3
Multo model 3
Multo model 3
Multo model 3
Multo model 3
Multo model 3
Multo model 3
Multo model 3
Multo model 3
Multo model 3
Multo model 3
Multo model 3
Multo model 3
Multo model 3


Video

A short demonstration of the machine.




History

Aktiebolaget Addo was founded in Malmö in 1918 by Hugo Agrell. He had been a salesman, mostly of American and German calculators. When the first world war made the import of these machines more difficult, he had the idea to make Swedish adding machines. His cousin Oscar Prinz was a mechanical engineer, and together they started the Addo company. At first they made machines similar to the Comptator, but then improved on it and added a printing mechanism. From about 1928 they made full keyboard adding listing machines of their own design, and from about 1935 they made machines with 10-key numeric input, named Addo-X.

In the early 1940s they designed a pinwheel calculator. As this was a full calculator instead of an adding machine, it was branded Multo instead of Addo. A separate daughter company was set up, and production commenced in 1949 in Örkelljunga, a village 50 miles North of Malmö.

In 1966 the Addo and Multo were bought by Facit-Odhner. The Multo factory was closed, and to cater for their customers some Odhner models were rebranded as Multo machines. Facit was slow to merge with Addo, so the two production lines ran simutaneously for a while, essentially competing with each other. This became more problematic when cheap electronics rapidly changed the market for calculators. Facit was unable to adapt quickly enough, and in 1970 was sold off to Electrolux.

Models

Multo made several versions of their pinwheel calculator.

Input Display
|Back Transfer
||Carry in counter
|||
ModelYears|||Notes

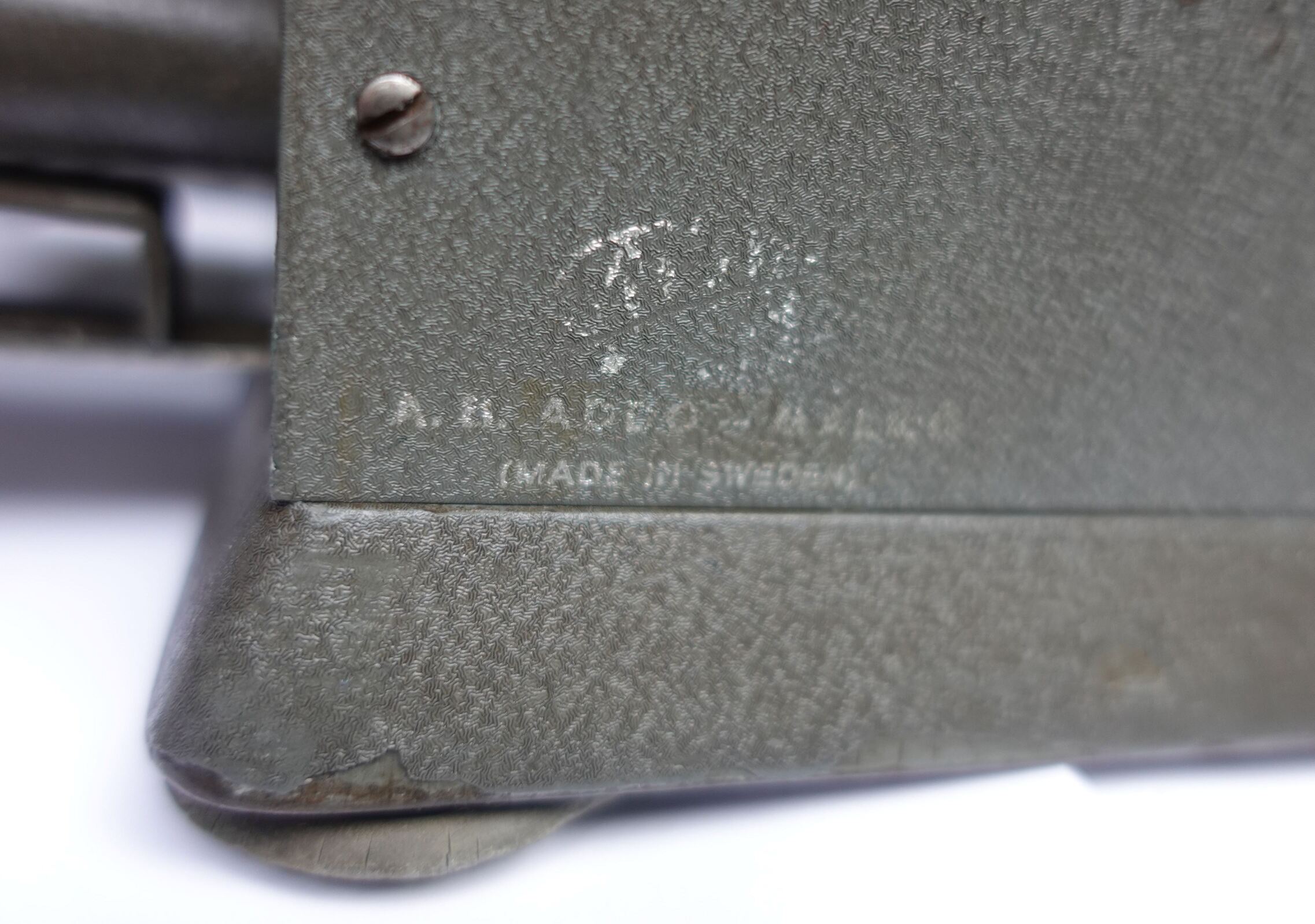

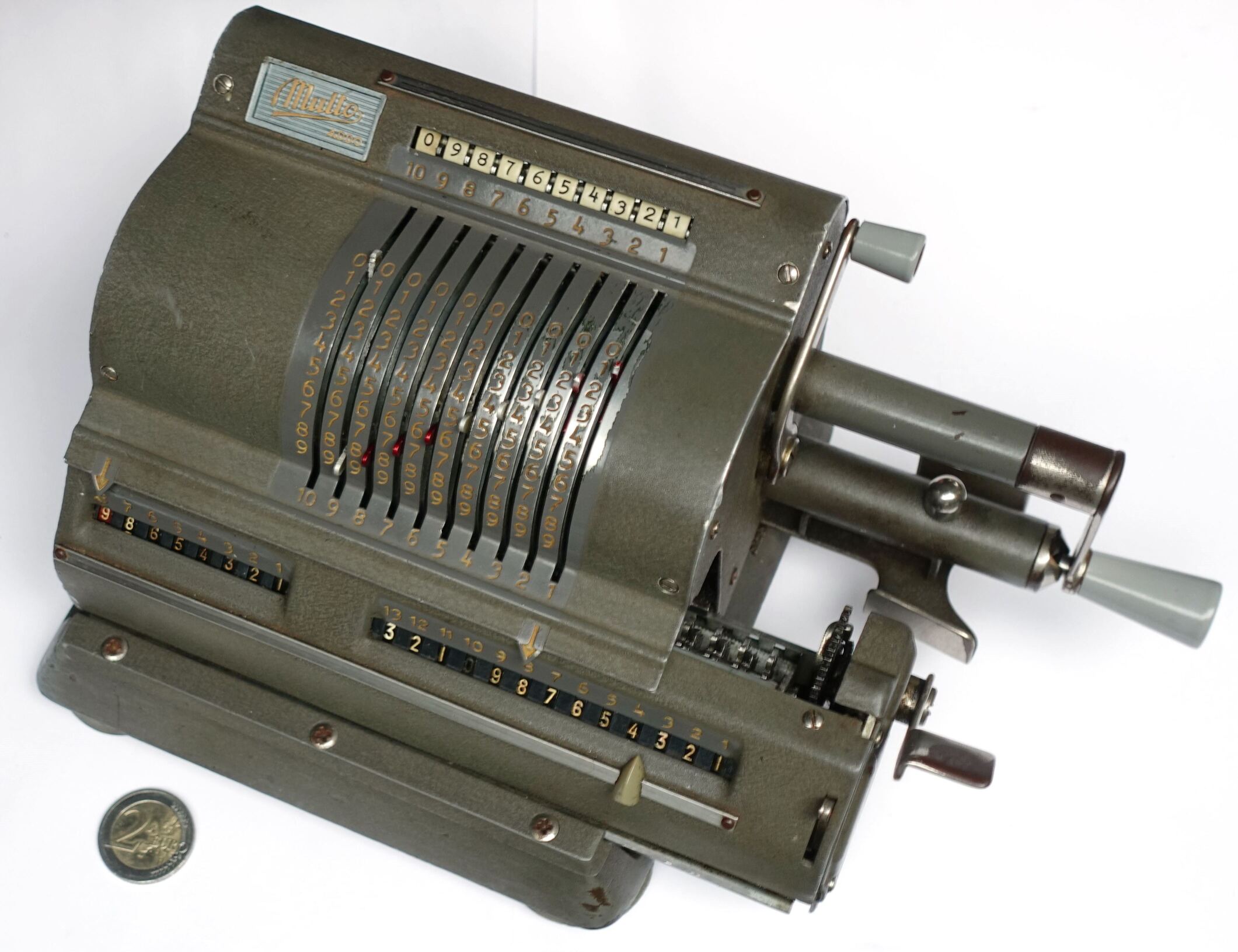

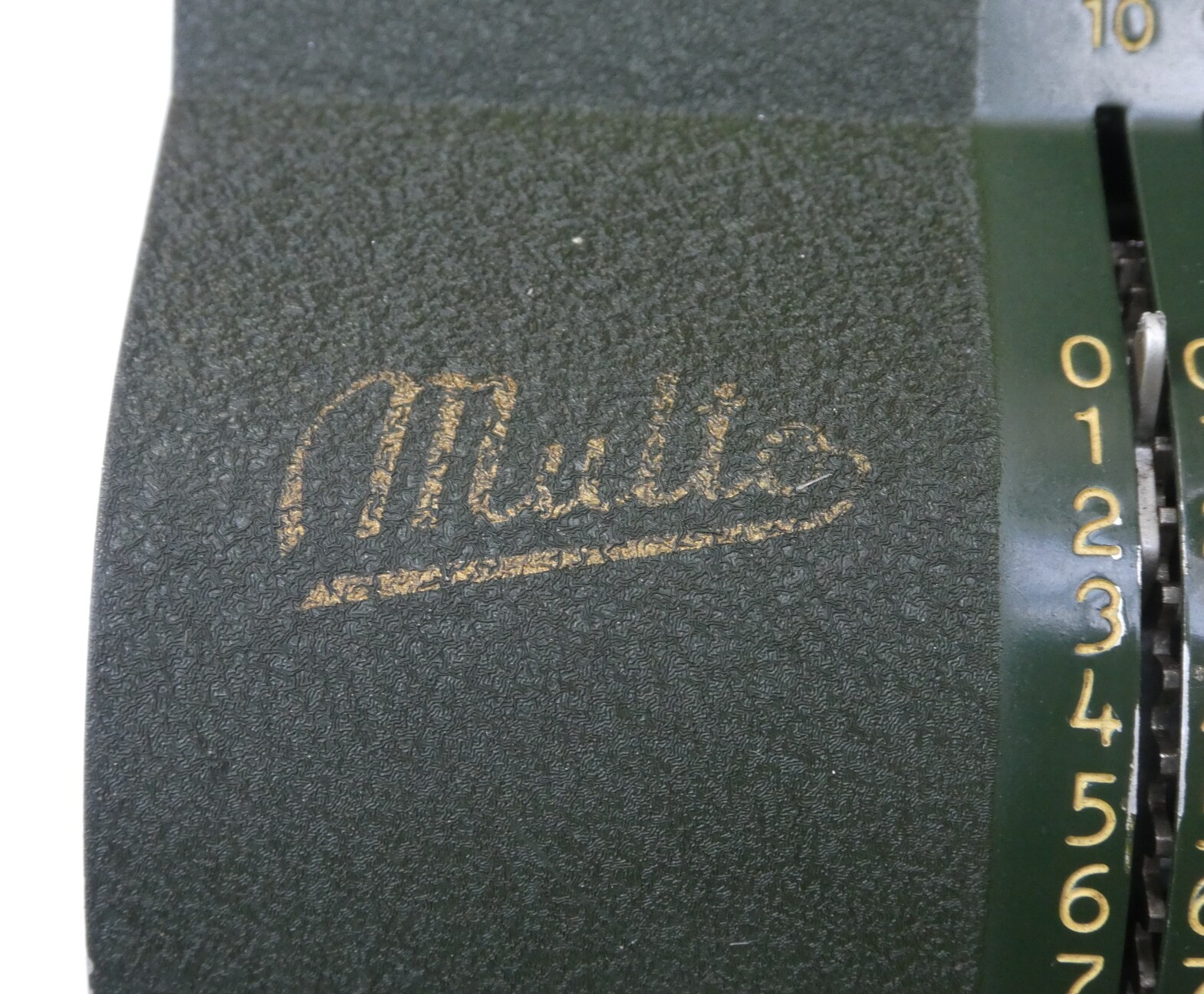

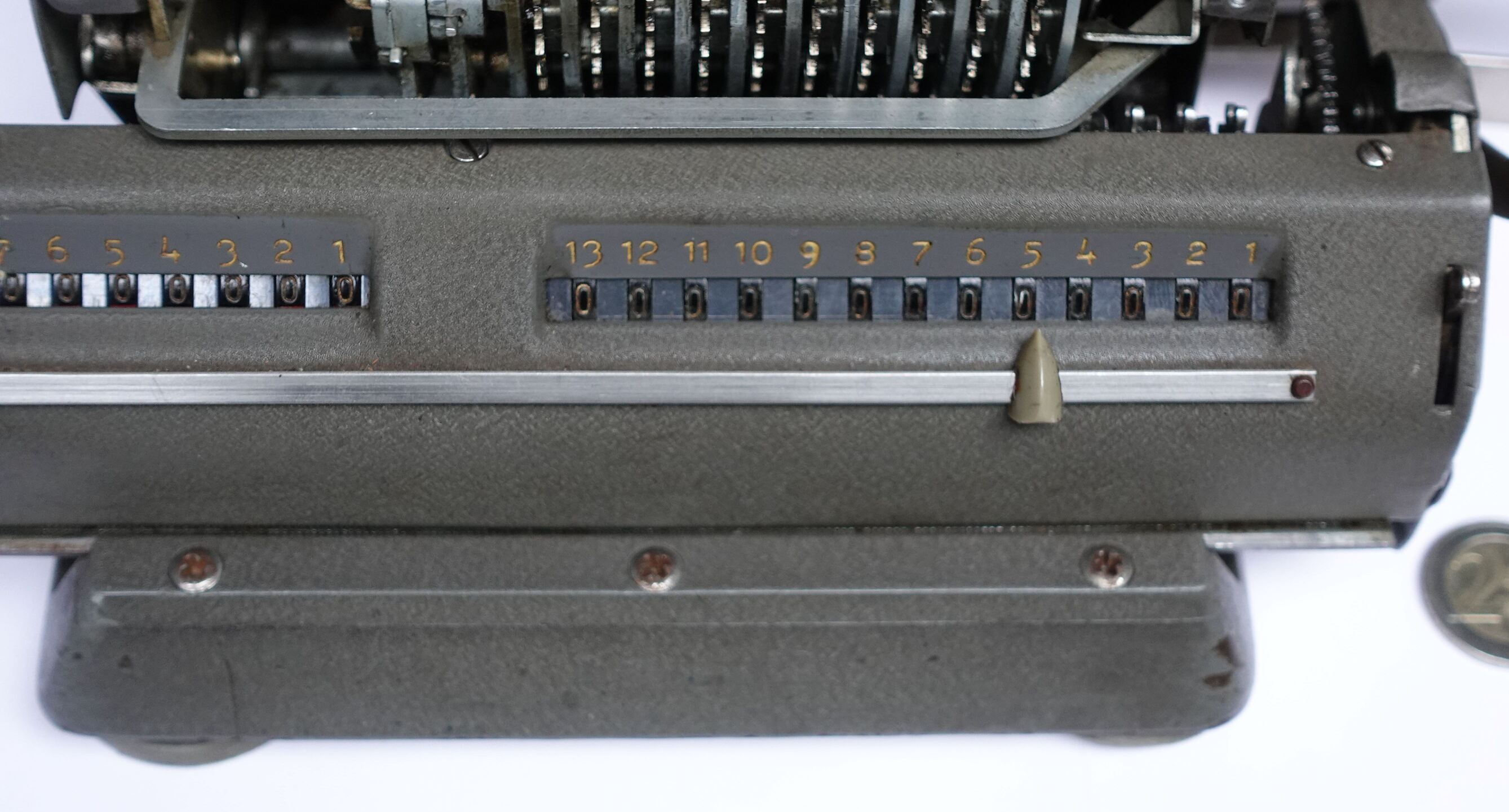

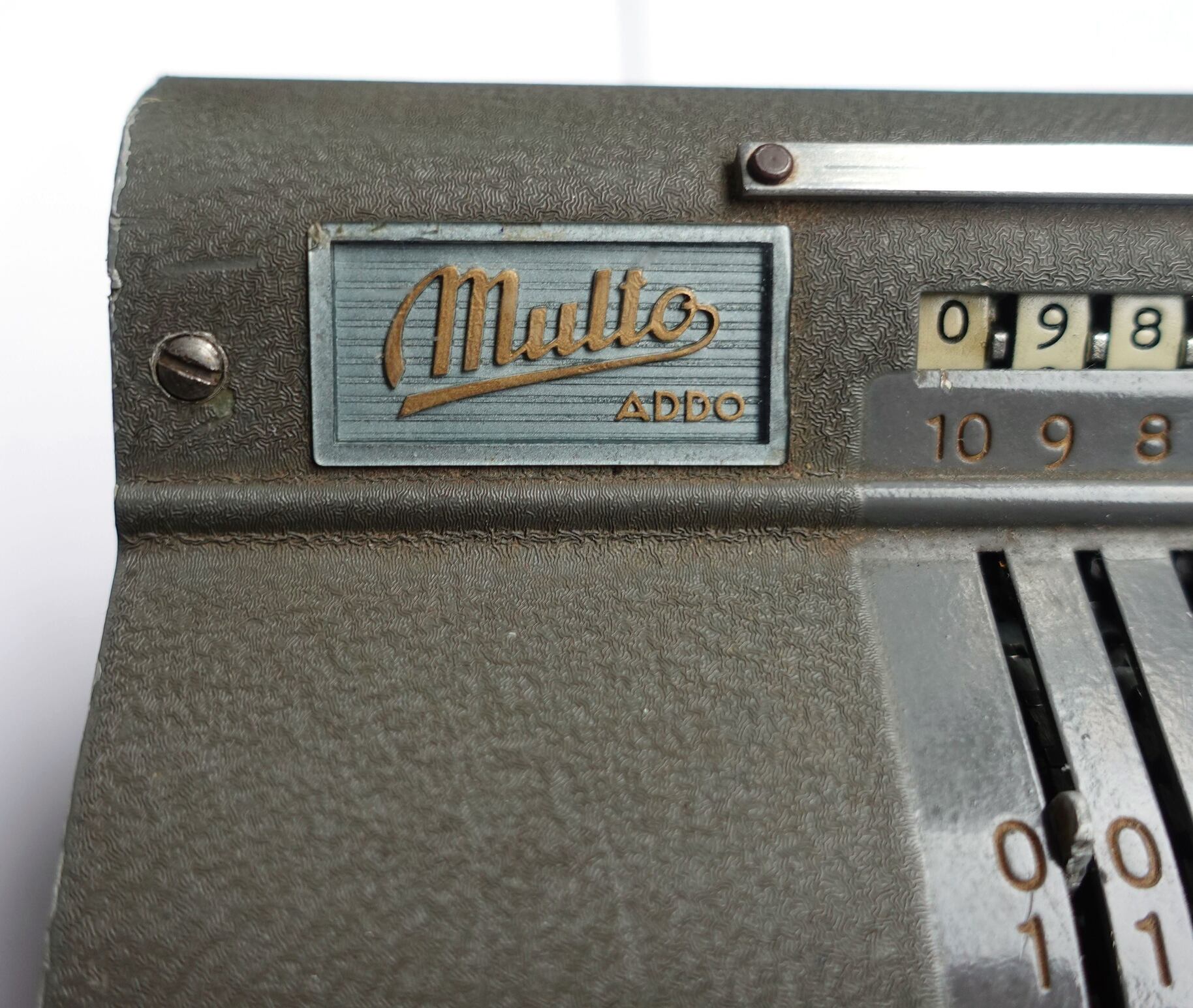

03 1949-1966?NNNAt first the case had green crinkle paint, with the logo painted on. The carriage return button was on the front of the base. In about 1952 or 1953 that button was moved to underneath the crank shaft. By 1955 the Multo logo was placed on a metal plaque instead of painted, and the paint was changed to a grey colour.
3 1949-1966YNN
13 1949-1966YYN
1031949-1966YNY
1131949-1966YYY
15 1966-1970NYYRebadged Odhner 229
1151966-1970YYYRebadged Odhner 239

Apparently a model 23 was announced as a replacement for model 13, but it seems not to have materialised.


Manuals

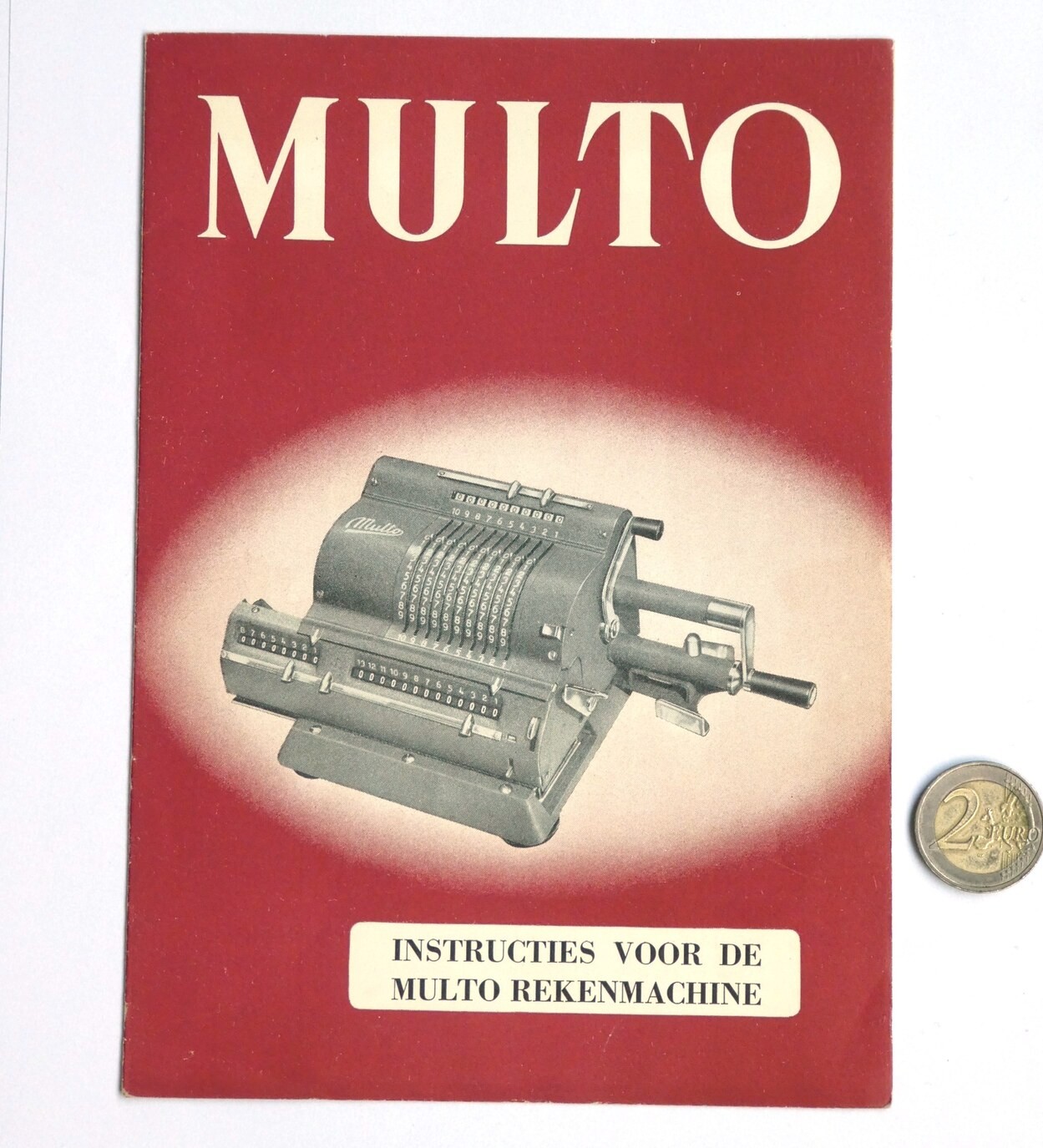

Multo Instructies voor de Multo Rekenmachine    (PDF, 3.70 MB or archive.org)
A.B. Addo
1953?
8 page folded leaflet
149mm × 210mm

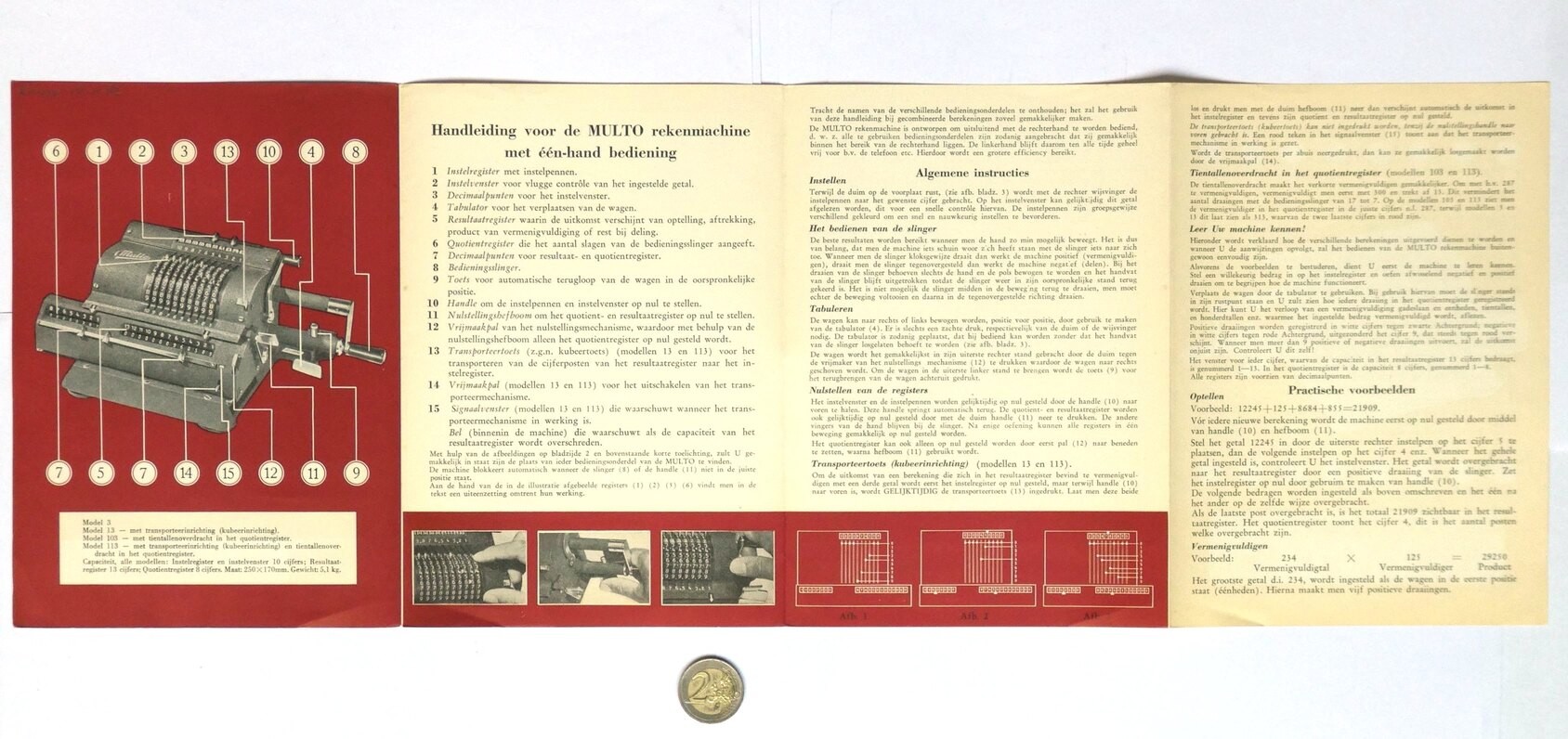

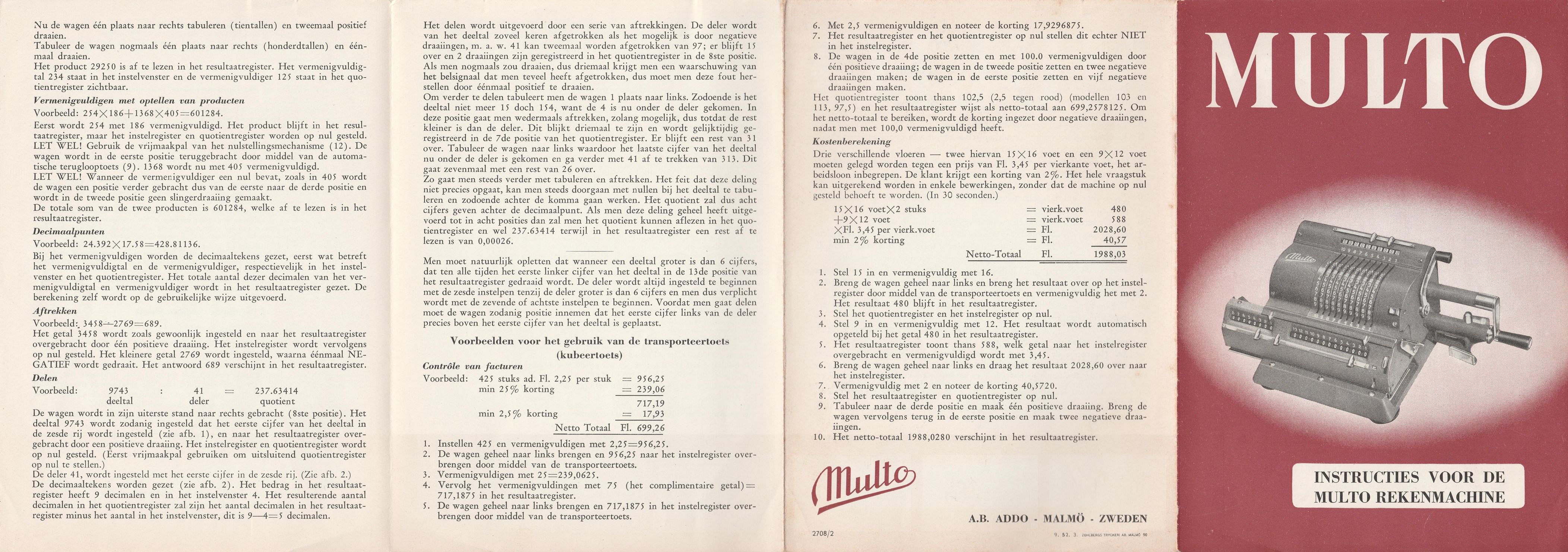

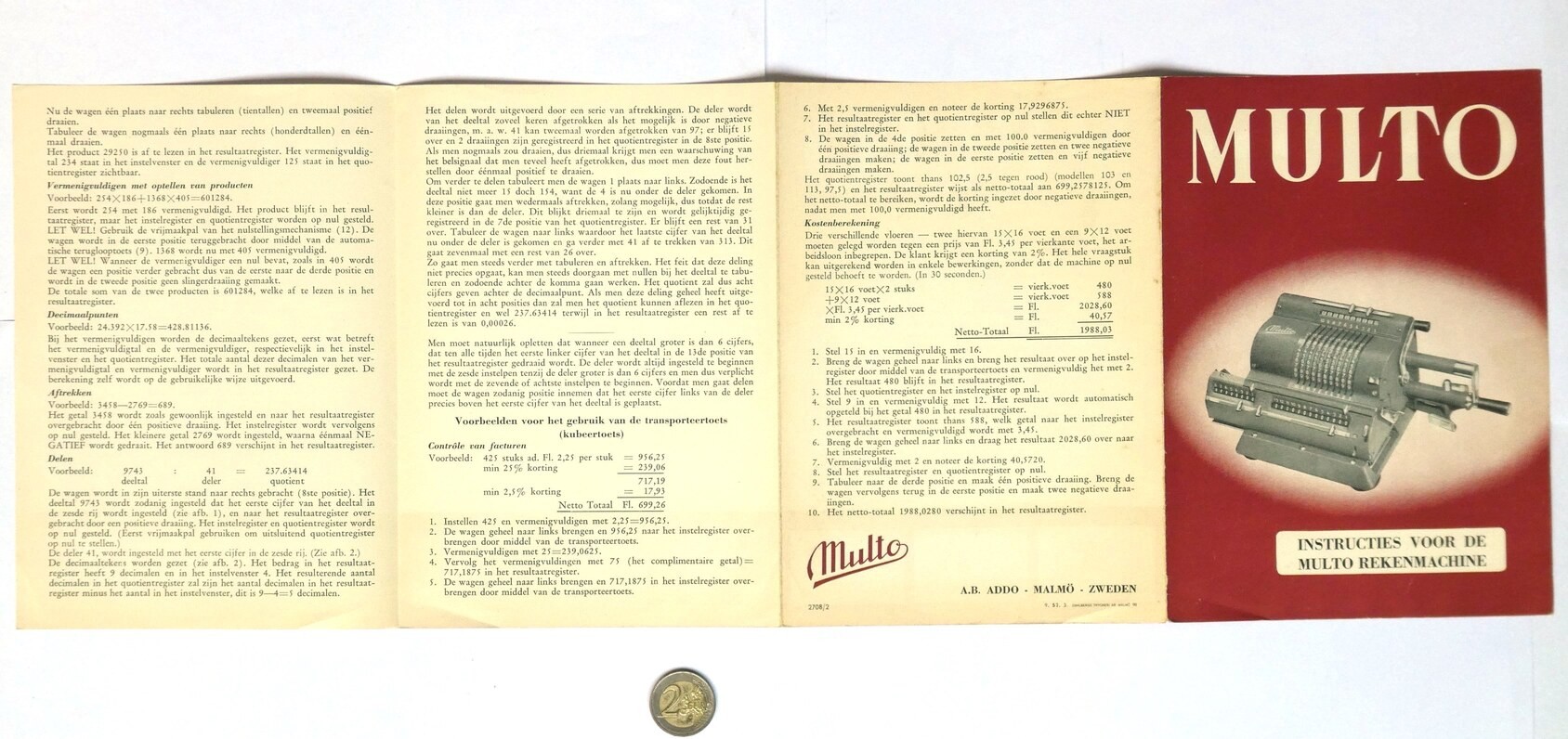

This is the Dutch instruction leaflet for the Multo models 3, 13, 103, and 113. It has no copyright date.

Multo instruction leaflet
Multo instruction leaflet
Multo instruction leaflet
Multo instruction leaflet
Multo instruction leaflet



Paraphernalia

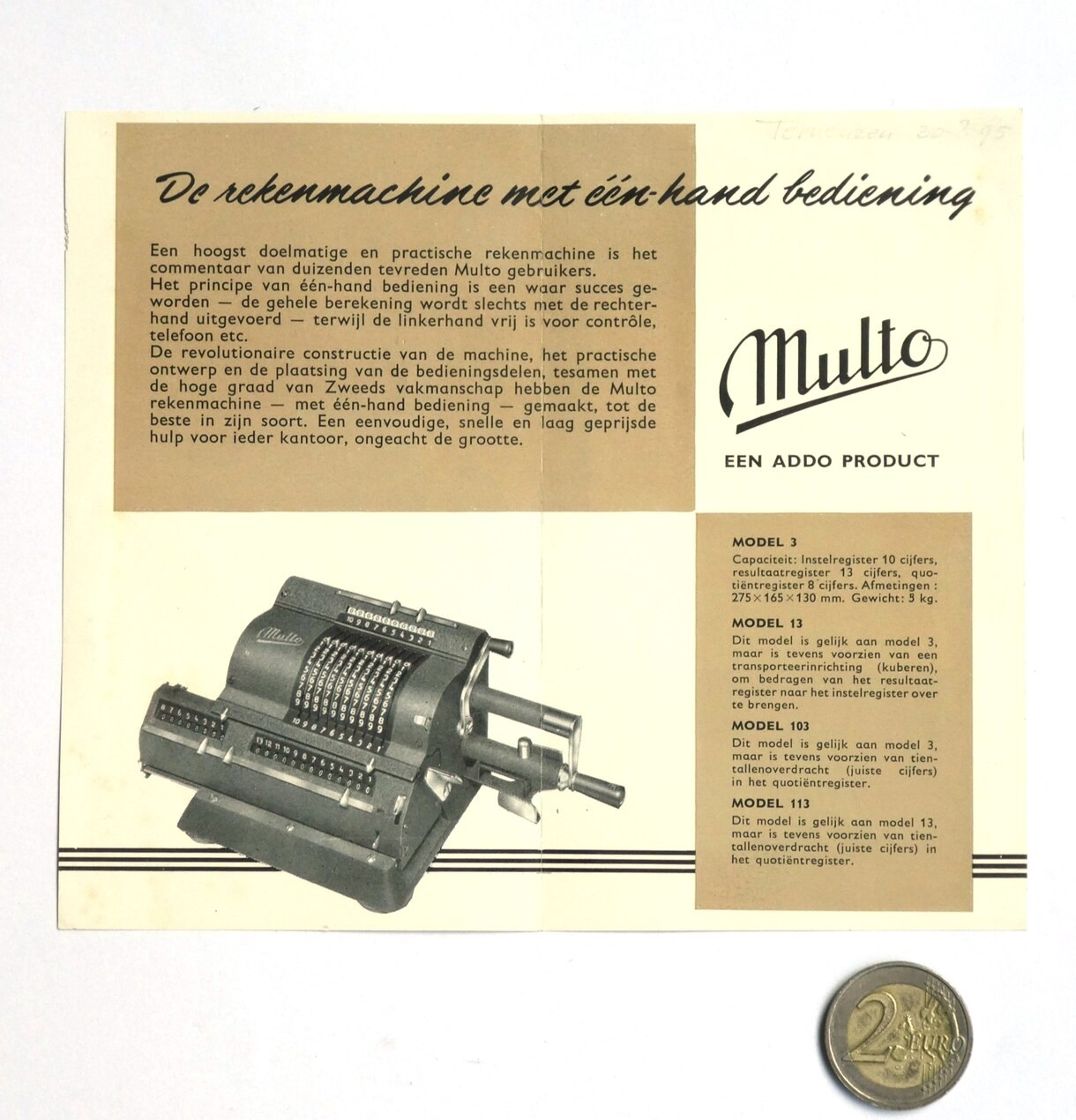

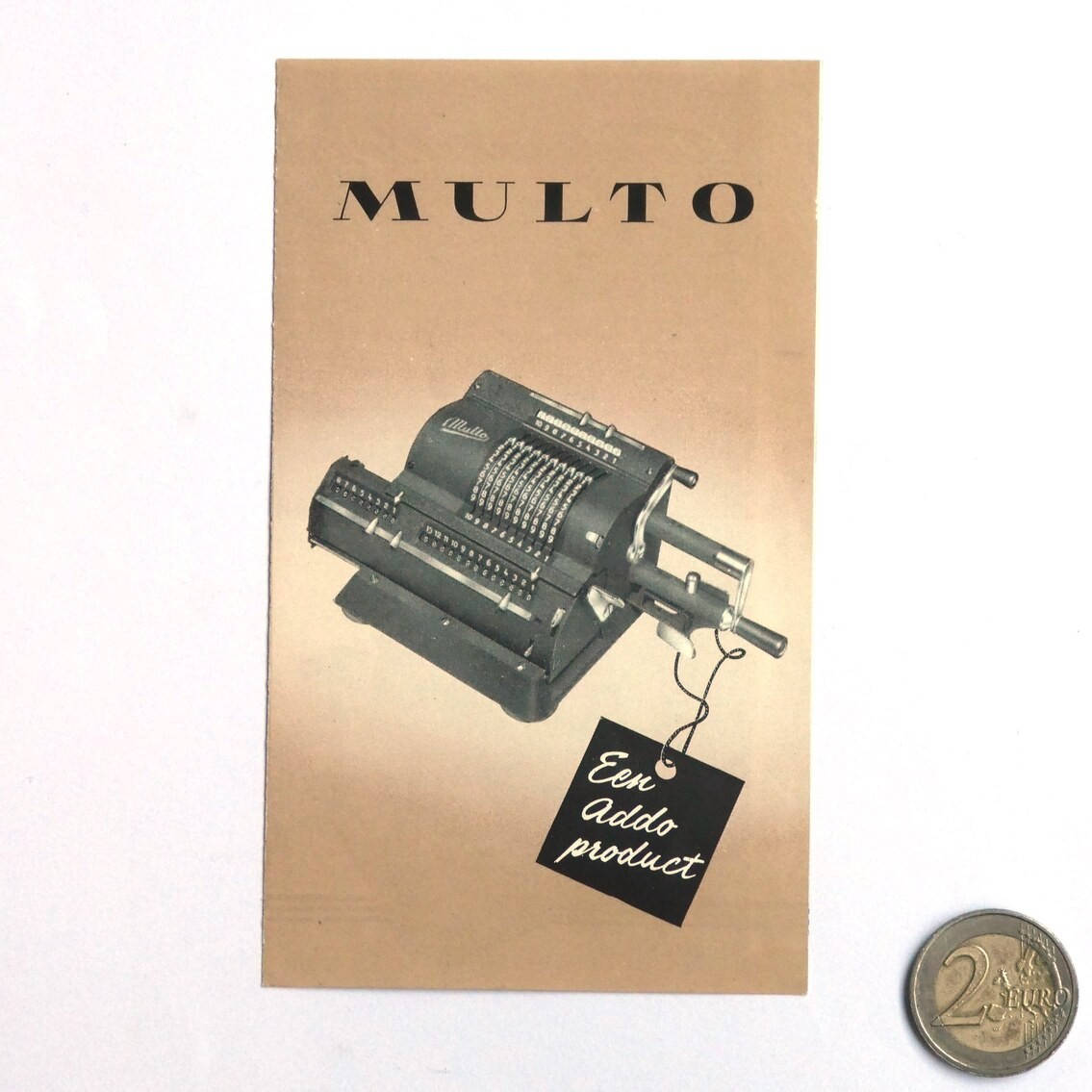

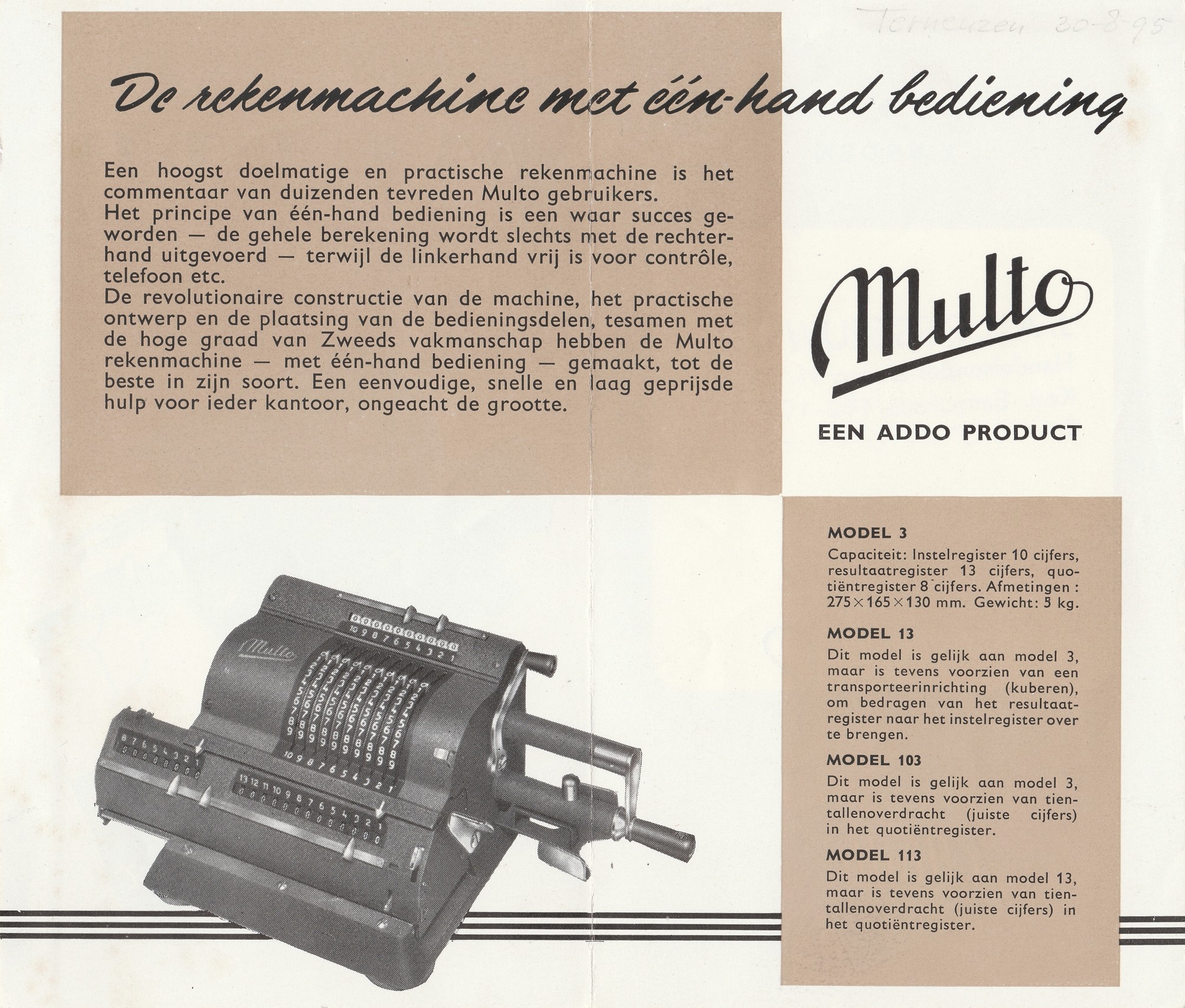

Multo advertising leaflet
A.B. Addo
1953?
Folded leaflet
8mm × 145mm

This small folded leaflet is in Dutch and advertises the Multo models 3, 13, 103, and 113.

Multo advertising leaflet
Multo advertising leaflet
Multo advertising leaflet
Multo advertising leaflet
Multo advertising leaflet



Advertisements

Here are various ads for Multo calculators.

1950-02-28 Western Mail (Cardiff, Wales)
1950-04 Business
1950-07-20 Western Mail (Cardiff, Wales)
1950-09 Business
1950-09-30 De Maasbode
1950-10-14 Algemeen Handelsblad
1951-08 Office Appliances
1951-12 Business
1951-12-15 De Volkskrant
1951-12-29 Het Parool
1952-01-12 De Volkskrant
1952-04 The Office
1955-05-28 Algemeen Handelsblad
1955-06-11 Algemeen Handelsblad
1955-09-03 Alegmeen Handelsblad
1956-06-11 The News and Observer (Raleigh, North Carolina)


Patents

Here are some of the patents or the Multo.

PatentFiling datePublish dateNameDescription
CH 258,35116-07-194702-05-1949Aktiebolaget AddoClearing selection switch
See also: US 2,521,799
CH 258,35216-06-194702-05-1949Aktiebolaget AddoCounter carry mechanism
CH 258,88716-06-194701-06-1949Aktiebolaget AddoCalculator
