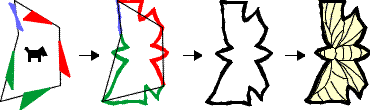

The template for the IH21 system is any pentagon with one pair of equal adjacent sides making an angle of 120° with one another and another equal, adjacent pair at 60° to one another, as shown below . All four sides can be shaped, as indicated by the half-arrows. The template and any tile shape formed from it have no internal symmetry as indicated by the dog. An example of a template is
A translation cluster is

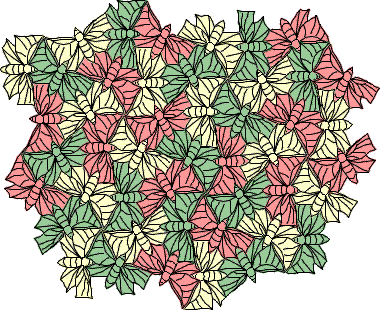

A section of the tiling formed from this template is also shown below, with a translation cluster outlined. The two basic translations are indicated by the vectors drawn from the highlighted cluster. The tiling has three types of centres of rotation symmetry, one of two-fold, one of three-fold and another of six-fold rotation. An example of each is indicated. The tiling symmetry group is p6.
|
|
