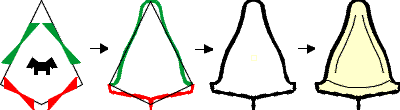

The template for the IH69 system is any quadrilateral with two adjacent sides equal to one another and with the other two adjacent sides also equal, thus forming a kite or arrowhead shaped figure. An example of each is shown below. All sides of the quadrilateral can be shaped as indicated by the half-arrows. The template and any tile shape formed from it have an axis of internal reflection symmetry as indicated by the dog pattern. An example of a template is
A translation cluster, based on the kite shaped template is

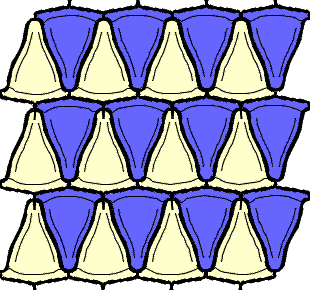

A section of the tiling formed by this same template is shown below, with a translation cluster outlined. The two basic translations are indicated by the the vectors drawn from the highlighted cluster. The tiling two different centres of two-fold rotational symmetry, as well as two different types of axes of glide and one of mirror reflection symmetry. An example of each of is indicated. The tiling symmetry group is pmg.
|
