The template for the IH77 system is a right-angled triangle with other angles of 60° and 30° as shown below. None of the three sides can be shaped. The template and its associated tile have no internal symmetry as indicated by the dog pattern.

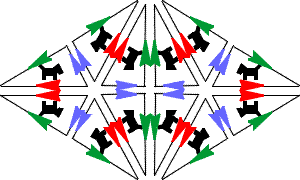

A translation cluster is

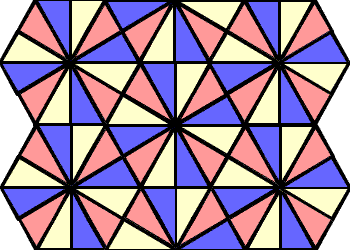

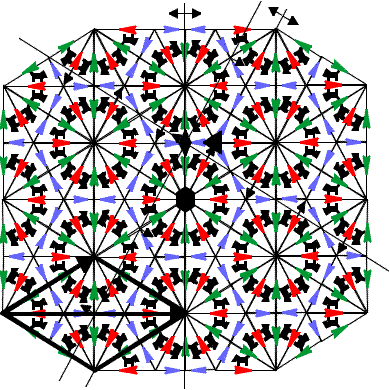

A section of the tiling formed by this template is also shown below, with a translation cluster outlined. The two basic translations are indicated by the vectors drawn from the highlighted cluster. The tiling has three centres of rotation symmetry, one two-fold, one of three-fold and one of six-fold, as well as two axes of mirror and two of glide reflection symmetry. An example of each is indicated. The tiling symmetry group is p6m.
|
